Flat tire
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizeable objects.One collapsible wheel chock is includ-
ed with the vehicle tool kit
(
page 448). For information on set-
ting up the collapsible wheel chock,
see (
page 452).
Changing wheel on a level surface
Changing rear wheel on passenger side
(Example illustration)
Place the wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.
Changing wheel on a slight decline
Always try lifting the vehicle using the jack
on a level surface. However, should
circumstances require you to do so on a
slight decline, place the wheel chock and
another sizeable object as follows:
Changing wheel on passenger side
(Example illustration)
Always firmly set parking brake and block
wheels with wheel chocks or other sizeable
objects before raising vehicle with jack. Do
not disengage parking brake while the vehi-
cle is raised.
Make sure that the ground on which the ve-
hicle is standing and where you place the
jack is solid, level and not slippery. If neces-
sary, use a large underlay. On slippery sur-
faces, such as tiled floors, you should use a
non-slip underlay, for example a rubber mat.
Do not use wooden blocks or similar objects
to support the jack. Otherwise the jack may
not be able to achieve its load-bearing ca-
pacity if it is not at its full height.
Never start the engine when the vehicle is
raised.
Also observe the notes on the jack.
Warning!G
Only jack up the vehicle on level ground or
on slight inclines/declines. Otherwise, the
vehicle could fall off the jack and injure you
or others.


481 Practical hints
Flat tire
Place wheel chock (or another sizeable
object) in front of both wheels on the
side opposite to the side on which the
wheel is to be changed.
Changing wheel on a slight incline
Always try lifting the vehicle using the jack
on a level surface. However, should
circumstances require you to do so on a
slight incline, place the wheel chock and
another sizeable object as follows:
Changing wheel on passenger side
(Example illustration)
Place wheel chock (or another sizeable
object) behind both wheels on the side
opposite to the side on which the wheel
is to be changed.
1Wheel wrench
On wheel to be changed, loosen but do
not yet remove the wheel bolts
(approximately one full turn with wheel
wrench1).The jack take-up brackets are located
directly behind the front wheel housings
and in front of the rear wheel housings as
indicated by the arrows.

482 Practical hints
Flat tire
Depending on production date, your vehi-
cle may be equipped with either a
screw-type vehicle jack or a scissors-type
jack, see “Vehicle jack” (
page 450).
Screw-type jack
2Take-up bracket
3Jack
4Crank
Scissors-type jack
2Take-up bracket
3Jack
4Ratchet
Vehicles with scissors-type jack:
Attach reversible ratchet4 to vehicle
jack in such a way that the wordUP
can be seen.
Place jack3 on firm ground.
Position jack3 under the take-up
bracket2 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.
Warning!G
The jack is designed exclusively for
jacking up the vehicle at the jack take-up
brackets. Make sure the jack arm is fully
seated in the jack take-up bracket.
If you do not position the jack correctly in
the jack take-up bracket, the vehicle can:

fall off the jack

seriously or fatally injure you or others
!Do not position the jack on the body of the
vehicle, as this may cause damage to the
vehicle.
!Depending on vehicle production date your
vehicle may be equipped with a scissors-type
jack (located under the cargo compartment
floor). If so equipped, only use this jack when
jacking up the vehicle as otherwise the vehicle’s
underbody can be damaged. See separate
instructions for scissors-type jack.

483 Practical hints
Flat tire
Screw-type jack (example illustration)
Scissors-type jack (example illustration)
Vehicles with screw-type jack: Turn
crank4 clockwise until jack3 is fully
seated in take-up bracket2 and the
jack base evenly meets the ground.
Vehicles with scissors-type jack:
Turn ratchet4 up and down until
jack3 is fully seated in take-up
bracket2 and the jack base evenly
meets the ground.
Continue to turn crank/ratchet4
until the wheel is a maximum of 1.2 in
(3 cm) from the ground.Removing the wheel
1Alignment bolt
Unscrew upper-most wheel bolt and
remove it.
Replace this wheel bolt with alignment
bolt1 supplied with the tool kit
(
page 448).
Remove the remaining wheel bolts.
Remove the wheel.
!Do not place wheel bolts in sand or dirt. This
could result in damage to the bolts and wheel
hub threads.

484 Practical hints
Flat tire
Mounting the new wheel
1Wheel bolt for 18", 19" and 20" light
alloy wheels and collapsible tire (AMG
vehicles)
2Wheel bolt for 17" light alloy wheels or
Minispare wheel (located in vehicle tool
kit (
page 448))
Clean contact surfaces of wheel and
wheel hub.
Guide spare wheel onto the alignment
bolt and push it on the wheel hub.
Insert wheel bolts and tighten them
slightly.
Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.
!Wheel bolts2 must be used when mount-
ing 17" light alloy rims or the Minispare wheel.
The use of any wheel bolts other than wheel
bolts2 for 17" light alloy rims or the Minispare
wheel will damage the vehicle’s brakes.
!To avoid paint damage, place wheel flat
against hub and hold it there while installing first
wheel bolt.
Warning!G
Always replace wheel bolts that are
damaged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be
repaired immediately. Do not continue to
drive under these circumstances! Contact
an authorized Mercedes-Benz Light Truck
Center or call Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure to use the correct wheel bolts.
Warning!G
Only use genuine Mercedes-Benz wheel
bolts. Other wheel bolts may come loose.
Do not tighten the wheel bolts when the
vehicle is raised. Otherwise the vehicle
could fall off the jack.

485 Practical hints
Flat tire
Inflating the collapsible tire
(ML 63 AMG only)
Take the electric air pump out of the
cargo compartment (
page 454).
Electric air pump
1Flap
2On/off switch
3Electrical plug
4Air hose with pressure gauge and vent
screw
5Union nut
Open flap1 on electric air pump.
Pull out electrical plug3 and air hose
with pressure gauge4.
Remove the valve cap from the
collapsible tire valve.
Screw union nut5 onto the
collapsible tire valve.
Insert electrical plug3 into a power
outlet (
page 287).
Turn the SmartKey in the starter switch
to position1.
or
Vehicles with KEYLESS-GO*:
Press the KEYLESS-GO start/stop
button once without depressing the
brake pedal.
Press I on electric air pump switch2.
The electric air pump should now
switch on and inflate the collapsible
tire.
Warning!G
Inflate collapsible tire only after the wheel is
properly mounted.
Inflate the collapsible tire using the electric
pump (
page 485) before lowering the
vehicle.
Warning!G
Observe instructions on air pump label.
!Do not lower the vehicle before inflating the
collapsible tire. Otherwise the rim may be dam-
aged.
!The cigarette lighter* (page 285) or the
power outlet in the front center console
(
page 288) is not designed for use with the
electric air pump. Use the power outlet in the
rear center console or in the cargo compartment
(
page 288) for electric air pump operation.


486 Practical hints
Flat tire
Inflate the collapsible tire to the recom-
mended tire inflation pressure given in
the “Technical data” section
(
page 515).
This takes about 5 minutes for the col-
lapsible tire.
Press 0 on electric air pump switch2.
Turn the SmartKey in the starter switch
to position0.
or
Vehicles with KEYLESS-GO*:
Press the KEYLESS-GO start/stop
button twice without depressing the
brake pedal.
If the tire inflation pressure is above
the recommended tire inflation pres-
sure given in this Operator’s Manual,
release excess tire inflation pressure
using the vent screw.
Detach the electric air pump.
Store the electrical plug and the air
hose behind the flap and place the
electric air pump back in the cargo
compartment.
Warning!G
Air hose4 and union nut5 can become
hot during inflation. Exercise proper caution
to avoid burning yourself when using the
equipment.
!Do not operate the electric air pump longer
than 8 minutes without interruption. Otherwise it
may overheat.
You may operate the electric air pump again
after it has cooled off.
!Please compare the recommended tire
inflation pressure for your vehicle with the tire
inflation pressure on the yellow label located on
the spare wheel rim.
If the tire inflation pressure on the yellow label
on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the tire to
the recommended tire inflation pressure given
on the yellow label on the spare wheel rim.Warning!G
Follow recommend inflation pressures.
Do not overinflate tires. Overinflated tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.


487 Practical hints
Flat tire
Lowering the vehicle
Vehicles with scissors-type jack:
Attach ratchet to vehicle jack in such a
way that the wordDOWN can be seen.
Lower the vehicle until its resting fully
on its own weight.
Vehicles with screw-type jack:
Turn crank counterclockwise.
Vehicles with scissors-type jack:
Turn ratchet in Direction of DOWN.

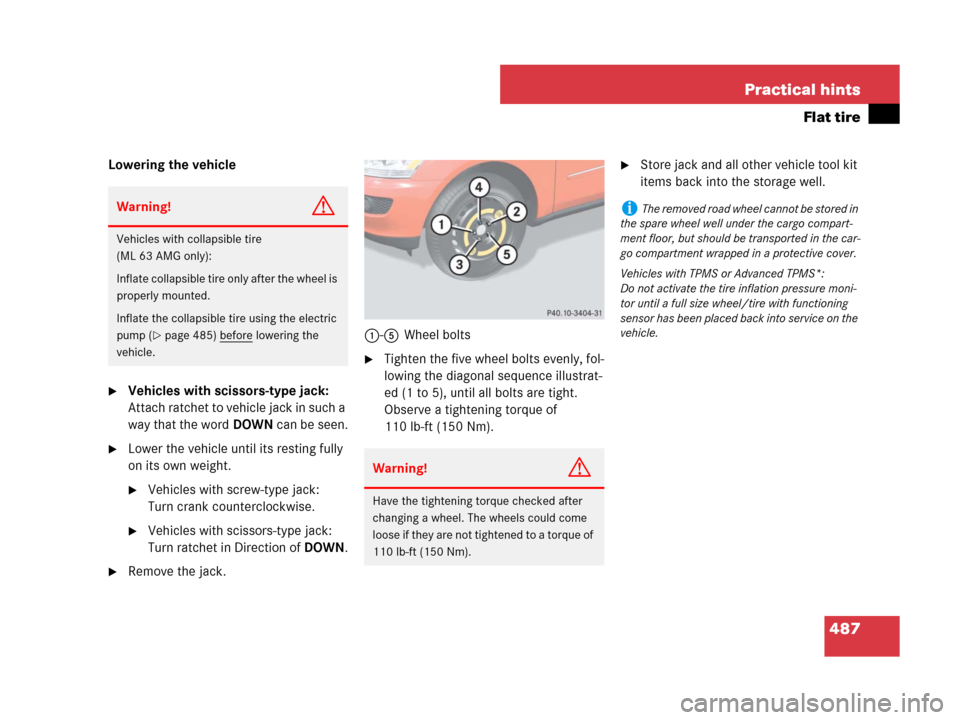

Remove the jack.1-5Wheel bolts
Tighten the five wheel bolts evenly, fol-
lowing the diagonal sequence illustrat-
ed (1 to 5), until all bolts are tight.
Observe a tightening torque of
110 lb-ft (150 Nm).
Store jack and all other vehicle tool kit
items back into the storage well.
Warning!G
Vehicles with collapsible tire
(ML 63 AMG only):
Inflate collapsible tire only after the wheel is
properly mounted.
Inflate the collapsible tire using the electric
pump (
page 485) before lowering the
vehicle.
Warning!G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
110 lb-ft (150 Nm).
iThe removed road wheel cannot be stored in
the spare wheel well under the cargo compart-
ment floor, but should be transported in the car-
go compartment wrapped in a protective cover.
Vehicles with TPMS or Advanced TPMS*:
Do not activate the tire inflation pressure moni-
tor until a full size wheel/tire with functioning
sensor has been placed back into service on the
vehicle.

488 Practical hints
Bleeding the fuel system (diesel engine only)
Driving the vehicle until the fuel tank is
empty is not recommended. Otherwise, air
may be sucked into the fuel system. If this
happens, the? malfunction indicator
lamp (USA only) or the± malfunction
indicator lamp (Canada only) comes on
and the engine may not start immediately
after refueling the vehicle.
After refueling:
Make sure the automatic transmission
is set toP.
The gear position indicator in the multi-
function display should be on
P.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position 2 for at least 10 seconds
(
page 40).
Return the SmartKey in the starter
switch to position 0 (
page 40).
Turn the SmartKey in the starter switch
to position3 (
page 40) and hold it
there for a maximum of 40 seconds or
until the engine runs surge-free.
If the engine does not start:
Wait for approximately 2 minutes.
Turn the SmartKey in the starter switch
to position3 (
page 40) and hold it
there for a maximum of 40 seconds or
until the engine runs surge-free.
If the engine still does not start, do not
make any further attempts to start the
engine. Contact an authorized
Mercedes-Benz Light Truck Center or call
Roadside Assistance (
page 298).iVehicles with KEYLESS-GO*: If necessary,
remove the KEYLESS-GO start/stop button from
the starter switch (
page 40).iWhen the ?malfunction indicator lamp
(USA only) or the ±malfunction indicator
lamp (Canada only) has been illuminated for the
above condition, it will remain illuminated until
the engine was cycled on and off four times in a
row.

489 Practical hints
Battery
Battery
The battery is located under the front
passenger seat.
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more
frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Light Truck
Center about steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
iMercedes-Benz recommends to have the
battery replaced at an authorized
Mercedes-Benz Light Truck Center.
Warning!G
Observe all safety instructions and precau-
tions when handling automotive batteries.
Risk of explosion.
Fire, open flames and smoking
are prohibited when handling
batteries. Avoid creating sparks.
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
Wear suitable protective cloth-
ing, especially gloves, apron and
faceguard.
Wear eye protection.
Rinse any acid spills immediate-
ly with clear water. Contact a
physician if necessary.
Keep children away.
Follow the instructions in this
Operator’s Manual.
