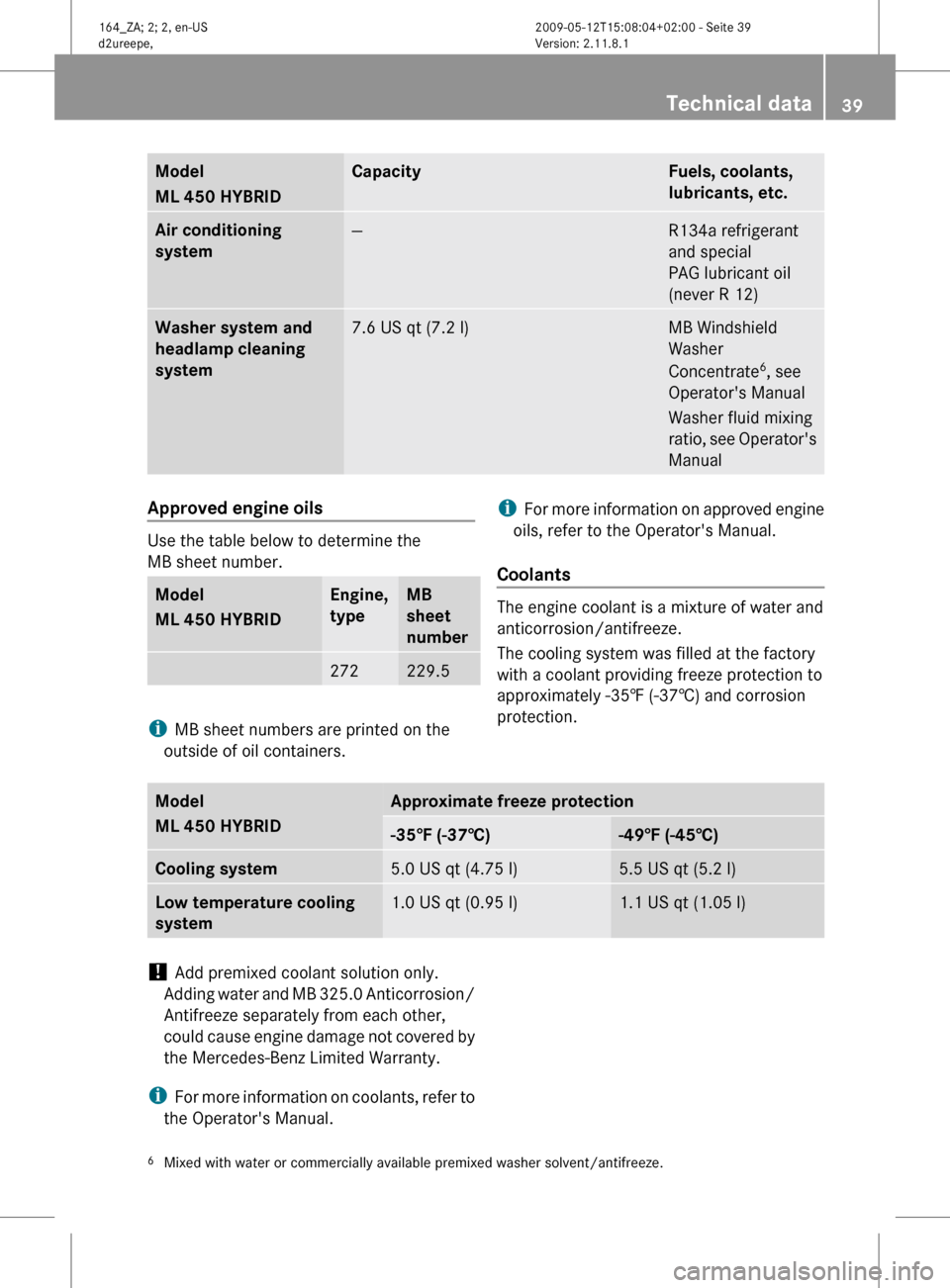

MERCEDES-BENZ ML450 HYBRID 2010 W164 Service Manual

Model
ML 450 HYBRID Capacity Fuels, coolants,
lubricants, etc.
Air conditioning
system
— R134a refrigerant
and special
PAG lubricant oil
(never R 12)
Washer system and
headlamp cleaning
system
7.6 US qt (7.2 l) MB Windshield
Washer
Concentrate
6
, see
Operator's Manual
Washer fluid mixing
ratio,
see Operator's
Manual Approved engine oils
Use the table below to determine the
MB sheet number.
Model
ML 450 HYBRID Engine,
type MB
sheet
number
272 229.5
i
MB sheet numbers are printed on the
outside of oil containers. i
For
more information on approved engine
oils, refer to the Operator's Manual.
Coolants The engine coolant is a mixture of water and
anticorrosion/antifreeze.
The cooling system was filled at the factory
with a coolant providing freeze protection to
approximately -35‡ (-37†) and corrosion
protection.
Model
ML 450 HYBRID Approximate freeze protection
-35‡ (-37†) -49‡ (-45†)
Cooling system
5.0 US qt (4.75 l) 5.5 US qt (5.2 l)
Low temperature cooling
system
1.0 US qt (0.95 l) 1.1 US qt (1.05 l)
!
Add premixed coolant solution only.
Adding

water and MB 325.0 Anticorrosion/
Antifreeze separately from each other,
could cause engine damage not covered by
the Mercedes-Benz Limited Warranty.
i For more information on coolants, refer to
the Operator's Manual.
6 Mixed with water or commercially available premixed washer solvent/antifreeze. Technical data
39164_ZA; 2; 2, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-12T15:08:04+02:00 - Seite 39 Z

40 164_ZA; 2; 2, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-12T15:08:04+02:00 - Seite 40

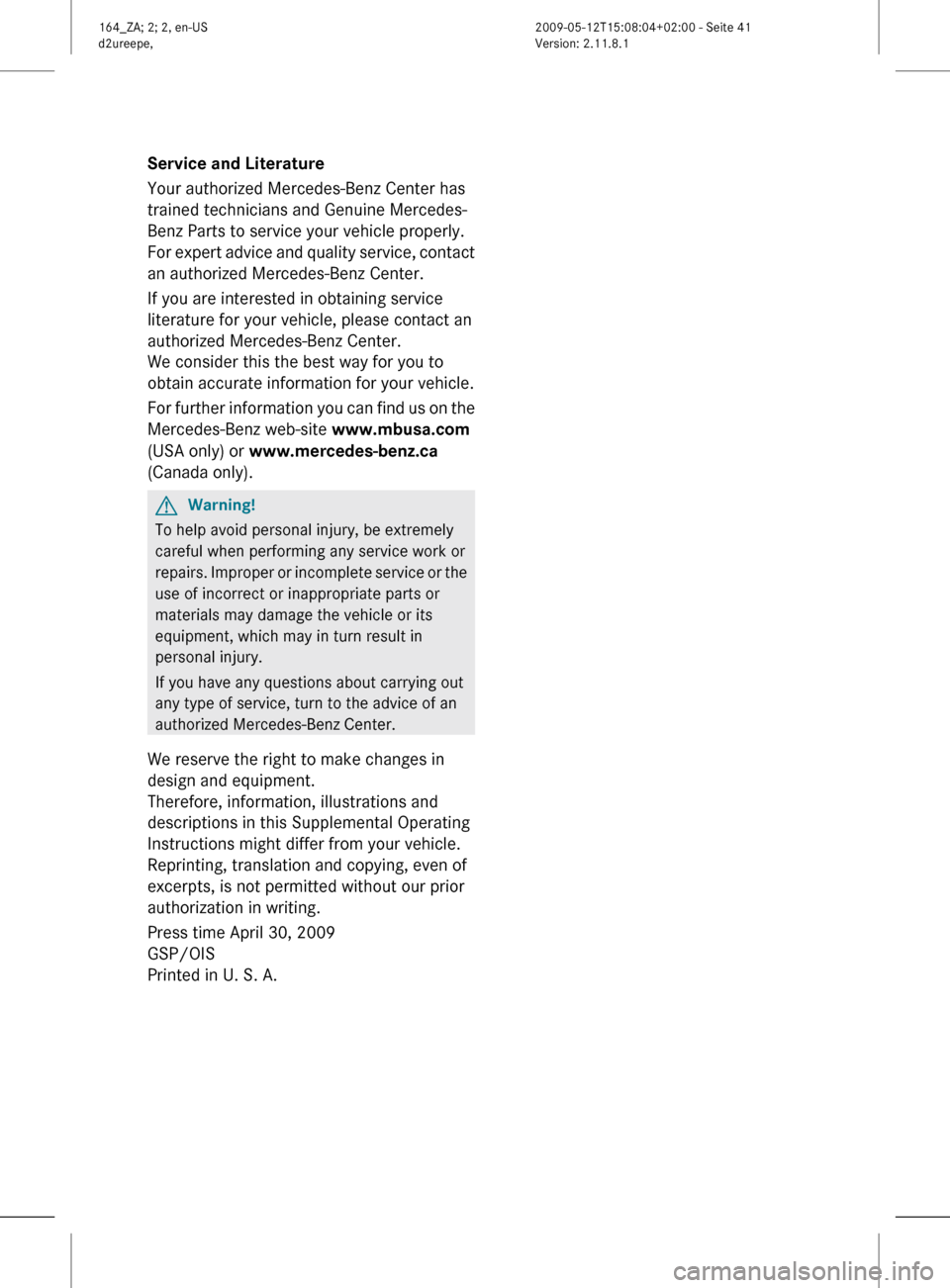

Service and Literature
Your authorized Mercedes-Benz Center has
trained technicians and Genuine Mercedes-
Benz Parts to service your vehicle properly.
For
expert advice and quality service, contact
an authorized Mercedes-Benz Center.
If you are interested in obtaining service
literature for your vehicle, please contact an
authorized Mercedes-Benz Center.
We consider this the best way for you to
obtain accurate information for your vehicle.
For further information you can find us on the
Mercedes-Benz web-site www.mbusa.com
(USA only) or www.mercedes-benz.ca
(Canada only). G
Warning!
To help avoid personal injury, be extremely
careful when performing any service work or
repairs.

Improper or incomplete service or the
use of incorrect or inappropriate parts or
materials may damage the vehicle or its
equipment, which may in turn result in
personal injury.
If you have any questions about carrying out
any type of service, turn to the advice of an
authorized Mercedes-Benz Center.
We reserve the right to make changes in
design and equipment.
Therefore, information, illustrations and
descriptions in this Supplemental Operating
Instructions might differ from your vehicle.
Reprinting, translation and copying, even of
excerpts, is not permitted without our prior
authorization in writing.
Press time April 30, 2009
GSP/OIS
Printed in U. S. A.
164_ZA; 2; 2, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-12T15:08:04+02:00 - Seite 41

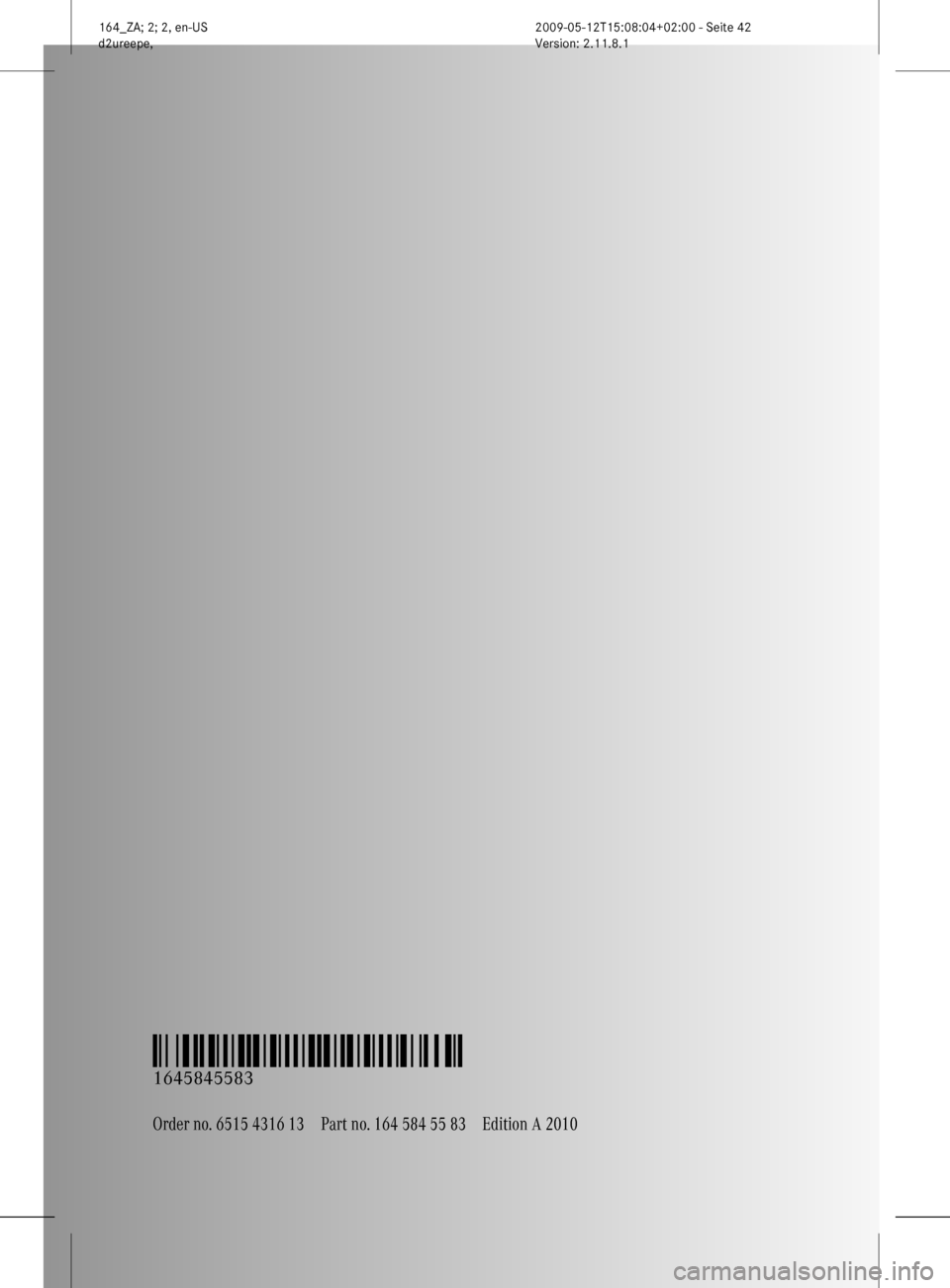

Order no. 6515 4316 13Part no. 164 584 55 83Edition A 2010
É1645845583BËÍ
1645845583
