MERCEDES-BENZ R-Class 2006 W251 Comand Manual

59 Audio
CD changer* operation
The following options are available:
Ejecting one CD
Ejecting all CDs (page 60)
Ejecting one CD
1CD changer* release button
2CD slot
3Magazine compartement buttons
Access the CD changer* (page 56).
Briefly press the appropriate magazine
compartment button 3.
The button LED 3 flashes red. The CD
changer* ejects the CD.
Within 15 seconds, remove the CD
from the slot 2.
The CD will be pulled in again if it is not
removed from the slot within approx.
15 seconds. The system starts playing
the CD again.
The ejection process is completed.
Retract the CD changer* (page 56).
i
If, for example, only compartments 1
through 4 are to be loaded instead of
all six compartments, simply do not
insert the fifth CD into the slot 2. The
CD changer* attempts to load the fifth
CD, yet aborts the loading procedure.
The system automatically plays the last
(fourth) CD.
Ejecting CDs

60 Audio
CD changer* operation
Ejecting all CDs
1CD changer* release button
2CD slot
3Magazine compartement buttons
Access the CD changer* (page 56).
Press and hold the button of a loaded
magazine compartment 3 for more
than 2 seconds.
The button LEDs of all loaded magazine
compartments will briefly flash red,
several times.
The CD changer* ejects the CDs one
after another.
Within 15 seconds, remove each CD
from the slot 2.
The CD will be pulled in again if it is not
removed from the slot within
approx.15 seconds. The system starts
playing the CD again.
The ejection procedure is completed
when all CDs are removed, or when the
procedure is aborted by the CD
changer*.
Retract the CD changer* (page 56).
i
If you are listening to a CD in the CD
changer* and you eject another CD
from the changer:
While ejecting the CD, the system
interrupts CD playback.
The CD you were last listening to
starts from the beginning once the
ejection procedure is completed.
If you eject the CD you are currently
listening to:
The next available audio CD is
played.
If there are no other CDs available,
the system switches to the audio
source listened to before CD
changer* mode.

61 Audio
CD operation

CD operation
Playback locations for audio CDs are:
the CD drive in the COMAND
the CD changer*.
CD drive
CD changer*
In the Audio menu (page 42), press
the
CD or theCD soft key.
CD changer* main menu
1CD number or name of the CD currently
playing
2Track number or name of the track
currently playing
3CD - CD changer*
CD - CD drive
Actual track number/max. track
number on CD and elapsed playback
time
4Symbol for inserted CD
Switching to CD operation
i
The CD drive is located behind of the
display unit (
page 54).
i
The CD changer* can accomodate up
to 6 audio CDs. The CD changer* is
located in the glove box.
If a CD changer* is connected to the
COMAND, the
CD soft key is
available.
i
The Magaz. soft key is only assigned
when the CD changer* is active.
If the CD changer* has already read the
CDs, the Magazine menu will appear
(
page 64) when you press the
Magaz. soft key.

62 Audio
CD operation
CD drive
Activate the Audio menu (page 42).
Press the CD soft key.
The CD main menu is displayed.
If no audio CD has been inserted, the
message
No CD inserted will
appear.
Load an audio CD into the CD drive
(
page 53).
CD main menu
CD changer*
Activate the Audio menu (page 42).
Press the CD soft key.
The CD changer* main menu will
appear. The CD last played is played
back.
CD changer* main menu
If the last played CD is not available, the
next available audio CD is played back.
No CD in the CD changer*:
The message
Magazine empty will
appear.
Load audio CDs into the CD changer*
(
page 56).
Switching oni
The name of the CD and the name of
the track played are displayed if the
information is available.
i
The CD soft key is available if a CD
changer* is connected to the
COMAND.
i
The name of the CD and the name of
the track played are displayed if the
information is available.

63 Audio
CD operation
You can select a CD:
in the CD list (page 63)
with the number keypad (page 63)
in the magazine menu (page 64)
In the CD listThe CD list includes all loaded CDs. Only
one list entry is visible at a time.
The entry is displayed above the track
indication. It shows the number of the CD
currently playing.
Push the joystick to H or h to
select another CD from the list.
Loading CD is displayed.
After the CD is loaded, playback
begins.
With the number keypad
Selecting a CD (CD changer* only)
i
Selection is only possible if at least two
audio CDs have been loaded into the
changer.
i
The number keys 1 - 6 can be used
for direct selection.
Keys
1 - 6 magazine slots 1 to 6
of the CD changer*

64 Audio
CD operation
Press a number key, e.g. 2 to select
the corresponding CD.
Loading CD 2 is displayed.
The CD is changed. The selected CD is
played back.
The message
No CD will
appear if a selected slot is empty.
In the Magazine menu
Press the Magaz. soft key.
The Magazine menu is displayed.
Push the joystick to g or G to
select a CD.
Press E.
or
Press one of the number keys 1 to
6.
The CD is changed. The message
Loading CD will appear.You can select a track:
with g or h (page 64)
with the joystick (page 65)
with the number keypad (page 65)
with CD track scan (page 65)
With g or h
Activate the main CD menu
(
page 61).
Next track
Press h.
The next track is played.
i
The name of the CD instead of e.g. CD1
is displayed if the information is
available.
Track select

65 Audio
CD operation
Previous track or start of title (if more
than 10 seconds of playing time has
elapsed)
Press g.
Playback begins.
Select any desired track
Press g or h as many times as
necessary.
With the joystick
Push the joystick to g or G to play
the next or previous track.With the number keypad
Activate the CD main menu
(
page 62).
Press *.
An input line will appear in the CD main
menu.
1Number of tracks on CD corresponds
with the valid number range
2Input line
E.g.: Track 14.
Press 1 and 4 in short succession.
After entering the track number, wait
approximately 3 seconds.
The selected track is played. The CD
main menu is displayed.
CD track scan
The tracks on a CD can be scanned one
after the other for 8 seconds each. The
function will switch off automatically when
the starting track is reached. You can also
manually stop the scan function.
i
Entries higher than the number of
tracks available on the CD are not
possible.

66 Audio
CD operation
Activating
Press the Scan soft key.
Scan will begin.Ending the function
Scan search is running.
Press the Scan soft key.
or
Press E.
Playback will resume with the desired
track.Fast forward
Press and hold h for more than 2
seconds.
Fast reverse
Press and hold g for more than 2
seconds.
Ending the function
Release h or g.
Playback will resume.
i
When you start the scan function, the
playback mode
Normal sequence
(
page 69) is automatically activated.
Fast forward/reverse

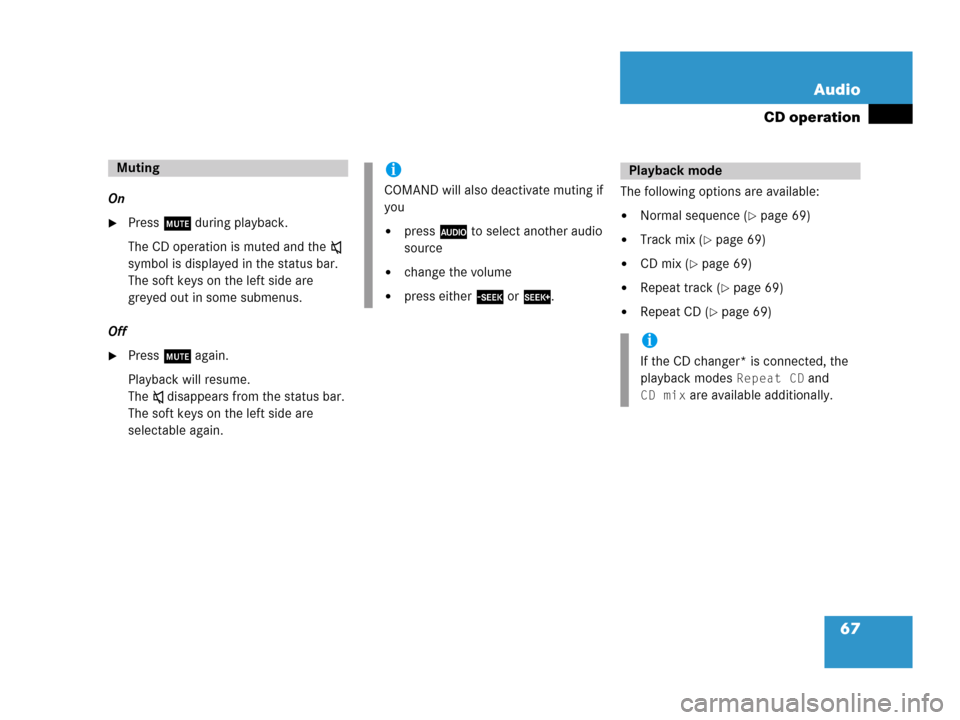

67 Audio
CD operation
On
Press J during playback.
The CD operation is muted and theß
symbol is displayed in the status bar.
The soft keys on the left side are
greyed out in some submenus.
Off
Press J again.
Playback will resume.
The ß disappears from the status bar.
The soft keys on the left side are
selectable again.The following options are available:
Normal sequence (page 69)
Track mix (page 69)
CD mix (page 69)
Repeat track (page 69)
Repeat CD (page 69)
Mutingi
COMAND will also deactivate muting if
you
press A to select another audio
source
change the volume
press either g or h.
Playback mode
i
If the CD changer* is connected, the
playback modes
Repeat CD and
CD mix are available additionally.

68 Audio
CD operation
Activating playback mode
E.g.:
Mode
Repeat track
Press the Setting soft key.
The setting menu will appear.
CD changer* setting menu
Push the joystick to g or G to
select the playback mode
Repeat
track
.
Press E.
The mode is activated. The CD
changer* main menu will then appear.
REPEAT TRACK will appear in the
status bar.
i
The playback mode Normal sequence
is not displayed in the status bar.
