AUX MERCEDES-BENZ R-CLASS MPV 2008 Owners Manual

31, 2, 3 ...
2-zone Thermatic Malfunction indicator lamp . . . . . .279
4MATIC (permanent four-wheel
drive) . . . . . . . . . . . . . . . . . . . . . . . . . .154 A
ABS (Anti-lock Braking System) . . . ..58
Display message . . . . . . . . . .256, 257
Warning lamp . . . . . . . . . . . . . . . . .281
Acceleration
Technical data . . . . . . . . . . . . . . . .344
Accident
Notes . . . . . . . . . . . . . . . . . . . . . . .287
Active Service System PLUS
see Service indicator
Adaptive brake lamps . . . . . . . . . . . ..59
Adaptive Damping System see ADS
Additional functions (on-board
computer) . . . . . . . . . . . . . . . . . . . . . .136
ADS . . . . . . . . . . . . . . . . . . . . . . . . . . .152
Airbag Activatio n.. . . . . . . . . . . . . . . . . . . .41
Control unit . . . . . . . . . . . . . . . . . . .41
Driver's . . . . . . . . . . . . . . . . . . . . . . .45
Front . . . . . . . . . . . . . . . . . . . . . . . .45
Front passenger . . . . . . . . . . . . . . . .45PASSENGER AIRBAG OFF warning
lamp . . . . . . . . . . . . . . . . . . . . . .
.279
Sidebag s.. . . . . . . . . . . . . . . . . . . .45
System . . . . . . . . . . . . . . . . . . . . . . .43
Windowbags . . . . . . . . . . . . . . . . . . .46
Air cleaner
Display message . . . . . . . . . . . . . .274
Air conditioning
2-zone Thermatic . . . . . . . . . . . . . .161
Activating/deactivating . . . . . . . . .166
Activating/deactivating air-recir-
culation mode . . . . . . . . . . . . . . . .173
Air-recirculation mode with con-
venience opening/closing feature .173

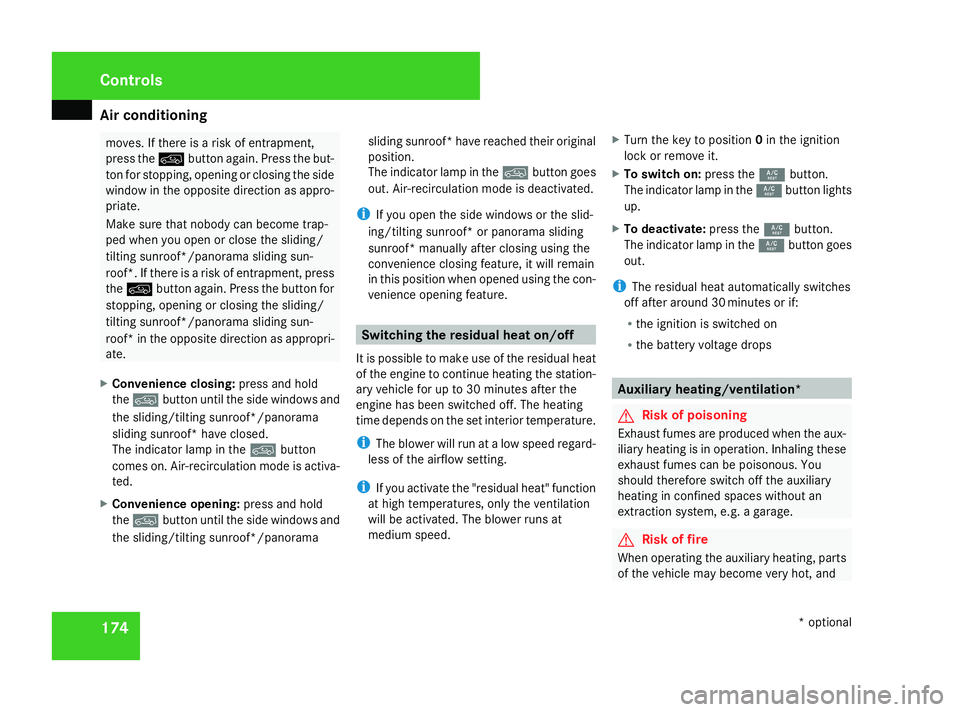

Auxiliary heating/ventilation . . . . .174
Controlling automatically . . . . . . . .167
Cooling with air dehumidification . .167
Demisting the windscreen . . . . . . .172
Malfunction indicator lamp . . . . . .279
Misted-up windows . . . . . . . . . . . .172
Multi-zone Thermotronic . . . . . . . .163
Rear-compartment air condition-
ing . . . . . . . . . . . . . . . . . . . . . . . . .166
Rear window heating . . . . . . . . . . .173
Setting the air distribution . . . . . . .171
Setting the airflow . . . . . . . . . . . . .172
Setting the air vents . . . . . . . . . . . .169
Setting the temperature . . . . . . . . .168 Setting the temperature (rear
compartment) . . . . . . . . . . . . . . .
.169
Switching the residual heat func-
tion on/off . . . . . . . . . . . . . . . . . . .174
see Climate control
AIRMATIC package . . . . . . . . . . . . ..152
Antifreeze concentration . . . . . . . ..361
Anti-lock braking system see ABS
Anti-theft alarm system
see ATA
Anti-theft systems . . . . . . . . . . . . . . ..63
Armrest Adjusting (2nd row of seats) . . . . . .82
Ashtray . . . . . . . . . . . . . . . . . . . . . . . .205
ASSYST PLUS see Service indicator
ASSYST PLUS service indicator . . ..242
ATA (anti-theft alarm system) . . . . ..63
Switching off the alarm . . . . . . . . . .63
Audible warning signal . . . . . . . . . ..286
AUTO lights Display message . . . . . . . . . . . . . .270
Automatic car wash . . . . . . . . . . . ..244
Automatic transmission Display message . . . . . . . . . .260, 261
Driving tips . . . . . . . . . . . . . . . . . . .117
Emergency running mode . . . . . . .292
Malfunction . . . . . . . . . . . . . . . . . .292
Program selector button . . . . . . . .116 Index
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 3Dateiname: 6515_1825_02_buchblock.pdf; preflight

4Selector lever positions . . . . . . . .
.114
Shift ranges . . . . . . . . . . . . . . . . . .115
Trailer towing . . . . . . . . . . . . . . . . .117
Auxiliary heating . . . . . . . . . . ..174, 300
Display message . . . . . . . . . .276, 277
Remote control . . . . . . . . . . . . . . .176
Setting (on-board computer) . . . . .130
Auxiliary ventilation . . . . . . . . . . . ..174
Axle load, maximum permissible
. . . . . . . . . . . . . . . . . . . . . . . . . .352, 353 B
Ball coupling Fitting . . . . . . . . . . . . . . . . . . . . . . .235
Removing . . . . . . . . . . . . . . . . . . . .241
BAS (Brake Assist) . . . . . . . . . . . . . . ..59
Basic display (on-board computer) .125
Battery Changing (auxiliary heating
remote control) . . . . . . . . . . . . . . .305
Changing (key ).. . . . . . . . . . . . . . .305
Changing (KEYLESS GO key) . . . . .305
Charging . . . . . . . . . . . . . . . . . . . . .327
Checking (key ).. . . . . . . . . . . . . . .305
Checking (KEYLESS GO key) . . . . .305
Check lamp (key ).. . . . . . . . . . . . .305
Check lamp (KEYLESS GO key) . . . . . . . . . . . . . . . . . . . . . . . . .71, 305
Disconnecting . . . . . . . . . . . . . . . .325
Display message . . . . . . . . . . . . . .265 Maintenance (vehicle
).. . . . . . . ..323
Reconnecting . . . . . . . . . . . . . . . . .328
Removing/fitting . . . . . . . . . . . . . .327
Vehicle battery . . . . . . . . . . . . . . . .323
Belt force limiters
Activatio n.. . . . . . . . . . . . . . . . . . . .41
Belt height adjustment . . . . . . . . . . ..96
Belt tensioners Activation . . . . . . . . . . . . . . . . . . . . .41
Belt warning . . . . . . . . . . . . . . . . . . . . .96
Bonnet Bonnet catch . . . . . . . . . . . . . . . . .221
Display message . . . . . . . . . . . . . .264
Opening/closing . . . . . . . . . . . . . .220
Bonnet release lever
Release lever . . . . . . . . . . . . . . . . .221
Brake
Parking brake . . . . . . . . . . . . . . . . .112
Warning lamp . . . . . . . . . . . . .282, 283
Brake Assist
see BAS
Brake fluid . . . . . . . . . . . . . . . . . . . . .362
Display message . . . . . . . . . . . . . .266
Brake lamps
Adaptive . . . . . . . . . . . . . . . . . . . . . .59
Display message . . . . . . . . . . . . . .272
Brake system
Display message . . . . . . . . . . . . . .265
Bulb
Brake lamp . . . . . . . . . . . . . . . . . . .310 Changing . . . . . . . . . . . . . . .
.308, 310
Dipped-beam headlamps . . . . . . . .308
Licence plate lamp . . . . . . . . . . . . .311
Main-beam headlamps . . . . . . . . . .308
Parking lamp . . . . . . . . . . . . . . . . .308
Rear foglamp . . . . . . . . . . . . . . . . .310
Reversing lamp . . . . . . . . . . . . . . .310
Side lamp . . . . . . . . . . . . . . . . . . . .308
Tail lamp . . . . . . . . . . . . . . . . . . . . .310
Turn signal lamp . . . . . . . . . .309, 310
see Lamp
Bulbs
Overview . . . . . . . . . . . . . . . . . . . .306 C
Calling up a malfunction see Message memory menu
Care . . . . . . . . . . . . . . . . . . . . . . . . . . .243
Automatic car wash . . . . . . . . . . . .244
Distronic . . . . . . . . . . . . . . . . . . . .247
Exhaust tail pipes . . . . . . . . . . . . . .247
Headlamps . . . . . . . . . . . . . . . . . . .245
High-pressure cleaners . . . . . . . . .244
Parktroni c.. . . . . . . . . . . . . . . . . .247
Plastic trim . . . . . . . . . . . . . . . . . . .246
Rear window . . . . . . . . . . . . . . . . .245
Reversing camera . . . . . . . . . . . . .248
Side windows . . . . . . . . . . . . . . . . .245
Trailer tow hitch . . . . . . . . . . . . . . .248 Index
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 4Dateiname: 6515_1825_02_buchblock.pdf; preflight

11
Parking lamps
Display message . . . . . . . . . . . . . .273
Parking position
Exterior mirror on the front-
passenger sid e.. . . . . . . . . . . . . . . .93
Parktronic . . . . . . . . . . . . . . . . . . . . . .155
Activating/deactivating . . . . . . . . .157
Malfunction . . . . . . . . . . . . . . . . . .293
Range of the sensors . . . . . . . . . . .155
Trailer towing . . . . . . . . . . . . . . . . .157
Warning display . . . . . . . . . . . . . . .156
PASSENGER AIRBAG OFF warning
lamp . . . . . . . . . . . . . . . . . . . . . . .50, 279
Performance . . . . . . . . . . . . . . . . . . .344
Permanent four-wheel drive see 4MATIC
Permanent Speedtronic . . . . . . . . ..151
Petrol Minimum grad e.. . . . . . . . . . . . . .219
Plastic trim
Cleaning . . . . . . . . . . . . . . . . . . . . .246
Power supply (trailer) . . . . . . . . . . ..241
Power windows see Side window
Pre-emptive occupant safety system
see PRE-SAFE ®
PRE-SAFE ®
system . . . . . . . . . . . . . . . .46
Display message . . . . . . . . . . . . . .261
Program selector button
Automatic transmission . . . . . . . . .116 Pulling away
. . . . . . . . . . . . . . . . . . . .111 R
Radio Changing a station (on-board
computer) . . . . . . . . . . . . . . . . . . .126
see separate operating instructions
Radio-controlled equipment
Installatio n.. . . . . . . . . . . . . . . . . .216
Rain closing feature
Sliding/tilting sunroo f.. . . . . . . ..180
Rain sensor
Windscreen wipers . . . . . . . . . . . . .105
Range (on-board computer) . . . . . ..138
Rear axle level control . . . . . . . . . ..151
Rear-compartment seats . . . . . . . . ..81
Rear foglamp Display messag e.. . . . . . . . . . . . .273
Rear-view mirror
Adjusting . . . . . . . . . . . . . . . . . . . . .90
Anti-dazzle (manual) . . . . . . . . . . . . .90
Anti-dazzle mode (automatic) . . . . .91
Rear window
Cleaning . . . . . . . . . . . . . . . . . . . . .245
Rear window heating . . . . . . . . . . ..173
Malfunction indicator lamp . . . . . .279
Rear window wiper . . . . . . . . . . . . ..105
Replacing the wiper blade . . . . . . .312
Refuelling . . . . . . . . . . . . . . . . . . . . . .218 Remote control
Auxiliary heating . . . . . . . . . . . . . .176
Changing the batteries (auxiliary
heating) . . . . . . . . . . . . . . . . . . . . .305
Garage door opener . . . . . . . . . . . .211
Programming (garage door
opener) . . . . . . . . . . . . . . . . . . . . . .211
Replacing the wiper blades . . . . . ..311
Reserve Display message . . . . . . . . . . . . . .277
Warning lamp . . . . . . . . . . . . . . . . .286
Reserve fuel . . . . . . . . . . . . . . . . . . . .355
Display message . . . . . . . . . . . . . .277
Fuel tank . . . . . . . . . . . . . . . . . . . .355
Warning lamp . . . . . . . . . . . . . . . . .286
Restraint System
see SRS
Restraint systems
For children . . . . . . . . . . . . . . . . . . .48
Rev counter . . . . . . . . . . . . . . . . . . . .119
Reversing camera . . . . . . . . . . . . . ..157
Reversing lamp Display message . . . . . . . . . . . . . .273
Roller sunblind
Opening/closing . . . . . . . . . . . . . .182
Rear side window . . . . . . . . . . . . . .205
Roof load, maximum
. . . . . . . . . . . . . . . . . . . . . . . . . .352, 353
Roof rack . . . . . . . . . . . . . . . . . . . . . .185
Run-on time (mobile phone) . . . . . ..209 Index
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 11Dateiname: 6515_1825_02_buchblock.pdf; preflight

Centre console
31Centre console
Upper section Function Page
1
Controls COMAND APS*
and the audio system – see
the respective operating
instructions
2 Controls Thermatic or
Thermotronic*
161
Switches the rear window
heating on/off
173
3 Switches the right-hand
seat heating* on
/off 87
4 Switches the right-hand
seat ventilation* on
/off 86
5 Switches the auxiliary heat-
ing* on
/off 174
6
Vehicle level control*: rai-
ses/lowers the vehicle
152
7 Automatic transmission
gearshift program selection
button
116
8 59
warning
lamp 50 Function Page
9 Switches the hazard warn-
ing lamps on/off
100
a Anti-theft alarm system
indicator lamp*
63
b Deactivates/activates
Parktronic (PTS)*
155
c Deactivates/activates
ESP
® 61
d Switches the left-hand seat
ventilation* on/off
86
e Switches the left-hand seat
heating* on/off
87
f
Selects ADS* settings 152At a glance
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 31Dateiname: 6515_1825_02_buchblock.pdf; preflight

On-board computer
127
In audio AUX mode, the current track is not
displayed.
Operating the TV* X
Switch on COMAND and select TV (see the
separate operating instructions).
X Use the èor· button to select the
Audio/TV/DVD menu.
X To select a stored station: briefly press
the j ork button.
X To select a channel from the channel
list: press and hold the jork but-
ton.
X To select a channel with the channel
search (only if COMAND is not receiving a
channel list): press and hold the jor
k button. Example
1
Function (preset number, only if the chan-
nel is stored)
2 Current channel
Operating the DVD video* X
Switch on COMAND and select DVD video
(see the separate operating instructions).
X Use the èor· button to select the
Audio/TV/DVD menu.
X Press the jork button to select a
scene. Example
1
Disc number (only for DVD changer*)
2 Current scene Navigation* menu
In the Navigation menu, the multi-function
display shows information from the naviga-
tion system.
i Menu overview: (Y page 123).
Use the buttons on the multi-function steer-
ing wheel.
X Press the èorÿ button to select the
Navigation menu.
X Switch on the audio system or COMAND
APS* (see separate operating instruc-
tions). Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 127 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

On-board computer
130
find additional information on the pages
shown. Instrument cluster submenu
R
Unit of measurement for distance
(Y page 130)
R Distance units for digital speedometer
(Y page 131)
R Language (Y page 131)
R Status line display (Y page 131)Time/date submenu
23R
Time and date ( Ypage 131) Lighting submenu
R
Constant headlamp mode (Y page 132)
R Surround lighting (Y page 132)
R Exterior lighting delayed switch-off
(Y page 133)
R Interior lighting delayed switch-off
(Y page 133) Vehicle submenu
R
Compass* (Y page 212)
R Display when the ignition is switched off
(Y page 133)
R Permanent Speedtronic (Y page 149)
R Automatic locking feature (Y page 134) Heating* submenu
R
Selecting the switch-on time for the aux-
iliary heating * (Ypage 134)
R Changing the switch-on time for the aux-
iliary heating* (Y page 135) Convenience submenu
R
Easy-entry/exit feature* (Y page 135)
R Folding in the exterior mirrors when lock-
ing the vehicle* (Y page 135) Selecting the unit of measurement for
distance
This function is not available on vehicles with
speedometers in mph.The selected unit of measurement for dis-
tance applies to:
R
the analogue speedometer
R the total distance recorder and the trip
meter
R the trip computer
R cruise control
R Speedtronic
R Distronic*
X Press èor· to select the Set-
tings... menu.
X Press the jbutton to call up the selec-
tion of submenus.
X Press the æorç button to select the
Instrument cluster submenu.
X Press the jbutton to select Display
unit Speed-/odometer.
X Press the æorç button to select
km (kilometres) or milesas the unit of
measurement for distance.
X Press the j,èorÿ button to
select a different display.
23 This function is not available on vehicles with Audio 50 APS* or COMAND APS*. Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 130Dateiname: 6515_1825_02_buchblock.pdf; preflight

On-board computer
134
X
Press the æorç button to select the
Vehicle submenu.
X Press the jbutton to select Display
when ignition off.
X Press the æorç button to select
Interior motion sensor, Tow-away
protection orMiles/km.
X Press the j,èorÿ button to
select a different display.
Activating/deactivating the automatic
door locking feature The
Automatic door locking feature
allows you to set whether your vehicle will
lock centrally from a speed of about
15 km/h upwards.
i For more information on automatic lock-
ing, (Y page 75).
X Press èor· to select the Set-
tings menu.
X Press the jbutton to call up the selec-
tion of submenus.
X Press æorç to select the Vehicle
submenu.
X Press jto select Automatic door
locking . X
Press æorç to switch the Auto-
matic door locking feature on or off.
X Press the j,èorÿ button to
select a different display.
Selecting the switch-on time for the
auxiliary heating* This function is only available if the vehicle
has an auxiliary heating system.
The
Auxiliary heating function allows you
to select three switch-on times. You can set
the exact switch-on time using the other func-
tions in the Heatersubmenu.
You can switch off the auxiliary heating by
using the remote control or the auxiliary heat-
ing button on the centre console.
The auxiliary heating is switched off automat-
ically after 50 minutes. This time can be
changed. To do this, visit a qualified specialist
workshop, e.g. a Mercedes-Benz Service
Centre. G
Risk of poisoning
Exhaust fumes are produced when the aux-
iliary heating is in operation. Inhaling these
exhaust fumes can be poisonous. You
should therefore switch off the auxiliary heating in confined spaces without an
extraction system, e.g. a garage.
G
Risk of fire
When operating the auxiliary heating, parts
of the vehicle may become very hot, and
highly inflammable material such as fuels
could be ignited. Operating the auxiliary
heating is thus prohibited at filling stations
or when your vehicle is being refuelled. You
must therefore switch off the auxiliary heat-
ing at filling stations.
You can call up the Auxiliary heating.
function directly.
X Turn the key to position 1or 2in the ignition
lock.
X Press the button for the auxiliary heating on
the centre console (Y page 174).
or
X Press the èor· button to select the
Settings menu.
X Press the jbutton to call up the selec-
tion of submenus.
X Press the æorç button to select the
Heater submenu.
X Press the jbutton to select Auxiliary
heating . Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 134Dateiname: 6515_1825_02_buchblock.pdf; preflight

On-board computer
135
X
Press the æorç button to select
one of the three switch-on times or Timer
off (auxiliary heating switched off).
When a switch-on time is selected, the yel-
low indicator lamp lights up in the auxiliary
heating button.
X Press the j,èorÿ button to
select a different display.
Changing the switch-on time for the
auxiliary heating* This function is only displayed if you have
selected a switch-on time. Here you can enter
the time at which the auxiliary heating is to
be switched on.
X
Press èor· to select the Set-
tings menu.
X Press the jbutton to call up the selec-
tion of submenus.
X Press the æorç button to select the
Heater submenu.
X Press the jbutton to select Switch-on
time X Set hours.
X Press the æorç button to set the
hour.
X Press the jbutton to select Switch-on
time X Set minutes . X
Press the æorç button to set the
minutes.
After changing from one menu to another,
the new time setting is stored. The yellow
indicator lamp lights up on the button for
the auxiliary heating on the centre console.
X Press the j,èorÿ button to
select a different display.
Activating or deactivating the easy-
entry/exit feature* i
For more information on the easy-entry/
exit feature, (Y page 89). G
Risk of injury
When the easy-entry/exit feature is active,
the steering wheel moves. There is a risk of
occupants becoming trapped. Before acti-
vating the easy-entry/exit feature, make
sure that nobody can become trapped.
Do not leave children unsupervised in the
vehicle, even if they are secured in a child
restraint system. The children could open
the driver's door and thereby unintention-
ally activate the easy-entry/exit feature
and become trapped. X
Press èor· to select the Set-
tings menu.
X Press the jbutton to call up the selec-
tion of submenus.
X Press æorç to select the Conve-
nience submenu.
X Press the jbutton to select the EASY-
ENTRY system.
X Press the æorç button to activate
or deactivate the EASY-ENTRY system.
X Press the j,èorÿ button to
select a different display.
Activating/deactivating the Fold in mir-
rors when locking* function The
Fold in mirrors when locking func-
tion allows you to determine whether the
exterior mirrors should fold in when you lock
the vehicle. When you switch on the ignition,
the exterior mirrors fold out again.
If you have switched the function on and you
fold in the exterior mirrors using the button
on the door (Y page 91), they will not fold out
automatically. The exterior mirrors can then
only be folded out using the button on the
door. Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 135 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning
174 moves. If there is a risk of entrapment,
press the :button again. Press the but-
ton for stopping, opening or closing the side
window in the opposite direction as appro-
priate.
Make sure that nobody can become trap-
ped when you open or close the sliding/
tilting sunroof*/panorama sliding sun-
roof*. If there is a risk of entrapment, press
the : button again. Press the button for
stopping, opening or closing the sliding/
tilting sunroof*/panorama sliding sun-
roof *in the opposite direction as appropri-
ate.
X Convenience closing: press and hold
the : button until the side windows and
the sliding/tilting sunroof*/panorama
sliding sunroof* have closed.
The indicator lamp in the :button
comes on. Air-recirculation mode is activa-
ted.
X Convenience opening: press and hold
the : button until the side windows and
the sliding/tilting sunroof*/panorama sliding sunroof* have reached their original
position.
The indicator lamp in the
:button goes
out. Air-recirculation mode is deactivated.
i If you open the side windows or the slid-
ing/tilting sunroof* or panorama sliding
sunroof* manually after closing using the
convenience closing feature, it will remain
in this position when opened using the con-
venience opening feature. Switching the residual heat on/off
It is possible to make use of the residual heat
of the engine to continue heating the station-
ary vehicle for up to 30 minutes after the
engine has been switched off. The heating
time depends on the set interior temperature.
i The blower will run at a low speed regard-
less of the airflow setting.
i If you activate the "residual heat" function
at high temperatures, only the ventilation
will be activated. The blower runs at
medium speed. X
Turn the key to position 0in the ignition
lock or remove it.
X To switch on: press the9button.
The indicator lamp in the 9button lights
up.
X To deactivate: press the9button.
The indicator lamp in the 9button goes
out.
i The residual heat automatically switches
off after around 30 minutes or if:
R the ignition is switched on
R the battery voltage drops Auxiliary heating/ventilation*
G
Risk of poisoning
Exhaust fumes are produced when the aux-
iliary heating is in operation. Inhaling these
exhaust fumes can be poisonous. You
should therefore switch off the auxiliary
heating in confined spaces without an
extraction system, e.g. a garage. G
Risk of fire
When operating the auxiliary heating, parts
of the vehicle may become very hot, and Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 174 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning
175highly inflammable material such as fuels
could be ignited. Operating the auxiliary
heating is thus prohibited at filling stations
or when your vehicle is being refuelled. You
must therefore switch off the auxiliary heat-
ing at filling stations.
The auxiliary heating heats the air in the vehi-
cle interior to the set temperature without
using the heat of the running engine. The aux-
iliary heating is operated using fuel directly
from the vehicle's fuel tank. For this reason,
the tank content must be at least at reserve
fuel level to ensure that the auxiliary heating
functions.
The auxiliary heating/ventilation automati-
cally adjusts to changes in temperature and
weather conditions. For this reason, the aux-
iliary heating could switch from ventilation
mode to heating mode or from heating mode
to ventilation mode.
You cannot use the auxiliary ventilation to
cool the vehicle interior to a temperature
lower than the outside temperature.
Before activating X
Turn the key to position 2in the ignition
lock.
X Set the temperature. The auxiliary heating/ventilation can be acti-
vated even when the air conditioning is being
controlled manually. Optimum comfort can
be attained when the system is set to auto-
matic mode. Set the temperature to 22 †.
The auxiliary heating/ventilation can be acti-
vated or deactivated using the remote control
or the button on the centre console.
The on-board computer can be used to spec-
ify up to three departure times, one of which
may be preselected (Y page 135).
Switching the auxiliary heating/venti-
lation on/off using the centre console
button Centre console
1
X Auxiliary heating/ventilation The colours of the indicator lights on the but-
ton have the following meanings:
Blu
eA uxiliary ventilation activated
Red Auxiliary heating activated
Yello wDeparture time preselected
(Y page 134)
Activating the auxiliary heating/ventila-
tion
If the key is in position 1or 2:
X Press and hold the Xbutton for at least
two seconds.
The red or blue indicator lamp in the X
button lights up.
If the key is removed or in position 0:
X Briefly press the Xbutton.
The red or blue indicator lamp in the X
button lights up.
Deactivating the auxiliary heating/venti-
lation
X Briefly press the Xbutton.
The red or blue indicator lamp in the X
button goes out. Controls
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 175 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
