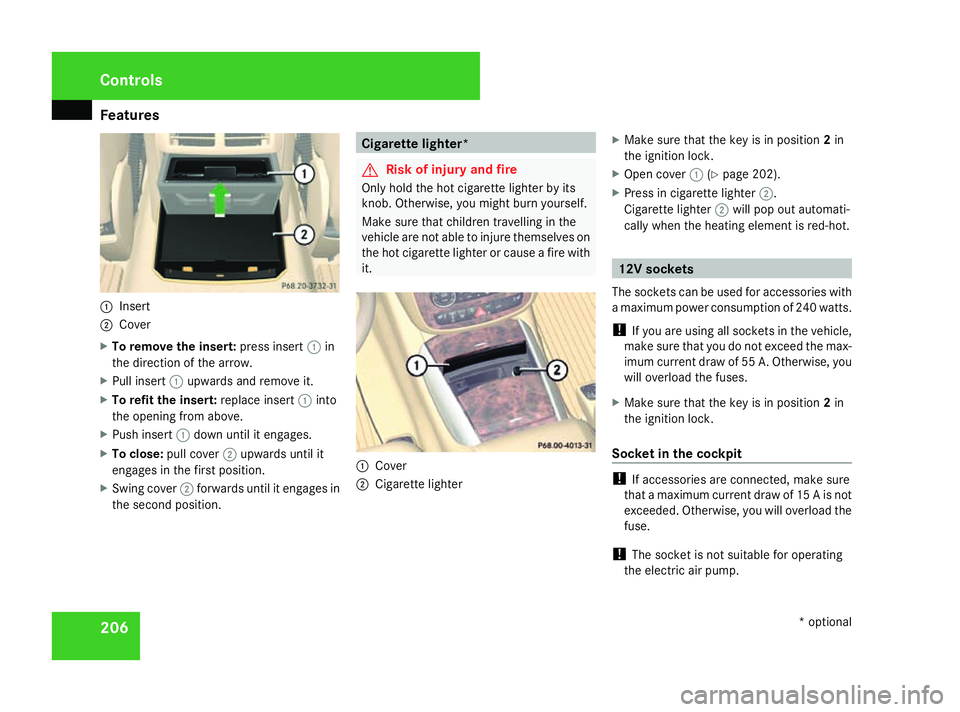

Features
2061
Insert
2 Cover
X To remove the insert: press insert1in
the direction of the arrow.
X Pull insert 1upwards and remove it.
X To refit the insert: replace insert1into
the opening from above.
X Push insert 1down until it engages.
X To close: pull cover 2upwards until it
engages in the first position.
X Swing cover 2forwards until it engages in
the second position. Cigarette lighter*
G
Risk of injury and fire
Only hold the hot cigarette lighter by its
knob. Otherwise, you might burn yourself.
Make sure that children travelling in the
vehicle are not able to injure themselves on
the hot cigarette lighter or cause a fire with
it. 1
Cover
2 Cigarette lighter X
Make sure that the key is in position 2in
the ignition lock.
X Open cover 1(Ypage 202).
X Press in cigarette lighter 2.
Cigarette lighter 2will pop out automati-
cally when the heating element is red-hot. 12V sockets
The sockets can be used for accessories with
a maximum power consumption of 240 watts.
! If you are using all sockets in the vehicle,
make sure that you do not exceed the max-
imum current draw of 55 A. Otherwise, you
will overload the fuses.
X Make sure that the key is in position 2in
the ignition lock.
Socket in the cockpit !
If accessories are connected, make sure
that a maximum current draw of 15 A is not
exceeded. Otherwise, you will overload the
fuse.
! The socket is not suitable for operating
the electric air pump. Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 206 Dateiname: 6515_1825_02_buchblock.pdf; preflight

249
Where will I find...?
...........................250
Display messages ............................. 255
Troubleshooting ................................ 278
Locking/unlocking in an emer-
gency ................................................. 302
Resetting triggered NECK-PRO
head restraints .................................. 304
Changing the batteries .....................304
Changing the bulbs ...........................306
Replacing the wiper blades ..............311
Flat tyre ............................................. 313
Battery ............................................... 323
Jump-starting .................................... 329
Towing and tow-starting ..................330
Fuses .................................................. 333 Practical advice
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 249 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Fuses
333
In the event of damage to the front axle Have the propeller shaft between the rear
axle and the transfer case removed.
Have the vehicle towed with the front axle
raised.
In the event of rear axle damage (Vehi-
cles with 4MATIC)
If the vehicle has transmission damage or
damage to the front or rear axle, have it trans-
ported on a transporter or trailer.
! New bolts must always be used when the
propeller shafts are refitted. The specified
tightening torques must be observed.
i Consult a Mercedes-Benz Service Centre.
In the event of damage to the electrical
system If the battery is defective, the automatic
transmission will be locked in position
P. To
shift the automatic transmission to neutral,
you must supply power to the vehicle's elec-
trical system in the same way as jump-start-
ing (Y page 329).
Have the vehicle transported on a transporter
or trailer. Fuses
Notes on changing fuses
The fuses in your vehicle serve to close down
faulty circuits. If a fuse blows, all the compo-
nents on the circuit and their functions will
fail.
Blown fuses must be replaced with fuses of
the same rating, which you can recognise by
the colour and value. The fuse ratings are lis-
ted in the fuse allocation chart. A Mercedes-
Benz Service Centre will be happy to advise
you. G
Risk of fire
Only use fuses that have been approved for
Mercedes-Benz vehicles and which have
the correct fuse rating for the systems con-
cerned. Do not attempt to repair or bridge
faulty fuses. Otherwise, a circuit overload
could cause a fire. Have the cause traced
and rectified at a qualified specialist work-
shop, e.g. a Mercedes-Benz Service Centre.
If the newly inserted fuse also blows, have the
cause traced and rectified at a qualified spe-
cialist workshop, e.g. a Mercedes-Benz
Service Centre.
! Only use fuses that have been approved
for Mercedes-Benz vehicles and which have the correct fuse rating for the system
concerned. Otherwise, components or sys-
tems could be damaged.
The fuses are located in various fuse boxes:
R Dashboard fuse box on the front-passenger
side
R Fuse box in the engine compartment on the
right-hand side of the vehicle
R Fuse box in the stowage well under the lug-
gage compartment floor
Fuse allocation chart The fuse allocation chart is located with the
vehicle tool kit (Y
page 252) in the stowage
compartment under the luggage compart-
ment floor. Practical advice
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 333 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Fuses
334 Before changing a fuse
X Park the vehicle.
X Switch off all electrical consumers.
X Remove the key from the ignition lock. Dashboard fuse boxes
1
Cover
! Do not use a pointed object such as a
screwdriver to open the cover in the dash-
board. You could damage the dashboard or
the cover.
X To open: open the front-passenger door.
X Pull cover 1upwards in the direction of
the arrow and remove it. X
To close: clip in cover 1at the top.
X Fold cover 1inwards until it engages.
X Close the front-passenger door. Fuse box in the engine compartment
1
Retaining clamp
2 Cover
X To open: open the bonnet (Y page 220).
X Remove moisture from the fuse box using
a dry cloth.
X Open retaining clamp 1.
X Fold cover 2upwards.
X To close: replace cover 2. !
The cover must be fitted properly, other-
wise moisture or dirt could affect the oper-
ation of the fuses.
X Close retaining clamp 1.
X Close the bonnet (Y page 221). Fuse box in the luggage compartment
Example: vehicle with an emergency spare
wheel*
1
Cover
X To open: open the tailgate.
X Open the luggage compartment floor and
secure it (Y page 250).
X Fold cover 1to the left in the direction of
the arrow. Practical advice
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 334Dateiname: 6515_1825_02_buchblock.pdf; preflight

Fuses
335
On vehicles with the TIREFIT kit, the fuses are
