wiper blades MERCEDES-BENZ R-CLASS MPV 2008 Owners Manual

11
Parking lamps
Display message . . . . . . . . . . . . . .273
Parking position
Exterior mirror on the front-
passenger sid e.. . . . . . . . . . . . . . . .93
Parktronic . . . . . . . . . . . . . . . . . . . . . .155
Activating/deactivating . . . . . . . . .157
Malfunction . . . . . . . . . . . . . . . . . .293
Range of the sensors . . . . . . . . . . .155
Trailer towing . . . . . . . . . . . . . . . . .157
Warning display . . . . . . . . . . . . . . .156
PASSENGER AIRBAG OFF warning
lamp . . . . . . . . . . . . . . . . . . . . . . .50, 279
Performance . . . . . . . . . . . . . . . . . . .344
Permanent four-wheel drive see 4MATIC
Permanent Speedtronic . . . . . . . . ..151
Petrol Minimum grad e.. . . . . . . . . . . . . .219
Plastic trim
Cleaning . . . . . . . . . . . . . . . . . . . . .246
Power supply (trailer) . . . . . . . . . . ..241
Power windows see Side window
Pre-emptive occupant safety system
see PRE-SAFE ®
PRE-SAFE ®
system . . . . . . . . . . . . . . . .46
Display message . . . . . . . . . . . . . .261
Program selector button
Automatic transmission . . . . . . . . .116 Pulling away
. . . . . . . . . . . . . . . . . . . .111 R
Radio Changing a station (on-board
computer) . . . . . . . . . . . . . . . . . . .126
see separate operating instructions
Radio-controlled equipment
Installatio n.. . . . . . . . . . . . . . . . . .216
Rain closing feature
Sliding/tilting sunroo f.. . . . . . . ..180
Rain sensor
Windscreen wipers . . . . . . . . . . . . .105
Range (on-board computer) . . . . . ..138
Rear axle level control . . . . . . . . . ..151
Rear-compartment seats . . . . . . . . ..81
Rear foglamp Display messag e.. . . . . . . . . . . . .273
Rear-view mirror
Adjusting . . . . . . . . . . . . . . . . . . . . .90
Anti-dazzle (manual) . . . . . . . . . . . . .90
Anti-dazzle mode (automatic) . . . . .91
Rear window
Cleaning . . . . . . . . . . . . . . . . . . . . .245
Rear window heating . . . . . . . . . . ..173
Malfunction indicator lamp . . . . . .279
Rear window wiper . . . . . . . . . . . . ..105
Replacing the wiper blade . . . . . . .312
Refuelling . . . . . . . . . . . . . . . . . . . . . .218 Remote control
Auxiliary heating . . . . . . . . . . . . . .176
Changing the batteries (auxiliary
heating) . . . . . . . . . . . . . . . . . . . . .305
Garage door opener . . . . . . . . . . . .211
Programming (garage door
opener) . . . . . . . . . . . . . . . . . . . . . .211
Replacing the wiper blades . . . . . ..311
Reserve Display message . . . . . . . . . . . . . .277
Warning lamp . . . . . . . . . . . . . . . . .286
Reserve fuel . . . . . . . . . . . . . . . . . . . .355
Display message . . . . . . . . . . . . . .277
Fuel tank . . . . . . . . . . . . . . . . . . . .355
Warning lamp . . . . . . . . . . . . . . . . .286
Restraint System
see SRS
Restraint systems
For children . . . . . . . . . . . . . . . . . . .48
Rev counter . . . . . . . . . . . . . . . . . . . .119
Reversing camera . . . . . . . . . . . . . ..157
Reversing lamp Display message . . . . . . . . . . . . . .273
Roller sunblind
Opening/closing . . . . . . . . . . . . . .182
Rear side window . . . . . . . . . . . . . .205
Roof load, maximum
. . . . . . . . . . . . . . . . . . . . . . . . . .352, 353
Roof rack . . . . . . . . . . . . . . . . . . . . . .185
Run-on time (mobile phone) . . . . . ..209 Index
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 11Dateiname: 6515_1825_02_buchblock.pdf; preflight

15
Windscreen washer fluid
. . . . . . . ..362
Topping up . . . . . . . . . . . . . . . . . . .223
Windscreen washer fluid reservoir
. . . . . . . . . . . . . . . . . . . . . . . . . .223, 362
Windscreen washer reservoir Capacity . . . . . . . . . . . . . . . . . . . . .362
Windscreen washer system . . . . . ..362
Windscreen wipers . . . . . . . . . . . . ..104
Cleaning . . . . . . . . . . . . . . . . . . . . .245
Malfunction . . . . . . . . . . . . . . . . . .294
Replacing the wiper blades . . . . . .311
Winter diesel . . . . . . . . . . . . . . . . . . .220
Winter driving . . . . . . . . . . . . . .231, 232
Winter tyres . . . . . . . . . . . . . . . . . . . .231
Limiting the speed (on-board com-
puter) . . . . . . . . . . . . . . . . . . . . . . .151 Index
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 15Dateiname: 6515_1825_02_buchblock.pdf; preflight

Exterior view
21Function Page
1 Opening and closing the
tailgate 71
Vehicle tool kit 252
Spare wheel 252
2 Rear window heating
173
3 Rear lights
310
4 Fuel filler flap
218
Fuel requirements 218
5 Exterior mirrors
90 Function Page
6 Fitting the towing eye
331
7 Tyres and wheels
224
Flat tyre 313
8 Opens the bonnet
220
Engine oil 222
Coolant
223 Function Page
9 Windscreen wipers
104
Cleaning the wiper blades 245
Replacing the wiper blades 311
a Cleaning the windows
245
b
Sliding/tilting sunroof* 178
Panorama sliding sunroof* 181
c Opening and closing the
doors
68
d Front lights
308
e Headlamp cleaning system
102At a glance
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 21Dateiname: 6515_1825_02_buchblock.pdf; preflight

Windscreen wipers
104
Reading lamps* for the third row of
seats* Rear-compartment overhead control panel (third
row of seats*)
1 X To switch the left-hand reading lamp
on/off
2 X To switch the right-hand reading
lamp on/off
X To switch on/off: press theXbutton. Windscreen wipers
Switching the windscreen wipers on/
off
Combination switch
1
To switch on the windscreen wipers
2 Single wipe/to wipe the windscreen using
washer fluid
Settings: M
Windscreen wipers off
U
Intermittent wipe, low
(rain sensor set to low sensitivity)
V
Intermittent wipe, high
(rain sensor set to high sensitivity) u
Continuous wipe, slow
t
Continuous wipe, fast
!
If the windscreen becomes dirty in dry
weather conditions, the windscreen wipers
may be activated inadvertently. This could
then damage the windscreen wiper blades
or scratch the windscreen.
For this reason, you should always switch
off the windscreen wipers in dry weather.
X Make sure that the key is in position 1or
2 in the ignition lock.
The various wiper settings can be selected
as follows:
Single wipe X
Briefly press the combination switch to the
pressure point in the direction of arrow
2.
To wipe with washer fluid X
Press the combination switch beyond the
pressure point in the direction of arrow
2. Controls
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 104Dateiname: 6515_1825_02_buchblock.pdf; preflight

Care
244 H
Environmental note
Dispose of empty packaging, cleaning
cloths and polishing wads in an environ-
mentally responsible manner.
! Do not affix:
R stickers
R films
R magnetic plates or similar items
to painted surfaces, otherwise you could
damage the paintwork. Vehicle care
! Do not park the vehicle for a long period
of time directly after cleaning, especially if
the wheels have just been cleaned with a
wheel cleaner. Wheel cleaners could cause
rapid corrosion of the brake discs and
brake pads/linings. After cleaning, park
the vehicle when it is at normal operating
temperature.
Automatic car wash You can wash the vehicle in an automatic car
wash from the very start. !
Do not use a touch-free automatic car
wash that uses chemical agents to wash
the vehicle.
Preferably use one without brushes.
If the vehicle is very dirty, prewash it before
cleaning it in an automatic car wash.
! Make sure that the automatic car wash is
suitable for the size of the vehicle. Fold in
the exterior mirrors before the vehicle is
washed. There is otherwise a risk of dam-
age to the exterior mirrors.
! Make sure that the automatic transmis-
sion is not in position Pwhen washing your
vehicle in an automatic car wash.
R Vehicles with a key:
Do not remove the key from the ignition
lock. Do not open the driver's or front-
passenger door when the engine is
switched off, as this automatically shifts
the automatic transmission to park posi-
tion Pand locks the wheels, unless you
have shifted the automatic transmission
to N.
R Vehicles with KEYLESS GO*:
Do not open the driver's or front-
passenger door when the engine is
switched off, as this shifts the automatic transmission to park position
Pand locks
the wheels.
! Make sure the side windows are com-
pletely closed, the ventilation/heater
blower is fully turned off and the wind-
screen wiper switch is set to 0. The rain
sensor may otherwise be activated, for
instance, leading to inadvertent wiper
sweeps being triggered. This could cause
damage to the vehicle.
After using an automatic car wash, wipe off
wax from the windscreen and the wiper
blades. This will prevent smears and reduce
wiping noises caused by residue on the wind-
screen.
High-pressure cleaners G
Risk of accident
Do not use high-pressure cleaners with cir-
cular-jet nozzles (dirt grinders) to clean
your vehicle or - especially - the tyres. You
could otherwise damage the tyres and
cause an accident.
! Observe the instructions issued by the
equipment manufacturer concerning the
distance to be maintained between the Operation
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 244Dateiname: 6515_1825_02_buchblock.pdf; preflight

Care
245
nozzle of the high-pressure cleaner and the
vehicle (at least 30 cm).
Move the high-pressure cleaner nozzle
around when cleaning your vehicle.
Do not aim directly at any of the following:
R
tyres
R door joint
R electrical components
R battery
R connectors
R lights
R seals
Damaged seals or electrical components
can lead to failures or leaks.
Cleaning the wiper blades and the out-
side of the windscreen G
Risk of injury
Turn the key to position 0in the ignition
lock before cleaning the windscreen or the
wiper blades. There is otherwise a risk of
the windscreen wipers being set in motion
and causing injury. X
Turn the key to position 1(Y page 76)in the
ignition lock.
X Set the windscreen wipers to position u
(Y page 104) on the combination switch.
X Turn the key to position 0(Y page 76)or
remove it when the wiper arms are vertical.
! Only fold the wiper arms away from the
windscreen when they are in a vertical posi-
tion, otherwise you will damage the bonnet.
X Fold the wiper arms away from the wind-
screen until you feel them engage.
X Clean the windscreen and the wiper blades.
X Fold the windscreen wipers back again
before the ignition is switched on.
! Do not clean the wiper blades too often
as this will result in the rubber becoming
porous, leading to wiper noise.
Cleaning the windows !
Do not use dry cloths, abrasive products,
solvents or cleaning agents containing sol-
vents to clean the inside of the windows.
Clean the insides of the windows with a
damp cloth or commercially-available glass
cleaner. Avoid touching the inside of the
rear windscreen and the side windows with hard objects, e.g. ice scrapers or rings. You
could otherwise cause damage to the win-
dows, rear window heating or aerial on the
rear window.
i Anti-glare film retrofitted to the insides of
the windows could interfere with radio or
mobile phone reception, especially if it is
conductive or metal-coated film. Informa-
tion about anti-glare film can be obtained
from any Mercedes-Benz Service Centre.
Cleaning the headlamps X
Clean the plastic lenses of the headlamps
with a damp sponge.
! Only use washer fluid which is suitable
for plastic lenses. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
Do not use the following:
R dry cloths
R abrasive cleaning agents
R solvents
R cleaning agents containing solvent
You could otherwise scratch or damage the
surface of the lenses. Operation
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 245 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

249
Where will I find...?
...........................250
Display messages ............................. 255
Troubleshooting ................................ 278
Locking/unlocking in an emer-
gency ................................................. 302
Resetting triggered NECK-PRO
head restraints .................................. 304
Changing the batteries .....................304
Changing the bulbs ...........................306
Replacing the wiper blades ..............311
Flat tyre ............................................. 313
Battery ............................................... 323
Jump-starting .................................... 329
Towing and tow-starting ..................330
Fuses .................................................. 333 Practical advice
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 249 Dateiname: 6515_1825_02_buchblock.pdf; preflight

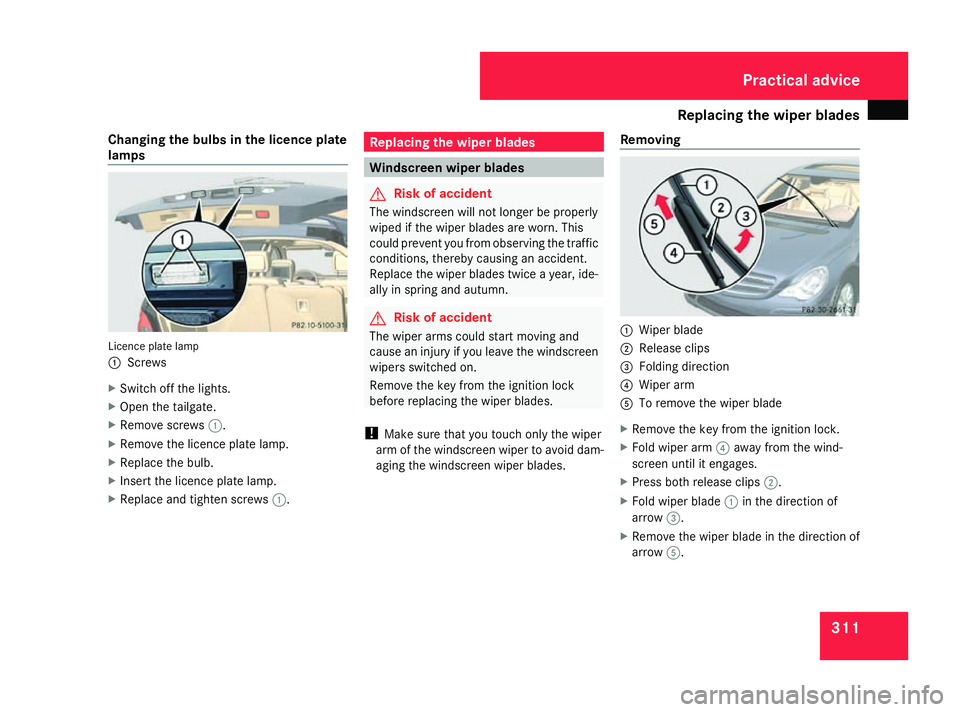

Replacing the wiper blades
311
Changing the bulbs in the licence plate
lamps
Licence plate lamp
1
Screws
X Switch off the lights.
X Open the tailgate.
X Remove screws 1.
X Remove the licence plate lamp.
X Replace the bulb.
X Insert the licence plate lamp.
X Replace and tighten screws 1. Replacing the wiper blades
Windscreen wiper blades
G
Risk of accident
The windscreen will not longer be properly
wiped if the wiper blades are worn. This
could prevent you from observing the traffic
conditions, thereby causing an accident.
Replace the wiper blades twice a year, ide-
ally in spring and autumn. G
Risk of accident
The wiper arms could start moving and
cause an injury if you leave the windscreen
wipers switched on.
Remove the key from the ignition lock
before replacing the wiper blades.
! Make sure that you touch only the wiper
arm of the windscreen wiper to avoid dam-
aging the windscreen wiper blades. Removing 1
Wiper blade
2 Release clips
3 Folding direction
4 Wiper arm
5 To remove the wiper blade
X Remove the key from the ignition lock.
X Fold wiper arm 4away from the wind-
screen until it engages.
X Press both release clips 2.
X Fold wiper blade 1in the direction of
arrow 3.
X Remove the wiper blade in the direction of
arrow 5. Practical advice
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 311 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Replacing the wiper blades
312
Fitting
1
Wiper blade
2 Retaining clips
3 Folding direction
4 Bracket
5 Lug
6 Recess
X Position new wiper blade 1with
recess 6on lug 5.
X Fold wiper blade 1in the direction of
arrow 3onto the wiper arm, until retaining
clips 2engage in bracket 4.X
Make sure that wiper blade 1is seated
correctly.
X Fold the wiper arm back onto the wind-
screen. Rear window wiper blade
G
Risk of injury
The wiper arm could be set in motion and
injure you if the windscreen wipers are
switched on.
Remove the key from the ignition lock
before replacing the wiper blade.
Removing 1
Wiper arm
2 Wiper blade X
Remove the key from the ignition lock.
X Fold wiper arm 1away from the rear win-
dow until it engages.
X Position wiper blade 2at a right angle to
wiper arm 1.
X Hold wiper arm 1and press wiper
blade 2in the direction of the arrow until
it releases.
X Remove wiper blade 2.
Fitting X
Place the new wiper blade 2onto wiper
arm 1.
X Hold wiper arm 1and press wiper blade
2 in the opposite direction to the arrow
until it engages.
X Make sure that wiper blade 2is seated
correctly.
X Position wiper blade 2parallel to wiper
arm 1.
X Fold wiper arm 1back onto the rear win-
dow. Practical advice
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 312Dateiname: 6515_1825_02_buchblock.pdf; preflight
