Engine compartment
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine oil, see
“Technical data” section (
page 536) and
(
page 538).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Light
Truck Center check the automatic trans-
mission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground.
!Excess oil must be siphoned or drained off.
It could cause damage to the engine or
emission control system not covered by the
Mercedes-Benz Limited Warranty.
Warning!G
In order to avoid any potentially serious
burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display
indicates that the coolant is overheated.

Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.

Using a rag, slowly open the cap approx-
imately 1/2turn to relieve excess pres-
sure. If opened immediately, scalding


361 Operation
Engine compartment
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Cap
2Coolant expansion tank
3Indicator wall
4Coolant level
Using a rag, turn cap 1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.
Continue turning cap 1 counterclock-
wise and remove it.
Coolant level 4 is correct if the level:

for cold coolant: reaches the top of
indicator wall 3 visible through the
filling opening

for warm coolant: is approximately
0.6 in (1.5 cm) higher
Add coolant as required.
Replace and tighten cap 1.
For more information on coolant, see
“Coolants” (
page 541).
hot fluid and steam will be blown out un-
der pressure.

Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene
glycol which may burn if it comes into
contact with hot engine parts.

362 Operation
Engine compartment
Windshield/rear window washer
system and headlamp cleaning
system*
The windshield washer reservoir is located
in the engine compartment.
1Cap
2Windshield washer reservoirFluid for the windshield/rear window
washer system and the headlamp cleaning
system* is supplied from the windshield
washer reservoir. It has a capacity
of 8.0 US qt (7.6 l).
During all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the windshield washer fluid
in a suitable container.
Use the tab to pull cap1 upwards.
Refill the reservoir with MB Windshield
Washer Concentrate “MB SummerFit”
and water (or commercially
available premixed windshield washer
solvent/antifreeze, depending on
ambient temperatures).
For more information, see “Windshield and
headlamp washer fluid mixing ratio”
(
page 544).
Warning!G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!Always use washer solvent/antifreeze
where temperatures may fall below freezing
point. Failure to do so could result in damage to
the washer system/reservoir.
!Only use washer fluid which is suitable for
plastic lenses. Improper washer fluid can
damage the plastic lenses of the headlamps.

363 Operation
Tires and wheels
Tires and wheels
Contact an authorized Mercedes-Benz
Light Truck Center for information on
tested and recommended rims and tires
for summer and winter operation. They can
also offer advice concerning tire service
and purchase.Important guidelines

Only use sets of tires and rims of the
same type and make.

Tires must be of the correct size for the
rim.

Break in new tires for approximately
60 miles (100 km) at moderate
speeds.

Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.

If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.

Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths of less than
1/8in (3 mm).

When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Light Truck Center for
further information. If incorrectly sized rims
and tires are mounted:

The wheel brakes or suspension
components can be damaged.

The operating clearance of the wheels
and the tires may no longer be correct.
Warning!G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. The operating safety of the vehicle
cannot be assured when such tires are used.

364 Operation
Tires and wheels
Tire care and maintenance
Regularly check the tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure,
see “Recommended tire inflation pres-
sure” (
page 371).Tire inspection
Every time you check the tire inflation
pressure, you should also inspect your
tires for the following:

excessive treadwear (page 365)

cord or fabric showing through the
tire’s rubber

bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.
Make sure you also inspect the spare tire
periodically for condition and inflation.
Spare tires will age and become worn over
time even if never used, and thus should be
inspected and replaced when necessary.Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:

Driving style

Tire inflation pressure

Distance driven
Warning!G
Regularly check the tires for damage.
Damaged tires can cause tire inflation pres-
sure loss. As a result, you could lose control
of your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Warning!G
Tires and spare tire should be replaced after
6 years, regardless of the remaining tread.

365 Operation
Tires and wheels
Tread depth
Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths of less
than
1/8in (3 mm).
Treadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately
1/16in (1.6 mm), at which point the
tire is considered worn and should be re-
placed.
Recommended minimum tire tread depth:

Summer tires 1/8in (3 mm)

Winter tires 1/6in (4 mm)
1TWI (T
read Wear Indicator)
The treadwear indicator appears as a solid
band across the tread.Storing tires
Cleaning tires
Direction of rotation
Unidirectional tires offer added advan-
tages, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning) of
the tire.
Warning!G
Although the applicable federal motor safety
laws consider a tire to be worn when the
treadwear indicators (TWI) become visible at
approximately
1/16in (1.6 mm), we recom-
mend that you do not allow your tires to
wear down to that level. As tread depth
approaches 1/8in (3 mm), the adhesion
properties on a wet road are sharply
reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.!Keep unmounted tires in a cool, dry
place with as little exposure to light as possible.
Protect tires from contact with oil, grease and
fuels.
!Never use a round nozzle to power wash
tires. The intense jet of water can result in
damage to the tire.
Always replace a damaged tire.

366 Operation
Tires and wheels
Loading the vehicle
Two labels on your vehicle show how much
weight it may properly carry.
1) The Tire and Loading Information
placard can be found on the driver’s
door B-pillar. This placard tells you im-
portant information about the number
of people that can be in the vehicle and
the total weight that can be carried in
the vehicle. It also contains information
on the proper size and recommended
tire inflation pressures for the original
equipment tires on your vehicle.2) The certification label, also found on
the driver’s door B-pillar. It tells you
about the gross weight capacity of your
vehicle, called the Gross Vehicle
Weight Rating (GVWR). The GVWR
includes the weight of the vehicle, all
occupants, fuel and cargo. The certifi-
cation label also tells you about the
front and rear axle weight capacity,
called the Gross Axle Weight Rating
(GAWR). The GAWR is the total allow-
able weight that can be carried by a
single axle (front or rear). Never exceed
the GVWR or GAWR for either the front
axle or rear axle.
1Driver’s door B-pillar
Following is a discussion on how to work
with the information contained on the Tire
and Loading Information placard with
regards to loading your vehicle.
iSpare wheels may be mounted against the
direction of rotation (spinning) even with a
unidirectional tire for temporary use only until
the regular drive wheel has been repaired or
replaced. Always observe and follow applicable
temporary use restrictions and speed limitations
indicated on the spare wheel.

367 Operation
Tires and wheels
Tire and Loading Information
Tire and Loading Information placard1Load limit information on the Tire and
Loading Information placard
The Tire and Loading Information placard
showing the load limit information is
located on the driver’s door B-pillar
(
page 366).
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kilograms or XXX
lbs.” on the Tire and Loading
Information placard.
The combined weight of all occupants,
cargo/luggage and trailer tongue load
(if applicable) should never exceed the

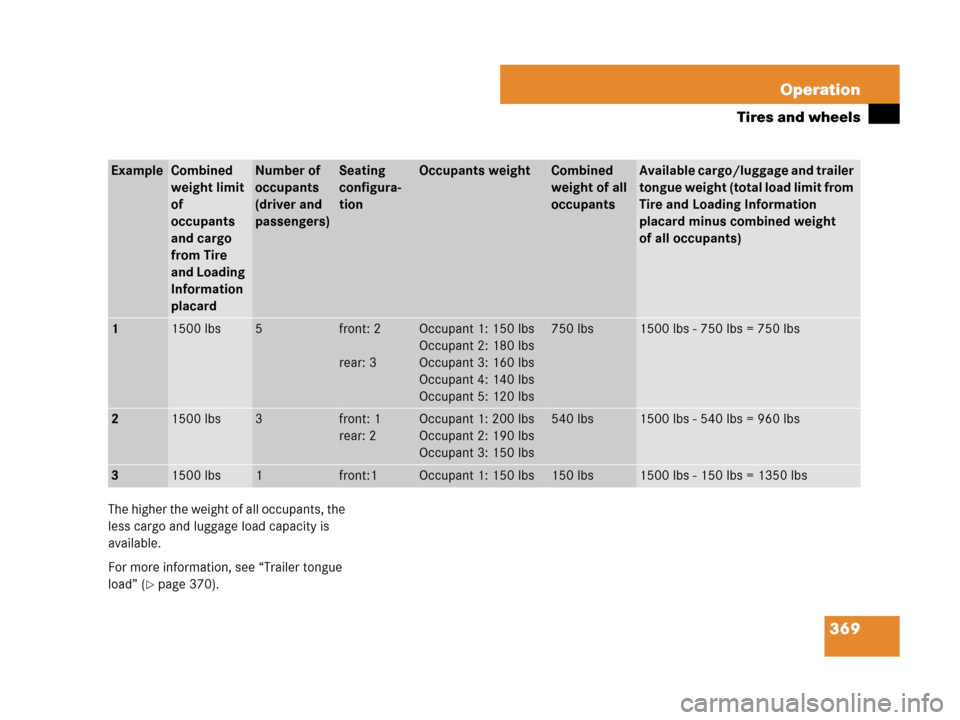

weight referenced in that statement.Seating capacity
The seating capacity gives you important
information on the number of occupants
that can be in the vehicle. Observe front
and rear seating capacity. The Tire and
Loading Information placard showing the
seating capacity is located on the driver’s
door B-pillar (
page 366).
Warning!G
Do not overload the tires by exceeding the
specified load limit as indicated on the Tire
and Loading Information placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Load limit data are specific to each vehicle
and may vary from data shown in the following
illustration. Refer to Tire and Loading
Information placard on vehicle for actual data
specific to your vehicle.
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Seating capacity data are specific to each
vehicle and may vary from data shown in the fol-
lowing illustration. Refer to Tire and Loading
Information placard on vehicle for actual data
specific to your vehicle.

368 Operation
Tires and wheels
1Seating capacity information on the
Tire and Loading Information placard
Steps for determining correct load limit
The following steps have been developed
as required of all manufacturers under Title
49, Code of U.S. Federal Regulations, Part
575 pursuant to the “National Traffic and
Motor Vehicle Safety Act of 1966”.
Step 1
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on
your vehicle’s Tire and Loading
Information placard.Step 2
Determine the combined weight of the
driver and passengers that will be
riding in your vehicle.
Step 3
Subtract the combined weight of
the driver and passengers from
XXX kilograms or XXX lbs.
Step 4
The resulting figure equals the avail-
able amount of cargo and luggage load
capacity. For example, if the “XXX”
amount equals 1 400 lbs and there will
be five 150 lbs passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs
(1 400 - 750 (5 x 150) = 650 lbs).
Step 5
Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in step 4.Step 6 (if applicable)
If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this reduces
the available cargo and luggage load
capacity of your vehicle (
page 370).
The following table shows examples on
how to calculate total and cargo load
capacities with varying seating configura-
tions and number and size of occupants.
The following examples use a load limit
of 1 500 lbs. This is for illustration
purposes only. Make sure you are using
the actual load limit for your vehicle stated
on the vehicle’s Tire and Loading
Information placard (
page 367).

369 Operation
Tires and wheels
The higher the weight of all occupants, the
less cargo and luggage load capacity is
available.
For more information, see “Trailer tongue
load” (
page 370).
ExampleCombined
weight limit
of
occupants
and cargo
from Tire
and Loading
Information
placardNumber of
occupants
(driver and
passengers)Seating
configura-
tionOccupants weight Combined
weight of all
occupantsAvailable cargo/luggage and trailer
tongue weight (total load limit from
Tire and Loading Information
placard minus combined weight
of all occupants)
11500 lbs5front: 2
rear: 3Occupant 1: 150 lbs
Occupant 2: 180 lbs
Occupant 3: 160 lbs
Occupant 4: 140 lbs
Occupant 5: 120 lbs750 lbs1500 lbs - 750 lbs = 750 lbs
21500 lbs3front: 1
rear: 2Occupant 1: 200 lbs
Occupant 2: 190 lbs
Occupant 3: 150 lbs540 lbs1500 lbs - 540 lbs = 960 lbs
31500 lbs1front:1Occupant 1: 150 lbs150 lbs1500 lbs - 150 lbs = 1350 lbs
