MERCEDES-BENZ R500 2006 W251 Owner's Manual

200 Controls in detailAutomatic transmissionWith drive positionD selected, you can use
the steering wheel gearshift control
buttons (
page 206) to influence trans-
mission shifting by:


limiting the gear range


changing gears manually
Transmission positions
!Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gearR or park
positionP only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.
Effect
ì
Park position
Shift into park positionP only
when vehicle is stopped. The
park position is not intended to
serve as a brake when the vehi-
cle is parked. Rather, the driver
should always set the parking
brake in addition to shifting into
park positionP to secure the
vehicle.
If the vehicle’s electrical system
is malfunctioning, the automatic
transmission could remain
locked in park positionP.
Have the vehicle checked as
soon as possible by an autho-
rized Mercedes-Benz Light
Truck Center.
!SmartKey:
If you turn off the engine using the
SmartKey and remove the SmartKey
from the starter switch, the transmis-
sion will shift to park positionP auto-
matically. Keep in mind that turning off
the engine with the SmartKey alone will
not automatically shift the transmis-
sion to P. Only when the SmartKey is
removed from the starter switch, will
the transmission automatically shift
toP.
KEYLESS-GO*:
If you turn off the engine using the
KEYLESS-GO start/stop button and
open the driver’s door, the transmis-
sion will shift to park positionP
automatically. Keep in mind that
turning off the engine using the
KEYLESS-GO start/stop button alone
will not automatically shift the trans-
mission to P. Only when the driver’s
door is opened, will the transmission
automatically shift to P.

201 Controls in detail
Automatic transmission
Even though this is possible, make it a
practice to always shift into park
positionP before turning off the engine
and remove the SmartKey from the
starter switch, or when using
KEYLESS-GO*, before turning off the
engine with the start/stop button and
opening the driver’s door.!If you want the gear position to remain
inN (for example when the vehicle is
pulled through a car wash)


do not remove the SmartKey from
the starter switch
or, when using KEYLESS-GO*


do not turn off the engine using the
KEYLESS-GO start/stop button*
and open the driver’s door
Otherwise, the transmission will shift
toP and lock the wheels, preventing
the vehicle from being pulled through a
car wash.
Effect
í
Reverse gear
Shift into reverse gearR only
when the vehicle is stopped.
ë
Neutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never shift into neutral
positionN while driving.
If the ESP
® is deactivated or
malfunctioning:
Shift into neutral positionN only
if the vehicle is in danger of
skidding, e.g. on icy roads.
ê
Drive
The transmission shifts
automatically. All forward gears
are available.
!Coasting the vehicle, or driving for any
other reason in neutral positionN can
result in transmission damage that is
not covered by the Mercedes-Benz
Limited Warranty.Warning!
G
Getting out of your vehicle without shifting
into park positionP is dangerous. Also, park
positionP alone is not intended to or capa-
ble of preventing your vehicle from moving,
possibly hitting people or objects.
Always set the parking brake in addition to
shifting to park positionP (
page 65).
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.

202 Controls in detailAutomatic transmission
Gear ranges
With the automatic transmission in drive
positionD, you can select a gear range for
the automatic transmission to operate
within.
You can limit the gear range by pressing
the respective downshift button on the
steering wheel gearshift control, and
reverse the gear range limit by pressing
the respective upshift button on the
steering wheel gearshift control.
1Current gear range
The selected gear range appears in the
multifunction display (
page 199). If you
press on the accelerator when the engine
has reached its rpm limit, the transmission
will upshift beyond any gear range limit
selected.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could shift the
automatic transmission out of park
positionP, which could result in an accident
and/or serious personal injury.
Effect
ï
The transmission shifts through
sixth gear only.
î
The transmission shifts through
fifth gear only.
é
The transmission shifts through
fourth gear only.
è
The transmission shifts through
third gear only.
With this selection you can use
the braking effect of the engine.

203 Controls in detail
Automatic transmission
Driving tips
Accelerator position
Your driving style influences the
transmission’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.

Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.Stopping
When you stop briefly, e.g. at traffic lights:

Leave the transmission in gear.

Hold the vehicle with the brake.
When you stop for a longer period of time
with the engine idling and/or on a hill:

Set the parking brake.

Shift into park positionP.
Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:

Control the vehicle speed by gradually
releasing the brakes.

Accelerate gently.

Never abruptly step on the accelerator.
Effect
ç
The transmission shifts through
second gear only.
Allows the use of engine’s
braking power when driving:

on steep downgrades


in mountainous regions


under extreme operating
conditions
æ
The transmission operates in
first gear only.
For maximum use of engine’s
braking effect on very steep or
lengthy downgrades.

204 Controls in detailAutomatic transmissionRocking the vehicle
Rocking the vehicle by shifting betweenD
andR can help free a vehicle stuck in mud
or snow. The engine control system of this
vehicle electronically limits shifting
betweenD andR to very low speeds
(i.e. approx. 2 mph). To shift betweenD
andR, move the gear selector lever past
the resistance point up or down.
Hill start assist system
On uphill grades, the hill start assist
system maintains the pressure in the
brake system for approximately 1 second
after you have released the brake pedal.
Therefore, you can start off smoothly with-
out the vehicle moving immediately after
releasing the brake pedal.
The hill start assist system is inactive

when driving downhill


with the transmission in neutral
position N


with the parking brake setWorking on the vehicle
Automatic shift program
The program mode selector switch is
located on the upper part of the center
console.Program mode selector switchC Comfort For comfort driving
S Sport For standard driving
Warning!
G
The hill start assist system is not designed
to function as a parking brake and does not
prevent the vehicle from moving when
parked on an incline.
Always set the parking brake in addition to
shifting to park position P.iIf the ESP
® has switched off due to a
malfunction, the hill start assist system
is also unavailable.
Warning!
G
When working on the vehicle, set the
parking brake and shift to park positionP.
Otherwise the vehicle could roll away.

205 Controls in detail
Automatic transmission
The current gear range/transmission
position (
page 199) and the selected
program mode (
C/S) are indicated in the
multifunction display.
1Current program mode

Press program mode selector switch
repeatedly until the letter of the de-
sired program mode appears in the
multifunction display.
SelectCfor comfort driving:

The vehicle starts out in second
gear (both forward and reverse) for
gentler starts. This does not apply if
full throttle is applied or gear
range1 is selected.


Traction and driving stability are
improved on icy roads.


Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.
Steering wheel gearshift control
With drive positionD selected, you can use
the steering wheel gearshift control but-
tons to manually shift the gears. When
doing so, you are also limiting or extending
the gear range.
!Never change the program mode when
the automatic transmission is out of
park positionP. This could result in a
change of driving characteristics for
which you may not be prepared.iThe last selected program
mode (CorS) is switched on when the
engine is restarted.
iTo avoid overrevving the engine when
downshifting with steering wheel
gearshift buttons, the transmission will
not shift to a lower gear if the engine’s
max. speed would be exceeded.

206 Controls in detailAutomatic transmission
The steering wheel gearshift buttons are
located to the left and right of the steering
wheel.
1Button, inside: downshift
2Button, outside: upshiftDownshifting

Briefly press the inside1 of one of the
buttons on the steering wheel.
The transmission will shift to the next
lower gear as permitted by the shift
program. This action simultaneously limits
the gear range of the transmission
(
page 202).
Upshifting

Briefly press the outside2 of one of
the buttons on the steering wheel.
!Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gearR or park
positionP only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.
iYou cannot shift with the steering
wheel gearshift buttons when the
transmission in positionP,N orR.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.

207 Controls in detail
Automatic transmission
The transmission will shift to the next
higher gear as permitted by the shift
program. This action simultaneously
extends the gear range of the
transmission.
Canceling gear range limit
Press and hold the outside2 of one of
the buttons on the steering wheel
until
Dreappears in the multifunction
display.
The transmission will shift from the current
gear range directly to gear rangeD.
Shifting into optimal gear range

Press and hold the inside1 of one of
the buttons on the steering wheel.
The transmission will automatically select
the gear range suited for optimal
acceleration and deceleration. This will
involve shifting down one or more gears.Emergency operation (Limp Home
Mode)
If vehicle acceleration becomes less re-
sponsive or sluggish or the transmission
no longer shifts, the transmission is most
likely operating in limp home (emergency
operation) mode. In this mode only second
gear and reverse gear can be selected.
Stop the vehicle in a safe location.

Shift to park positionP.

Turn off the engine.

Wait at least 10 seconds before
restarting.

Restart the engine.

Shift to drive positionD (for second
gear) or reverse gearR.

Have the transmission checked at an
authorized Mercedes-Benz Light Truck
Center as soon as possible.

208 Controls in detailGood visibilityFor information on the windshield wipers,
see “Windshield wipers” (
page 59).
Headlamp cleaning system*
The button is located on the left side of the
dashboard.
1Headlamp washer button
Switch on the ignition (
page 38).

Press button1.
The headlamps are cleaned with a
high-pressure water jet.For information on filling up the washer
reservoir, see “Windshield / rear window
washer system and headlamp cleaning
system*” (
page 352).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 47).
Interior rear view mirror, antiglare
position
1Lever

Tilt the mirror to the antiglare night
position by moving lever1 towards
the windshield.
The interior rear view mirror is dimmed.
iThe headlamps will automatically be
cleaned when you have

switched on the headlamps
and


operated the windshield wipers
with windshield washer fluid
fifteen times
When you switch off the ignition, the
counter resets.

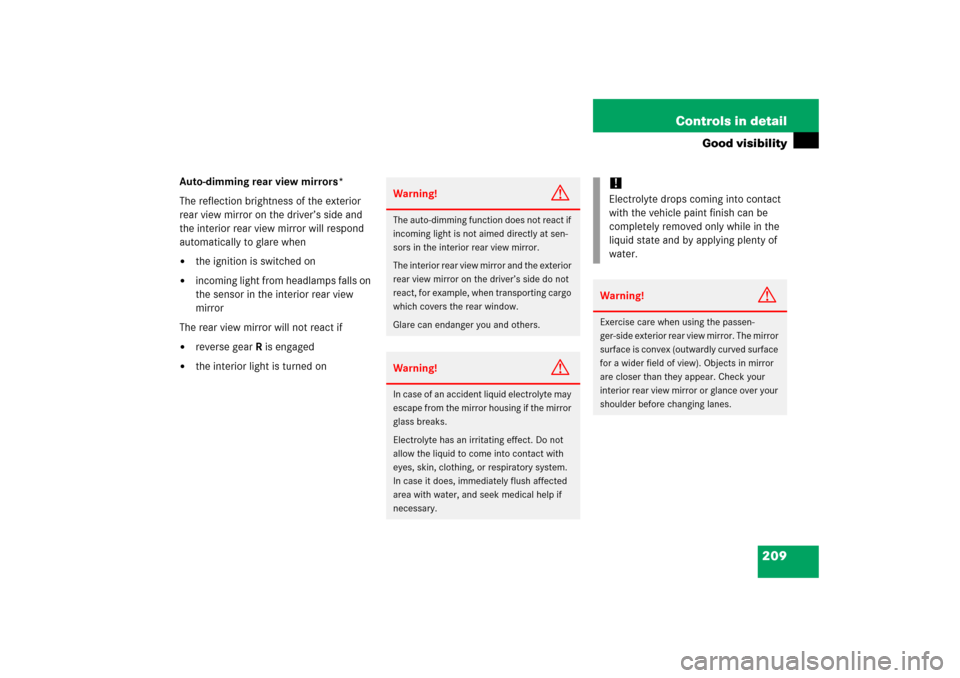

209 Controls in detail
Good visibility
Auto-dimming rear view mirrors*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when

the ignition is switched on


incoming light from headlamps falls on
the sensor in the interior rear view
mirror
The rear view mirror will not react if


reverse gearR is engaged


the interior light is turned on
Warning!
G
The auto-dimming function does not react if
incoming light is not aimed directly at sen-
sors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, when transporting cargo
which covers the rear window.
Glare can endanger you and others.Warning!
G
In case of an accident liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state and by applying plenty of
water.Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
