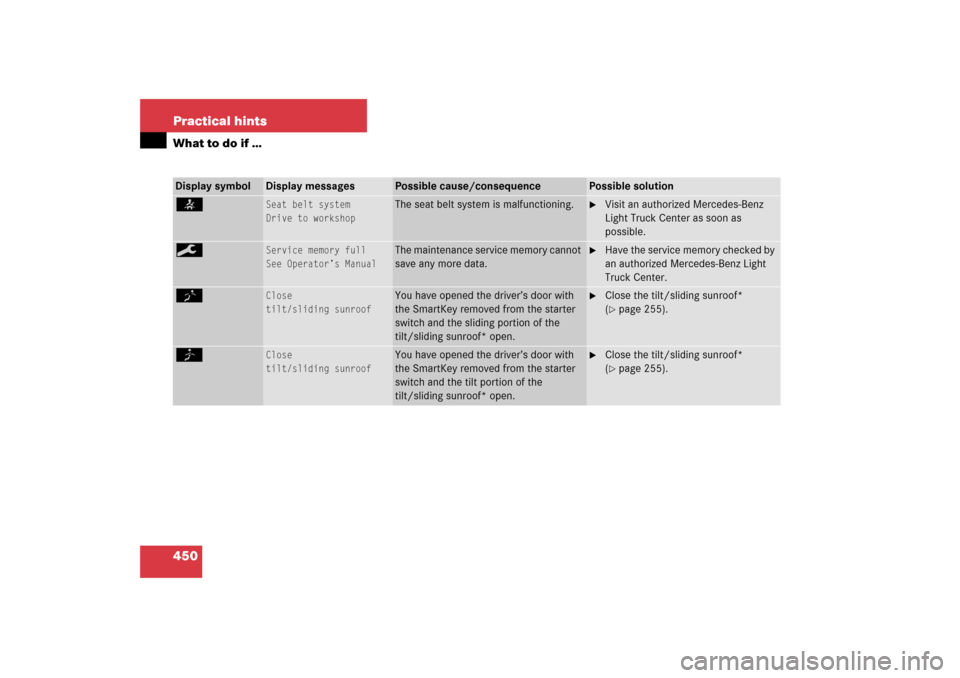

450 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
<
Seat belt system
Drive to workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Light Truck Center as soon as
possible.
9
Service memory full
See Operator’s Manual
The maintenance service memory cannot
save any more data.

Have the service memory checked by
an authorized Mercedes-Benz Light
Truck Center.
K
Close
tilt/sliding sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding portion of the
tilt/sliding sunroof* open.

Close the tilt/sliding sunroof*
(page 255).
J
Close
tilt/sliding sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt portion of the
tilt/sliding sunroof* open.

Close the tilt/sliding sunroof*
(page 255).

451 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
L
Malfunction
Drive to workshop
One or more main functions of the
Tele Aid* system are malfunctioning.

Have the Tele Aid* system checked
by an authorized Mercedes-Benz Light
Truck Center.
Battery
Drive to workshop
The emergency power battery for the
Tele Aid* system is malfunctioning. If the
vehicle battery is also malfunctioning or
drained, Tele Aid* will not be operational.

Have the Tele Aid* system checked
by an authorized Mercedes-Benz Light
Truck Center.
t
Function
unavailable
This display appears if buttont or
son the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
W
Washer fluid
Check level
The fluid level has dropped to
about
1/3of total reservoir capacity.

Add washer fluid (
page 352).

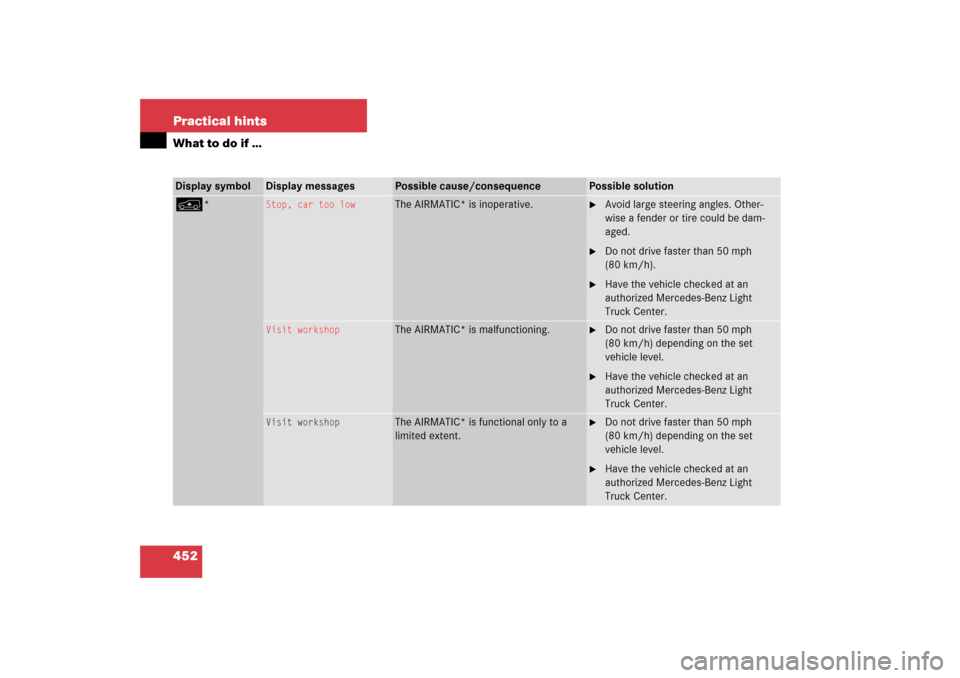

452 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
n
*

Stop, car too low
The AIRMATIC* is inoperative.

Avoid large steering angles. Other-
wise a fender or tire could be dam-
aged.

Do not drive faster than 50 mph
(80 km/h).

Have the vehicle checked at an
authorized Mercedes-Benz Light
Truck Center.
Visit workshop
The AIRMATIC* is malfunctioning.

Do not drive faster than 50 mph
(80 km/h) depending on the set
vehicle level.

Have the vehicle checked at an
authorized Mercedes-Benz Light
Truck Center.
Visit workshop
The AIRMATIC* is functional only to a
limited extent.

Do not drive faster than 50 mph
(80 km/h) depending on the set
vehicle level.

Have the vehicle checked at an
authorized Mercedes-Benz Light
Truck Center.

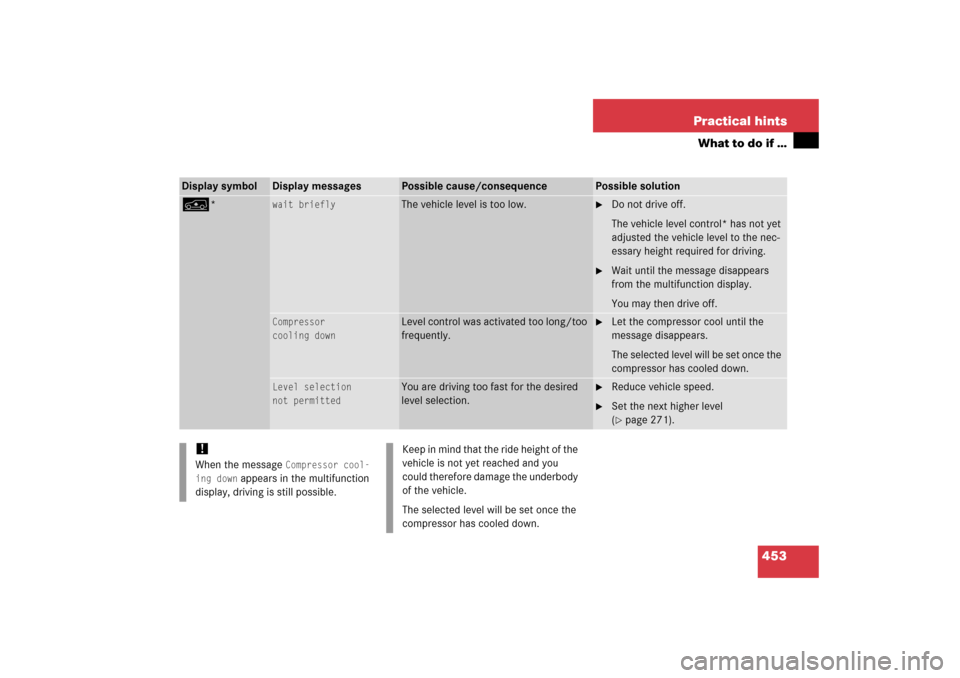

453 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
n
*
wait briefly
The vehicle level is too low.

Do not drive off.
The vehicle level control* has not yet
adjusted the vehicle level to the nec-
essary height required for driving.

Wait until the message disappears
from the multifunction display.
You may then drive off.
Compressor
cooling down
Level control was activated too long/too
frequently.

Let the compressor cool until the
message disappears.
The selected level will be set once the
compressor has cooled down.
Level selection
not permitted
You are driving too fast for the desired
level selection.

Reduce vehicle speed.

Set the next higher level
(page 271).
!When the message
Compressor cool-
ing down
appears in the multifunction
display, driving is still possible.
Keep in mind that the ride height of the
vehicle is not yet reached and you
could therefore damage the underbody
of the vehicle.
The selected level will be set once the
compressor has cooled down.

454 Practical hintsWhere will I find ...?First aid kit

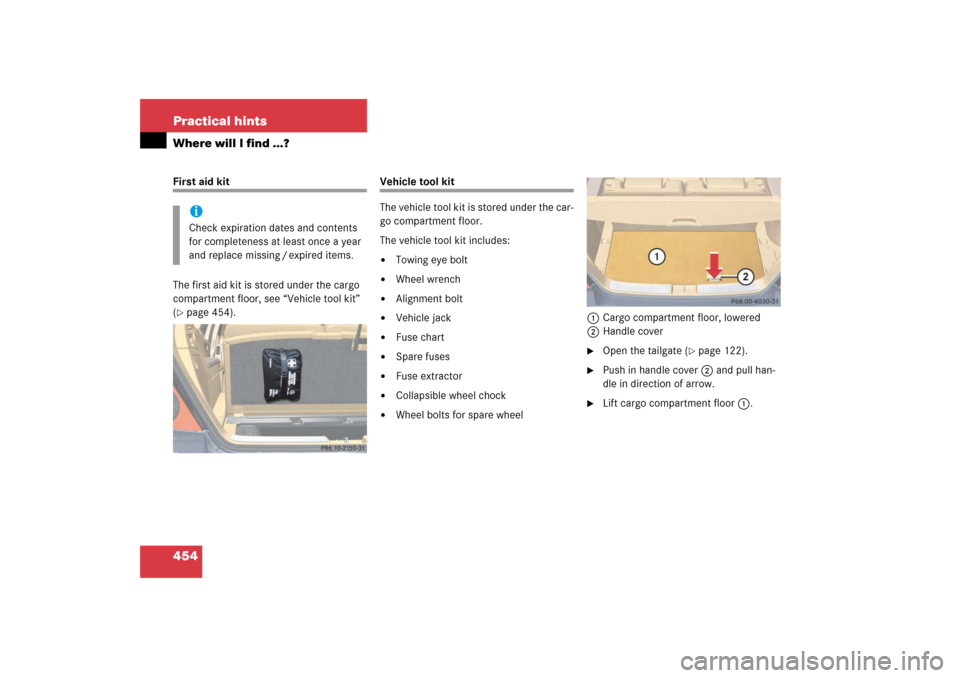

The first aid kit is stored under the cargo
compartment floor, see “Vehicle tool kit”
(page 454).
Vehicle tool kit
The vehicle tool kit is stored under the car-
go compartment floor.
The vehicle tool kit includes:

Towing eye bolt


Wheel wrench


Alignment bolt


Vehicle jack


Fuse chart


Spare fuses


Fuse extractor


Collapsible wheel chock


Wheel bolts for spare wheel1Cargo compartment floor, lowered
2Handle cover

Open the tailgate (
page 122).

Push in handle cover2 and pull han-
dle in direction of arrow.

Lift cargo compartment floor 1.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing / expired items.

455 Practical hints
Where will I find ...?
3Securing hook
Release securing hook 3 (located be-
low the floor handle) from holder.3Securing hook
4Cargo compartment floor, raised
5Upper cargo compartment lip

Engage securing hook 3 on upper
cargo compartment lip 5.You can now access the vehicle tool kit. To
remove the vehicle tool kit storage well
casing, proceed as described on
(
page 458).

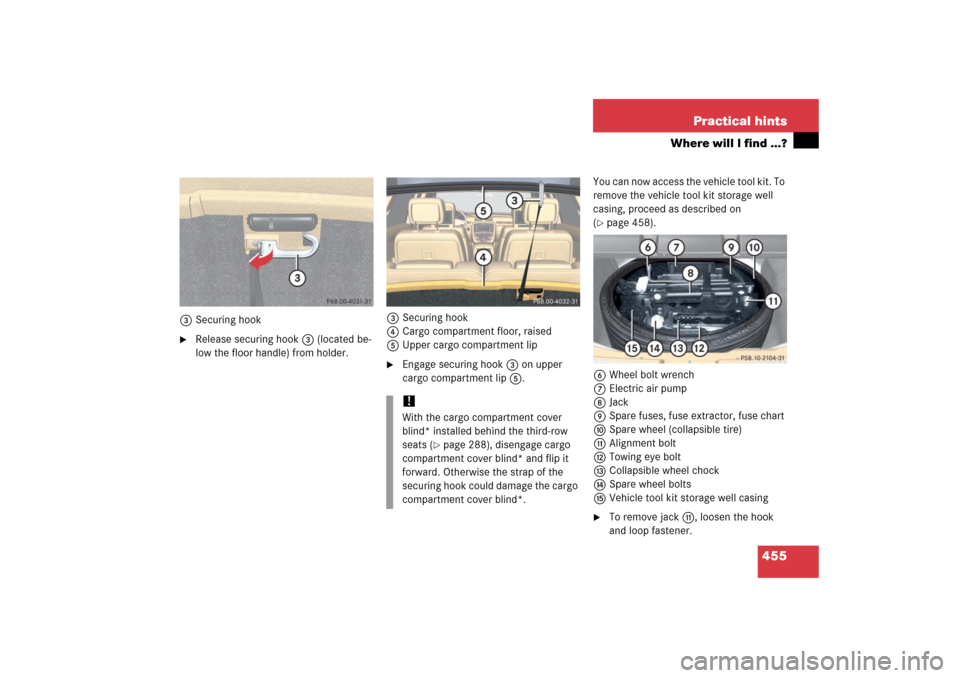

6Wheel bolt wrench
7Electric air pump
8Jack
9Spare fuses, fuse extractor, fuse chart
aSpare wheel (collapsible tire)
bAlignment bolt
cTowing eye bolt
dCollapsible wheel chock
eSpare wheel bolts
fVehicle tool kit storage well casing

To remove jackb, loosen the hook
and loop fastener.
!With the cargo compartment cover
blind* installed behind the third-row
seats (
page 288), disengage cargo
compartment cover blind* and flip it
forward. Otherwise the strap of the
securing hook could damage the cargo
compartment cover blind*.

456 Practical hintsWhere will I find ...?Vehicle jackThe vehicle jack is located underneath the
storage compartment floor.

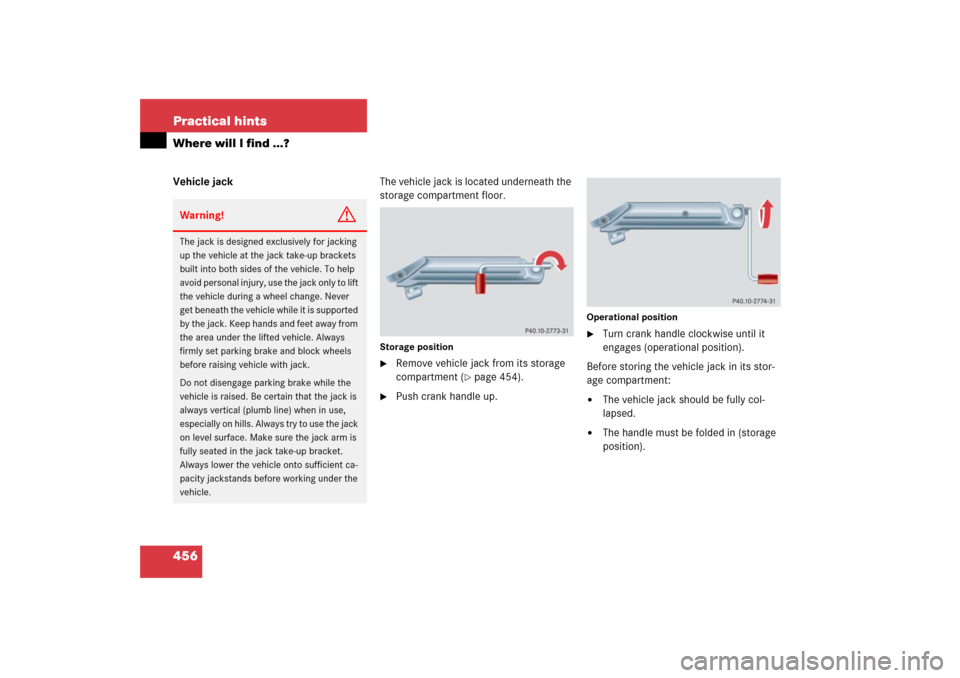

Storage position
Remove vehicle jack from its storage
compartment (
page 454).

Push crank handle up.
Operational position
Turn crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its stor-
age compartment:


The vehicle jack should be fully col-
lapsed.


The handle must be folded in (storage
position).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

457 Practical hints
Where will I find ...?
Setting up the collapsible wheel chock
The collapsible wheel chock serves to ad-
ditionally secure the vehicle, e.g. while
changing the wheel.

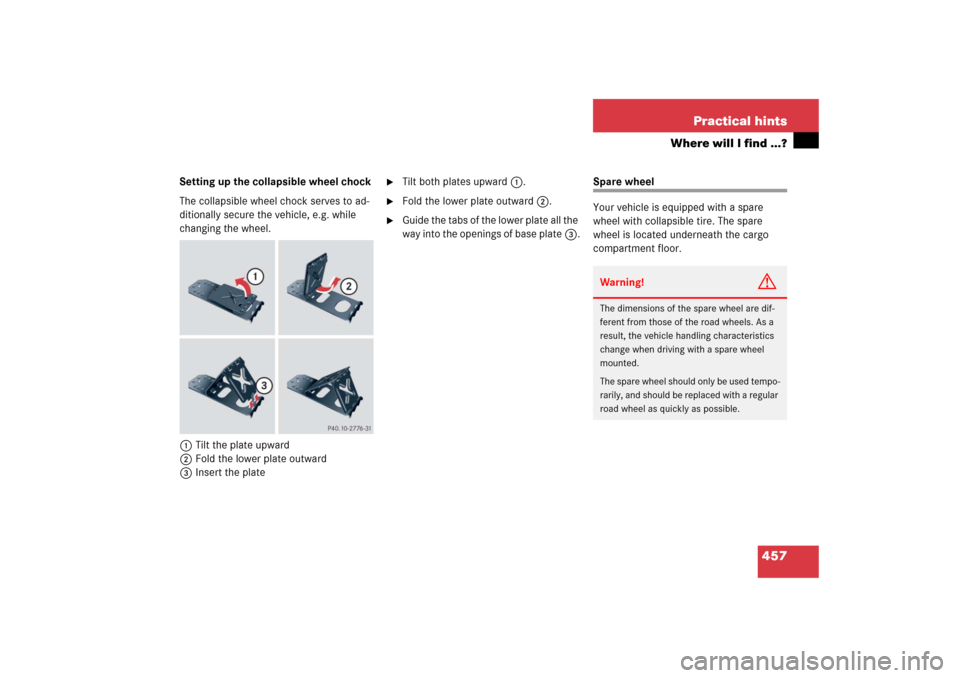

1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of base plate3.
Spare wheel
Your vehicle is equipped with a spare
wheel with collapsible tire. The spare
wheel is located underneath the cargo
compartment floor.Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a spare wheel
mounted.
The spare wheel should only be used tempo-
rarily, and should be replaced with a regular
road wheel as quickly as possible.

458 Practical hintsWhere will I find ...?In case of a flat tire, you may temporarily
use the spare wheel when observing the
following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km / h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate the vehicle with more

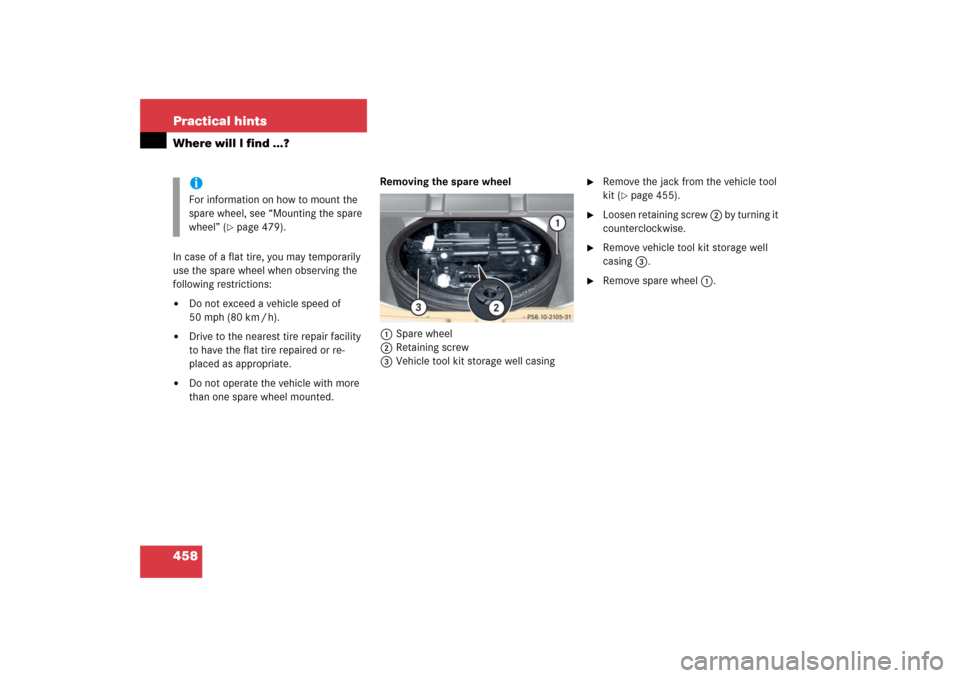

than one spare wheel mounted.Removing the spare wheel
1Spare wheel
2Retaining screw
3Vehicle tool kit storage well casing

Remove the jack from the vehicle tool
kit (
page 455).

Loosen retaining screw 2 by turning it
counterclockwise.

Remove vehicle tool kit storage well
casing 3.

Remove spare wheel 1.
iFor information on how to mount the
spare wheel, see “Mounting the spare
wheel” (
page 479).

459 Practical hints
Unlocking / locking in an emergency
Unlocking / locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or KEYLESS-GO*, open the driv-
er’s door using the mechanical key.

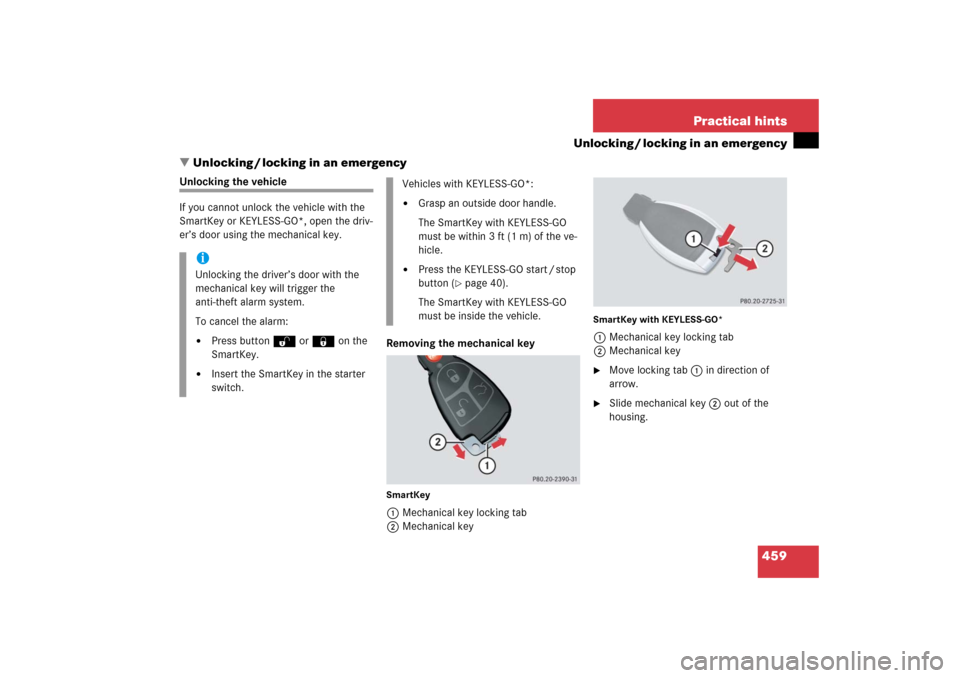

Removing the mechanical key
SmartKey1Mechanical key locking tab
2Mechanical key
SmartKey with KEYLESS-GO*1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.

Slide mechanical key2 out of the
housing.
iUnlocking the driver’s door with the
mechanical key will trigger the
anti-theft alarm system.
To cancel the alarm:

Press buttonŒ or‹on the
SmartKey.


Insert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*:

Grasp an outside door handle.
The SmartKey with KEYLESS-GO
must be within 3 ft (1 m) of the ve-
hicle.


Press the KEYLESS-GO start / stop
button (
page 40).
The SmartKey with KEYLESS-GO
