150 Control systemsCOMAND navigation (introduction)Adjusting the map scale

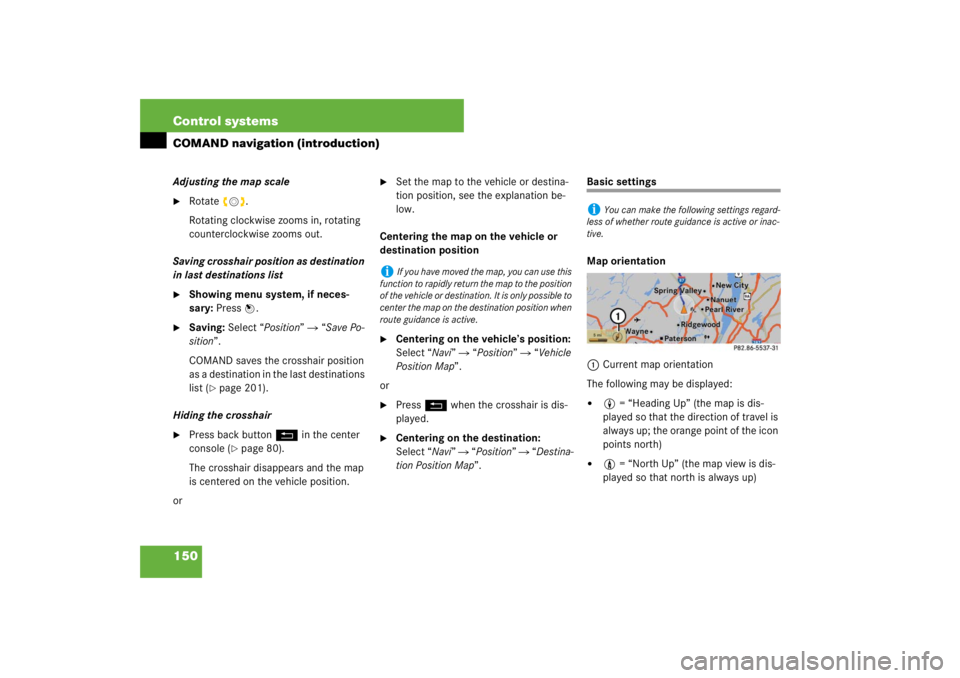

Rotate ymz.
Rotating clockwise zooms in, rotating
counterclockwise zooms out.
Saving crosshair position as destination
in last destinations list

Showing menu system, if neces-
sary: Press n.

Saving: Select “Position”
“Save Po-
sition”.
COMAND saves the crosshair position
as a destination in the last destinations
list (
page 201).
Hiding the crosshair

Press back button L in the center
console (
page 80).
The crosshair disappears and the map
is centered on the vehicle position.
or

Set the map to the vehicle or destina-
tion position, see the explanation be-
low.
Centering the map on the vehicle or
destination position

Centering on the vehicle’s position:
Select “Navi”
“Position”
“Vehicle
Position Map”.
or

Press L when the crosshair is dis-
played.

Centering on the destination:
Select “Navi”
“Position”
“Destina-
tion Position Map”.
Basic settings
Map orientation
1Current map orientation
The following may be displayed:

8 = “Heading Up” (the map is dis-
played so that the direction of travel is
always up; the orange point of the icon
points north)


9 = “North Up” (the map view is dis-
played so that north is always up)
i
If you have moved the map, you can use this
function to rapidly return the map to the position
of the vehicle or destination. It is only possible to
center the map on the destination position when
route guidance is active.
i
You can make the following settings regard-
less of whether route guidance is active or inac-
tive.

151 Control systems
COMAND navigation (introduction)

Setting map orientation:
Select “Navi”
“Navi”
“Map Dis-
play”.
The map display list appears. A dot R
indicates the current setting.

Select “North Up” or “Heading Up”.

Exiting menu: Slide omp.
The map orientation changes accord-
ingly.
Setting POI symbols
You can set which points of interest (POIs)
should be displayed as symbols in the
map. POIs are garages, hotels, movie the-
aters or restaurants, for example.
The following settings are possible:


“Standard symbols” (symbol deter-
mined by the factory settings)


“Personal symbols” (you can determine
the symbols yourself)


“No symbols”

Adjusting: Select “Navi”
“Navi”

“Map Display”.
The map display list appears. A dot R
indicates the current setting.

Select “Standard symbols”, “Personal
symbols” or “No symbols”.
If you select “Personal symbols”, the
list of POIs appears.
Switching POI symbol display on
or off: Select the desired POI.
The corresponding symbol displays
are switched on or off, depending
on the previous status. A check-
mark indicates which status is ac-
tive. You can switch on the symbol
displays for more than one POI.

Exiting menu: Slide omp or press
back button L in the center console
(page 80).
Geo-coordinate display

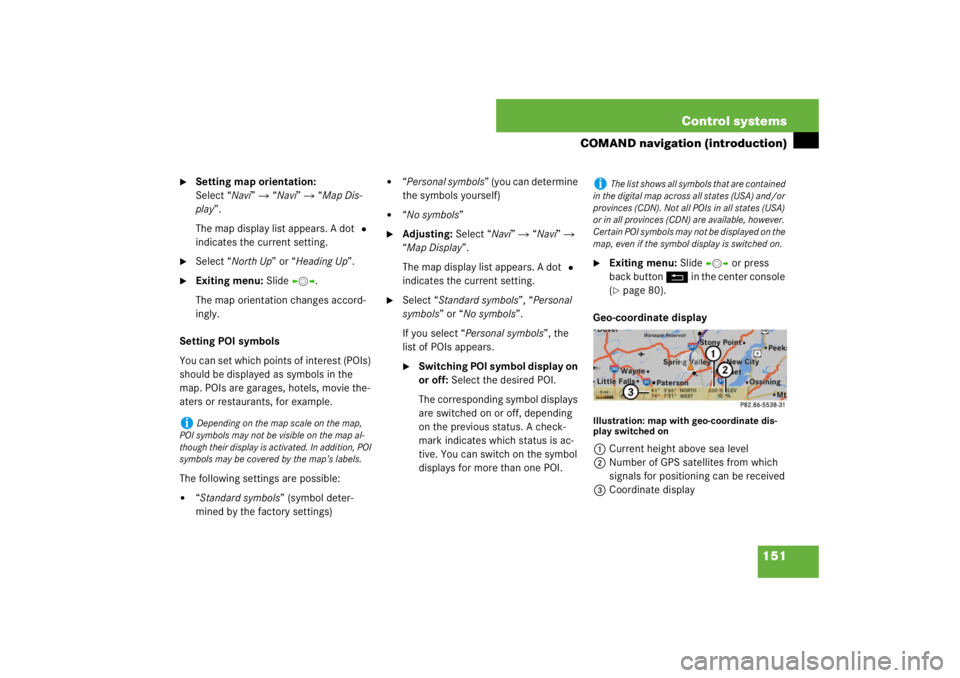

Illustration: map with geo-coordinate dis-
play switched on1Current height above sea level
2Number of GPS satellites from which
signals for positioning can be received
3Coordinate display
i
Depending on the map scale on the map,
POI symbols may not be visible on the map al-
though their display is activated. In addition, POI
symbols may be covered by the map’s labels.
i
The list shows all symbols that are contained
in the digital map across all states (USA) and/or
provinces (CDN). Not all POIs in all states (USA)
or in all provinces (CDN) are available, however.
Certain POI symbols may not be displayed on the
map, even if the symbol display is switched on.

152 Control systemsCOMAND navigation (introduction)Display options with geo-coordinate dis-
play switched on
If the crosshair is displayed on the map
view (map was moved manually), only dis-
play 3 is visible.
It shows either the coordinates of the
crosshair or other data on the crosshair
position, e.g. a street name. The digital
map must contain relevant data in order
for this other data to be displayed.
Switching the geo-coordinate display on
or off
Select “Navi”
“Navi”
“Map Dis-
play”.The map display list appears.

Select “Coordinates”.
The geo-coordinate display is switched
on or off, depending on the previous
status. A checkmark indicates which
status is active.

Exiting menu: Slide omp or press
back button L in the center console
(page 80).
Setting route mode

Select “Navi”
“Navi”
“Mode”.
The mode list appears.

Switching mode on or off:
Select desired modes.
Depending on the previous status, the
mode is switched on or off. A check-
mark indicates that the mode is
switched on. It is possible to switch on
more than one mode.

Exiting menu: Slide omp or press
back button L in the center console
(page 80).
COMAND will verify whether it can in-
corporate the modes if you select them
with route guidance active.
If it can, COMAND calculates a new
route while incorporating the modes
selected.
If it cannot, you will see and hear a cor-
responding message.

Select “OK”.
COMAND calculates a new route.
Only those modes which can be in-
corporated are used.
i
There must be sufficient GPS reception for
displays 1, 2 and 3 to be shown. Height dis-
play 1 is an approximation because the naviga-
tion system uses the GPS signals for the
calculation.
i
If there is no crosshair on the map view, dis-
plays 1, 2 and 3 are visible. Display 3
shows the coordinates of the current vehicle po-
sition.
i
This function allows you to set the following
options for route guidance:


“Minimize Highways”


“Minimize Toll Roads”


“Minimize Tunnels”


“Minimize Ferries/Motorail”

153 Control systems
COMAND navigation system (entering a destination)
COMAND navigation system (entering a destination)
The following destination entry options are
available:

Entering a destination by address


Entering a destination from the desti-
nation memory


Entering a destination from the list of
last destinations


Entering a destination from the map


Entering a stopover


Entering a POI
Entering a destination by address
To enter an address you may proceed as
follows:

Enter state (USA) or province (CDN),
street and town/city


Enter state (USA) or province (CDN),
town/city and street


Enter state (USA) or province (CDN),
town/city and center


Enter state (USA) or province (CDN),
zip code and center


Enter state (USA) or province (CDN),
zip code and streetCalling up the address input menu

Select “Navi”
“Destination”
“Ad-
dress Entry”.
The address input menu appears. It
shows a state (USA) or a province
(CDN). Which state or province is
shown depends on the vehicle’s loca-
tion.

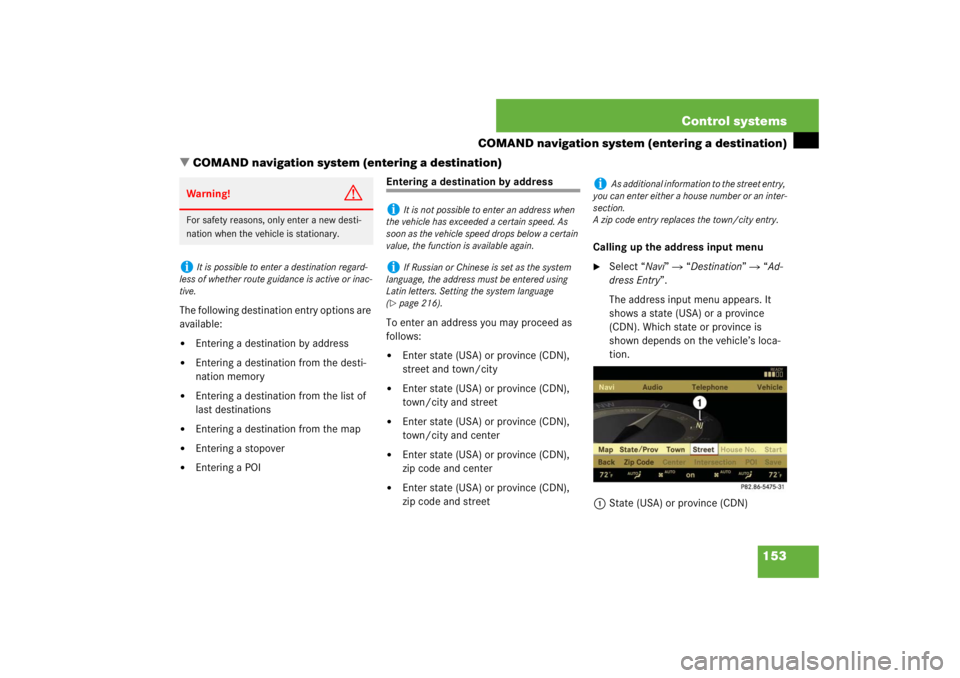

1State (USA) or province (CDN)
Warning!
G
For safety reasons, only enter a new desti-
nation when the vehicle is stationary.i
It is possible to enter a destination regard-
less of whether route guidance is active or inac-
tive.
i
It is not possible to enter an address when
the vehicle has exceeded a certain speed. As
soon as the vehicle speed drops below a certain
value, the function is available again.
i
If Russian or Chinese is set as the system
language, the address must be entered using
Latin letters. Setting the system language
(
page 216).
i
As additional information to the street entry,
you can enter either a house number or an inter-
section.
A zip code entry replaces the town/city entry.

154 Control systemsCOMAND navigation system (entering a destination)Menu items in the address input menu
Some menu items will not or not yet be
available, depending on the sequence in
which you enter the address and the data
version.
Example: If you have not made any entries,
menu items “House No.”, “Center”, “Inter-
section”, “POI”, “Start” and “Save” will not
yet be available. And the “Zip Code” menu
item will not be available if the digital map
does not contain any zip codes.
Entering a state (USA)
In the address input menu, select
“State/Prov”
“States (U.S.)”.
A list of states appears with input char-
acters; the input characters are auto-

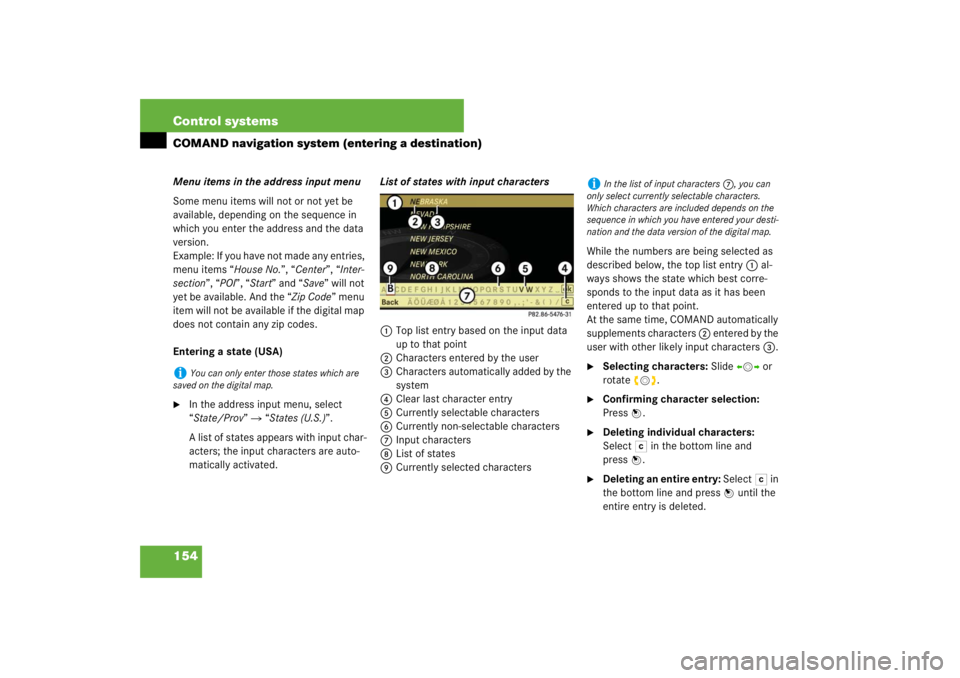

matically activated.List of states with input characters
1Top list entry based on the input data
up to that point
2Characters entered by the user
3Characters automatically added by the
system
4Clear last character entry
5Currently selectable characters
6Currently non-selectable characters
7Input characters
8List of states
9Currently selected charactersWhile the numbers are being selected as
described below, the top list entry 1 al-
ways shows the state which best corre-
sponds to the input data as it has been
entered up to that point.
At the same time, COMAND automatically
supplements characters 2 entered by the
user with other likely input characters 3.

Selecting characters: Slide omp or
rotate ymz.

Confirming character selection:
Press n.

Deleting individual characters:
Select) in the bottom line and
pressn.

Deleting an entire entry: Select) in
the bottom line and press n until the
entire entry is deleted.
i
You can only enter those states which are
saved on the digital map.
i
In the list of input characters 7, you can
only select currently selectable characters.
Which characters are included depends on the
sequence in which you have entered your desti-
nation and the data version of the digital map.

155 Control systems
COMAND navigation system (entering a destination)

Canceling an entry: Select “Back” in
the bottom line and press n.
or

Press back button L in the center
console (
page 80).
As soon as COMAND can clearly attribute
the characters entered to a state, the input
characters 7 disappear automatically.
You see the list of states without the input
characters. Here you can confirm the cur-
rent entry or make another selection.
During character entry, you can also man-
ually switch to the list of states without in-
put characters at any time.

Switching manually to list of states
without input characters: Slide qm.
or

Select ? in the second line from the

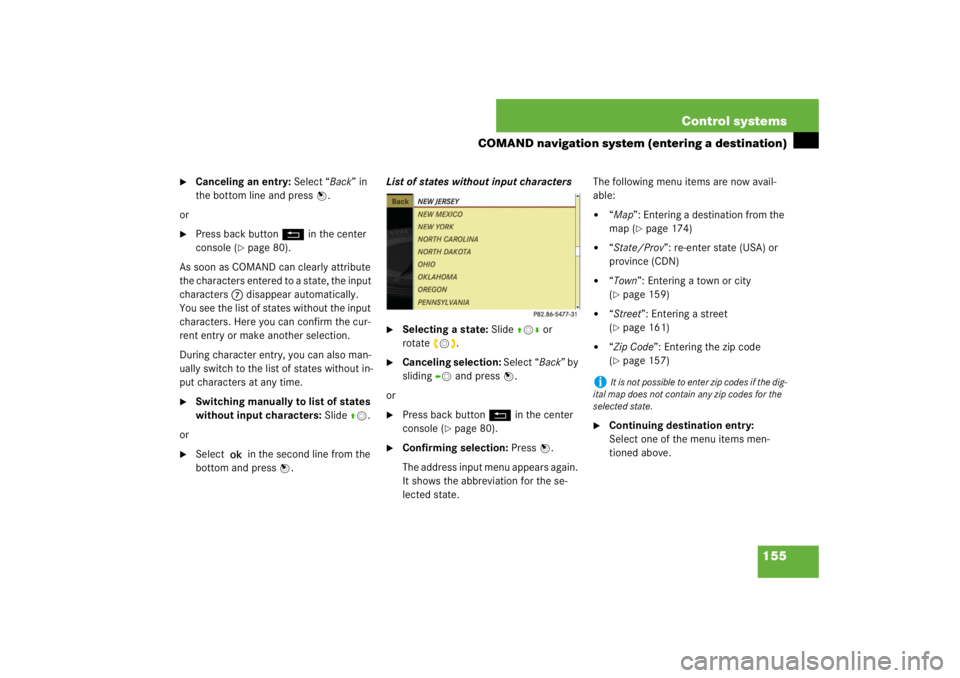

bottom and press n.List of states without input characters

Selecting a state: Slide qmr or
rotateymz.

Canceling selection: Select “Back” by
sliding om and press n.
or

Press back button L in the center
console (
page 80).

Confirming selection: Press n.
The address input menu appears again.
It shows the abbreviation for the se-
lected state. The following menu items are now avail-
able:


“Map”: Entering a destination from the
map (
page 174)


“State/Prov”: re-enter state (USA) or
province (CDN)


“Town”: Entering a town or city
(page 159)


“Street”: Entering a street
(page 161)


“Zip Code”: Entering the zip code
(page 157)

Continuing destination entry:
Select one of the menu items men-
tioned above.
i
It is not possible to enter zip codes if the dig-
ital map does not contain any zip codes for the
selected state.

156 Control systemsCOMAND navigation system (entering a destination)Entering a province (Canada)
In the address input menu, select
“State/Prov”
“Provinces (Canada)”.
A list of provinces appears.

Select desired province.
The address input menu appears again.
It shows the abbreviation for the se-
lected province.
The following menu items are now avail-
able:


“Map”: Entering a destination from the
map (
page 174)


“State/Prov”: re-enter state (USA) or
province (CDN)


“Town”: Entering a town or city
(page 159)


“Street”: Entering a street
(page 161)


“Zip Code”: Entering the zip code
(page 157)

Continuing destination entry:
Select one of the menu items men-
tioned above.
Quick access to most recently entered
states (USA) or provinces (CDN)

In the address input menu
“State/Prov”
“Last States/Provinc-
es”.
The list of most recently entered states
(USA) or provinces (CDN) appears. The
last entry is at the top of the list.

Select desired state (USA) or desired
province (CDN).
The address input menu appears again.
It shows the abbreviation for the se-
lected state (USA) or province (CDN).The following menu items are now avail-
able:


“Map”: Entering a destination from the
map (
page 174)


“State/Prov”: re-enter state (USA) or
province (CDN)


“Town”: Entering a town or city
(page 159)


“Street”: Entering a street
(page 161)


“Zip Code”: Entering the zip code
(page 157)

Continuing destination entry:
Select one of the menu items men-
tioned above.
i
It is not possible to enter a zip code if the
digital map does not contain any zip codes for
the selected province (CDN).
i
It is not possible to enter a zip code if the
digital map does not contain any zip codes for
the selected state (USA) or province (CDN).

157 Control systems
COMAND navigation system (entering a destination)
Entering the zip code
In the address input menu, select “Zip
Code”. A list of zip codes appears with
input characters; the input
characters4 are automatically acti-

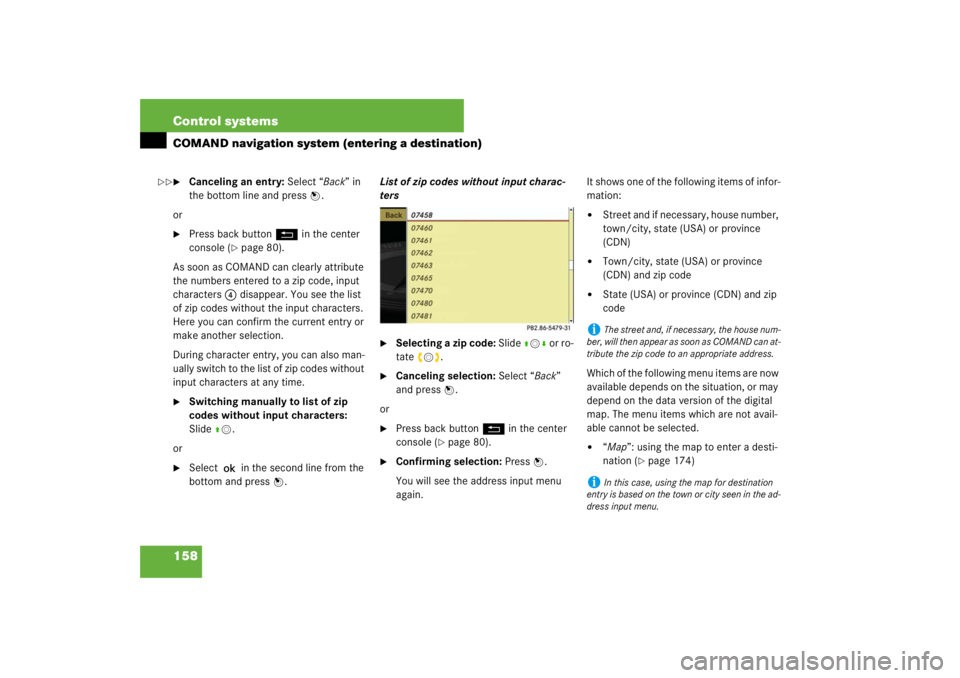

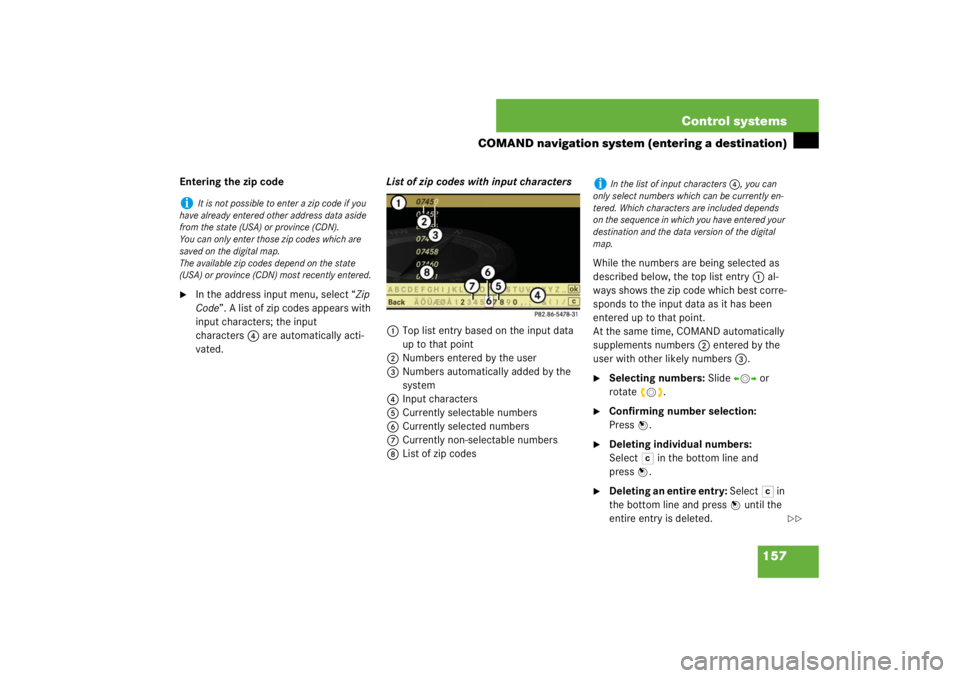

vated.List of zip codes with input characters
1Top list entry based on the input data
up to that point
2Numbers entered by the user
3Numbers automatically added by the
system
4Input characters
5Currently selectable numbers
6Currently selected numbers
7Currently non-selectable numbers
8List of zip codesWhile the numbers are being selected as
described below, the top list entry 1 al-
ways shows the zip code which best corre-
sponds to the input data as it has been
entered up to that point.
At the same time, COMAND automatically
supplements numbers 2 entered by the
user with other likely numbers 3.

Selecting numbers: Slide omp or
rotateymz.

Confirming number selection:
Pressn.

Deleting individual numbers:
Select) in the bottom line and
pressn.

Deleting an entire entry: Select) in
the bottom line and press n until the
entire entry is deleted.
i
It is not possible to enter a zip code if you
have already entered other address data aside
from the state (USA) or province (CDN).
You can only enter those zip codes which are
saved on the digital map.
The available zip codes depend on the state
(USA) or province (CDN) most recently entered.
i
In the list of input characters 4, you can
only select numbers which can be currently en-
tered. Which characters are included depends
on the sequence in which you have entered your
destination and the data version of the digital
map.


158 Control systemsCOMAND navigation system (entering a destination)
Canceling an entry: Select “Back” in
the bottom line and press n.
or

Press back button L in the center
console (
page 80).
As soon as COMAND can clearly attribute
the numbers entered to a zip code, input
characters 4 disappear. You see the list
of zip codes without the input characters.
Here you can confirm the current entry or
make another selection.
During character entry, you can also man-
ually switch to the list of zip codes without
input characters at any time.

Switching manually to list of zip
codes without input characters:
Slide qm.
or

Select ? in the second line from the
bottom and press n.List of zip codes without input charac-
ters

Selecting a zip code: Slide qmr or ro-
tate ymz.

Canceling selection: Select “Back”
and press n.
or

Press back button L in the center
console (
page 80).

Confirming selection: Press n.
You will see the address input menu
again. It shows one of the following items of infor-
mation:


Street and if necessary, house number,
town/city, state (USA) or province
(CDN)


Town/city, state (USA) or province
(CDN) and zip code


State (USA) or province (CDN) and zip
code
Which of the following menu items are now
available depends on the situation, or may
depend on the data version of the digital
map. The menu items which are not avail-
able cannot be selected.


“Map”: using the map to enter a desti-
nation (
page 174)
i
The street and, if necessary, the house num-
ber, will then appear as soon as COMAND can at-
tribute the zip code to an appropriate address.
i
In this case, using the map for destination
entry is based on the town or city seen in the ad-
dress input menu.


159 Control systems
COMAND navigation system (entering a destination)


“Street”: entering a street
(page 161)


“Center”: entering a center
(page 164)


“POI”: entering a point of interest
(page 177)


“Save”: saving a destination in the des-
tination memory (
page 195)


“Start”: starting the route calculation
(page 171)

Continuing or completing destina-
tion entry: Select one of the menu
items mentioned above.Entering a town or city

In the address input menu, select
“Town”.
The list of towns/cities appears either
with or without the input characters
(page 160).
Whether or not the input characters ap-
pear depends on how many towns or
cities are available for the desired state

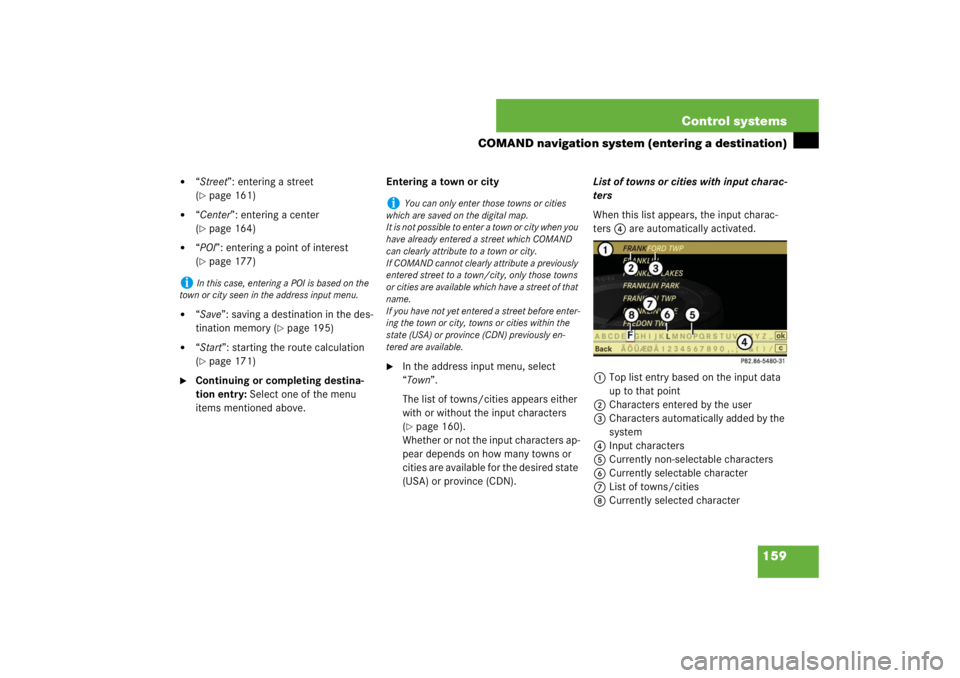

(USA) or province (CDN).List of towns or cities with input charac-
ters
When this list appears, the input charac-
ters 4 are automatically activated.
1Top list entry based on the input data
up to that point
2Characters entered by the user
3Characters automatically added by the
system
4Input characters
5Currently non-selectable characters
6Currently selectable character
7List of towns/cities
8Currently selected character
i
In this case, entering a POI is based on the
town or city seen in the address input menu.
i
You can only enter those towns or cities
which are saved on the digital map.
It is not possible to enter a town or city when you
have already entered a street which COMAND
can clearly attribute to a town or city.
If COMAND cannot clearly attribute a previously
entered street to a town/city, only those towns
or cities are available which have a street of that
name.
If you have not yet entered a street before enter-
ing the town or city, towns or cities within the
state (USA) or province (CDN) previously en-
tered are available.
