714 Practical hintsReplacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. Contact an autho-
rized Mercedes-Benz Center for headlamp
adjustment.
i
If the headlamps or front fog lamps are
fogged up on the inside as a result of high humid-
ity, driving the vehicle a distance with the lights
on should clear up the fogging.
i
Substitute bulbs will be brought into use
when the following lamps malfunction:


Brake lamps


Rear fog lamps


Front parking lamps


Tail lamps


Turn signal lamps
Read and observe messages in the multifunction
display (
page 642).

715 Practical hints
Replacing bulbs
Bulbs Front lamps Rear lamps
Lamp
Type
1
Bi-Xenon headlamp:
Low and high beam
lamp
1
1Bi-Xenon headlamps: Low beam and high beam
use the same D1S-35W lamp. Do not replace the
Bi-Xenon bulbs yourself. Contact an authorized
Mercedes-Benz Center.
D1S-35 W
2
Additional turn signal
lamp
LED
3
Parking and standing
lamp
W5W
4
Side marker lamp
W5W
5
Bi-Xenon headlamp:
High beam flasher lamp
H7-55 W
IR emitter* (for Night
View Assist*)
H11-55 W
6
Corner-illuminating
lamp
H7-55 W
7
Fog lamp
H11-55 W
8
Turn signal lamp
PY 24 W
Lamp
Type
9
High mounted brake
lamp
LED
a
Turn signal lamp
HiP 16 W
b
Brake lamp/tail lamp
and standing lamp
LED
c
License plate lamp
W5W
d
Backup lamp
HiP 16 W
e
Side marker lamp
LED
f
Rear fog lamp (driver’s
side only)
HiP 19 W

716 Practical hintsReplacing bulbsNotes on bulb replacement


Only use 12-volt-bulbs of the same
type and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, contact an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


the Bi-Xenon lamps


the front turn signal lamps


the front fog lamps


the additional turn signal lamps in the
exterior rear view mirrors


the parking and standing lamps


the front side marker lamps


the high mounted brake lamps


the brake, tail and rear standing lamps


the rear side marker lamps


the rear fog lamp


the rear turn signal lamps


the rear side marker lamps


the license plate lamps
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
!
Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the vehi-
cle. Only have the LEDs replaced by an autho-
rized Mercedes-Benz Center.
i
Have the headlamp adjustment checked
regularly.

720 Practical hintsReplacing bulbsAdditional turn signal lamp bulbs
The additional turn signal lamps in the ex-
terior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the turn signal unit replaced
by an authorized Mercedes-Benz Center.
Front side marker lamp bulbs
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Center.

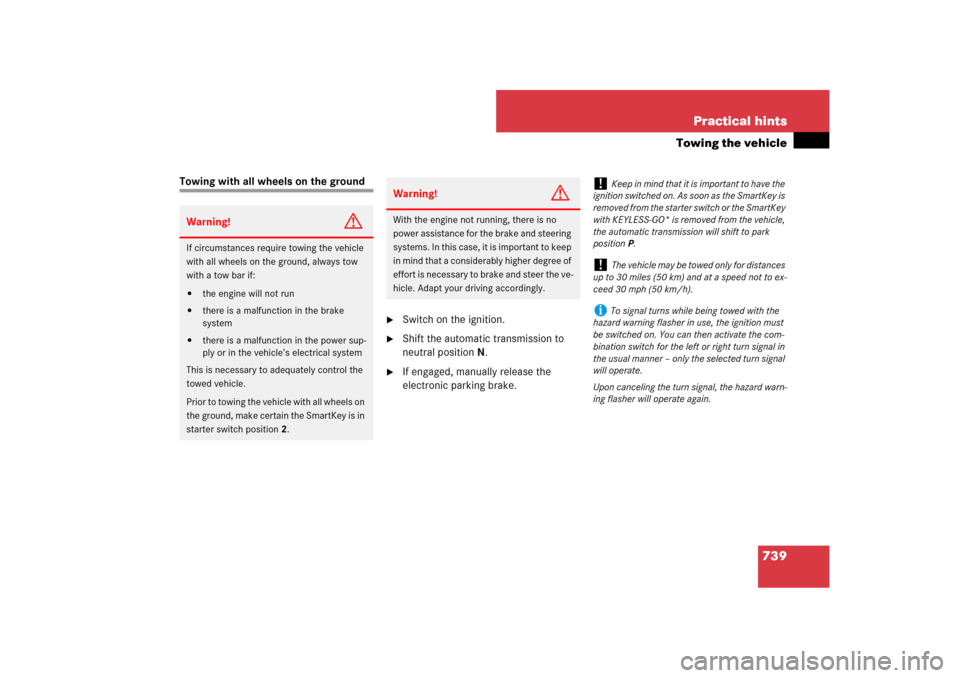

739 Practical hints
Towing the vehicle
Towing with all wheels on the ground

Switch on the ignition.

Shift the automatic transmission to
neutral positionN.

If engaged, manually release the
electronic parking brake.
Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the brake
system


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
This is necessary to adequately control the
towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain the SmartKey is in
starter switch position2.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
!
Keep in mind that it is important to have the
ignition switched on. As soon as the SmartKey is
removed from the starter switch or the SmartKey
with KEYLESS-GO* is removed from the vehicle,
the automatic transmission will shift to park
positionP.
!
The vehicle may be towed only for distances
up to 30 miles (50 km) and at a speed not to ex-
ceed 30 mph (50 km/h).
i
To signal turns while being towed with the
hazard warning flasher in use, the ignition must
be switched on. You can then activate the com-
bination switch for the left or right turn signal in
the usual manner – only the selected turn signal
will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.

775 Index
A
ABC* 470
Messages in display 660
Setting vehicle level 471
ABS 67
Indicator lamp 29, 67, 628
Messages in display 662
Accelerator position, automatic
transmission 433
Accessory weight 606
Accident 421
Active headlamps 399
Adaptive Brake Lights
(S 600, USA only) 69
Adaptive Damping System
(Airmatic) 468
Additional turn signals 715
Address book (COMAND) 167
Calling up 168
Changing an entry 174
Creating an entry 168
Deleting an entry 175
Details about an entry 172
Displaying details about an entry in
the phone book on the mobile
phone 173Importing data 179
Making a call 176
Menu overview 167
Searching for an entry 170
Starting route guidance 176
Voice entry 177
Address book (Voice Control) 330
ADS (Airmatic) 468
Advanced Parking Guidance* 481
Air bags 42
Children 58
Front 46
Front passenger front air bag
indicator lamp 51
OCS 47
Safety guidelines 44
Side impact 46
Window curtain 46, 47
Air conditioning, Refrigerant 768, 769
Air distribution
Adjusting 510
Adjusting (COMAND) 275
Air pressure 606
Air pressure see Tire inflation pressure
Air recirculation mode 506
Air vents 500Air volume
Adjusting 504, 510
Adjusting (COMAND) 275
Airmatic 468
Messages in display 676
Setting vehicle level 469
Alarm
Audible alarm and flashing exterior
lamps (Panic alarm) 66
Alarm system see Anti-theft alarm system
Alignment bolt (vehicle tool kit) 705, 726
Ambient lighting
COMAND menu 269
AMG menu (Control system
instrument cluster) 296
AMG vehicles
Manual shift program mode 440
Antiglare
Rear view mirrors 390
Anti-theft systems 82
Alarm, visual and audible 82
Anti-theft alarm system 82
Immobilizer 82
Aquaplaning see Hydroplaning
Armrest 527, 528
Ashtrays 536

777 Index
B
Backup lamps
Replacing bulbs 715
Bar 606
BAS 69
Batteries, SmartKey
Checking battery condition 366
Replacing 712
Batteries, SmartKey with KEYLESS-GO*
Checking battery condition 366
Replacing 712
Batteries, vehicle 729
Charging 732
Discharged, Jump starting 734
Disconnecting 731
For electrical consumers 729
For starter 729
Message in display 678
Reconnecting 733
Removing 732
Bead 606
Beverage holder see Cupholder
Blind Spot Assist* 495
Messages in display 654
Bluetooth
®
Settings (COMAND) 180Brake assist system (BAS Plus) 70
Brake assist system (BAS) 69
Brake fluid 572, 766, 769
Brake lamp bulbs 715
Brake lamp, high mounted 715
Brake pads
Message in display 666
Brake warning lamp 29
Brakes 560
High-performance brake system
(AMG vehicles only) 561
Warning lamp 29, 629
Break-in period 558
Bulbs, replacing 714
Additional turn signals 715
Brake lamps 715
Fog lamps 715
Front lamps 715
High beam 715
High mounted brake lamp 715
License plate lamps 715
Low beam 715
Parking and standing lamps 715
Rear fog lamp 715
Turn signal lamps 715C
California retail buyers and lessees,
important notice for 15
Can holder see Cupholder
Capacities and recommended
fuel/lubricants 764
Cargo area see Trunk
Cargo tie-down hooks 532
Carpets, Cleaning and care of 624
Catalytic converter 568
CD
Ejecting (COMAND) 122
Loading (COMAND) 120
Menu overview (COMAND) 123
Playback options (COMAND) 128
Selecting a medium (COMAND) 126
Selecting a track (COMAND) 126
CD (COMAND) 116
Central locking
Automatic 368
Locking/unlocking from inside 369
Central locking/unlocking switches 369
Certification label 748
Change of address or ownership 16

778 IndexChildren in the vehicle 58
Air bags 58
Indicator lamp front passenger
front air bag off 51, 640
Infant and child restraint systems 59
LATCH-type child seat anchors 63
Override switch for rear passenger
compartment 64
Tether attachment points 62
Chrome-plated exhaust tip*,
Cleaning 625
Cigarette lighter 537
Cockpit 26
COMAND
Adjusting volume 98
Audio AUX 129
Components 87
Controller 90
Display 88
Display illumination 89
Function buttons 88
Main menus 98
Menu overview 92
Navigation system 188
Operating 92Operating safety 86
Operating seats 282
Phone book* 158
Radio, FM/AM 102
Selecting sound settings 99
SMS messages 183
Surround sound 100
Switching off/on the
audio source 101
Switching on or off 87
Swiveling display 89
System settings 259
Telephone keypad* 90
Telephone menu* 141
Vehicle menu 264
Voice Control settings 261
Combination switch 403
Corner-illuminating lamps 404
High beam flasher 403
Turn signals 420
Windshield wipers 408
Command list (Voice Control) 340
Address book commands 345
Audio commands 347
General commands 340Navigation commands 343
Telephone* commands 341
Control system instrument cluster 287
Multifunction display 287
Multifunction steering wheel 288
Control system instrument cluster menus
AMG 296
Assistance* 303
Audio 294
Navi 292
Service 304
Settings 305
Telephone* 299
Trip 291
Vehicle status message memory 304
Coolant 579
Adding 580
Anticorrosion/antifreeze mixing
ratio and quantity 771
Checking level 579
Messages in display 679
Temperature 569
Temperature gauge 29, 444
Coolant level
Checking 579
Corner-illuminating lamps 404

786 Index
ESP
®
29, 629, 634
Front passenger front air bag off 51,
640
High beam headlamp 29
Maintenance service indicator 612
Park Assist* 29
Parktronic* 29
Seat belt telltale 29, 635
SRS 29, 637
TPMS malfunction telltale 638
TPMS* malfunction telltale 29
Turn signals 29
Language (COMAND) 262
LATCH-type child seat anchors see
Children in the vehicle
Lever
For automatic transmission
(gear selector lever) 426
For cruise control 447
For DISTRONIC Plus* 457
License plate lamps
Messages in display 689
Replacing bulbs 715
Light alloy wheels, Cleaning 623
Light sensor
Message in display 688Lighter see Cigarette lighter
Lighting 399
Automatic headlamp mode 400
COMAND display illumination 89
Corner-illuminating lamps 404
Daytime running lamp mode 401
Door entry lamps 407
High beam flasher 403
Instrument cluster illumination 444,
492
Interior 406
Low beam headlamps 400
Manual headlamp mode 400
Trunk 407
Limp-Home Mode 443
Loading see Vehicle loading
Locator lighting (COMAND) 265
Lock button
Door handle (KEYLESS-GO*) 364,
415
Key, SmartKey 358
Key, SmartKey with
KEYLESS-GO* 361
Locking 421
Automatic central locking
(COMAND) 267Vehicle in an emergency 709
Locking knob 367
Loss of
Key, Mechanical 366
Key, SmartKey 366
Key, SmartKey with
KEYLESS-GO* 366
Service and Warranty Information
Booklet 747
Low beam headlamps 400
Replacing bulbs 715
Lowering
Vehicle 727
Lubricants 764
Lumbar support (COMAND) 283

796 IndexTrunk
Closing 511, 708
Closing trunk from inside 511
Closing trunk from outside 511
Emergency release 516
Lighting 407
Message in display 704
Opening from inside 511
Opening from outside 511
Opening-height restriction
(COMAND) 272
Power closing assist for trunk lid 368
Tie-down hooks 532
Unlocking in an emergency 708
Valet locking 517
Tumbler holder see Cupholder
Turn signal lamps
Cleaning lenses 619
Replacing bulbs 715
Turn signals 420
Additional in mirrors 715
Front bulbs 715
Indicator lamp 29
Rear bulbs 715U
Uniform Tire Quality Grading
Standards 609
Uphill driving
Cruise control 448
Upholstery
Cleaning 625
Useful features 534
V
Valet locking 517
Vanity mirrors
In the sun visor 534
Vehicle
Batteries 729
Breaking-in period 558
Care 615
Dimensions 762
Individual settings, control system in
instrument cluster 305
Locking/unlocking 358, 361
Locking/unlocking in an
emergency 708
Lowering 727
Menu (COMAND) 264Service battery 729
Towing 737
Washing 615, 617
Weights 763
Vehicle data recording 22
Vehicle jack 706, 724
Vehicle level
Changing (ABC*) 471
Changing (Airmatic) 469
Setting (ABC*) 471
Setting (Airmatic) 469
Setting, Automatic (ABC*) 471
Setting, Automatic (Airmatic) 469
Setting, Manual (ABC*) 471
Setting, Manual (Airmatic) 469
Vehicle level control (Airmatic) 469
Vehicle loading 525, 585
Cargo tie-down hooks 532
Instructions 525
Load limit 586
Roof rack* 525
Terminology 606
Vehicle maximum load on the tire 609
Vehicle Recovery services, Stolen
(Tele Aid) 550
Vehicle tool kit 705
