automatic transmission MERCEDES-BENZ S-Class 2008 W221 Comand Manual

Contents
Multicontour seats*, rear ............. 383
Easy-entry/exit feature ................ 384
Steering wheel ................................... 386
Steering wheel adjustment........... 386
Heated steering wheel* ............... 387
Mirrors ............................................... 388
Interior rear view mirror ............... 388
Exterior rear view mirrors ............. 388
Power folding exterior rear
view mirrors ................................. 389
Auto-dimming rear view mirrors ... 390
Activating exterior rear
view mirror parking position ......... 391
Memory function................................ 392
Storing positions into memory ..... 393
Recalling positions from memory . 393
Storing exterior rear view
mirror parking position ................. 394
Fastening the seat belts..................... 395
Proper use of seat belts ............... 397
Seat belt height adjustment
automatically ................................ 397
Seat belt height adjustment
manually ....................................... 398
Lighting .............................................. 399
Exterior lamp switch ..................... 399High beam .................................... 403
Headlamp cleaning system .......... 403
Corner-illuminating lamps ............ 404
Hazard warning flasher ................ 405
Interior lighting............................. 406
Door entry lamps ......................... 407
Trunk lamp ................................... 407
Windshield wipers .............................. 408
Switching on/off
windshield wipers......................... 408
Intermittent wiping....................... 409
Single wipe................................... 409
Wiping with windshield
washer fluid.................................. 409
Power windows .................................. 410
Opening and closing
power windows ............................ 410
Rear side window sunshades* ..... 412
Summer opening feature.............. 412
Convenience closing feature ........ 413
Driving and parking............................ 416
Starting the engine....................... 416
Driving off .................................... 419
Turn signals .................................. 420
Problems while driving ................. 420
Parking ......................................... 421Turning off the engine .................. 424
Releasing seat belts ..................... 425
Automatic transmission ..................... 426
Gear selector lever....................... 426
Shifting procedure ....................... 429
Transmission positions ................ 430
Driving tips................................... 433
Gear ranges ................................. 435
Automatic shift program .............. 436
Steering wheel gearshift control .. 438
Manual shift program
(S 63 AMG and S 65 AMG only) ... 440
Emergency operation
(Limp-Home Mode) ...................... 443
Instrument cluster ............................. 444
Adjusting instrument cluster
display illumination ...................... 444
Coolant temperature gauge ......... 444
Tachometer .................................. 445
Outside temperature indicator ..... 445
Fuel gauge ................................... 445
Driving systems ................................. 446
Cruise control .............................. 446
DISTRONIC Plus* ......................... 451
Airmatic ....................................... 468
Active Body Control (ABC)* ......... 470

27 At a glance
Cockpit
Item
Page
1
Combination switch

High beam


Corner-illuminating lamps


Windshield wipers


Turn signals
403
404
408
420
2
Lever for

Cruise control


DISTRONIC Plus*
447
451
3
Horn
4
Multifunction steering wheel
288
5
Instrument cluster
28
6
Steering wheel gearshift con-
trol
438
7
Gear selector lever for
automatic transmission
416
Item
Page
8
Control panel with

Front passenger front
air bag indicator lamp


Vehicle level control
switch


Electronic Stability Pro-
gram (ESP
®) switch


Parktronic*/Park Assist*
deactivation switch


Swivel COMAND display


COMAND/instrument
cluster display
illumination
51
469,
471
74
475,
480
89
444
9
COMAND display
87
a
Overhead control panel
33
b
Automatic climate control
Center console, upper part
501
32
Item
Page
c
Glove box lock
526
d
Cover of compartment with

CD/DVD changer


PCMCIA card slot
120
121
e
Center console, lower part
30
f
Starter switch
KEYLESS-GO* start/stop
button
370
371
g
Steering wheel adjustment
Heated steering wheel*
386
387
h
Electronic parking brake
422
j
Door control panel
34
k
Hood lock release
573
l
Night View Assist*
491
m
Exterior lamp switch
399

31 At a glance
Control systems
Item
Page
1
Lto cancel Voice
Control
back
311
288
2
$to scroll up
%to scroll down
&to scroll to the right
(to scroll to the left
#to confirm selection
3
Multifunction display
287
4
sto take a call
to dial
to redial
tto end a call
to reject an incoming
call
æto increase volume
çto decrease volume
Fto mute
299
299
Item
Page
5
!to activate Voice
Control
to accept a call
311
152
6
Instrument cluster illumina-
tion
444
7
Swivel COMAND display
89
8
COMAND display illumination
89
9
COMAND display
88
a
CD/DVD changer
120
b
PCMCIA card slot
121
c
Favorite button
263
d
Rear head restraints retract
button
381
e
Program mode selector
switch for:

automatic transmission
shift program


suspension tuning of
Airmatic or ABC*
436
468
470
Item
Page
f
Shortcut button for:

CD/DVD


radio
124
103
g
Back button
96
h
Hazard warning flasher
405
j
Seat menu
282
k
Shortcut button for:

telephone*


navigation
141
195
l
COMAND on/off button
88
m
Volume control
98
n
Mute button
98
o
Telephone keypad
144
p
COMAND controller
90

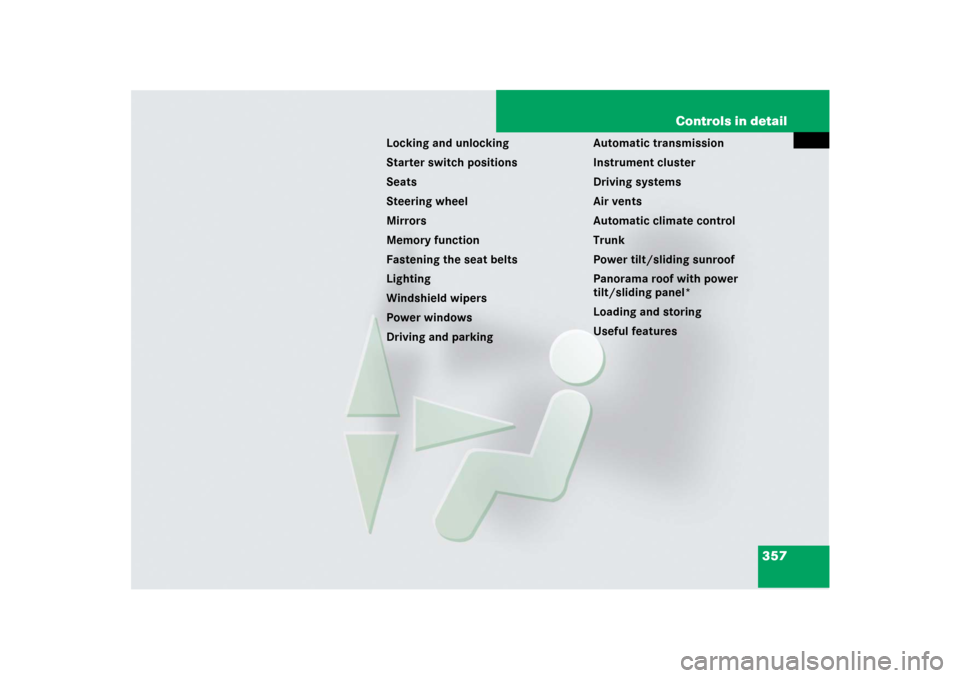

357 Controls in detail
Locking and unlocking
Starter switch positions
Seats
Steering wheel
Mirrors
Memory function
Fastening the seat belts
Lighting
Windshield wipers
Power windows
Driving and parkingAutomatic transmission
Instrument cluster
Driving systems
Air vents
Automatic climate control
Trunk
Power tilt/sliding sunroof
Panorama roof with power
tilt/sliding panel*
Loading and storing
Useful features

363 Controls in detail
Locking and unlocking


Always carry the SmartKey with
KEYLESS-GO with you.


Never store the SmartKey with
KEYLESS-GO together with:

Electronic items such as a mobile
phone or another SmartKey with
KEYLESS-GO


Metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.


To lock or unlock the vehicle, the
SmartKey with KEYLESS-GO must be
located outside the vehicle within ap-
proximately 3 ft (1 m) of a door or the
trunk lid.


If the vehicle has been parked for more
than 72 hours, you must pull an outside
door handle in order to activate the
KEYLESS-GO function.


In order to start the engine with the
SmartKey with KEYLESS-GO:

The SmartKey with KEYLESS-GO
must be located in the vehicle.


The KEYLESS-GO start/stop button
must be inserted in the starter
switch (
page 372).


The brake pedal must be firmly de-
pressed. Do not depress the accel-
erator.


If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle, the system may no longer recog-
nize the SmartKey with KEYLESS-GO.
The vehicle then cannot be locked or
the engine started via the KEYLESS-GO
system.


I f t he Sm a rtK ey with K EY L ES S -GO is re -
moved from the vehicle (e.g. if passen-
ger exits the vehicle with the SmartKey
with KEYLESS-GO)


when pressing the KEYLESS-GO
start/stop button or trying to lock
the vehicle with the outside door
handle the message
“Key Not Detected” appears in the
multifunction display


with the engine running, the mes-
sage “Key Not Detected” appears in
the multifunction display while driv-
ing off
Find the SmartKey with KEYLESS-GO or
change its present location immediate-
ly (e.g. place it on the front passenger
seat or insert it in shirt pocket).


If you have started the engine with the
KEYLESS-GO start/stop button, you
can turn it off again with:

the KEYLESS-GO start/stop button


the SmartKey with KEYLESS-GO in-
serted in the starter switch, when
the automatic transmission is in
park positionP

370 Controls in detailStarter switch positionsSmartKeyStarter switch
0For removing SmartKey
1Power supply for some electrical con-
sumers
2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.
If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 628).
3Starting positionFor information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 417).
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
i
When you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.
i
When the SmartKey is removed from the
starter switch and the automatic transmission is
in a position other than park positionP, the auto-
matic transmission automatically shifts to park
positionP.
!
If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.


Check the battery and charge it if necessary
(page 729).


Have the vehicle jump-started (
page 734).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.

372 Controls in detailStarter switch positionsThe SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the automatic transmission
is set to park positionP.

Do not depress the brake pedal.
KEYLESS-GO start/stop button1USA only
2Canada only
Position 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status 0 (as with
SmartKey removed).Position 1

Press the KEYLESS-GO start/stop but-
ton once.
This supplies power for some electrical
consumers.
Ignition (or position 2)

Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power for all electrical
consumers.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 628).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 417).
i
If you now press the KEYLESS-GO
start/stop button


once again, the ignition (position2) is
switched on


twice, the power supply is again switched off
i
If you now press the KEYLESS-GO
start/stop button once, the power supply is
again switched off.
i
When you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.


391 Controls in detail
Mirrors
Activating exterior rear view mirror parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored position.
Make sure you have stored a parking
position for the passenger-side exterior
rear view mirror (
page 394).

Make sure the “Lower mirror when re-
versing” function in the “Exterior Mirror
Convenience Settings” submenu of the
COMAND system is selected
(page 266).

Switch on the ignition (
page 370).1Selector switch for right or left exterior
mirror

Press switch1 repeatedly until the
exterior mirror on the front passenger
side is selected.

Shift the automatic transmission in re-
verse gearR.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position.
The exterior rear view mirror returns to its
previously stored driving position:


when you switch off the ignition


10 seconds after you have put the au-
tomatic transmission out of reverse
gearR


immediately once your vehicle exceeds
a speed of approximately 6 mph
(10 km/h)


immediately when you press button1
for driver’s side exterior rear view mir-
ror.
i
With the automatic transmission in reverse
gearR, the previously selected exterior rear
view mirror is activated.
i
If you adjust the exterior mirrors while they
are in the parking position, the new mirror posi-
tion is stored as a new parking position.

404 Controls in detailLightingCorner-illuminating lamps
The corner-illuminating lamps improve illu-
mination of the area in the direction into
which you are turning.
The corner-illuminating lamps will operate
with the engine running and with:

the exterior lamp switch in
positionB or* (
page 399)
or


the daytime running lamp mode acti-
vated (
page 401).Switching on corner-illuminating lamps

Switch on the left or right turn signal
(page 399), depending on whether
you are turning left or right.
or

Turn steering wheel in desired direc-
tion.
The corner-illuminating lamp on the
side of your steering direction comes
on.
i
The corner-illuminating lamps will only come
on in low ambient lighting conditions.
i
If you are driving faster than 43 mph
(70 km/h), the corner-illuminating function is
not available.
i
If you have switched on the turn signal for
one side but turn the steering wheel in the other
direction, the corner-illuminating lamp lights up
on the side of the turn signal.
i
The corner-illuminating lamps temporarily
come on on both sides of the vehicle if you turn
the steering wheel in one direction and then in
the other direction shortly thereafter.
i
The corner-illuminating lamps will come on
automatically depending on the steering angle,
even if you did not switch on either turn signal. If
the corner-illuminating lamps came on automat-
ically, they will also go out automatically depend-
ing on the steering angle.
i
When you shift the automatic transmission
in reverse gearR, the corner-illuminating lamp
opposite to your steering direction comes on.
The turn signal has no influence on the corner-il-
luminating lamp on the outside of the curve.

409 Controls in detail
Windshield wipers
Intermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.

Turn the combination switch to posi-
tion U or V.
The wipers move across the wind-
shield. Afterward, the wiping intervals
are determined by the wetness of the
windshield.
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.
Single wipe
Press the combination switch briefly in
the direction of arrow2 (
page 408)
to the resistance point.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Press the combination switch in the di-
rection of arrow2 (
page 408) past
the resistance point.
The windshield wiper operates with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 580).
i
When the windshield wipers are switched on
and you brake the vehicle to a stop, the wipers
operate more slowly.
!
Do not leave windshield wipers on an inter-
mittent setting when the vehicle is taken to an
automatic car wash or during windshield clean-
ing. Wipers will operate in the presence of water
sprayed on the windshield, and windshield wip-
ers may be damaged as a result.
!
If you have set intermittent wiping, dirt on
the surface of the rain sensor or optical effects
may cause the windshield wipers to wipe in an
undesired fashion. This could then damage the
windshield wiper blades or scratch the windows.
You should therefore switch off the windshield
wipers when weather conditions are dry.
i
Intermittent wiping is interrupted when the
vehicle is at a standstill and a front door is
opened. This protects persons getting into or out
of the vehicle from being sprayed.
Intermittent wiping will be continued when


all doors are closed
and


the automatic transmission is set to drive
positionD or reverse gearR
or


the wiper setting is changed using the com-
bination switch
i
To prevent smears on the windshield or
noisy/chattering wiper blades, wipe with wind-
shield washer fluid every now and then even
when it is raining.
