seat adjustment MERCEDES-BENZ S-Class 2008 W221 Comand Manual

Contents
Audio menu .................................. 294
AMG menu ................................... 296
Telephone* menu......................... 299
Assistance* menu ........................ 303
Service menu ............................... 304
Settings menu .............................. 305
Voice Control..................................... 308
Operating safety........................... 308
Voice Control introduction................. 309
Spelling ........................................ 310
Command types ........................... 310
Active System .............................. 310
Controls ....................................... 311
Symbols ....................................... 312
Voice Control telephone .................... 313
Telephone operation .................... 313
Telephone commands .................. 314
Voice Control navigation.................... 320
Important notes ........................... 320
Navigation operation .................... 321
Navigation commands.................. 321
Dialog for entering
a complete address...................... 322
Commands for entering parts of
an address ................................... 327Voice Control address book ............... 330
COMAND address book overview . 330
Operation with address book
not open (global) ........................... 330
Operation with address book
open (local) ................................... 331
Operating and using address book 331
Available commands with the
address book not open ................. 331
Available commands with the
address book open ....................... 333
Voice Control radio............................. 334
Radio operation ............................ 334
Radio commands .......................... 334
Voice Control CD/
DVD changer/MP3 ............................. 338
Operation ...................................... 338
Commands.................................... 339
Voice Control command list ............... 340
Command list................................ 340
Voice Control troubleshooting ............ 352
Help function ................................ 352
Help commands ............................ 352
Help window ................................. 352
Entering digits and spelling ........... 352
What to do if ... ............................. 353Voice Control individualization ........... 355
Controls in detail.............................. 357
Locking and unlocking ....................... 358
SmartKey ...................................... 358
SmartKey with KEYLESS-GO* ....... 361
Checking batteries in the
SmartKey or SmartKey with
KEYLESS-GO* ............................... 366
Loss of the SmartKey or
SmartKey with KEYLESS-GO* ....... 366
Opening doors from the inside ..... 367
Power closing assist
for doors and trunk lid .................. 368
Automatic central locking ............. 368
Locking and unlocking from
the inside ...................................... 369
Starter switch positions ..................... 370
SmartKey ...................................... 370
SmartKey with KEYLESS-GO* ....... 371
Seats .................................................. 373
Seat adjustment ........................... 373
Seat heating ................................. 377
Seat ventilation* ........................... 378
Head restraints ............................. 379

Contents
Multicontour seats*, rear ............. 383
Easy-entry/exit feature ................ 384
Steering wheel ................................... 386
Steering wheel adjustment........... 386
Heated steering wheel* ............... 387
Mirrors ............................................... 388
Interior rear view mirror ............... 388
Exterior rear view mirrors ............. 388
Power folding exterior rear
view mirrors ................................. 389
Auto-dimming rear view mirrors ... 390
Activating exterior rear
view mirror parking position ......... 391
Memory function................................ 392
Storing positions into memory ..... 393
Recalling positions from memory . 393
Storing exterior rear view
mirror parking position ................. 394
Fastening the seat belts..................... 395
Proper use of seat belts ............... 397
Seat belt height adjustment
automatically ................................ 397
Seat belt height adjustment
manually ....................................... 398
Lighting .............................................. 399
Exterior lamp switch ..................... 399High beam .................................... 403
Headlamp cleaning system .......... 403
Corner-illuminating lamps ............ 404
Hazard warning flasher ................ 405
Interior lighting............................. 406
Door entry lamps ......................... 407
Trunk lamp ................................... 407
Windshield wipers .............................. 408
Switching on/off
windshield wipers......................... 408
Intermittent wiping....................... 409
Single wipe................................... 409
Wiping with windshield
washer fluid.................................. 409
Power windows .................................. 410
Opening and closing
power windows ............................ 410
Rear side window sunshades* ..... 412
Summer opening feature.............. 412
Convenience closing feature ........ 413
Driving and parking............................ 416
Starting the engine....................... 416
Driving off .................................... 419
Turn signals .................................. 420
Problems while driving ................. 420
Parking ......................................... 421Turning off the engine .................. 424
Releasing seat belts ..................... 425
Automatic transmission ..................... 426
Gear selector lever....................... 426
Shifting procedure ....................... 429
Transmission positions ................ 430
Driving tips................................... 433
Gear ranges ................................. 435
Automatic shift program .............. 436
Steering wheel gearshift control .. 438
Manual shift program
(S 63 AMG and S 65 AMG only) ... 440
Emergency operation
(Limp-Home Mode) ...................... 443
Instrument cluster ............................. 444
Adjusting instrument cluster
display illumination ...................... 444
Coolant temperature gauge ......... 444
Tachometer .................................. 445
Outside temperature indicator ..... 445
Fuel gauge ................................... 445
Driving systems ................................. 446
Cruise control .............................. 446
DISTRONIC Plus* ......................... 451
Airmatic ....................................... 468
Active Body Control (ABC)* ......... 470

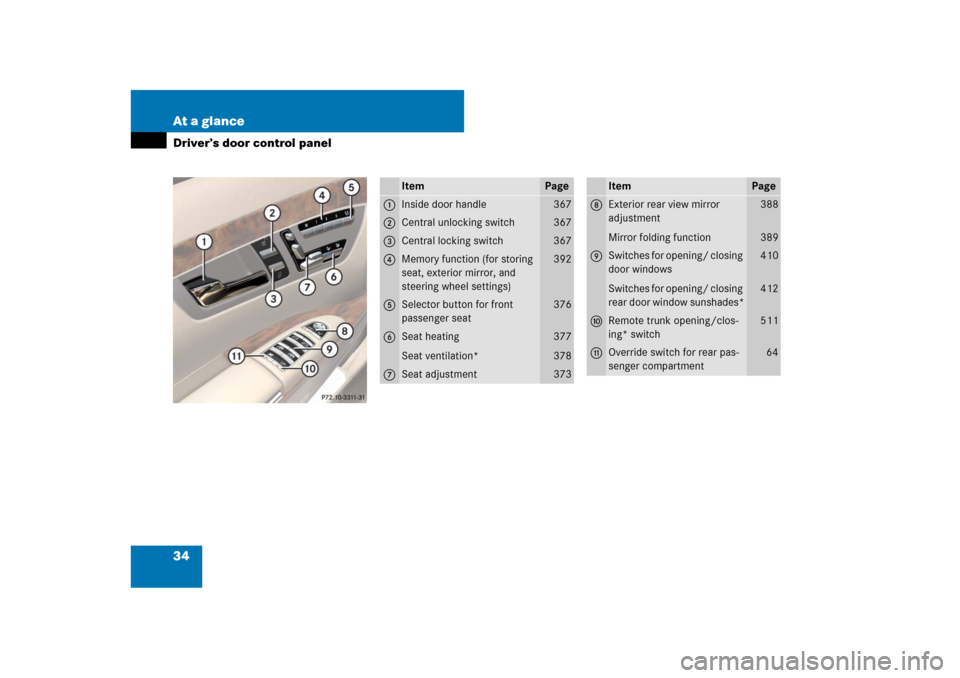

34 At a glanceDriver’s door control panel
Item
Page
1
Inside door handle
367
2
Central unlocking switch
367
3
Central locking switch
367
4
Memory function (for storing
seat, exterior mirror, and
steering wheel settings)
392
5
Selector button for front
passenger seat
376
6
Seat heating
Seat ventilation*
377
378
7
Seat adjustment
373
Item
Page
8
Exterior rear view mirror
adjustment
Mirror folding function
388
389
9
Switches for opening/ closing
door windows
Switches for opening/ closing
rear door window sunshades*
410
412
a
Remote trunk opening/clos-
ing* switch
511
b
Override switch for rear pas-
senger compartment
64

35 At a glance
Rear door control panel
Rear door control panel
Item
Page
1
Selection switch for right
front passenger seat adjust-
ment*
1
1This switch is located on the right rear passenger
side only.
376
2
Memory function* (for storing
seat settings) (Canada only)
392
3
Inside door handle
367
4
Seat adjustment
373
5
Seat heating*
Seat ventilation*
377
378
6
Button for extending/retract-
ing panorama roof sunblind*
521
7
Switch for extending/retract-
ing rear window sunshade
535
8
Switches for opening/closing
door windows
Switches for opening/closing
rear side window sunshades*
410
412

42 Safety and SecurityOccupant safetyAir bagsWarning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags), side impacts (side
impact air bags and window curtain air bags)
or rollovers (window curtain air bags). How-
ever, no system available today can com-
pletely eliminate injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
Warning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belt.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body (
page 395).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:


Sit properly belted in a position that is
as upright as possible with your back
against the seat backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please contact an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.

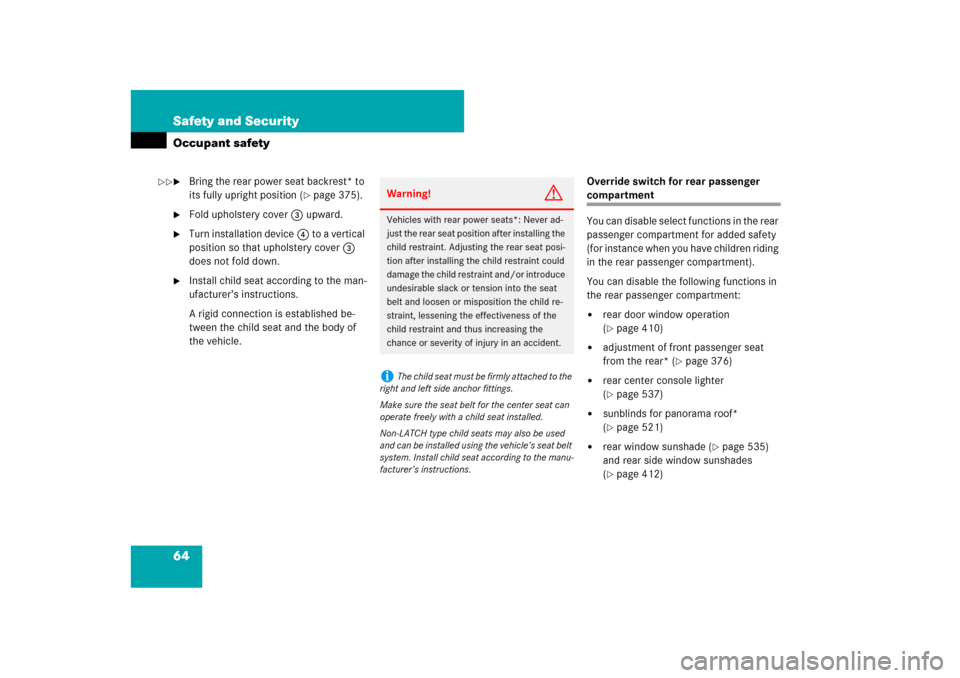

64 Safety and SecurityOccupant safety
Bring the rear power seat backrest* to
its fully upright position (
page 375).

Fold upholstery cover3 upward.

Turn installation device4 to a vertical
position so that upholstery cover3
does not fold down.

Install child seat according to the man-
ufacturer’s instructions.
A rigid connection is established be-
tween the child seat and the body of
the vehicle.Override switch for rear passenger
compartment
You can disable select functions in the rear
passenger compartment for added safety
(for instance when you have children riding
in the rear passenger compartment).
You can disable the following functions in
the rear passenger compartment:

rear door window operation
(page 410)


adjustment of front passenger seat
from the rear* (
page 376)


rear center console lighter
(page 537)


sunblinds for panorama roof*
(page 521)


rear window sunshade (
page 535)
and rear side window sunshades
(
page 412)
Warning!
G
Vehicles with rear power seats*: Never ad-
just the rear seat position after installing the
child restraint. Adjusting the rear seat posi-
tion after installing the child restraint could
damage the child restraint and/or introduce
undesirable slack or tension into the seat
belt and loosen or misposition the child re-
straint, lessening the effectiveness of the
child restraint and thus increasing the
chance or severity of injury in an accident.i
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d t o t h e
right and left side anchor fittings.
Make sure the seat belt for the center seat can
operate freely with a child seat installed.
Non-LATCH type child seats may also be used
and can be installed using the vehicle’s seat belt
system. Install child seat according to the manu-
facturer’s instructions.

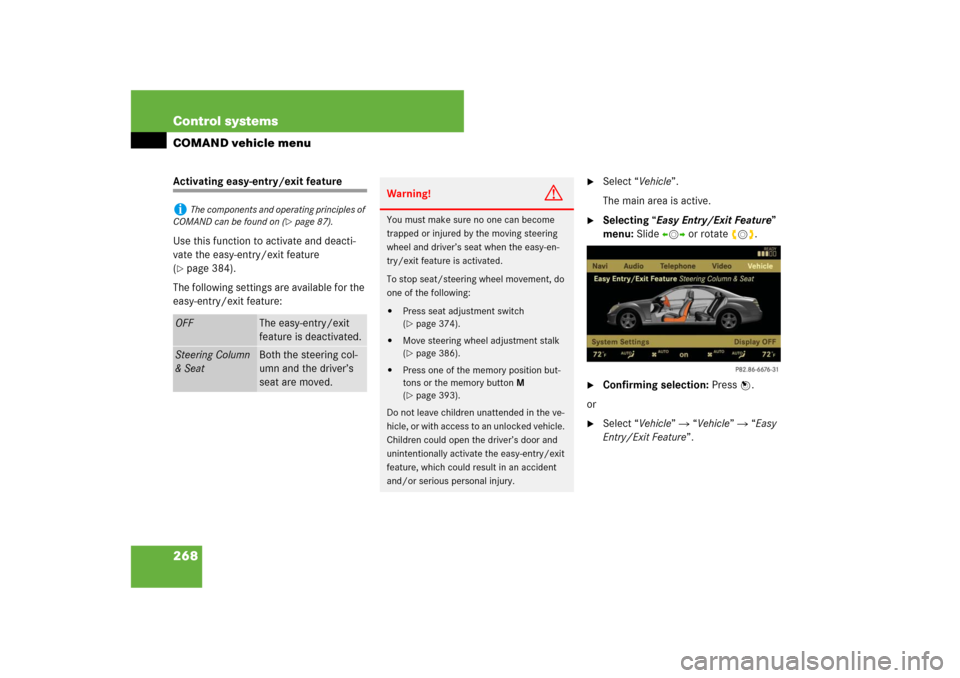

268 Control systemsCOMAND vehicle menuActivating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature
(page 384).
The following settings are available for the
easy-entry/exit feature:

Select “Vehicle”.
The main area is active.

Selecting “Easy Entry/Exit Feature”
menu: Slide omp or rotate ymz.

Confirming selection: Press n.
or

Select “Vehicle”
“Vehicle”
“Easy
Entry/Exit Feature”.
i
The components and operating principles of
COMAND can be found on (
page 87).
OFF
The easy-entry/exit
feature is deactivated.
Steering Column
& Seat
Both the steering col-
umn and the driver’s
seat are moved.
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and driver’s seat when the easy-en-
try/exit feature is activated.
To stop seat/steering wheel movement, do
one of the following:

Press seat adjustment switch
(page 374).


Move steering wheel adjustment stalk
(page 386).


Press one of the memory position but-
tons or the memory button M
(page 393).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

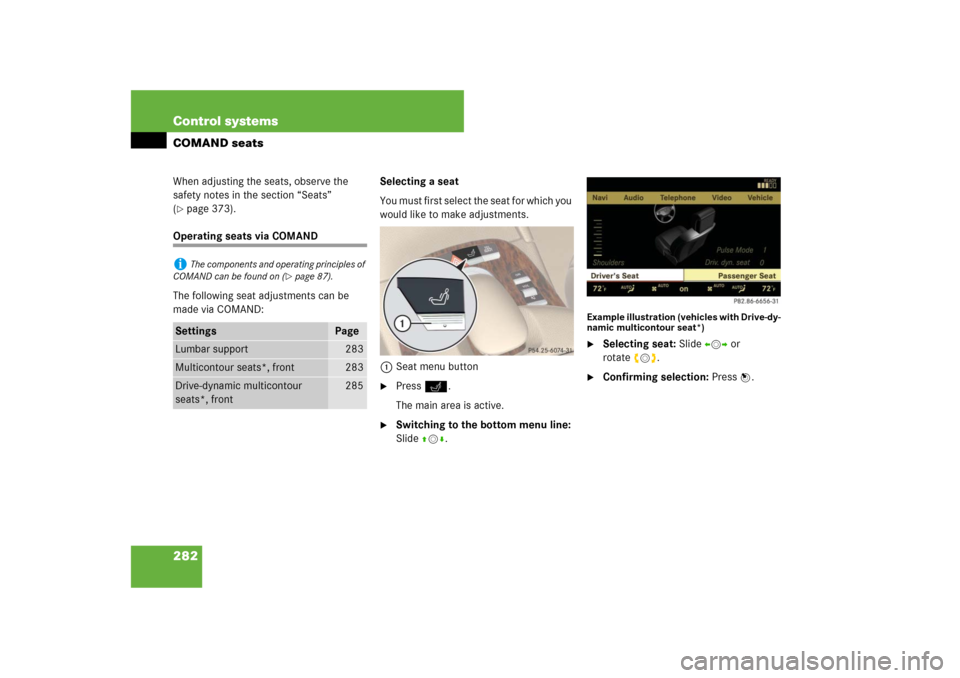

282 Control systemsCOMAND seatsWhen adjusting the seats, observe the
safety notes in the section “Seats”
(page 373).
Operating seats via COMAND
The following seat adjustments can be
made via COMAND:Selecting a seat
You must first select the seat for which you
would like to make adjustments.
1Seat menu button

Press O.
The main area is active.

Switching to the bottom menu line:
Slide qmr.
Example illustration (vehicles with Drive-dy-
namic multicontour seat*)
Selecting seat: Slide omp or
rotateymz.

Confirming selection: Press n.
i
The components and operating principles of
COMAND can be found on (
page 87).
Settings
Page
Lumbar support
283
Multicontour seats*, front
283
Drive-dynamic multicontour
seats*, front
285

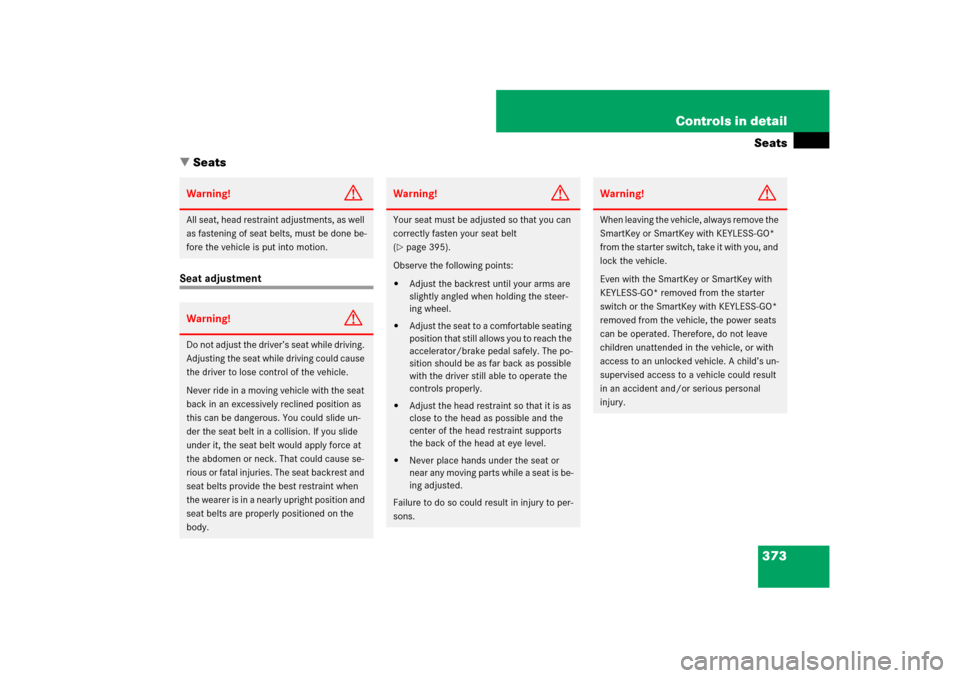

373 Controls in detailSeats
Seats
Seat adjustmentWarning!
G
All seat, head restraint adjustments, as well
as fastening of seat belts, must be done be-
fore the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the seat belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries. The seat backrest and
seat belts provide the best restraint when
the wearer is in a nearly upright position and
seat belts are properly positioned on the
body.
Warning!
G
Your seat must be adjusted so that you can
correctly fasten your seat belt
(page 395).
Observe the following points:


Adjust the backrest until your arms are
slightly angled when holding the steer-
ing wheel.


Adjust the seat to a comfortable seating
position that still allows you to reach the
accelerator/brake pedal safely. The po-
sition should be as far back as possible
with the driver still able to operate the
controls properly.


Adjust the head restraint so that it is as
close to the head as possible and the
center of the head restraint supports
the back of the head at eye level.


Never place hands under the seat or
near any moving parts while a seat is be-
ing adjusted.
Failure to do so could result in injury to per-
sons.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the power seats
can be operated. Therefore, do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s un-
supervised access to a vehicle could result
in an accident and/or serious personal
injury.

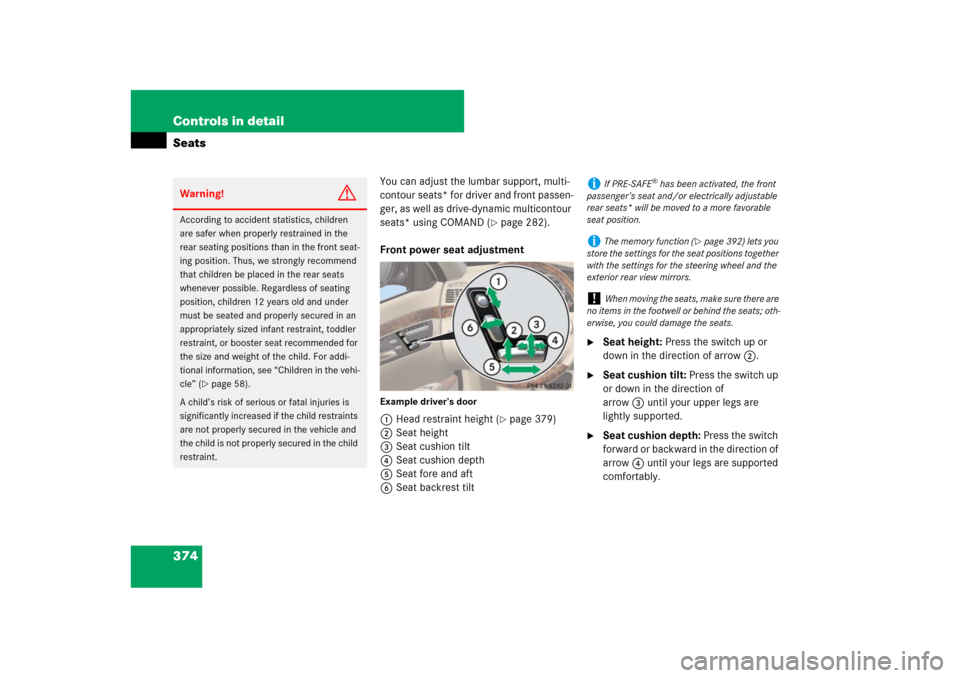

374 Controls in detailSeats
You can adjust the lumbar support, multi-
contour seats* for driver and front passen-
ger, as well as drive-dynamic multicontour
seats* using COMAND (
page 282).
Front power seat adjustment
Example driver’s door1Head restraint height (
page 379)
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft
6Seat backrest tilt

Seat height: Press the switch up or
down in the direction of arrow2.

Seat cushion tilt: Press the switch up
or down in the direction of
arrow3until your upper legs are
lightly supported.

Seat cushion depth: Press the switch
forward or backward in the direction of
arrow4 until your legs are supported
comfortably.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriately sized infant restraint, toddler
restraint, or booster seat recommended for
the size and weight of the child. For addi-
tional information, see “Children in the vehi-
cle” (
page 58).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
i
If PRE-SAFE
® has been activated, the front
passenger’s seat and/or electrically adjustable
rear seats* will be moved to a more favorable
seat position.
i
The memory function (
page 392) lets you
store the settings for the seat positions together
with the settings for the steering wheel and the
exterior rear view mirrors.
!
When moving the seats, make sure there are
no items in the footwell or behind the seats; oth-
erwise, you could damage the seats.
