Page 401 of 502

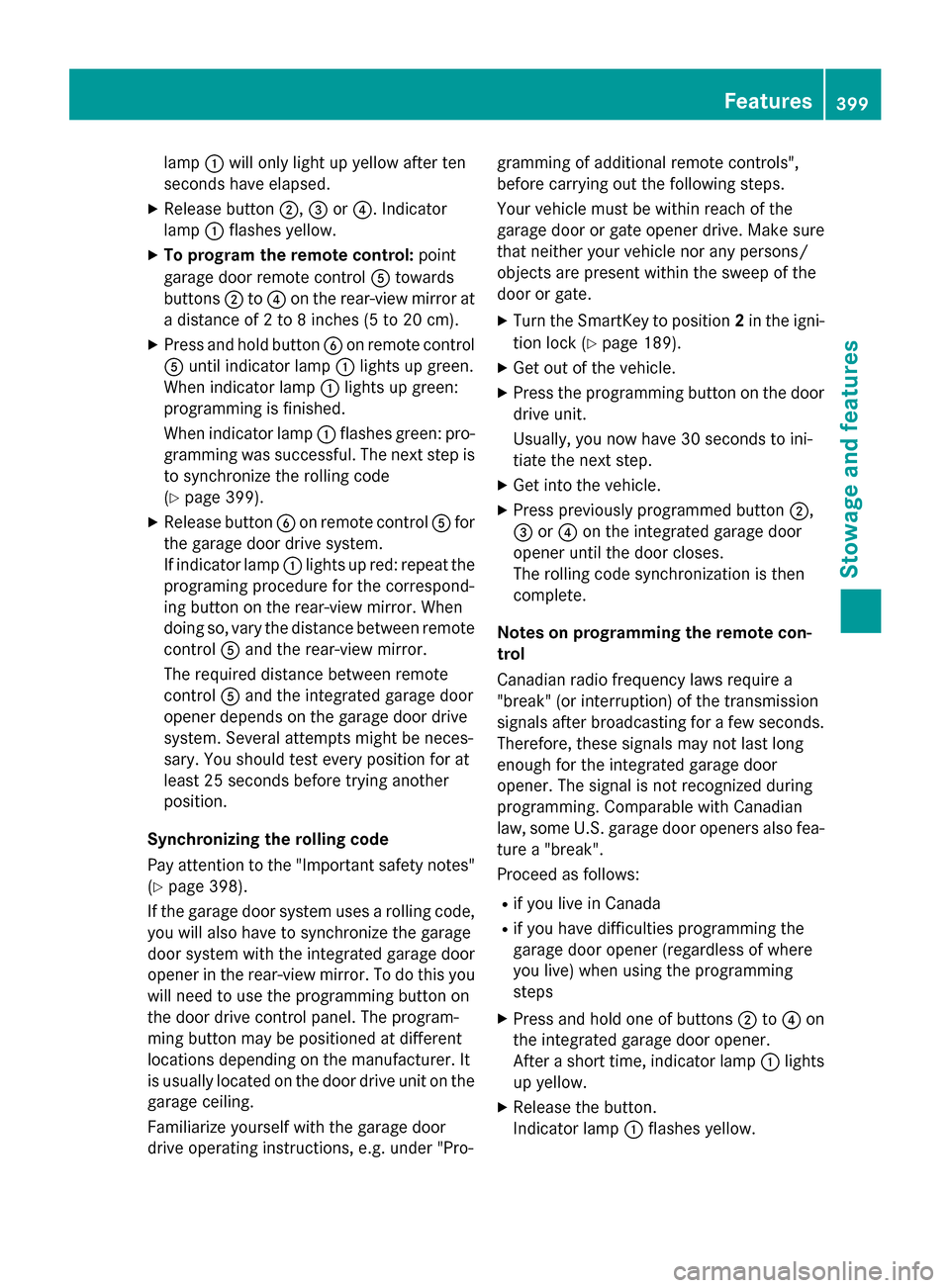

MERCEDES-BENZ S-Class 2015 W222 Owners Manual lamp
:will only light up yellow after ten
seconds have elapsed.
X Release button ;,=or?. Indicator
lamp :flashes yellow.
X To program the remote control: point
garage door remote control Atowards
butt

Page 402 of 502

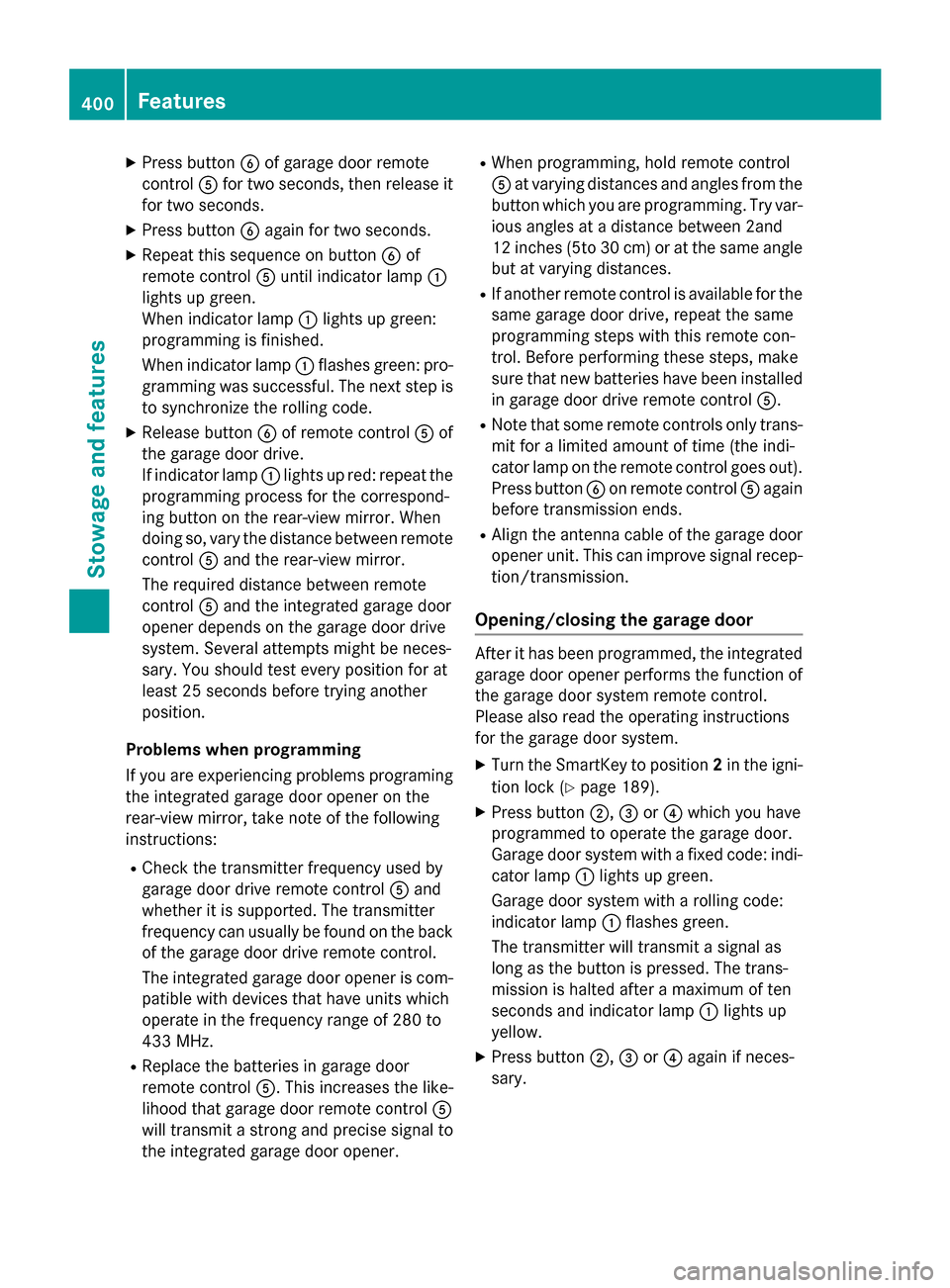

MERCEDES-BENZ S-Class 2015 W222 Owners Manual X
Press button Bof garage door remote
control Afor two seconds, then release it
for two seconds.
X Press button Bagain for two seconds.
X Repeat this sequence on button Bof
remote control Auntil indic

Page 403 of 502

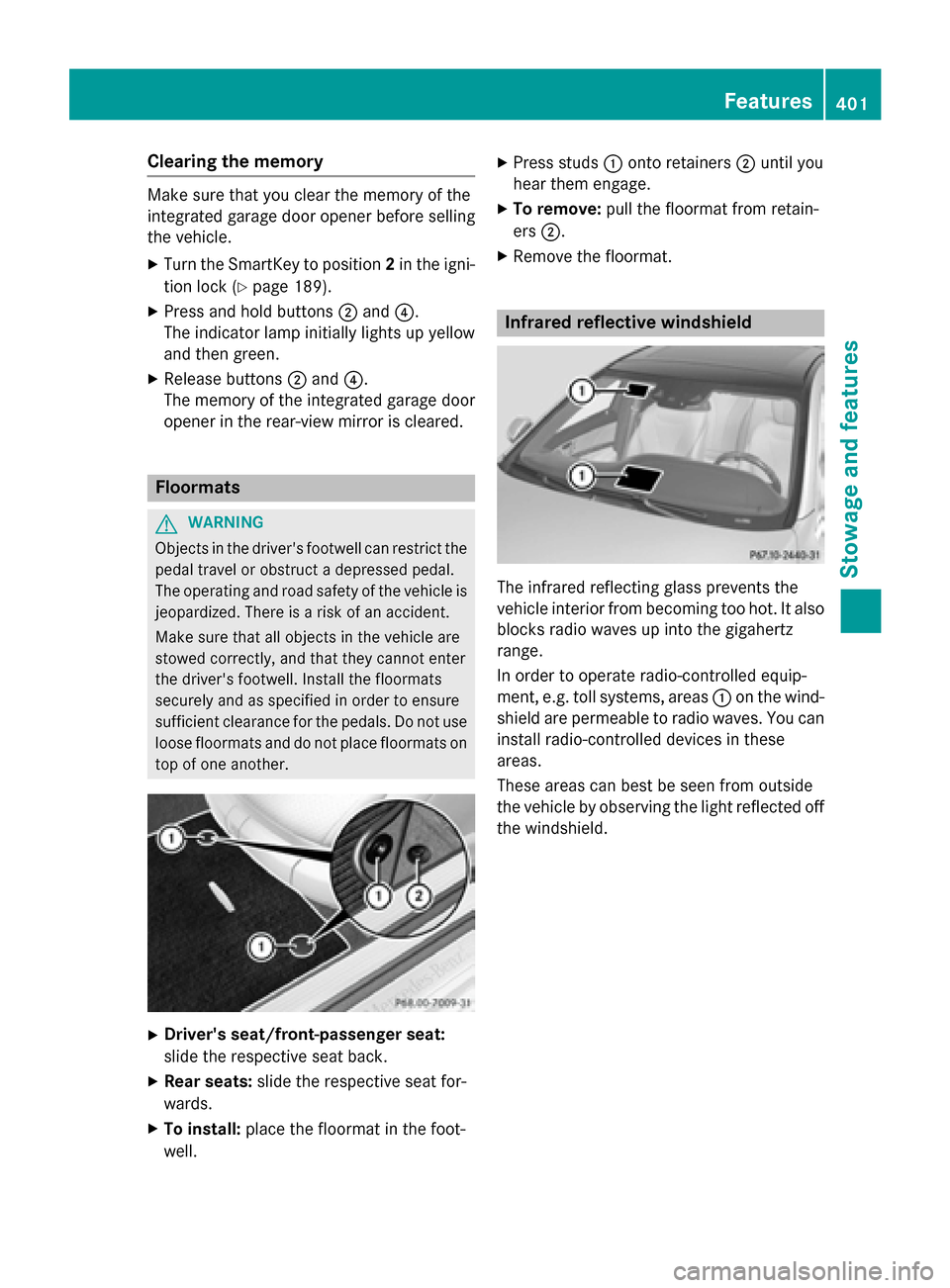

MERCEDES-BENZ S-Class 2015 W222 Owners Manual Clearing the memory
Make sure that you clear the memory of the
integrated garage door opener before selling
the vehicle.
X Turn the SmartKey to position 2in the igni-
tion lock (Y page 189).
X Press a

Page 404 of 502

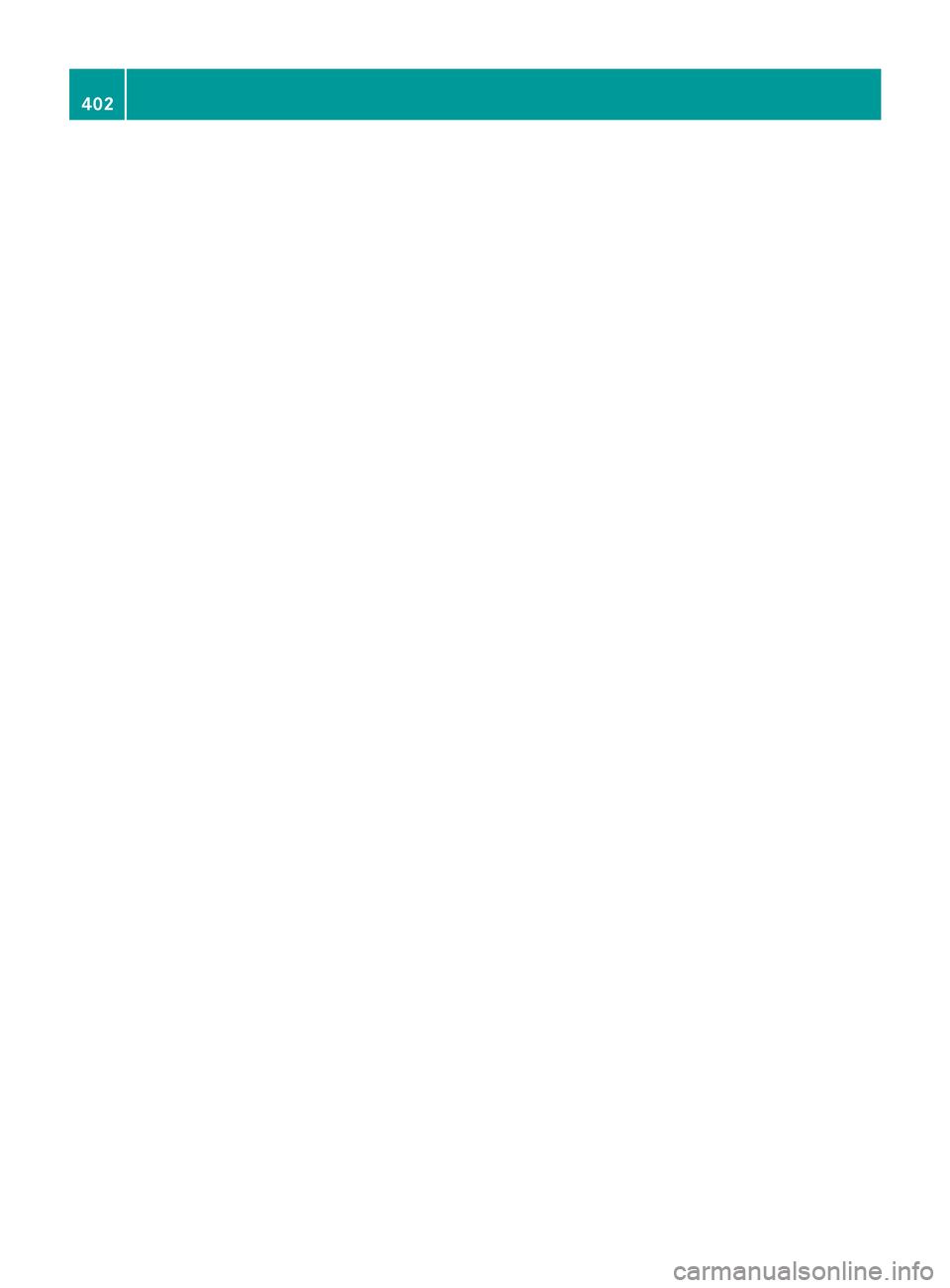

MERCEDES-BENZ S-Class 2015 W222 Owners Manual 402

Page 405 of 502

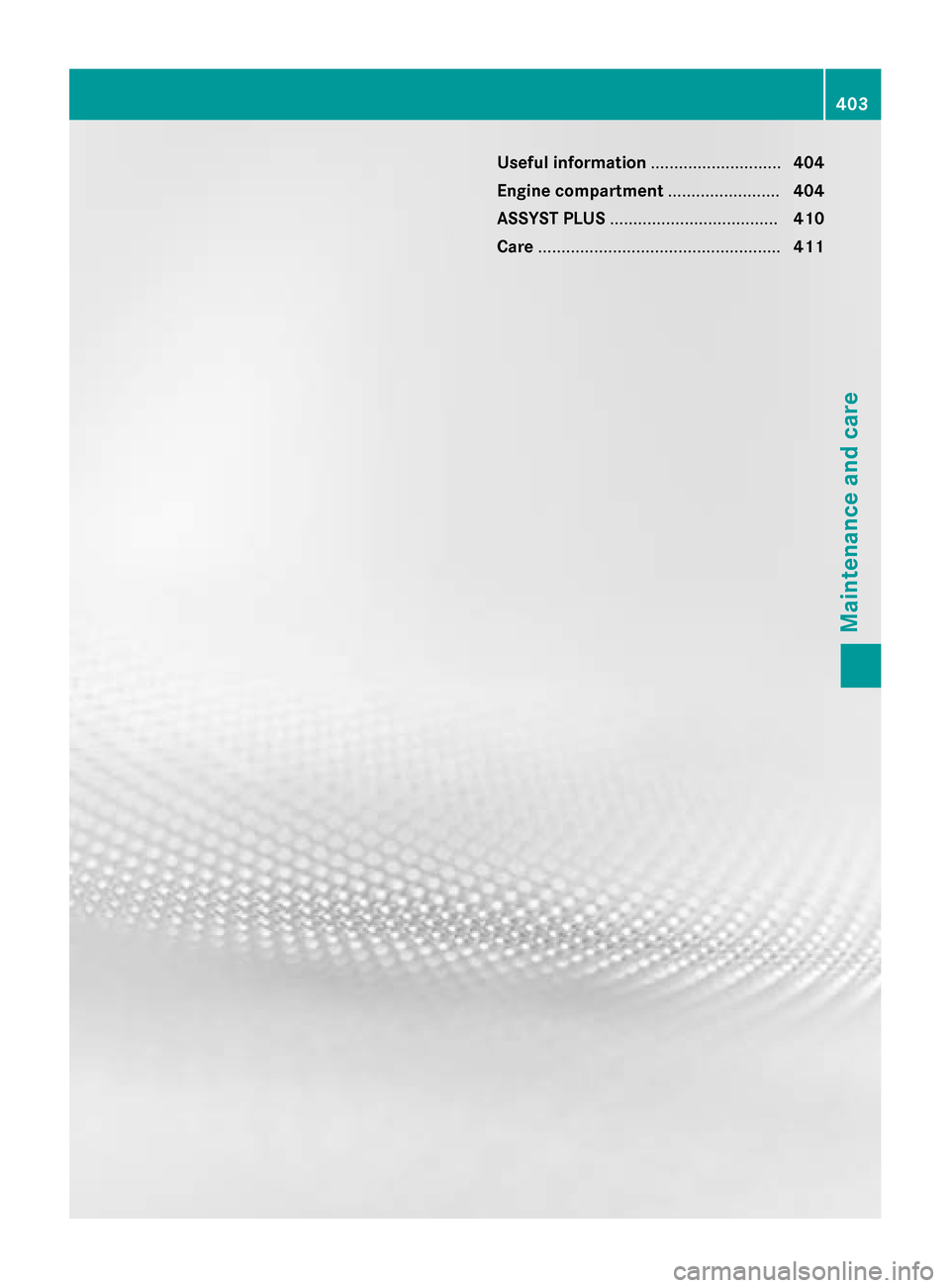

MERCEDES-BENZ S-Class 2015 W222 Owners Manual Useful information
............................404
Engine compartment ........................404
ASSYST PLUS .................................... 410
Care ............................................

Page 406 of 502

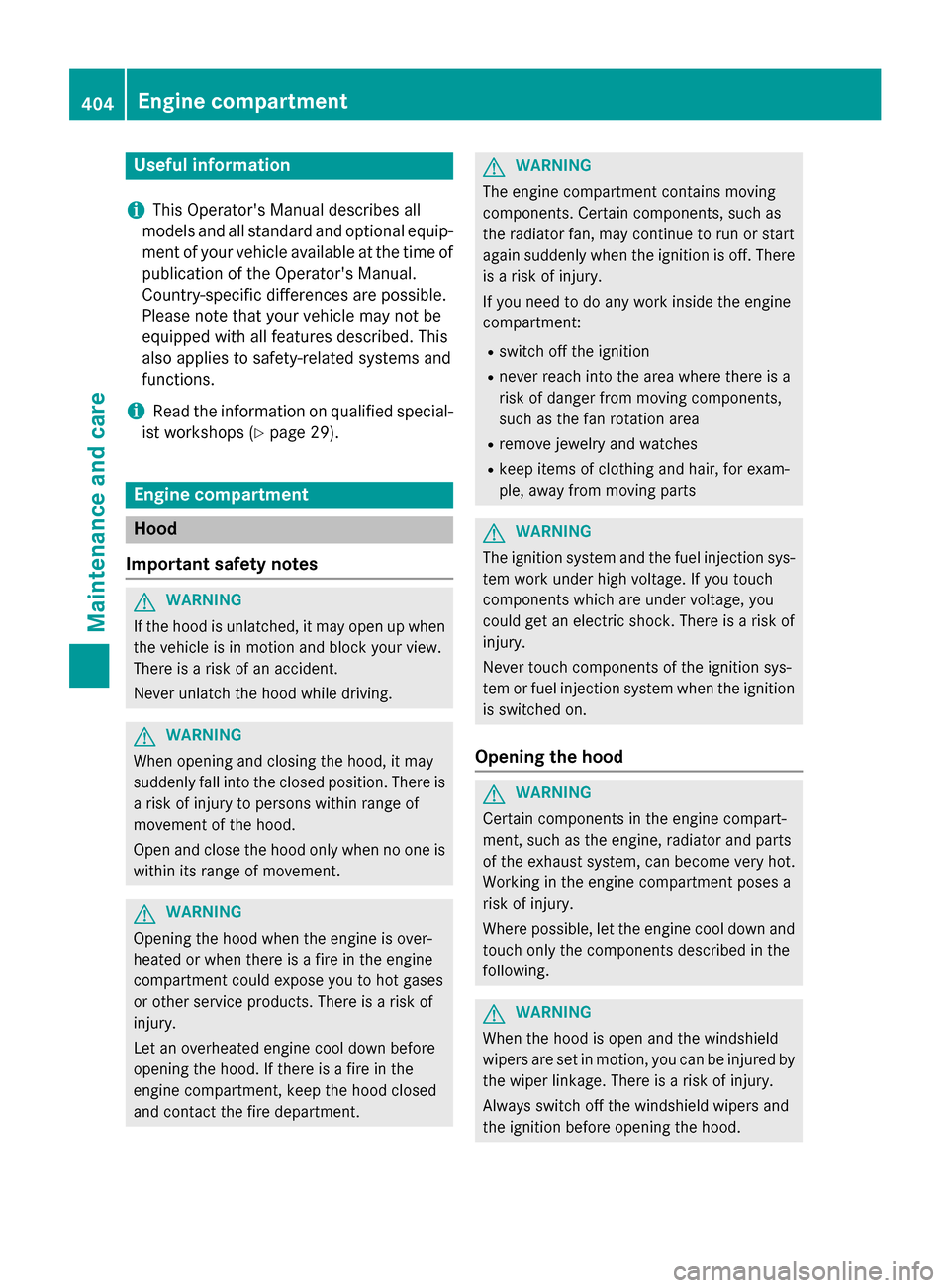

MERCEDES-BENZ S-Class 2015 W222 Owners Manual Useful information
i This Operators Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operators Manual.
Country-specif

Page 407 of 502

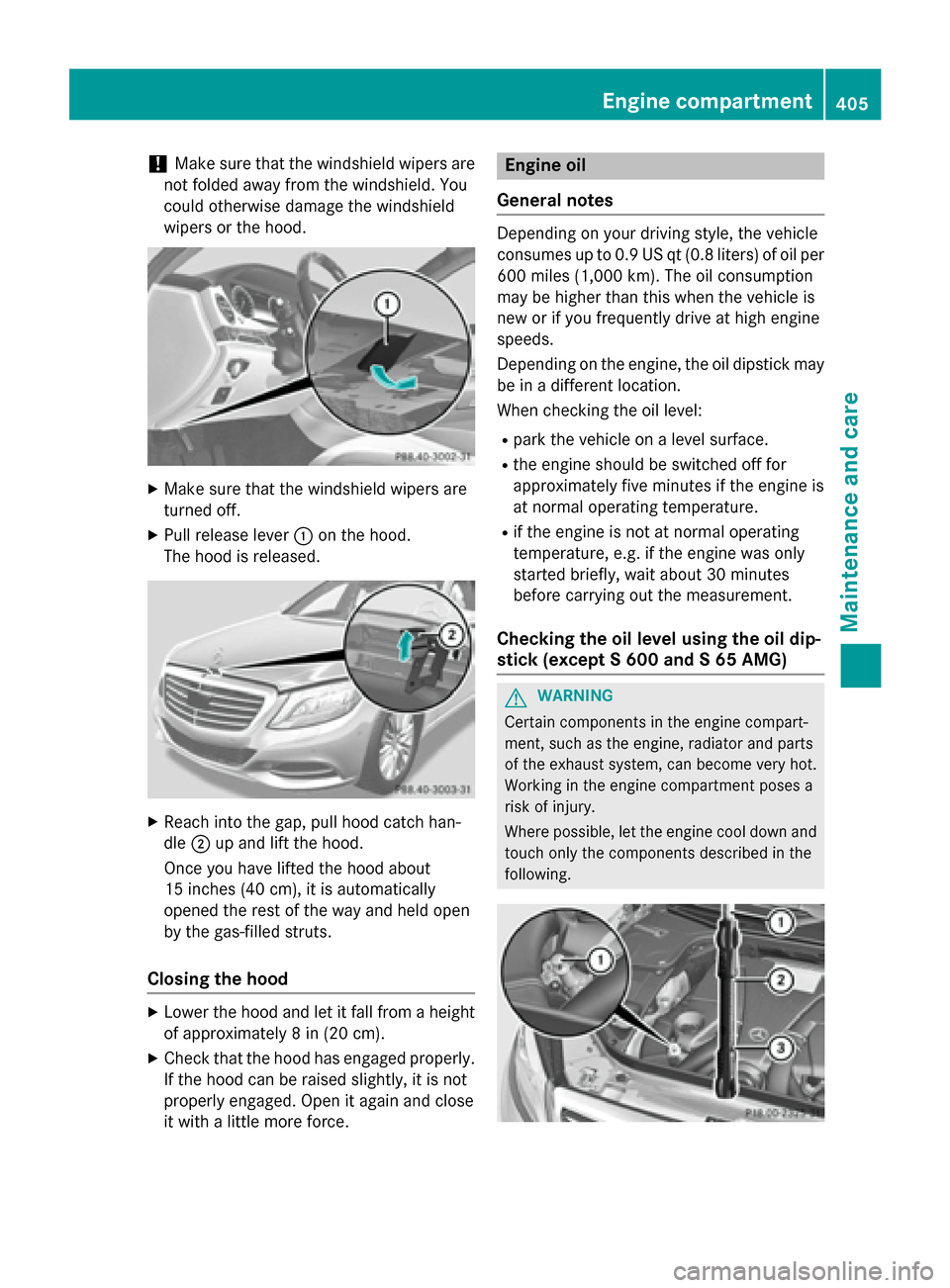

MERCEDES-BENZ S-Class 2015 W222 Owners Manual !
Make sure that the windshield wipers are
not folded away from the windshield. You
could otherwise damage the windshield
wipers or the hood. X
Make sure that the windshield wipers are
turned off.
X P

Page 408 of 502

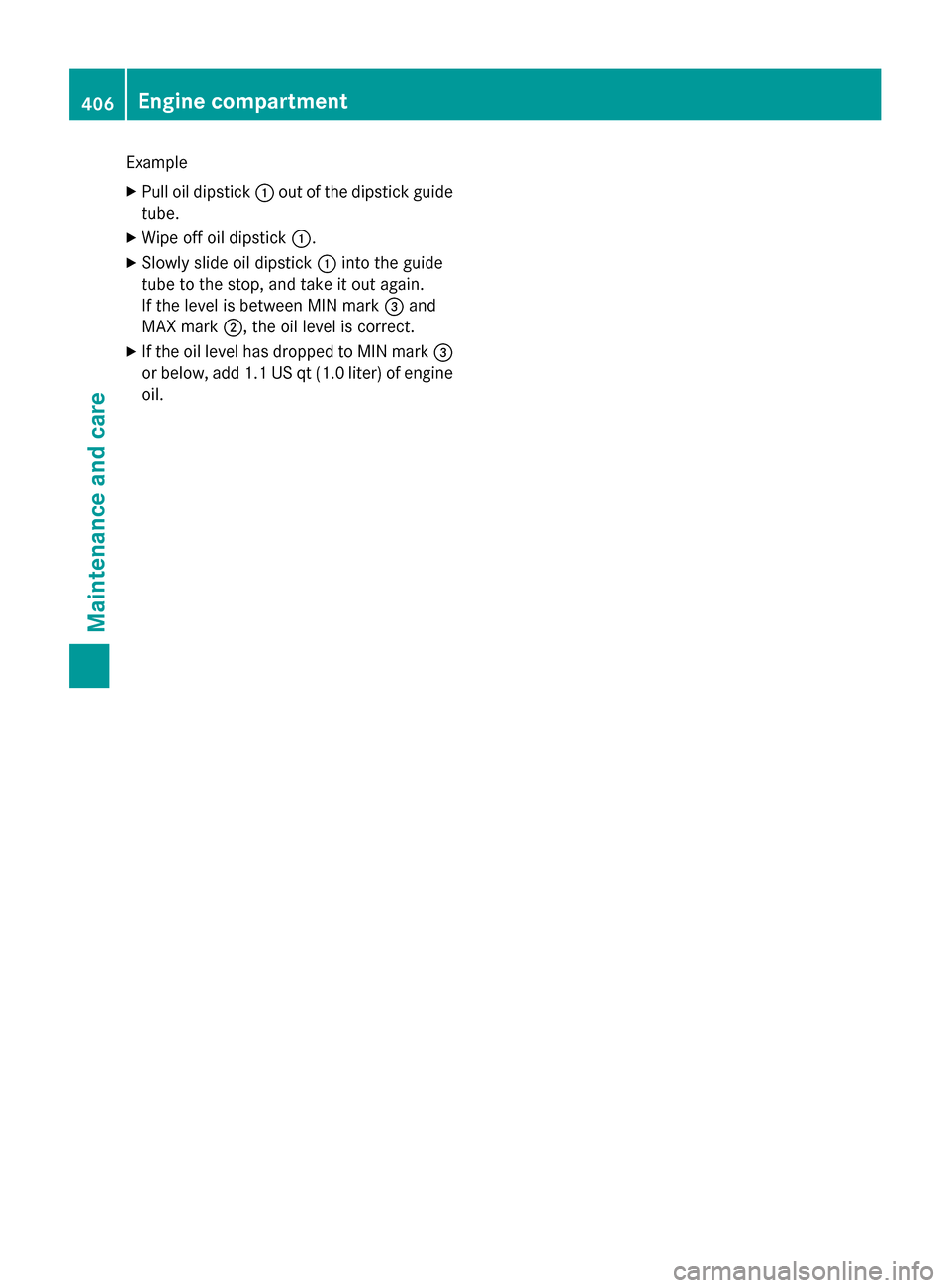

MERCEDES-BENZ S-Class 2015 W222 Owners Manual Example
X Pull oil dipstick :out of the dipstick guide
tube.
X Wipe off oil dipstick :.
X Slowly slide oil dipstick :into the guide
tube to the stop, and take it out again.
If the level is between MIN

Page 409 of 502

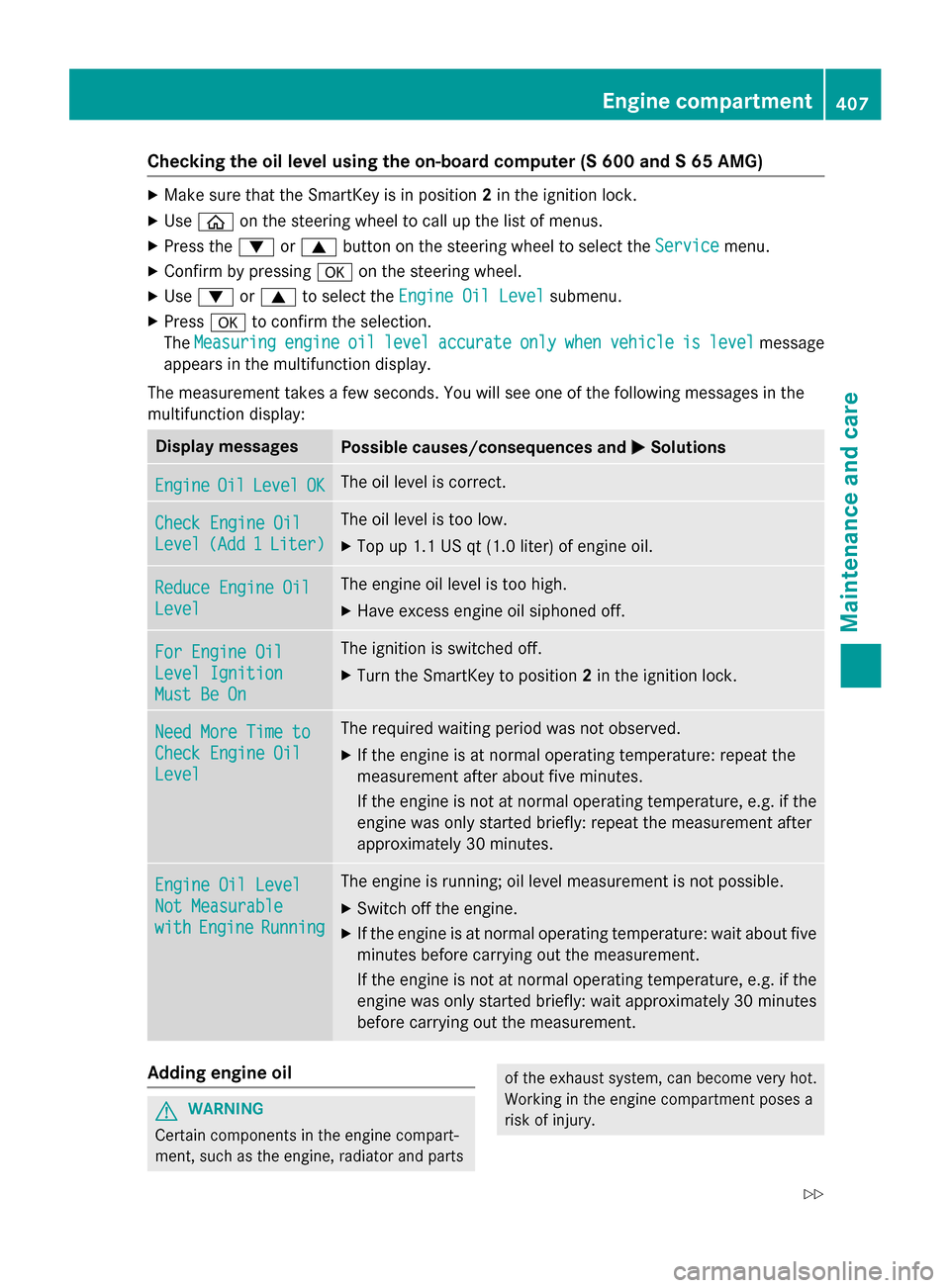

MERCEDES-BENZ S-Class 2015 W222 Owners Manual Checking the oil level using the on-board computer (S 600 and S 65 AMG)
X
Make sure that the SmartKey is in position 2in the ignition lock.
X Use ò on the steering wheel to call up the list of menus.

Page 410 of 502

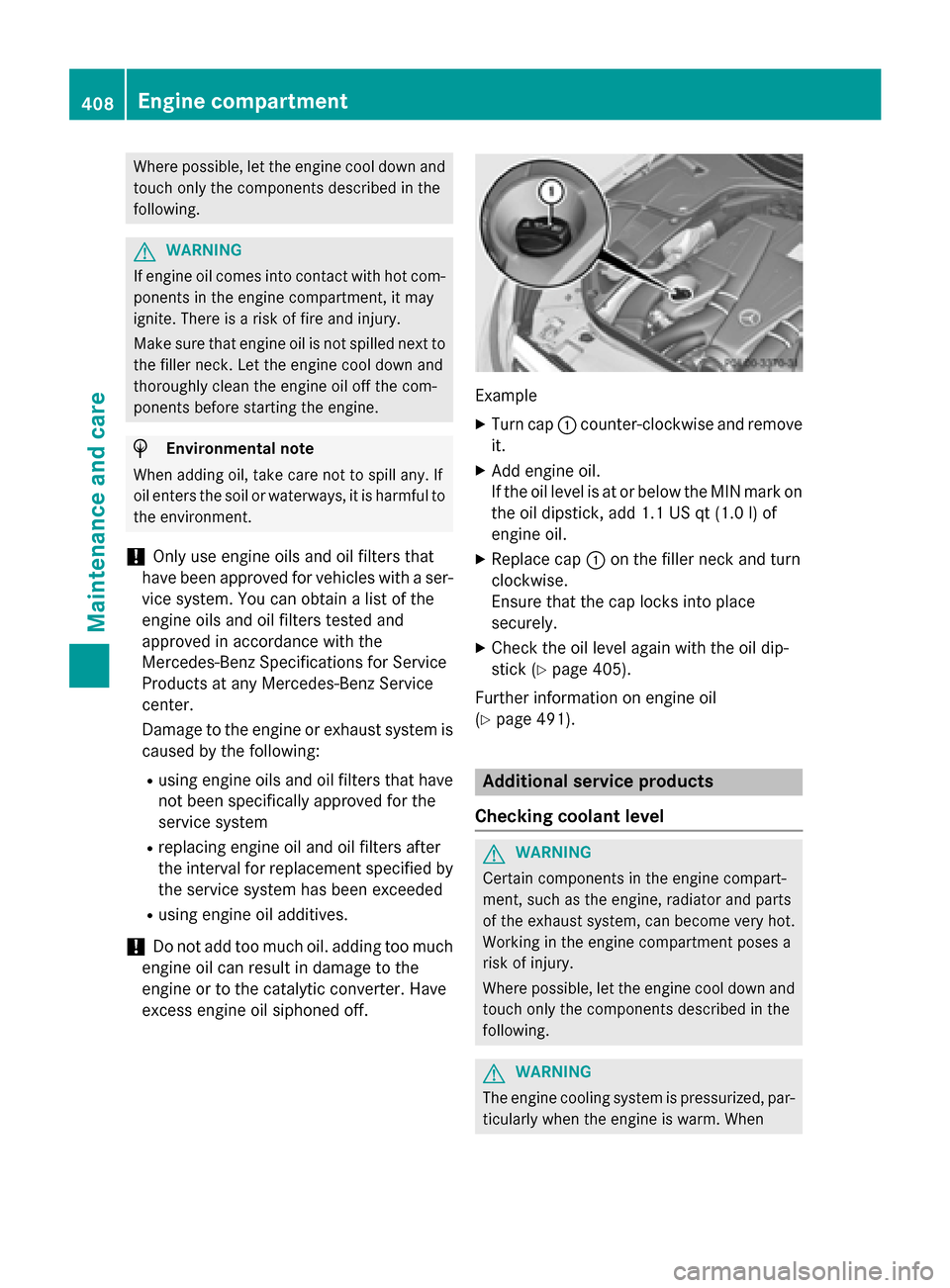

MERCEDES-BENZ S-Class 2015 W222 Owners Manual Where possible, let the engine cool down and
touch only the components described in the
following. G
WARNING
If engine oil comes into contact with hot com- ponents in the engine compartment, it may
ig
