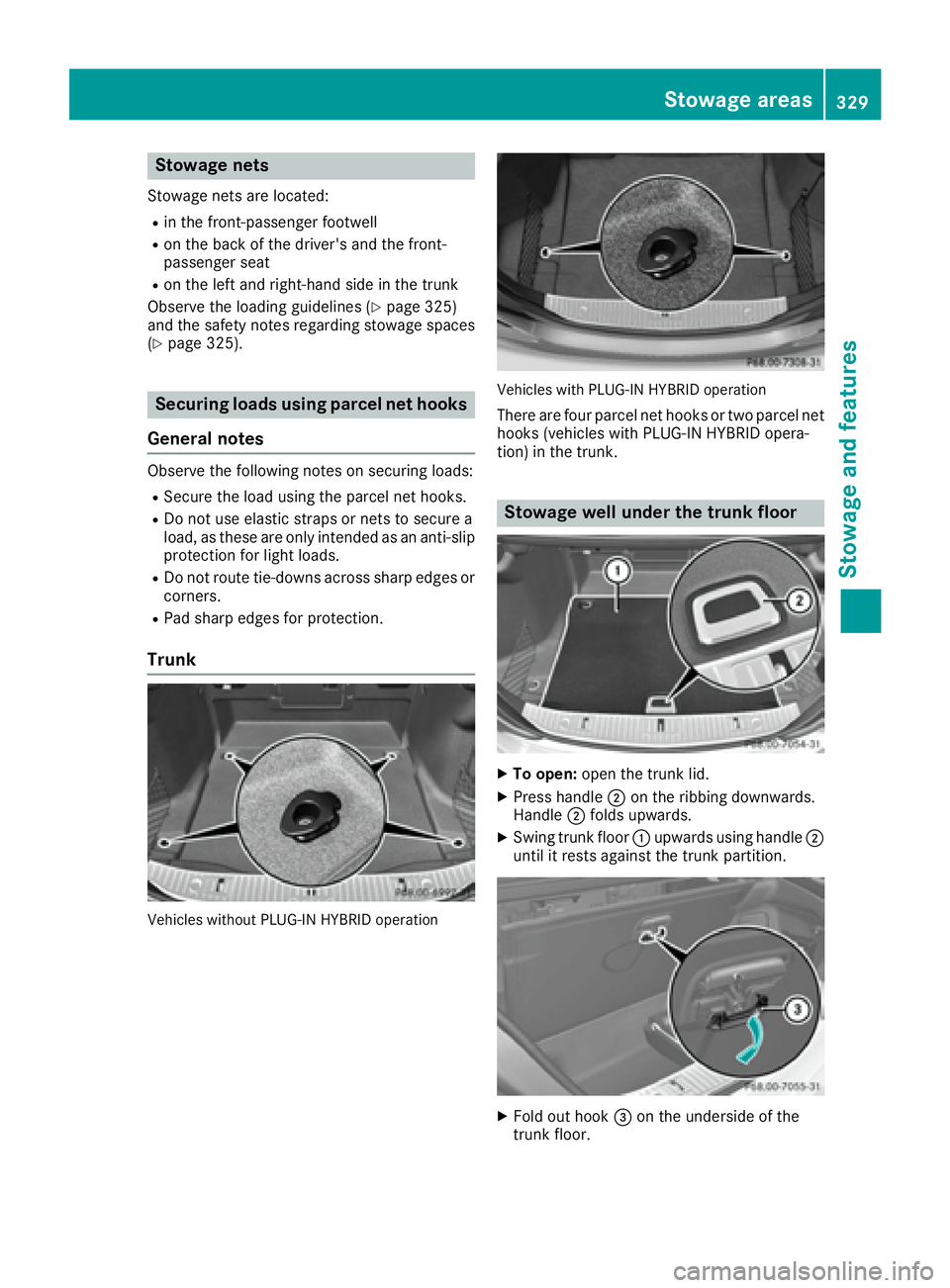

Stowage nets Stowage nets are located: R
in the front-passenger footwell R
on the back of the driver's and the front-
passenger seat R
on the left and right-hand side in the trunk
Observe the loading guidelines ( Y
page 325)
and the safety notes regarding stowage spaces
( Y
page 325).
Securing loads using parcel net hooks
General notes Observe the following notes on securing loads: R
Secure the load using the parcel net hooks. R
Do not use elastic straps or nets to secure a
load, as these are only intended as an anti-slip
protection for light loads. R
Do not route tie-downs across sharp edges or
corners. R
Pad sharp edges for protection.
Trunk
Vehicles without PLUG-IN HYBRID operation Vehicles with PLUG-IN HYBRID operation
There are four parcel net hooks or two parcel net
hooks (vehicles with PLUG-IN HYBRID opera-
tion) in the trunk.
Stowage well under the trunk floor
X
To open: open the trunk lid. X
Press handle D on the ribbing downwards.
Handle D folds upwards. X
Swing trunk floor C upwards using handle D
until it rests against the trunk partition.
X

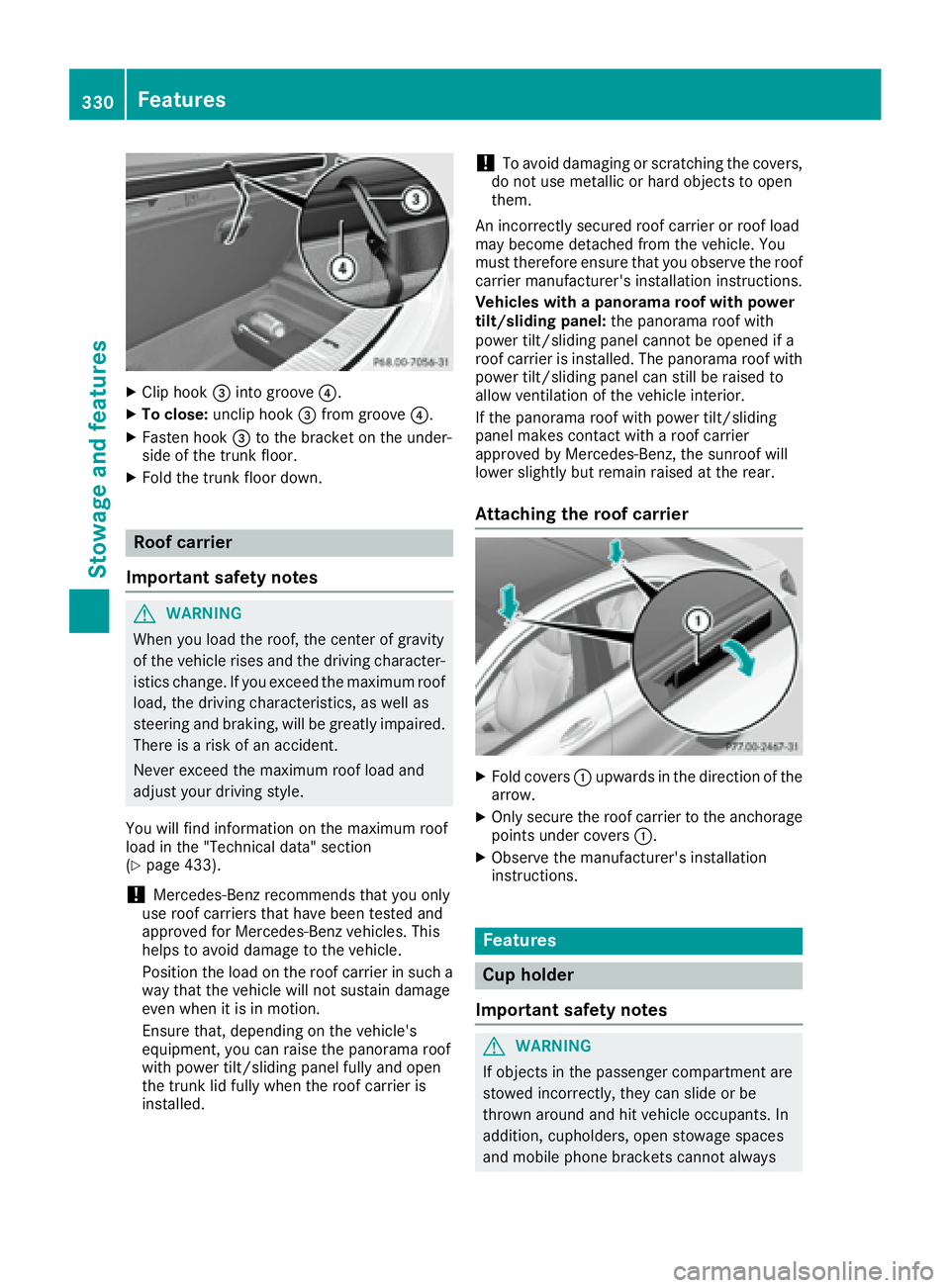

Fold out hook
