Page 211 of 413

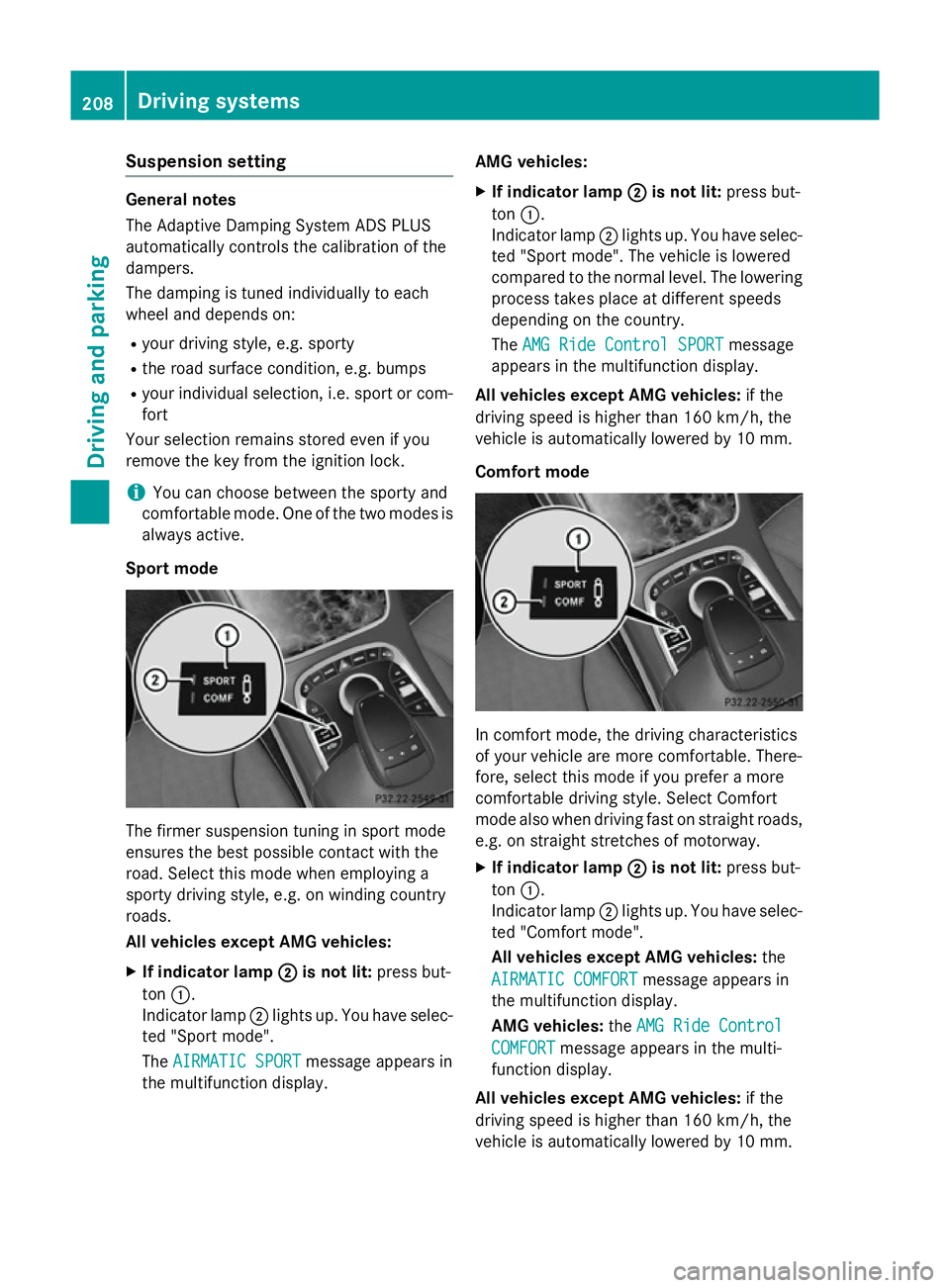

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual Suspension setting
General notes
The Adaptive Damping System ADS PLUS
automatically controls the calibration of the
dampers.
The damping is tuned individually to each
wheel and depends on:
R your driv

Page 212 of 413

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual Load compensation
The vehicle can compensate differences in
the vehicle level by raising or lowering the
axles. 4MATIC (permanent all-wheel drive)
4MATIC ensures that all four wheels are per-
manently

Page 213 of 413

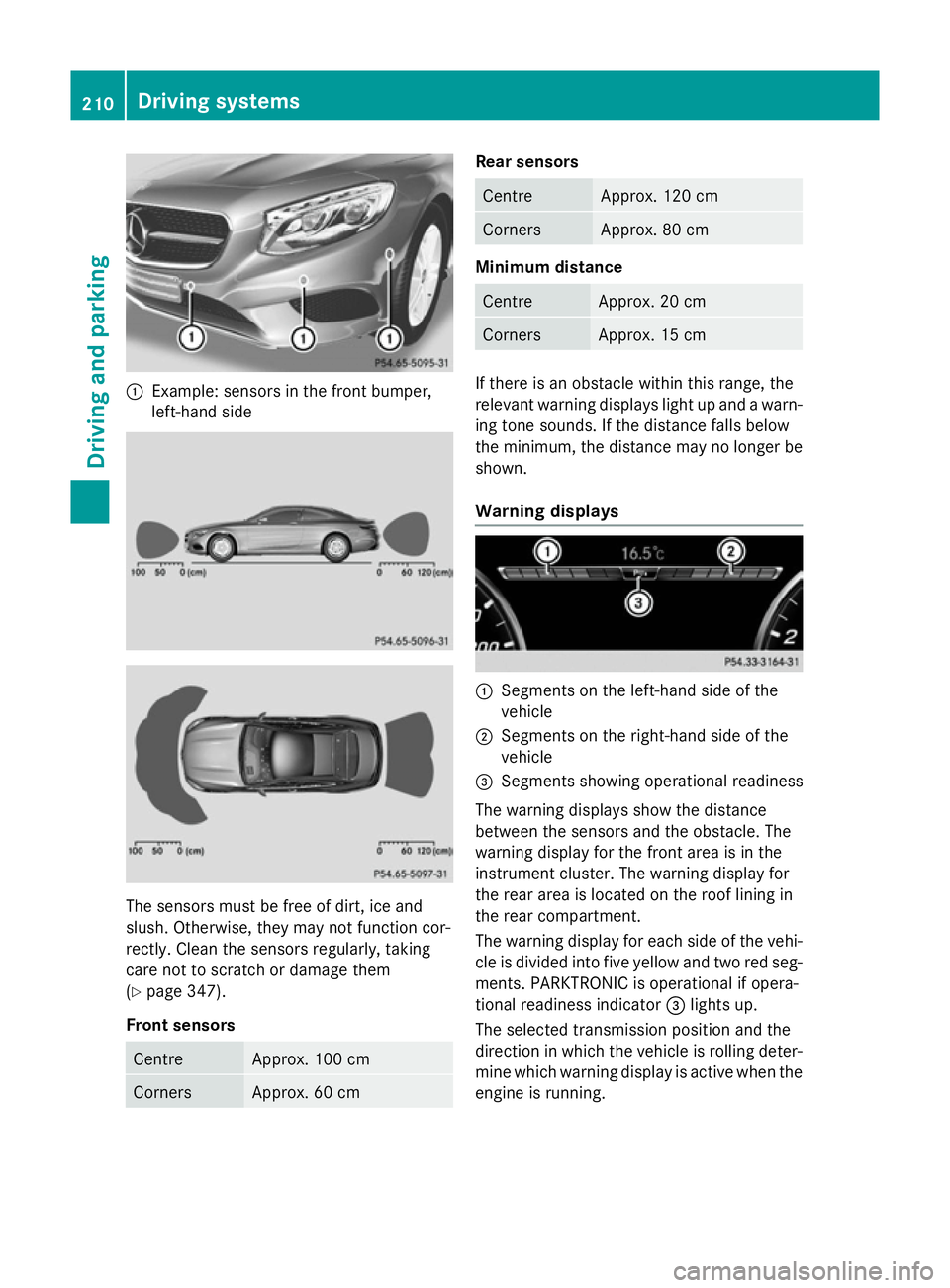

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual :
Example: sensors in the front bumper,
left-hand side The sensors must be free of dirt, ice and
slush. Otherwise, they may not function cor-
rectly. Clean the sensors regularly, taking
care not to sc

Page 214 of 413

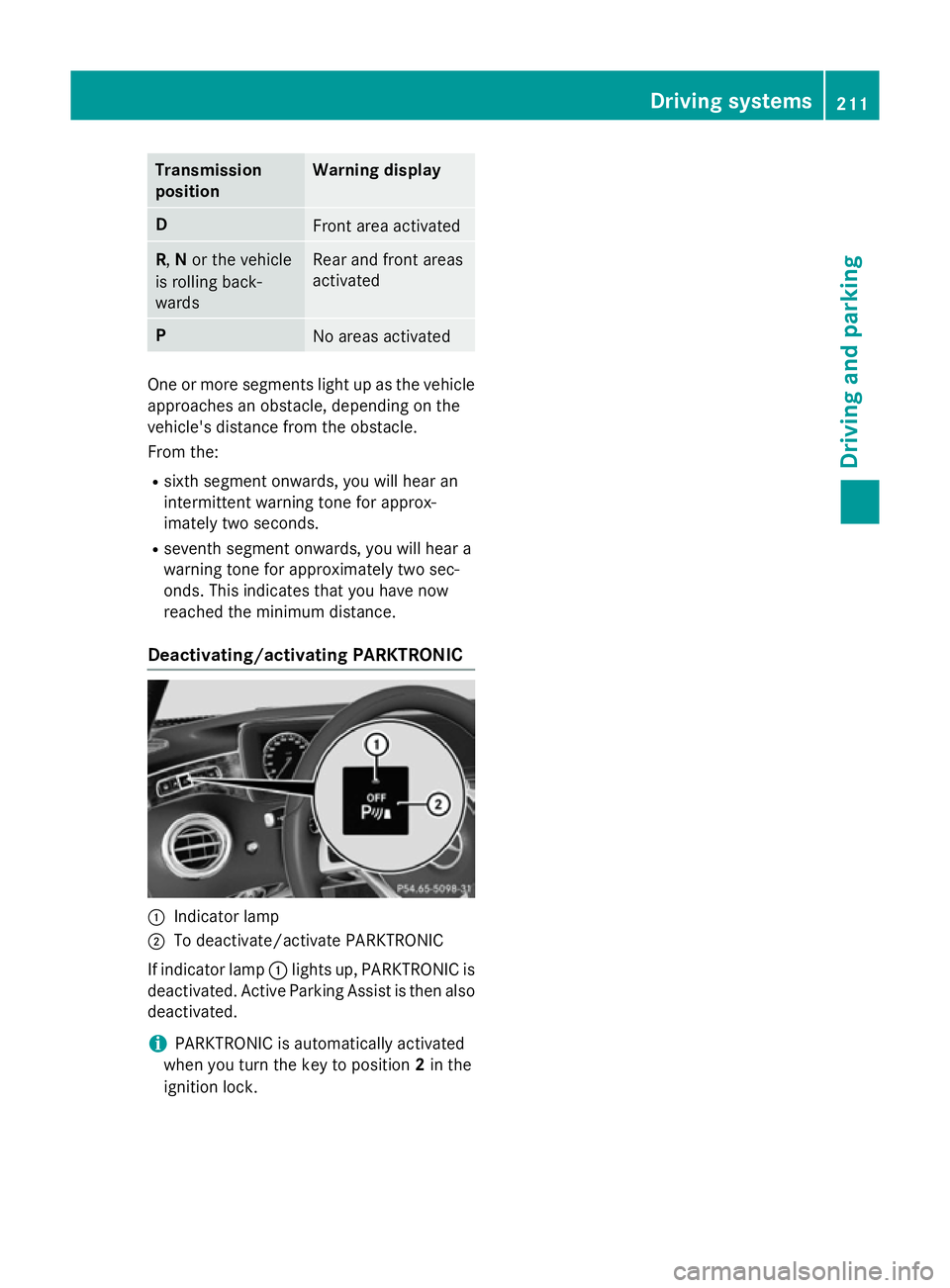

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual Transmission
position Warning display
D
Front area activated
R,
Nor the vehicle
is rolling back-
wards Rear and front areas
activated
P
No areas activated
One or more segments light up as the vehicle

Page 215 of 413

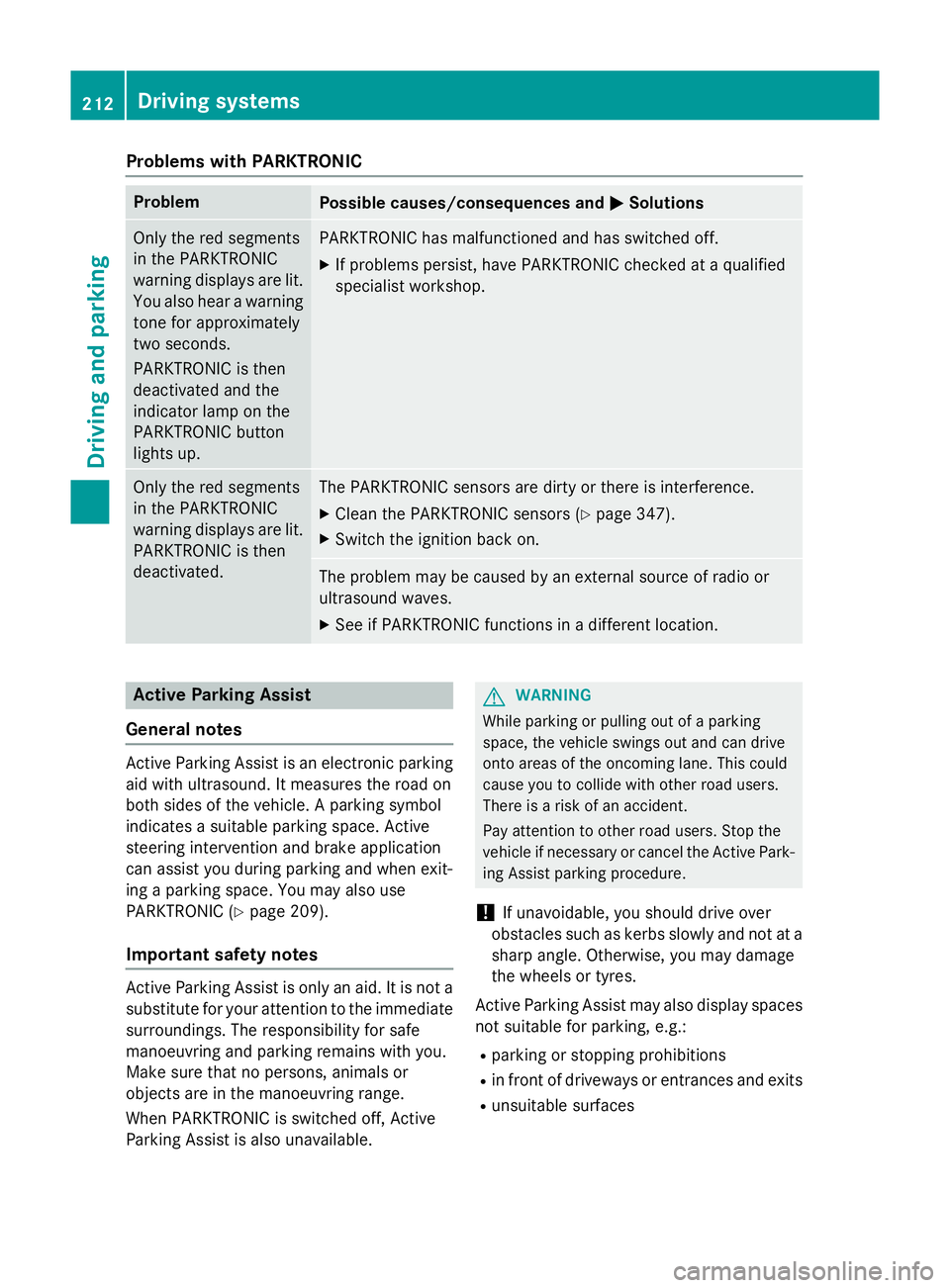

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual Problems with PARKTRONIC
Problem
Possible causes/consequences and
M
MSolutions Only the red segments
in the PARKTRONIC
warning displays are lit.
You also hear a warning
tone for approximately
two seco

Page 216 of 413

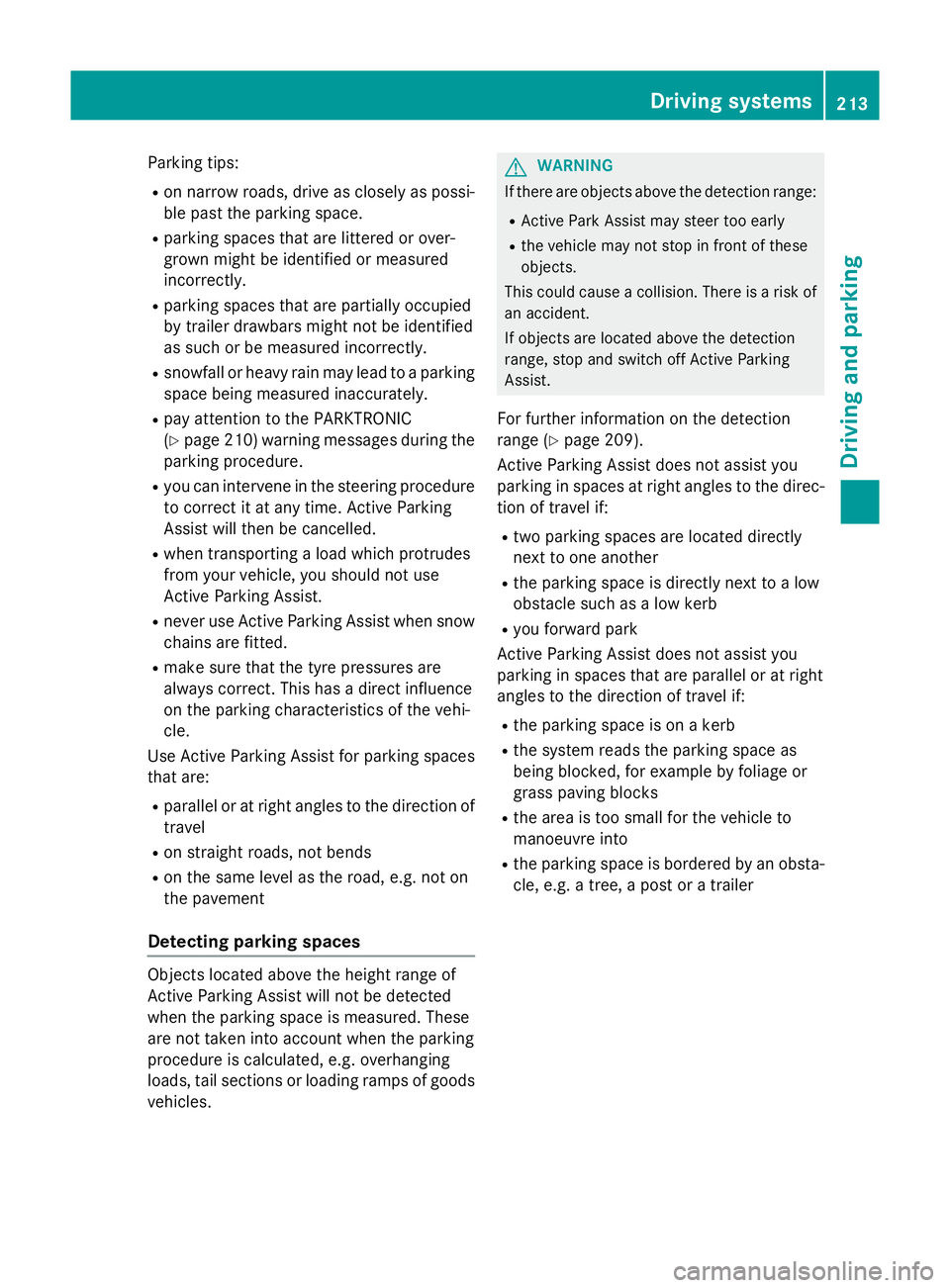

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual Parking tips:
R on narrow roads, drive as closely as possi-
ble past the parking space.
R parking spaces that are littered or over-
grown might be identified or measured
incorrectly.
R parking spaces

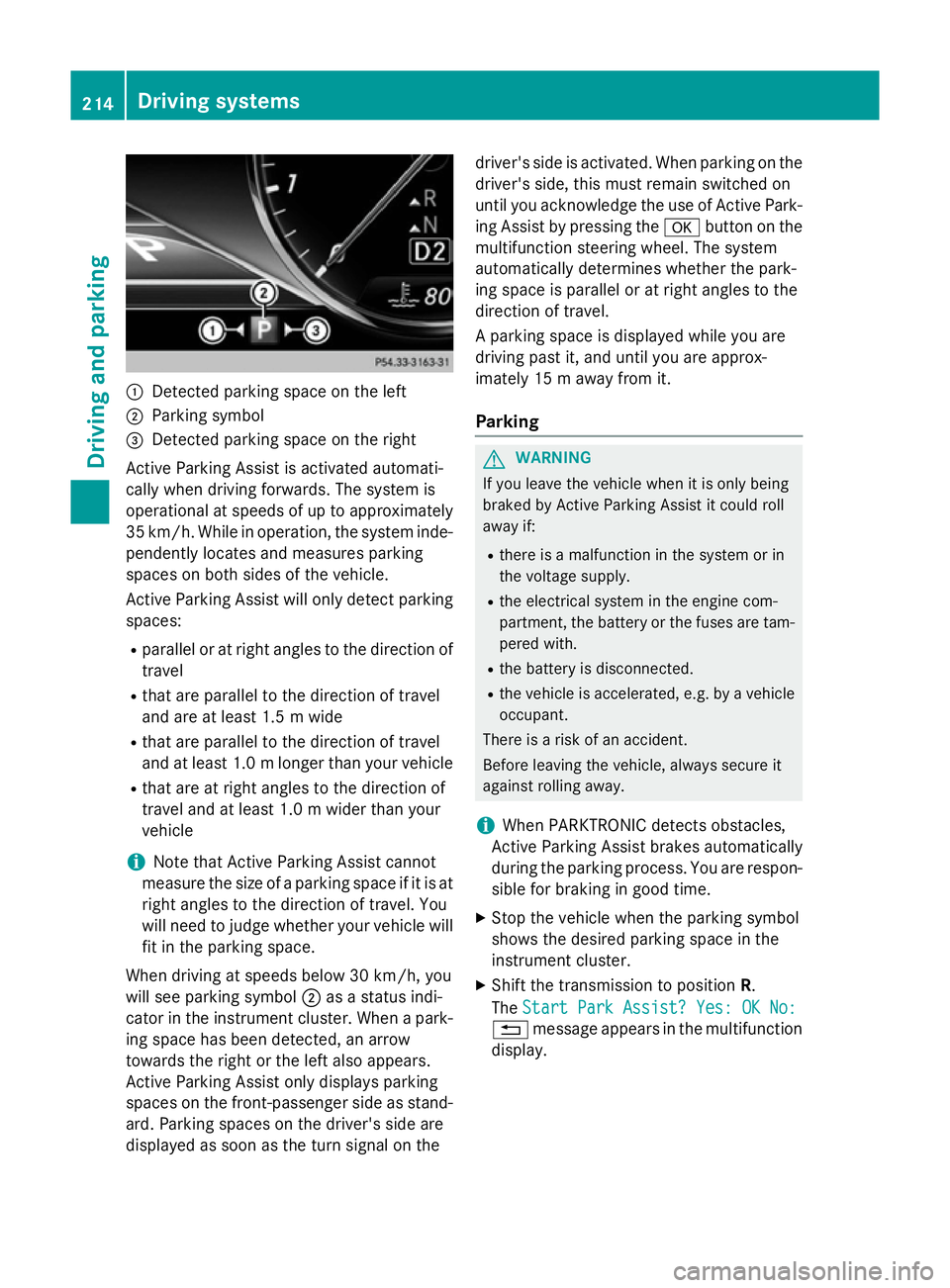

Page 217 of 413

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual :
Detected parking space on the left
; Parking symbol
= Detected parking space on the right
Active Parking Assist is activated automati-
cally when driving forwards. The system is
operational at speed

Page 218 of 413

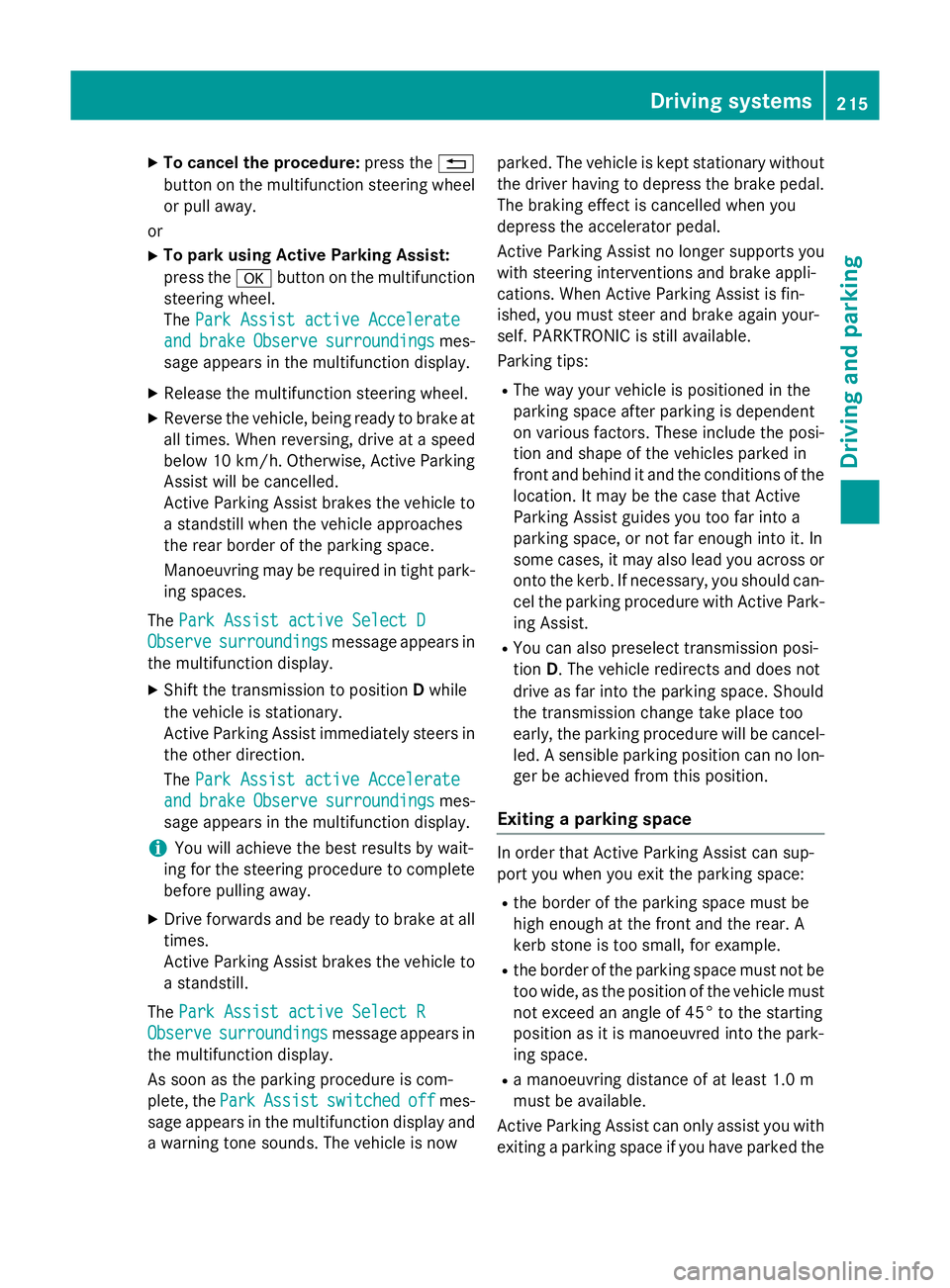

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual X
To cancel the procedure: press the%
button on the multifunction steering wheel or pull away.
or
X To park using Active Parking Assist:
press the abutton on the multifunction
steering wheel.
The Park

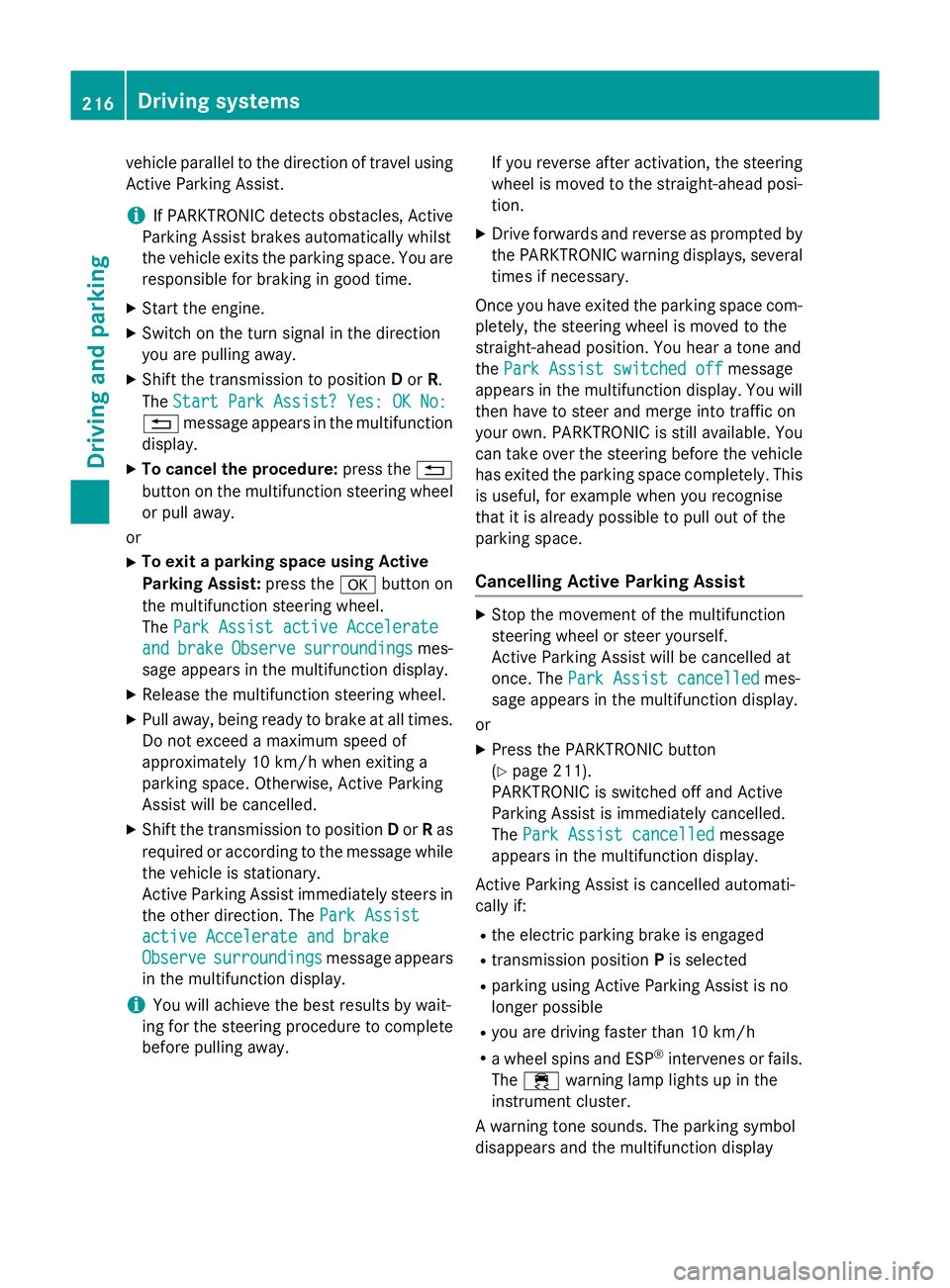

Page 219 of 413

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual vehicle parallel to the direction of travel using
Active Parking Assist.
i If PARKTRONIC detects obstacles, Active
Parking Assist brakes automatically whilst
the vehicle exits the parking space. You a

Page 220 of 413

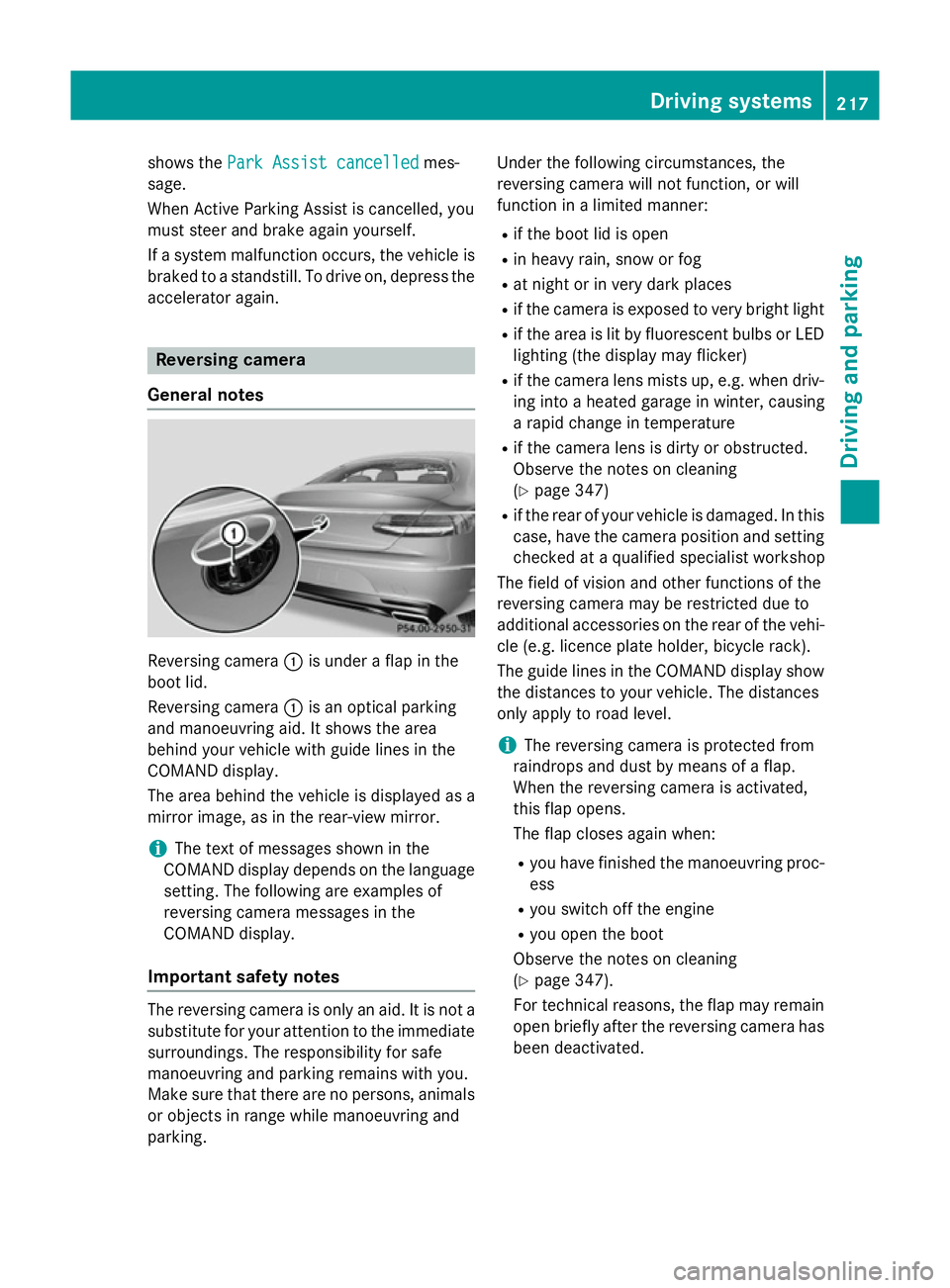

MERCEDES-BENZ S-CLASS COUPE 2014  Owners Manual shows the
Park Assist cancelled
Park Assist cancelled mes-
sage.
When Active Parking Assist is cancelled, you
must steer and brake again yourself.
If a system malfunction occurs, the vehicle is braked
