Only position the jack at the appropriate jack-
ing point of the vehicle. The base of the jack
must be positioned vertically, directly under
the jacking point of the vehicle.
Observe the following when raising the
vehicle:
R to raise the vehicle, only use the vehicle-
specific jack that has been tested and
approved by Mercedes-Benz. If the jack is
used incorrectly, it could tip over while the vehicle is raised.
R the jack is designed only to raise and hold
the vehicle for a short time while a wheel
is being changed. It is not suitable for per-
forming maintenance work under the vehi- cle.
R avoid changing the wheel on uphill and
downhill slopes.
R before raising the vehicle, secure it from
rolling away by applying the parking brake
and positioning wheel chocks. Do not
release the parking brake while the vehicle
is raised.
R the jack must be placed on a firm, flat and
non-slip surface. On a loose surface, a
large, flat load-bearing underlay must be
used. On a slippery surface, a non-slip
underlay must be used, e.g. rubber mats.
R do not use wooden blocks or similar
objects as a jack underlay. Otherwise, the
jack will not be able to achieve its load-
bearing capacity due to the restricted
height.
R make sure that the distance between the
underside of the tyres and the ground does
not exceed 3 cm.
R never place your hands or feet under the
raised vehicle.
R do not lie under the vehicle.
R do not start the engine when the vehicle is
raised. R
do not open or close a door or the boot lid
when the vehicle is raised.
R make sure that no persons are present in
the vehicle when the vehicle is raised.
Vehicles with AMG wheels and hub caps:
the hub cap covers the wheel bolts. Before
you can unscrew the wheel bolts, you must
remove the hub cap. Two different variants
can be fitted. Vehicles with AMG wheels and plastic
hub caps:

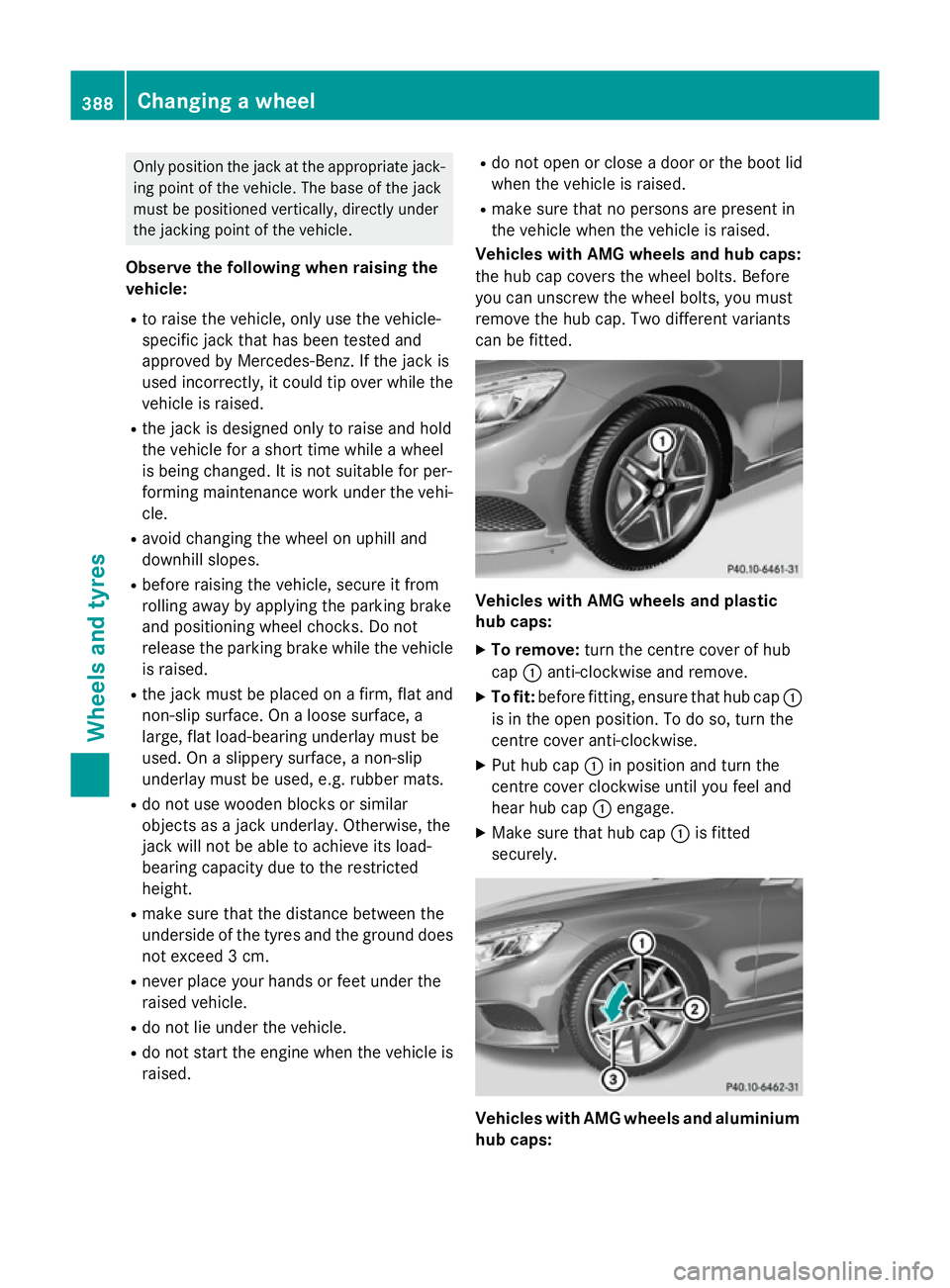

X To remove: turn the centre cover of hub
cap :anti-clockwise and remove.
X To fit: before fitting, ensure that hub cap :
is in the open position. To do so, turn the
centre cover anti-clockwise.
X Put hub cap :in position and turn the
centre cover clockwise until you feel and
hear hub cap :engage.
X Make sure that hub cap :is fitted
securely. Vehicles with AMG wheels and aluminium
hub caps: 388
Changing a wheelWheels and tyres

X
To remove: take socket;and wheel
wrench =from the vehicle tool kit
(Y page 355).

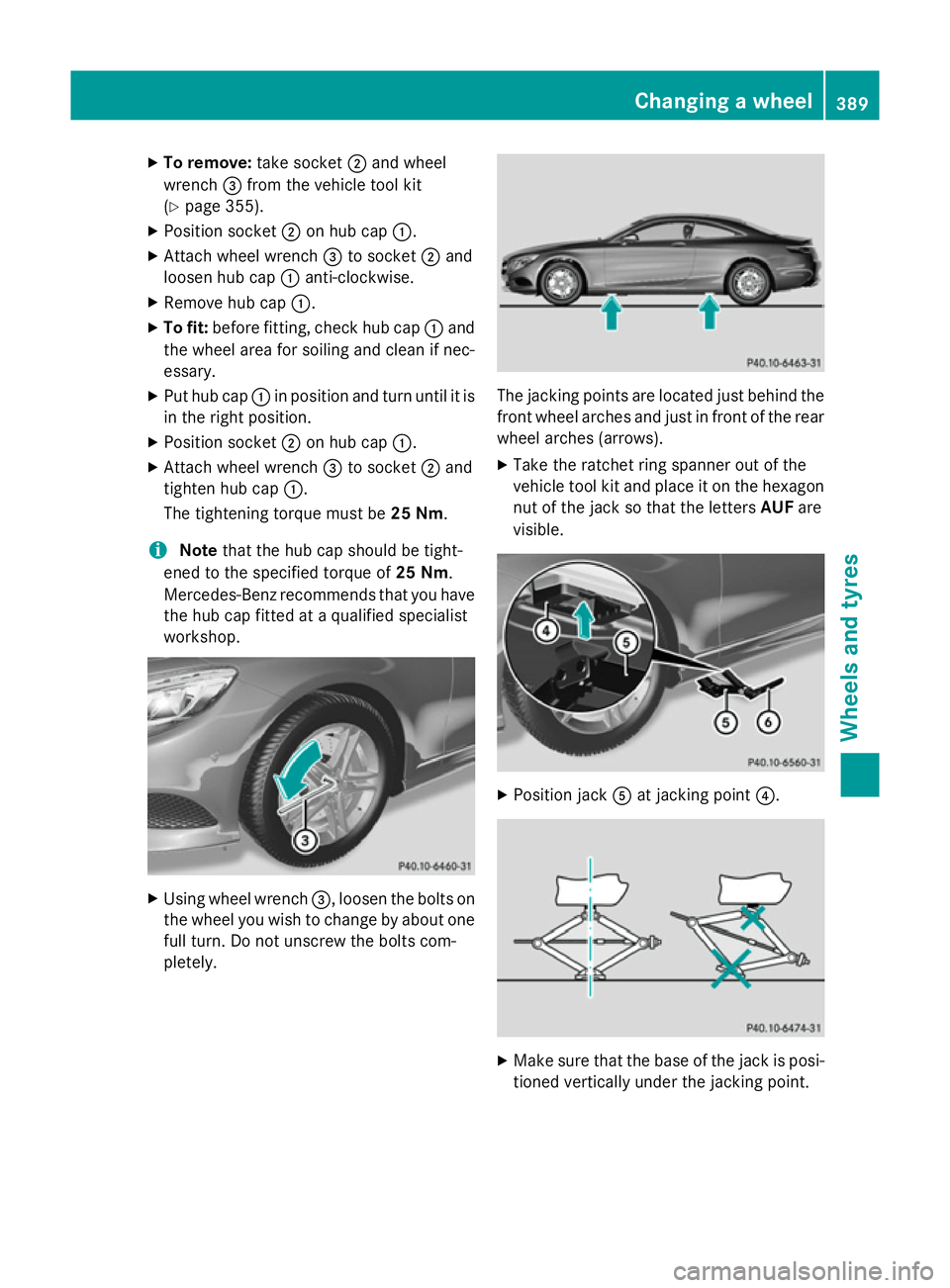

X Position socket ;on hub cap :.
X Attach wheel wrench =to socket ;and
loosen hub cap :anti-clockwise.
X Remove hub cap :.
X To fit: before fitting, check hub cap :and
the wheel area for soiling and clean if nec-
essary.
X Put hub cap :in position and turn until it is
in the right position.
X Position socket ;on hub cap :.
X Attach wheel wrench =to socket ;and
tighten hub cap :.
The tightening torque must be 25 Nm.
i Note
that the hub cap should be tight-
ened to the specified torque of 25 Nm.
Mercedes-Benz recommends that you have the hub cap fitted at a qualified specialist
workshop. X
Using wheel wrench =, loosen the bolts on
the wheel you wish to change by about one full turn. Do not unscrew the bolts com-
pletely. The jacking points are located just behind the
front wheel arches and just in front of the rear wheel arches (arrows).
X Take the ratchet ring spanner out of the
vehicle tool kit and place it on the hexagon
nut of the jack so that the letters AUFare
visible. X
Position jack Aat jacking point ?. X
Make sure that the base of the jack is posi-
tioned vertically under the jacking point. Changing a wheel
389Wheels and tyres Z

X
Turn ratchet ring spanner Buntil jack A
sits completely on jacking point ?and the
base of the jack lies evenly on the ground.
X Turn ratchet ring spanner Buntil the tyre
is raised a maximum of 3 cm from the
ground.
Removing a wheel !
AMG vehicles:
during removal and repo-
sitioning of the wheel, the wheel rim can
strike the ceramic-brake disc and damage
it. Therefore, take precautions and have a
second person assist you. Alternatively,
you can use a second centring pin.
! Do not place wheel bolts in sand or dirt.
The threads of the wheel bolts and wheel
hubs could otherwise be damaged when
the bolts are tightened.
When fitting/removing wheels, and for as
long as the wheels are removed, avoid apply- ing any external force on the brake discs. This
could impair the level of comfort when brak-
ing. X

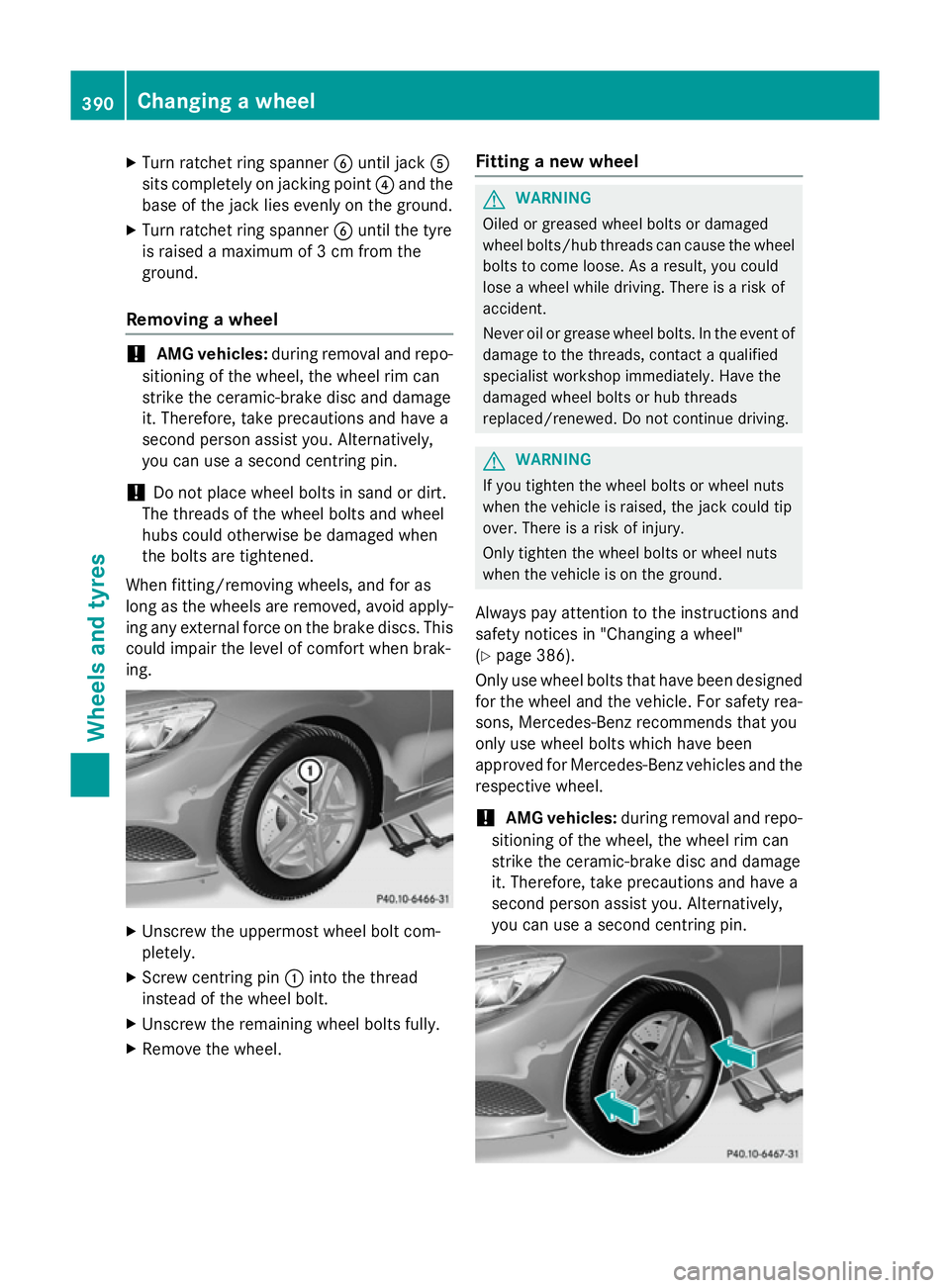

Unscrew the uppermost wheel bolt com-
pletely.
X Screw centring pin :into the thread
instead of the wheel bolt.
X Unscrew the remaining wheel bolts fully.
X Remove the wheel. Fitting a new wheel G
WARNING
Oiled or greased wheel bolts or damaged
wheel bolts/hub threads can cause the wheel bolts to come loose. As a result, you could
lose a wheel while driving. There is a risk of
accident.
Never oil or grease wheel bolts. In the event ofdamage to the threads, contact a qualified
specialist workshop immediately. Have the
damaged wheel bolts or hub threads
replaced/renewed. Do not continue driving. G
WARNING
If you tighten the wheel bolts or wheel nuts
when the vehicle is raised, the jack could tip
over. There is a risk of injury.
Only tighten the wheel bolts or wheel nuts
when the vehicle is on the ground.
Always pay attention to the instructions and
safety notices in "Changing a wheel"
(Y page 386).
Only use wheel bolts that have been designed
for the wheel and the vehicle. For safety rea-
sons, Mercedes-Benz recommends that you
only use wheel bolts which have been
approved for Mercedes-Benz vehicles and the
respective wheel.
! AMG vehicles:
during removal and repo-
sitioning of the wheel, the wheel rim can
strike the ceramic-brake disc and damage
it. Therefore, take precautions and have a
second person assist you. Alternatively,
you can use a second centring pin. 390
Changing a wheelWheels and tyres

X
Clean the wheel and wheel hub contact
surfaces.
X Slide the wheel to be mounted onto the
centring pin and push it on.
X Tighten the wheel bolts until they are fin-
ger-tight.
X Unscrew the centring pin.
X Tighten the last wheel bolt until it is finger-
tight.
Lowering the vehicle G
WARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed. X
Place the ratchet ring spanner onto the
hexagon nut of the jack so that the letters
AB are visible.
X Turn the ratchet ring spanner until the vehi-
cle is once again standing firmly on the
ground.
X Place the jack to one side.

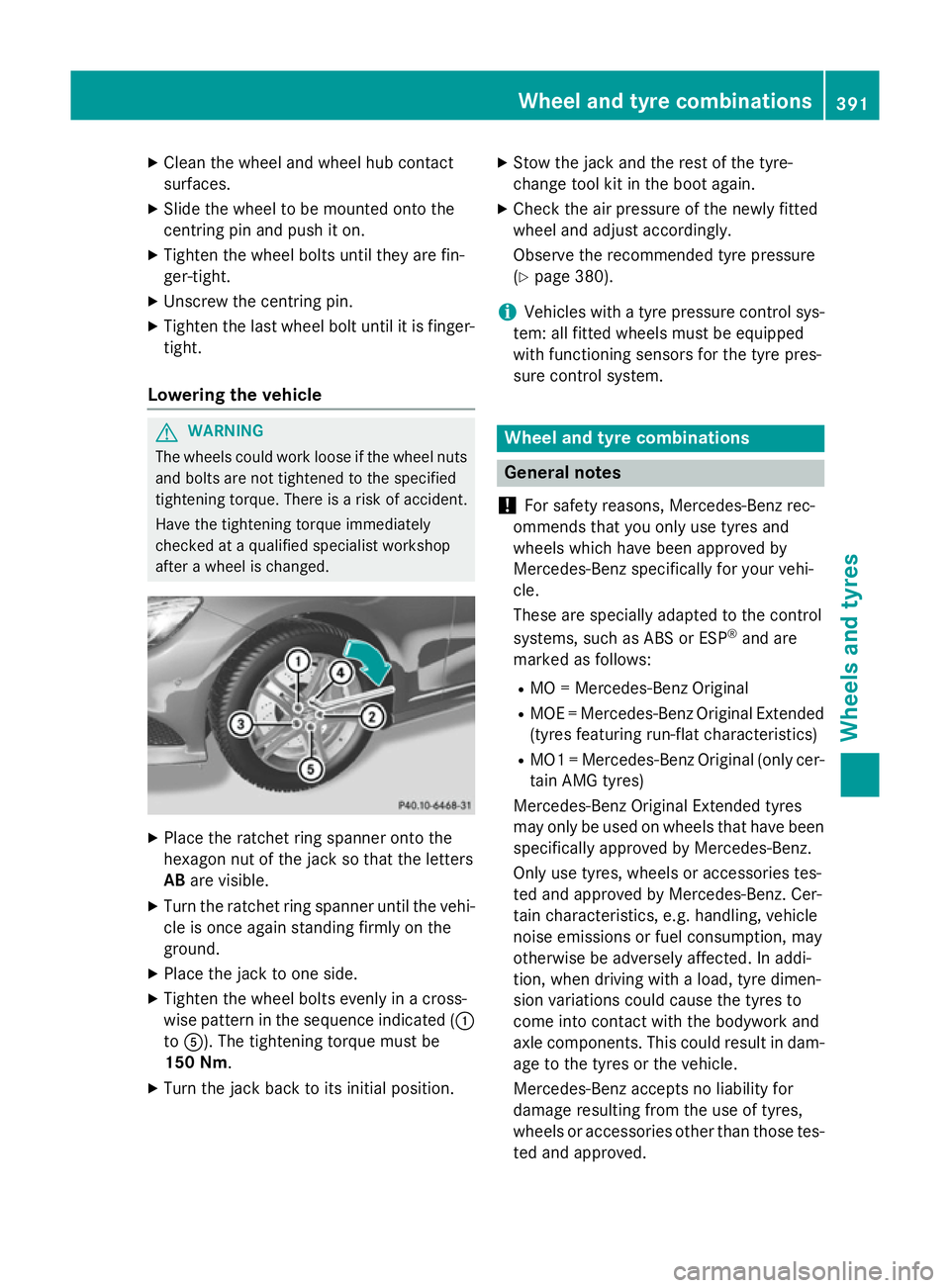

X Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( :
to A). The tightening torque must be
150 Nm .
X Turn the jack back to its initial position. X
Stow the jack and the rest of the tyre-
change tool kit in the boot again.
X Check the air pressure of the newly fitted
wheel and adjust accordingly.
Observe the recommended tyre pressure
(Y page 380).
i Vehicles with a tyre pressure control sys-
tem: all fitted wheels must be equipped
with functioning sensors for the tyre pres-
sure control system. Wheel and tyre combinations
General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle.
These are specially adapted to the control
systems, such as ABS or ESP ®
and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components. This could result in dam- age to the tyres or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tyres,
wheels or accessories other than those tes- ted and approved. Wheel and tyre combinations
391Wheels and tyres Z

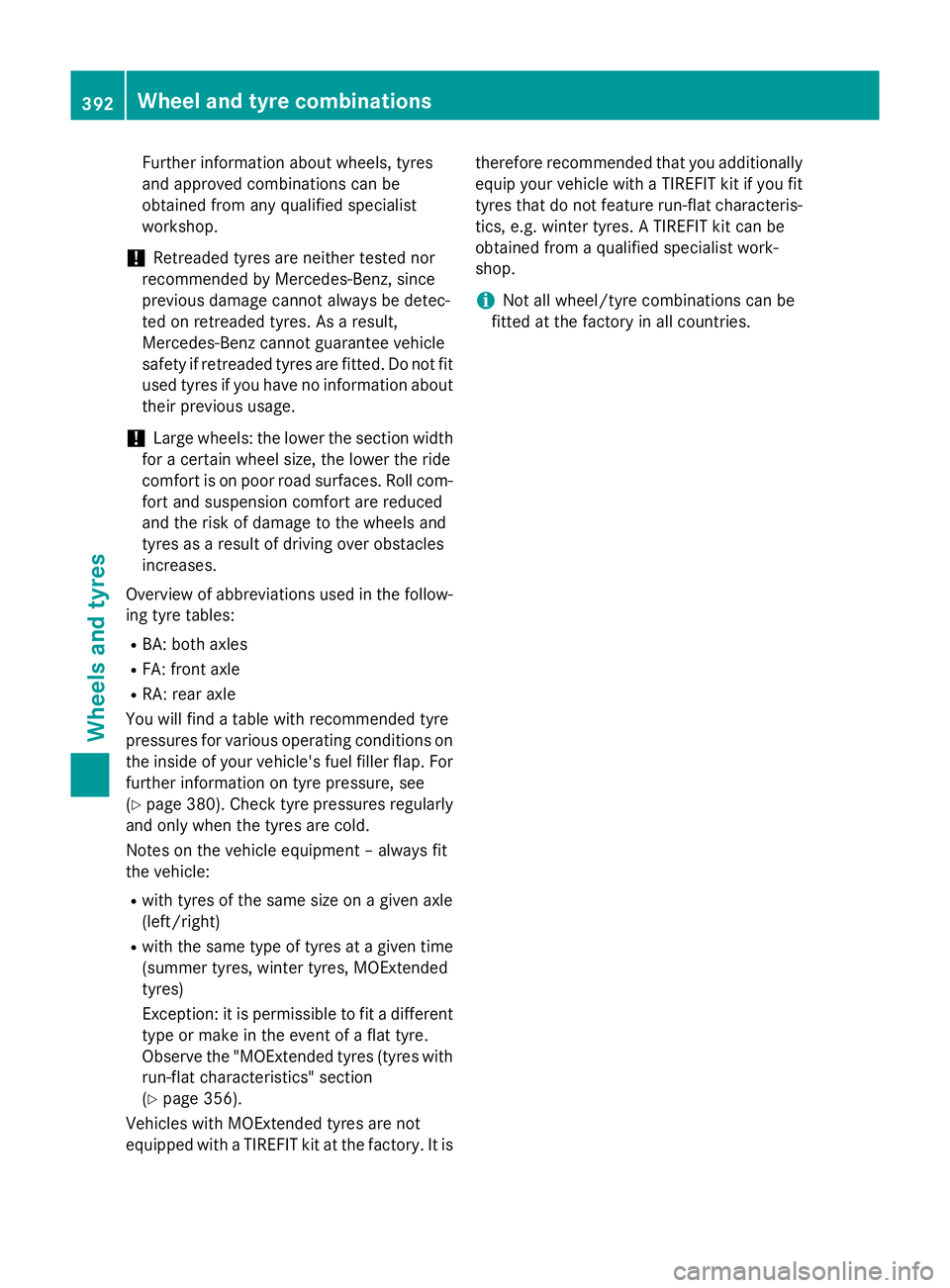

Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As a result,
Mercedes-Benz cannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit
used tyres if you have no information about their previous usage.
! Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases.
Overview of abbreviations used in the follow- ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
You will find a table with recommended tyre
pressures for various operating conditions on
the inside of your vehicle's fuel filler flap. For
further information on tyre pressure, see
(Y page 380). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment – always fit
the vehicle:
R with tyres of the same size on a given axle
(left/right)
R with the same type of tyres at a given time
(summer tyres, winter tyres, MOExtended
tyres)
Exception: it is permissible to fit a different
type or make in the event of a flat tyre.
Observe the "MOExtended tyres (tyres with
run-flat characteristics" section
(Y page 356).
Vehicles with MOExtended tyres are not
equipped with a TIREFIT kit at the factory. It is therefore recommended that you additionally
equip your vehicle with a TIREFIT kit if you fit tyres that do not feature run-flat characteris-
tics, e.g. winter tyres. A TIREFIT kit can be
obtained from a qualified specialist work-
shop.
i Not all wheel/tyre combinations can be
fitted at the factory in all countries. 392
Wheel and tyre combinationsWheels and tyres

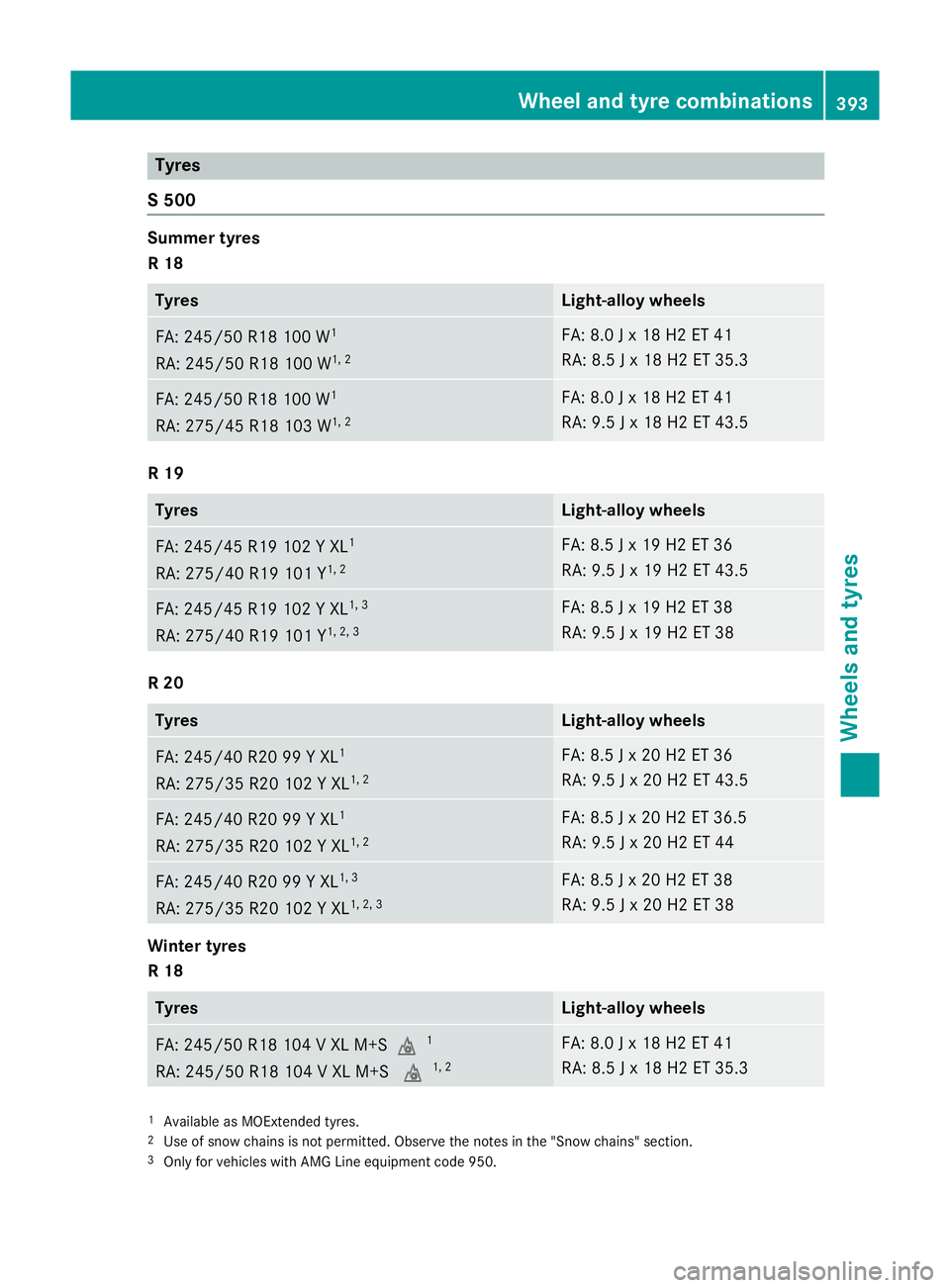

Tyres
S 500 Summer tyres
R 18
Tyres Light-alloy wheels
FA: 245/5
0 R18 100 W 1
RA : 245/50 R18 100 W 1, 2 FA: 8.0 J x 18 H2 ET 41
RA: 8.5 J x 18 H2 ET 35.3
FA: 245/50 R18 100 W
1
RA: 275/45 R18 103 W 1, 2 FA: 8.0 J x 18 H2 ET 41
RA: 9.5 J x 18 H2 ET 43.5
R 19
Tyres Light-alloy wheels
FA: 245/45 R19 102 Y XL
1
RA: 275/40 R19 101 Y 1, 2 FA: 8.5 J x 19 H2 ET 36
RA: 9.5 J x 19 H2 ET 43.5
FA: 245/45 R19 102 Y XL
1, 3
RA: 275/40 R19 101 Y 1, 2, 3 FA: 8.5 J x 19 H2 ET 38
RA: 9.5 J x 19 H2 ET 38
R 20
Tyres Light-alloy wheels
FA: 245/40 R20 99 Y XL
1
RA: 275/35 R20 102 Y XL 1, 2 FA: 8.5 J x 20 H2 ET 36
RA: 9.5 J x 20 H2 ET 43.5
FA: 245/40 R20 99 Y XL
1
RA: 275/35 R20 102 Y XL 1, 2 FA: 8.5 J x 20 H2 ET 36.5
RA: 9.5 J x 20 H2 ET 44
FA: 245/40 R20 99 Y XL
1, 3
RA: 275/35 R20 102 Y XL 1, 2, 3 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
Winter tyres
R 18
Tyres Light-alloy wheels
FA: 245/50 R18 104 V XL M+S
i1
RA: 245/50 R18 104 V XL M+S i1, 2 FA: 8.0 J x 18 H2 ET 41
RA: 8.5 J x 18 H2 ET 35.3
1
Available as MOExtended tyres.
2 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
3 Only for vehicles with AMG Line equipment code 950. Wheel and tyre combinations
393Wheels and tyres Z

R 19
Tyres Light-alloy wheels
FA: 245/45 R19 102 V XL M+S
i1
RA: 245/45 R19 102 V XL M+S i1, 2 FA: 8.5 J x 19 H2 ET 36
RA: 9 J x 19 H2 ET 30.5
BA: 245/45 R19 102 V XL M+S
i1 BA: 8.5 J x 19 H2 ET 38
S 500 4MATIC
Summer tyres
R 18
Tyres Light-alloy wheels
FA: 245/50 R18 100 W
1
RA: 245/50 R18 100 W 1, 2 FA: 8.0 J x 18 H2 ET 41
RA: 8.5 J x 18 H2 ET 35.3
FA: 245/50 R18 100 W
1
RA: 275/45 R18 103 W 1, 2 FA: 8.0 J x 18 H2 ET 41
RA: 9.5 J x 18 H2 ET 43.5
R 19
Tyres Light-alloy wheels
FA: 245/45 R19 102 Y XL
1
RA: 275/40 R19 101 Y 1, 2 FA: 8.5 J x 19 H2 ET 36
RA: 9.5 J x 19 H2 ET 43.5
FA: 245/45 R19 102 Y XL
1, 3
RA: 275/40 R19 101 Y 1, 2, 3 FA: 8.5 J x 19 H2 ET 38
RA: 9.5 J x 19 H2 ET 38
R 20
Tyres Light-alloy wheels
FA: 245/40 R20 99 Y XL
1
RA: 275/35 R20 102 Y XL 1, 2 FA: 8.5 J x 20 H2 ET 36
RA: 9.5 J x 20 H2 ET 43.5
FA: 245/40 R20 99 Y XL
1
RA: 275/35 R20 102 Y XL 1, 2 FA: 8.5 J x 20 H2 ET 36.5
RA: 9.5 J x 20 H2 ET 44
FA: 245/40 R20 99 Y XL
1, 3
RA: 275/35 R20 102 Y XL 1, 2, 3 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
1
Available as MOExtended tyres.
2 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
3 Only for vehicles with AMG Line equipment code 950. 394
Wheel and tyre combinationsWheels and tyres

Winter tyres
R 18
Tyres Light-alloy wheels
FA: 245/50 R18 104 V XL M+Si
1
RA: 245/50 R18 104 V XL M+S i1, 2 FA: 8.0 J x 18 H2 ET 41
RA: 8.5 J x 18 H2 ET 35.3
R 19
Tyres Light-alloy wheels
FA: 245/45 R19 102 V XL M+S
i1
RA: 245/45 R19 102 V XL M+S i1, 2 FA: 8.5 J x 19 H2 ET 36
FA: 9 J x 19 H2 ET 30.5
BA: 245/45 R19 102 V XL M+S
i1 BA: 8.5 J x 19 H2 ET 38

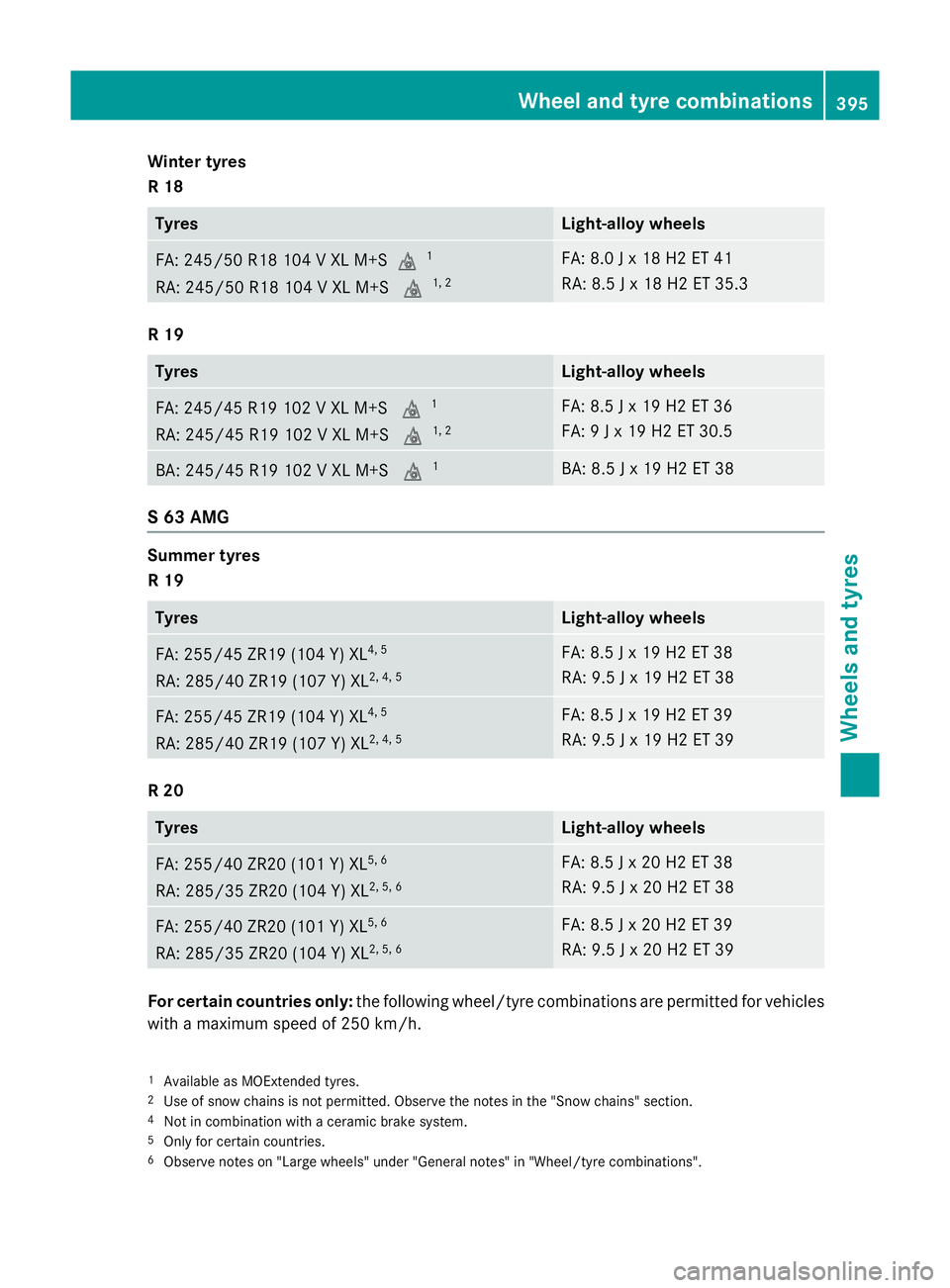

S 63 AMG
Summer tyres
R 19
Tyres Light-alloy wheels
FA: 255/45 ZR19 (104 Y) XL
4, 5
RA: 285/40 ZR19 (107 Y) XL 2, 4, 5 FA: 8.5 J x 19 H2 ET 38
RA: 9.5 J x 19 H2 ET 38
FA: 255/45 ZR19 (104 Y) XL
4, 5
RA: 285/40 ZR19 (107 Y) XL 2, 4, 5 FA: 8.5 J x 19 H2 ET 39
RA: 9.5 J x 19 H2 ET 39
R 20
Tyres Light-alloy wheels
FA: 255/40 ZR20 (101 Y) XL
5, 6
RA: 285/35 ZR20 (104 Y) XL 2, 5, 6 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
FA: 255/40 ZR20 (101 Y) XL
5, 6
RA: 285/35 ZR20 (104 Y) XL 2, 5, 6 FA: 8.5 J x 20 H2 ET 39
RA: 9.5 J x 20 H2 ET 39
For certain countries only:
the following wheel/tyre combinations are permitted for vehicles
with a maximum speed of 250 km/h.
1 Available as MOExtended tyres.
2 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
4 Not in combination with a ceramic brake system.
5 Only for certain countries.
6 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations". Wheel and tyre combinations
395Wheels and tyres Z

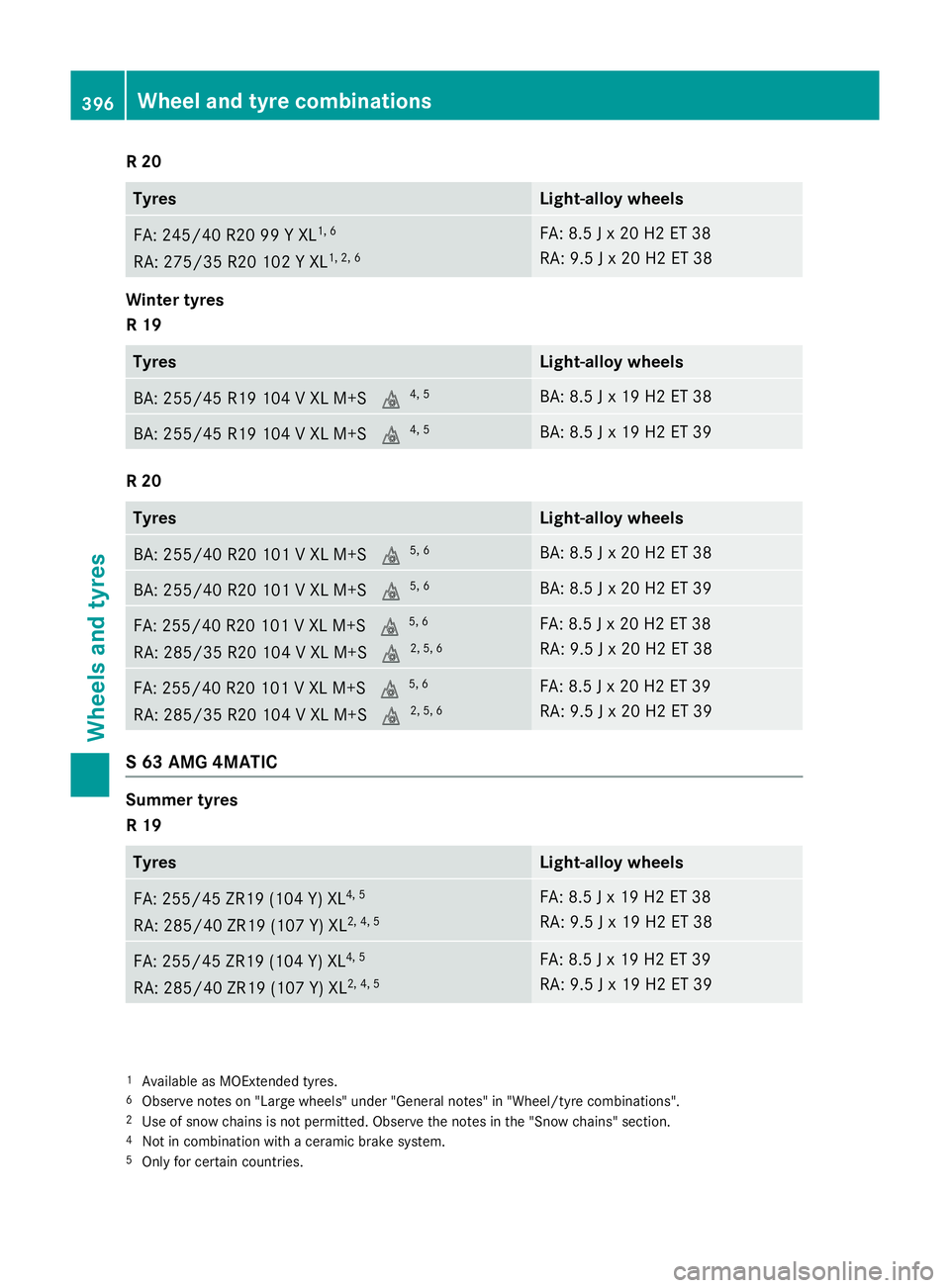

R 20
Tyres Light-alloy wheels
FA: 245/40 R20 99 Y XL
1, 6
RA: 275/35 R20 102 Y XL 1, 2, 6 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
Winter tyres
R 19
Tyres Light-alloy wheels
BA: 255/45 R19 104 V XL M+S
i4, 5 BA: 8.5 J x 19 H2 ET 38
BA: 255/45 R19 104 V XL M+S
i4, 5 BA: 8.5 J x 19 H2 ET 39
R 20
Tyres Light-alloy wheels
BA: 255/40 R20 101 V XL M+S
i5, 6 BA: 8.5 J x 20 H2 ET 38
BA: 255/40 R20 101 V XL M+S
i5, 6 BA: 8.5 J x 20 H2 ET 39
FA: 255/40 R20 101 V XL M+S
i5, 6
RA: 285/35 R20 104 V XL M+S i2, 5, 6 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
FA: 255/40 R20 101 V XL M+S
i5, 6
RA: 285/35 R20 104 V XL M+S i2, 5, 6 FA: 8.5 J x 20 H2 ET 39
RA: 9.5 J x 20 H2 ET 39
S 63 AMG 4MATIC
Summer tyres
R 19
Tyres Light-alloy wheels
FA: 255/45 ZR19 (104 Y) XL
4, 5
RA: 285/40 ZR19 (107 Y) XL 2, 4, 5 FA: 8.5 J x 19 H2 ET 38
RA: 9.5 J x 19 H2 ET 38
FA: 255/45 ZR19 (104 Y) XL
4, 5
RA: 285/40 ZR19 (107 Y) XL 2, 4, 5 FA: 8.5 J x 19 H2 ET 39
RA: 9.5 J x 19 H2 ET 39
1
Available as MOExtended tyres.
6 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations".
2 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
4 Not in combination with a ceramic brake system.
5 Only for certain countries. 396
Wheel and tyre combinationsWheels and tyres

R 20
Tyres Light-alloy wheels
FA: 255/40 ZR20 (101 Y) XL
5, 6
RA: 285/35 ZR20 (104 Y) XL 2, 5, 6 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
FA: 255/40 ZR20 (101 Y) XL
5, 6
RA: 285/35 ZR20 (104 Y) XL 2, 5, 6 FA: 8.5 J x 20 H2 ET 39
RA: 9.5 J x 20 H2 ET 39
For certain countries only:
the following wheel/tyre combinations are permitted for vehicles
with a maximum speed of 250 km/h.

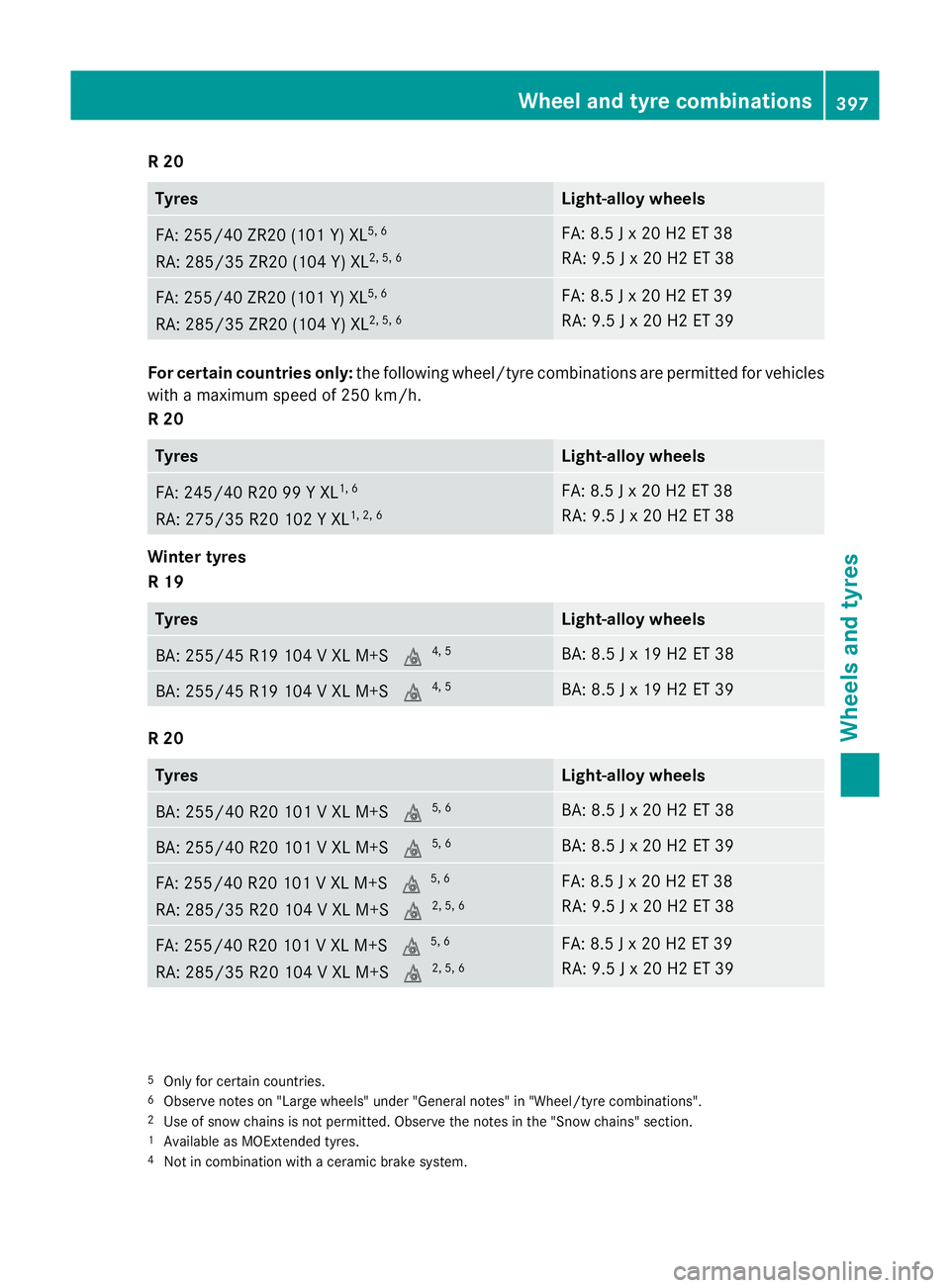

R 20 Tyres Light-alloy wheels
FA: 245/40 R20 99 Y XL
1, 6
RA: 275/35 R20 102 Y XL 1, 2, 6 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
Winter tyres
R 19
Tyres Light-alloy wheels
BA: 255/45 R19 104 V XL M+S
i4, 5 BA: 8.5 J x 19 H2 ET 38
BA: 255/45 R19 104 V XL M+S
i4, 5 BA: 8.5 J x 19 H2 ET 39
R 20
Tyres Light-alloy wheels
BA: 255/40 R20 101 V XL M+S
i5, 6 BA: 8.5 J x 20 H2 ET 38
BA: 255/40 R20 101 V XL M+S
i5, 6 BA: 8.5 J x 20 H2 ET 39
FA: 255/40 R20 101 V XL M+S
i5, 6
RA: 285/35 R20 104 V XL M+S i2, 5, 6 FA: 8.5 J x 20 H2 ET 38
RA: 9.5 J x 20 H2 ET 38
FA: 255/40 R20 101 V XL M+S
i5, 6
RA: 285/35 R20 104 V XL M+S i2, 5, 6 FA: 8.5 J x 20 H2 ET 39
RA: 9.5 J x 20 H2 ET 39
5
Only for certain countries.
6 Observe notes on "Large wheels" under "General notes" in "Wheel/tyre combinations".
2 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
1 Available as MOExtended tyres.
4 Not in combination with a ceramic brake system. Wheel and tyre combinations
397Wheels and tyres Z
