MERCEDES-BENZ S-Class COUPE 2016 C217 Owner's Manual

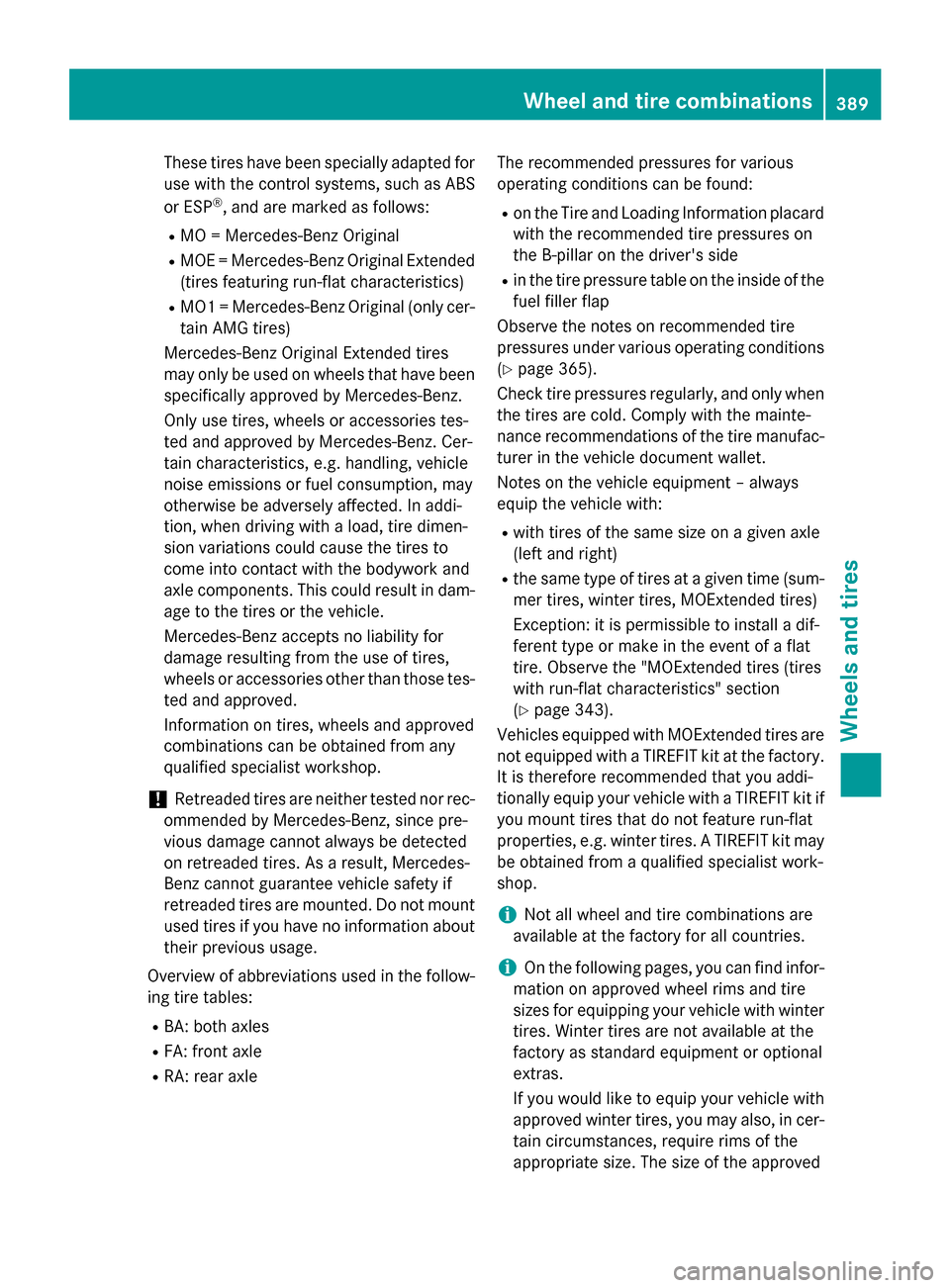

These tires have been specially adapted for
use with the control systems, such as ABS
or ESP
®, and are marked as follows:
RMO = Mercedes-Benz Original
RMOE = Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
RMO1 = Mercedes-Benz Original (only cer-
tain AMG tires)
Mercedes-Benz Original Extended tires
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tires, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tire dimen-
sion variations could cause the tires to
come into contact with the bodywork and
axle components. This could result in dam-
age to the tires or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tires,
wheels or accessories other than those tes-
ted and approved.
Information on tires, wheels and approved
combinations can be obtained from any
qualified specialist workshop.
!Retreaded tires are neither tested nor rec-
ommended by Mercedes-Benz, since pre-
vious damage cannot always be detected
on retreaded tires. As a result, Mercedes-
Benz cannot guarantee vehicle safety if
retreaded tires are mounted. Do not mount
used tires if you have no information about
their previous usage.
Overview of abbreviations used in the follow-
ing tire tables:
RBA: both axles
RFA: front axle
RRA: rear axle The recommended pressures for various
operating conditions can be found:
Ron the Tire and Loading Information placard
with the recommended tire pressures on
the B-pillar on the driver's side
Rin the tire pressure table on the inside of the
fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions
(
Ypage 365).
Check tire pressures regularly, and only when
the tires are cold. Comply with the mainte-
nance recommendations of the tire manufac-
turer in the vehicle document wallet.
Notes on the vehicle equipment – always
equip the vehicle with:
Rwith tires of the same size on a given axle
(left and right)
Rthe same type of tires at a given time (sum-
mer tires, winter tires, MOExtended tires)
Exception: it is permissible to install a dif-
ferent type or make in the event of a flat
tire. Observe the "MOExtended tires (tires
with run-flat characteristics" section
(
Ypage 343).
Vehicles equipped with MOExtended tires are
not equipped with a TIREFIT kit at the factory.
It is therefore recommended that you addi-
tionally equip your vehicle with a TIREFIT kit if
you mount tires that do not feature run-flat
properties, e.g. winter tires. A TIREFIT kit may
be obtained from a qualified specialist work-
shop.
iNot all wheel and tire combinations are
available at the factory for all countries.
iOn the following pages, you can find infor-
mation on approved wheel rims and tire
sizes for equipping your vehicle with winter
tires. Winter tires are not available at the
factory as standard equipment or optional
extras.
If you would like to equip your vehicle with
approved winter tires, you may also, in cer- tain circumstances, require rims of the
appropriate size. The size of the approved
Wheel and tire combinations389
Wheels and tires
Z

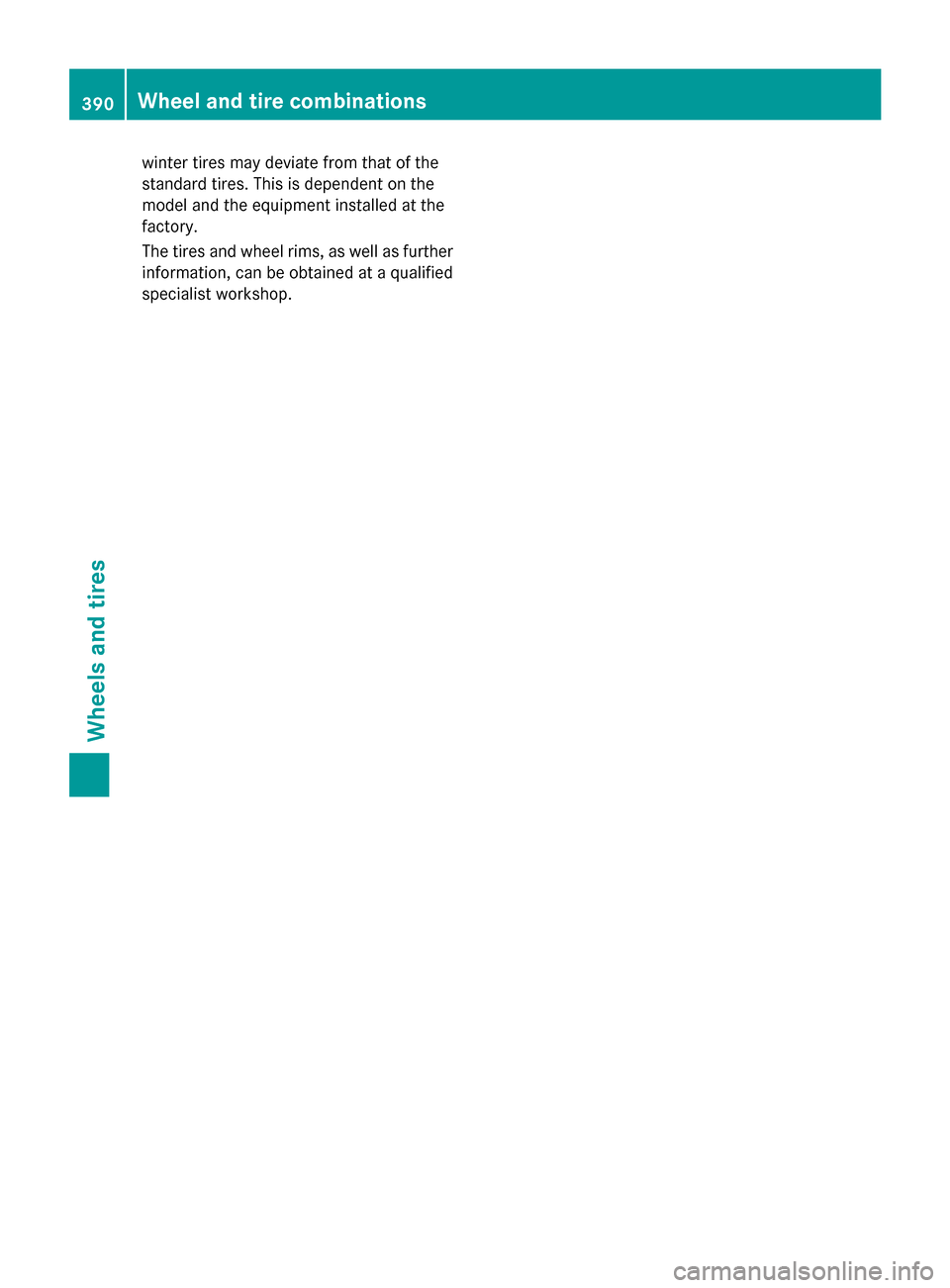

winter tires may deviate from that of the
standard tires. This is dependent on the
model and the equipment installed at the
factory.
The tires and wheel rims, as well as further
information, can be obtained at a qualified
specialist workshop.
390Wheel and tire combinations
Wheels and tires

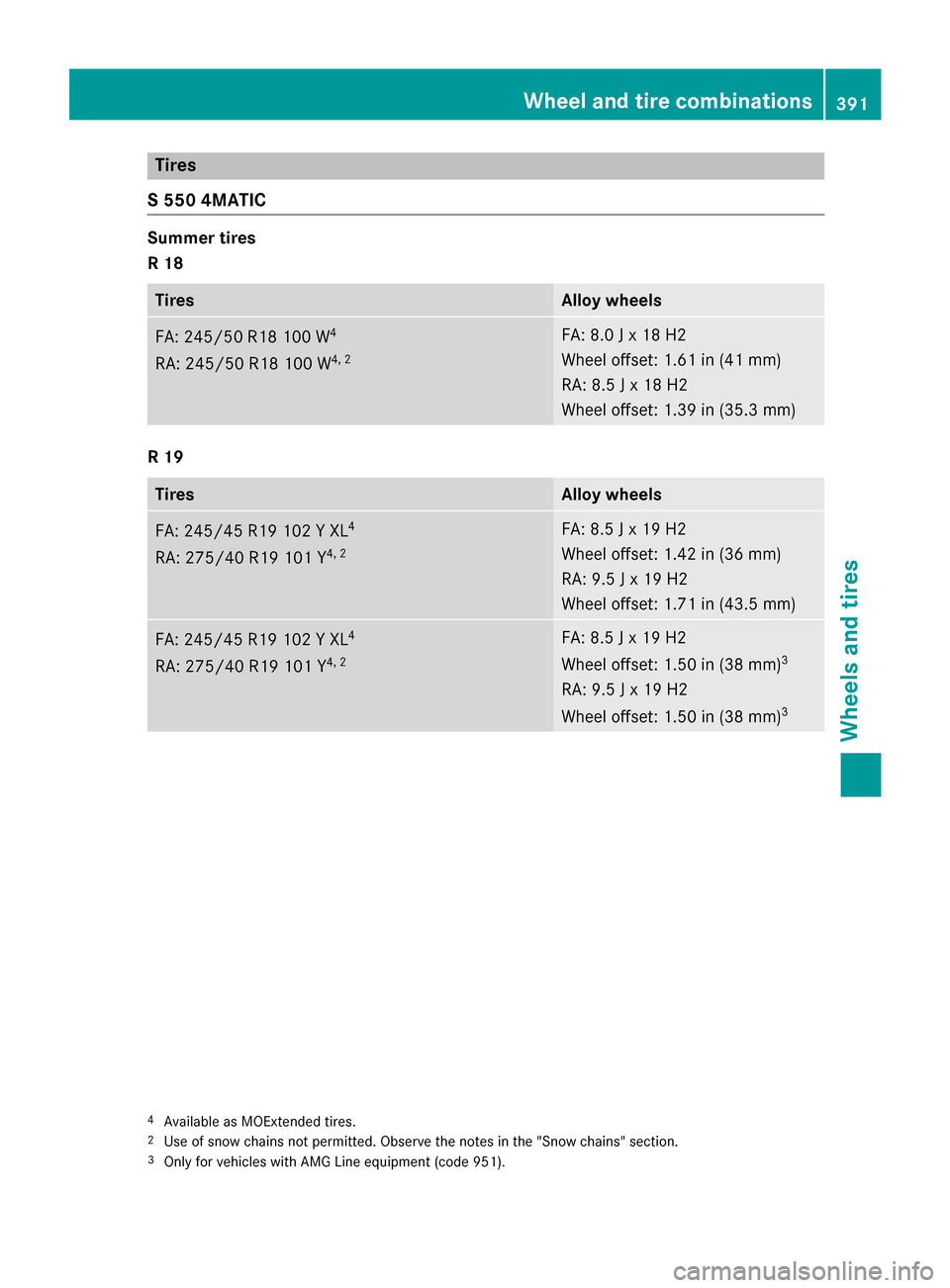

Tires
S 550 4MATIC
Summer tires
R 18
TiresAlloy wheels
FA: 245/50 R1810 0 W4
RA : 245/50 R18 100 W4, 2
FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
TiresAlloy wheels
FA: 245/45 R19 102 Y XL4
RA: 275/40 R19 101 Y4, 2
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 Y XL4
RA: 275/40 R19 101 Y4, 2
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
3
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
3
4Available as MOExtended tires.2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.3Only for vehicles with AMG Line equipment (code 951).
Wheel and tire combinations391
Wheels and tires
Z

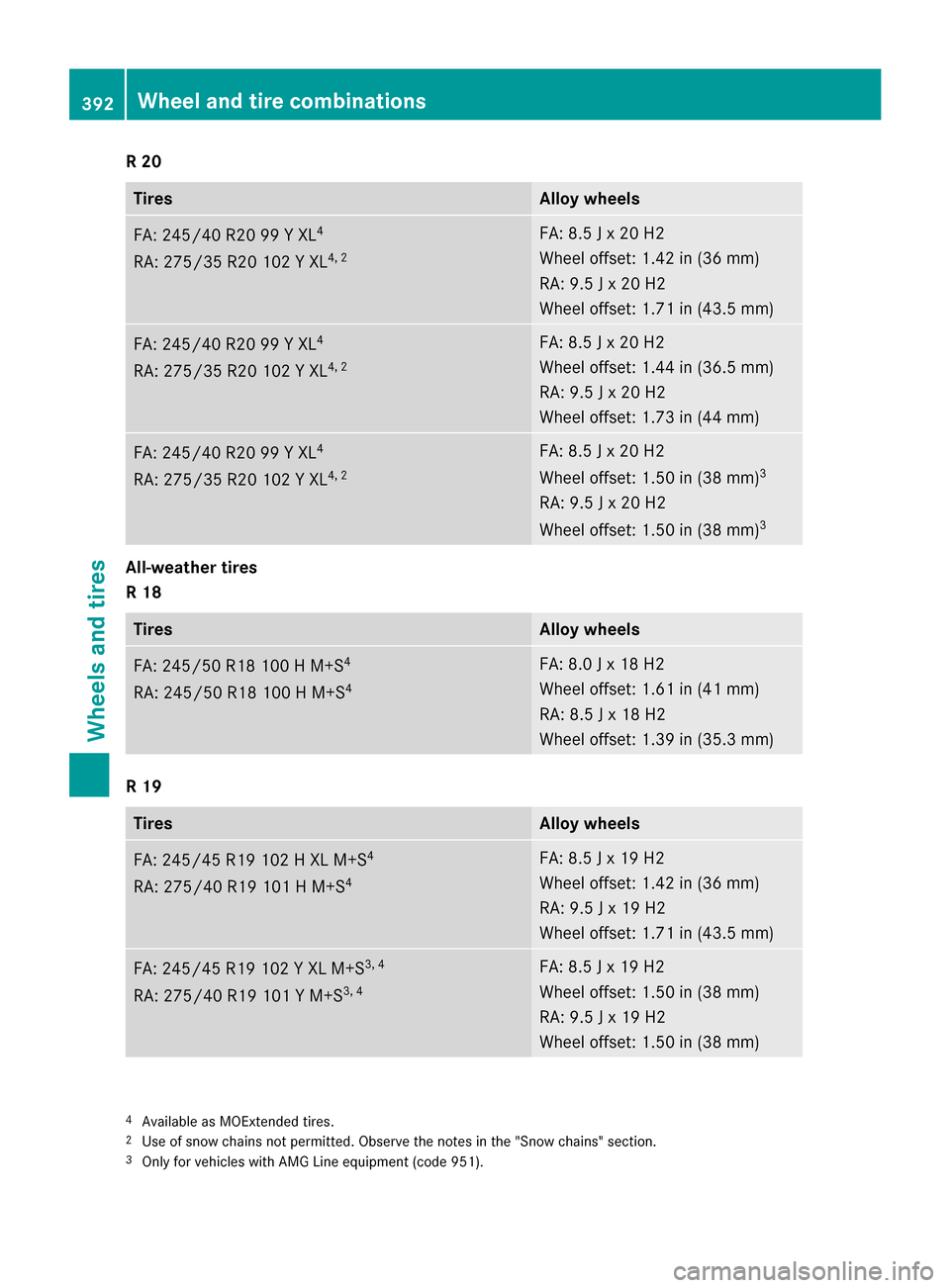

R 20
TiresAlloy wheels
FA: 245/40 R20 99 Y XL4
RA: 275/35 R20 102 Y XL4, 2
FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL4
RA: 275/35 R20 102 Y XL4, 2
FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
FA: 245/40 R20 99 Y XL4
RA: 275/35 R20 102 Y XL4, 2
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
3
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
3
All-weather tires
R 18
TiresAlloy wheels
FA: 245/50 R18 100 H M+S4
RA: 245/50 R18 100 H M+S4
FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
TiresAlloy wheels
FA: 245/45 R19 102 H XL M+S4
RA: 275/40 R19 101 H M+S4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 Y XL M+S3, 4
RA: 275/40 R19 101 Y M+S3, 4
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
4Available as MOExtended tires.2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.3Only for vehicles with AMG Line equipment (code 951).
392Wheel and tire combinations
Wheels and tires

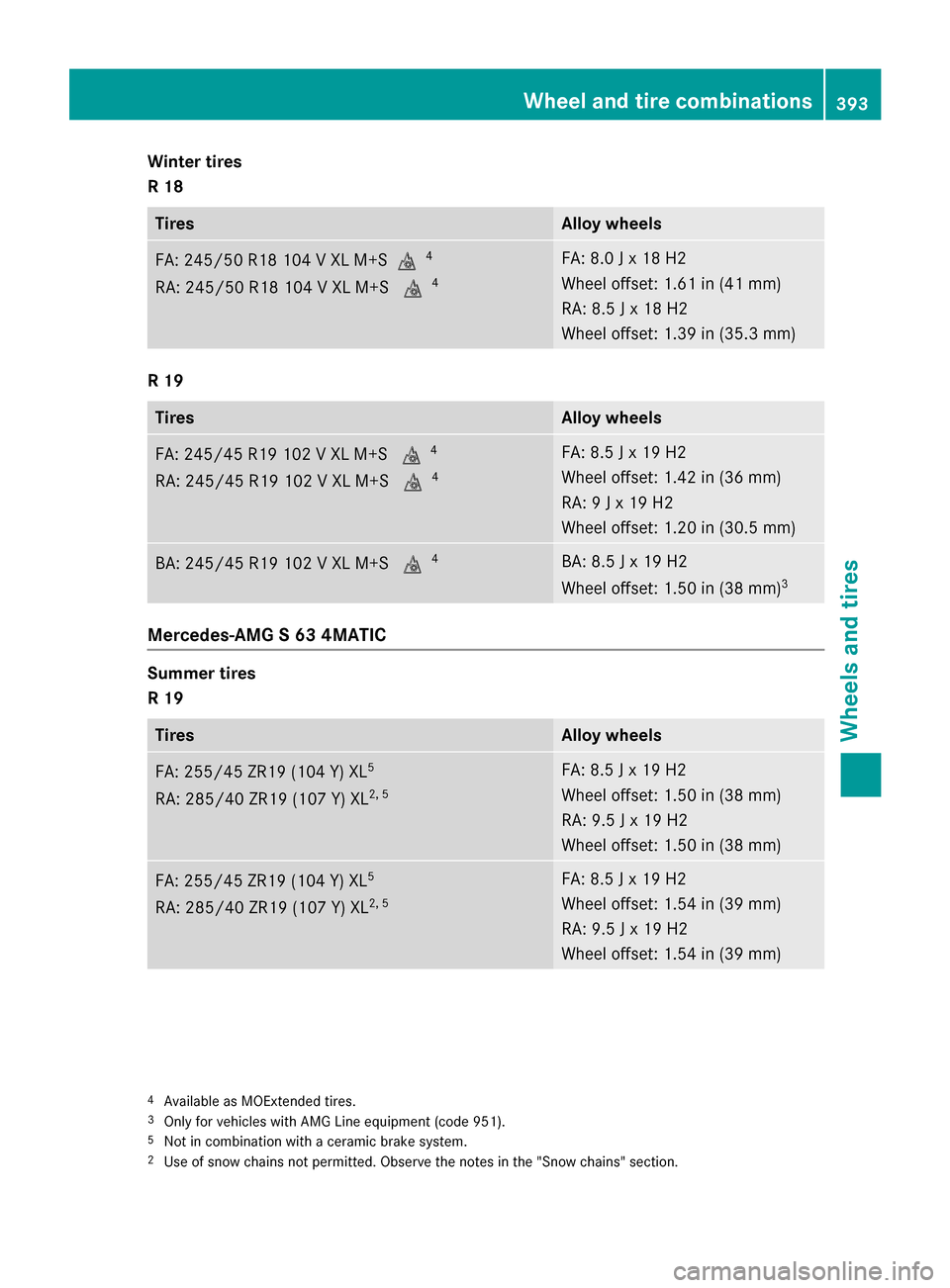

Winter tires
R 18
TiresAlloy wheels
FA: 245/50 R18 104 V XL M+Si4
RA: 245/50 R18 104 V XL M+Si4
FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
TiresAlloy wheels
FA: 245/45 R19 102 V XL M+Si4
RA: 245/45 R19 102 V XL M+S i4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9 J x 19 H2
Wheel offset: 1.20 in (30.5 mm)
BA: 245/45 R19 102 V XL M+Si4BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
3
Mercedes-AMG S 63 4MATIC
Summer tires
R 19
TiresAlloy wheels
FA: 255/45 ZR19 (104 Y) XL5
RA: 285/40 ZR19 (107 Y) XL2, 5
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/45 ZR19 (104 Y) XL5
RA: 285/40 ZR19 (107 Y) XL2, 5
FA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
4Available as MOExtended tires.3Only for vehicles with AMG Line equipment (code 951).5Not in combination with a ceramic brake system.2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
Wheel and tire combinations393
Wheels and tires
Z

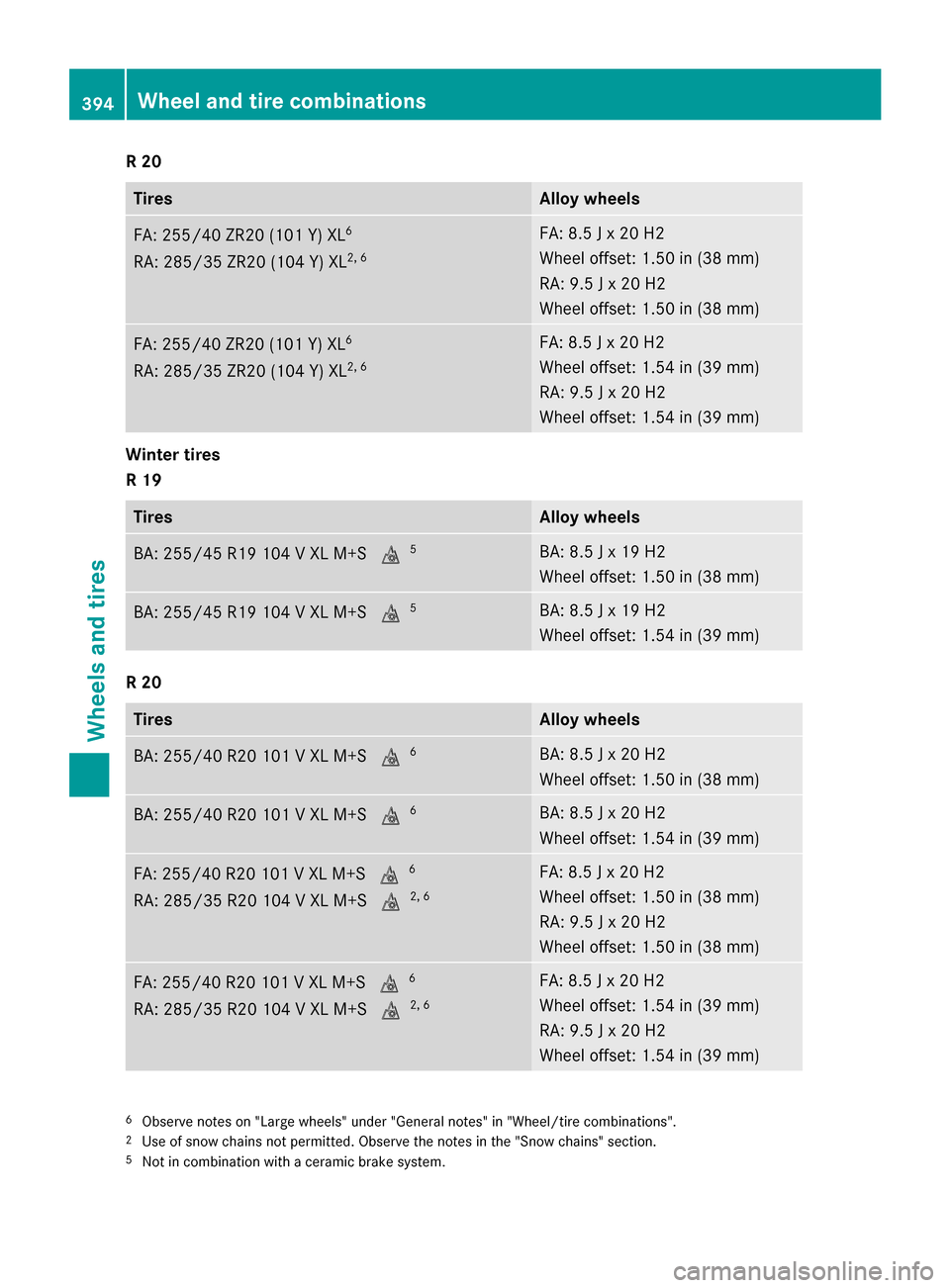

R 20
TiresAlloy wheels
FA: 255/40 ZR20 (101 Y) XL6
RA: 285/35 ZR20 (104 Y) XL2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL6
RA: 285/35 ZR20 (104 Y) XL2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R 19
TiresAlloy wheels
BA: 255/45 R19 104 V XL M+Si5BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/45 R19 104 V XL M+Si5BA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
R 20
TiresAlloy wheels
BA: 255/40 R20 101 V XL M+Si6BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+Si6BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+Si6
RA: 285/35 R20 104 V XL M+S i2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+Si6
RA: 285/35 R20 104 V XL M+S i2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
6Observe notes on "Large wheels" under "General notes" in "Wheel/tire combinations".2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Not in combination with a ceramic brake system.
394Wheel and tire combinations
Wheels and tires

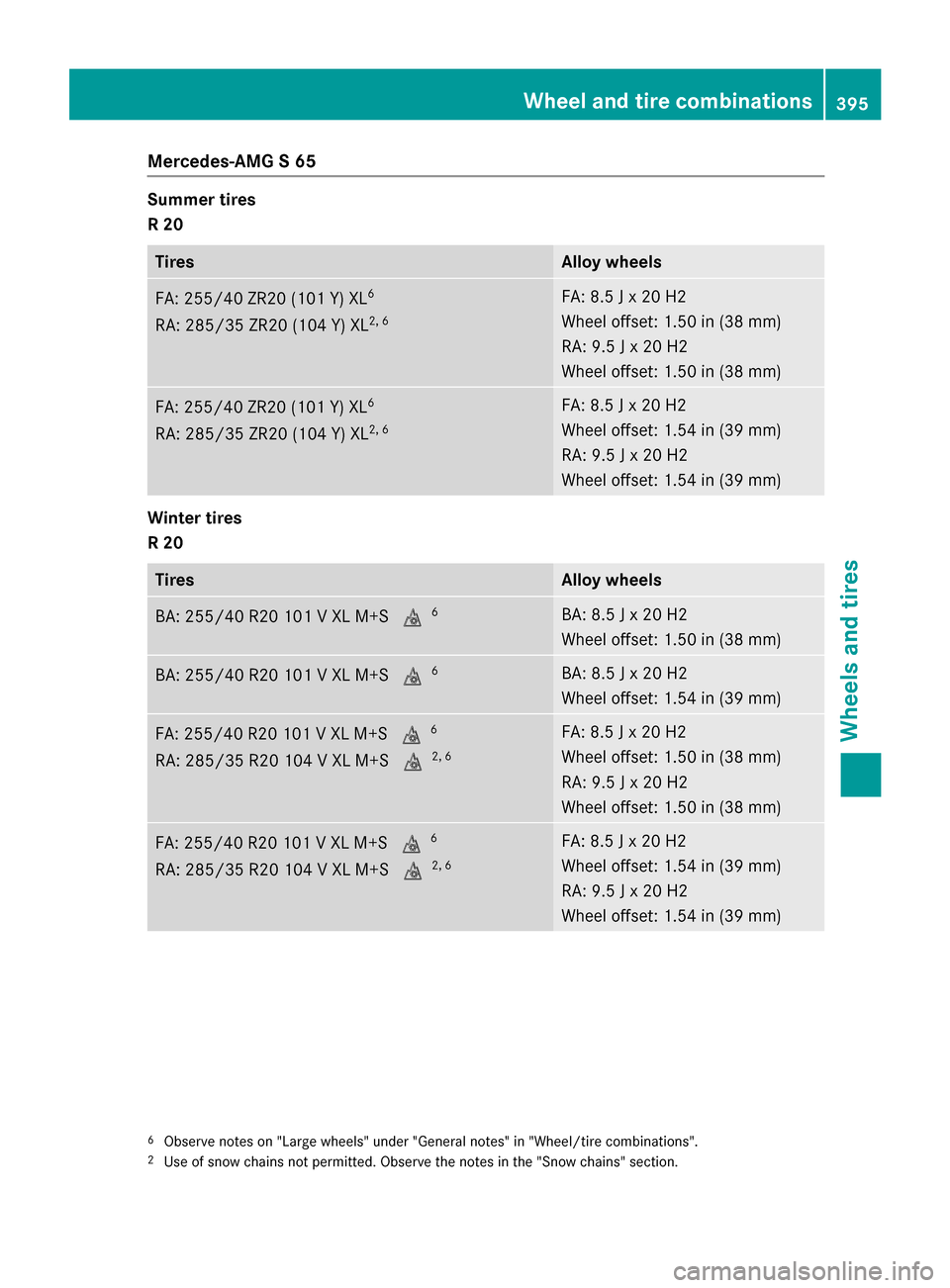

Mercedes-AMG S 65
Summer tires
R 20
TiresAlloy wheels
FA: 255/40 ZR20 (101 Y) XL6
RA: 285/35 ZR20 (104 Y) XL2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL6
RA: 285/35 ZR20 (104 Y) XL2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R 20
TiresAlloy wheels
BA: 255/40 R20 101 V XL M+Si6BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+Si6BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+Si6
RA: 285/35 R20 104 V XL M+S i2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+Si6
RA: 285/35 R20 104 V XL M+S i2, 6
FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
6Observe notes on "Large wheels" under "General notes" in "Wheel/tire combinations".2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
Wheel and tire combinations395
Wheels and tires
Z

396

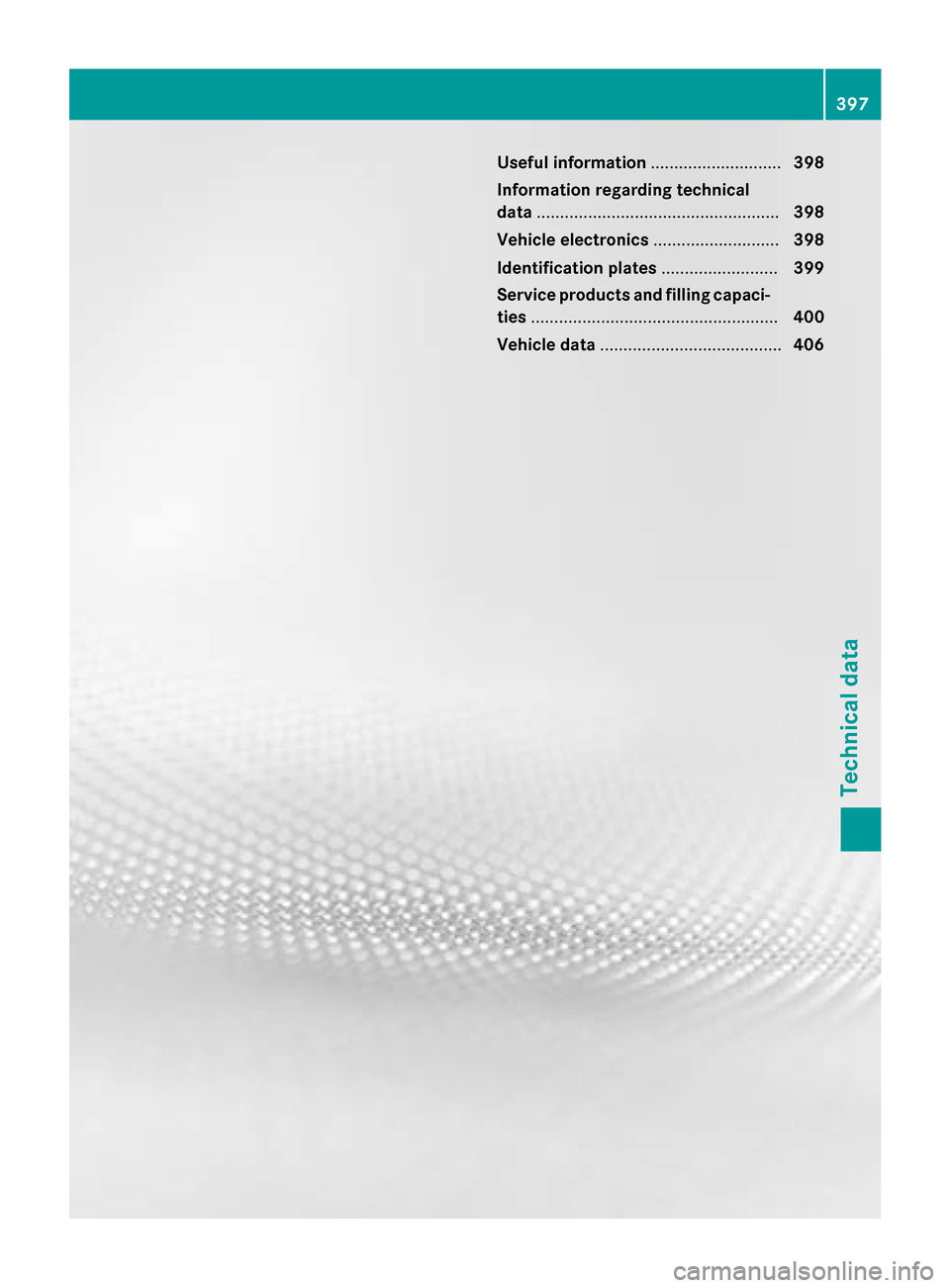

Useful information............................398
Information regarding technical
data .................................................... 398
Vehicle electronics ...........................398
Identification plates .........................399
Service products and filling capaci-
ties ..................................................... 400
Vehicle data ....................................... 406
397
Technical data

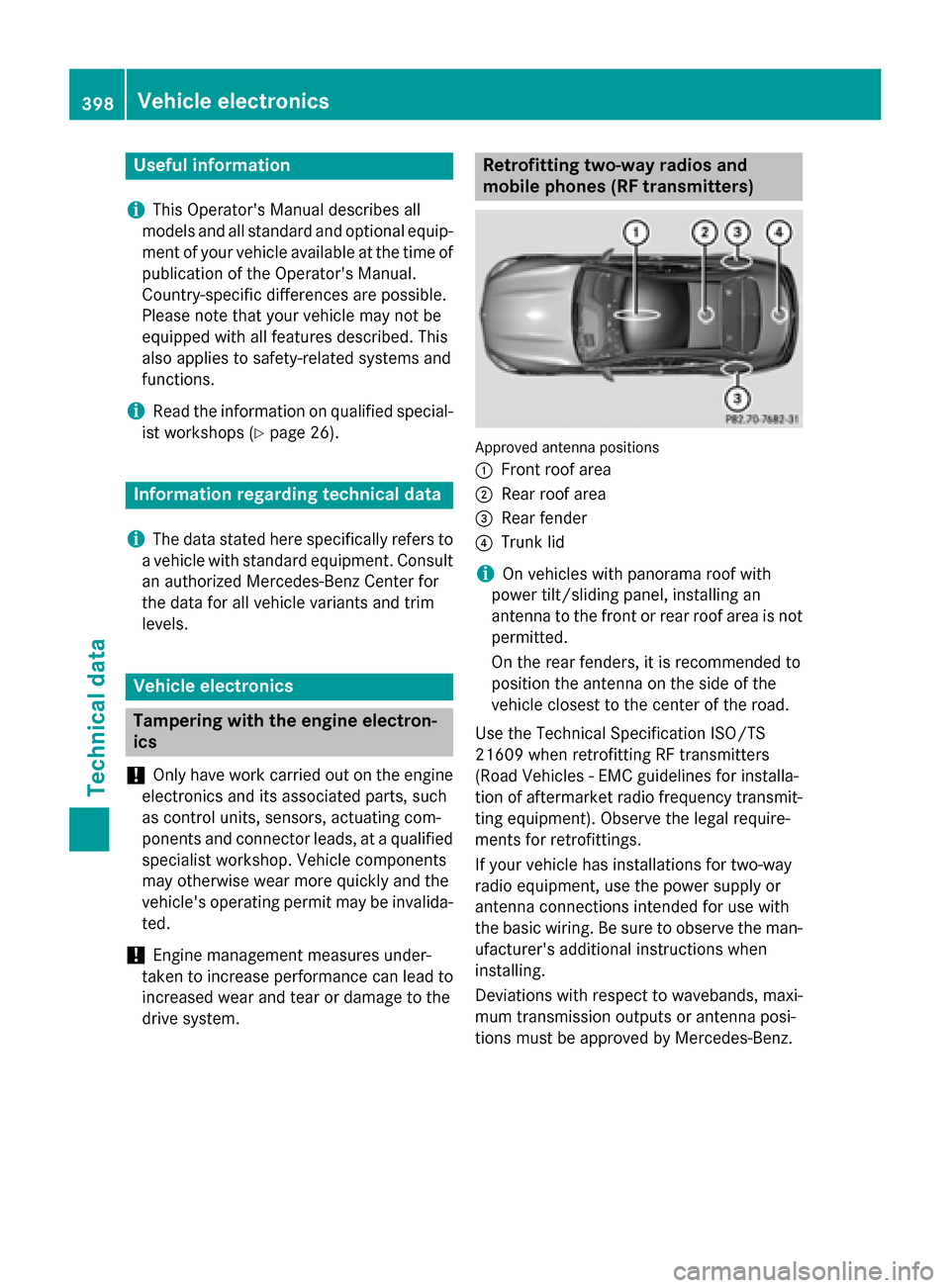

Useful information
i
This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
iRead the information on qualified special-
ist workshops (
Ypage 26).
Information regarding technical data
i
The data stated here specifically refers to
a vehicle with standard equipment. Consult an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels.
Vehicle electronics
Tampering with the engine electron-
ics
!
Only have work carried out on the engine
electronics and its associated parts, such
as control units, sensors, actuating com-
ponents and connector leads, at a qualified
specialist workshop. Vehicle components
may otherwise wear more quickly and the
vehicle's operating permit may be invalida-
ted.
!Engine management measures under-
taken to increase performance can lead to
increased wear and tear or damage to the
drive system.
Retrofitting two-way radios and
mobile phones (RF transmitters)
Approved antenna positions
:
Front roof area
;Rear roof area
=Rear fender
?Trunk lid
iOn vehicles with panorama roof with
power tilt/sliding panel, installing an
antenna to the front or rear roof area is not
permitted.
On the rear fenders, it is recommended to
position the antenna on the side of the
vehicle closest to the center of the road.
Use the Technical Specification ISO/TS
21609 when retrofitting RF transmitters
(Road Vehicles - EMC guidelines for installa-
tion of aftermarket radio frequency transmit-
ting equipment). Observe the legal require-
ments for retrofittings.
If your vehicle has installations for two-way
radio equipment, use the power supply or
antenna connections intended for use with
the basic wiring. Be sure to observe the man-
ufacturer's additional instructions when
installing.
Deviations with respect to wavebands, maxi-
mum transmission outputs or antenna posi-
tions must be approved by Mercedes-Benz.
398Vehicle electronics
Technical data
