MERCEDES-BENZ S-Class COUPE 2017 C217 Owner's Manual

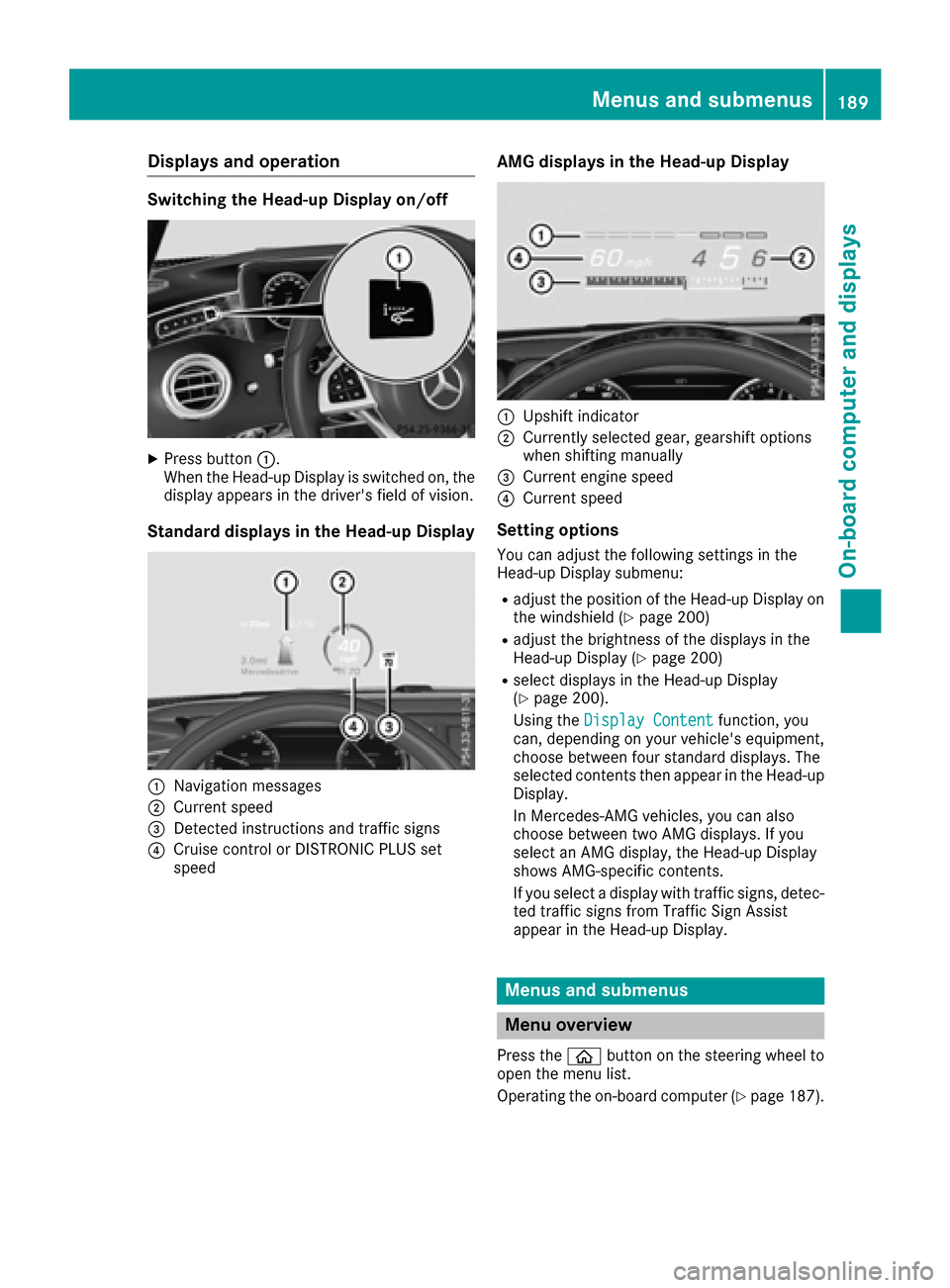

Displaysan doperation
Switching th eHead-up Display on/of f
XPress button0043.
Whe nth eHead-up Display is switched on ,th e
display appears in th edriver's field of vision .
Standard displaysin th eHead-up Display
0043Navigation messages
0044Curren tspeed
0087Detected instruction sand traffic signs
0085Cruise contro lor DISTRONIC PLU Sset
speed
AMG display sin th eHead-up Display
0043Upshif tindicator
0044Currentl yselecte dgear ,gearshift option s
when shiftin gmanually
0087Curren tengin espeed
0085Curren tspeed
Setting options
You can adjust th efollowin gsetting sin th e
Head-up Display submenu:
Radjust th eposition of th eHead-up Display on
th ewindshield (Ypage 200)
Radjust thebrightness of th edisplays in th e
Head-up Display (Ypage 200)
Rselectdisplays in th eHead-up Display
(Ypage 200).
Using th eDispla yConten t
function ,you
can ,dependin gon your vehicle' sequipment,
choos ebetween four standard displays .The
selecte dcontents then appear in th eHead-up
Display.
In Mercedes-AMG vehicles ,you can also
choos ebetween tw oAM Gdisplays .If you
selec tan AM Gdisplay, th eHead-up Display
shows AMG-specifi ccontents .
If you selec t adisplay wit htraffic signs ,detec -
te dtraffic signs from Traffic Sign Assis t
appear in th eHead-up Display.
Menus an dsubmenu s
Menuoverview
Press th e00E2 buttonon th esteerin gwhee lto
ope nth emen ulist .
Operatin gth eon-boar dcompute r (
Ypage 187).
Menus and submenus189
On-board computer and displays
Z

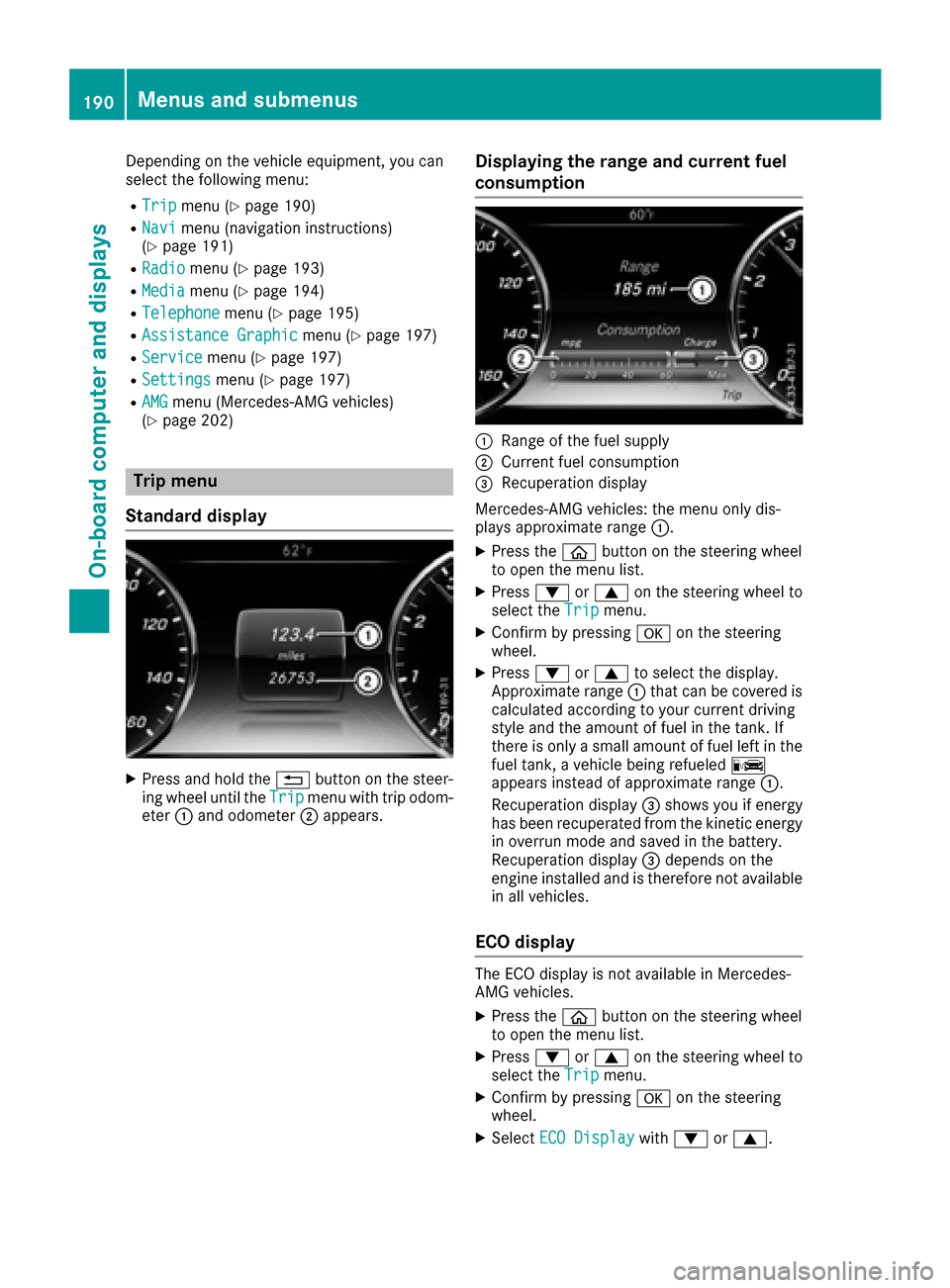

Depending on the vehicle equipment, you can
select the following menu:
RTripmenu (Ypage 190)
RNavimenu (navigation instructions)
(Ypage 191)
RRadiomenu (Ypage 193)
RMediamenu (Ypage 194)
RTelephonemenu (Ypage 195)
RAssistance Graphicmenu (Ypage 197)
RServicemenu (Ypage 197)
RSettingsmenu (Ypage 197)
RAMGmenu (Mercedes-AMG vehicles)
(Ypage 202)
Trip menu
Standard display
XPress and hold the 0038button on the steer-
ing wheel until the Tripmenu with trip odom-
eter 0043and odometer 0044appears.
Displaying the range and current fuel
consumption
0043Range of the fuel supply
0044Current fuel consumption
0087Recuperation display
Mercedes-AMG vehicles: the menu only dis-
plays approximate range 0043.
XPress the00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Tripmenu.
XConfirm by pressing 0076on the steering
wheel.
XPress 0064or0063 to select the display.
Approximate range 0043that can be covered is
calculated according to your current driving
style and the amount of fuel in the tank. If
there is only a small amount of fuel left in the
fuel tank, a vehicle being refueled 00A8
appears instead of approximate range 0043.
Recuperation display 0087shows you if energy
has been recuperated from the kinetic energy in overrun mode and saved in the battery.
Recuperation display 0087depends on the
engine installed and is therefore not available
in all vehicles.
ECO display
The ECO display is not available in Mercedes-
AMG vehicles.
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Tripmenu.
XConfirm by pressing 0076on the steering
wheel.
XSelect ECO Displaywith0064 or0063.
190Menus and submenus
On-board computer and displays

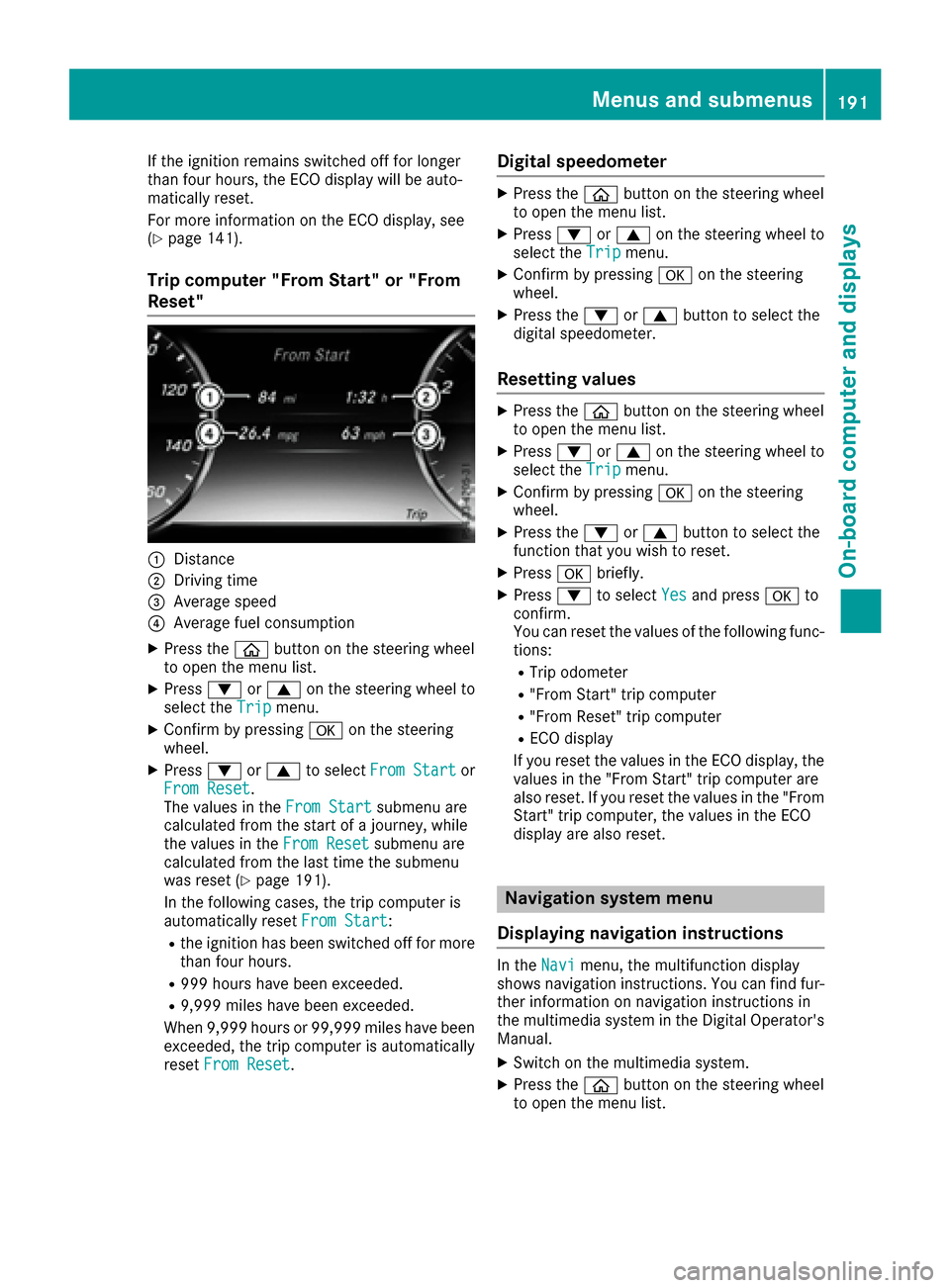

If the ignition remains switched off for longer
than four hours, the ECO display will be auto-
matically reset.
For more information on the ECO display, see
(
Ypage 141).
Trip computer "From Start" or "From
Reset"
0043Distance
0044Driving time
0087Average speed
0085Average fuel consumption
XPress the00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Tripmenu.
XConfirm by pressing 0076on the steering
wheel.
XPress 0064or0063 to select From Startor
From Reset.
The values in the From Startsubmenu are
calculated from the start of a journey, while
the values in the From Reset
submenu are
calculated from the last time the submenu
was reset (
Ypage 191).
In the following cases, the trip computer is
automatically reset From Start
:
Rthe ignition has been switched off for more
than four hours.
R999 hours have been exceeded.
R9,999 miles have been exceeded.
When 9,999 hours or 99,999 miles have been
exceeded, the trip computer is automatically
reset From Reset
.
Digital speedometer
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Tripmenu.
XConfirm by pressing 0076on the steering
wheel.
XPress the 0064or0063 button to select the
digital speedometer.
Resetting values
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Tripmenu.
XConfirm by pressing 0076on the steering
wheel.
XPress the 0064or0063 button to select the
function that you wish to reset.
XPress 0076briefly.
XPress 0064to select Yesand press 0076to
confirm.
You can reset the values of the following func-
tions:
RTrip odometer
R"From Start" trip computer
R"From Reset" trip computer
RECO display
If you reset the values in the ECO display, the values in the "From Start" trip computer are
also reset. If you reset the values in the "From
Start" trip computer, the values in the ECO
display are also reset.
Navigation system menu
Displaying navigation instructions
In the Navimenu, the multifunction display
shows navigation instructions. You can find fur-
ther information on navigation instructions in
the multimedia system in the Digital Operator's Manual.
XSwitch on the multimedia system.
XPress the 00E2button on the steering wheel
to open the menu list.
Menus and submenus191
On-board computer and displays
Z

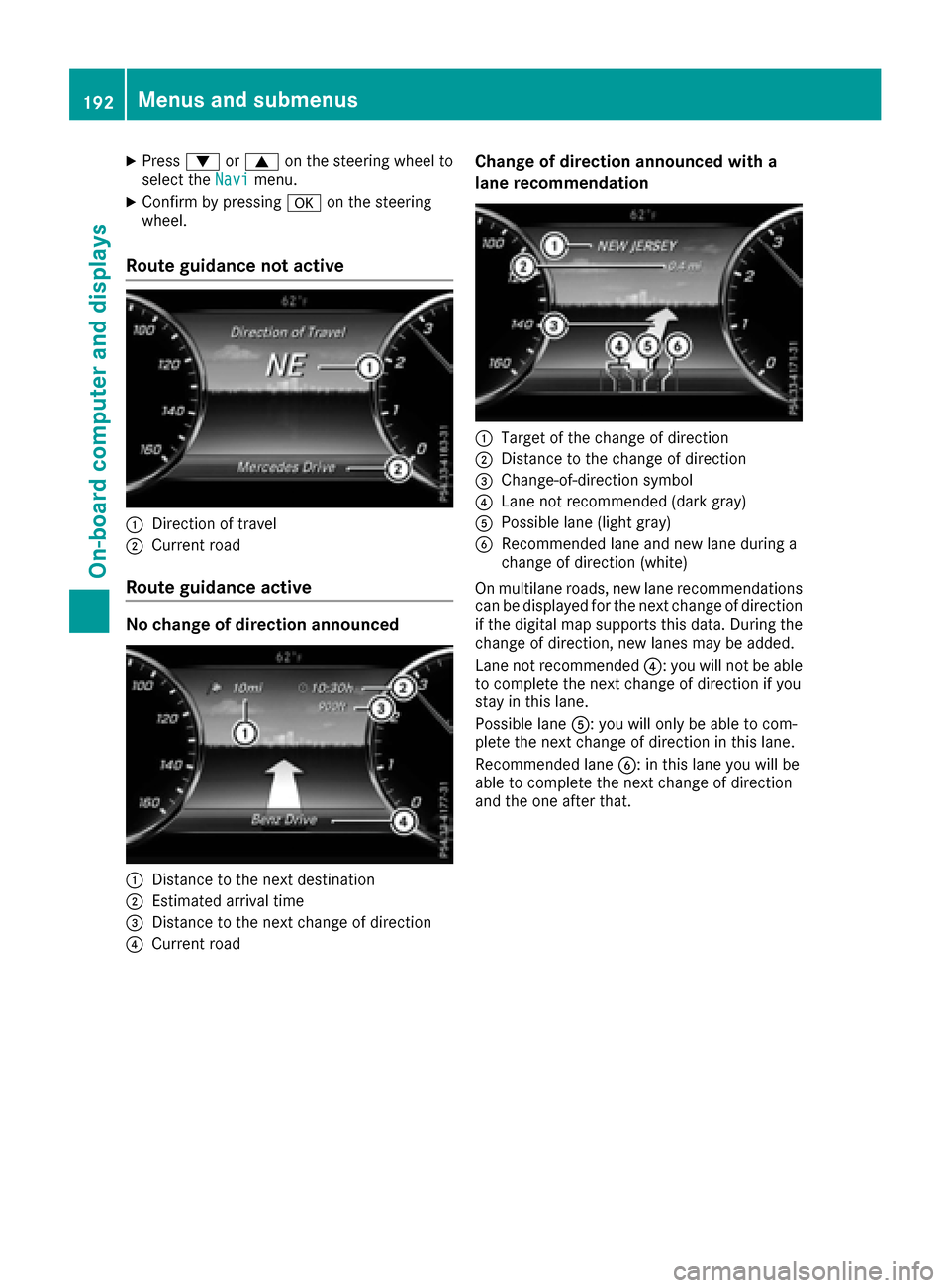

XPress0064or0063 on the steering wheel to
select the Navimenu.
XConfirm by pressing 0076on the steering
wheel.
Route guidance not active
0043Direction of travel
0044Current road
Route guidance active
No change of direction announced
0043Distance to the next destination
0044Estimated arrival time
0087Distance to the next change of direction
0085Current road
Change of direction announced with a
lane recommendation
0043Target of the change of direction
0044Distance to the change of direction
0087Change-of-direction symbol
0085Lane not recommended (dark gray)
0083Possible lane (light gray)
0084Recommended lane and new lane during a
change of direction (white)
On multilane roads, new lane recommendations
can be displayed for the next change of direction
if the digital map supports this data. During the
change of direction, new lanes may be added.
Lane not recommended 0085: you will not be able
to complete the next change of direction if you
stay in this lane.
Possible lane 0083: you will only be able to com-
plete the next change of direction in this lane.
Recommended lane 0084: in this lane you will be
able to complete the next change of direction
and the one after that.
192Menus and submenus
On-board computer and displays

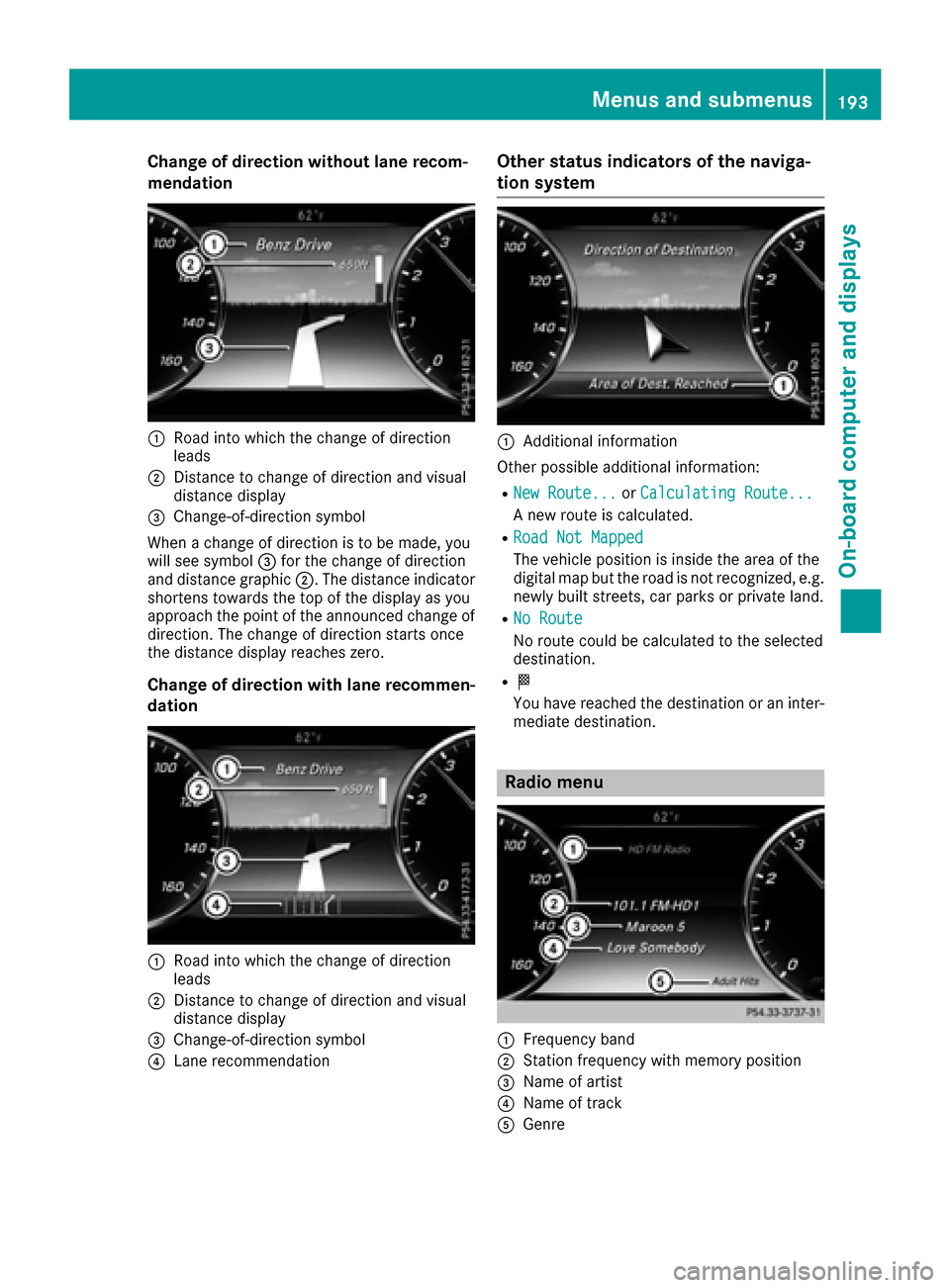

Change of direction without lane recom-
mendation
0043Road into which the change of direction
leads
0044Distance to change of direction and visual
distance display
0087Change-of-direction symbol
When a change of direction is to be made, you
will see symbol 0087for the change of direction
and distance graphic 0044. The distance indicator
shortens towards the top of the display as you
approach the point of the announced change of
direction. The change of direction starts once
the distance display reaches zero.
Change of direction with lane recommen-
dation
0043Road into which the change of direction
leads
0044Distance to change of direction and visual
distance display
0087Change-of-direction symbol
0085Lane recommendation
Other status indicators of the naviga-
tion system
0043Additional information
Other possible additional information:
RNew Route...or Calculating Route...
A new route is calculated.
RRoad Not Mapped
The vehicle position is inside the area of the
digital map but the road is not recognized, e.g.
newly built streets, car parks or private land.
RNo Route
No route could be calculated to the selected
destination.
R004B
You have reached the destination or an inter-
mediate destination.
Radio menu
0043Frequency band
0044Station frequency with memory position
0087Name of artist
0085Name of track
0083Genre
Menus and submenus193
On-board computer and displays
Z

The multifunction display shows station0044with
station frequency or station name. The preset
position is only displayed along with station 0044if
this has been stored. You can store radio sta-
tions in the multimedia system.
XSwitch on the multimedia system.
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Radiomenu.
XConfirm by pressing 0076on the steering
wheel.
Currently set station 0044appears in the multi-
function display.
XTo open the station list: press the0064or
0063 button briefly.
XTo select a station in the station list:
press 0064or0063 briefly.
XTo select a station in the station list using
rapid scrolling: press and hold0064or
0063.
XTo select the waveband or station mem-
ory: press 0076briefly.
XPress 0064or0063 to select the waveband or
station memory.
XPress 0076to confirm the selection.
iSIRIUS XM satellite radio functions like a
normal radio.
Further information about radio operation can
be found in the multimedia system in the Dig-
ital Operator's Manual.
Media menu
Changing the media source
You can change the media source and playback
mode (audio, video or TV) at any time in the
Media
menu.
XSwitch on the multimedia system.
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Mediamenu.
XConfirm by pressing 0076on the steering
wheel.
XTo open/close the media sources
list: press 0076briefly.
The list shows the following media sources,
for example:
RCD or DVD
RSD card
RMedia Register
RUSB storage device
RBluetooth®capable audio device
Please observe further information on media
support and media operation in the multimedia
system (see separate operating instructions).
Operating an audio player or audio
media
0043Media source, e.g. name of current CD
0044Current title
0087Name of artist
0085Name of album
0083Folder name
Audio data from various audio devices or media
can be played, depending on the equipment
installed in the vehicle.
XSwitch on the multimedia system.
XPress the 00E2button on the steering wheel
to open the menu list.
194Menus and submenus
On-board computer and displays

XPress0064or0063 on the steering wheel to
select the Mediamenu.
XConfirm by pressing 0076on the steering
wheel.
XTo select an audio player or media: press
0076 briefly.
The list containing the media sources
appears.
XPress 0064or0063 to select the correspond-
ing audio player or media.
XPress 0076to confirm the selection.
XTo open the track list:press the 0064or
0063 button briefly.
XTo select the next or previous track from
the track list:press the 0064or0063 button
briefly.
XTo select a track from the track list using
rapid scrolling: press and hold0064or0063
until the desired track is reached.
If you press and hold the button, the speed of
rapid scroll increases after a short time. Not
all audio drives or data carriers support this
function.
If the corresponding track information is stored
on the audio player or media, the multifunction
display shows the following:
Rtrack number
Rtrack name
Rartist
Ralbum
The track information does not appear in audio
AUX mode (Auxiliary audio mode: external
audio source connected).
Video DVD operation
XSwitch on the multimedia system.
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Mediamenu.
XConfirm by pressing 0076on the steering
wheel.
XTo select a DVD single drive or disc: press
0076 briefly.
The list containing the media sources
appears.
XPress 0064or0063 to select the correspond-
ing DVD single drive or disc.
XPress 0076to confirm the selection.
XTo open the scene list: press the0064or
0063 button briefly.
XTo select the next or previous scene in the
scene list: press the0064or0063 button
briefly.
XTo select a scene from the scene list using
rapid scrolling: press and hold0064or0063
until desired scene 0043is reached.
XPress 0076to confirm the selection.
Telephone menu
Introduction
GWARNING
If you operate information systems and com-
munication equipment integrated in the vehi-
cle while driving, you will be distracted from
traffic conditions. You could also lose control
of the vehicle. There is a risk of an accident.
Only operate the equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
When telephoning, you must observe the legal
requirements for the country in which you are
currently driving.
XSwitch on the mobile phone (see the manu-
facturer’s operating instructions).
XSwitch on the multimedia system.
XEstablish a Bluetooth®connection to the mul-
timedia system (see Digital Operator's Man-
ual).
XPress the 00E2button on the steering wheel
to open the menu list.
Menus and submenus195
On-board computer and displays
Z

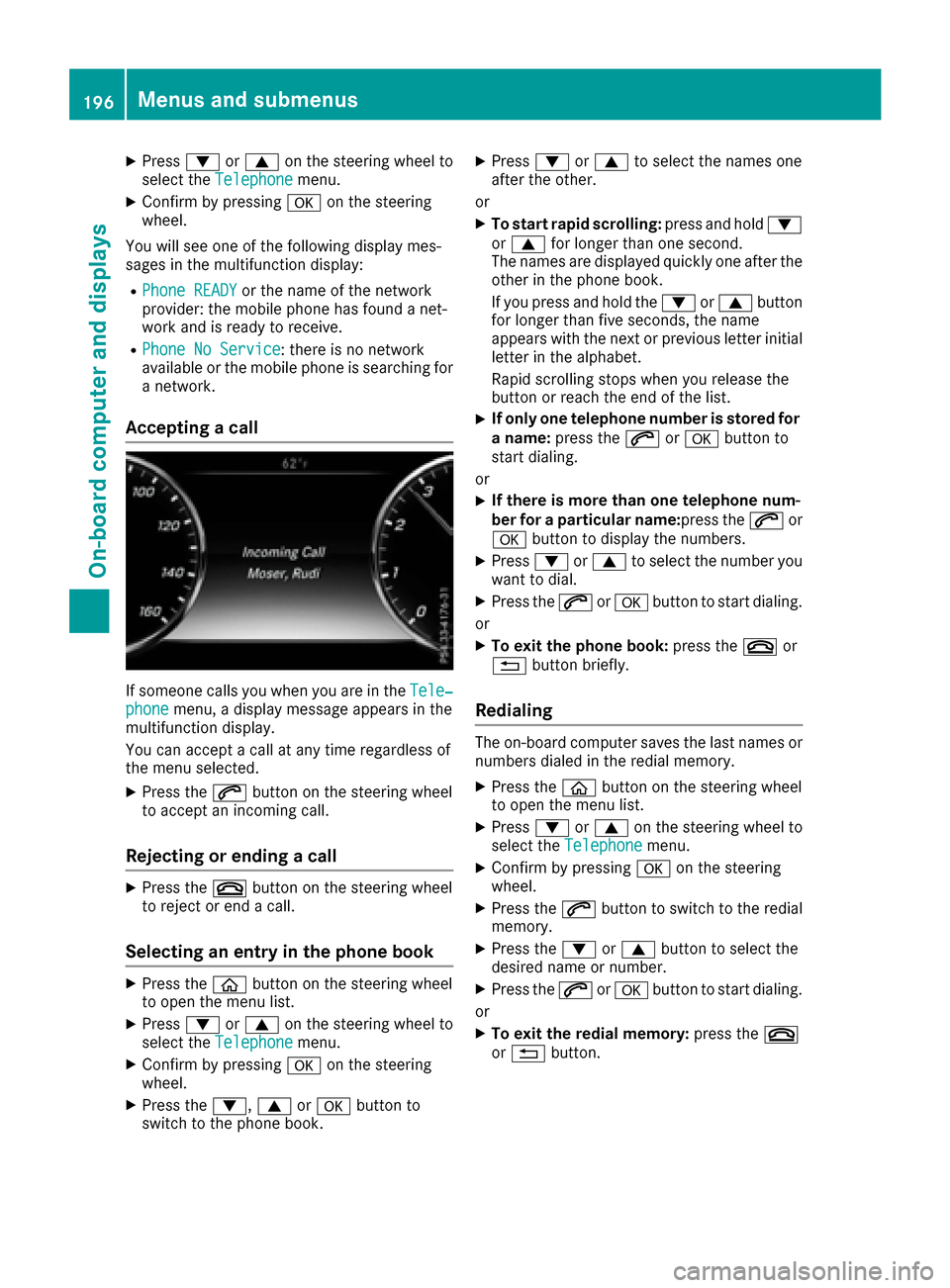

XPress0064or0063 on the steering wheel to
select the Telephonemenu.
XConfirm by pressing 0076on the steering
wheel.
You will see one of the following display mes-
sages in the multifunction display:
RPhone READYor the name of the network
provider: the mobile phone has found a net-
work and is ready to receive.
RPhone No Service: there is no network
available or the mobile phone is searching for
a network.
Accepting a call
If someone calls you when you are in the Tele‐phonemenu, a display message appears in the
multifunction display.
You can accept a call at any time regardless of
the menu selected.
XPress the 0061button on the steering wheel
to accept an incoming call.
Rejecting or ending a call
XPress the 0076button on the steering wheel
to reject or end a call.
Selecting an entry in the phone book
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Telephonemenu.
XConfirm by pressing 0076on the steering
wheel.
XPress the 0064,0063or0076 button to
switch to the phone book.
XPress 0064or0063 to select the names one
after the other.
or
XTo start rapid scrolling: press and hold0064
or 0063 for longer than one second.
The names are displayed quickly one after the
other in the phone book.
If you press and hold the 0064or0063 button
for longer than five seconds, the name
appears with the next or previous letter initial letter in the alphabet.
Rapid scrolling stops when you release the
button or reach the end of the list.
XIf only one telephone number is stored for
a name: press the 0061or0076 button to
start dialing.
or
XIf there is more than one telephone num-
ber for a particular name: press the0061or
0076 button to display the numbers.
XPress 0064or0063 to select the number you
want to dial.
XPress the 0061or0076 button to start dialing.
or
XTo exit the phone book: press the0076or
0038 button briefly.
Redialing
The on-board computer saves the last names or
numbers dialed in the redial memory.
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Telephonemenu.
XConfirm by pressing 0076on the steering
wheel.
XPress the 0061button to switch to the redial
memory.
XPress the 0064or0063 button to select the
desired name or number.
XPress the 0061or0076 button to start dialing.
or
XTo exit the redial memory: press the0076
or 0038 button.
196Menus and submenus
On-board computer and displays

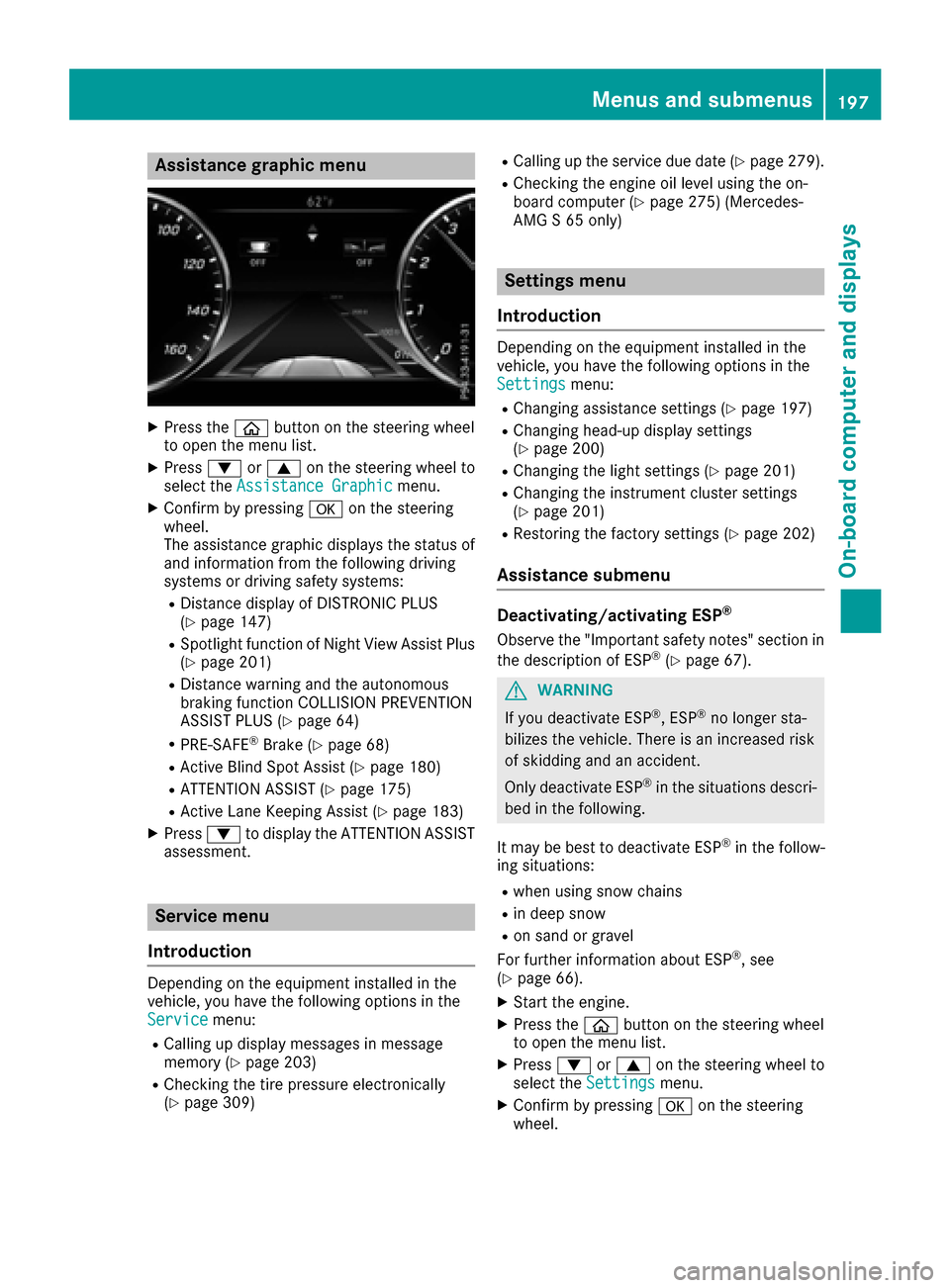

Assistance graphic menu
XPress the00E2 buttonon th esteering whee l
to open th emen ulist .
XPress 0064or0063 on thesteering whee lto
select th eAssistanc eGraphi cmenu.
XConfirmby pressing 0076on thesteering
wheel.
The assistanc egraphic displays th estatus of
and information from th efollowin gdrivin g
systems or drivin gsafet ysystems :
RDistancedisplay of DISTRONI CPLU S
(Ypage 147)
RSpotligh tfunction of Night View Assis tPlus
(Ypage 201)
RDistanc ewarning and th eautonomous
braking function COLLISION PREVENTION
ASSIST PLU S (
Ypage 64)
RPRE-SAF E®Brake(Ypage 68 )
RActive Blind Spot Assis t (Ypage 180)
RATTENTION ASSIST(Ypage 175)
RActive LaneKeepin gAssis t (Ypage 183)
XPress 0064to display th eATTENTION ASSIST
assessment.
Service menu
Introd uction
Dependin gon th eequipmen tinstalled in th e
vehicle, you hav eth efollowin goption sin th e
Servic e
menu:
RCallingup display message sin message
memory (Ypage 203)
RChecking th etire pressur eelectronically
(Ypage 309)
RCallin gup th eservic edue dat e (Ypage 279).
RChecking th eengin eoil level usin gth eon -
boar dcomputer (Ypage 275) (Mercedes-
AM G S 65 only)
Settings menu
Introd uction
Dependin gon th eequipmen tinstalled in th e
vehicle, you hav eth efollowin goption sin th e
Settings
menu:
RChangin gassistanc esetting s (Ypage 197)
RChangin ghead-up display setting s
(Ypage 200)
RChangin gth eligh tsetting s (Ypage 201)
RChangin gth einstrumen tcluste rsetting s
(Ypage 201)
RRestoring th efactory setting s (Ypage 202)
Assistance submenu
Deactivating/activating ESP®
Observeth e"Importan tsafet ynotes" section in
th edescription of ES P®(Ypage 67).
GWARNING
If you deactivat eES P
®,ES P®no longer sta-
bilizes th evehicle. There is an increased ris k
of skiddin gand an accident.
Only deactivat eES P
®in th esituation sdescri-
bed in th efollowing.
It may be best to deactivat eES P
®in th efollow-
ing situations:
Rwhen usin gsnow chain s
Rin deep snow
Ron sandor gravel
Fo rfurther information about ES P®,see
(Ypage 66).
XStart th eengine.
XPress th e00E2 buttonon th esteering whee l
to open th emen ulist .
XPress 0064or0063 on thesteering whee lto
select th eSettingsmenu.
XConfir mby pressing 0076on thesteering
wheel.
Menus and submenus19 7
On-board computer and displays
Z

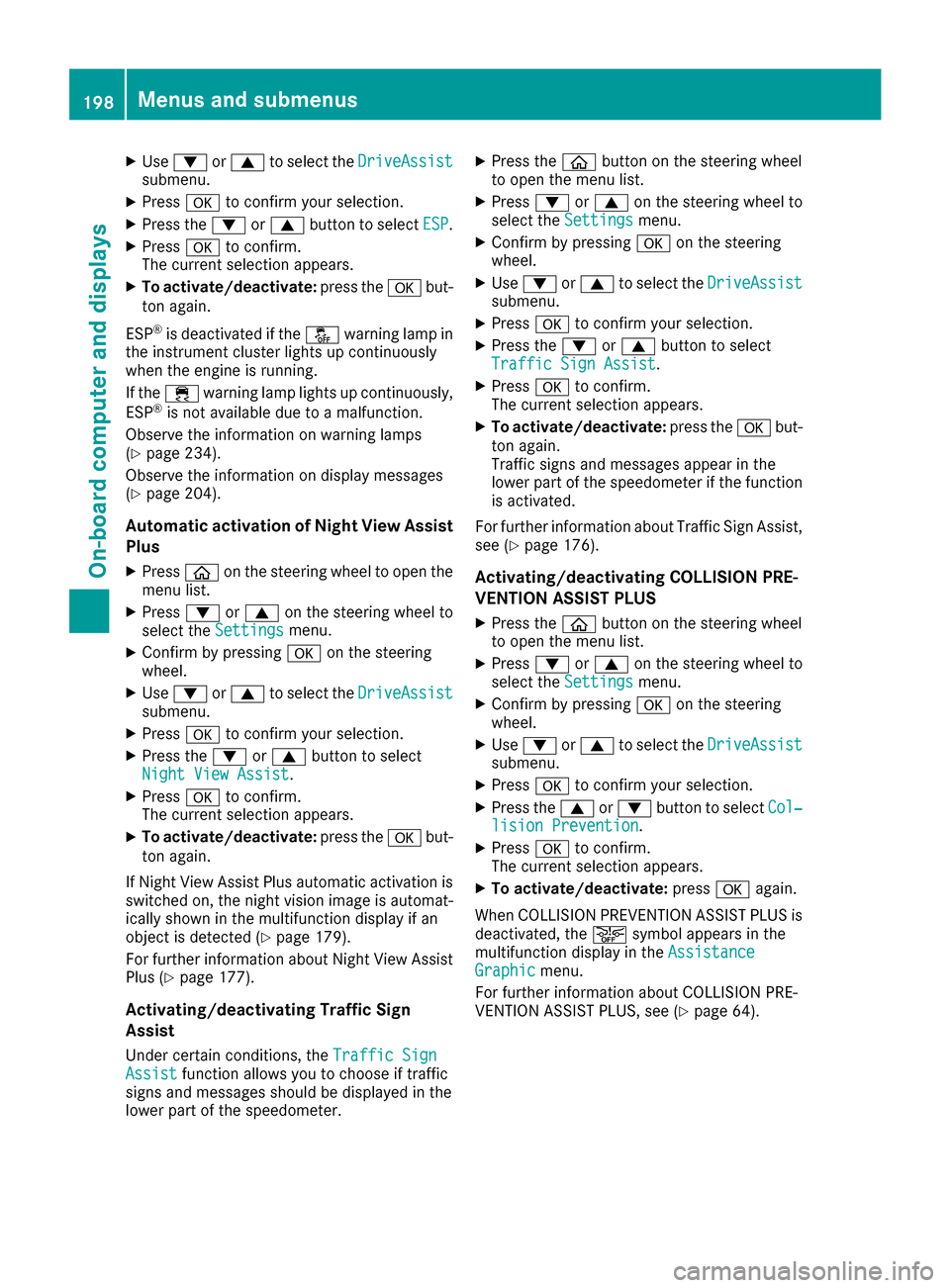

XUse0064 or0063 to select the DriveAssistsubmenu.
XPress0076to confirm your selection.
XPress the 0064or0063 button to select ESP.
XPress0076to confirm.
The current selection appears.
XTo activate/deactivate: press the0076but-
ton again.
ESP
®is deactivated if the 00BBwarning lamp in
the instrument cluster lights up continuously
when the engine is running.
If the 00E5 warning lamp lights up continuously,
ESP
®is not available due to a malfunction.
Observe the information on warning lamps
(
Ypage 234).
Observe the information on display messages
(
Ypage 204).
Automatic activation of Night View Assist
Plus
XPress 00E2on the steering wheel to open the
menu list.
XPress 0064or0063 on the steering wheel to
select the Settingsmenu.
XConfirm by pressing 0076on the steering
wheel.
XUse 0064 or0063 to select the DriveAssistsubmenu.
XPress0076to confirm your selection.
XPress the 0064or0063 button to select
Night View Assist.
XPress 0076to confirm.
The current selection appears.
XTo activate/deactivate: press the0076but-
ton again.
If Night View Assist Plus automatic activation is switched on, the night vision image is automat-
ically shown in the multifunction display if an
object is detected (
Ypage 179).
For further information about Night View Assist
Plus (
Ypage 177).
Activating/deactivating Traffic Sign
Assist
Under certain conditions, the Traffic SignAssistfunction allows you to choose if traffic
signs and messages should be displayed in the
lower part of the speedometer.
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Settingsmenu.
XConfirm by pressing 0076on the steering
wheel.
XUse 0064 or0063 to select the DriveAssistsubmenu.
XPress0076to confirm your selection.
XPress the 0064or0063 button to select
Traffic Sign Assist.
XPress 0076to confirm.
The current selection appears.
XTo activate/deactivate: press the0076but-
ton again.
Traffic signs and messages appear in the
lower part of the speedometer if the function
is activated.
For further information about Traffic Sign Assist,
see (
Ypage 176).
Activating/deactivating COLLISION PRE-
VENTION ASSIST PLUS
XPress the 00E2button on the steering wheel
to open the menu list.
XPress 0064or0063 on the steering wheel to
select the Settingsmenu.
XConfirm by pressing 0076on the steering
wheel.
XUse 0064 or0063 to select the DriveAssistsubmenu.
XPress0076to confirm your selection.
XPress the 0063or0064 button to select Col‐lision Prevention.
XPress0076to confirm.
The current selection appears.
XTo activate/deactivate: press0076again.
When COLLISION PREVENTION ASSIST PLUS is
deactivated, the 00D4symbol appears in the
multifunction display in the Assistance
Graphicmenu.
For further information about COLLISION PRE-
VENTION ASSIST PLUS, see (
Ypage 64).
198Menus and submenus
On-board computer and displays
