Page 81 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online If a locked door is opened from the inside, the
previous unlock status of the vehicle will be
taken into consideration if:
Rthe vehicle was locked using the locking but-
ton for the central locking, o

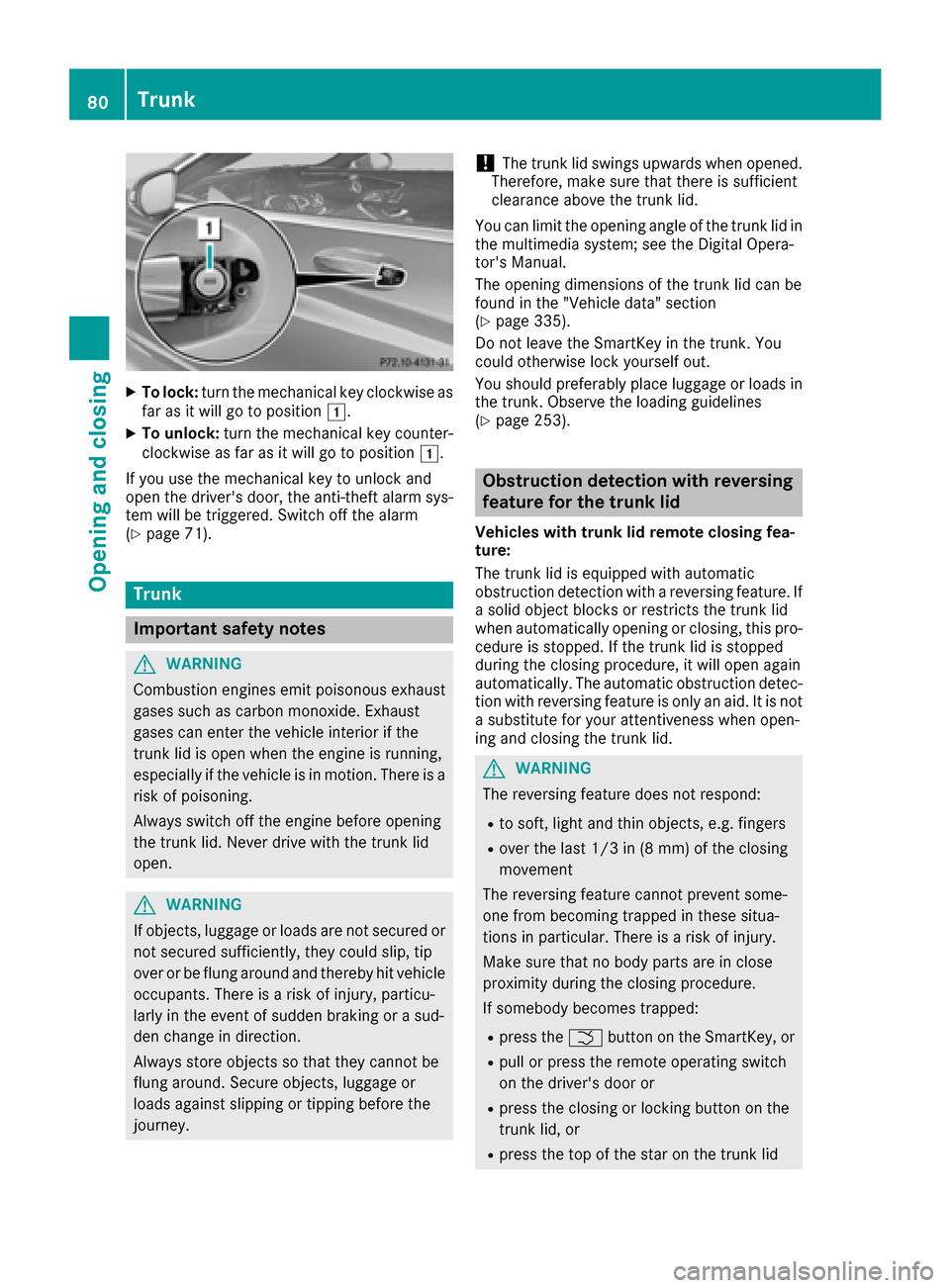

Page 82 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online XTo lock:turn the mechanical key clockwise as
far as it will go to position 0047.
XTo unlock:turn the mechanical key counter-
clockwise as far as it will go to position 0047.
If you use the mechanical

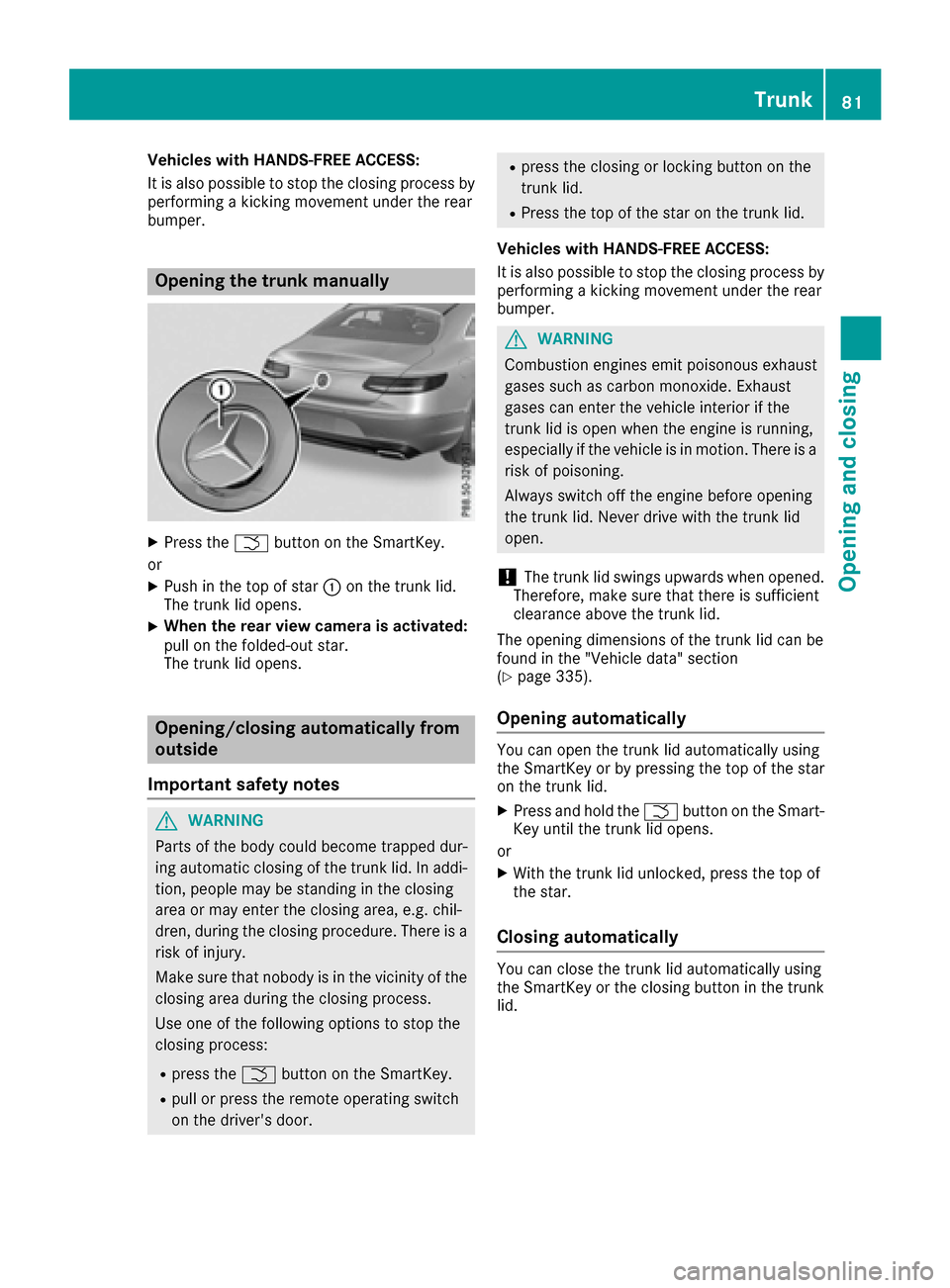

Page 83 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online Vehicles with HANDS-FREE ACCESS:
It is also possible to stop the closing process by
performing a kicking movement under the rear
bumper.
Opening the trunk manually
XPress the0054button on the SmartKey

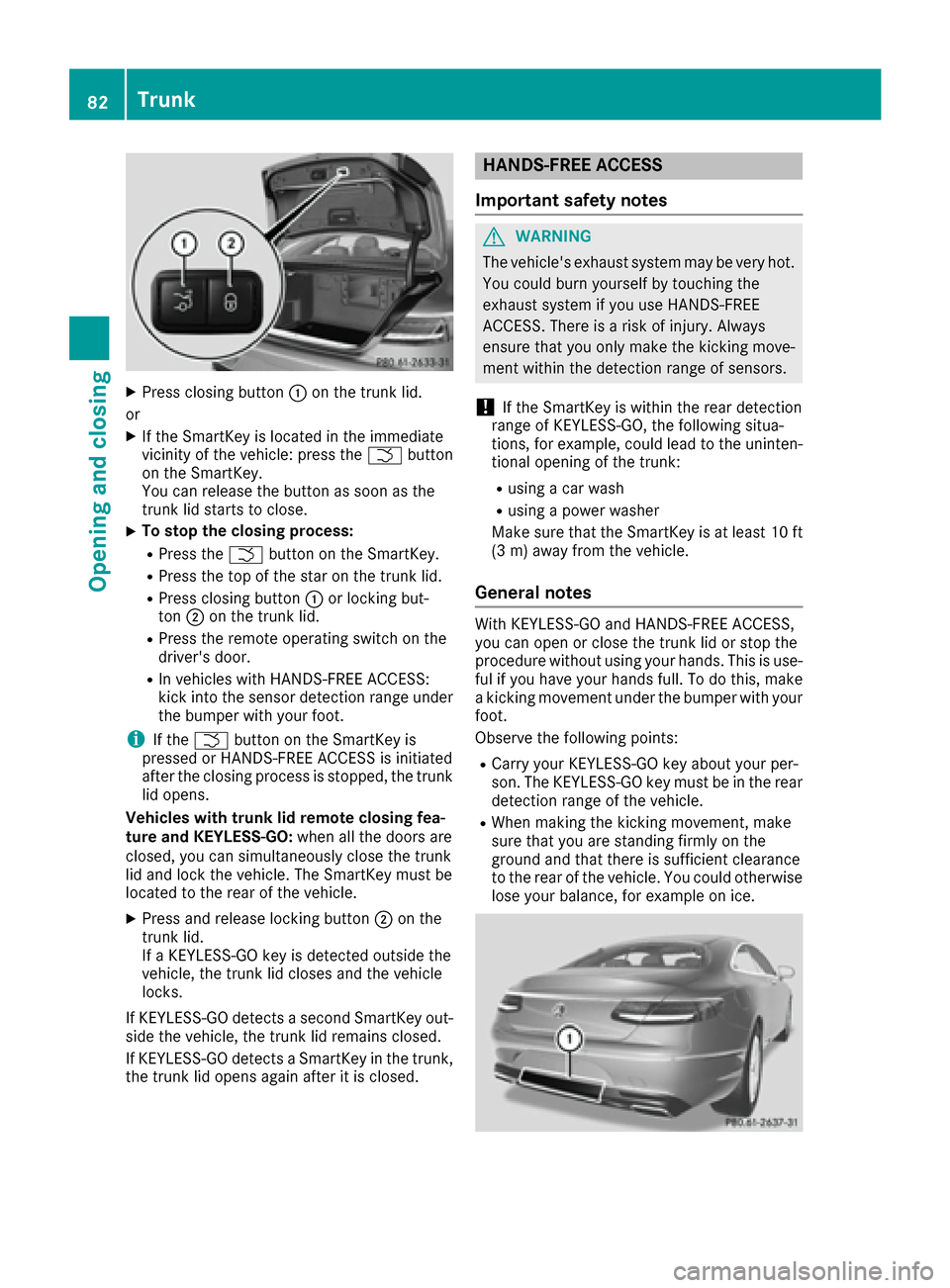

Page 84 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online XPress closing button0043on the trunk lid.
or
XIf the SmartKey is located in the immediate
vicinity of the vehicle: press the 0054button
on the SmartKey.
You can release the button as soon as the
trun

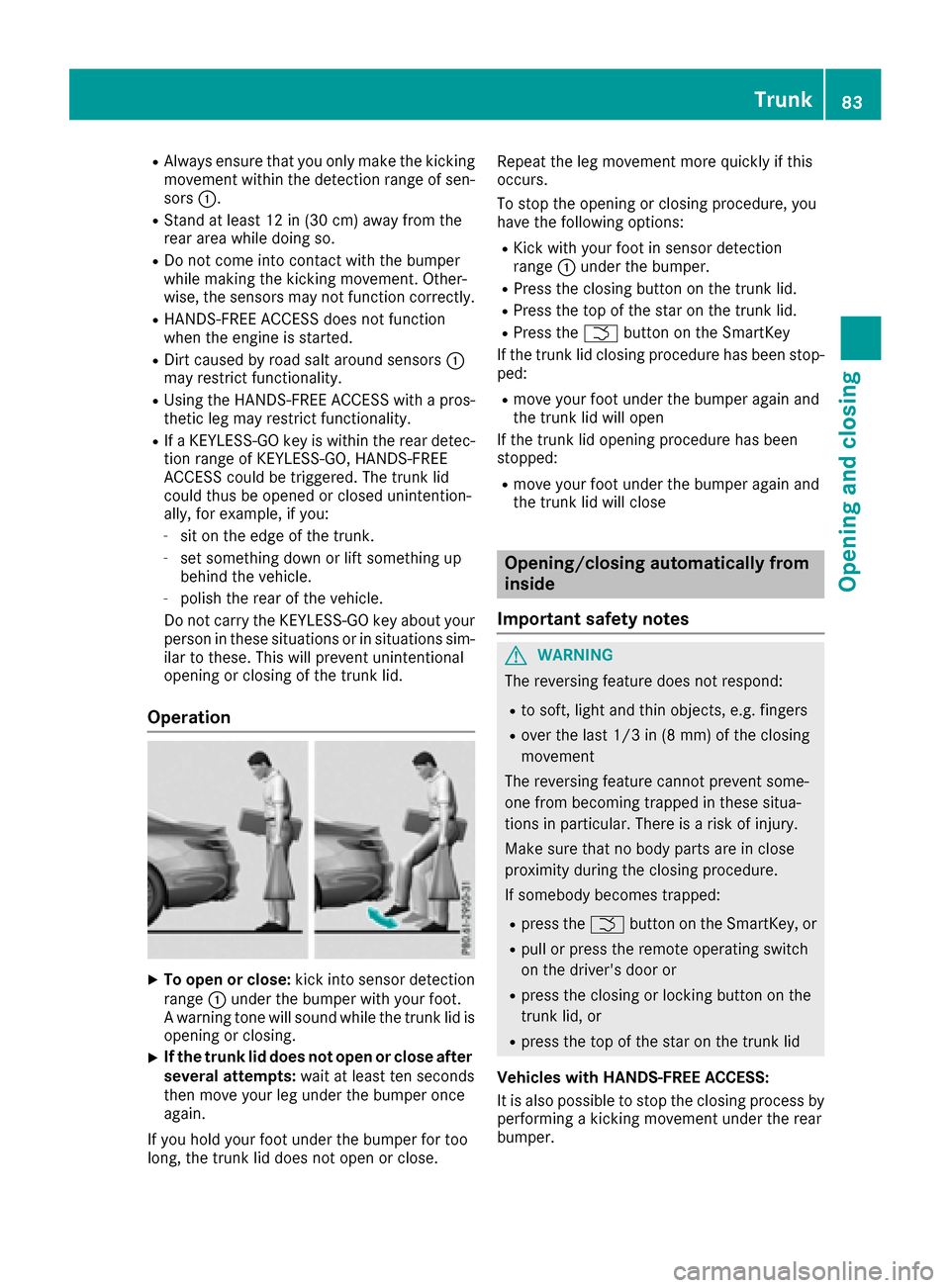

Page 85 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online RAlways ensure that you only make the kicking
movement within the detection range of sen-
sors0043.
RStand at least 12 in (30 cm) away from the
rear area while doing so.
RDo not come into contact with

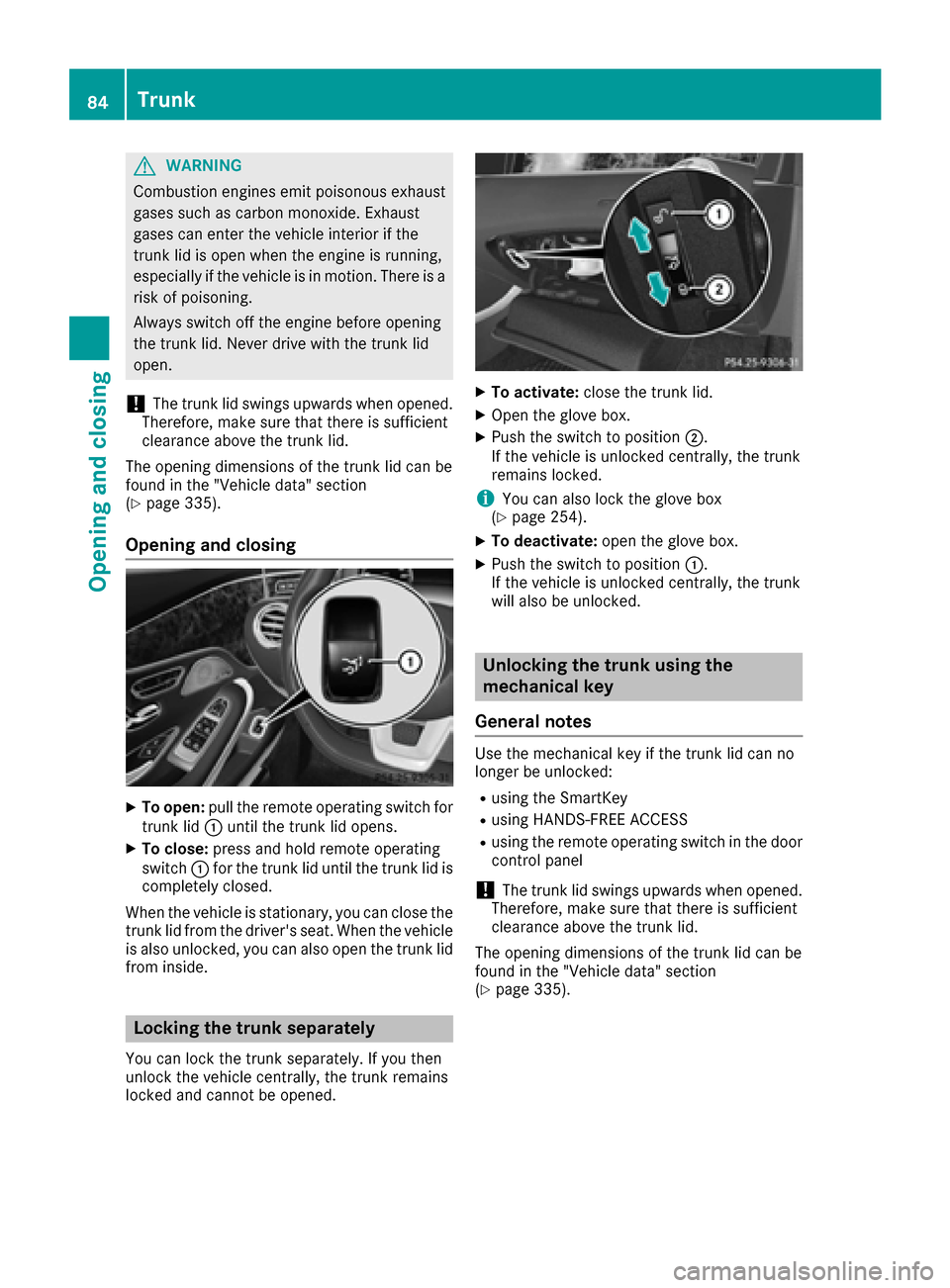

Page 86 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the
trunk lid is open when the engine is running,
especially if the ve

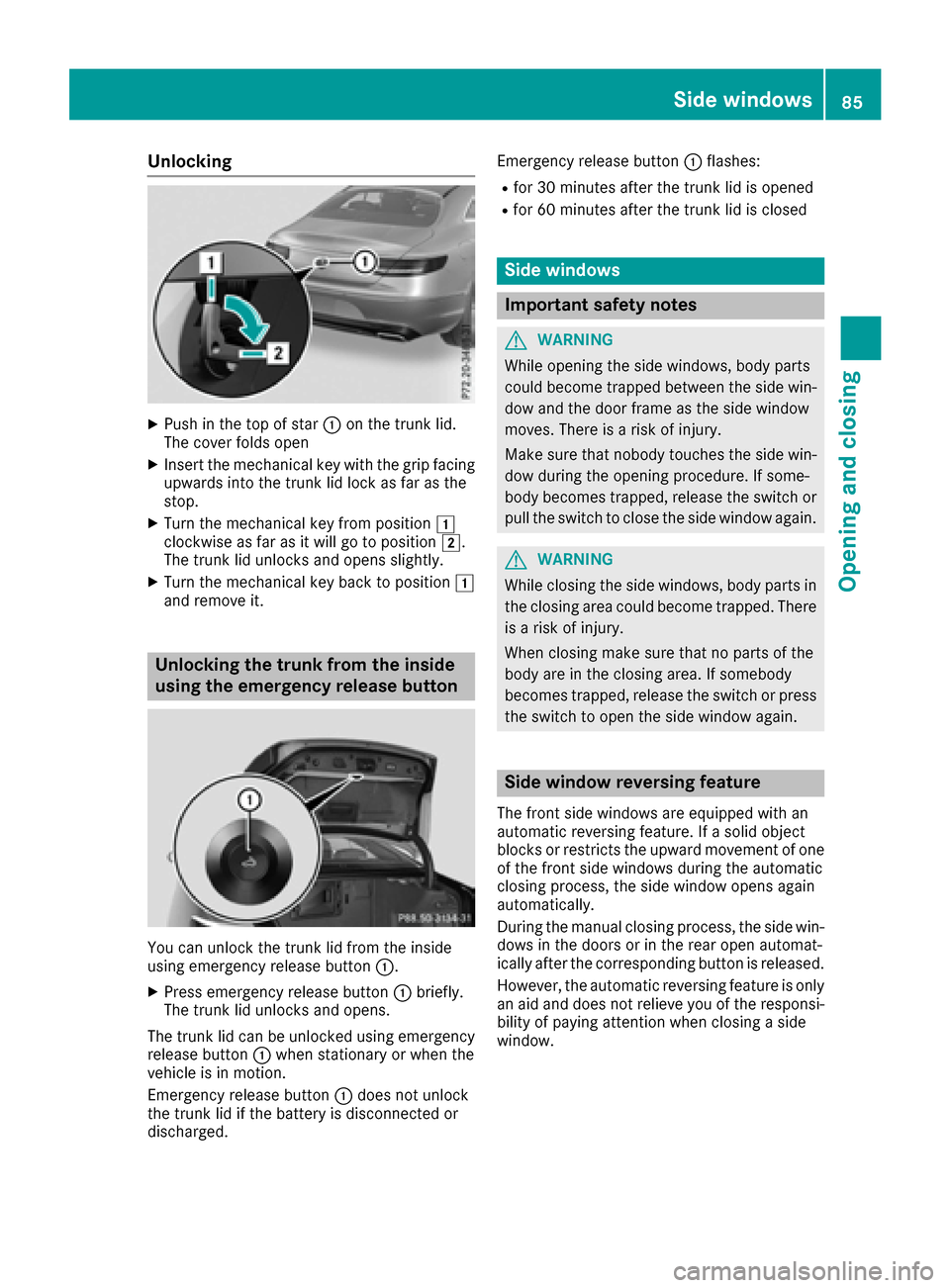

Page 87 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online Unlocking
XPush in the top of star0043on the trunk lid.
The cover folds open
XInsert the mechanical key with the grip facing
upwards into the trunk lid lock as far as the
stop.
XTurn the mechanical ke

Page 88 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small fin-
gers
Rwhile resetting
This means that the reversing feature cannot
prevent someone being trapped in the

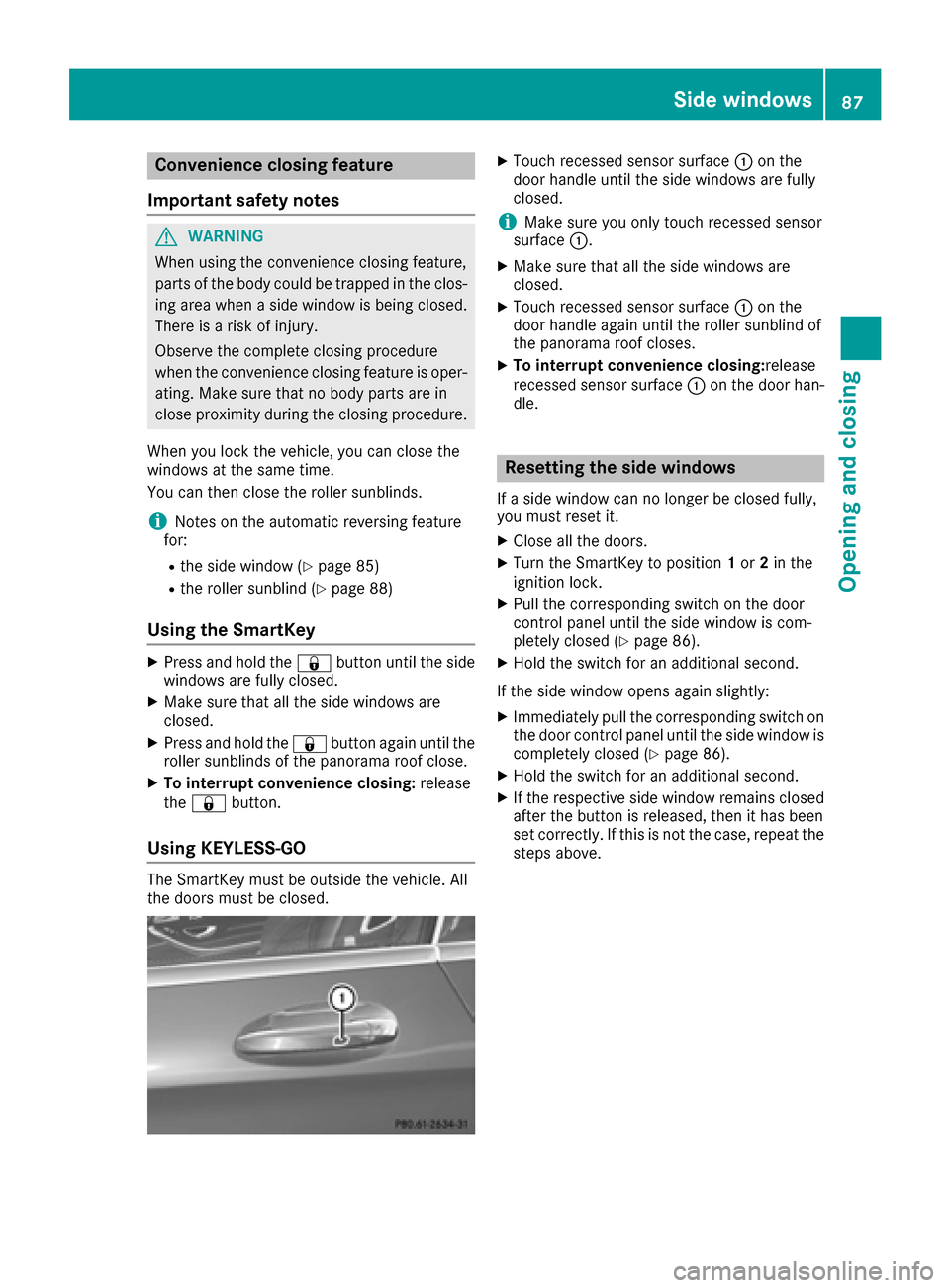

Page 89 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online Convenience closing feature
Important safety notes
GWARNING
When using the convenience closing feature,
parts of the body could be trapped in the clos-
ing area when a side window is being closed.
The

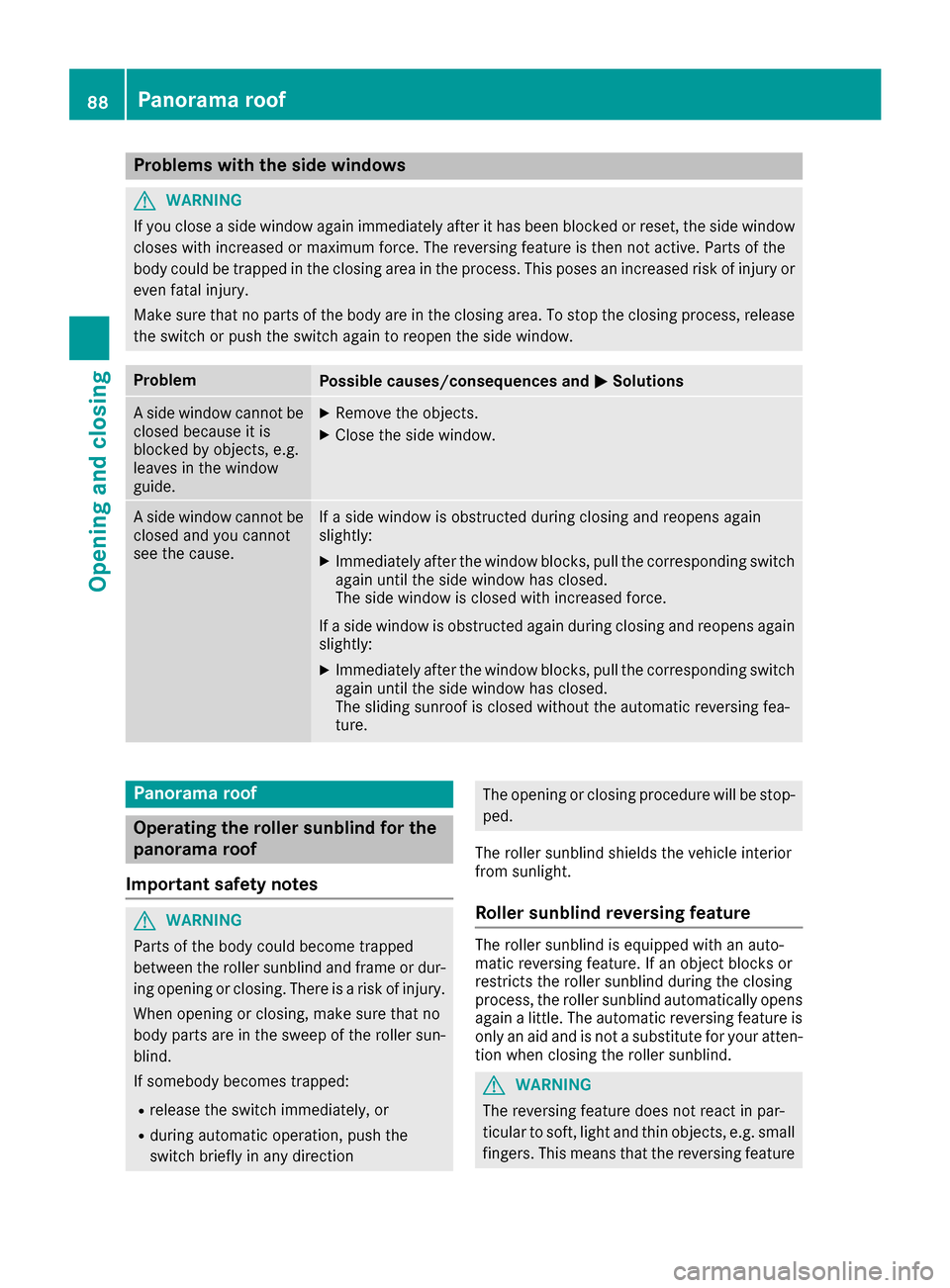

Page 90 of 338

MERCEDES-BENZ S-Class COUPE 2017 C217 Manual Online Problems with the side windows
GWARNING
If you close a side window again immediately after it has been blocked or reset, the side window
closes with increased or maximum force. The reversing feature i
