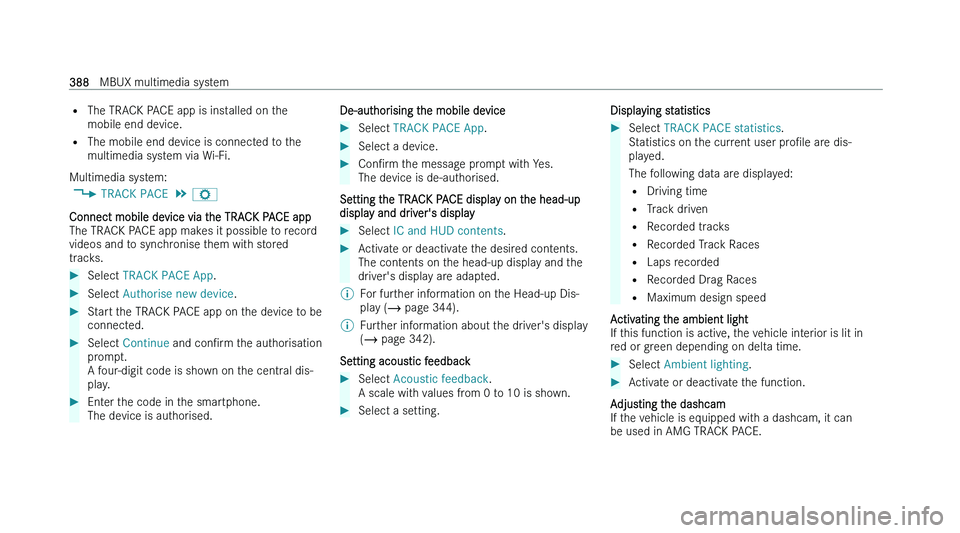

The TRA CK PACE app is installed on the
mobile end device.
= The mobile end device is connected to the
multimedia system via Wi-Fi.
Multimedia system: 4 TRACK PACE 5
=
Connect mobile device via the TRACK PACE app
The TRACK PACE app makes it possible to record
videos and to synchronise them with stored
tracks.
Select TRACK PACE App.
Select Authorise new device .
Start the TRACK PACE app on the device to be
connect
ed.
Select Continue and conNr
m the authorisation
prompt.
A four-digit code is shown on the central dis-
play.
Enter the code in the smartphone.
The de
vice is authorised. De-authorising the mobile device
Select TRACK PACE App.
Select a device.
ConNrm t
he message prompt with Yes.
The device is de-authorised.
Setting the TRACK PACE display on the head-up
displa
y and driver's display
Select IC and HUD contents .
Activate or deactivate the desired contents.
The cont
ents on the head-up display and the
driver's display are adapted.
% For further information on the Head-up Dis-
pla
y ( page 344).
% Further information about the driver's display
(  pag

e 342).
Setting acoustic feedback
Select Acoustic feedback.
A scale wit
h values from 0 to 10 is shown.
Select a setting. Displaying statistics
Select TRACK PACE statistics.
S
tatistics on the current user proNle are dis-
played.
The following data are displayed:
= Driving time
= Track driven
= Recorded tracks
= Recorded Track Races
= Laps recorded
= Recorded Drag Races
= Maximum design speed
Activating the ambient light
If t
his function is active, the vehicle interior is lit in
red or green depending on delta time.
Select Ambient lighting.
Activate or deactivate the function.
Adjusting the dashcam
If t
he vehicle is equipped with a dashcam, it can
be used in AMG TRACK PACE. 388
MBUX multimedia system

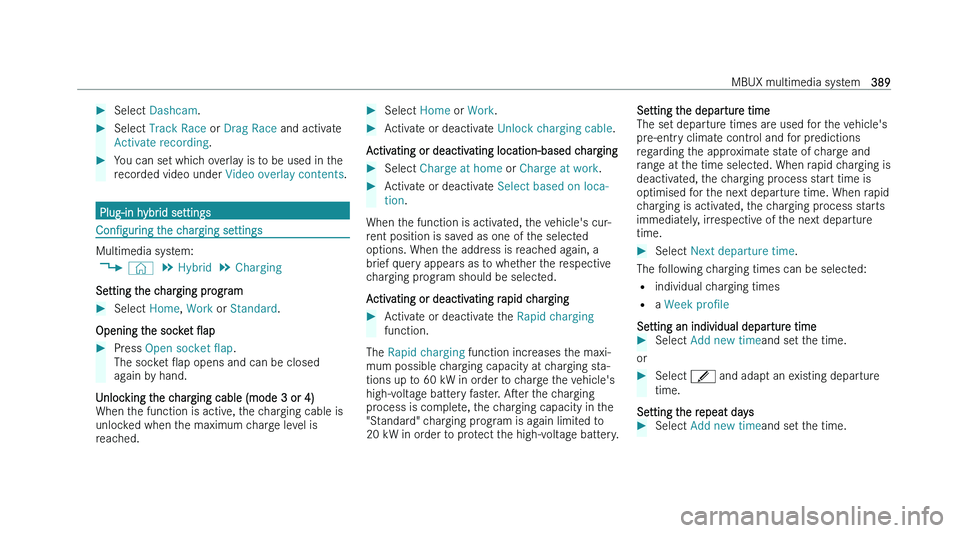

Select Dashcam.
Select Track Race or Drag Race and activ ate
Activate recording .
You can set which overlay is to be used in the
r

ecorded video under Video overlay contents.Plug-in hybrid settings
ConNguring
t
he charging settings Multimedia system:
4 © 5
Hybrid 5
Charging
Se

tting the charging program
Select Home, Work or Standard.
Opening the socket Oap
Press Open socket flap .
The soc
ket Oap opens and can be closed
again by hand.
Unlocking the charging cable (mode 3 or 4)
When t
he function is active, the charging cable is
unlocked when the maximum charge level is
reached.
Select Home or Work.
Activate or deactivate Unlock charging cable.
Activating or deactivating location-based charging
Select Charge at home or Charge at work.
Activate or deactivate Select based on loca-
tion.
When the function is activated, the vehicle's cur-
r
ent position is saved as one of the selected
options. When the address is reached again, a
brief query appears as to whether the respective
charging program should be selected.
Activating or deactivating rapid charging
Activate or deactivate the Rapid charging
function.
The Rapid charging function incr
eases the maxi-
mum possible charging capacity at charging sta-
tions up to 60 kW in order to charge the vehicle's
high-voltage battery faster. Aser the charging
process is complete, the charging capacity in the
"Standard" charging program is again limited to
20 kW in order to protect the high-voltage battery. Setting the departure time
The se

t departure times are used for the vehicle's
pre-entry climate control and for predictions
regarding the approximate state of charge and
range at the time selected. When rapid charging is
deactivated, the charging process start time is
optimised for the next departure time. When rapid
charging is activated, the charging process starts
immediately, irrespective of the next departure
time.
Select Next departure time.
The following charging times can be selected: = individual c

harging times
= a Week profile
Setting an individual departure time
Select Add new timeand se
t the time.
or
Select

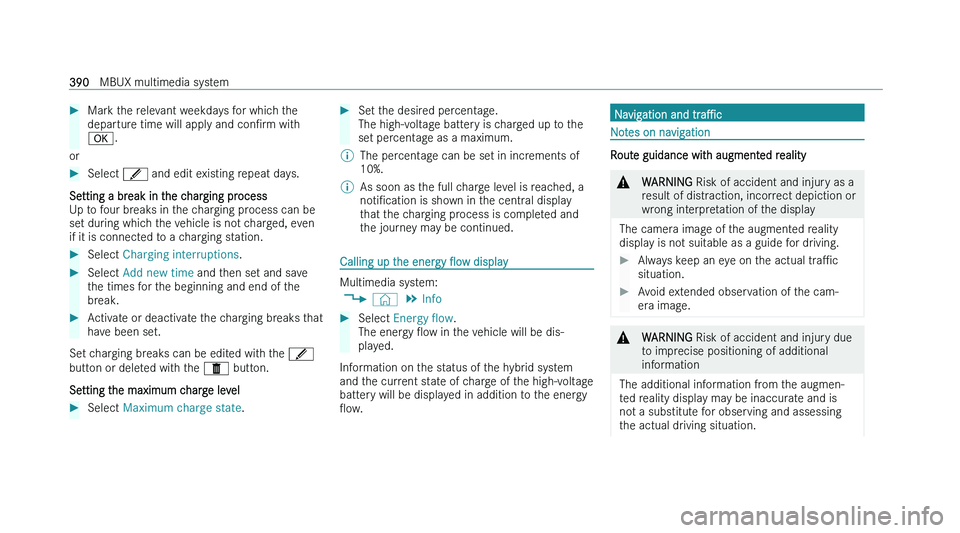

Mark the relevant weekdays for which the
depar ture time will apply and conNrm with
v.
or
Select

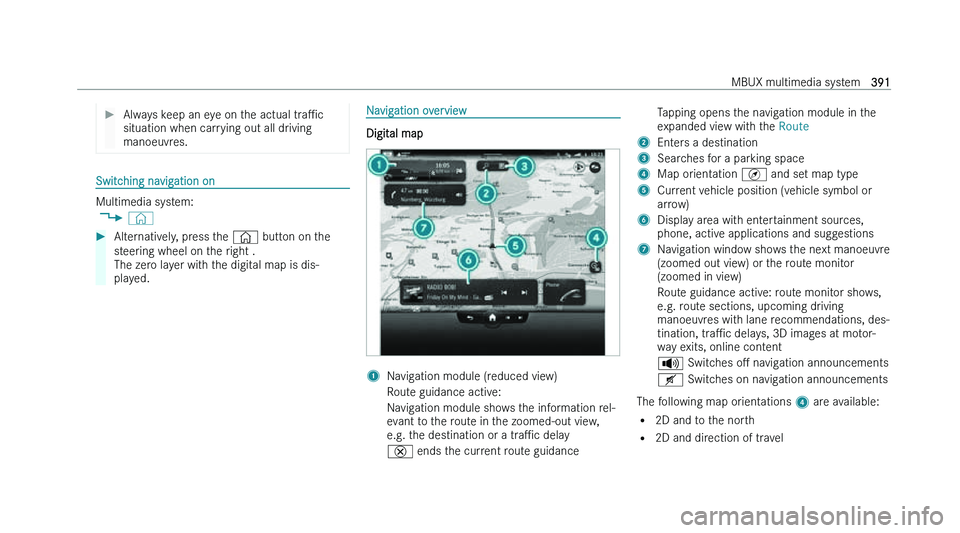

Always keep an eye on the actual tr aPc
situation when carrying out all driving
manoeuvres. Switching navigation on
Multimedia system:
4 ©
Alternatively, press the © butt
on on the
steering wheel on the right .
The zero layer with the digital map is dis-
played. Navigation overview
Digital map
1
Navigation module (reduced view)
Route guidance active:
Navigation module shows the information rel-
e
vant to the route in the zoomed-out view,
e.g. the destination or a traPc delay
{ ends t
he current route guidance Tapping opens the navigation module in the
e

xpanded view with the Route
2 Enters a destination
3 Searches for a parking space
4 Map orientation

=
3D and dir ection of travel

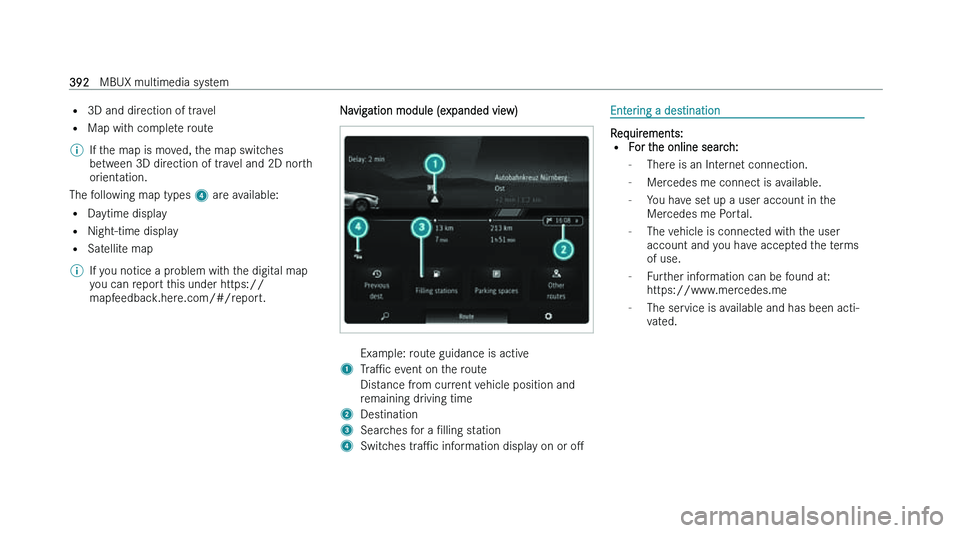

= Map with complete route
% If the map is moved, the map switches
be

tween 3D direction of travel and 2D north
orientation.
The following map types 4 ar
e available:
= Daytime display
= Night-time display
= Satellite map
% If you notice a problem with the digital map
y

ou can report this under https://
mapfeedback.here.com/#/report. Navigation module (expanded view)
Example: route guidance is active
1 TraPc e
vent on the route
Distance from current vehicle position and
r
emaining driving time
2 Destination
3 Searches for a Nlling s
tation
4 Switches tr
aPc information display on or oM Entering a destination
Requirements:
= F

or the online search:
- There is an Internet connection.
- Mercedes me connect is available.
- You have set up a user account in the
Mercedes me Portal.
- The vehicle is connected with the user
account and you have accepted the terms
of use.
- Further information can be found at:
https://www.mercedes.me
- The service is available and has been acti-
vated. 392
MBUX multimedia system

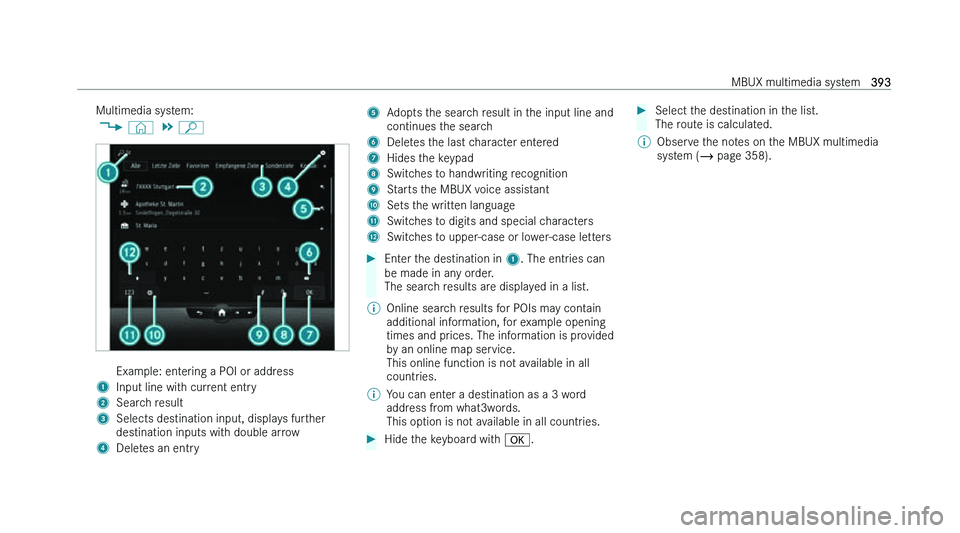

Multimedia system:
4 © 5
ª Example: entering a POI or address
1 Input line with current entry
2 Search result
3 Selects destination input, displays further
des tination inputs with double arrow
4 Deletes an entry 5
Adopts the search result in the input line and
continues t

he search
6 Deletes the last character entered
7 Hides the keypad
8 Switches to handwriting recognition
9 Starts the MBUX voice assistant
A Sets the written language
B Switches to digits and special characters
C Switches to upper-case or lower-case letters
Enter the destination in 1. The entr
ies can
be made in any order.
The search results are displayed in a list.
% Online search results for POIs may contain
additional inf

ormation, for example opening
times and prices. The information is provided
by an online map service.
This online function is not available in all
countries.
% You can enter a destination as a 3 word
addr

ess from what3words.
This option is not available in all countries.
Hide the keyboard with v.
Select the destination in the list.
The r

oute is calculated.
% Observe the notes on the MBUX multimedia
sy
stem (  page 358). MBUX multimedia system
393

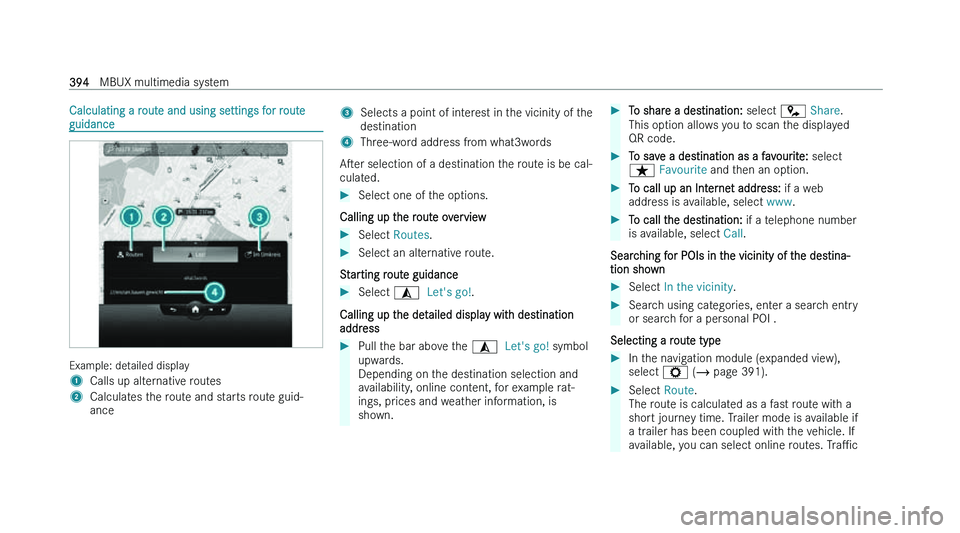

Calculating a route and using settings for route
guidance
Example: detailed display
1 Calls up alternative routes
2 Calculates the route and starts route guid-
ance 3
Selects a point of interest in the vicinity of the
des tination
4 Three-word address from what3words
Aser selection of a des
tination the route is be cal-
culated.
Select one of the options.
Calling up the route overview
Select Routes .
Select an alternative route.
Starting route guidance
Select  Let's go!.
Calling up the detailed display with destination
addr
ess
Pull the bar above the  Let's go! symbol
upw
ards.
Depending on the destination selection and
availability, online content, for example rat-
ings, prices and weather information, is
shown.
To share a destination: select

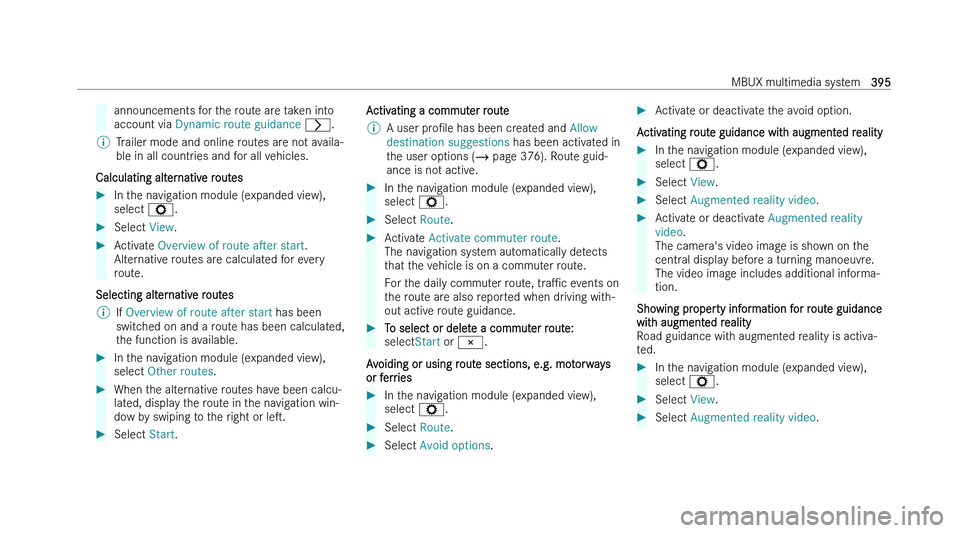

announcements for the route are taken into
account via
Dynamic route guidance H.
% Trailer mode and online routes are not availa-
ble in all countr
ies and for all vehicles.
Calculating alternative routes
In the navigation module (expanded view),
select =.
Select View .
Activate Overview of route after start.
Alt

ernative routes are calculated for every
route.
Selecting alternative routes
% If Overview of route after start has been
switc
hed on and a route has been calculated,
the function is available.
In the navigation module (expanded view),
select Other routes.
When the alternative routes have been calcu-
lat

ed, display the route in the navigation win-
dow by swiping to the right or les.
Select Start . Activating a commuter route
%
A user pr
oNle has been created and Allow
destination suggestions has been activated in
the user options ( page 376). Route guid- ance is not active.
In the navigation module (expanded view),
select =.
Select Route .
Activate Activate commuter route .
The na
vigation system automatically detects
that the vehicle is on a commuter route.
For the daily commuter route, traPc events on
the route are also reported when driving with-
out active route guidance.
To select or delete a commuter route:
select Start or

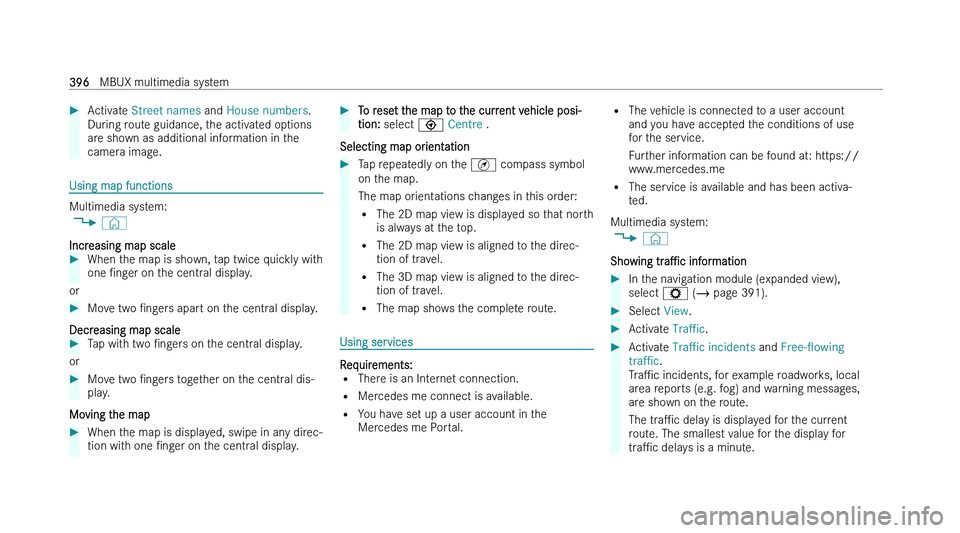

Activate Street names and House numbers.
Dur ing route guidance, the activated options
are shown as additional information in the
camera image. Using map functions
Multimedia system:
4 ©
Incr

easing map scale
When the map is shown, tap twice quickly with
one Nng

er on the central display.
or
Move two Nng
ers apart on the central display.
Decreasing map scale
Tap with two Nng
ers on the central display.
or
Move two Nng
ers together on the central dis-
play.
Moving the map
When the map is displayed, swipe in any direc-
tion wit

h one Nnger on the central display.
To reset the map to the current vehicle posi-
tion: select = Centre .
Selecting map orientation
Tap repeatedly on the

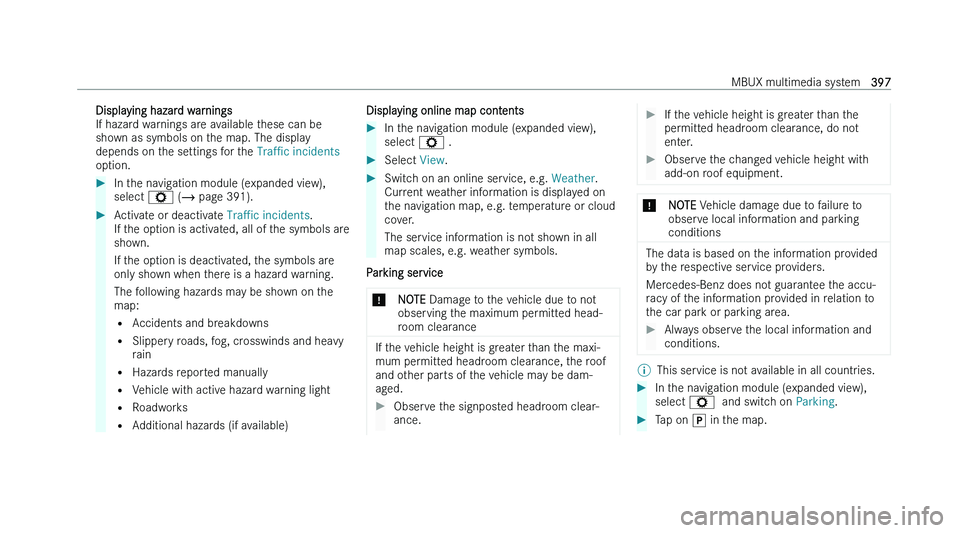

Displaying hazard warnings
If hazar
d warnings are available these can be
shown as symbols on the map. The display
depends on the settings for the Traffic incidents
option.
In the navigation module (expanded view),
select = ( pag

e 391).
Activate or deactivate Traffic incidents.
If t
he option is activated, all of the symbols are
shown.
If the option is deactivated, the symbols are
only shown when there is a hazard warning.
The following hazards may be shown on the
map:
= Accidents and breakdowns
= Slippery roads, fog, crosswinds and heavy
rain
= Hazards reported manually
= Vehicle with active hazard warning light
= Roadworks
= Additional hazards (if available) Displaying online map contents
In the navigation module (expanded view),
select = .
Select View .
Switch on an online service, e.g. Weather.
Cur
rent weather information is displayed on
the navigation map, e.g. temperature or cloud
cover.
The service information is not shown in all
map scales, e.g. weather symbols.
Parking service
* NOTE Damag
e to the vehicle due to not
observing the maximum permitted head-
room clearance If the vehicle height is greater than the maxi-
mum per
mitted headroom clearance, the roof
and other parts of the vehicle may be dam-
aged.
Observe the signposted headroom clear-
ance.
If the vehicle height is greater than the
per
mitted headroom clearance, do not
enter.
Observe the changed vehicle height with
add-on r
oof equipment. *
NOTE V
ehicle damage due to failure to
observe local information and parking
conditions The data is based on the information provided
b
y the respective service providers.
Mercedes-Benz does not guarantee the accu-
racy of the information provided in relation to
the car park or parking area.
Always observe the local information and
conditions. %
This service is not available in all countries.
In the navigation module (expanded view),
select = and switc

h on Parking.
Tap on j in t
he map. MBUX multimedia system
397
