fluids can be obtained from any authorized
Mercedes-Benz Center or on the Internet at
http://bevo.mercedes-benz.com

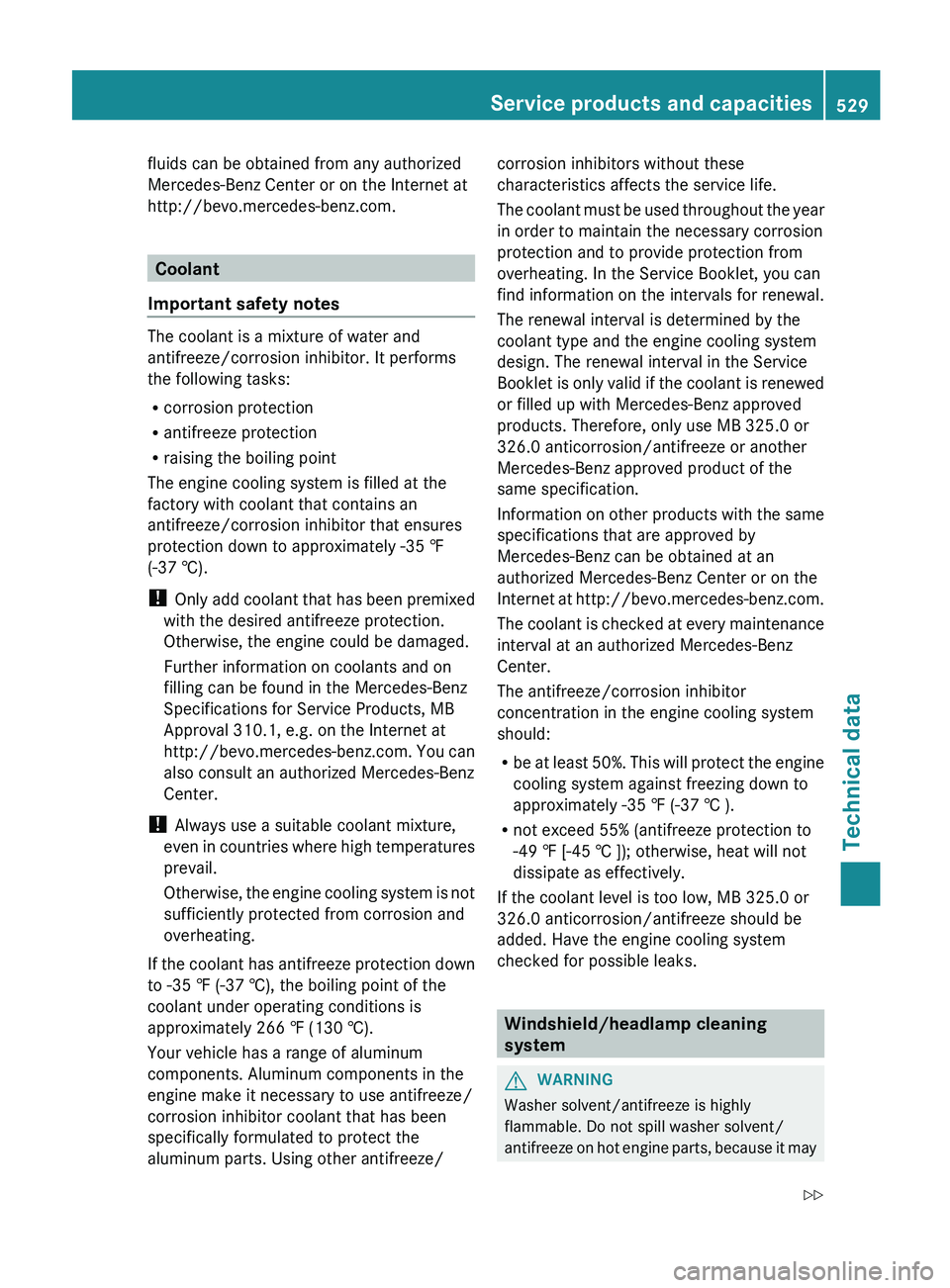

.Coolant
Important safety notes The coolant is a mixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
R
corrosion protection
R antifreeze protection
R raising the boiling point
The engine cooling system is filled at the
factory with coolant that contains an
antifreeze/corrosion inhibitor that ensures
protection down to approximately -35 ‡
(-37 †).
! Only
add coolant that has been premixed
with the desired antifreeze protection.
Otherwise, the engine could be damaged.
Further information on coolants and on
filling can be found in the Mercedes-Benz
Specifications for Service Products, MB
Approval 310.1, e.g. on the Internet at
http://bevo.mercedes-benz.com. You can
also consult an authorized Mercedes-Benz
Center.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
If the coolant has antifreeze protection down
to -35 ‡ (-37 †), the boiling point of the
coolant under operating conditions is
approximately 266 ‡ (130 †).
Your vehicle has a range of aluminum
components. Aluminum components in the
engine make it necessary to use antifreeze/
corrosion inhibitor coolant that has been
specifically formulated to protect the
aluminum parts. Using other antifreeze/ corrosion inhibitors without these
characteristics affects the service life.
The
coolant must be used throughout the year
in order to maintain the necessary corrosion
protection and to provide protection from
overheating. In the Service Booklet, you can
find information on the intervals for renewal.
The renewal interval is determined by the
coolant type and the engine cooling system
design. The renewal interval in the Service
Booklet is only valid if the coolant is renewed
or filled up with Mercedes-Benz approved
products. Therefore, only use MB 325.0 or
326.0 anticorrosion/antifreeze or another
Mercedes-Benz approved product of the
same specification.
Information on other products with the same
specifications that are approved by
Mercedes-Benz can be obtained at an
authorized Mercedes-Benz Center or on the
Internet at http://bevo.mercedes-benz.com.
The coolant is checked at every maintenance
interval at an authorized Mercedes-Benz
Center.
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
R be at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 † ).
R not exceed 55% (antifreeze protection to
-49 ‡ [-45 † ]); otherwise, heat will not
dissipate as effectively.
If the coolant level is too low, MB 325.0 or
326.0 anticorrosion/antifreeze should be
added. Have the engine cooling system
checked for possible leaks. Windshield/headlamp cleaning
system
G
WARNING
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze
on hot engine parts, because it may Service products and capacities
529
Technical data
Z
ignite and burn. You could be seriously
burned.
Use MB SummerFit windshield washer
concentrate at temperatures above freezing:
X Mix 1 part MB SummerFit with 100 parts
water.
Use MB WinterFit windshield washer
concentrate at temperatures below freezing:
X At temperatures down to 14 ‡(Ò 10 †): mix
1 part MB WinterFit with 2 parts water.
X At temperatures down to Ò
4 ‡(Ò 20 †): mix
1 part MB WinterFit with 1 part water.
X At temperatures down to
Ò
20.2 ‡(Ò 29 †): mix 2 parts MB WinterFit
with 1 part water.
! Only SummerFit and WinterFit can be
mixed. Otherwise, the jets could become

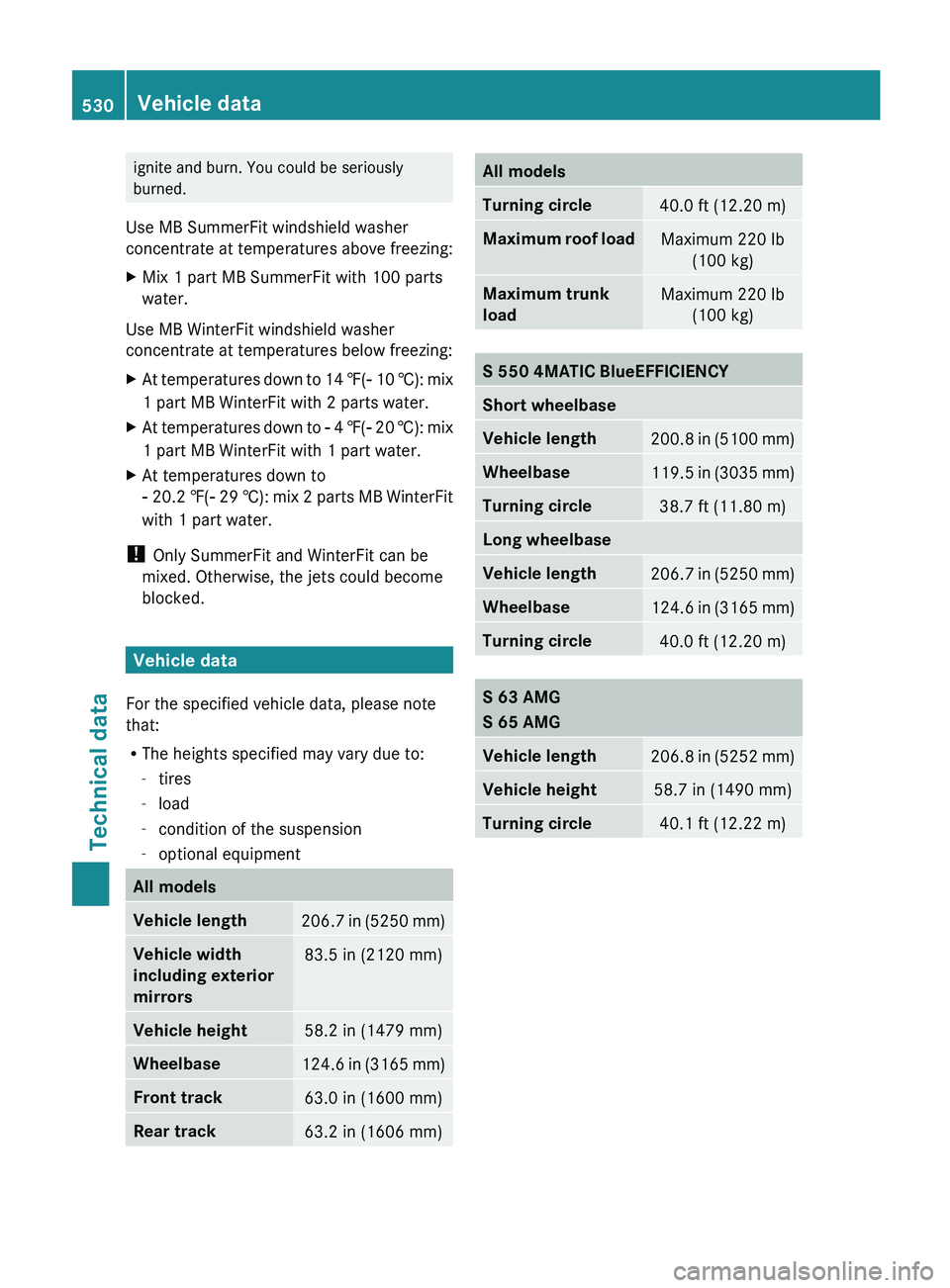

blocked. Vehicle data
For the specified vehicle data, please note
that:
R The heights specified may vary due to:
-tires
- load
- condition of the suspension
- optional equipment All models
Vehicle length
206.7 in (5250 mm)
Vehicle width
including exterior
mirrors
83.5 in (2120 mm)
Vehicle height
58.2 in (1479 mm)
Wheelbase
124.6 in (3165 mm)
Front track
63.0 in (1600 mm)
Rear track
63.2 in (1606 mm) All models
Turning circle
40.0 ft (12.20 m)
Maximum roof load
Maximum 220 lb
(100 kg) Maximum trunk
load
Maximum 220 lb
(100 kg) S 550 4MATIC BlueEFFICIENCY
Short wheelbase
Vehicle length
200.8 in (5100 mm)
Wheelbase
119.5 in (3035 mm)
Turning circle
38.7 ft (11.80 m)
Long wheelbase
Vehicle length
206.7 in (5250 mm)
Wheelbase
124.6 in (3165 mm)
Turning circle
40.0 ft (12.20 m)
S 63 AMG
S 65 AMG
Vehicle length
206.8 in (5252 mm)
Vehicle height
58.7 in (1490 mm)
Turning circle
40.1 ft (12.22 m)530
Vehicle data
Technical data

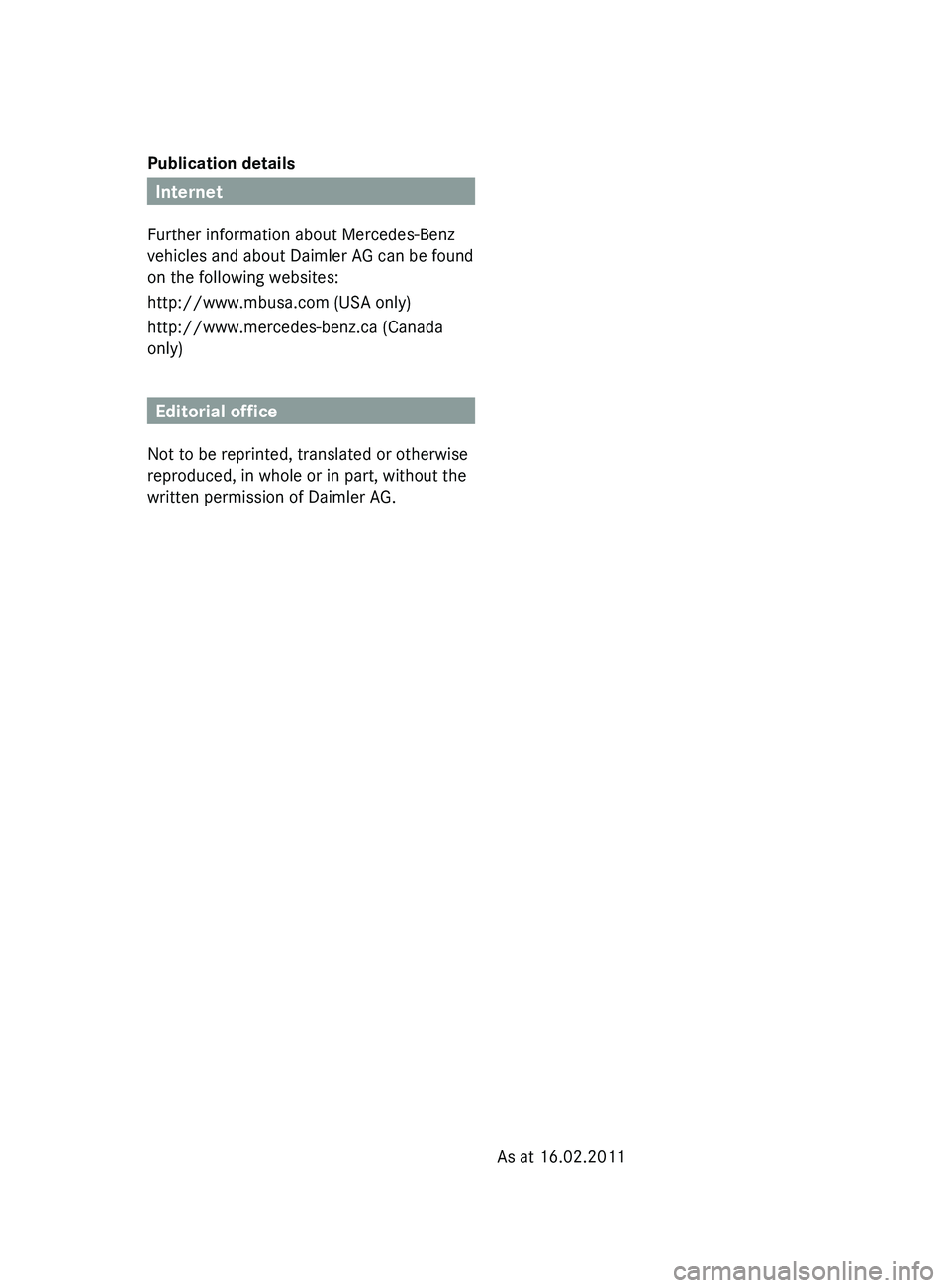

Publication details
Internet
Further information about Mercedes-Benz
vehicles and about Daimler AG can be found
on the following websites:
http://www.mbusa.com (USA only)
http://www.mercedes-benz.ca
(Canada
only) Editorial office
Not to be reprinted, translated or otherwise
reproduced, in whole or in part, without the
written permission of Daimler AG.
As at 16.02.2011
