oil level MERCEDES-BENZ S-CLASS SEDAN 2013 Owners Manual

Removing/ejecting (Rear Seat
Entertainment System)
..................251
Selecting a media type .................. 224
Selecting a track ............................ 224
Sound settings (balance, bass,
fader, treble) .................................. 135
DVD audio
Operation using the on-board
computer ....................................... 379E
EASY-ENTRY feature Activating (COMAND)

....................262
Function/notes ............................. 110
EASY-EXIT feature
Activating (COMAND) .................... 262
Crash-responsive ........................... 111
Function/notes ............................. 110
EBD (electronic brake force
distribution)
Display message ............................ 392
Function/notes ................................ 73
ECO function ...................................... 261
ECO start/stop function Deactivating/activating ................. 307
General information ....................... 306
Electrical fuses
see Fuses
Electronic brake force distribution
see EBD (electronic brake force
distribution)
Electronic Stability Program
see ESP ®
(Electronic Stability Program)
Electronic Traction System
see ETS/4ETS (Electronic
Traction System)
Emergency release
Driver's door .................................... 87
Trunk ......................................... 91, 92
Vehicle ............................................. 87
Emergency spare wheel
Storage location ............................ 472
Emergency Tensioning Devices
Function ........................................... 61
Safety guidelines ............................. 45
Emissions purification
Service and warranty information .... 28Engine
Check Engine warning lamp ...........
427
Display message ............................ 404
ECO start/stop function ................ 306
Emergency starting ........................ 485
Engine number ............................... 522
Irregular running ............................ 309
Starting problems .......................... 309
Starting the engine with the
SmartKey ....................................... 305
Starting with KEYLESS-GO ............. 305
Switching off .................................. 323
Engine electronics
Problem (malfunction) ...................309
Engine emergency stop ....................487
Engine oil Adding ........................................... 459
Additives ........................................ 528
Checking the oil level ..................... 457
Checking the oil level using the
dipstick .......................................... 458
Checking the oil level using the
on-board computer ........................ 458
Display message ............................ 406
Filling capacity ............................... 524
Notes about oil grades ................... 527
Notes on oil level/consumption .... 457
Temperature (on-board computer) . 379
Viscosity ........................................ 528
Entering the frequency .....................212
Entry Deleting ......................................... 131
Saving ............................................ 133
ESP ®
(Electronic Stability
Program) Deactivating/activating ................. 384
Deactivating/activating (notes) ....... 72
Display message ............................ 389
ETS/4ETS ........................................ 72
Function/notes ................................ 71
Important safety information ........... 71
Warning lamp ................................. 424
ETS/4ETS (Electronic Traction
System) ................................................ 72
Exhaust check ................................... 327
Exhaust tail pipe (cleaning
instructions) ...................................... 467 Index
11

Service
see ASSYST PLUS service interval
display
Service interval display
Displaying service messages .........462
Hiding service messages ...............462
Notes ............................................. 462
Service messages .......................... 462
Service menu (on-board computer) . 385
Service products Brake fluid ..................................... 528
Capacities ...................................... 524
Coolant (engine) ............................ 529
DEF special additives .....................527
Engine oil ....................................... 527
Fuel ................................................ 525
Important safety notes .................. 522
Refrigerant (air-conditioning
system) .......................................... 528
Washer fluid ................................... 529
Setting a station (radio)
Via manual frequency entry ...........212
Settings
Display ........................................... 143
Menu overview .............................. 121
On-board computer ....................... 385
Picture (COMAND) ......................... 240
Picture (Rear Seat Entertainment
System) ......................................... 249
Sound settings ............................... 135
System settings ............................. 143
Setting the language
COMAND ....................................... 149
Rear Seat Entertainment System ... 258
Setting the night design ...................143
Setting the text reader speed ..........145
Setting the vehicle level ...................345
Setting the volume Telephone calls .............................. 134
Video AUX ..................................... 246
Side impact air bag ............................. 48
Side marker lamp (display
message) ............................................ 403
Side windows Convenience closing feature ............ 94
Convenience opening feature .......... 93
Important safety information ........... 92
Opening/closing .............................. 93Problem (malfunction)
.....................95
Resetting ......................................... 95
Sliding sunroof
Important safety notes
....................95
Opening/closing .............................. 96
Problem (malfunction) ...................100
Resetting ......................................... 97
see Panorama roof with power
tilt/sliding panel
SmartKey
Changing the battery ....................... 82
Changing the programming ............. 81
Checking the battery ....................... 82
Convenience closing feature ............ 94
Convenience opening feature .......... 93
Display message ............................ 419
Door central locking/unlocking ....... 78
Important safety notes .................... 78
Loss ................................................. 84
Mechanical key ................................ 81
Positions (ignition lock) ................. 303
Problem (malfunction) .....................84
Starting the engine ........................ 305
SMS message
see Text message
Snow chains ...................................... 493
Socket Glove box ....................................... 442
Sockets
Points to observe before use ......... 441
Rear compartment ......................... 442
Trunk ............................................. 442
Sound menu ....................................... 135
Sounds see Sound settings
Sound settings
Balance and fader ..........................135
Calling up the sound menu ............ 135
Rear Seat Entertainment System ... 248
Surround sound ............................. 136
Treble and bass ............................. 135
Spare wheel
Storage location ............................ 472
see Emergency spare wheel
Specialist workshop ............................ 31
Speech control see Voice Control System Index
21

Menus and submenus
Menu overview
The number of menus shown depends on the optional equipment in the vehicle. Function
:
Trip menu (Y page 376)
;
Navi menu (navigation instructions) (Y page 377)
=
Audio menu (Y page 378)
?
AMG menu in AMG vehicles (
Y page 379)A
Telephone menu (Y page 382)
B
DriveAssist menu (Y page 383)
C
Service menu (Y page 385)
R
calls up display messages
(Y page 388)
R checks the tire pressure electronically ( Y page 497)
R calls up the service due date (Y page 462)
R oil level check ( Y page 457)D
Settings menu (Y page 385) Menus and submenus
375
On-board computer and displays Z

X
Press a.
The current selection is displayed.
X To activate/deactivate: press a
again.
When ATTENTION ASSIST (Y page 356) is
activated, the À symbol appears in the
multifunction
display when the ignition is on.
Activating/deactivating Blind Spot
Assist You can use the
Blind Spot Assist
function to activate or deactivate Blind Spot
Assist (Y page 360) or Active Blind Spot
Assist (Y page 364).
X Press = or ; on the steering wheel
to select the DriveAssist menu.
X Press 9
or : to select Blind Spot
Assist.
X Press a.
The current selection is displayed.
X To activate/deactivate: press a
again.
Activating/deactivating Lane Keeping
Assist You can use the
Lane Keeping Assist
function
to activate/deactivate Lane Keeping
Assist (Y page 362) or Active Lane Keeping
Assist (Y page 367).
X Press the = or ; button on the
steering wheel to select the DriveAssist
menu.
X Press the 9 or : button to select
Lane Keeping Assist.
X Press a.
The current selection is displayed.
X To activate/deactivate: press a
again.
If Lane Keeping Assist or Active Lane keeping
Assist is activated, the multifunction display
shows the à symbol when the ignition is
switched on. Service menu
In the Service menu you can:
R call up display messages

(Y page 388)
R check the tire pressure electronically
(Y page 497)
R call up the service due date (Y page 462)
R check the oil level ( Y page 457) Settings menu
Introduction The Settings menu can be used for:
R
switching the daytime running lamps on/
off
R switching Adaptive Highbeam Assist on/
off
R showing or hiding the additional
speedometer
R selecting the units for speed and distance
R switching the belt adjustment on/off
R activating/deactivating the radar sensor
system
Switching the daytime running lamps
on/off This function is not available in Canada.
If

you have activated the Daytime Running
Light function and the light switch is in the
$ or c position, the daytime running
lamps are switched on automatically when
the engine is running.
In the dark, the following also light up:
R the parking lamps
R the tail lamps
R the license plate lamp
R the side marker lamps
If you turn the light switch to a different
position, the corresponding lights are
switched on. If you switch off the daytime
running lamps at night, make sure that the
light switch is set to L or c.
The factory setting is On. Menus and submenus
385
On-board computer and displays Z

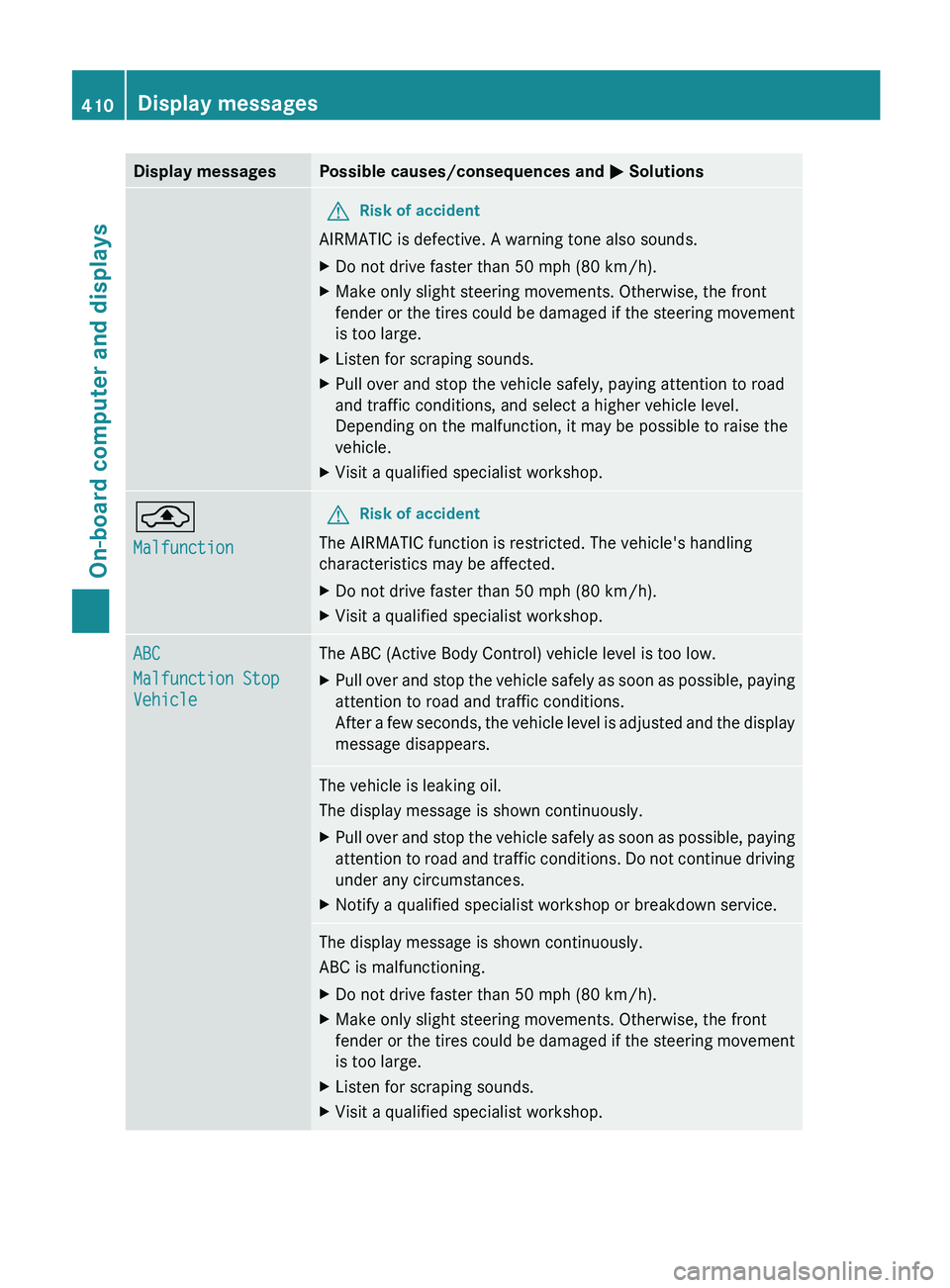

Display messages Possible causes/consequences and
M Solutions? The engine fan is defective.
X
At coolant temperatures under 248 ‡ (120 † ), drive to the next
qualified specialist workshop.
X Avoid subjecting the engine to heavy loads, e.g. driving in
mountainous terrain, and stop-and-go traffic. # The battery is not being charged.
Possible causes are:
R
a defective alternator
R a torn poly-V-belt
R a malfunction in the electronics
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Open the hood.
X Check whether the poly-V-belt is torn.
If the poly-V-belt is torn:
! Do

not continue driving. The engine could otherwise overheat.
X Consult a qualified specialist workshop.
If the poly-V-belt is not damaged:
X Visit a qualified specialist workshop. 4
Check Engine Oil
at Next Refueling Vehicles with an oil dipstick: the oil level has dropped to the
minimum level.
X
Check the engine oil level at the latest when next refueling
(Y page 457).
X If necessary, add engine oil ( Y page 459).
X If engine oil needs to be added more often than usual, have the
engine checked at a qualified specialist workshop. 4
Check Engine Oil
Level

(Add 1 quart)
(USA only)Check
Engine Oil Level
(Add 1 Liter)
(Canada only) Vehicles without an oil dipstick: the engine oil level is too low.
X
Check the oil level (Y page 457).
X If necessary, add engine oil ( Y page 457).
X If engine oil needs to be added more often than usual, have the
engine checked at a qualified specialist workshop. Information on approved engine oils can be obtained from any qualified specialist workshop
or on the Internet at

http://www.mbusa.com (USA only).406
Display messages
On-board computer and displays

!
The oil level is too low. Avoid long journeys with too little engine oil. There is a risk of
engine damage.
The display messages and the corresponding symbol that indicate that the oil level is too
low must not be ignored. Display messages Possible causes/consequences and
M Solutions4
Engine Oil Level
Low Stop Vehicle
Turn Engine Off Vehicles without an oil dipstick: the engine oil level is too low.
There is a risk of engine damage.
X
Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Apply the parking brake.
X Add engine oil ( Y page 459) and check the oil level
(Y page 457). 4
Engine Oil Level
Too High Vehicles without an oil dipstick: you have added too much engine
oil. There is a risk of damage to the engine or to the catalytic
converter.
X
Have the excess oil siphoned off at a qualified specialist
workshop. Observe the legal requirements. 4
Engine Oil Level
Cannot Be Measured Vehicles without an oil dipstick: the measuring system is
defective.
X
Visit a qualified specialist workshop. 8
Reserve Fuel The fuel level has dropped into the reserve range.
X
Refuel at the nearest gas station. C There is only a very small amount of fuel in the fuel tank.
X
Refuel at the nearest gas station without fail. 8
Gas Cap Loose The fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.
X
Check that the fuel filler cap is correctly closed.
If the fuel filler cap is not correctly closed:
X Close the fuel filler cap.
If the fuel filler cap is correctly closed:
X Visit a qualified specialist workshop. 8
Ultra Low-sulfur
Diesel Fuel Only Vehicles with a diesel engine: the fuel level has fallen below the
reserve range.
X
Refuel at the nearest gas station.
X Only use commercially available vehicular ULTRA-LOW SULFUR
HIGHWAY DIESEL FUEL (ULSD, 15 ppm SULFUR MAXIMUM). Display messages
407On-board computer and displays Z

Display messages Possible causes/consequences and
M SolutionsG
Risk of accident
AIRMATIC is defective. A warning tone also sounds.
X Do not drive faster than 50 mph (80 km/h).
X Make only slight steering movements. Otherwise, the front
fender
or the tires could be damaged if the steering movement
is too large.
X Listen for scraping sounds.
X Pull over and stop the vehicle safely, paying attention to road
and traffic conditions, and select a higher vehicle level.
Depending on the malfunction, it may be possible to raise the
vehicle.
X Visit a qualified specialist workshop. ¨
Malfunction G
Risk of accident
The AIRMATIC function is restricted. The vehicle's handling
characteristics may be affected.
X Do not drive faster than 50 mph (80 km/h).
X Visit a qualified specialist workshop. ABC
Malfunction Stop
Vehicle The ABC (Active Body Control) vehicle level is too low.
X
Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
After

a few seconds, the vehicle level is adjusted and the display
message disappears. The vehicle is leaking oil.
The display message is shown continuously.
X
Pull over and stop the vehicle safely as soon as possible, paying
attention

to road and traffic conditions. Do not continue driving
under any circumstances.
X Notify a qualified specialist workshop or breakdown service. The display message is shown continuously.
ABC is malfunctioning.
X
Do not drive faster than 50 mph (80 km/h).
X Make only slight steering movements. Otherwise, the front
fender

or the tires could be damaged if the steering movement
is too large.
X Listen for scraping sounds.
X Visit a qualified specialist workshop.410
Display messages
On-board computer and displays

When the hood is open, you or others could
be injured by the wiper linkage.
Make sure that the windshield wipers are
switched off. Remove the SmartKey or make
sure that no ignition position has been
selected with KEYLESS-GO. All indicator
lamps must be off in the instrument cluster.
X
Pull release lever : for the hood.
The hood is released.
! Make sure that the windshield wipers are
not folded away from the windshield. You
could otherwise damage the windshield
wipers or the hood. X
Pull hood catch handle ; outwards from
the radiator grill as far as it will go and lift
the hood from underneath by the radiator
grill.
Once you have lifted the hood about
15 inches (40 cm)

, it is automatically
opened the rest of the way and held open
by the gas-filled struts. !
Do not lift the hood by hood catch
handle ;. The handle may otherwise be
damaged.
Closing the hood G
WARNING
When closing the hood, use extreme caution
not to catch hands or fingers. Be careful that
you do not close the hood on anyone.
Make sure the hood is securely engaged
before driving off. Do not continue driving if
the hood can no longer engage after an
accident, for example. The hood could
otherwise come loose while the vehicle is in
motion and injure you and/or others.
X Lower the hood and let it fall from a height
of approximately 8 inches (

20 cm).
X Check that the hood has engaged properly.
If the hood can be raised slightly, it is not
properly engaged. Open it again and close
it with a little more force. Radiator
i Vehicles with a diesel engine: do not
cover the radiator, for example with a
winter front or bug cover. Otherwise, the
readings of the on-board-diagnostic
system may be inaccurate. Some of these
readings are required by law and must be
accurate at all times. Engine oil
Notes on the oil level G
WARNING
Hybrid vehicles: ensure that you read the
"HYBRID"
supplement. You may otherwise fail
to recognize dangers.
Depending on the driving style, the vehicle
consumes up to 0.9 US qts. (0.8 l) of oil over
a distance of 600 miles (1000 km). The oil Engine compartment
457
Maintenance and care Z

consumption may be higher than this when
the
vehicle is new or if you frequently drive at
high engine speeds.
Checking the oil level using the oil
dipstick On vehicles with a 12-cylinder engine, the oil
level can be checked using the on-board
computer. On all other models, the dipstick
must be used to check the engine oil level.
Example: vehicles with a gasoline engine
Example: vehicles with 4MATIC
X
Park the vehicle on a level surface.
To check the oil level with the engine at
operating temperature, switch the engine
off

and wait for approximately five minutes.
X Pull oil dipstick :
out of the dipstick guide
tube.
X Wipe off oil dipstick :. X
Slowly slide oil dipstick : into the guide
tube to the stop, and take it out again.
If the level is between MIN mark = and
MAX mark ;, the oil level is correct.
X If the fuel level has sunk to MIN mark =
or
below, add 0.55 to 1.1 US qt (0.5 to 1.0 l)
engine oil.
Checking the oil level using the on-
board computer On vehicles with a 12-cylinder engine, the oil
level can be checked using the on-board
computer. On all other models, the dipstick
must be used to check the engine oil level.
X
Park the vehicle on a level surface.
To check the oil level with the engine at
normal operating temperature, switch the
engine off and wait for approximately five
minutes.
X Make sure that the SmartKey is in position
2 in the ignition lock.
X Press the ;
or = button to select the
Service menu.
X Press the : or 9 button to select
Engine Oil Level.
X Press the a button.
The multifunction display shows the
following message: Engine Oil Level
Measuring Now Measurement correct
only if vehicle level.
The measurement takes a few seconds. You
will
see one of the following messages in the
multifunction display:
R Engine Oil Level OK
R Add 1.0 l Engine Oil At Next
Refueling
R Add 1.5 l Engine Oil At Next
Refueling
R Add 2.0 l Engine Oil At Next
Refueling
X Add oil if necessary.
If the engine is at normal operating
temperature and the Engine Oil Level 458
Engine compartment
Maintenance and care

Reduce Oil Level message appears, the
engine oil level is too high.
X
Have excess oil siphoned off.
! Do not add too much oil. Adding too much
oil can result in damage to the engine or the
catalytic converter. Have excess oil
siphoned off.
If the For Engine Oil Level Ignition
Must be On message appears:
X Turn the SmartKey to position 2 in the
ignition lock.
If the Need More Time to Check Engine
Oil Level message appears:
X If the engine is at normal operating
temperature: repeat the measurement
after about five minutes.
If the engine is not at normal operating
temperature (e.g. if the engine was only
started briefly): repeat the measurement
after about 30 minutes.
If the Engine Oil Level Not When
Engine On message appears:
X Switch off the engine.
X If the engine is at normal operating
temperature: wait about five minutes
before carrying out the measurement.
If the engine is not at normal operating
temperature, e.g. if the engine was only
started briefly: wait about 30 minutes
before carrying out the measurement.
i If you wish to cancel the measurement,
press

the % button on the multifunction
steering wheel.
Adding engine oil G
WARNING
If engine oil comes into contact with hot
engine
parts, it may ignite and you could burn
yourself. Do not spill any engine oil on hot
engine parts. H
Environmental note
When adding oil, take care not to spill any. If
oil enters the soil or waterways, it is harmful
to the environment.
! Use only engine oils and oil filters that
have been approved for vehicles equipped
with a service system. A list of the engine
oils and oil filters tested and approved in
accordance with the Mercedes-Benz
Specifications for Service Products can be
called up by visiting http://
www.mbusa.com (USA only). More
information about tested and approved
engine oils and oil filters is available from
any authorized Mercedes-Benz Center.
Damage

to the engine or exhaust system is
caused by the following:
R using engine oils and oil filters which
have not been specifically approved for
the service system.
R replacing the engine oil or oil filter after
the replacement interval required by the
service system has elapsed
R using engine oil additives.
! Do not add too much oil. If the oil level is
above the "max" mark on the dipstick, too
much oil has been added. This can lead to
damage to the engine or the catalytic
converter. Have excess oil siphoned off. Example: engine oil cap Engine compartment
459
Maintenance and care Z
