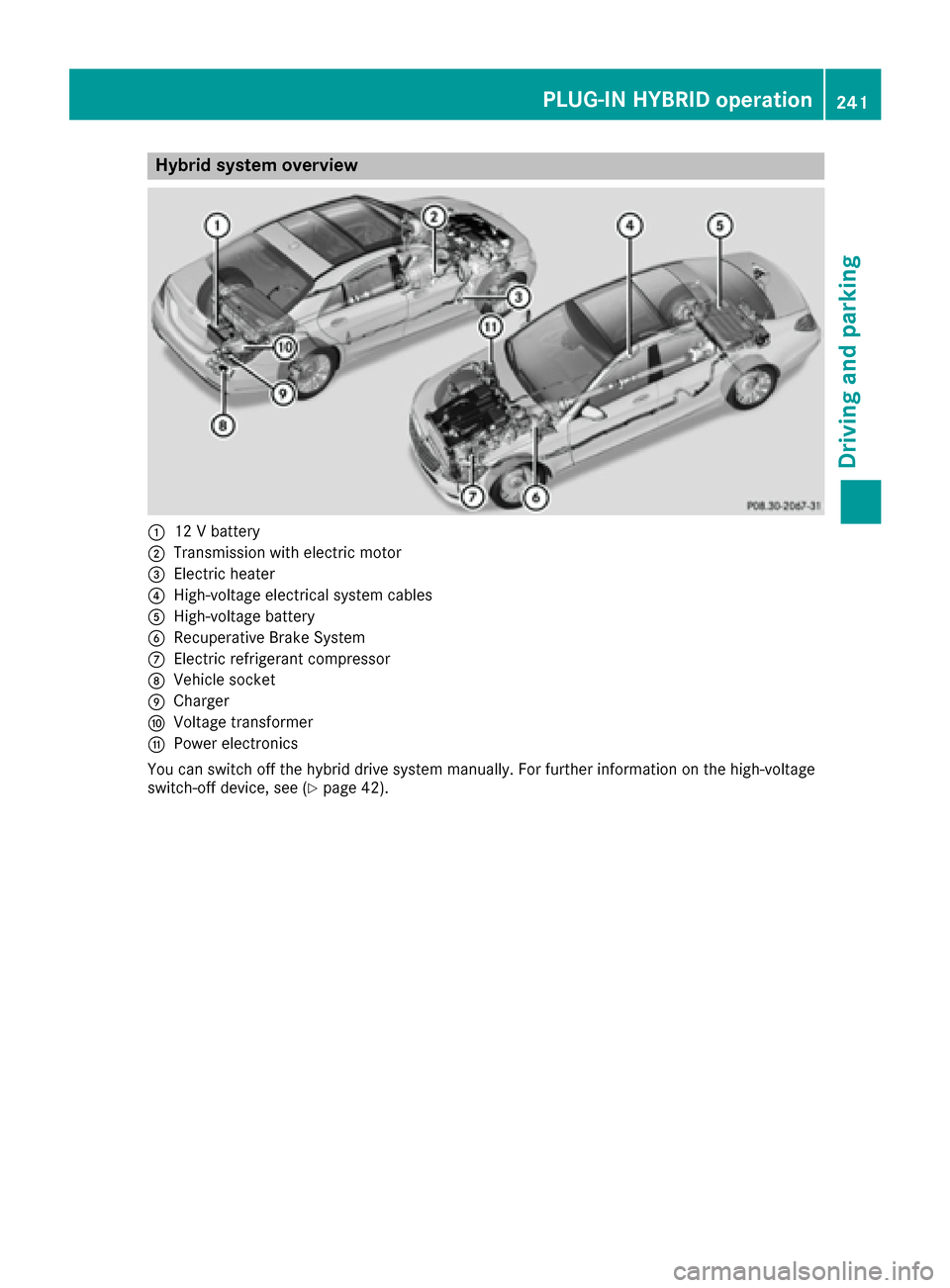

Hybrid system overview
:12 V battery
;Transmission with electric motor
=Electric heater
?High-voltage electrical system cables
AHigh-voltage battery
BRecuperative Brake System
CElectric refrigerant compressor
DVehicle socket
ECharger
FVoltage transformer
GPower electronics
You can switch off the hybrid drive system manually. For further information on the high-voltage
switch-off device, see (
Ypage 42).
PLUG‑IN HYBRID operation241
Driving and parking
Z
