MERCEDES-BENZ S350 2006 W221 Owners Manual

90

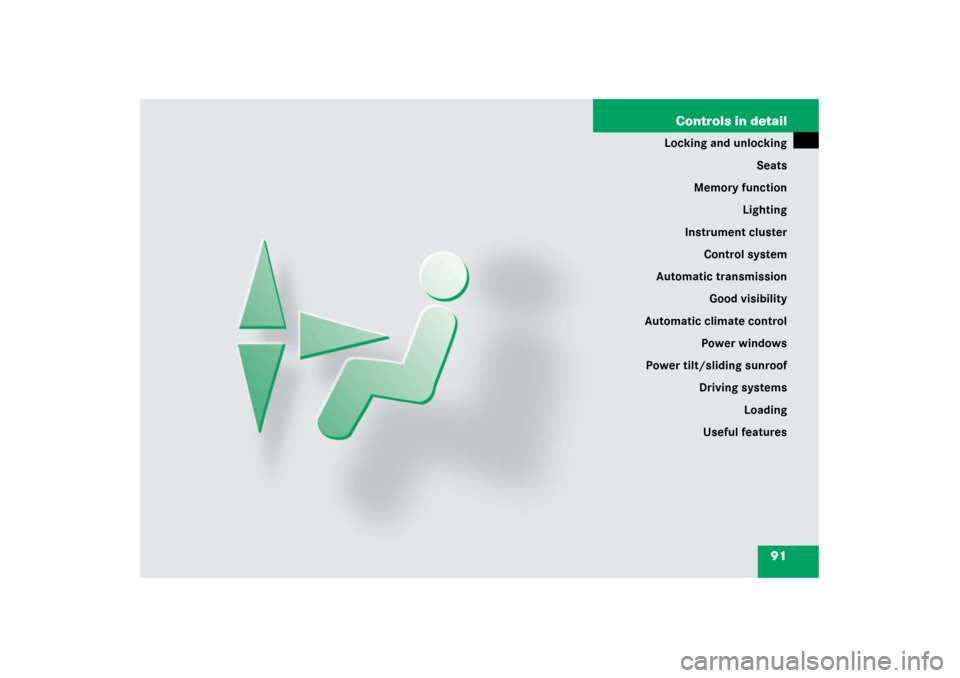

91 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Automatic climate control
Power windows
Power tilt/sliding sunroof
Driving systems
Loading
Useful features

92 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.Locking and unlocking
For more information on locking and un-
locking, see “Getting started” (
page 32)
and (
page 58).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a differ-
ent color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with remote control1‹ Lock button
2Š Opening button for trunk
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 78)

93 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iYou can also open and close the power
windows (
page 210) and tilt/sliding
sunroof (
page 210) using the
SmartKey.

94 Controls in detailLocking and unlockingFactory setting
Global unlocking
Press buttonŒ.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither a door nor the trunk is opened


the SmartKey is not inserted in the
starter switch


the central locking switch is not acti-
vatedGlobal locking

Press button‹.
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressingŒ only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttonsŒ and‹
simultaneously for about five seconds
until battery check lamp5 flashes
twice.
The SmartKey will then function as fol-
lows:Unlocking driver’s door and fuel filler
flap

Press buttonΠonce.
All turn signal lamps flash once. The
locking knob in the driver’s door moves
up. The anti-theft alarm system is dis-
armed.
Global unlocking

Press buttonΠtwice.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
Global locking

Press button‹.
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.

95 Controls in detail
Locking and unlocking
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about six seconds
until battery check lamp5 flashes
twice.Checking the batteries

Press button‹ orŒ.
Battery check lamp5 comes on
briefly to indicate that the SmartKey
batteries are in order.Unlocking and opening the trunk
You can unlock and open the trunk sepa-
rately.
A minimum height clearance of 6 ft.
(1.85 m) is required to open the trunk lid.

Press and hold button Š until trunk
unlocks and begins to open.
!If you can no longer lock or unlock the
vehicle with the SmartKey, then either
the batteries in the SmartKey are dis-
charged, the SmartKey is malfunction-
ing or the vehicle battery is drained.

Check the batteries in the
SmartKey and replace them if nec-
essary (
page 392).


Use the mechanical key to unlock
the driver’s door (
page 388) and
trunk (
page 389).


Use the mechanical key to lock the
driver’s door (
page 388).


Have the vehicle battery and the
battery connections checked
(page 408).
If the SmartKey is malfunctioning, con-
tact an authorized Mercedes-Benz Cen-
ter.iIf battery check lamp5 does not
come on briefly during check, then the
SmartKey batteries are discharged.
Replace the batteries (
page 392).
You can obtain the required batteries
at any authorized Mercedes-Benz
Center.
iIf the batteries are checked within
signal range of the vehicle, pressing
the‹ orŒ button will lock or
unlock the vehicle accordingly.
!The trunk lid swings open upwards au-
tomatically. Always make sure that
there is sufficient overhead clearance.
Vehicles with trunk lid opening/closing
system*: To stop the opening proce-
dure, press buttonŠ. The trunk lid
stops moving.

96 Controls in detailLocking and unlockingLoss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:
Have the SmartKey deactivated by an
authorized Mercedes-Benz Center.

Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.

If necessary, have the mechanical lock
replaced.
Your authorized Mercedes-Benz Center
will be glad to supply you with a replace-
ment.
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys with
KEYLESS-GO are a different color to help
distinguish each SmartKey with
KEYLESS-GO unit.
The function of the SmartKey overrules the
KEYLESS-GO function.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you grasp an outside
door handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with KEYLESS-GO1‹ Lock button
2Š Opening button for trunk
3Locking tab for mechanical key
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 78)
iWhen any outside door handle other
than the driver’s outside door handle is
grasped, the vehicle is centrally un-
locked.

97 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey with
KEYLESS-GO to high levels of electro-
magnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iYou can also open and close the power
windows (
page 210) and tilt/sliding
sunroof (
page 210) using the
SmartKey with KEYLESS-GO.

98 Controls in detailLocking and unlockingImportant notes on using KEYLESS-GO

You can also use the SmartKey with
KEYLESS-GO like a normal
SmartKey (
page 92).


You can combine KEYLESS-GO func-
tions with normal SmartKey functions
(e.g. unlocking with KEYLESS-GO and
locking with the ‹ button).


Always carry the SmartKey with
KEYLESS-GO with you.


Never store the SmartKey with
KEYLESS-GO together with:

Electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO


Metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.


To lock or unlock the vehicle, the
SmartKey with KEYLESS-GO must be
located outside the vehicle within ap-
proximately 3 ft. (1 m) of a door or the
trunk lid.


In order to start the engine with the
SmartKey with KEYLESS-GO:

The SmartKey with KEYLESS-GO
must be located in the vehicle.


All doors must be closed.


The brake pedal must be firmly de-
pressed. Do not depress the accel-
erator.


If you have started the engine with the
KEYLESS-GO start/stop button
(page 35), you can only turn it off
again with this button, even if you have
put the SmartKey in the starter switch
in the meantime.
This does not apply if, after starting, the
gear selector lever is still in positionP
and the SmartKey is then inserted in
the starter switch. The SmartKey will
then have priority over the
KEYLESS-GO function and the vehicle’s
electrical system will operate accord-
ing to the position of the SmartKey in
the starter switch, even stopping the
engine.


If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle, the system may no longer recog-
nize the SmartKey with KEYLESS-GO.
The vehicle then cannot be locked or
the engine started via the KEYLESS-GO
system.

99 Controls in detail
Locking and unlocking


If the SmartKey with KEYLESS-GO is re-
moved from the vehicle while the igni-
tion is switched on (e.g. if passenger
exits the vehicle with the SmartKey
with KEYLESS-GO), the message: KEY
NOT RECOGNIZEDwill appear in the multifunction display
while driving off.
Find the SmartKey or change its
present location immediately
(e.g. place it on the front passenger
seat or insert it in shirt pocket).


Remember that the engine can be
started by anyone with a SmartKey
with KEYLESS-GO that is left inside the
vehicle. If you leave the SmartKey with
KEYLESS-GO behind when exiting and
locking the vehicle, the message: KEY
STILL IN VEHICLEwill appear in the multifunction display.Factory setting
Global unlocking

Grasp an outside door handle.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither a door nor the trunk is opened


the central locking switch is not acti-
vatedGlobal locking

Press lock button on an outside door
handle (
page 58) or trunk lid
(
page 101).
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.
iIf the vehicle has been parked for more
than 72 hours, you must pull an outside
door handle in order to activate the
KEYLESS-GO function.
iThe vehicle could inadvertently be un-
locked if the SmartKey with
KEYLESS-GO is within 3 ft. (1 m) of the
vehicle and:

an outside door handle is splashed
with water, or


you attempt to clean an outside
door handle.
