Page 16 of 481
15 Introduction
Symbols
Symbols
Registered trademarks
®:
ESP
® and PRE-SAFE
® are registered trade-
marks of DaimlerChrysler.
The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.
This symbol points to instructions for
you to follow.
A number of these symbols appearing
in succession indicates a multiple-step
procedure.
Page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical
terms, this symbol is used to in-
dicate cross-references to term
definitions.
DISPLAY
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.
Page 58 of 481
57 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch toM.
For more information, see “Lighting”
(
page 131).
Turning off the engine
Place the gear selector lever in
positionP.
Turning off with the SmartKey
Turn the SmartKey in the starter switch
(page 34) to position0 and remove
it.
The immobilizer is activated.
Press the seat belt release button
(page 44).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Turning off the engine with
KEYLESS-GO*
Place the gear selector lever in
positionP.
Press the KEYLESS-GO start/stop
button (
page 35) to shut off the en-
gine.With the driver’s door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(
page 34).
Press the seat belt release button
(page 44).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
iAlways set the parking brake in addi-
tion to shifting to position P.
On slopes, turn the front wheels to-
wards the curb.
iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.
!If you hear a warning signal, you have
either
forgotten to turn off the lights be-
fore opening the driver’s door
or
tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear se-
lector lever inP.
Page 133 of 481
132 Controls in detailLightingManual headlamp mode
The low beam headlamps and parking
lamps can be switched on and off with the
exterior lamp switch. For exterior lamp
switch, see (
page 131).Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:
Low beam headlamps
Tail and parking lamps
License plate lamps
Side marker lamps
iWith the SmartKey removed from the
starter switch or the engine turned off
with KEYLESS-GO* and the driver’s
door open, a warning sounds if the
parking lamps or low beam headlamps
are switched on.
The message:
TURN OFF LIGHTS
appears in the multifunction display.
Warning!
G
If the exterior lamp switch is set toU,
the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.
the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to B when driving or when traffic
and/or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position U to B with the
vehicle at a standstill in a safe location.
Switching from U to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.iThe front fog lamps and rear fog lamp
cannot be switched on manually with
exterior lamp switch in positionU.
To activate the fog lamps, turn exterior
lamp switch to positionB and pull
the exterior lamp switch to first or sec-
ond stop (
page 134).
Page 178 of 481
177 Controls in detail
Automatic transmission
Driving tips
Accelerator position
Your driving style influences the
transmission’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.
Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.Stopping
When you stop briefly, e.g. at traffic lights:
Leave the transmission in gear.
Hold the vehicle with the brake.
When you stop longer with the engine
idling and/or on a hill:
Set the parking brake.
Move the gear selector lever to
positionP.Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:
Control the vehicle speed by gradually
releasing the brakes.
Accelerate gently.
Never abruptly step on the accelerator.
Working on the vehicleWarning!
G
When working on the vehicle, set the
parking brake and move gear selector lever
to positionP. Otherwise the vehicle could
roll away.
Page 373 of 481

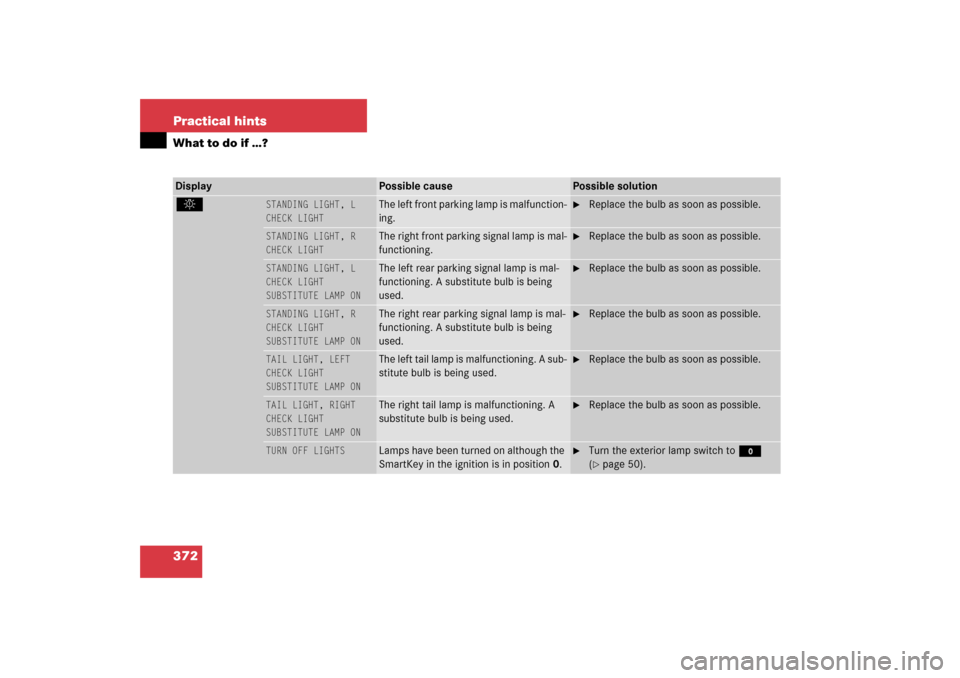

372 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
.
STANDING LIGHT, L
CHECK LIGHT
The left front parking lamp is malfunction-
ing.
Replace the bulb as soon as possible.
STANDING LIGHT, R
CHECK LIGHT
The right front parking signal lamp is mal-
functioning.
Replace the bulb as soon as possible.
STANDING LIGHT, L
CHECK LIGHT
SUBSTITUTE LAMP ON
The left rear parking signal lamp is mal-
functioning. A substitute bulb is being
used.
Replace the bulb as soon as possible.
STANDING LIGHT, R
CHECK LIGHT
SUBSTITUTE LAMP ON
The right rear parking signal lamp is mal-
functioning. A substitute bulb is being
used.
Replace the bulb as soon as possible.
TAIL LIGHT, LEFT
CHECK LIGHT
SUBSTITUTE LAMP ON
The left tail lamp is malfunctioning. A sub-
stitute bulb is being used.
Replace the bulb as soon as possible.
TAIL LIGHT, RIGHT
CHECK LIGHT
SUBSTITUTE LAMP ON
The right tail lamp is malfunctioning. A
substitute bulb is being used.
Replace the bulb as soon as possible.
TURN OFF LIGHTS
Lamps have been turned on although the
SmartKey in the ignition is in position 0.
Turn the exterior lamp switch to M
(page 50).
Page 395 of 481
394 Practical hintsReplacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.
iSubstitute bulbs will be brought into
use when the following lamps malfunc-
tion:
Brake lamps
Rear parking lamps
Rear turn signal lamps
Tail lamps
Observe the messages in the multi-
function display (
page 369).
Page 397 of 481
396 Practical hintsReplacing bulbsNotes on bulb replacement
Only use 12-volt-bulbs of the same
type and with the specified watt rating.
Switch lights off before changing a bulb
to prevent short circuits.
Always use a clean lint-free cloth when
handling bulbs.
Your hands should be dry and free of oil
and grease.
If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center.
Additional turn signal lamps in the exte-
rior rear view mirrors
Bi-Xenon lamps*
High mounted brake lamp
Brake lamps
Rear side marker lamps
Rear parking lamps
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
touch or move it when hot
drop the bulb
scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
iHave the headlamp adjustment
checked regularly.
Page 413 of 481

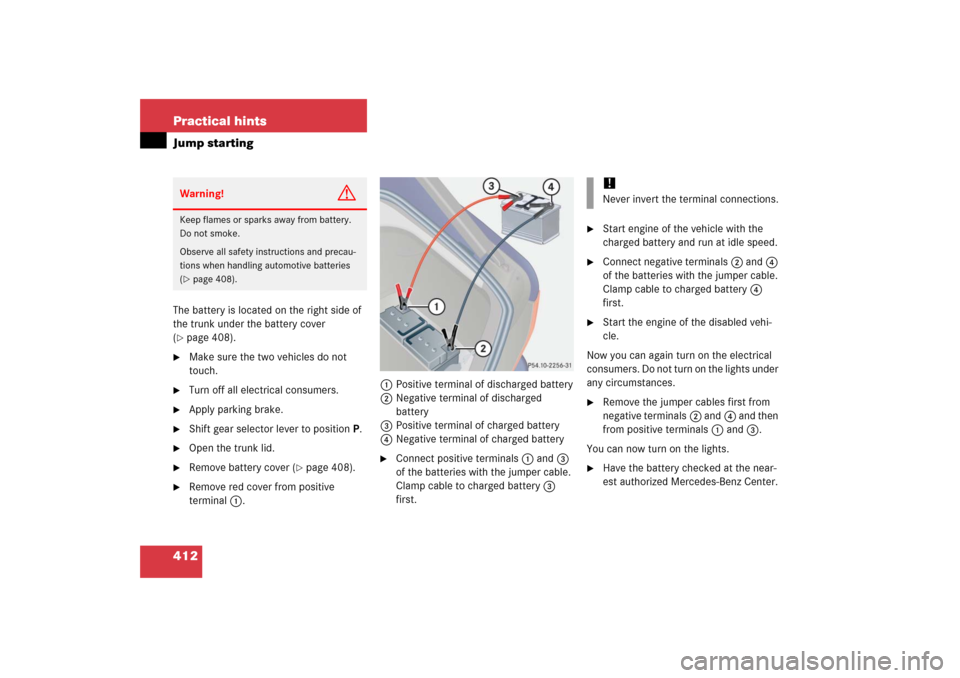

412 Practical hintsJump startingThe battery is located on the right side of
the trunk under the battery cover
(page 408).
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply parking brake.
Shift gear selector lever to positionP.
Open the trunk lid.
Remove battery cover (
page 408).
Remove red cover from positive
terminal 1. 1Positive terminal of discharged battery
2Negative terminal of discharged
battery
3Positive terminal of charged battery
4Negative terminal of charged battery
Connect positive terminals 1 and3
of the batteries with the jumper cable.
Clamp cable to charged battery3
first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminals2 and4
of the batteries with the jumper cable.
Clamp cable to charged battery4
first.
Start the engine of the disabled vehi-
cle.
Now you can again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.
Remove the jumper cables first from
negative terminals2 and4 and then
from positive terminals1 and3.
You can now turn on the lights.
Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 408).
!Never invert the terminal connections.
