289 Operation
Engine compartment
Other display messages
If the SmartKey or KEYLESS-GO*
start/stop button (
page 35) is not in po-
sition 2, the following message will appear:
FOR ENGINE OIL LEVEL
SWITCH IGNITION ON
Switch on ignition (
page 34).
If you see the message:
PERF. SERV. ON TIME
If engine is at operating temperature,
wait five minutes before repeating
check procedure.

If engine is not at operating tempera-
ture yet, wait 30 minutes before re-
peating check procedure.If you see the message:
ENGINE OIL LEVEL
NOT WHEN ENGINE ON
Turn off the engine.

If the engine is at operating tempera-
ture, wait five minutes before checking
oil.

If the engine is not at operating temper-
ature yet, you must wait 30 minutes be-
fore checking oil.
If there is excess engine oil with the engine
at normal operating temperature, the fol-
lowing message will appear:
ENGINE OIL LEVEL
REDUCE OIL LEVEL
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 362). !Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.iPerform the engine oil level check with
the dipstick (S 430, S 500, and
S 55 AMG only) if it cannot be complet-
ed with the control system.
In this case we recommend that you
have the system checked at a
Mercedes-Benz Center.

290 OperationEngine compartmentChecking the engine oil level with the
oil dipstick (S 430, S 500, and
S55AMG only)
When checking the oil level

the vehicle must be parked on level
ground


with the engine at operating tempera-
ture, the vehicle must have been sta-
tionary for at least five minutes with the
engine turned off
To check the engine oil level with the oil
dipstick, do the following:

Open the hood (
page 286).

Pull out oil dipstick1 (
page 291).

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 into the dip-
stick guide tube.

Pull out oil dipstick1 again after ap-
proximately three seconds to obtain
accurate reading.

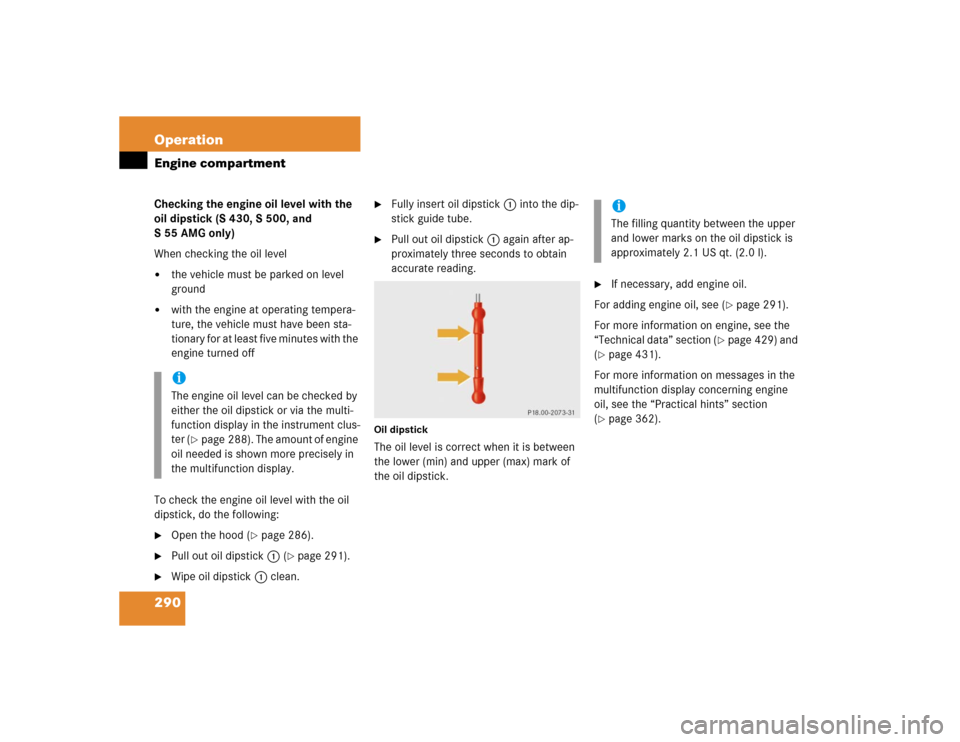

Oil dipstickThe oil level is correct when it is between
the lower (min) and upper (max) mark of
the oil dipstick.

If necessary, add engine oil.
For adding engine oil, see (
page 291).
For more information on engine, see the
“Technical data” section (
page 429) and
(
page 431).
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(page 362).
iThe engine oil level can be checked by
either the oil dipstick or via the multi-
function display in the instrument clus-
ter (
page 288). The amount of engine
oil needed is shown more precisely in
the multifunction display.
iThe filling quantity between the upper
and lower marks on the oil dipstick is
approximately 2.1 US qt. (2.0 l).

291 Operation
Engine compartment
Adding engine oil

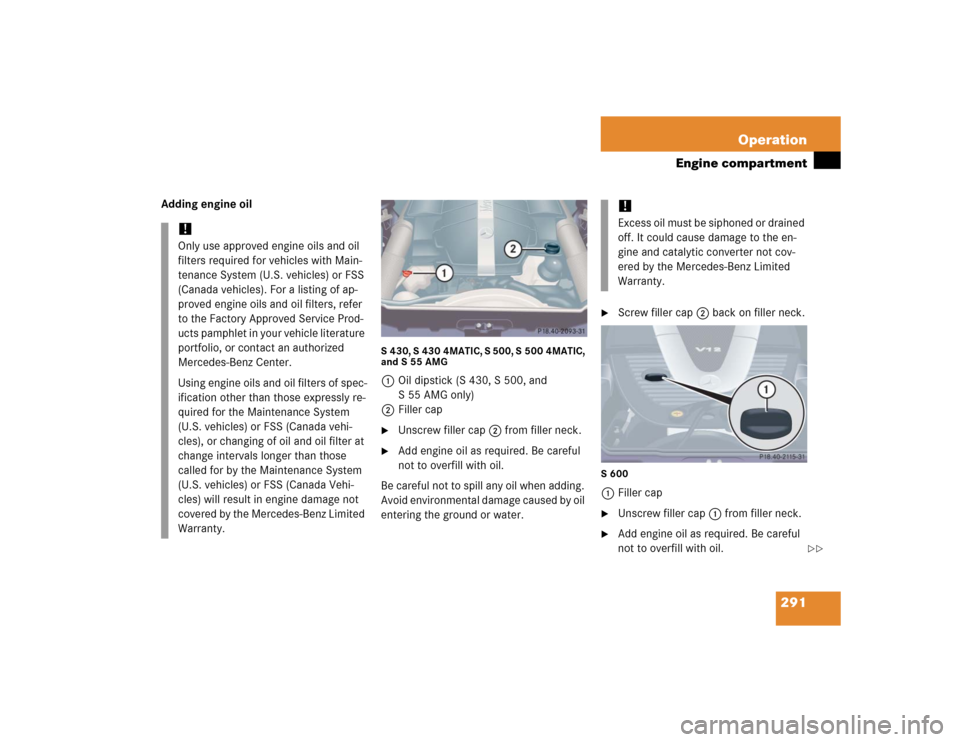

S 430, S 430 4MATIC, S 500, S 500 4MATIC,
and S 55 AMG1Oil dipstick (S 430, S 500, and
S 55 AMG only)
2Filler cap
Unscrew filler cap2 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap2 back on filler neck.
S 6001Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
!Only use approved engine oils and oil
filters required for vehicles with Main-
tenance System (U.S. vehicles) or FSS
(Canada vehicles). For a listing of ap-
proved engine oils and oil filters, refer
to the Factory Approved Service Prod-
ucts pamphlet in your vehicle literature
portfolio, or contact an authorized
Mercedes-Benz Center.
Using engine oils and oil filters of spec-
ification other than those expressly re-
quired for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing of oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada Vehi-
cles) will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.


292 OperationEngine compartmentBe careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine, see the
“Technical data” section (
page 429) and
(
page 431).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Active Body Control* (ABC*) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground, and


the engine must be cool.
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.


293 Operation
Engine compartment

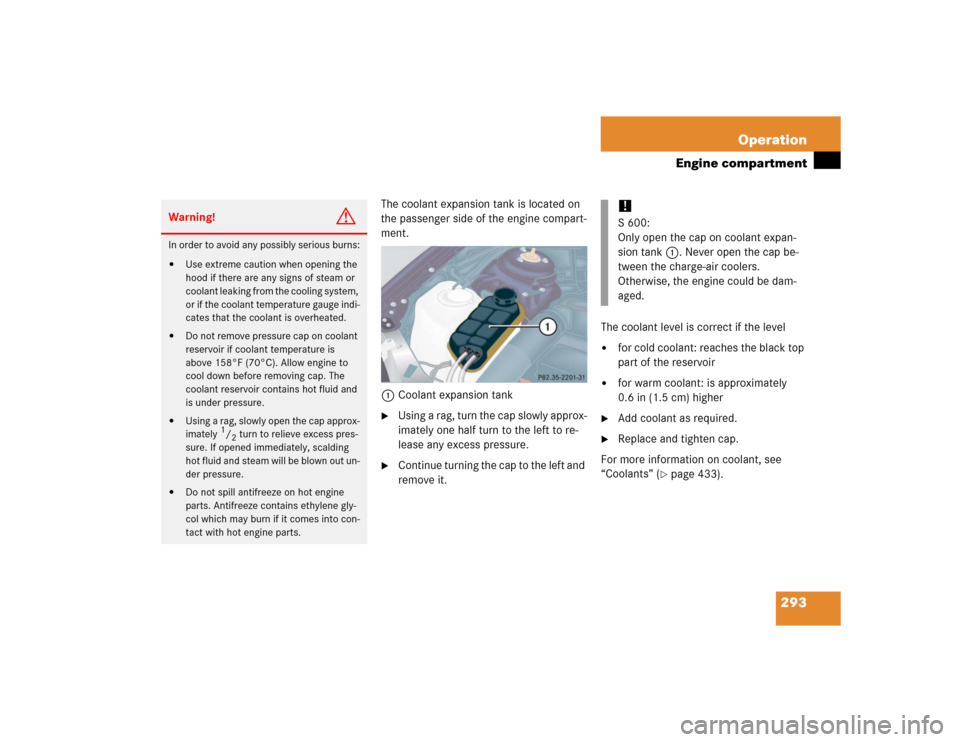

The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank
Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.The coolant level is correct if the level


for cold coolant: reaches the black top
part of the reservoir


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information on coolant, see
“Coolants” (
page 433).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
!S 600:
Only open the cap on coolant expan-
sion tank1. Never open the cap be-
tween the charge-air coolers.
Otherwise, the engine could be dam-
aged.

294 OperationEngine compartmentBattery
Your vehicle’s battery is located on the
right side of the trunk floor (
page 403).
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life. Refer to Maintenance Booklet for
battery maintenance intervals.
If you use your vehicle mostly for short-dis-
tance trips, you will need to have the bat-
tery charge checked more frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.

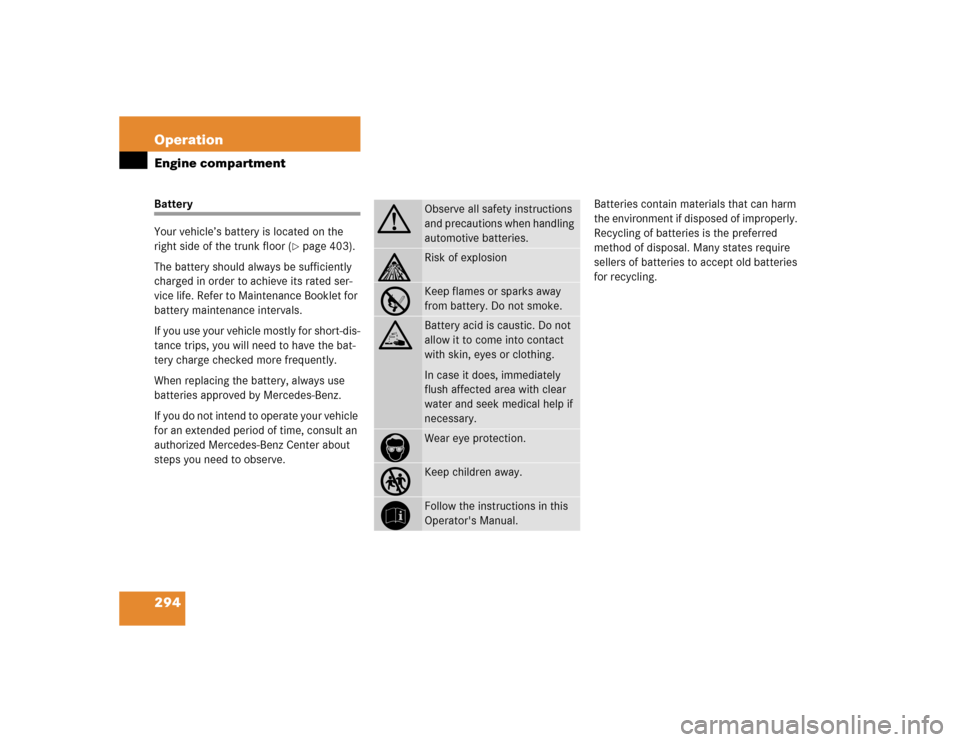

G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.

295 Operation
Engine compartment
Windshield washer system and headlamp cleaning system*

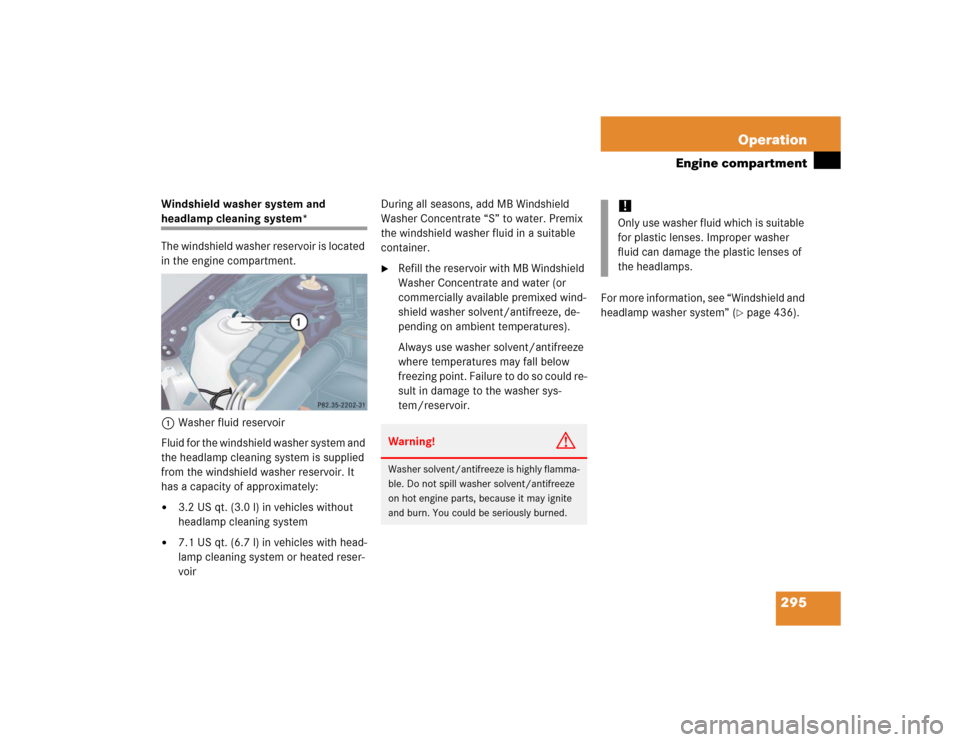

The windshield washer reservoir is located
in the engine compartment.
1Washer fluid reservoir
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approximately:

3.2 US qt. (3.0 l) in vehicles without
headlamp cleaning system


7.1 US qt. (6.7 l) in vehicles with head-
lamp cleaning system or heated reser-
voirDuring all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.

Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent/antifreeze, de-
pending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below
freezing point. Failure to do so could re-
sult in damage to the washer sys-
tem/reservoir.For more information, see “Windshield and
headlamp washer system” (
page 436).
Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.

296 OperationTires and wheelsSee an authorized Mercedes-Benz Center
for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. The operating safety of the
vehicle cannot be assured when such tires
are used.
See an authorized Mercedes-Benz Center
for information on tested and
recommended rims and tires for summer
and winter operation.
Important guidelines

Only use sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire inflation pressure loss and
damage to the tire beads.


If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension
components can be damaged.


The operating clearance of the wheels
and the tires may no longer be correct.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.

297 Operation
Tires and wheels
Tire care and maintenance
Regularly check your tire inflation pressure
at least once a month. For more informa-
tion on checking tire inflation pressure see
“Recommended tire inflation pressure”
(page 305).Tire inspection
Every time you check your tire inflation
pressure, you should also inspect your
tires for the following:


excessive tread wear (
page 298)


cord or fabric showing through the
tire’s rubber


bumps, bulges, cuts, cracks or splits in
the tread or side of the tire
Replace the tire if you find any of the above
conditions.
Make sure you also inspect the spare tire
periodically for condition and inflation.
Spare tires will age and become worn over
time even if never used, and thus should be
inspected and replaced when necessary.Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:


Driving style


Tire inflation pressure


Distance driven
Warning!
G
Regularly check the tires for damage. Dam-
aged tires can cause tire inflation pressure
loss. As a result, you could lose control of
your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Warning!
G
Tires and spare tire should be replaced after
six years, regardless of the remaining tread.

298 OperationTires and wheelsTread depth
Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths under 1/8in (3 mm).
Tread wear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately
1/16
in (1.6 mm), at which point
the tire is considered worn and should be
replaced.
Recommended minimum tire tread depth:


Summer tires
1/8in (3 mm)


Winter tires
1/6in (4 mm)

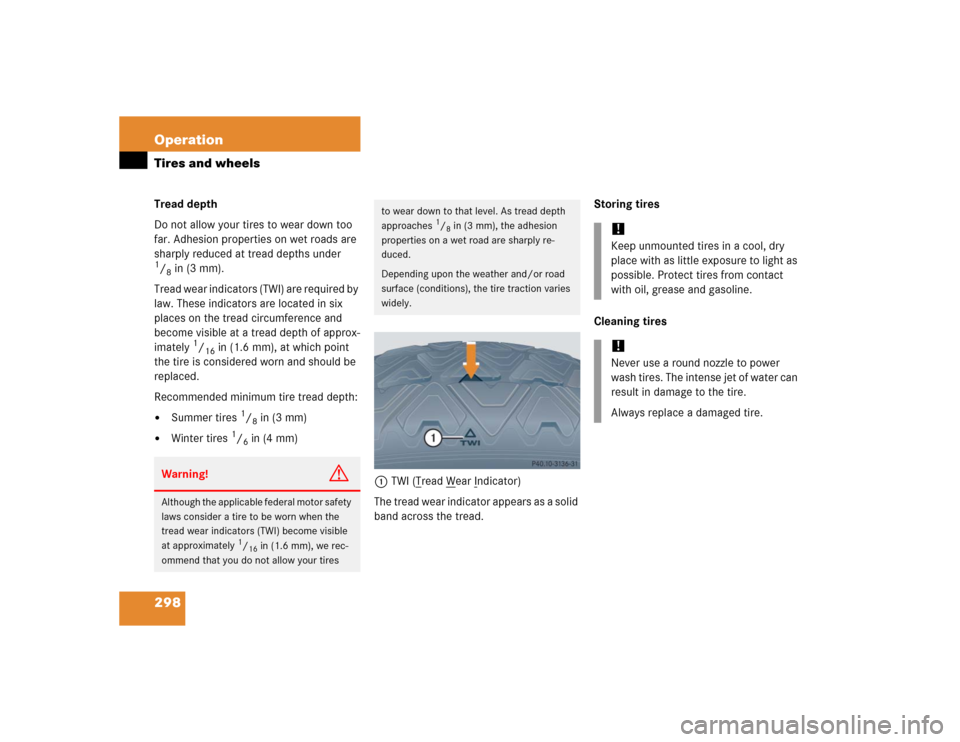

1TWI (T
read W
ear I
ndicator)
The tread wear indicator appears as a solid
band across the tread.Storing tires
Cleaning tires
Warning!
G
Although the applicable federal motor safety
laws consider a tire to be worn when the
tread wear indicators (TWI) become visible
at approximately
1/16in (1.6 mm), we rec-
ommend that you do not allow your tires
to wear down to that level. As tread depth
approaches
1/8in (3 mm), the adhesion
properties on a wet road are sharply re-
duced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.
!Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.!Never use a round nozzle to power
wash tires. The intense jet of water can
result in damage to the tire.
Always replace a damaged tire.
