79 Safety and Security
Panic alarm
Panic alarm
An audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.
1Â button
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or

Insert SmartKey in starter switch.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:

This device may not cause harmful
interference, and


this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:

This device may not cause interfer-
ence, and


this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

80 Safety and SecurityDriving safety systemsIn this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)


4MATIC (Four Wheel Electronic Trac-
tion System)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
iIn winter operation, the maximum ef-
fectiveness of the ABS, ESP, BAS and
4MATIC is only achieved with winter
tires (M + S tires) or snow chains as re-
quired.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP, and 4MATIC cannot re-
duce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

81 Safety and Security
Driving safety systems
The - indicator lamp in the instrument
cluster (
page 24) comes on when you
switch on the ignition (
page 34). It goes
out when the engine is running.
Braking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.

Keep firm and steady pressure on the
brake pedal while experiencing the pul-
sation.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions and
functions as a reminder to take extra care
while driving.Emergency brake maneuver

Keep continuous full pressure on the
brake pedal.
For more information, see “Practical hints”
(
page 337).
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance.
Apply continuous full braking pressure
until the emergency braking situation is
over.
The ABS will prevent the wheels from
locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction af-
forded. The ABS cannot prevent accidents,
including those resulting from excessive
speed in turns, following another vehicle too
closely, or hydroplaning. Only a safe, atten-
tive, and skillful driver can prevent acci-
dents. The capabilities of an ABS equipped
vehicle must never be exploited in a reck-
less or dangerous manner which could jeop-
ardize the user’s safety or the safety of
others.
Warning!
G
If the BAS is malfunctioning, the brake sys-
tem is still functioning normally, but without
the additional brake boost available that
BAS would normally provide in an emergen-
cy braking maneuver. Therefore, the braking
distance may increase.

82 Safety and SecurityDriving safety systemsFor more information, see the “Practical
hints” section (
page 338).
ESP
The Electronic Stability Program (ESP) is
operational as soon as the engine is run-
ning and monitors the vehicle's traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying brakes to the appropriate wheel and
by limiting the engine output, the ESP
works to stabilize the vehicle. The ESP is
especially useful while driving off and on
wet or slippery road surfaces. The ESP also
stabilizes the vehicle during braking ma-
neuvers.
The ESP warning lamp v in the instru-
ment cluster flashes when the ESP is en-
gaged.
The ESP warning lamp v in the instru-
ment cluster comes on when you switch on
the ignition (
page 34). It goes out when
the engine is running.

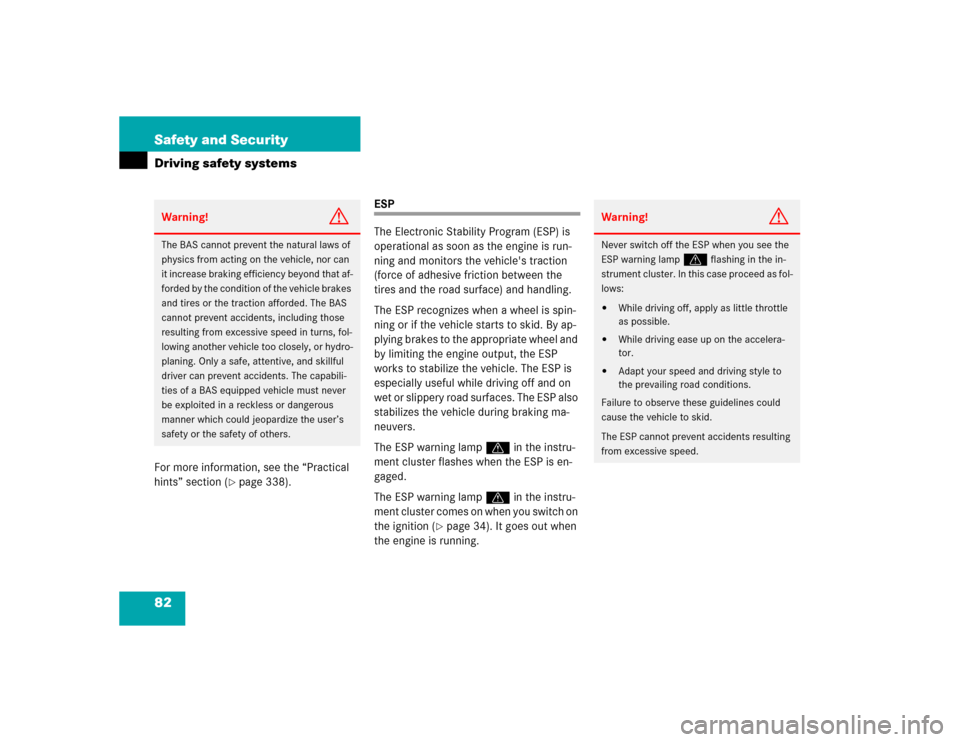

Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction afforded. The BAS
cannot prevent accidents, including those
resulting from excessive speed in turns, fol-
lowing another vehicle too closely, or hydro-
planing. Only a safe, attentive, and skillful
driver can prevent accidents. The capabili-
ties of a BAS equipped vehicle must never
be exploited in a reckless or dangerous
manner which could jeopardize the user’s
safety or the safety of others.
Warning!
G
Never switch off the ESP when you see the
ESP warning lamp
v
flashing in the in-
strument cluster. In this case proceed as fol-
lows:


While driving off, apply as little throttle
as possible.


While driving ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.

83 Safety and Security
Driving safety systems
For more information, see “Practical hints”
(page 337).Switching off the ESP
To improve the vehicle's traction, turn off
the ESP in driving situations where it would
be advantageous to have the drive wheels
spin and thus cut into surfaces for better
grip such as:


starting out on slippery surfaces and in
deep snow in conjunction with snow
chains


in sand or gravel
Warning!
G
The ESP cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.iDistronic* is switched off when ESP is
activated.iThe ESP will only function properly if
you use wheels of the recommended
tire size (
page 422).
!Because of the ESP’s automatic opera-
tion, the engine and ignition must be
shut off (SmartKey in starter switch
position0 or1 or KEYLESS-GO
start/stop button* in position0 or1)
when

the parking brake is being tested on
a brake test dynamometer


the vehicle is being towed with the
front/rear axle raised
Active braking action through the ESP
may otherwise seriously damage the
brake system.
Warning!
G
The ESP should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.iDistronic* cannot be activated when
the ESP has been deactivated.

84 Safety and SecurityDriving safety systemsWhen you switch off the ESP

the ESP does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still brake a
spinning wheel


the ESP continues to operate when you
are brakingThe switch is located on the upper part of
the center console.
1ESP off/on

Press ESP switch1 until the ESP
warning lampv in the speedometer
comes on.
The ESP is deactivated.Switching on the ESP

Press ESP switch1.
The ESP warning lampv in the in-
strument cluster goes out.
You are now again in normal driving
mode with the ESP switched on.
iWhen the ESP is switched off and one
or more drive wheels are spinning, the
ESP warning lampv in the instru-
ment cluster flashes. However, the ESP
will then not stabilize the vehicle.
Warning!
G
When the ESP warning lampv is illumi-
nated continuously, the ESP is switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP.!Avoid spinning of a drive wheel for an
extended period with the ESP switched
off. This may cause serious damage to
the drivetrain which is not covered by
the Mercedes-Benz Limited Warranty.

85 Safety and Security
Driving safety systems
Four wheel electronic traction system (4MATIC) with the ESP
Models with all-wheel drive only:
The 4MATIC improves the vehicle’s ability
to use available traction, e.g. during winter
operation in mountains under snowy con-
ditions, by applying power to all four
wheels.
Warning!
G
If you see the ESP warning lamp v flash-
ing in the speedometer dial, proceed as fol-
lows:

While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.!Do not tow with one axle raised.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
!Performance testing must only be con-
ducted on a two-axle dynamometer.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.!Because of the ESP’s automatic opera-
tion, the engine and ignition must be
shut off (SmartKey in starter switch
position0 or1 or KEYLESS-GO*
start/stop button (
page 35) in
position0 or1) when the parking
brake is being tested on a brake test
dynamometer.
Active braking action through the ESP
may otherwise seriously damage the
front or rear axle brake system.
Operational tests with the engine run-
ning can only be conducted on a
two-axle dynamometer.

86 Safety and SecurityAnti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
The immobilizer is activated.
With KEYLESS-GO*

Turn off the engine by means of the
start/stop button (
page 35) on the
gear selector lever.

Open the driver’s door.
The immobilizer is activated.Deactivating
With the SmartKey

Insert the SmartKey in the starter
switch.
The immobilizer is deactivated.With KEYLESS-GO*

Start the engine by means of the
start/stop button (
page 35) on the
gear selector lever.
The immobilizer is deactivated.
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).

87 Safety and Security
Anti-theft systems
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens:

a door


the trunk


the hood
The alarm will stay on even if the activating
element (a door, for example) is immedi-
ately closed.The alarm system will also be triggered
when


someone attempts to raise the vehicle


the vehicle is opened with the
mechanical key


someone opens a door from the inside
if the vehicle was locked from the out-
side with the SmartKey


someone opens the trunk lid with the
emergency release buttonArming the alarm system
The indicator lamp located in the central
locking switch in on the upper part of the
front center console.
1Indicator lamp

Lock your vehicle.
The turn signal lamps flash three times
to indicate that the alarm system is ac-
tivated. The indicator lamp1 flashes
to indicate that the alarm system is
armed.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
by the Tele Aid system (
page 255)
provided Tele Aid service was sub-
scribed to and properly activated, and
that necessary cellular service and GPS
coverage are available.

88 Safety and SecurityAnti-theft systemsDisarming the alarm system
Unlock your vehicle.
The turn signal lamps flash once to in-
dicate that the alarm system is deacti-
vated.Canceling the alarm
To cancel the alarm:
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press the Œ or ‹ button on the
SmartKey.
The alarm is canceled.With KEYLESS-GO*

Grasp the outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft. (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
The alarm is canceled.
iIf the turn signal lamps does not flash
three times one of the following ele-
ments may not be properly closed:

a door


the trunk


the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally again after approximately 40 sec-
onds if no door was opened.
