ContentsOperation......................................... 271
The first 1000 miles (1500 km) ......... 272
Driving instructions ............................ 273
Drive sensibly – save fuel ............. 273
Drinking and driving ..................... 273
Pedals .......................................... 273
Power assistance ......................... 273
Brakes .......................................... 274
Driving off..................................... 275
Parking ......................................... 275
Tires ............................................. 276
Hydroplaning ................................ 277
Tire traction .................................. 277
Tire speed rating .......................... 278
Winter driving instructions ........... 279
Standing water ............................. 280
Passenger compartment .............. 280
Driving abroad .............................. 280
Control and operation of radio
transmitters.................................. 280
Catalytic converter ....................... 281
Emission control........................... 282
Coolant temperature .................... 282At the gas station .............................. 283
Refueling ...................................... 283
Check regularly and before
a long trip ..................................... 284
Engine compartment ......................... 286
Hood ............................................ 286
Engine oil ..................................... 287
Transmission fluid level ................ 292
Active Body Control* (ABC*)
fluid level...................................... 292
Coolant level ................................ 292
Battery ......................................... 294
Windshield washer system and
headlamp cleaning system* ......... 295
Tires and wheels ................................ 296
Important guidelines .................... 296
Tire care and maintenance ........... 297
Direction of rotation ..................... 299
Loading the vehicle ...................... 299
Recommended tire inflation
pressure ....................................... 305
Checking tire inflation pressure ... 307
Tire labeling.................................. 312
Load identification ....................... 316DOT, Tire Identification
Number (TIN) ............................... 317
Maximum tire load ....................... 318
Maximum tire inflation pressure .. 319
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 319
Tire ply material ........................... 321
Tire and loading terminology ........ 322
Rotating tires ............................... 325
Winter driving .................................... 326
Winter tires .................................. 326
Block heater (Canada only) .......... 327
Snow chains................................. 327
Maintenance...................................... 328
Clearing the maintenance
service indicator .......................... 328
Maintenance service term
exceeded ..................................... 329
Calling up the maintenance
service indicator .......................... 329
Resetting the maintenance
service indicator .......................... 329
Vehicle care....................................... 330
Cleaning and care of vehicle ........ 330

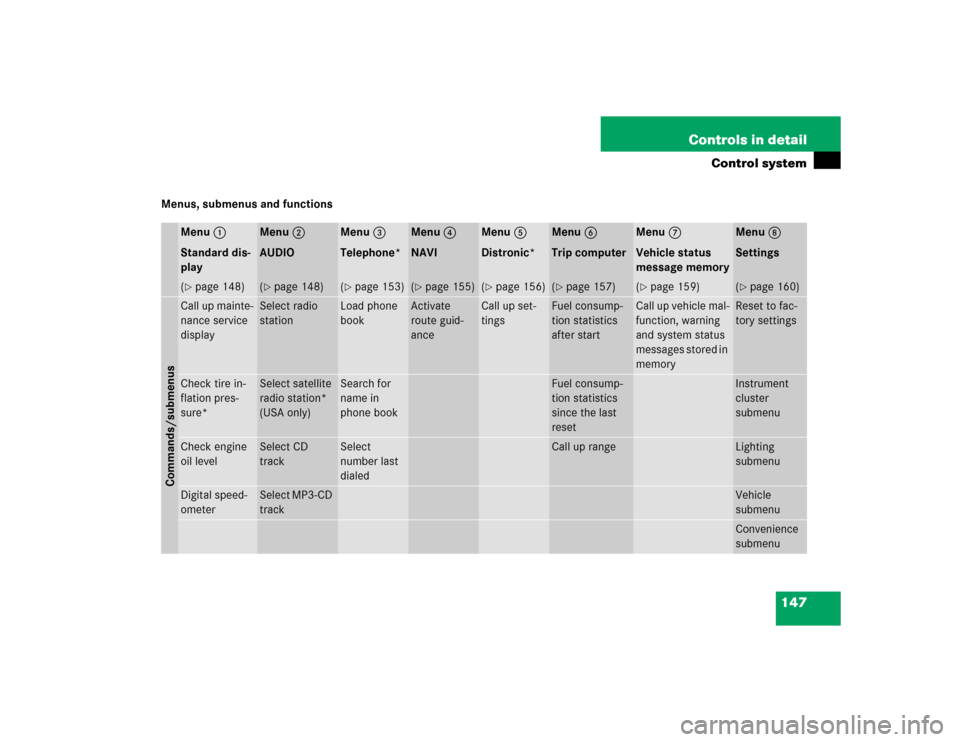

147 Controls in detail
Control system
Menus, submenus and functions
Menu1
Standard dis-
play
Menu2
AUDIO
Menu3
Telephone*
Menu4
NAVI
Menu5
Distronic*
Menu6
Trip computer
Menu7
Vehicle status
message memory
Menu8
Settings
(page 148)
(page 148)
(page 153)
(page 155)
(page 156)
(page 157)
(page 159)
(page 160)
Commands/submenusCall up mainte-
nance service
display
Select radio
station
Load phone
book
Activate
route guid-
ance
Call up set-
tings
Fuel consump-
tion statistics
after start
Call up vehicle mal-
function, warning
and system status
messages stored in
memory
Reset to fac-
tory settings
Check tire in-
flation pres-
sure*
Select satellite
radio station*
(USA only)
Search for
name in
phone book
Fuel consump-
tion statistics
since the last
reset
Instrument
cluster
submenu
Check engine
oil level
Select CD
track
Select
number last
dialed
Call up range
Lighting
submenu
Digital speed-
ometer
Select MP3-CD
track
Vehicle
submenuConvenience
submenu

329 Operation
Maintenance
Maintenance service term exceeded
If you have exceeded the suggested main-
tenance service term, you will see the fol-
lowing message in the multifunction
display:'A' SERVICE EXCEEDED
BY XXXX MILES (KM)
'A' SERVICE EXCEEDED BY XXX DAYS
'A' SERVICE EXCEEDED BY X DAYIn addition, a signal sounds when the mes-
sage appears.
Any authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance ser-
vice.
Calling up the maintenance service in-dicator
Switch on ignition.
The standard display of the control sys-
tem appears (
page 148).

Press button k or j on the mul-
tifunction steering wheel until the
maintenance service indicator with the
service symbol 9 or ´ and the
service deadline appears in the multi-
function display.
Resetting the maintenance service indi-
cator
In the event that the maintenance service
on your vehicle is not carried out by an au-
thorized Mercedes-Benz Center, you can have the maintenance service indicator re-
set. The automotive maintenance facility
carrying out the maintenance service will
find the information for resetting the main-
tenance service indicator in the mainte-
nance-relevant information for your
vehicle. Such information is available from
either your authorized Mercedes-Benz
Center or directly from Mercedes-Benz
USA, LLC.
iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the maintenance
service indicator. To arrive at the true
maintenance service deadline, you will
need to subtract these days from the
days shown in the maintenance service
indicator.
Do not confuse the maintenance ser-
vice indicator with the engine oil level
indicator :.
iIf the maintenance service indicator
was inadvertently reset, have an autho-
rized Mercedes-Benz Center correct it.
Only reset if the proper maintenance
service has been performed. Resetting
the system without performing the
proper service as called for by the
maintenance service indicator will re-
sult in engine damage and/or other ve-
hicle damage not covered by the
Mercedes-Benz Limited Warranty.
