Center console

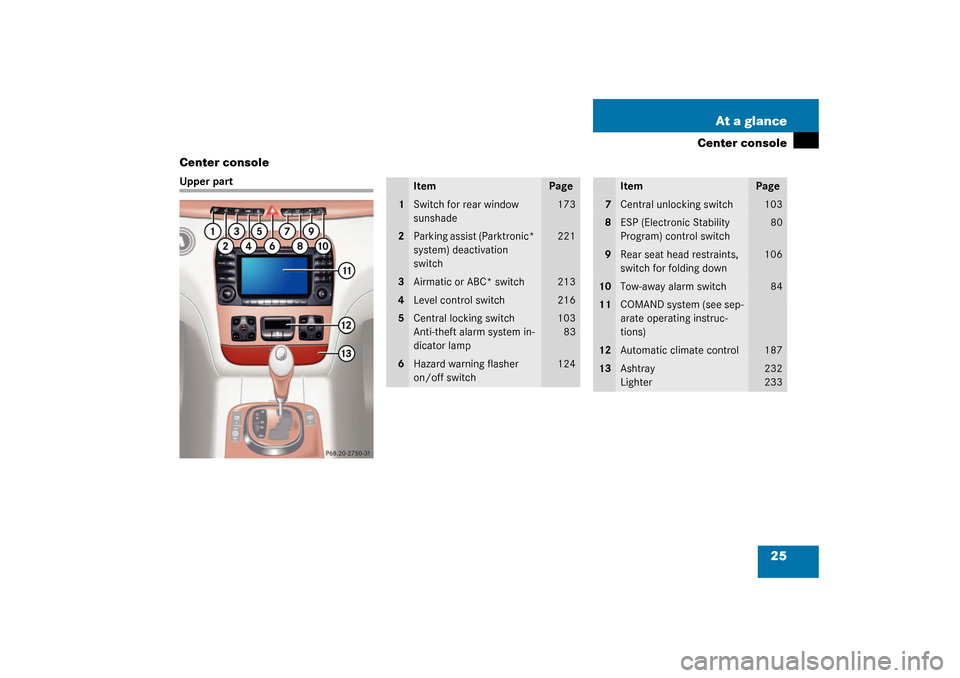

Upper part
Item
Page
1
Switch for rear window
sunshade
173
2
Parking assist (Parktronic*
system) deactivation
switch
221
3
Airmatic or ABC* switch
213
4
Level control switch
216
5
Central locking switch
Anti-theft alarm system in-
dicator lamp
103
83
6
Hazard warning flasher
on/off switch
124
Item
Page
7
Central unlocking switch
103
8
ESP (Electronic Stability
Program) control switch
80
9
Rear seat head restraints,
switch for folding down
106
10
Tow-away alarm switch
84
11
COMAND system (see sep-
arate operating instruc-
tions)
12
Automatic climate control
187
13
Ashtray
Lighter
232
233
Page 55 of 416
55 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems
Page 75 of 416
75 Safety and Security
Panic alarm
Panic alarm

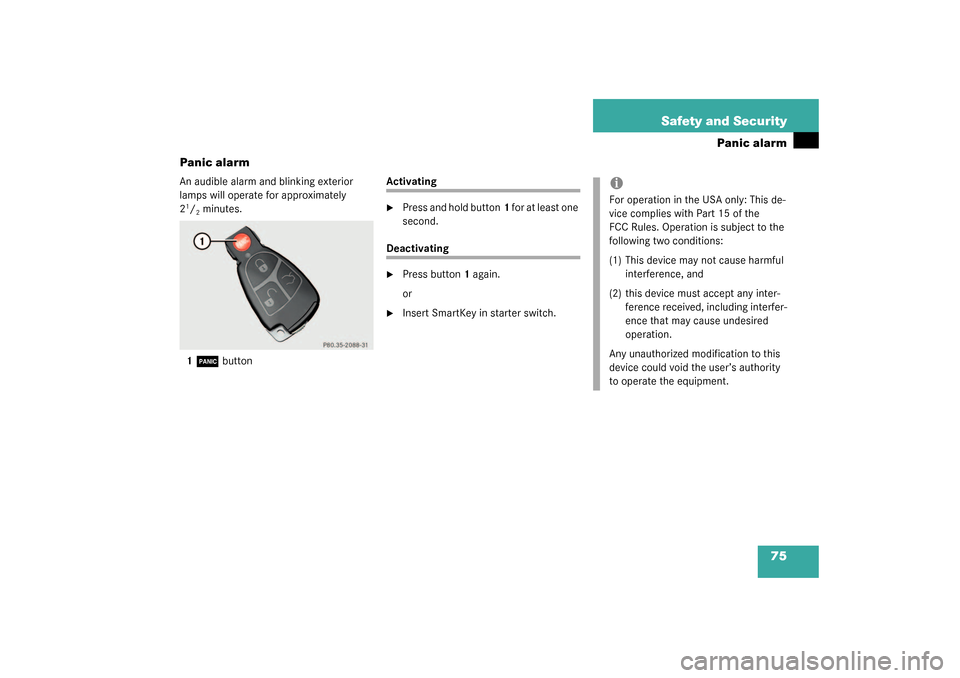

An audible alarm and blinking exterior
lamps will operate for approximately
21/2minutes.
1Â
button
Activating
Press and hold button1 for at least one
second.
Deactivating
Press button1 again.
or
Insert SmartKey in starter switch.
iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

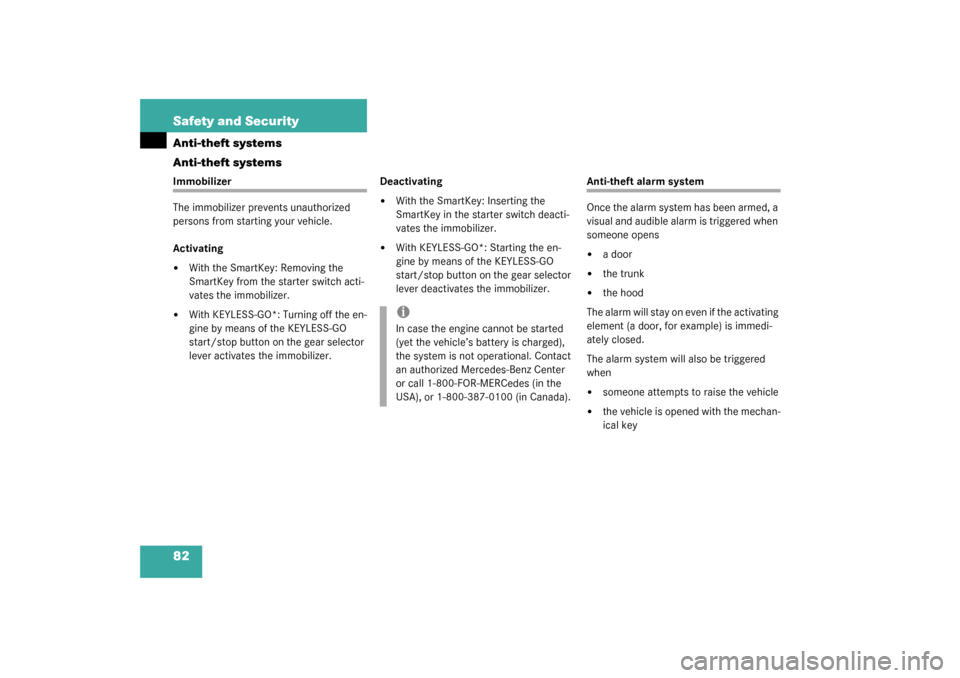

Page 82 of 416
82 Safety and SecurityAnti-theft systems
Anti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey: Removing the
SmartKey from the starter switch acti-
vates the immobilizer.
With KEYLESS-GO*: Turning off the en-
gine by means of the KEYLESS-GO
start/stop button on the gear selector
lever activates the immobilizer.Deactivating
With the SmartKey: Inserting the
SmartKey in the starter switch deacti-
vates the immobilizer.
With KEYLESS-GO*: Starting the en-
gine by means of the KEYLESS-GO
start/stop button on the gear selector
lever deactivates the immobilizer.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens
a door
the trunk
the hood
The alarm will stay on even if the activating
element (a door, for example) is immedi-
ately closed.
The alarm system will also be triggered
when
someone attempts to raise the vehicle
the vehicle is opened with the mechan-
ical key
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).

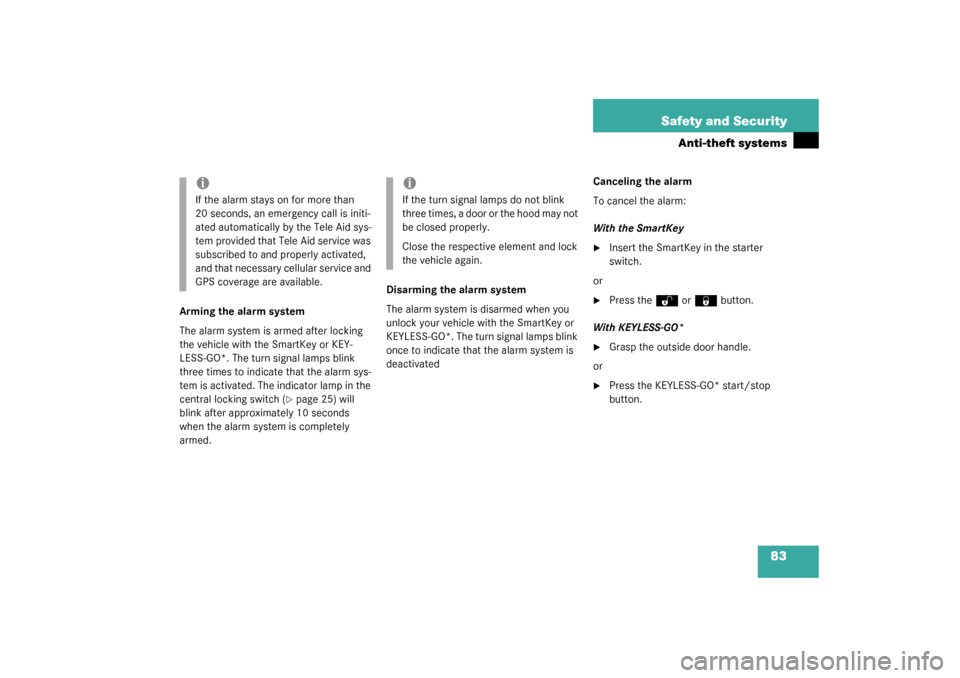

Page 83 of 416
83 Safety and Security
Anti-theft systems
Arming the alarm system
The alarm system is armed after locking
the vehicle with the SmartKey or KEY-
LESS-GO*. The turn signal lamps blink
three times to indicate that the alarm sys-
tem is activated. The indicator lamp in the
central locking switch (
page 25) will
blink after approximately 10 seconds
when the alarm system is completely
armed.Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps blink
once to indicate that the alarm system is
deactivatedCanceling the alarm
To cancel the alarm:
With the SmartKey
Insert the SmartKey in the starter
switch.
or
Press the
Œ
or
‹
button.
With KEYLESS-GO*
Grasp the outside door handle.
or
Press the KEYLESS-GO* start/stop
button.
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem provided that Tele Aid service was
subscribed to and properly activated,
and that necessary cellular service and
GPS coverage are available.
iIf the turn signal lamps do not blink
three times, a door or the hood may not
be closed properly.
Close the respective element and lock
the vehicle again.
Page 84 of 416
84 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms automatical-
ly.Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.

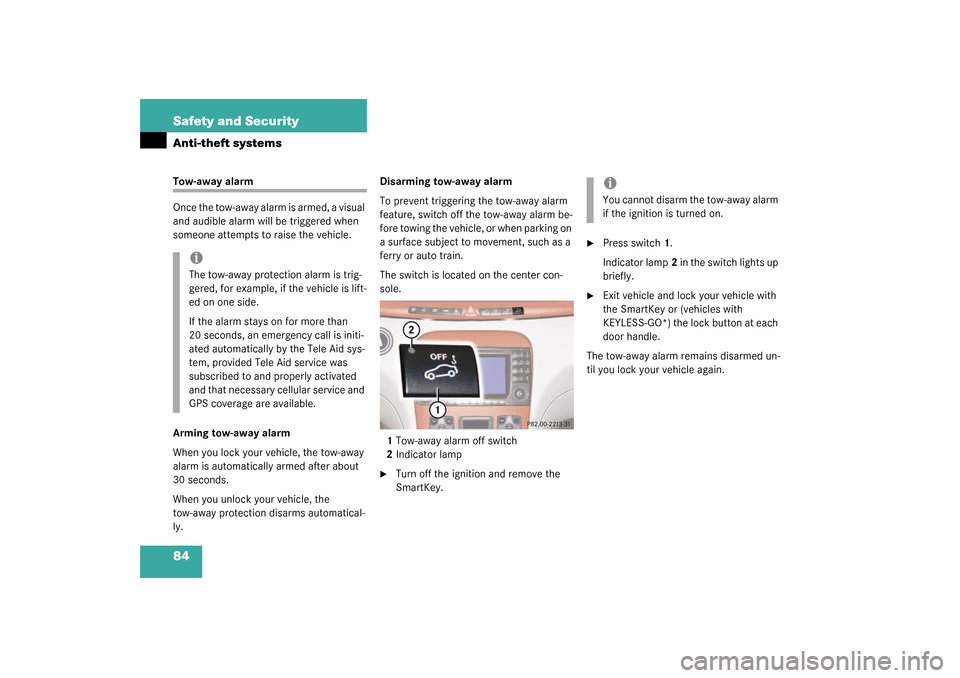

The switch is located on the center con-
sole.
1Tow-away alarm off switch
2Indicator lamp
Turn off the ignition and remove the
SmartKey.
Press switch1.
Indicator lamp2 in the switch lights up
briefly.
Exit vehicle and lock your vehicle with
the SmartKey or (vehicles with
KEYLESS-GO*) the lock button at each
door handle.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem, provided Tele Aid service was
subscribed to and properly activated
and that necessary cellular service and
GPS coverage are available.
iYou cannot disarm the tow-away alarm
if the ignition is turned on.

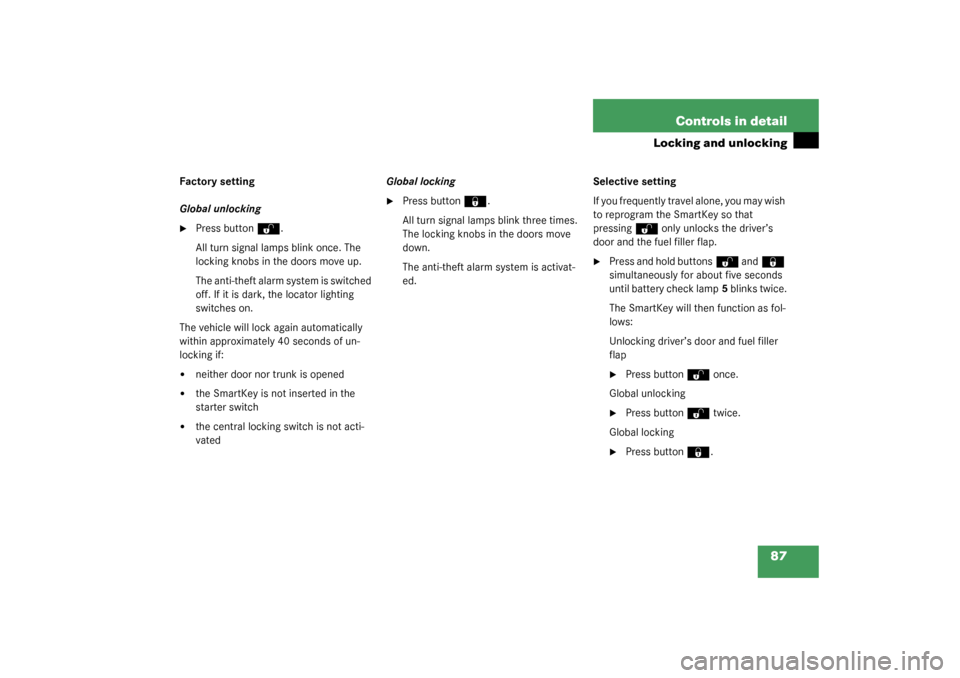

Page 87 of 416
87 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press button
Œ
.
All turn signal lamps blink once. The
locking knobs in the doors move up.
The anti-theft alarm system is switched
off. If it is dark, the locator lighting
switches on.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if:
neither door nor trunk is opened
the SmartKey is not inserted in the
starter switch
the central locking switch is not acti-
vatedGlobal locking
Press button
‹
.
All turn signal lamps blink three times.
The locking knobs in the doors move
down.
The anti-theft alarm system is activat-
ed.Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressing
Œ
only unlocks the driver’s
door and the fuel filler flap.
Press and hold buttons
Œ
and
‹
simultaneously for about five seconds
until battery check lamp5 blinks twice.
The SmartKey will then function as fol-
lows:
Unlocking driver’s door and fuel filler
flap
Press button
Œ
once.
Global unlocking
Press button
Œ
twice.
Global locking
Press button
‹
.

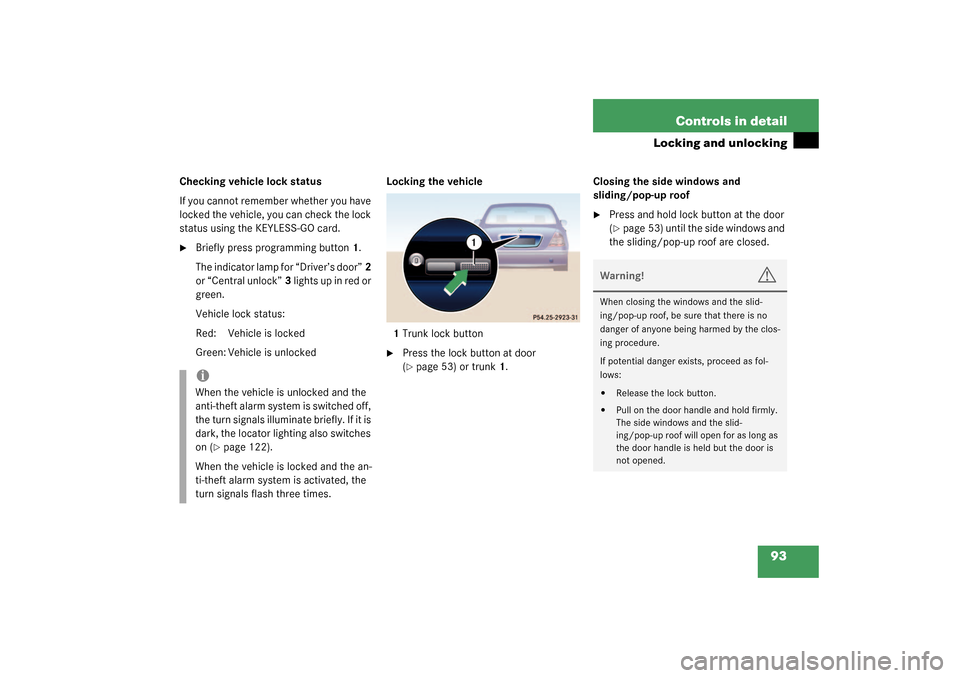

Page 93 of 416
93 Controls in detail
Locking and unlocking
Checking vehicle lock status
If you cannot remember whether you have
locked the vehicle, you can check the lock
status using the KEYLESS-GO card.
Briefly press programming button1.
The indicator lamp for “Driver’s door”2
or “Central unlock”3 lights up in red or
green.
Vehicle lock status:
Red: Vehicle is locked
Green: Vehicle is unlockedLocking the vehicle
1Trunk lock button
Press the lock button at door
(page 53) or trunk1.Closing the side windows and
sliding/pop-up roof
Press and hold lock button at the door
(page 53) until the side windows and
the sliding/pop-up roof are closed.
iWhen the vehicle is unlocked and the
anti-theft alarm system is switched off,
the turn signals illuminate briefly. If it is
dark, the locator lighting also switches
on (
page 122).
When the vehicle is locked and the an-
ti-theft alarm system is activated, the
turn signals flash three times.
Warning!
G
When closing the windows and the slid-
ing/pop-up roof, be sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
If potential danger exists, proceed as fol-
lows:
Release the lock button.
Pull on the door handle and hold firmly.
The side windows and the slid-
ing/pop-up roof will open for as long as
the door handle is held but the door is
not opened.
Page 95 of 416
95 Controls in detail
Locking and unlocking
To cancel the alarm, do one of the follow-
ing:
Press button
‹
or
Œ
on the
SmartKey.
Insert the SmartKey in the starter
switch.

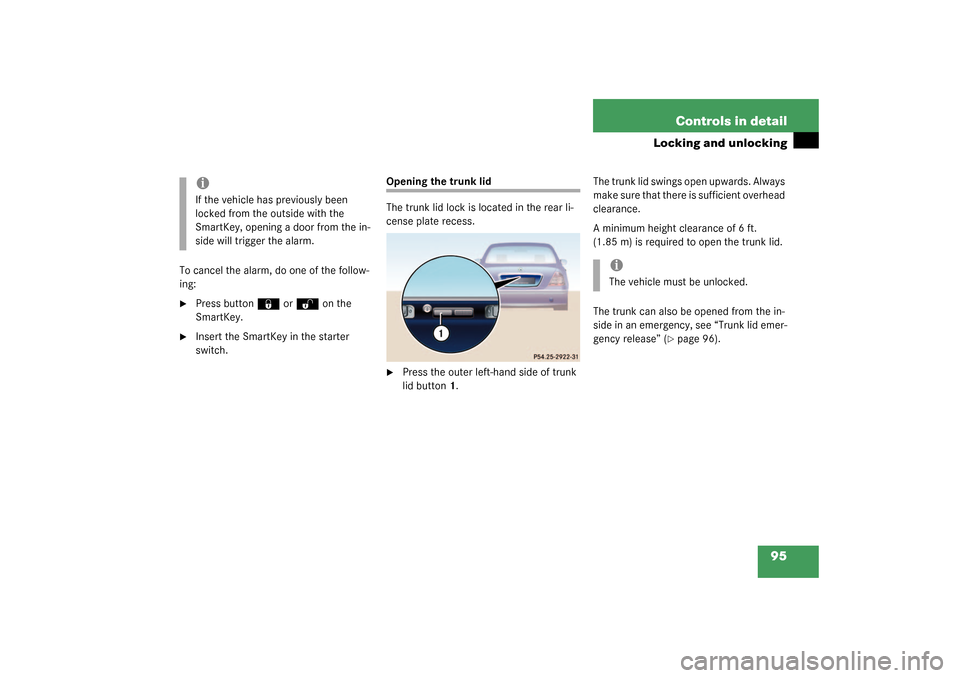

Opening the trunk lid
The trunk lid lock is located in the rear li-
cense plate recess.
Press the outer left-hand side of trunk
lid button1.The trunk lid swings open upwards. Always
make sure that there is sufficient overhead
clearance.
A minimum height clearance of 6 ft.
(1.85 m) is required to open the trunk lid.
The trunk can also be opened from the in-
side in an emergency, see “Trunk lid emer-
gency release” (
page 96).
iIf the vehicle has previously been
locked from the outside with the
SmartKey, opening a door from the in-
side will trigger the alarm.
iThe vehicle must be unlocked.
