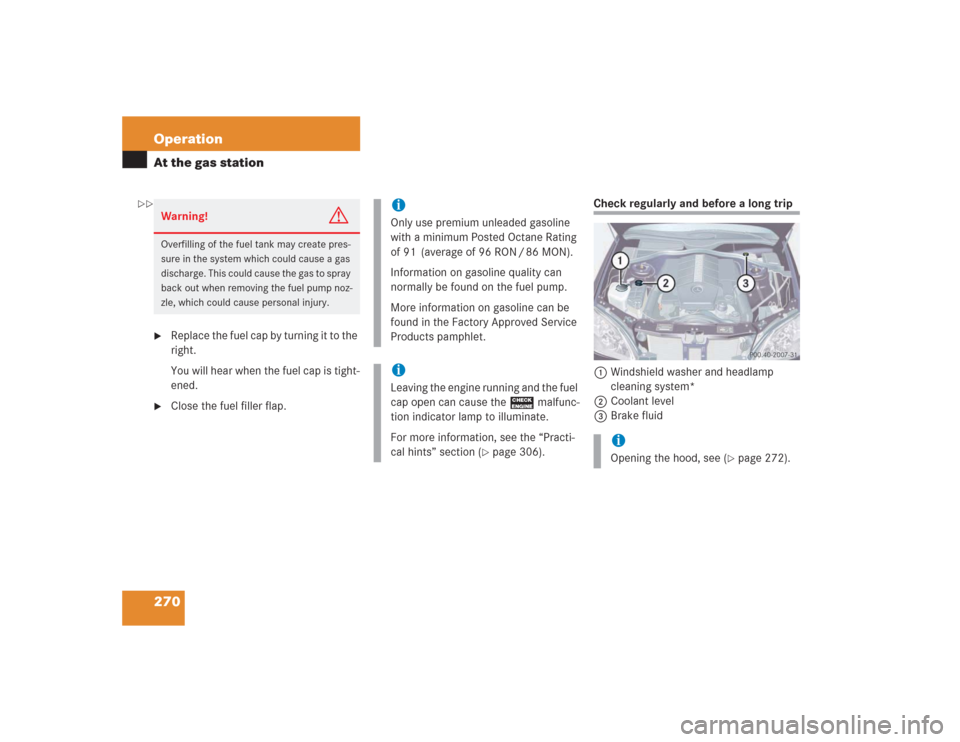

270 OperationAt the gas station
Replace the fuel cap by turning it to the
right.
You will hear when the fuel cap is tight-
ened.

Close the fuel filler flap.
Check regularly and before a long trip
1Windshield washer and headlamp
cleaning system*
2Coolant level
3Brake fluid
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
iOnly use premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.iLeaving the engine running and the fuel
cap open can cause the ? malfunc-
tion indicator lamp to illuminate.
For more information, see the “Practi-
cal hints” section (
page 306).
iOpening the hood, see (
page 272).


271 Operation
At the gas station
Windshield washer system and head-
lamp cleaning system*
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system*”
(page 281).
Coolant
For more information on coolant, see
“Coolant” (
page 278) and see “Fuels,
coolants, lubricants, etc.” (
page 391).Brake fluid
For information on brake fluid, see “Brake
fluid” (
page 394)Engine oil level
For more information on engine oil, see
“Engine oil” (
page 273).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 353).
For more information, see “Switching on
headlamps” (
page 47).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 283).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see “Practical
hints” (
page 305).

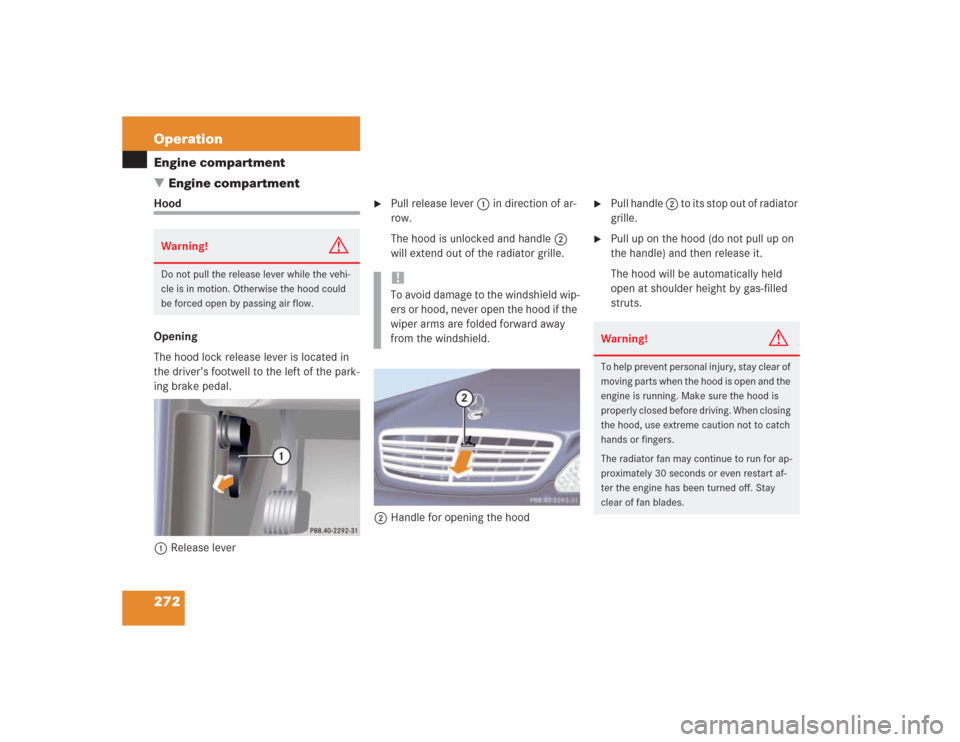

272 OperationEngine compartment
Engine compartmentHood
Opening
The hood lock release lever is located in
the driver’s footwell to the left of the park-
ing brake pedal.
1Release lever

Pull release lever 1 in direction of ar-
row.
The hood is unlocked and handle2
will extend out of the radiator grille.
2Handle for opening the hood

Pull handle 2 to its stop out of radiator
grille.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.

273 Operation
Engine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft. (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled down. If neces-
sary, call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
cranked manually
Warning!
G
Be careful that you do not close the hood on
anyone.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz will re-
strict your warranty entitlement.
More information on this subject is
available at any Mercedes-Benz
Center.

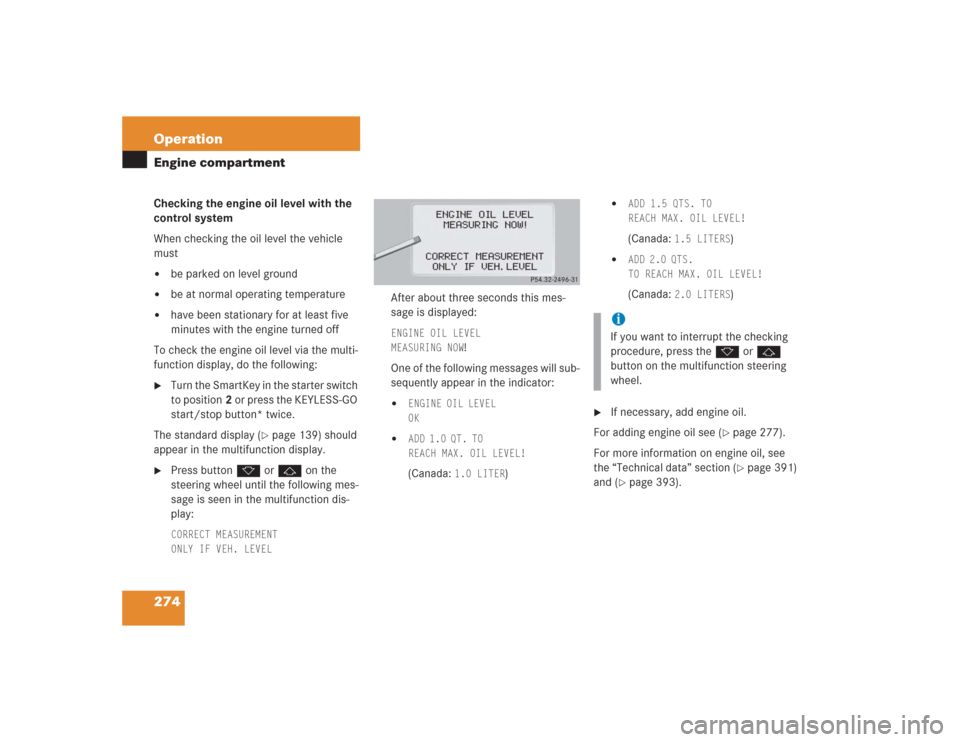

274 OperationEngine compartmentChecking the engine oil level with the
control system
When checking the oil level the vehicle
must

be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
To check the engine oil level via the multi-
function display, do the following:

Turn the SmartKey in the starter switch
to position2 or press the KEYLESS-GO
start/stop button* twice.
The standard display (
page 139) should
appear in the multifunction display.

Press buttonk or j on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:CORRECT MEASUREMENT
ONLY IF VEH. LEVEL
After about three seconds this mes-
sage is displayed:ENGINE OIL LEVEL
MEASURING NOW
!
One of the following messages will sub-
sequently appear in the indicator:


ENGINE OIL LEVEL
OK


ADD 1.0 QT. TO
REACH MAX. OIL LEVEL!(Canada:
1.0 LITER
)


ADD 1.5 QTS. TO
REACH MAX. OIL LEVEL!(Canada:
1.5 LITERS
)


A D D 2 . 0 Q T S .
TO REACH MAX. OIL LEVEL!(Canada:
2.0 LITERS
)

If necessary, add engine oil.
For adding engine oil see (
page 277).
For more information on engine oil, see
the “Technical data” section (page 391)
and (
page 393).
iIf you want to interrupt the checking
procedure, press thek or j
button on the multifunction steering
wheel.

275 Operation
Engine compartment
Other display messages
If the SmartKey or KEYLESS-GO start/stop
button* is not in position 2, the following
message will appear:FOR ENGINE OIL LEVEL
IGNITION ON!
Switch on ignition.
If you see the message:
PERF. SERV. ON TIME
If engine is at normal operating
temperature, wait five minutes before
repeating check procedure.

If engine is not yet at normal operating
temperature, wait 30 minutes before
repeating check procedure.If you see the message:
ENGINE OIL LEVEL
NOT WHEN ENGINE ON!
Turn off the engine.

If the engine is at normal operating
temperature, wait five minutes before
checking oil.

If the engine is not yet at normal oper-
ating temperature, you must wait
30 minutes before checking oil.
If there is excess engine oil with the engine
at normal operating temperature, the fol-
lowing message will appear:
ENGINE OIL LEVEL
REDUCE OIL LEVEL
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.For more information on messages in the
display concerning engine oil , see the
“Practical hints” section (
page 326).
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.iPerform the engine oil level check with
the dipstick (S 430, S 500, and
S 55 AMG only) if it cannot be complet-
ed with the control system .
In this case we recommend that you
have the system checked at a
Mercedes-Benz Center.

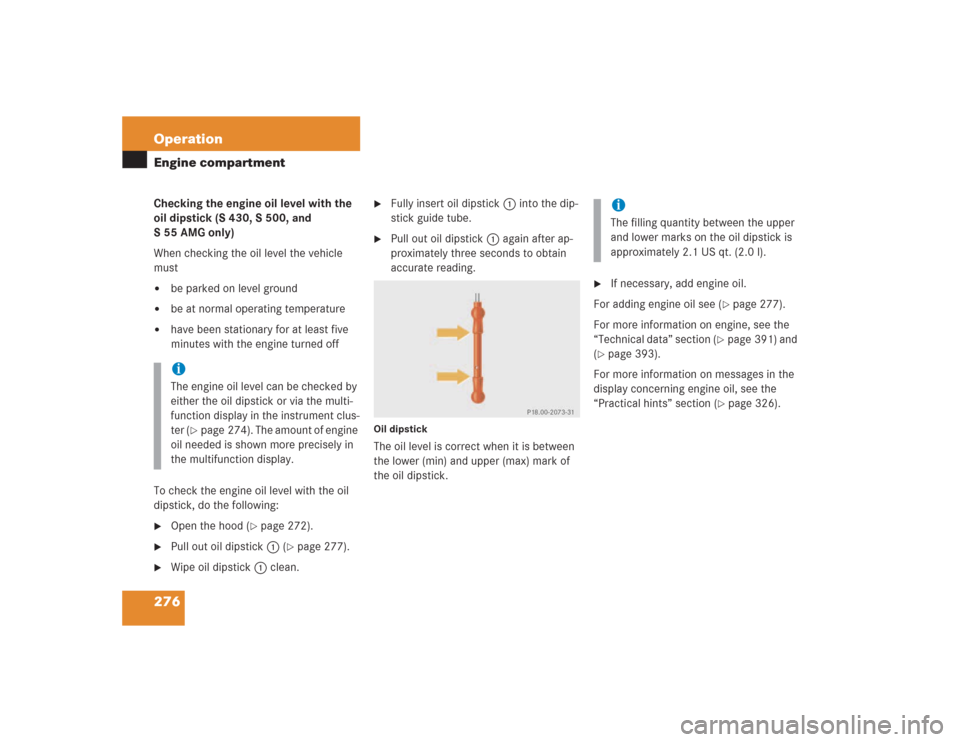

276 OperationEngine compartmentChecking the engine oil level with the
oil dipstick (S 430, S 500, and
S55AMG only)
When checking the oil level the vehicle
must

be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
To check the engine oil level with the oil
dipstick, do the following:

Open the hood (
page 272).

Pull out oil dipstick1 (
page 277).

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 into the dip-
stick guide tube.

Pull out oil dipstick1 again after ap-
proximately three seconds to obtain
accurate reading.
Oil dipstickThe oil level is correct when it is between
the lower (min) and upper (max) mark of
the oil dipstick.

If necessary, add engine oil.
For adding engine oil see (
page 277).
For more information on engine, see the
“Technical data” section (
page 391) and
(
page 393).
For more information on messages in the
display concerning engine oil, see the
“Practical hints” section (
page 326).
iThe engine oil level can be checked by
either the oil dipstick or via the multi-
function display in the instrument clus-
ter (
page 274). The amount of engine
oil needed is shown more precisely in
the multifunction display.
iThe filling quantity between the upper
and lower marks on the oil dipstick is
approximately 2.1 US qt. (2.0 l).

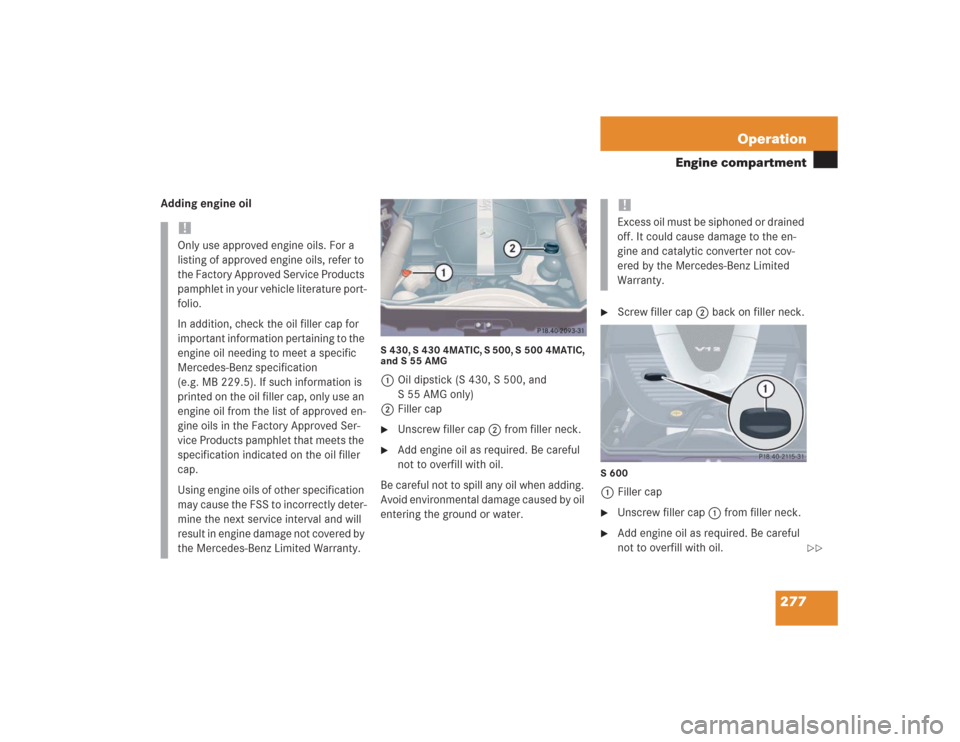

277 Operation
Engine compartment
Adding engine oil
S 430, S 430 4MATIC, S 500, S 500 4MATIC,
and S 55 AMG1Oil dipstick (S 430, S 500, and
S 55 AMG only)
2Filler cap
Unscrew filler cap2 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap2 back on filler neck.
S 6001Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
!Only use approved engine oils. For a
listing of approved engine oils, refer to
the Factory Approved Service Products
pamphlet in your vehicle literature port-
folio.
In addition, check the oil filler cap for
important information pertaining to the
engine oil needing to meet a specific
Mercedes-Benz specification
(e.g. MB 229.5). If such information is
printed on the oil filler cap, only use an
engine oil from the list of approved en-
gine oils in the Factory Approved Ser-
vice Products pamphlet that meets the
specification indicated on the oil filler
cap.
Using engine oils of other specification
may cause the FSS to incorrectly deter-
mine the next service interval and will
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.


278 OperationEngine compartmentBe careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine, see the
“Technical data” section (
page 391) and
(
page 393).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Active Body Control* (ABC*) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.
Coolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground, and


the engine must be cool.
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.


279 Operation
Engine compartment

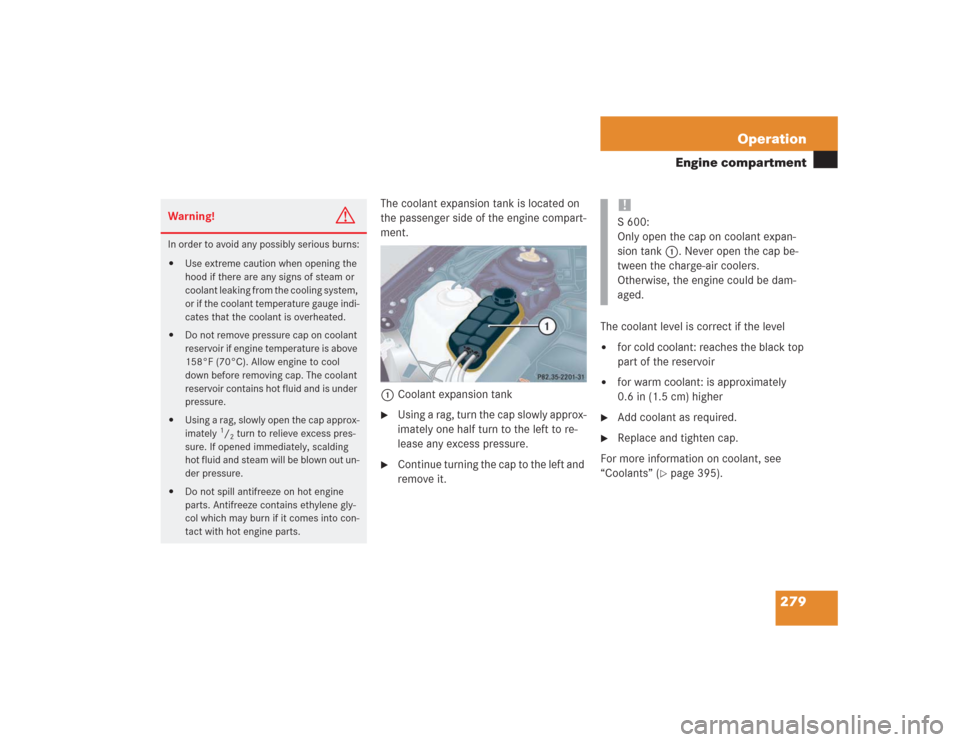

The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank
Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.The coolant level is correct if the level


for cold coolant: reaches the black top
part of the reservoir


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information on coolant, see
“Coolants” (
page 395).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
158°F (70°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
!S 600:
Only open the cap on coolant expan-
sion tank1. Never open the cap be-
tween the charge-air coolers.
Otherwise, the engine could be dam-
aged.
