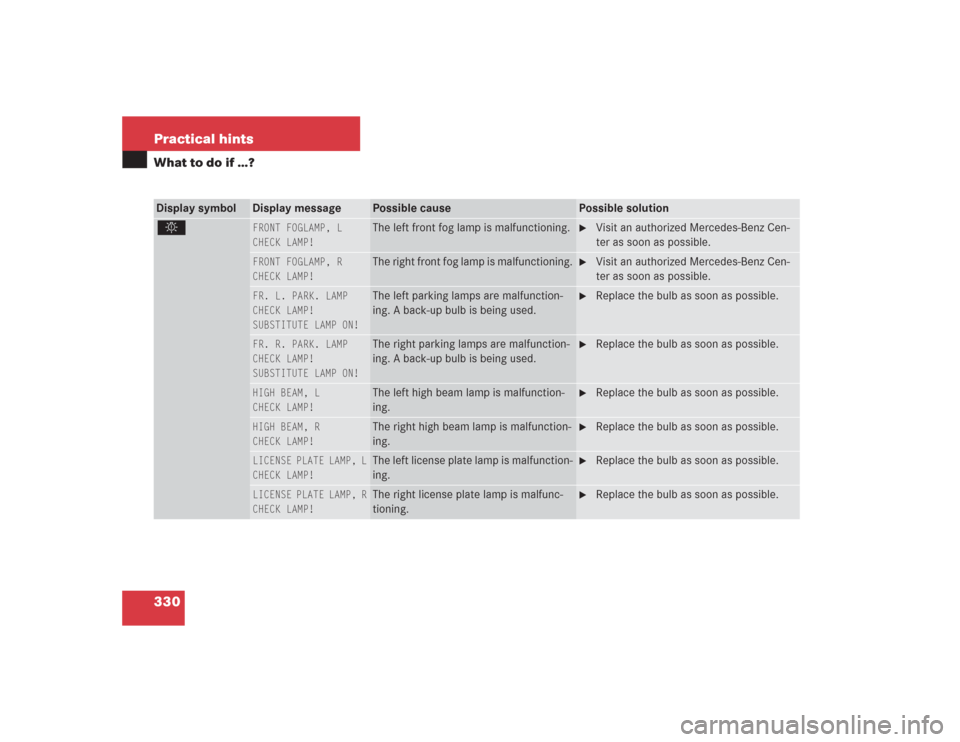

330 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
.
FRONT FOGLAMP, L
CHECK LAMP!
The left front fog lamp is malfunctioning.
Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
FRONT FOGLAMP, R
CHECK LAMP!
The right front fog lamp is malfunctioning.
Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
FR. L. PARK. LAMP
CHECK LAMP!
SUBSTITUTE LAMP ON!
The left parking lamps are malfunction-
ing. A back-up bulb is being used.
Replace the bulb as soon as possible.
FR. R. PARK. LAMP
CHECK LAMP!
SUBSTITUTE LAMP ON!
The right parking lamps are malfunction-
ing. A back-up bulb is being used.
Replace the bulb as soon as possible.
HIGH BEAM, L
CHECK LAMP!
The left high beam lamp is malfunction-
ing.
Replace the bulb as soon as possible.
HIGH BEAM, R
CHECK LAMP!
The right high beam lamp is malfunction-
ing.
Replace the bulb as soon as possible.
LICENSE PLATE LAMP, L
CHECK LAMP!
The left license plate lamp is malfunction-
ing.
Replace the bulb as soon as possible.
LICENSE PLATE LAMP, R
CHECK LAMP!
The right license plate lamp is malfunc-
tioning.
Replace the bulb as soon as possible.
Page 332 of 435

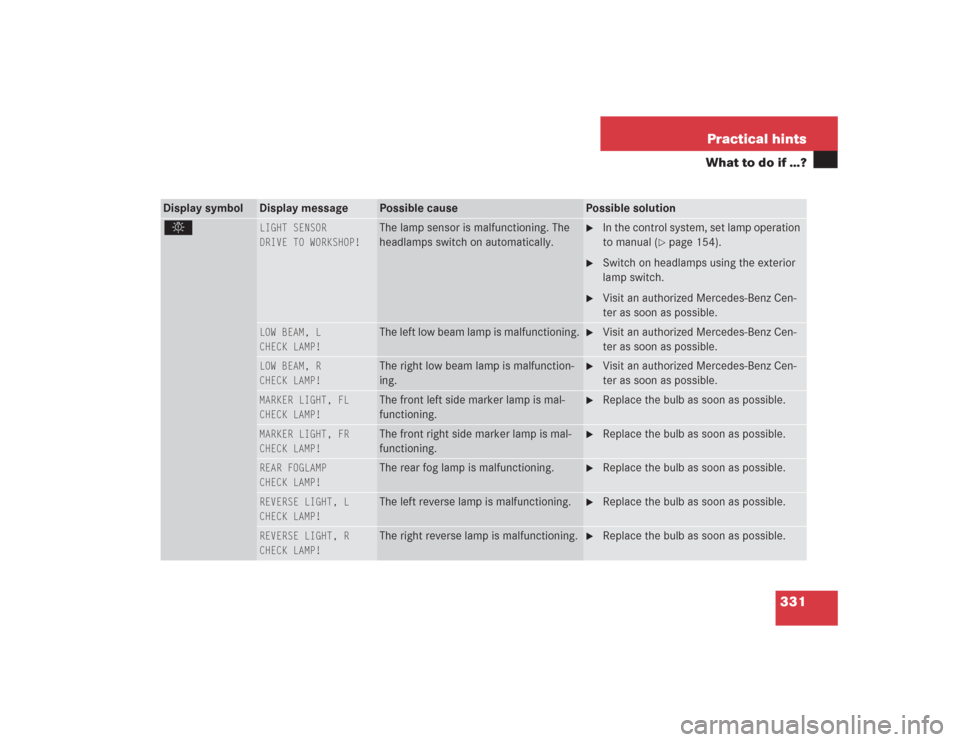

331 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
.
LIGHT SENSOR
DRIVE TO WORKSHOP!
The lamp sensor is malfunctioning. The
headlamps switch on automatically.
In the control system, set lamp operation
to manual (
page 154).
Switch on headlamps using the exterior
lamp switch.
Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
LOW BEAM, L
CHECK LAMP!
The left low beam lamp is malfunctioning.
Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
LOW BEAM, R
CHECK LAMP!
The right low beam lamp is malfunction-
ing.
Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
MARKER LIGHT, FL
CHECK LAMP!
The front left side marker lamp is mal-
functioning.
Replace the bulb as soon as possible.
MARKER LIGHT, FR
CHECK LAMP!
The front right side marker lamp is mal-
functioning.
Replace the bulb as soon as possible.
REAR FOGLAMP
CHECK LAMP!
The rear fog lamp is malfunctioning.
Replace the bulb as soon as possible.
REVERSE LIGHT, L
CHECK LAMP!
The left reverse lamp is malfunctioning.
Replace the bulb as soon as possible.
REVERSE LIGHT, R
CHECK LAMP!
The right reverse lamp is malfunctioning.
Replace the bulb as soon as possible.
Page 333 of 435

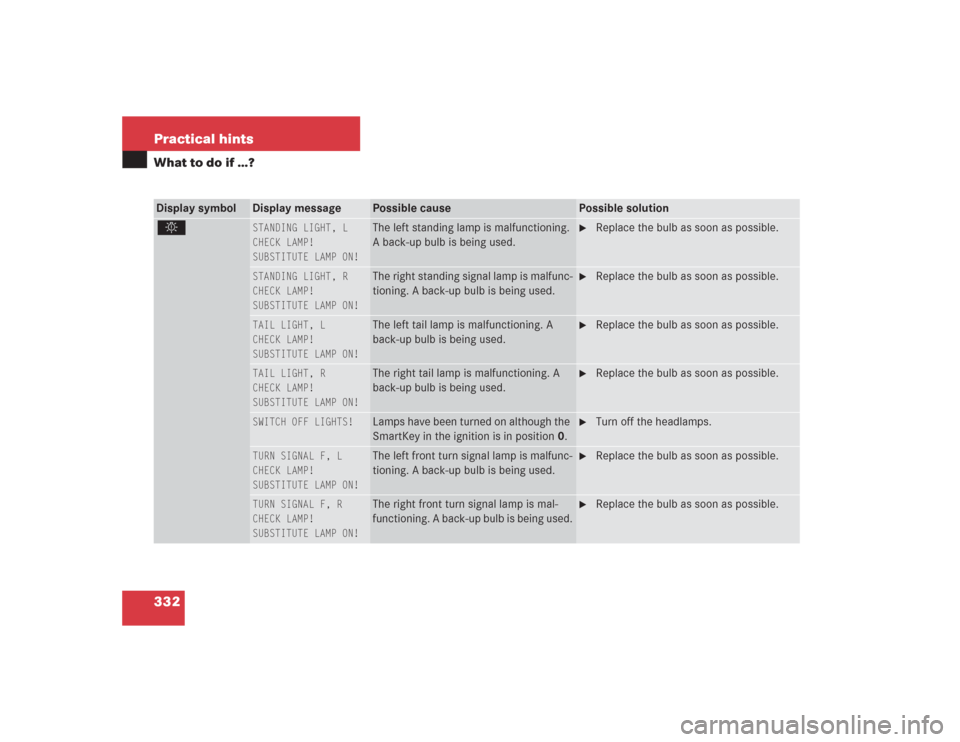

332 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
.
STANDING LIGHT, L
CHECK LAMP!
SUBSTITUTE LAMP ON!
The left standing lamp is malfunctioning.
A back-up bulb is being used.
Replace the bulb as soon as possible.
STANDING LIGHT, R
CHECK LAMP!
SUBSTITUTE LAMP ON!
The right standing signal lamp is malfunc-
tioning. A back-up bulb is being used.
Replace the bulb as soon as possible.
TAIL LIGHT, L
CHECK LAMP!
SUBSTITUTE LAMP ON!
The left tail lamp is malfunctioning. A
back-up bulb is being used.
Replace the bulb as soon as possible.
TAIL LIGHT, R
CHECK LAMP!
SUBSTITUTE LAMP ON!
The right tail lamp is malfunctioning. A
back-up bulb is being used.
Replace the bulb as soon as possible.
SWITCH OFF LIGHTS!
Lamps have been turned on although the
SmartKey in the ignition is in position 0.
Turn off the headlamps.
TURN SIGNAL F, L
CHECK LAMP!
SUBSTITUTE LAMP ON!
The left front turn signal lamp is malfunc-
tioning. A back-up bulb is being used.
Replace the bulb as soon as possible.
TURN SIGNAL F, R
CHECK LAMP!
SUBSTITUTE LAMP ON!
The right front turn signal lamp is mal-
functioning. A back-up bulb is being used.
Replace the bulb as soon as possible.
Page 334 of 435

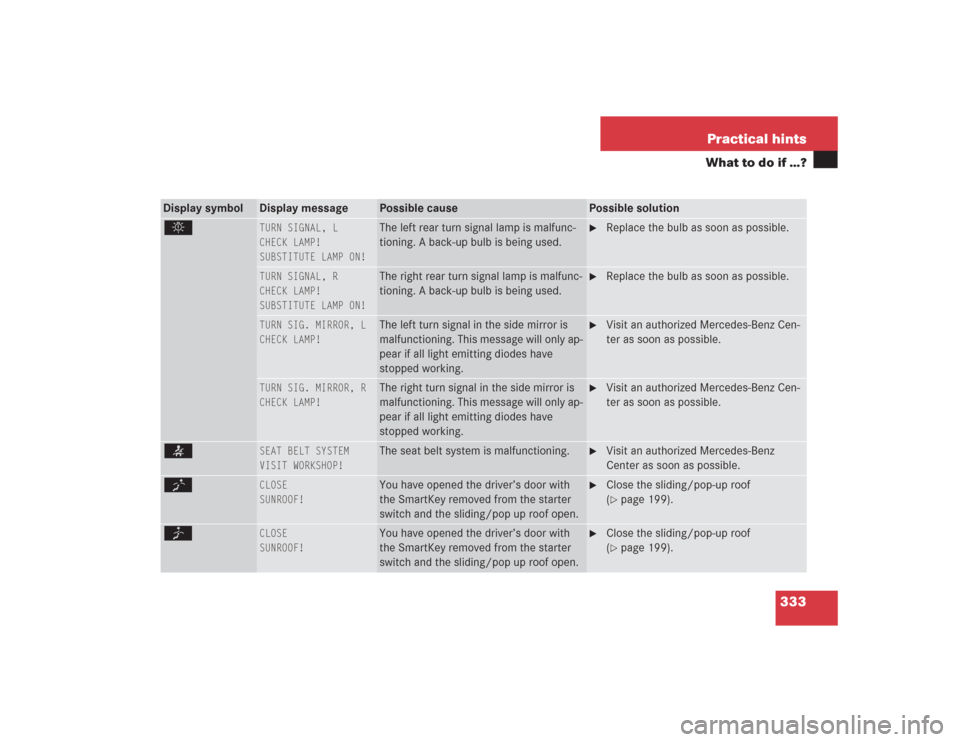

333 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
.
TURN SIGNAL, L
CHECK LAMP!
SUBSTITUTE LAMP ON!
The left rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.
Replace the bulb as soon as possible.
TURN SIGNAL, R
CHECK LAMP!
SUBSTITUTE LAMP ON!
The right rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.
Replace the bulb as soon as possible.
TURN SIG. MIRROR, L
CHECK LAMP!
The left turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.
Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
TURN SIG. MIRROR, R
CHECK LAMP!
The right turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.
Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
<
SEAT BELT SYSTEM
VISIT WORKSHOP!
The seat belt system is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
K
CLOSE
SUNROOF!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding/pop up roof open.
Close the sliding/pop-up roof
(page 199).
J
CLOSE
SUNROOF!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding/pop up roof open.
Close the sliding/pop-up roof
(page 199).
Page 335 of 435

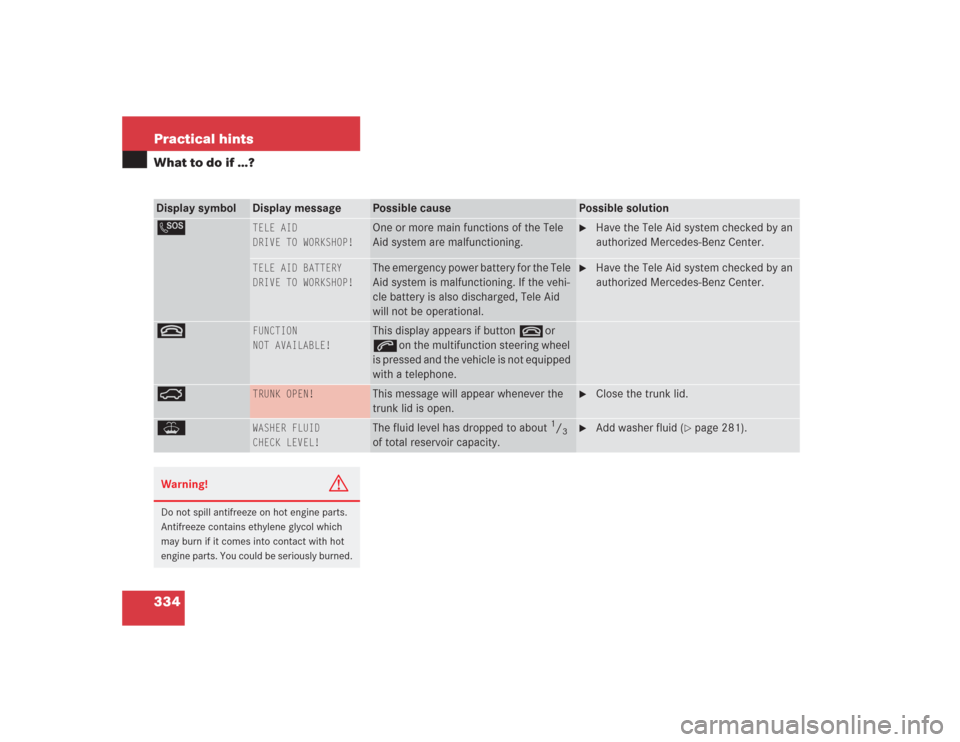

334 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
L
TELE AID
DRIVE TO WORKSHOP!
One or more main functions of the Tele
Aid system are malfunctioning.
Have the Tele Aid system checked by an
authorized Mercedes-Benz Center.
TELE AID BATTERY
DRIVE TO WORKSHOP!
The emergency power battery for the Tele
Aid system is malfunctioning. If the vehi-
cle battery is also discharged, Tele Aid
will not be operational.
Have the Tele Aid system checked by an
authorized Mercedes-Benz Center.
t
FUNCTION
NOT AVAILABLE!
This display appears if button t or
s on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
TRUNK OPEN!
This message will appear whenever the
trunk lid is open.
Close the trunk lid.
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 281).
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You could be seriously burned.
Page 336 of 435

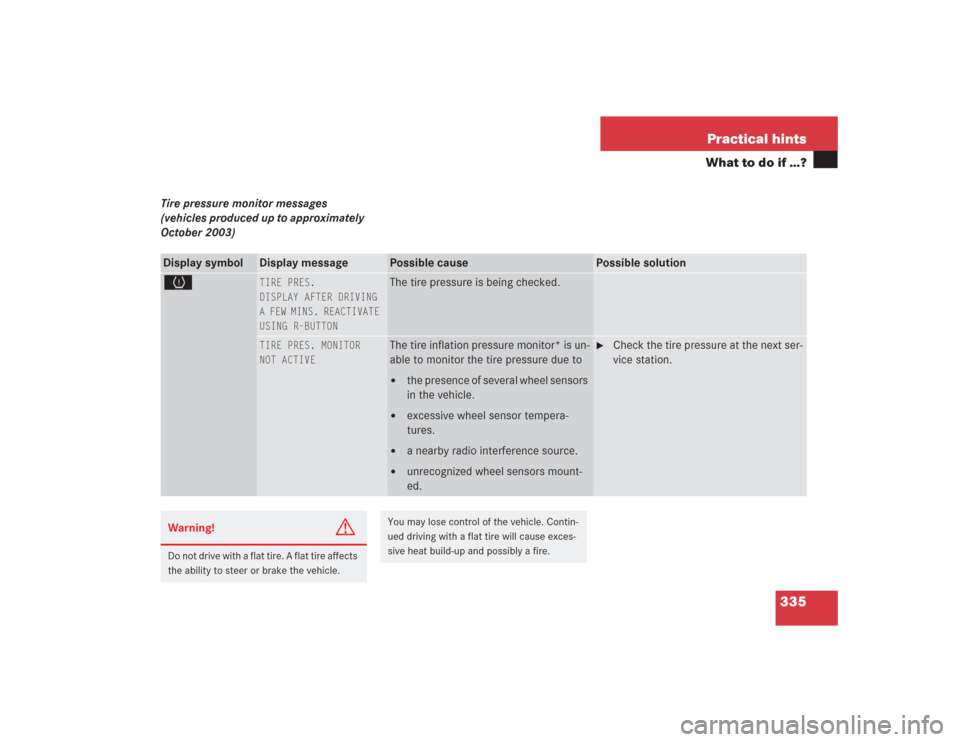

335 Practical hints
What to do if …?
Tire pressure monitor messages
(vehicles produced up to approximately
October 2003)Display symbol
Display message
Possible cause
Possible solution
H
TIRE PRES.
DISPLAY AFTER DRIVING
A FEW MINS. REACTIVATE
USING R-BUTTON
The tire pressure is being checked.
TIRE PRES. MONITOR
NOT ACTIVE
The tire inflation pressure monitor* is un-
able to monitor the tire pressure due to
the presence of several wheel sensors
in the vehicle.
excessive wheel sensor tempera-
tures.
a nearby radio interference source.
unrecognized wheel sensors mount-
ed.
Check the tire pressure at the next ser-
vice station.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 337 of 435

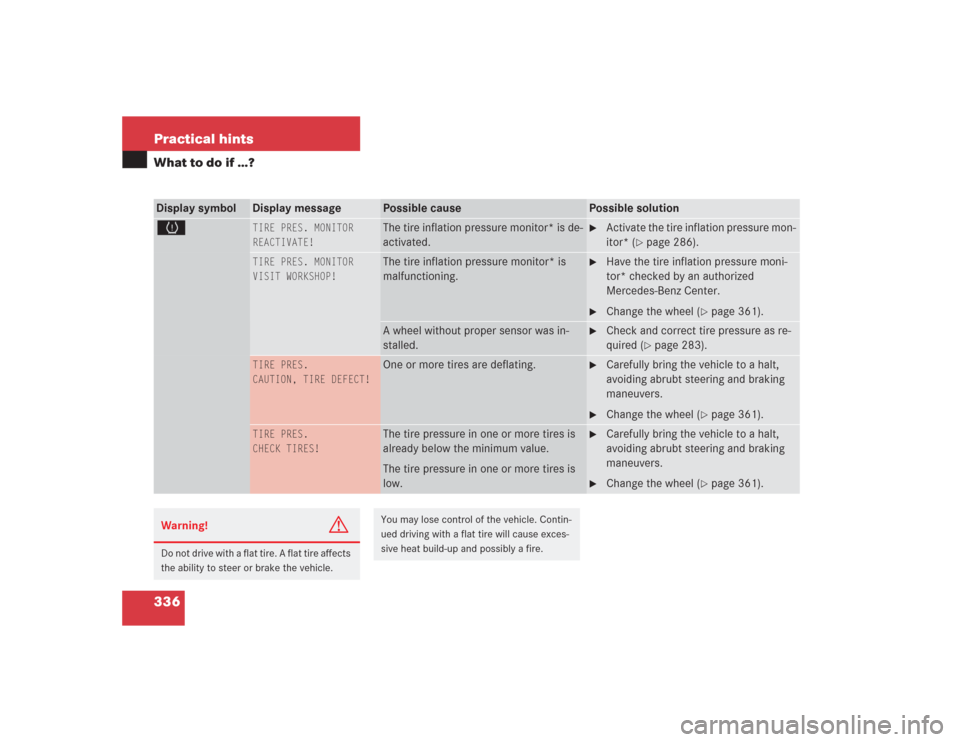

336 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
H
TIRE PRES. MONITOR
REACTIVATE!
The tire inflation pressure monitor* is de-
activated.
Activate the tire inflation pressure mon-
itor* (
page 286).
TIRE PRES. MONITOR
VISIT WORKSHOP!
The tire inflation pressure monitor* is
malfunctioning.
Have the tire inflation pressure moni-
tor* checked by an authorized
Mercedes-Benz Center.
Change the wheel (
page 361).
A wheel without proper sensor was in-
stalled.
Check and correct tire pressure as re-
quired (
page 283).
TIRE PRES.
CAUTION, TIRE DEFECT!
One or more tires are deflating.
Carefully bring the vehicle to a halt,
avoiding abrubt steering and braking
maneuvers.
Change the wheel (
page 361).
TIRE PRES.
CHECK TIRES!
The tire pressure in one or more tires is
already below the minimum value.
The tire pressure in one or more tires is
low.
Carefully bring the vehicle to a halt,
avoiding abrubt steering and braking
maneuvers.
Change the wheel (
page 361).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 338 of 435

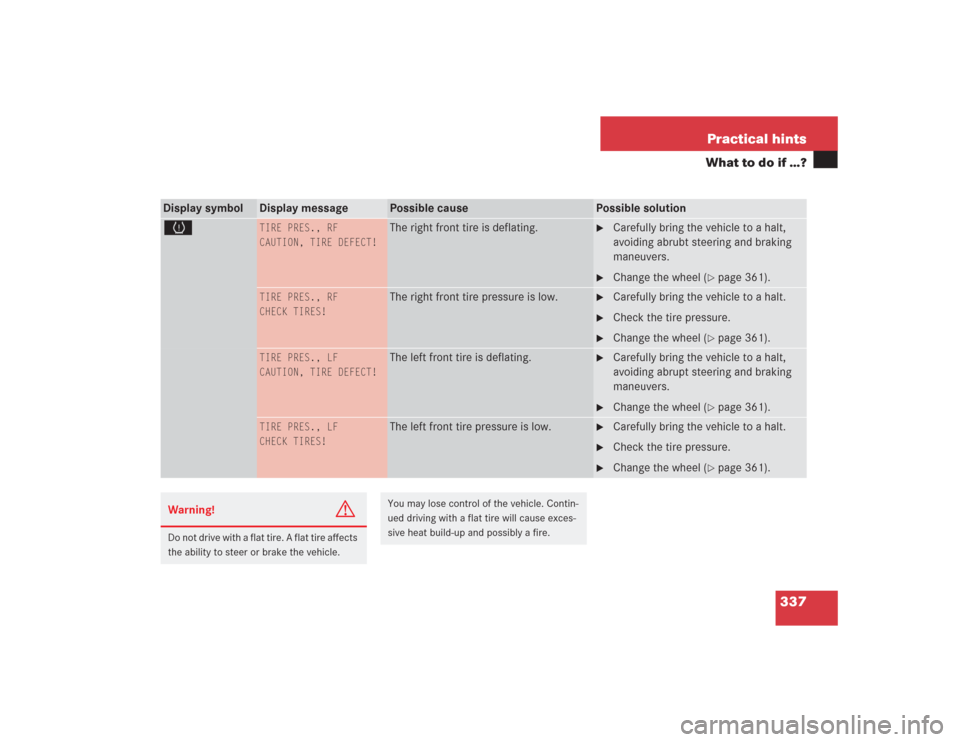

337 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
H
TIRE PRES., RF
CAUTION, TIRE DEFECT!
The right front tire is deflating.
Carefully bring the vehicle to a halt,
avoiding abrubt steering and braking
maneuvers.
Change the wheel (
page 361).
TIRE PRES., RF
CHECK TIRES!
The right front tire pressure is low.
Carefully bring the vehicle to a halt.
Check the tire pressure.
Change the wheel (
page 361).
TIRE PRES., LF
CAUTION, TIRE DEFECT!
The left front tire is deflating.
Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers.
Change the wheel (
page 361).
TIRE PRES., LF
CHECK TIRES!
The left front tire pressure is low.
Carefully bring the vehicle to a halt.
Check the tire pressure.
Change the wheel (
page 361).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 339 of 435

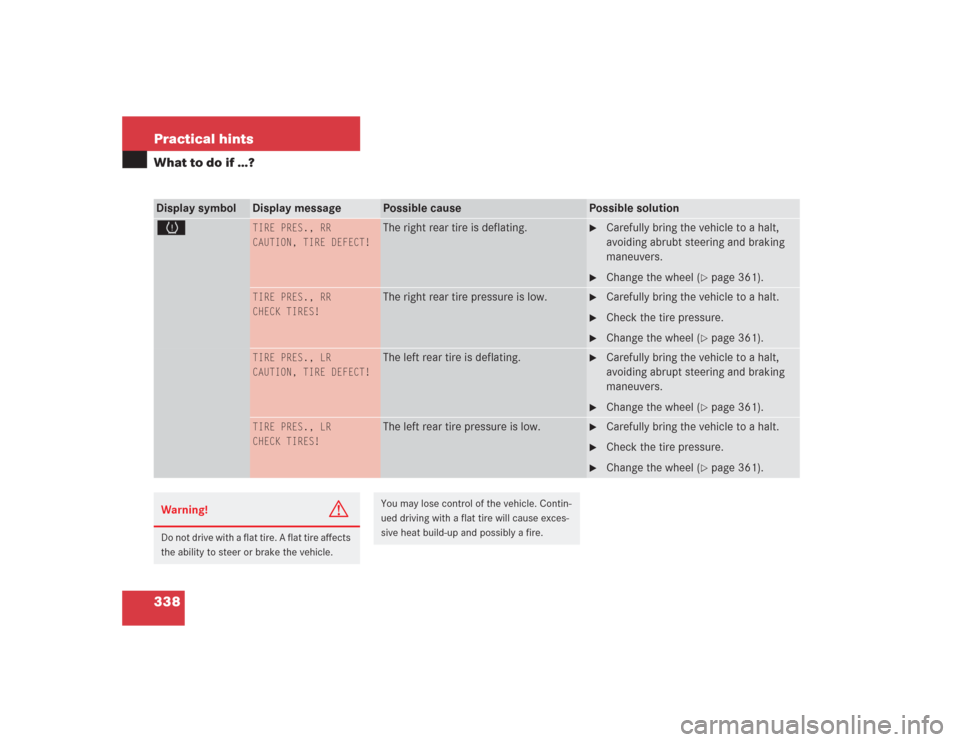

338 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
H
TIRE PRES., RR
CAUTION, TIRE DEFECT!
The right rear tire is deflating.
Carefully bring the vehicle to a halt,
avoiding abrubt steering and braking
maneuvers.
Change the wheel (
page 361).
TIRE PRES., RR
CHECK TIRES!
The right rear tire pressure is low.
Carefully bring the vehicle to a halt.
Check the tire pressure.
Change the wheel (
page 361).
TIRE PRES., LR
CAUTION, TIRE DEFECT!
The left rear tire is deflating.
Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers.
Change the wheel (
page 361).
TIRE PRES., LR
CHECK TIRES!
The left rear tire pressure is low.
Carefully bring the vehicle to a halt.
Check the tire pressure.
Change the wheel (
page 361).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 340 of 435
339 Practical hints

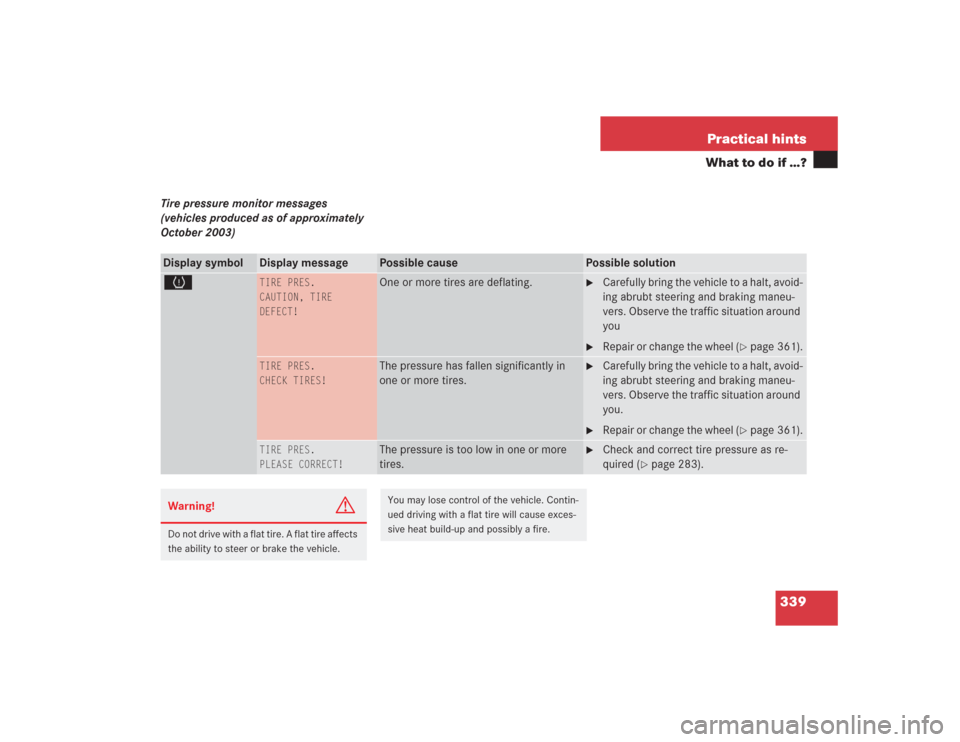

What to do if …?
Tire pressure monitor messages
(vehicles produced as of approximately
October 2003)Display symbol
Display message
Possible cause
Possible solution
H
TIRE PRES.
CAUTION, TIRE
DEFECT!
One or more tires are deflating.
Carefully bring the vehicle to a halt, avoid-
ing abrubt steering and braking maneu-
vers. Observe the traffic situation around
you
Repair or change the wheel (
page 361).
TIRE PRES.
CHECK TIRES!
The pressure has fallen significantly in
one or more tires.
Carefully bring the vehicle to a halt, avoid-
ing abrubt steering and braking maneu-
vers. Observe the traffic situation around
you.
Repair or change the wheel (
page 361).
TIRE PRES.
PLEASE CORRECT!
The pressure is too low in one or more
tires.
Check and correct tire pressure as re-
quired (
page 283).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
