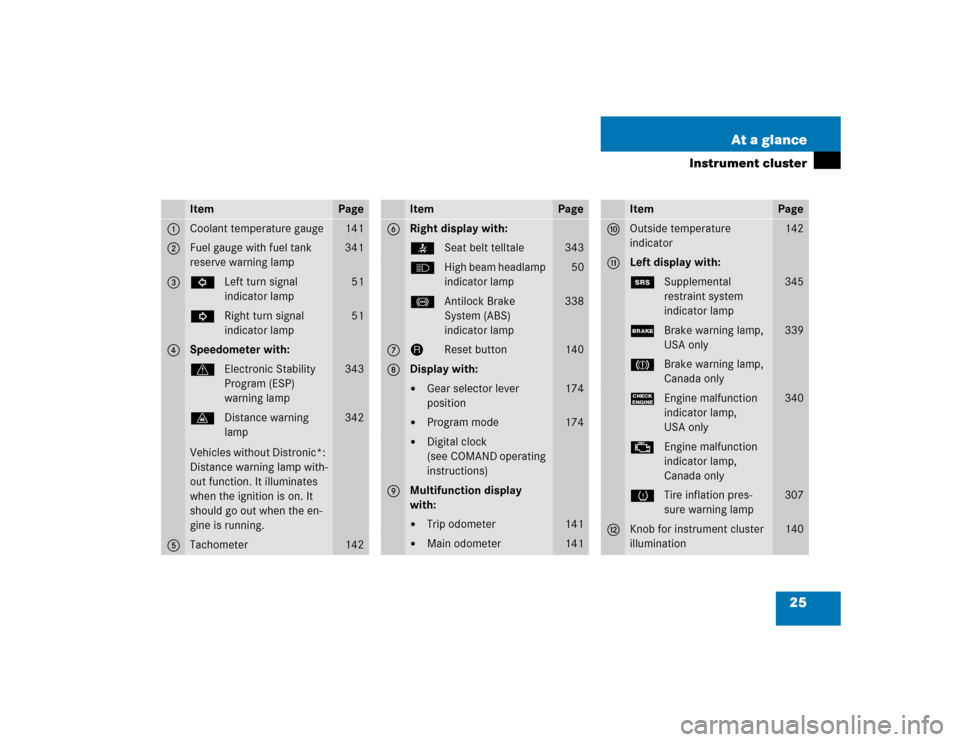

25 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
141
2
Fuel gauge with fuel tank
reserve warning lamp
341
3
LLeft turn signal
indicator lamp
51
KRight turn signal
indicator lamp
51
4
Speedometer with:vElectronic Stability
Program (ESP)
warning lamp
343
lDistance warning
lamp
Vehicles without Distronic*:
Distance warning lamp with-
out function. It illuminates
when the ignition is on. It
should go out when the en-
gine is running.
342
5
Tachometer
142
Item
Page
6
Right display with: 343
AHigh beam headlamp
indicator lamp
50
-Antilock Brake
System (ABS)
indicator lamp
338
7
JReset button
140
8
Display with:

Gear selector lever
position
174


Program mode
174


Digital clock
(see COMAND operating
instructions)
9
Multifunction display
with:

Trip odometer
141


Main odometer
141
Item
Page
a
Outside temperature
indicator
142
b
Left display with:1Supplemental
restraint system
indicator lamp
345
;Brake warning lamp,
USA only
339
3Brake warning lamp,
Canada only?Engine malfunction
indicator lamp,
USA only
340
±Engine malfunction
indicator lamp,
Canada onlyHTire inflation pres-
sure warning lamp
307
c
Knob for instrument cluster
illumination
140

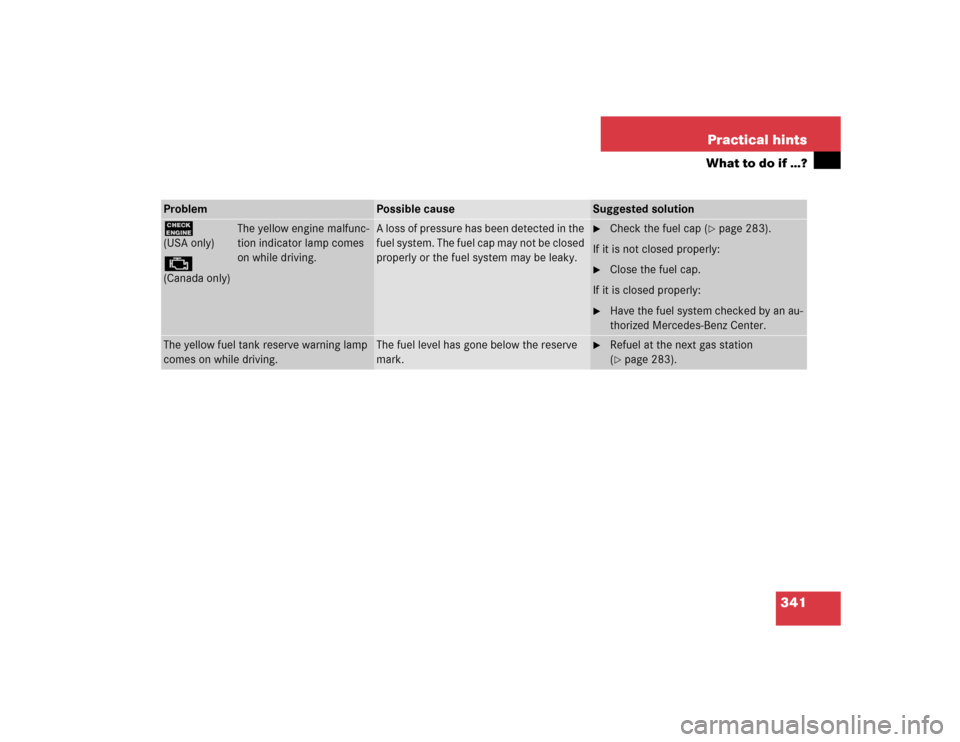

341 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
?(USA only)±(Canada only)
The yellow engine malfunc-
tion indicator lamp comes
on while driving.
A loss of pressure has been detected in the
fuel system. The fuel cap may not be closed
properly or the fuel system may be leaky.

Check the fuel cap (
page 283).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an au-
thorized Mercedes-Benz Center.
The yellow fuel tank reserve warning lamp
comes on while driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station
(page 283).

430 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Front wheel hubs
approx. 3.5 oz. (100 g)
each
High-temperature roller bearing
grease
Brake system
0.7 US qt. (0.7 l)
MB Brake Fluid (DOT 4+)
Cooling system
S 430, S 500
S 55 AMG
S 600
approx. 12.1 US qt. (11.5 l)
approx. 14.3 US qt. (13.5 l)
approx. 15.85 US qt. (15 l)
MB 325.0 Anticorrosion/Antifreeze
Low temperature cooling system
S 600
2.3 US qt. (2.2 l)
MB 325.0 Anticorrosion/Antifreeze
Fuel tank
23.2 US gal (88.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
including a reserve of
S 430, S 500, S 600
2.9 US gal (11.0 l)
including a reserve of
S55AMG
3.7 US gal (14.0 l)
Air conditioning system
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield washer
3.2 US qt. (3.0 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 436).Windshield washer and
headlamp cleaning system
7.1 US qt (6.7 l)
MB Windshield Washer Concentrate
1

452 IndexExterior rear view mirror
Auto-dimming on the driver’s
side 186
Exterior rear view mirrors
Adjusting 41
Folding electrically 188
Parking position for 171
F
Fahrenheit (°F)
Setting temperature units 163
Fastening the seat belts 43
Fine adjustment
Cruise control 216
Distronic* 223
First aid kit 379
Flat tire 398
Lowering the vehicle 402
Mounting the spare wheel 398
Preparing the vehicle 398
Flexible Service System (FSS) 328
Flexible Service System see FSS
Fog lamp, rear 134, 390
Replacing bulb 395Fog lamps
Replacing bulbs 390
Fog lamps, front
Messages in display 366
Switching on 134
Folding electrically
Exterior rear view mirrors 188
Four wheel electronic traction system
(4MATIC)
with ESP 85
4MATIC 85
Front air bags 65
Front lamps
Messages in display 366–369
Replacing bulbs 390, 392
Switching on 131
Front passenger front air bag off indicator
lamp 346
Front seat head restraints
Installing 116
Power seat 116
Removing 116
FSS (Flexible Service System) 328
FSS (Flexible Service System) (Canada
vehicles) 439Fuel 284
Fuel reserve warning lamp 341
Premium unleaded gasoline 284
Reserve warning lamp 25
Fuel consumption statistics
After start 157
Since last reset 158
Fuel filler flap 283
Locking 283
Opening 385
Unlocking 283
Fuel tank
Filler flap 283
Fuels, coolants, lubricants etc. 429
Functions (control system) 145, 147
Resetting 161
Fuse box 412, 413
Fuse chart 380
Fuses 411
Auxiliary fuse box in trunk 412
Fuse box in engine compartment 413
Fuse box in passenger
compartment 412
Fuse chart 380
Fuse extractor 380
Spare fuses 380

455 Index
J
Jump starting 406
K
Key see SmartKey 57, 58
Key, mechanical 383
Key, SmartKey
Checking the batteries 95
Locking 58
Key-dependency memory
Settings 169
KEYLESS-GO* 439
Activating ignition with 36
Locking 58
Locking the vehicle 101
Loss of SmartKey with
KEYLESS-GO 102
Messages in display 364
Starting the engine 47
Turning off engine 57Kickdown 180, 439
Kilometers/miles in speedometer 163
Kilopascal 323
Km/h or mph in speedometer 163
L
Lamp bulbs, exterior 389
Lamps, exterior
Front 390
Light sensor 366
Messages in display 367
Rear 390
Lamps, indicator and warning
ABS 338
Air bag Off 65
Battery (SmartKey with
KEYLESS-GO*) 100
Battery (SmartKey) 94
Brakes 339
Coolant 358
Distronic* 219Engine diagnostics 340, 341
Engine malfunction indicator
lamp 340, 341
ESP 342, 343
Front passenger front air bag off 346
Fuel reserve 341
Instrument cluster 338–345
Seat belts telltale 343
Service indicator 328
SRS 61
Language
Multifunction display 164
Setting 164
LATCH child seat anchors 76
Layout of poly-V-belt drive 419
Leather upholstery
Cleaning 336
Lever
For cruise control 221
License plate lamps
Replacing bulbs 390, 395
