80 Safety and Security
Driving safety systems
PRE-SAFE® Brake does not always clearly
interpret complex traffic situations. If a vi-
sual and/or acoustic warning is issued in
an uncritical driving situation, or if the ve-
hicle brakes lightly, you can interrupt the
PRE-SAFE
® Brake maneuver by

pressing down all the way on the accel-
erator or using kickdown

releasing the brake pedalThe PRE-SAFE
® Brake maneuver is termi-
nated immediately when

you avoid the obstacle by evasive
steering

you drive less than 9 mph (15 km/h)

an obstacle can no longer be identified
ahead of you

the system no longer senses the risk of
a collisionAfter a hard collision or damage to the
front of the vehicle from an accident, have
the settings and operation of the radar
sensors checked by an authorized
Mercedes-Benz Center.
iPRE-SAFE® Brake will remain passive while
DISTRONIC Plus* is switched on (
page 424).

81 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey: Remove the
SmartKey from the starter switch.
With the KEYLESS-GO*: Turn off the
engine (
page 346) and open the driv-
er’s door.
Deactivating
Switch on the ignition (page 344).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens:

a door

the trunk

the hood
The alarm will stay on even if the activating
element (a door, for example) is immedi-
ately closed.
The alarm system will also be triggered
when

the vehicle is opened with the
mechanical key

a door is opened from the inside
To cancel the alarm after it has been trig-
gered, see “Canceling the alarm”
(
page 82).1Indicator lamp
Arming: Lock your vehicle with the
SmartKey or KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the vehicle is locked.
The indicator lamp1 flashes to indi-
cate that the alarm system is armed.
iStarting the engine will also deactivate the
immobilizer.
In case the engine cannot be started (yet the ve-
hicle’s battery is charged), the system is not op-
erational. Contact an authorized Mercedes-Benz
Center or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
iIf the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system
(
page 510) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary mobile phone, power supply and GPS
coverage are available.


82 Safety and Security
Anti-theft systems
Disarming: Unlock your vehicle with
the SmartKey or KEYLESS-GO*.
The turn signal lamps flash once to in-
dicate that the alarm system is dis-
armed.
Canceling the alarm
To cancel the alarm, do one of the follow-
ing:
Insert the SmartKey or SmartKey with
KEYLESS-GO* in the starter switch.
Press the Œ or ‹ button on the
SmartKey or SmartKey with
KEYLESS-GO*.
In vehicles with KEYLESS-GO*:
Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
Press the KEYLESS-GO start/stop but-
ton (
page 346).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iIf the turn signal lamps does not flash three
times one of the following elements may not be
properly closed:

a door

the trunk
Close the respective element and lock the vehi-
cle again.
iThe alarm system will rearm automatically
again after approximately 40 seconds if no door
was opened.

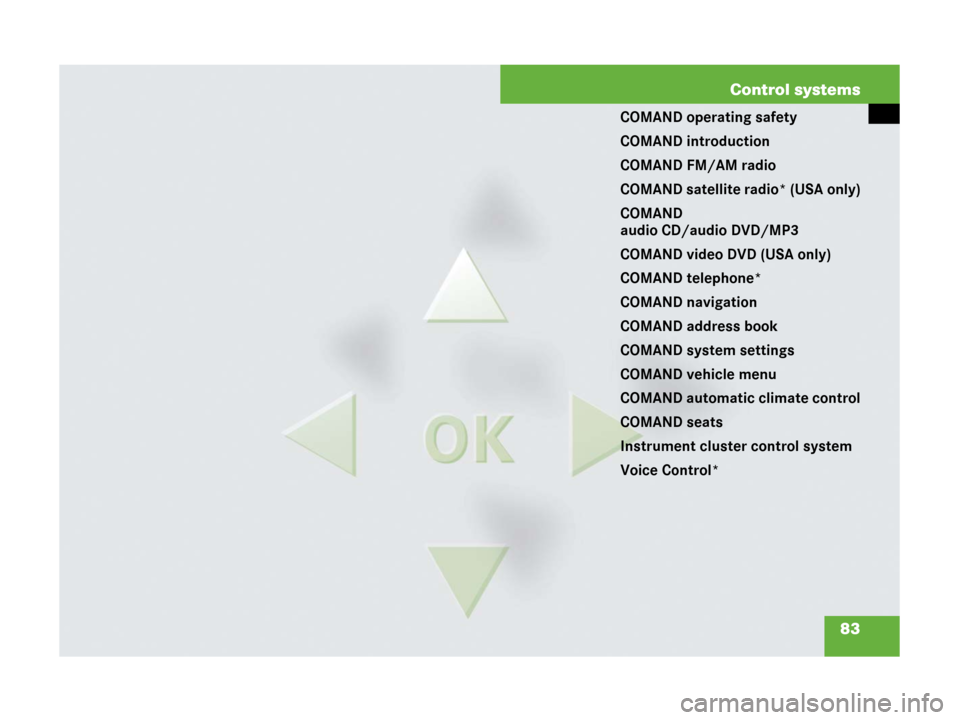

83 Control systems
COMAND operating safety
COMAND introduction
COMAND FM/AM radio
COMAND satellite radio* (USA only)
COMAND
audio CD/audio DVD/MP3
COMAND video DVD (USA only)
COMAND telephone*
COMAND navigation
COMAND address book
COMAND system settings
COMAND vehicle menu
COMAND automatic climate control
COMAND seats
Instrument cluster control system
Voice Control*

84 Control systems
COMAND operating safety

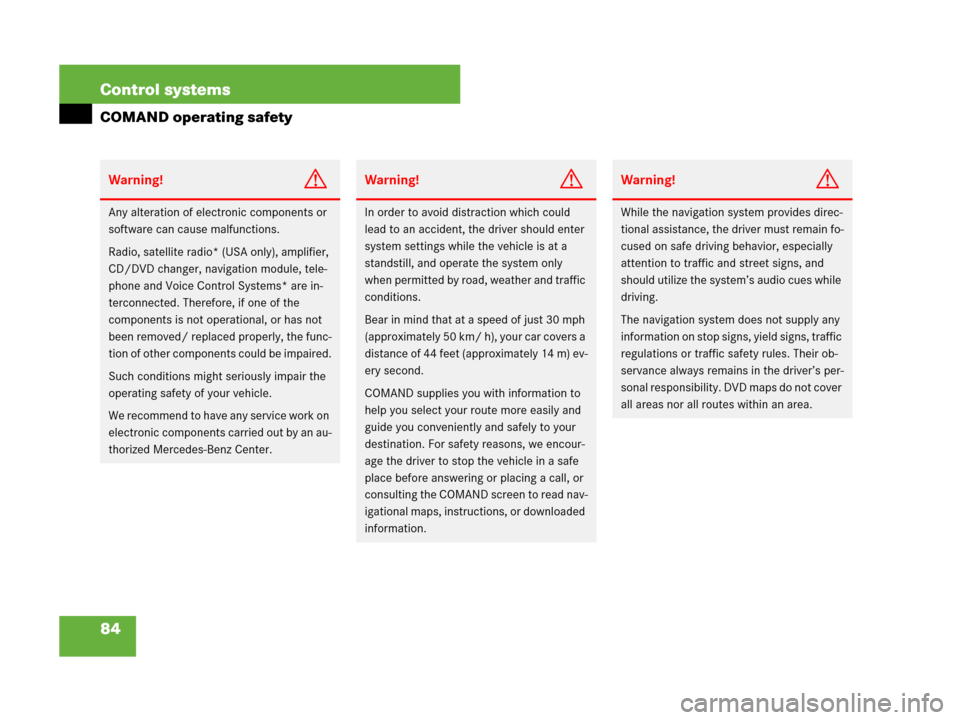

Warning!G
Any alteration of electronic components or
software can cause malfunctions.
Radio, satellite radio* (USA only), amplifier,
CD/DVD changer, navigation module, tele-
phone and Voice Control Systems* are in-
terconnected. Therefore, if one of the
components is not operational, or has not
been removed/ replaced properly, the func-
tion of other components could be impaired.
Such conditions might seriously impair the
operating safety of your vehicle.
We recommend to have any service work on
electronic components carried out by an au-
thorized Mercedes-Benz Center.
Warning!G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings while the vehicle is at a
standstill, and operate the system only
when permitted by road, weather and traffic
conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/ h), your car covers a
distance of 44 feet (approximately 14 m) ev-
ery second.
COMAND supplies you with information to
help you select your route more easily and
guide you conveniently and safely to your
destination. For safety reasons, we encour-
age the driver to stop the vehicle in a safe
place before answering or placing a call, or
consulting the COMAND screen to read nav-
igational maps, instructions, or downloaded
information.
Warning!G
While the navigation system provides direc-
tional assistance, the driver must remain fo-
cused on safe driving behavior, especially
attention to traffic and street signs, and
should utilize the system’s audio cues while
driving.
The navigation system does not supply any
information on stop signs, yield signs, traffic
regulations or traffic safety rules. Their ob-
servance always remains in the driver’s per-
sonal responsibility. DVD maps do not cover
all areas nor all routes within an area.

85 Control systems
COMAND introduction
COMAND introduction
COMAND (Cockpit Management and Data
System) is an information and operating
center for vehicle sound and communica-
tions systems, including the radio and nav-
igation system, as well as other optional
equipment (satellite radio*, telephone*,
etc.).
Availability of functions while the vehi-
cle is in motion
For safety reasons, certain COMAND func-
tions are not available while the vehicle is
in motion or they are only available to a
limited extent. You will notice this, for ex-
ample, by the fact that certain menu items
cannot be selected or that the COMAND
display shows a corresponding message.
Switching COMAND on or off
Press the o shortcut button in the
center console (
page 86).
COMAND calls up the menu last select-
ed.
COMAND components
In your vehicle, COMAND can be used to
operate:

audio functions

the navigation system

the telephone* and communication
functions (SMS*)

Video DVD (USA only)

various vehicle settings
COMAND consists of the following:

COMAND shortcut buttons

COMAND display

telephone* keypad

COMAND controller
iWhen you switch off COMAND, you also
switch off the currently playing audio source.
During a telephone call, you cannot switch off
COMAND.

86 Control systems
COMAND introduction
COMAND shortcut buttons
Use the COMAND shortcut buttons to se-
lect main functions directly.
Example:
Switching directly to Radio or CD
menu: Press M once or twice.COMAND display
In the COMAND display, you will find the
function currently selected and the corre-
sponding menus. The COMAND display is
divided into several areas.
1Status line
2Main functions
3Main area
4Submenus
5Climate control settings
A white bar under the main functions 2 in-
dicates the active area.
Once you have selected a main
function2, the main area 3 is active.
iDuring Dynamic Rear View Monitor* opera-
tion (
page 453) it is not possible to operate
the COMAND shortcut buttons.
FunctionPage
1PFavorite button238
2MShortcut button for:

CD/DVD

radio
120
101
3LBack button94
4OSeat menu259
5NShortcut button for:

telephone*

navigation
132
166
6oCOMAND on/off
button85
7,Volume control96
8FMute button96

87 Control systems
COMAND introduction
Instrument cluster multifunction
display
This section describes features and con-
trols via the COMAND controller, display
and shortcut buttons only.
Please refer to the “Instrument cluster
control system” section of this manual
(
page 264) for function descriptions and
operation of the instrument cluster multi-
function display and multifunction steering
wheel buttons as they relate to COMAND
features described in this section.Adjusting COMAND display
illumination
1Knob
Brightening illumination: Turn
knob1 clockwise.
Dimming illumination: Turn knob1
counterclockwise.Swiveling COMAND display
1Button for swiveling display to the left
2Button for swiveling display to the right
You can swivel the COMAND display to the
left or right. The buttons are on the
right-hand side of the instrument cluster.
iThe layout of the menus may vary depending
on your vehicle’s equipment. This manual shows
the menus for a fully equipped vehicle.

88 Control systems
COMAND introduction
Telephone keypad*
With the help of the telephone keypad, you
can use your mobile phone if it is inserted
in the cradle.
1Telephone keypad
2Folding coverCOMAND controller
Use the COMAND controller to select
menu functions shown on the COMAND
display.
1COMAND controllerYou can operate the COMAND controller
as follows:

press briefly or press and hold

rotate to the left or right

slide to the left, right, up, down or
diagonally
In this way, you can move through the
menus, select menu items or exit menus.
You can move through the menus either by
rotating or sliding the controller.
Operating COMAND controller

89 Control systems
COMAND introduction

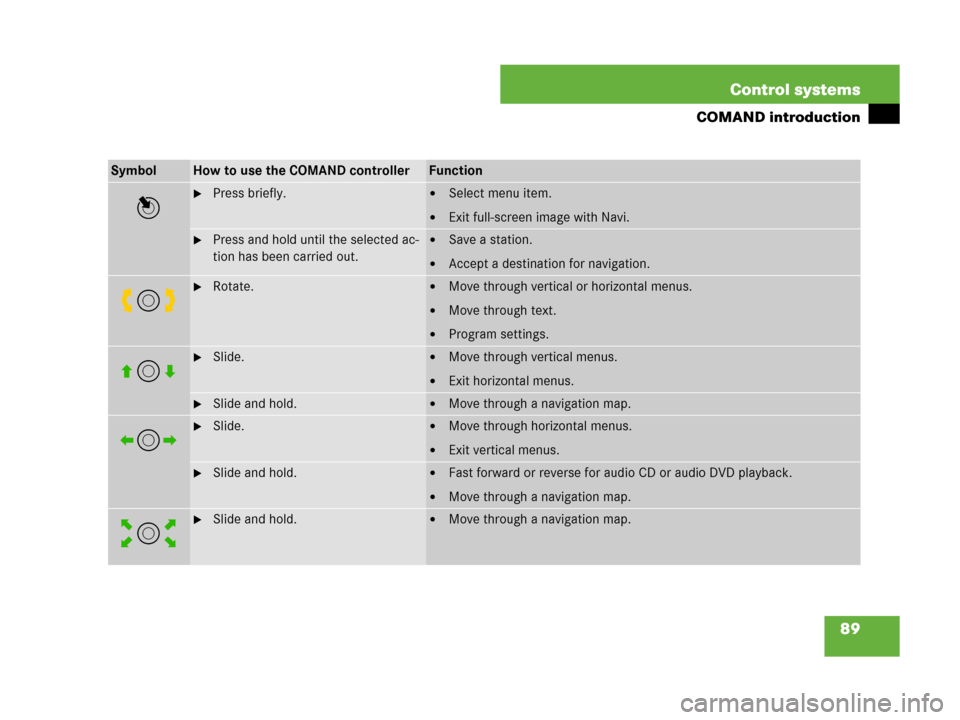

SymbolHow to use the COMAND controllerFunction
n
Press briefly.
Select menu item.

Exit full-screen image with Navi.
Press and hold until the selected ac-
tion has been carried out.
Save a station.

Accept a destination for navigation.
ymz
Rotate.
Move through vertical or horizontal menus.

Move through text.

Program settings.
qmr
Slide.
Move through vertical menus.

Exit horizontal menus.
Slide and hold.
Move through a navigation map.
omp
Slide.
Move through horizontal menus.

Exit vertical menus.
Slide and hold.
Fast forward or reverse for audio CD or audio DVD playback.

Move through a navigation map.
wmx
Slide and hold.
Move through a navigation map.
