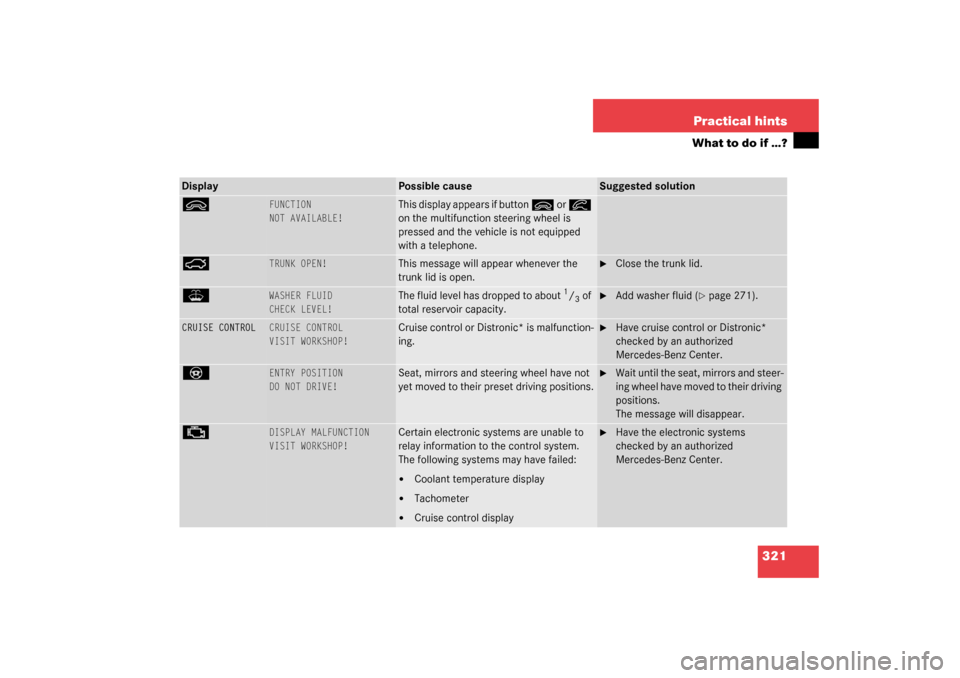

321 Practical hints
What to do if …?
ì
FUNCTION
NOT AVAILABLE!
This display appears if button
ì
or
í

on the multifunction steering wheel is
pressed and the vehicle is not equipped
with a telephone.
Ê
TRUNK OPEN!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 271).
CRUISE CONTROL
CRUISE CONTROL
VISIT WORKSHOP!
Cruise control or Distronic* is malfunction-
ing.

Have cruise control or Distronic*
checked by an authorized
Mercedes-Benz Center.
_
ENTRY POSITION
DO NOT DRIVE!
Seat, mirrors and steering wheel have not
yet moved to their preset driving positions.

Wait until the seat, mirrors and steer-
ing wheel have moved to their driving
positions.
The message will disappear.
±
DISPLAY MALFUNCTION
VISIT WORKSHOP!
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems
checked by an authorized
Mercedes-Benz Center.
Display
Possible cause
Suggested solution

371 Technical data
Fuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and recommended by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
S 430
S 500
S 55 AMG
S 600
8.5 US qt. (8.0 l)
8.5 US qt. (8.0 l)
7.9 US qt. (7.5 l)
9.5 US qt. (9.0 l)
Recommended engine oils
Automatic transmission
S 600
9.1 US qt. (8.6 l)
8.1 US qt. (7.7 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Rear axle
1.7 US qt. (1.6 l)
Hypoid gear oil SAE 85 W 90
Front axle
S 430 4MATIC
S 500 4MATIC
0.63 US qt. (0.6 l)
Hypoid gear oil SAE 85 W 90
Transfer case
S 430 4MATIC
S 500 4MATIC
0.62 US qt. (0.585 l)
MB Automatic Transmission Oil
1
Hydraulic system for ADS or ABC
4.2 US qt. (4.0 l)
MB Hydraulic Fluids
Power steering
approx. 1.1 US qt. (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 2.1 oz. (60 g) each
High-temperature roller bearing
grease

372 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Brake system
0.7 US qt. (0.7 l)
MB Brake Fluid (DOT 4+)
Cooling system
S 430
S 500
S 55 AMG
S 600
approx. 12.1 US qt. (11.5 l)
approx. 12.1 US qt. (11.5 l)
approx. 14.3 US qt. (13.5 l)
approx. 12.9 US qt. (12.2 l)
MB 325.0 Anticorrosion / Antifreeze
Low temperature cooling system
S 600
1.31 US qt. (1.24 l)
MB 325.0 Anticorrosion / Antifreeze
Fuel tank
including a reserve of
S430, S500,
and
S55AMG
S600
23.2 US gal. (88.0 l)
2.9 US gal. (11.0 l))
Premium unleaded gasoline:
Posted Octane 91
(Avg.of96RON/86MON)
Posted Octane 93
(Avg.of98RON/88MON)
Air conditioning system
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield washer and
headlamp cleaning system:
7.1 US qt. (6.7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing. Follow suggested mixing ratios (
page 377).

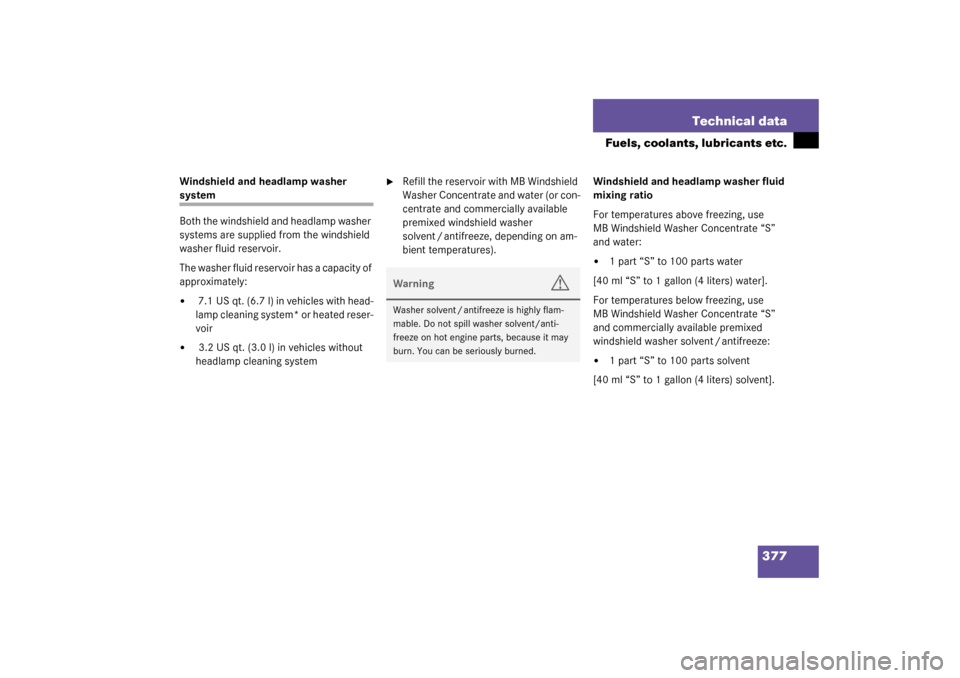

377 Technical data
Fuels, coolants, lubricants etc.
Windshield and headlamp washer system
Both the windshield and headlamp washer
systems are supplied from the windshield
washer fluid reservoir.
The washer fluid reservoir has a capacity of
approximately:

7.1 US qt. (6.7 l) in vehicles with head-
lamp cleaning system* or heated reser-
voir


3.2 US qt. (3.0 l) in vehicles without
headlamp cleaning system

Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer
solvent / antifreeze, depending on am-
bient temperatures).Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing, use
MB Windshield Washer Concentrate “S”
and water:


1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 liters) water].
For temperatures below freezing, use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent / antifreeze:


1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 liters) solvent].
Warning
G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer solvent/anti-
freeze on hot engine parts, because it may
burn. You can be seriously burned.
