instrument panel MERCEDES-BENZ S600 2003 W220 Owner's Manual

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the
USA or Canada............................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18At a glance......................................... 19
Cockpit ................................................ 20
Instrument cluster ............................... 22
Multifunction steering wheel ............... 24Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28
Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey.......... 30
Unlocking with KEYLESS-GO* ......... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts.................. 40
Starting the engine ......................... 42
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47
Problems while driving .................... 48
Parking and locking .............................. 50
Parking brake.................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 52
Safety and Security........................... 55
Occupant safety ................................... 56
Airbags ........................................... 57
Seat belts ....................................... 62
Preventive occupant safety
(PRE-SAFE) ..................................... 66
Children in the vehicle .................... 67
Override switch for rear passenger
compartment .................................. 74
Panic alarm .......................................... 75
Activating........................................ 75
Deactivating.................................... 75
Driving safety systems ......................... 76
ABS ................................................. 76
BAS ................................................. 78
ESP ................................................. 78
Four wheel electronic traction system
(4MATIC) with the ESP .................... 81
Anti-theft systems ................................ 82
Immobilizer ..................................... 82
Anti-theft alarm system .................. 82
Tow-away alarm .............................. 84

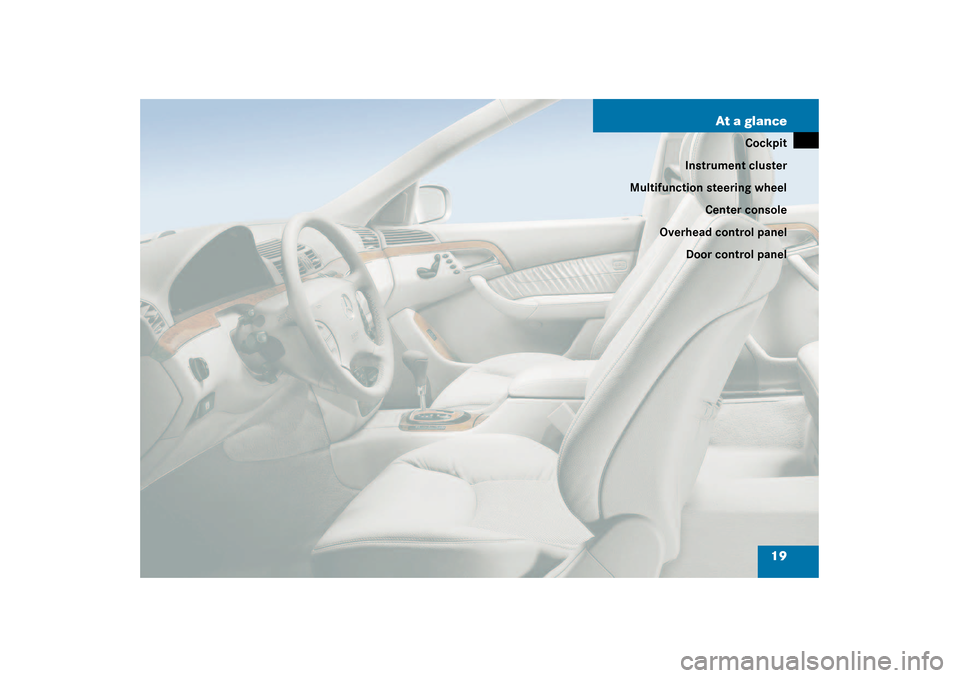

19 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

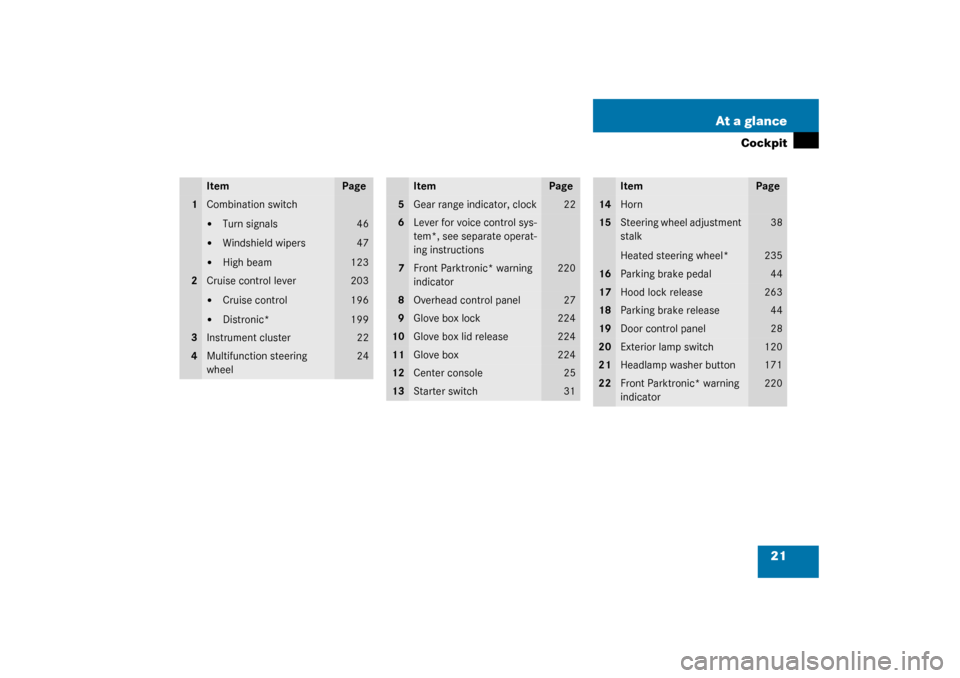

21 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals


Windshield wipers


High beam
46
47
123
2
Cruise control lever

Cruise control


Distronic*
203
196
199
3
Instrument cluster
22
4
Multifunction steering
wheel
24
Item
Page
5
Gear range indicator, clock
22
6
Lever for voice control sys-
tem*, see separate operat-
ing instructions
7
Front Parktronic* warning
indicator
220
8
Overhead control panel
27
9
Glove box lock
224
10
Glove box lid release
224
11
Glove box
224
12
Center console
25
13
Starter switch
31
Item
Page
14
Horn
15
Steering wheel adjustment
stalk
Heated steering wheel*
38
235
16
Parking brake pedal
44
17
Hood lock release
263
18
Parking brake release
44
19
Door control panel
28
20
Exterior lamp switch
120
21
Headlamp washer button
171
22
Front Parktronic* warning
indicator
220

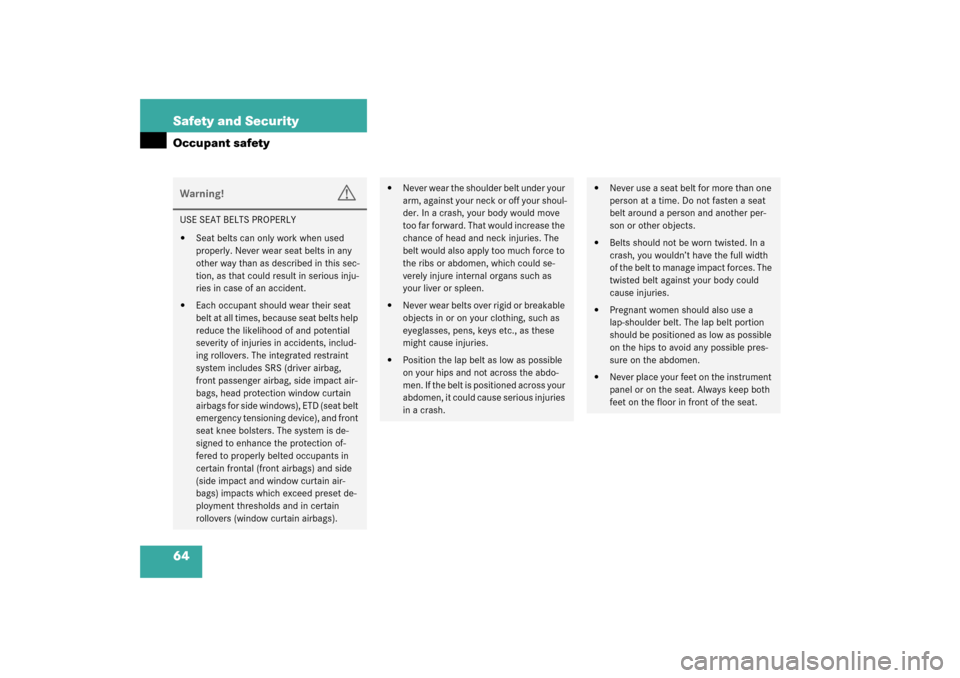

64 Safety and SecurityOccupant safetyWarning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver airbag,
front passenger airbag, side impact air-
bags, head protection window curtain
airbags for side windows), ETD (seat belt
emergency tensioning device), and front
seat knee bolsters. The system is de-
signed to enhance the protection of-
fered to properly belted occupants in
certain frontal (front airbags) and side
(side impact and window curtain air-
bags) impacts which exceed preset de-
ployment thresholds and in certain
rollovers (window curtain airbags).


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys etc., as these
might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
m e n . I f t h e b e l t i s p o s i t i o n e d a c r o s s y o u r
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel or on the seat. Always keep both
feet on the floor in front of the seat.

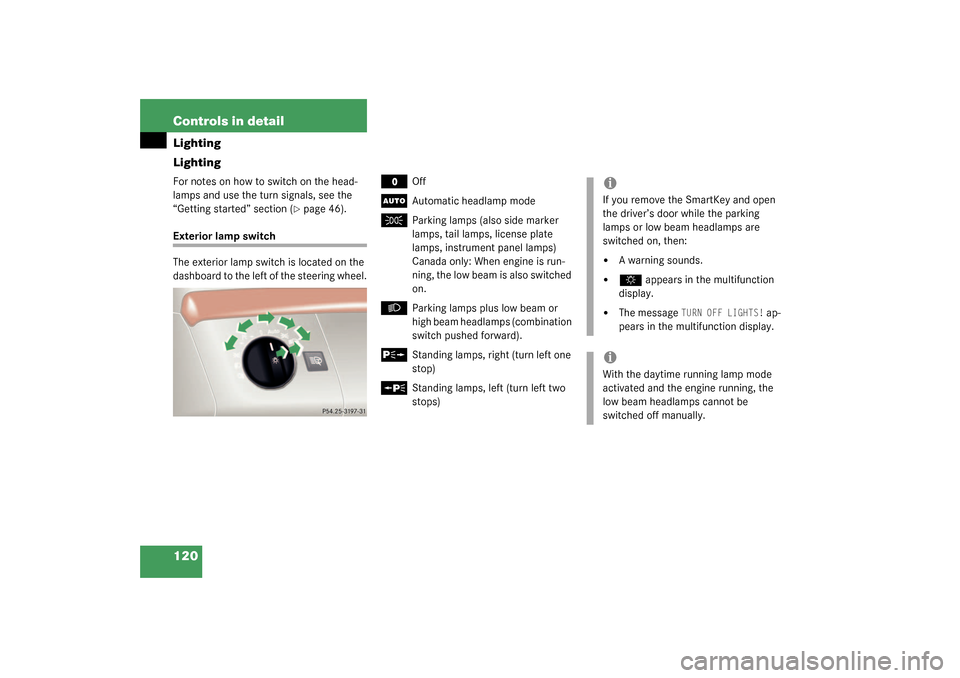

120 Controls in detailLighting
LightingFor notes on how to switch on the head-
lamps and use the turn signals, see the
“Getting started” section (
page 46).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
M
Off
U
Automatic headlamp mode
C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
Canada only: When engine is run-
ning, the low beam is also switched
on.
B
Parking lamps plus low beam or
high beam headlamps (combination
switch pushed forward).
ˆ
Standing lamps, right (turn left one
stop)
‚
Standing lamps, left (turn left two
stops)
iIf you remove the SmartKey and open
the driver’s door while the parking
lamps or low beam headlamps are
switched on, then:

A warning sounds.


$
appears in the multifunction
display.


The message
TURN OFF LIGHTS!
ap-
pears in the multifunction display.
iWith the daytime running lamp mode
activated and the engine running, the
low beam headlamps cannot be
switched off manually.
