oil capacity MERCEDES-BENZ S600 2003 W220 Owner's Manual

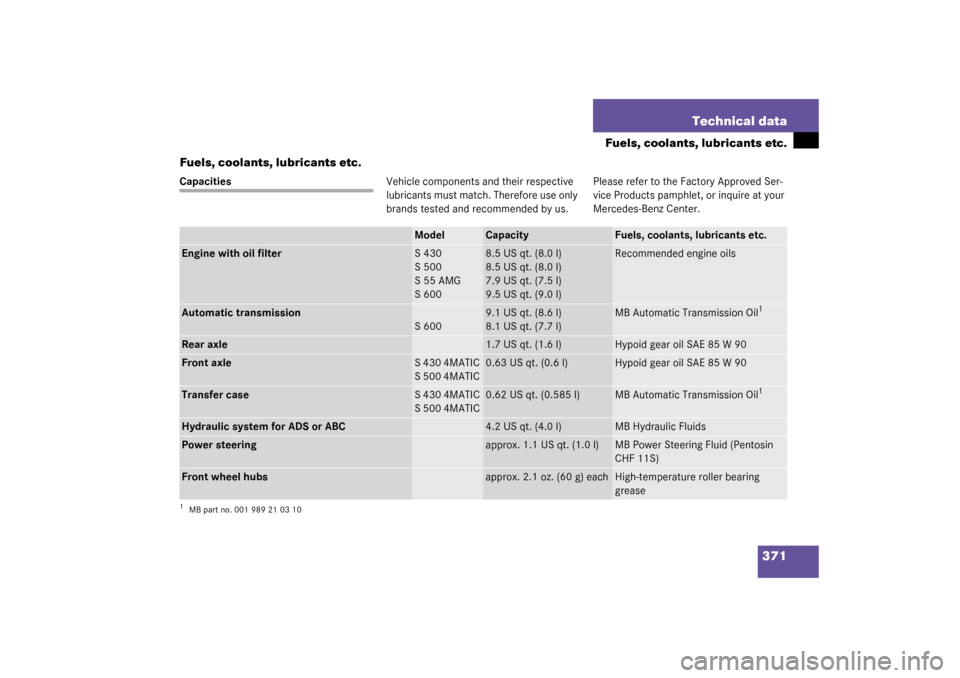

371 Technical data
Fuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and recommended by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
S 430
S 500
S 55 AMG
S 600
8.5 US qt. (8.0 l)
8.5 US qt. (8.0 l)
7.9 US qt. (7.5 l)
9.5 US qt. (9.0 l)
Recommended engine oils
Automatic transmission
S 600
9.1 US qt. (8.6 l)
8.1 US qt. (7.7 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Rear axle
1.7 US qt. (1.6 l)
Hypoid gear oil SAE 85 W 90
Front axle
S 430 4MATIC
S 500 4MATIC
0.63 US qt. (0.6 l)
Hypoid gear oil SAE 85 W 90
Transfer case
S 430 4MATIC
S 500 4MATIC
0.62 US qt. (0.585 l)
MB Automatic Transmission Oil
1
Hydraulic system for ADS or ABC
4.2 US qt. (4.0 l)
MB Hydraulic Fluids
Power steering
approx. 1.1 US qt. (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 2.1 oz. (60 g) each
High-temperature roller bearing
grease

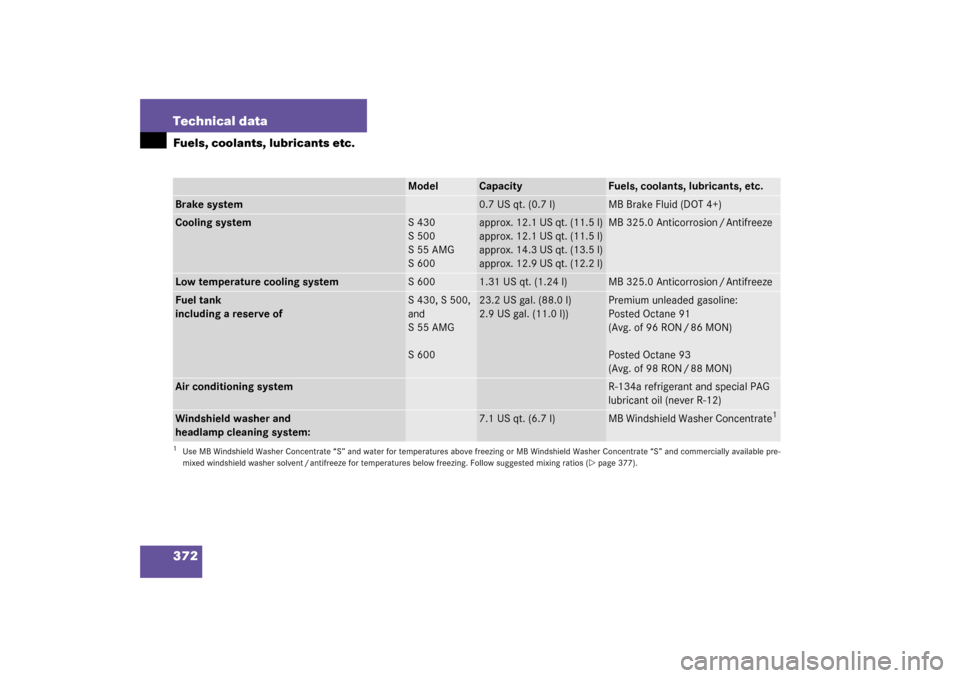

372 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Brake system
0.7 US qt. (0.7 l)
MB Brake Fluid (DOT 4+)
Cooling system
S 430
S 500
S 55 AMG
S 600
approx. 12.1 US qt. (11.5 l)
approx. 12.1 US qt. (11.5 l)
approx. 14.3 US qt. (13.5 l)
approx. 12.9 US qt. (12.2 l)
MB 325.0 Anticorrosion / Antifreeze
Low temperature cooling system
S 600
1.31 US qt. (1.24 l)
MB 325.0 Anticorrosion / Antifreeze
Fuel tank
including a reserve of
S430, S500,
and
S55AMG
S600
23.2 US gal. (88.0 l)
2.9 US gal. (11.0 l))
Premium unleaded gasoline:
Posted Octane 91
(Avg.of96RON/86MON)
Posted Octane 93
(Avg.of98RON/88MON)
Air conditioning system
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield washer and
headlamp cleaning system:
7.1 US qt. (6.7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing. Follow suggested mixing ratios (
page 377).
