winter tires MERCEDES-BENZ S600 2003 W220 Owner's Manual

Contents
Sun visors .................................... 172
Rear window sunshade* .............. 173
Rear door window sunshade* ...... 173
Automatic climate control ................. 174
Setting the temperature ............... 177
Adjusting air distribution .............. 178
Adjusting air volume .................... 179
Maximum cooling MAXCOOL ....... 179
Defrosting .................................... 180
Air recirculation mode.................. 180
Charcoal filter .............................. 182
Rear window defroster ................. 183
Deactivating the climate control
system ......................................... 183
Air conditioning ............................ 184
Storage compartment ventilation. 184
Residual heat and ventilation ....... 185
Rear passenger compartment
adjustable air vents ...................... 186
Rear passenger compartment
climate control* ........................... 187
Power windows.................................. 188
Opening and closing the windows 188
Synchronizing power windows ..... 191Sliding/pop-up roof ............................ 192
Opening and closing the slid-
ing/pop-up roof ............................ 192
Synchronizing the sliding / pop-up
roof .............................................. 195
Driving systems .................................. 196
Cruise control ............................... 196
Distronic* ..................................... 199
AIRMATIC...................................... 211
Active Body Control (ABC)* .......... 213
Parktronic system* (Parking
assist) ........................................... 218
Loading............................................... 222
Roof rack* .................................... 222
Loading instructions ..................... 222
Cargo tie-down hooks ................... 223
Useful features ................................... 224
Interior storage spaces ................. 224
Ashtrays........................................ 232
Cigarette lighters .......................... 233
Heated steering wheel* ................ 235
Telephone* ................................... 236
Tele Aid ......................................... 237
Garage door opener ...................... 245
Infrared reflecting windshield ....... 248
Operation.......................................... 249
The first 1000 miles (1500 km) .......... 250
Driving instructions ............................ 251
Drive sensibly – save fuel ............. 251
Drinking and driving...................... 251
Pedals ........................................... 251
Power assistance .......................... 251
Brakes .......................................... 252
Driving off ..................................... 253
Parking ......................................... 253
Tires.............................................. 254
Hydroplaning ................................ 255
Tire traction .................................. 255
Tire speed rating ........................... 255
Winter driving instructions ............ 256
Standing water ............................. 257
Passenger compartment............... 258
Driving abroad .............................. 258
Control and operation of radio
transmitters .................................. 258
Catalytic converter ....................... 259
Emission control ........................... 259
Coolant temperature .................... 260

ContentsAt the gas station............................... 261
Check regularly and before a
long trip ........................................ 262
Engine compartment.......................... 263
Hood ............................................ 263
Engine oil...................................... 264
Transmission fluid level ................ 268
Active Body Control* (ABC*)
fluid level ...................................... 268
Coolant......................................... 268
Battery ......................................... 270
Windshield washer system and
headlamp cleaning system* ......... 271

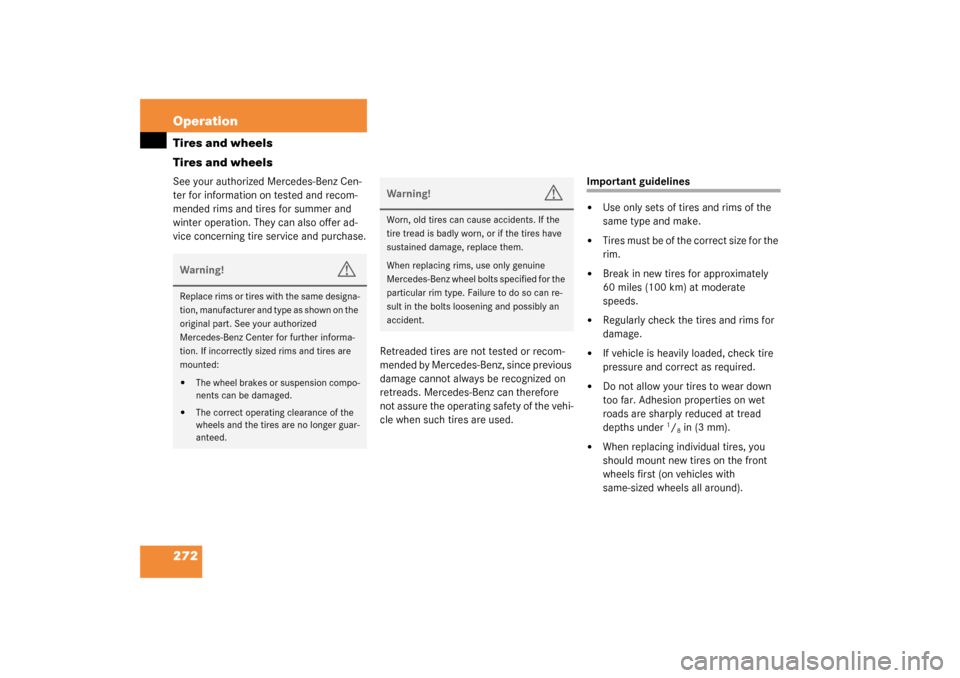

Tires and wheels ................................ 272
Important guidelines .................... 272
Life of tires ................................... 273
Direction of rotation ..................... 273
Checking tire inflation pressure ... 273
Rotating wheels............................ 277

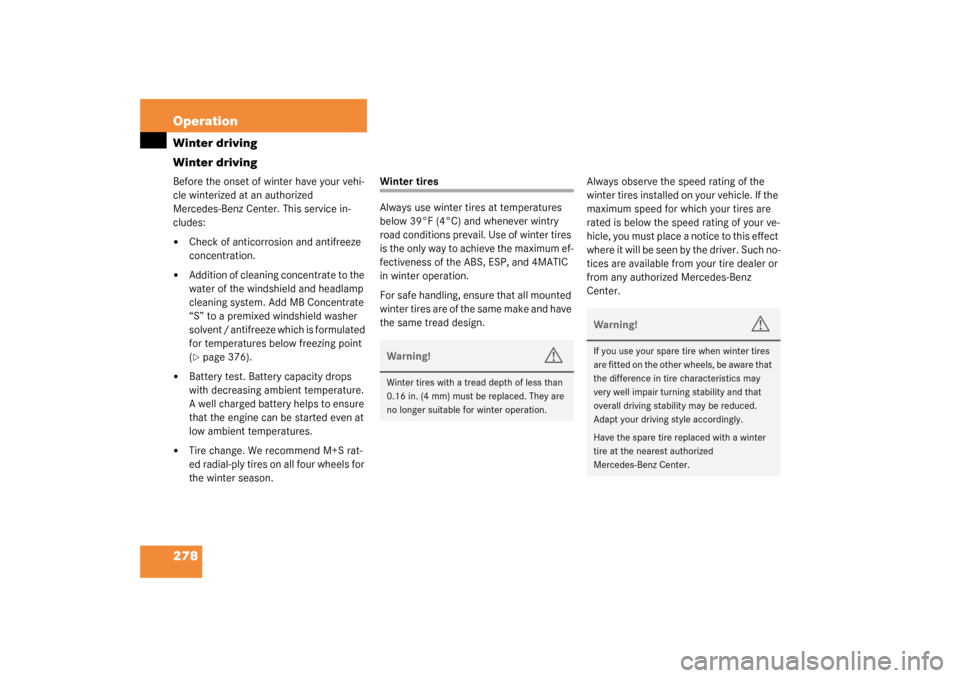

Winter driving..................................... 278
Winter tires................................... 278

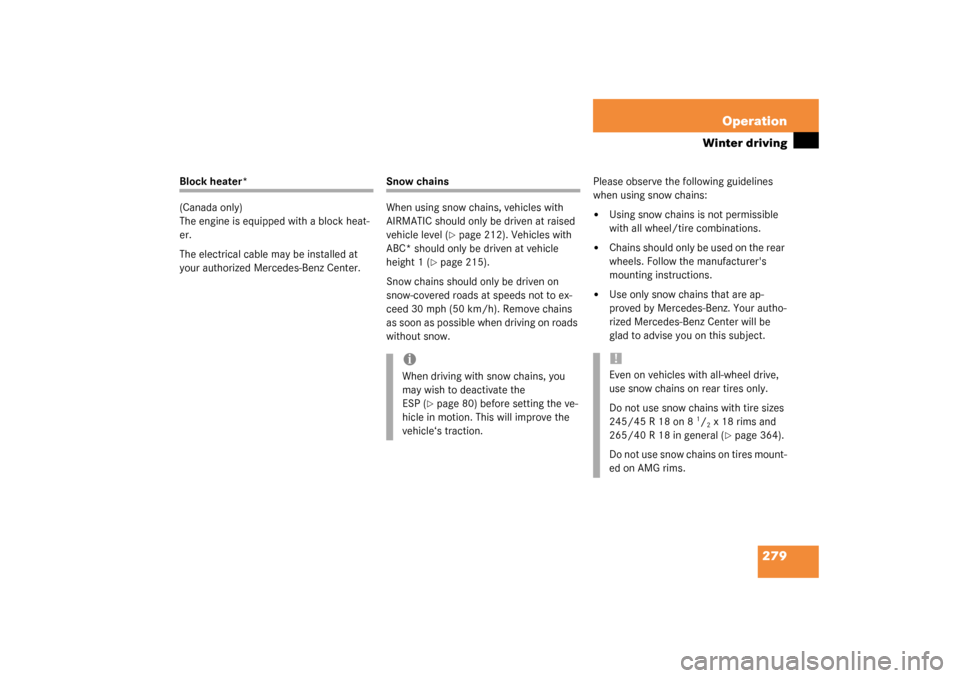

Block heater* ............................... 279
Snow chains ................................. 279Maintenance ...................................... 280
Clearing the service indicator....... 280
Service term exceeded ................ 280
Calling up the service indicator .... 281
Resetting the service indicator..... 281
Vehicle care ....................................... 282
Cleaning and care of vehicle ........ 282
Practical hints.................................. 289
What to do if …? ................................. 290
Lamps in instrument cluster......... 290
Lamp in center console ................ 295
Messages in the display ............... 296
Where will I find ...? ........................... 322
First aid kit ................................... 322
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ........... 322
Unlocking/locking in an emergency .. 326
Unlocking the vehicle ................... 326
Locking the vehicle ...................... 327
Changing batteries ....................... 328
Fuel filler flap ............................... 329
Opening/closing in an emergency ..... 330
Sliding/pop-up roof ..................... 330Replacing bulbs ................................. 331
Bulbs ............................................ 331
Replacing bulbs for front lamps ... 333
Replacing bulbs for rear lamps .... 336
Replacing wiper blades ...................... 337
Removing ..................................... 337
Installing ...................................... 338
Flat tire .............................................. 339
Preparing the vehicle ................... 339
Mounting the spare wheel............ 339
Battery............................................... 344
Disconnecting the battery ............ 345
Removing the battery................... 345
Charging and reinstalling
battery ......................................... 345
Reconnecting the battery............. 345
Jump starting ..................................... 347
Towing the vehicle ............................. 349
Installing towing eye bolt ............. 351
Fuses ................................................. 353
Fuse boxes in passenger
compartment ............................... 353
Fuse boxes in engine
compartment ............................... 354
Emergency engine shut-down ...... 355

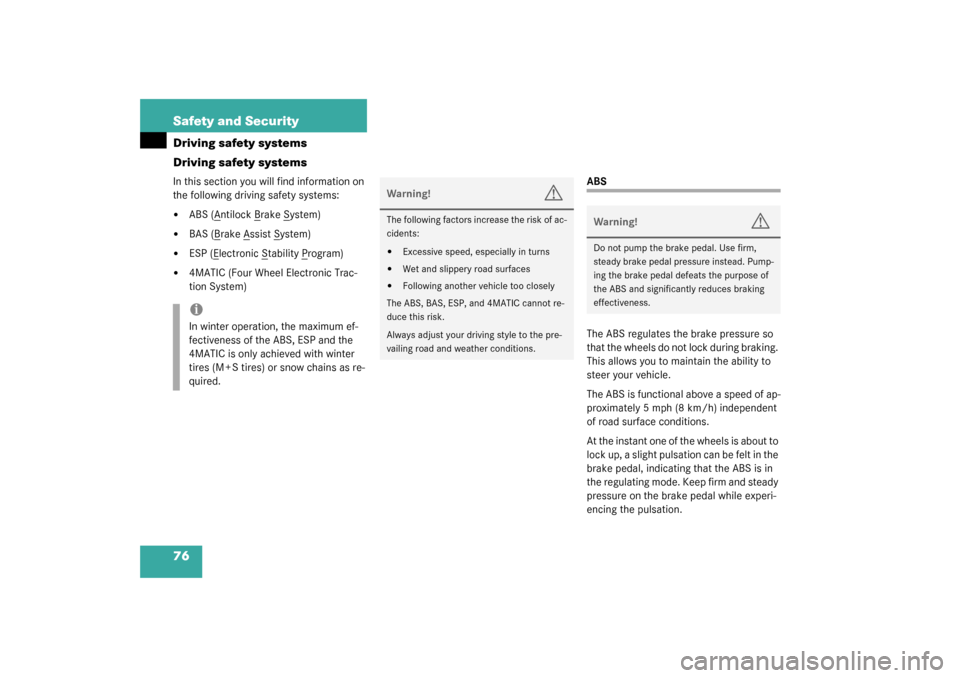

76 Safety and SecurityDriving safety systems
Driving safety systemsIn this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)


4MATIC (Four Wheel Electronic Trac-
tion System)
ABS
The ABS regulates the brake pressure so
that the wheels do not lock during braking.
This allows you to maintain the ability to
steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode. Keep firm and steady
pressure on the brake pedal while experi-
encing the pulsation.
iIn winter operation, the maximum ef-
fectiveness of the ABS, ESP and the
4MATIC is only achieved with winter
tires (M + S tires) or snow chains as re-
quired.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP, and 4MATIC cannot re-
duce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

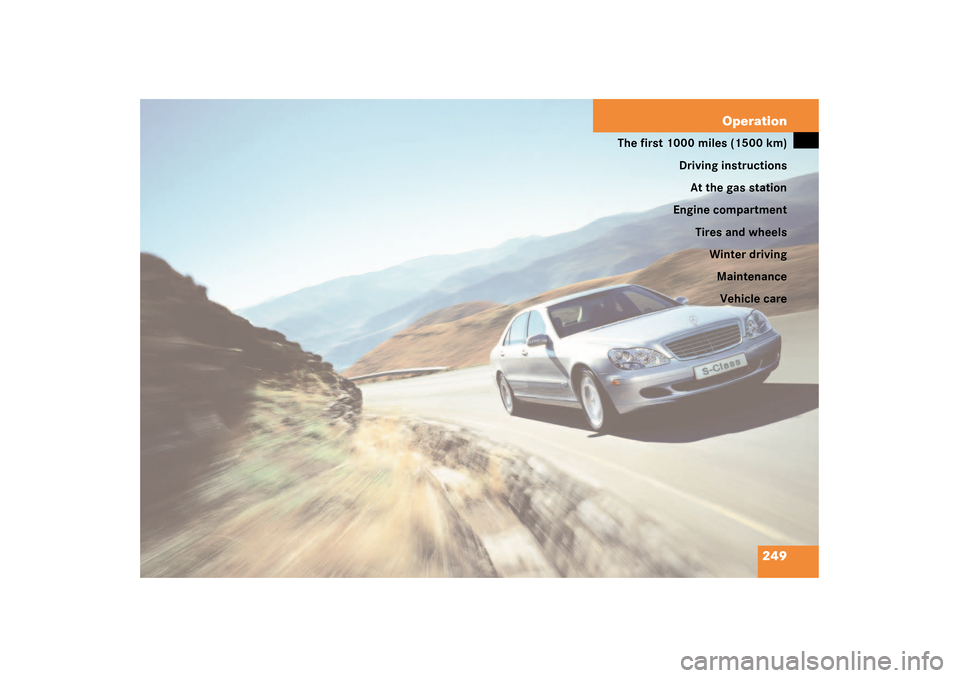

249 Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

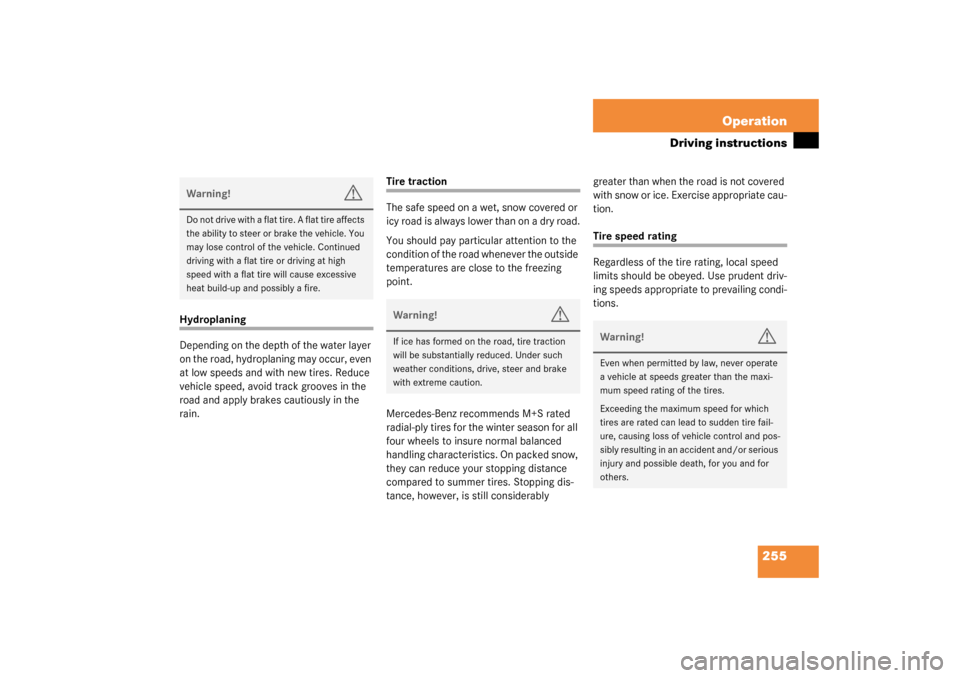

255 Operation
Driving instructions
Hydroplaning
Depending on the depth of the water layer
on the road, hydroplaning may occur, even
at low speeds and with new tires. Reduce
vehicle speed, avoid track grooves in the
road and apply brakes cautiously in the
rain.
Tire traction
The safe speed on a wet, snow covered or
icy road is always lower than on a dry road.
You should pay particular attention to the
condition of the road whenever the outside
temperatures are close to the freezing
point.
Mercedes-Benz recommends M+S rated
radial-ply tires for the winter season for all
four wheels to insure normal balanced
handling characteristics. On packed snow,
they can reduce your stopping distance
compared to summer tires. Stopping dis-
tance, however, is still considerably greater than when the road is not covered
with snow or ice. Exercise appropriate cau-
tion.
Tire speed rating
Regardless of the tire rating, local speed
limits should be obeyed. Use prudent driv-
ing speeds appropriate to prevailing condi-
tions.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire or driving at high
speed with a flat tire will cause excessive
heat build-up and possibly a fire.
Warning!
G
If ice has formed on the road, tire traction
will be substantially reduced. Under such
weather conditions, drive, steer and brake
with extreme caution.
Warning!
G
Even when permitted by law, never operate
a vehicle at speeds greater than the maxi-
mum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire fail-
ure, causing loss of vehicle control and pos-
sibly resulting in an accident and/or serious
injury and possible death, for you and for
others.

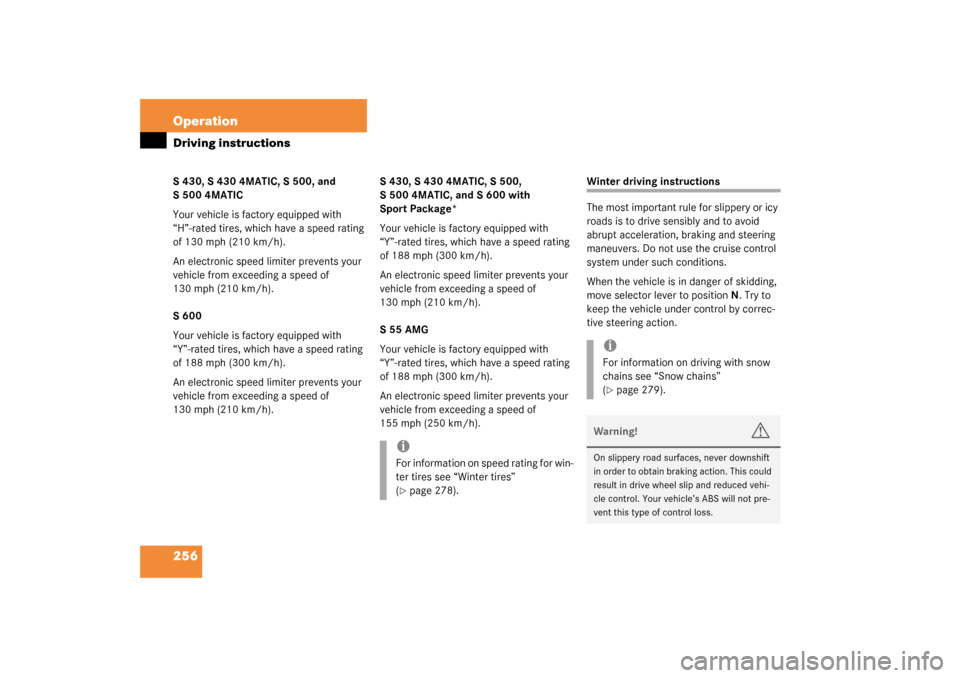

256 OperationDriving instructionsS 430, S 430 4MATIC, S 500, and
S 500 4MATIC
Your vehicle is factory equipped with
“H”-rated tires, which have a speed rating
of 130 mph (210 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
130 mph (210 km/h).
S600
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 188 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
130 mph (210 km/h).S430, S4304MATIC, S500,
S 500 4MATIC, and S 600 with
Sport Package*
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 188 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
130 mph (210 km/h).
S55AMG
Your vehicle is factory equipped with
“Y”-rated tires, which have a speed rating
of 188 mph (300 km/h).
An electronic speed limiter prevents your
vehicle from exceeding a speed of
155 mph (250 km/h).
Winter driving instructions
The most important rule for slippery or icy
roads is to drive sensibly and to avoid
abrupt acceleration, braking and steering
maneuvers. Do not use the cruise control
system under such conditions.
When the vehicle is in danger of skidding,
move selector lever to position N. Try to
keep the vehicle under control by correc-
tive steering action.
iFor information on speed rating for win-
ter tires see “Winter tires”
(page 278).
iFor information on driving with snow
chains see “Snow chains”
(page 279).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of control loss.

272 OperationTires and wheels
Tires and wheelsSee your authorized Mercedes-Benz Cen-
ter for information on tested and recom-
mended rims and tires for summer and
winter operation. They can also offer ad-
vice concerning tire service and purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. Mercedes-Benz can therefore
not assure the operating safety of the vehi-
cle when such tires are used.
Important guidelines

Use only sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage.


If vehicle is heavily loaded, check tire
pressure and correct as required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See your authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:

The wheel brakes or suspension compo-
nents can be damaged.


The correct operating clearance of the
wheels and the tires are no longer guar-
anteed.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, use only genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can re-
sult in the bolts loosening and possibly an
accident.

278 OperationWinter driving
Winter drivingBefore the onset of winter have your vehi-
cle winterized at an authorized
Mercedes-Benz Center. This service in-
cludes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent / antifreeze which is formulated
for temperatures below freezing point
(page 376).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to ensure
that the engine can be started even at
low ambient temperatures.


Tire change. We recommend M+S rat-
ed radial-ply tires on all four wheels for
the winter season.
Winter tires
Always use winter tires at temperatures
below 39°F (4°C) and whenever wintry
road conditions prevail. Use of winter tires
is the only way to achieve the maximum ef-
fectiveness of the ABS, ESP, and 4MATIC
in winter operation.
For safe handling, ensure that all mounted
winter tires are of the same make and have
the same tread design.Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your ve-
hicle, you must place a notice to this effect
where it will be seen by the driver. Such no-
tices are available from your tire dealer or
from any authorized Mercedes-Benz
Center.Warning!
G
Winter tires with a tread depth of less than
0.16 in. (4 mm) must be replaced. They are
no longer suitable for winter operation.
Warning!
G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Center.

279 Operation
Winter driving
Block heater*
(Canada only)
The engine is equipped with a block heat-
er.
The electrical cable may be installed at
your authorized Mercedes-Benz Center.
Snow chains
When using snow chains, vehicles with
AIRMATIC should only be driven at raised
vehicle level (
page 212). Vehicles with
ABC* should only be driven at vehicle
height 1 (
page 215).
Snow chains should only be driven on
snow-covered roads at speeds not to ex-
ceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:


Using snow chains is not permissible
with all wheel/tire combinations.


Chains should only be used on the rear
wheels. Follow the manufacturer's
mounting instructions.


Use only snow chains that are ap-
proved by Mercedes-Benz. Your autho-
rized Mercedes-Benz Center will be
glad to advise you on this subject.
iWhen driving with snow chains, you
may wish to deactivate the
ESP (
page 80) before setting the ve-
hicle in motion. This will improve the
vehicle‘s traction.
!Even on vehicles with all-wheel drive,
use snow chains on rear tires only.
Do not use snow chains with tire sizes
245/45 R 18 on 8
1/2 x 18 rims and
265/40 R 18 in general (
page 364).
Do not use snow chains on tires mount-
ed on AMG rims.

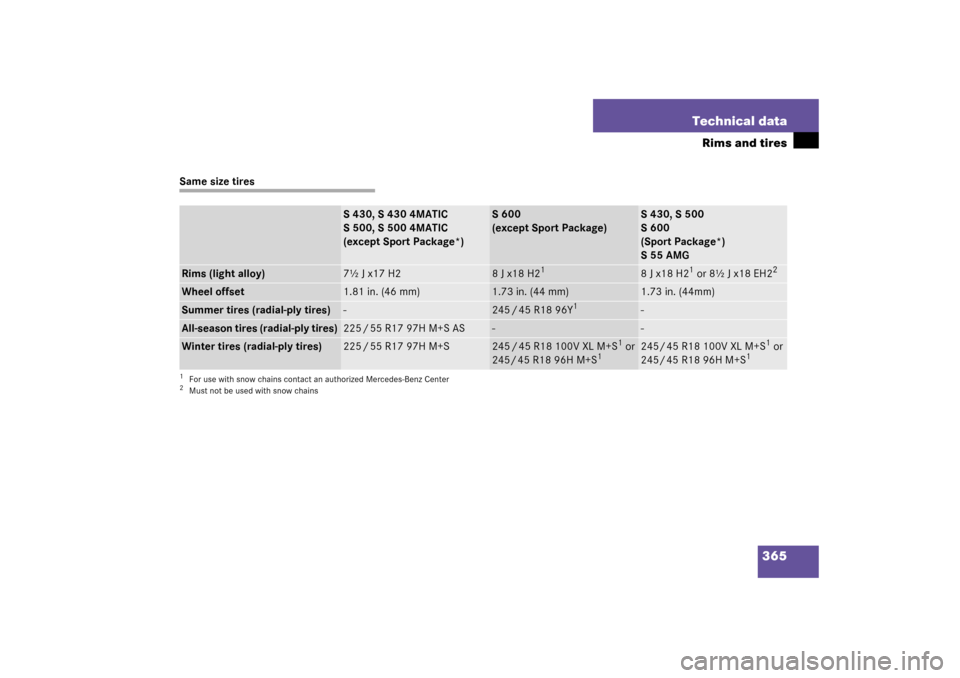

365 Technical data
Rims and tires
Same size tires
S 430, S 430 4MATIC
S 500, S 500 4MATIC
(except Sport Package*)
S 600
(except Sport Package)
S 430, S 500
S 600
(Sport Package*)
S 55 AMG
Rims (light alloy)
7½ J x17 H2
8 J x18 H2
1
1For use with snow chains contact an authorized Mercedes-Benz Center
8 J x18 H2
1 or 8½ J x18 EH2
2
2Must not be used with snow chainsWheel offset
1.81 in. (46 mm)
1.73 in. (44 mm)
1.73 in. (44mm)
Summer tires (radial-ply tires)
-
245 / 45 R18 96Y
1
-
All-season tires (radial-ply tires)
225 / 55 R17 97H M+S AS
-
-
Winter tires (radial-ply tires)
225 / 55 R17 97H M+S
245 / 45 R18 100V XL M+S
1 or
245/ 45 R18 96H M+S
1
245/ 45 R18 100V XL M+S
1 or
245/ 45 R18 96H M+S
1
