MERCEDES-BENZ S600 2005 W220 Owner's Guide

19 Introduction
Vehicle data recording
Vehicle data recording
Information regarding electronic recording devices
(Including notice pursuant to California Code § 9951)
Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system,
may transmit some data in certain accidents.
This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.
DaimlerChrysler may access the information and share it with others

for safety research or vehicle diagnosis purposes


with the consent of the vehicle owner or lessee


in response to an official request by law enforcement or other government agency


for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or


as otherwise required or permitted by law.
Please check the Tele Aid subscription service agreement for details regarding the information that may be recorded or transmitted
via that system.

20

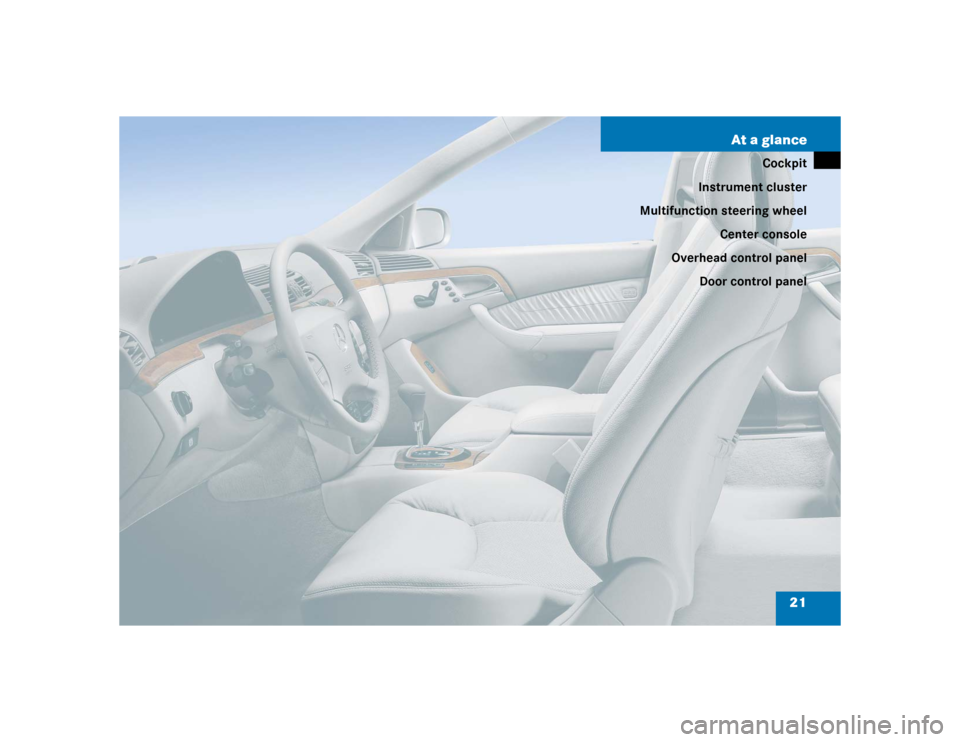

21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

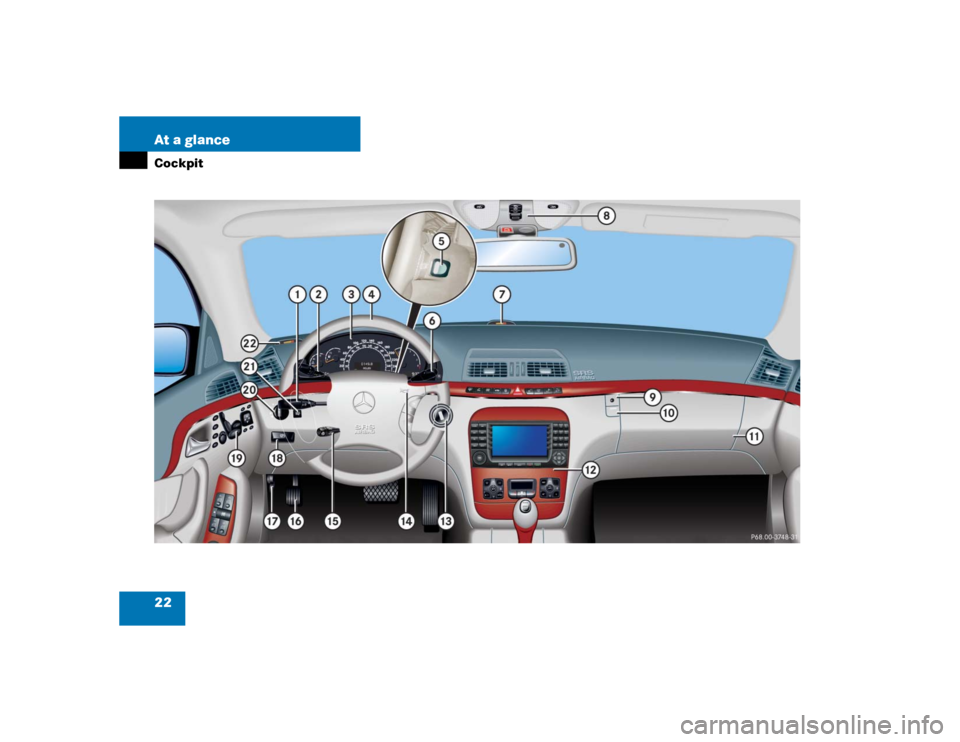

22 At a glanceCockpit

23 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals


Windshield wipers


High beam
51
52
135
2
Cruise control lever

Cruise control


Distronic*
221
214
217
3
Instrument cluster
24
4
Multifunction steering
wheel
26
5
Steering wheel gearshift
control (S 55 AMG only)
181
Item
Page
6
Lever for voice control sys-
tem*, see separate operat-
ing instructions
7
Front Parktronic* warning
indicator for right
front area
237
8
Overhead control panel
29
9
Glove box lock
244
a
Glove box lid release
244
b
Glove box
244
c
Center console
27, 28
d
Starter switch
34
e
Horn
Item
Page
f
Steering wheel adjustment
stalk
Heated steering wheel*
40
253
g
Parking brake pedal
48
h
Hood lock release
286
j
Parking brake release
48
k
Door control panel
30
l
Exterior lamp switch
131
m
Headlamp washer button*
186
n
Front Parktronic* warning
indicator for left front area
237

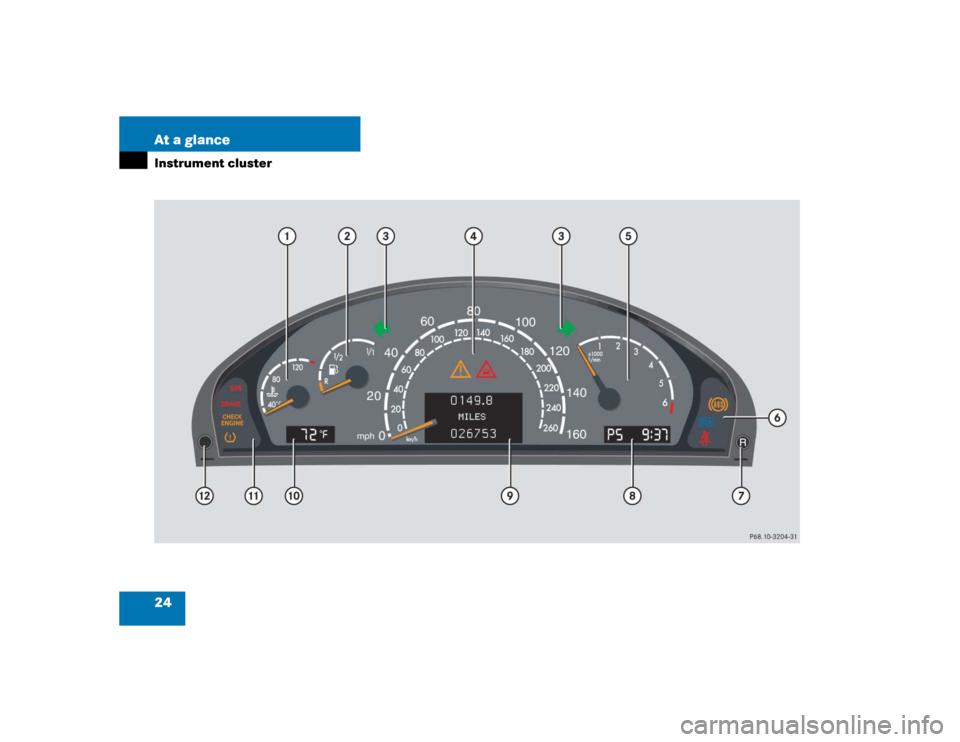

24 At a glanceInstrument cluster

25 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
141
2
Fuel gauge with fuel tank
reserve warning lamp
341
3
LLeft turn signal
indicator lamp
51
KRight turn signal
indicator lamp
51
4
Speedometer with:vElectronic Stability
Program (ESP)
warning lamp
343
lDistance warning
lamp
Vehicles without Distronic*:
Distance warning lamp with-
out function. It illuminates
when the ignition is on. It
should go out when the en-
gine is running.
342
5
Tachometer
142
Item
Page
6
Right display with: 343
AHigh beam headlamp
indicator lamp
50
-Antilock Brake
System (ABS)
indicator lamp
338
7
JReset button
140
8
Display with:

Gear selector lever
position
174


Program mode
174


Digital clock
(see COMAND operating
instructions)
9
Multifunction display
with:

Trip odometer
141


Main odometer
141
Item
Page
a
Outside temperature
indicator
142
b
Left display with:1Supplemental
restraint system
indicator lamp
345
;Brake warning lamp,
USA only
339
3Brake warning lamp,
Canada only?Engine malfunction
indicator lamp,
USA only
340
±Engine malfunction
indicator lamp,
Canada onlyHTire inflation pres-
sure warning lamp
307
c
Knob for instrument cluster
illumination
140

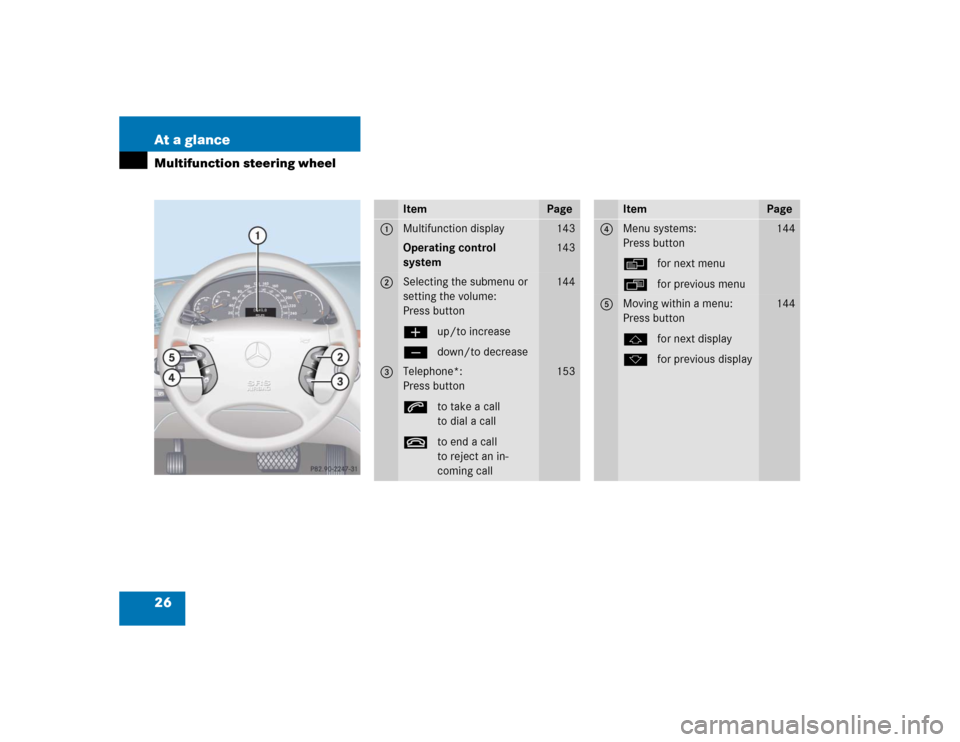

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
143
Operating control
system
143
2
Selecting the submenu or
setting the volume:
Press button
æup/to increase
çdown/to decrease
144
3
Telephone*:
Press button
sto take a call
to dial a call
tto end a call
to reject an in-
coming call
153
Item
Page
4
Menu systems:
Press button
èfor next menu
ÿfor previous menu
144
5
Moving within a menu:
Press button
jfor next display
kfor previous display
144

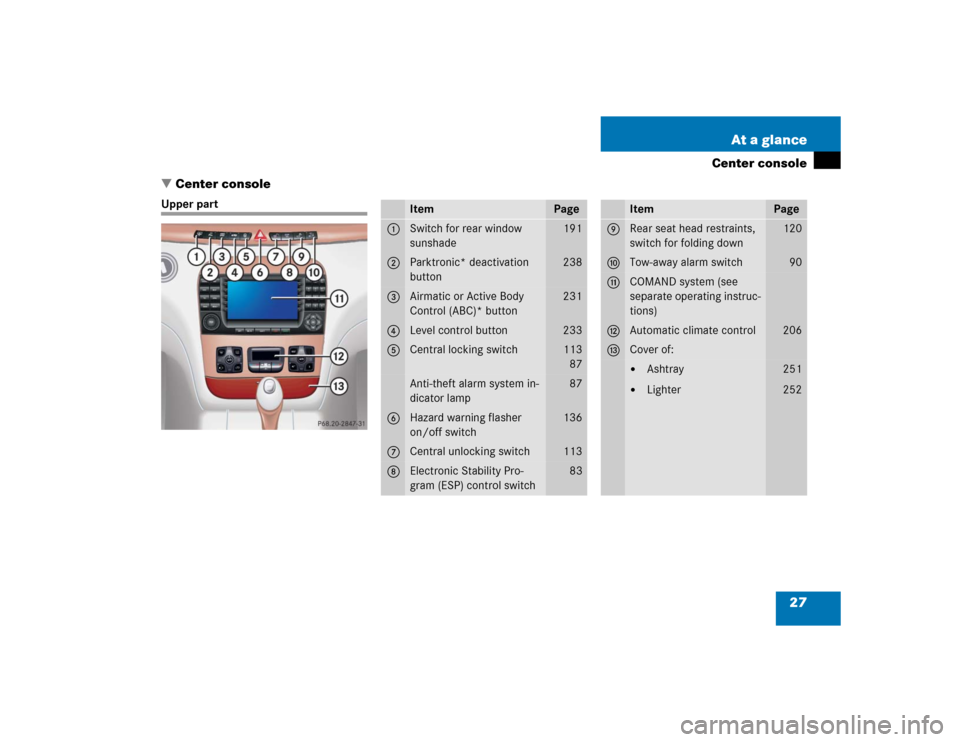

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Switch for rear window
sunshade
191
2
Parktronic* deactivation
button
238
3
Airmatic or Active Body
Control (ABC)* button
231
4
Level control button
233
5
Central locking switch
113
87
Anti-theft alarm system in-
dicator lamp
87
6
Hazard warning flasher
on/off switch
136
7
Central unlocking switch
113
8
Electronic Stability Pro-
gram (ESP) control switch
83
Item
Page
9
Rear seat head restraints,
switch for folding down
120
a
Tow-away alarm switch
90
b
COMAND system (see
separate operating instruc-
tions)
c
Automatic climate control
206
d
Cover of:

Ashtray


Lighter
251
252

28 At a glanceCenter consoleLower part
Item
Page
1
KEYLESS-GO* start/stop
button
35
2
Gear selector lever for
automatic transmission
46
3
Front passenger front
air bag off indicator lamp
73
4
Thumbwheel for setting
distance in Distronic*
224
5
Distance warning func-
tion* on/off button
224
6
Lower storage compart-
ments
7
Program mode selector for
automatic transmission
179
