409 Practical hints
Towing the vehicle
!
To be certain to avoid a possibility of
damage to the drive train, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange (ve-
hicles with 4MATIC: disconnected at
the front and rear axle drive flanges) for
any towing beyond a short tow to a
nearby garage.Warning!
G

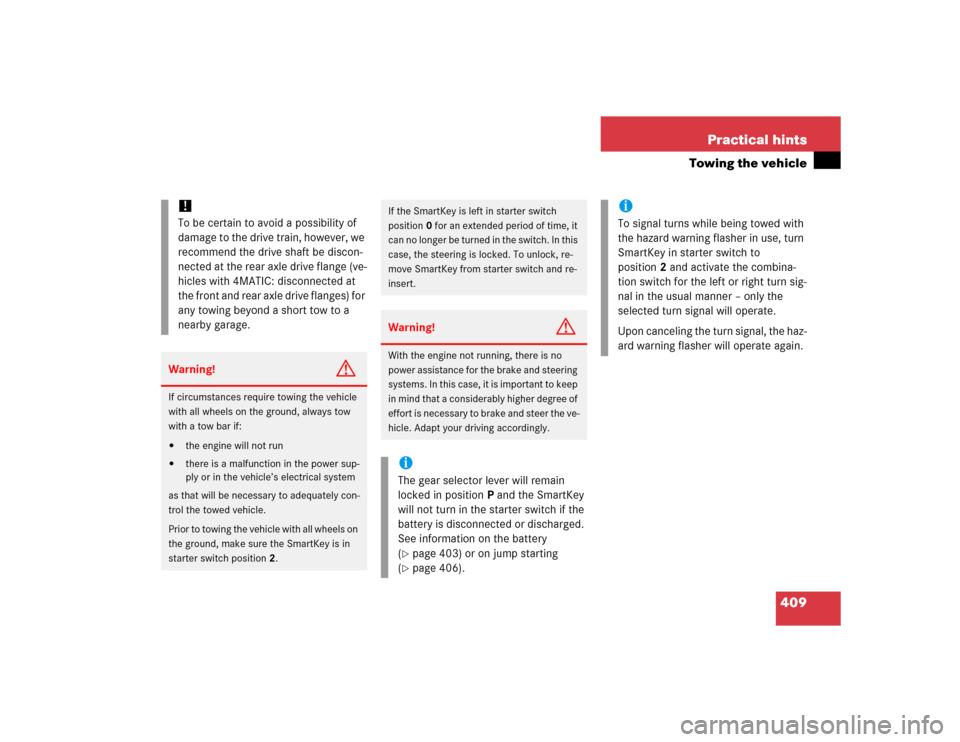

If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.iThe gear selector lever will remain
locked in positionP and the SmartKey
will not turn in the starter switch if the
battery is disconnected or discharged.
See information on the battery
(page 403) or on jump starting
(page 406).
iTo signal turns while being towed with
the hazard warning flasher in use, turn
SmartKey in starter switch to
position2 and activate the combina-
tion switch for the left or right turn sig-
nal in the usual manner – only the
selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.

410 Practical hintsTowing the vehicle
Installing towing eye bolt
1Cover on right side of front bumper
2Cover on right side of rear bumperRemoving cover

Press mark on cover in direction of ar-
row.

Lift cover off to reveal threaded hole for
towing eye bolt.
Installing towing eye bolt

Take towing eye bolt and wheel wrench
out of trunk (
page 379).

Screw towing eye bolt clockwise into
its stop and tighten with wheel wrench.
Removing towing eye bolt

Loosen towing eye bolt counterclock-
wise with wheel wrench.

Unscrew towing eye bolt.

Store towing eye bolt and wheel
wrench in trunk.
Installing cover

Fit cover and snap into place.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button (
page 35) in
position2, the vehicle doors lock if the
le ft f ront whe el as wel l a s t he rig ht rea r
wheel are turning at vehicle speeds of
approximately 9 mph (15 km/h) or
more.
Switch off the tow-away alarm
(
page 89).
To prevent the vehicle doors from lock-
ing, deactivate the automatic central
locking (
page 112).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to vehicle chassis,
frame or suspension parts.

411 Practical hintsFuses
Fuses
Fuses are designed to protect the electri-
cal circuits in your vehicle from a short cir-
cuit. If a fuse is blown, the component(s)
and systems controlled by that fuse will
stop working.
The following aids are available to help you
replace fuses (
page 411):


Fuse chart


Spare fuses


Special fuse extractorYour vehicle’s electrical fuses are located
in various fuse boxes:


In the dashboard on the passenger side
(page 412)


In the rear passenger compartment un-
der the right rear seat (
page 412)


In the engine compartment on the driv-
er’s side (
page 413)


In the engine compartment on the pas-
senger side (
page 413)
Aids for replacing fuses
Fuse chart
A chart explaining fuse allocation and fuse
amperages can be found in the vehicle tool
kit in the trunk (
page 379).
Spare fuses
Spare Fuses are found in the vehicle tool
kit in the trunk (page 379).
Fuse extractor
The fuse extractor is found in the vehicle
tool kit in the trunk (page 379).
Warning!
G
Only use fuses approved by Mercedes-Benz
and which have the specified amperage. Us-
ing other fuses may cause an overload and
lead to a fire, or cause damage to electrical
components and/or systems.
!Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.

412 Practical hintsFusesFuse boxes in passenger compartment
There are two fuse boxes. One fuse box is
located in the dashboard on the front pas-
senger side. An additional fuse box is lo-
cated under the right rear seat.

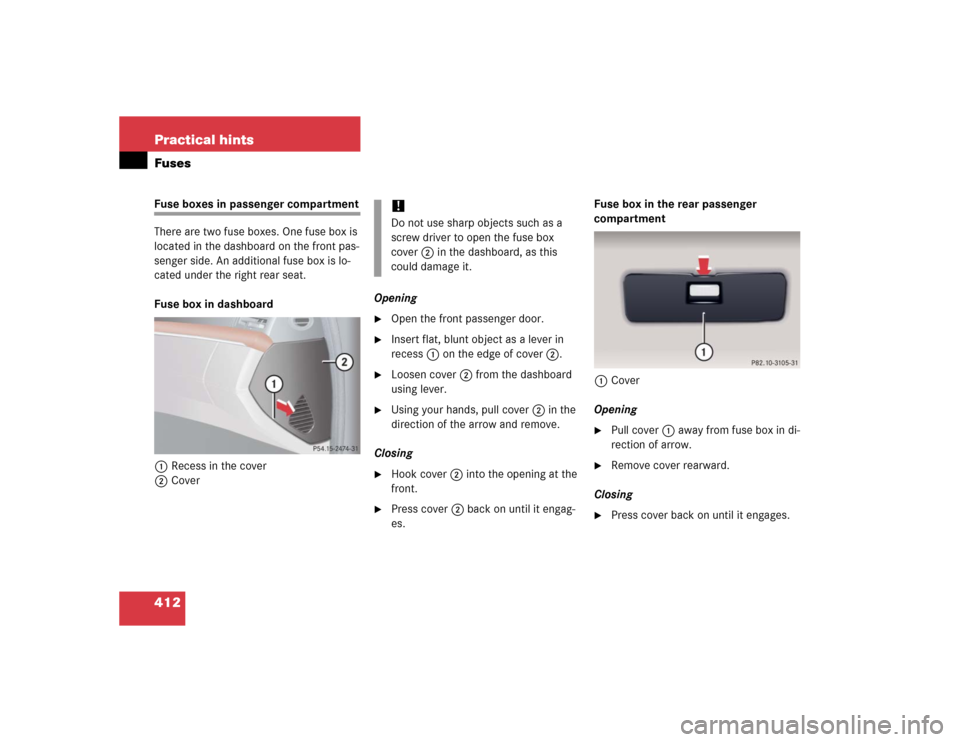

Fuse box in dashboard
1Recess in the cover
2CoverOpening

Open the front passenger door.

Insert flat, blunt object as a lever in
recess1 on the edge of cover2.

Loosen cover2 from the dashboard
using lever.

Using your hands, pull cover2 in the
direction of the arrow and remove.
Closing

Hook cover2 into the opening at the
front.

Press cover2 back on until it engag-
es.Fuse box in the rear passenger
compartment
1Cover
Opening

Pull cover1 away from fuse box in di-
rection of arrow.

Remove cover rearward.
Closing

Press cover back on until it engages.
!Do not use sharp objects such as a
screw driver to open the fuse box
cover2 in the dashboard, as this
could damage it.

413 Practical hintsFuses
Fuse boxes in engine compartment
There are fuse boxes located in the engine
compartment on the driver’s and front pas-
senger side in front of the firewall (dividing
wall between engine compartment and
passenger compartment).

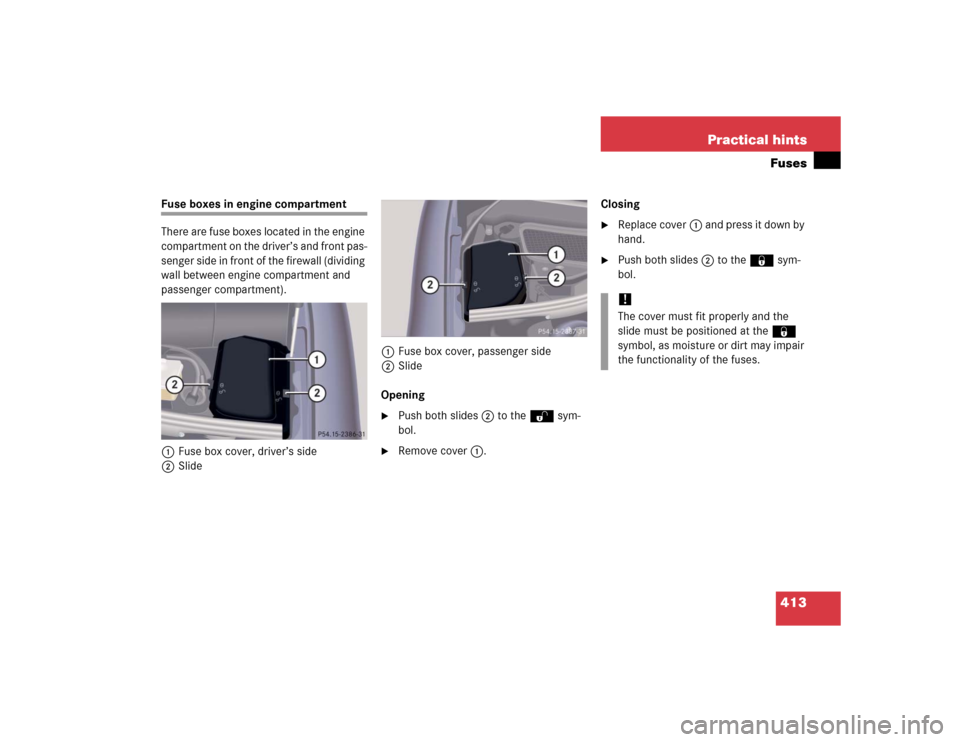

1Fuse box cover, driver’s side
2Slide1Fuse box cover, passenger side
2Slide
Opening

Push both slides2 to the Πsym-
bol.

Remove cover1.Closing

Replace cover1 and press it down by
hand.

Push both slides 2 to the ‹ sym-
bol.!The cover must fit properly and the
slide must be positioned at the ‹
symbol, as moisture or dirt may impair
the functionality of the fuses.

414

415 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.

416 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

417 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed on the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

418 Technical dataIdentification labels1Certification label (below driver’s door
latch)2Vehicle Identification Number (VIN)
(below right rear passenger seat)3Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Emission control information label,
includes both federal and California
certification exhaust emission
standards
6Vacuum line routing diagram label
When ordering parts, please specify vehi-
cle identification and engine numbers.
