252 Remote control
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

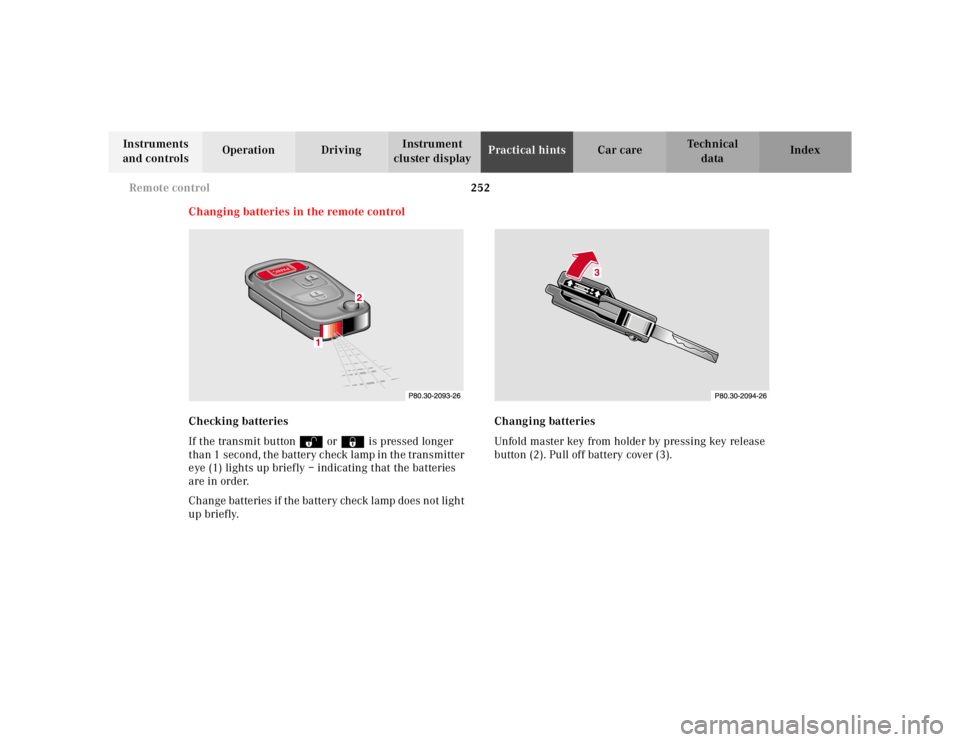

Changing batteries in the remote control
Checking batteries
If the transmit buttonŒ or‹ is pressed longer
than 1 second, the battery check lamp in the transmitter
eye (1) lights up briefly – indicating that the batteries
are in order.
Change batteries if the battery check lamp does not light
up briefly.Changing batteries
Unfold master key from holder by pressing key release
button (2). Pull off battery cover (3).
Page 257 of 302

253 Remote control
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

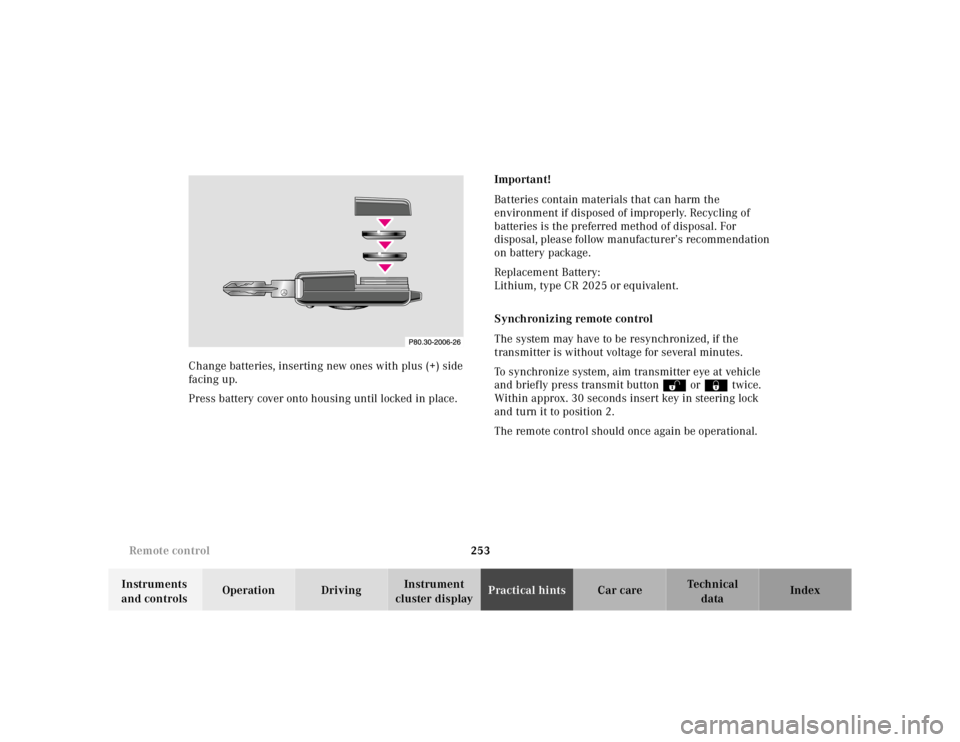

cluster displayPractical hintsCar care Index Change batteries, inserting new ones with plus (+) side
facing up.
Press battery cover onto housing until locked in place.Important!
Batteries contain materials that can harm the
environment if disposed of improperly. Recycling of
batteries is the preferred method of disposal. For
disposal, please follow manufacturer’s recommendation
on battery package.
Replacement Battery:
Lithium, type CR 2025 or equivalent.
Synchronizing remote control
The system may have to be resynchronized, if the
transmitter is without voltage for several minutes.
To synchronize system, aim transmitter eye at vehicle
and briefly press transmit buttonŒ or‹ twice.
Within approx. 30 seconds insert key in steering lock
and turn it to position 2.
The remote control should once again be operational.
Page 290 of 302

286 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
BBabySmart
TM airbag deactivation system ..................... 58
Self-test ......................................................................... 58
Backrest ............................................................................. 48
BAS (Brake assist system) ............................................ 188
Malfunction indicator lamp .....................................207
Battery .............................................................................237
Charge indicator lamp .............................................. 211
Recycling ....................................................................238
Brake assist system (BAS) ............................................ 188
Brake fluid ......................................................................279
Capacity ......................................................................277
Brake pad wear indicator lamp ....................................205
Brake warning lamp ......................................................205
CCatalytic converter ........................................................ 163
Central locking system ................................................... 29
Automatic central locking ......................................... 37
Central locking switch ............................................... 36
General notes ............................................................... 33
Locking and unlocking
with remote control ............................................... 30
Remote control ..................................................... 28, 29Remote control – changing batteries .................... 252
Vehicle keys .................................................................28
Changing wheels ............................................................231
Charge indicator lamp ................................................... 211
Check engine
malfunction indicator lamp .................................... 204
Check regularly and before a long trip ...................... 202
Checking engine oil level ............................................ 222
Checking engine oil level indicator .............................. 82
Cleaning and care of the vehicle ................................ 262
Clock .................................................................................. 79
Combination switch .........................................................86
Console storage compartments ....................................127
Consumer information ................................................. 283
Control and operation of
radio transmitters ..................................................... 154
Coolant
Adding coolant .......................................................... 225
Anticorrosion/antifreeze quantity ........................ 282
Checking level .......................................................... 224
Coolants ......................................................................281
Low engine coolant level
warning lamp ....................................................... 209
Temperature gauge .....................................................78
Cruise control ................................................................. 184
Cup holder .............................................................. 128, 265
Page 294 of 302

290 Index
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
NNight security illumination ........................................... 85OOdometer display field .................................................... 82
On-board diagnostic system .........................................204
Opening the trunk ........................................................... 31
Outside temperature indicator ...................................... 78PPanic button ...................................................................... 32
Parcel net in passenger footwell ................................. 128
Parking ............................................................................ 178
Parking brake ................................................................. 175
Brake warning lamp .................................................205
Passenger airbag indicator lamp ................................. 213
Power assistance ............................................................ 177
Power sunshade ............................................................. 122
Power windows ................................................................116
Express opening ........................................................117
Opening with key ........................................................ 41
Problems with your vehicle ........................................... 14Product information .......................................................... 7
RRadio and telephone ...................................................... 154
Rain sensor ....................................................................... 87
Raising soft top manually ............................................ 254
Reading lamps ................................................................ 120
Rear storage compartment ............................................129
Rear view mirrors ............................................................ 71
Exterior ......................................................................... 72
Inside ............................................................................ 71
Remote control .................................................................28
Changing batteries .................................................. 252
Synchronizing .......................................................... 253
Replacement keys
Obtaining replacement keys ..................................... 29
Replacing wiper blade .................................................. 258
Roadside assistance call
See Tele Aid ............................................................... 156
Roll bar ............................................................................ 118
Roll bar warning lamp ................................................... 212
