MERCEDES-BENZ SL-Class 2005 R230 Comand Manual

189
Service
Tele Aid*

Tele Aid*
Tele Aid* incorporates the following
functions:
Emergency call
Roadside Assistance
Information call
Remote Door Unlock
Stolen Vehicle Recovery The speaker volume of a Tele Aid call can
be adjusted using the volume control on
the COMAND (
page 98) or the
æ and
ç buttons on the multifunction steering
wheel.
During a Tele Aid call, all audio sources are
muted. The telephone is turned off and no
SMS messages can be received or
transmitted.
During a Tele Aid call, the used Network
Type (“A” for analog network or “D” for
digital network) and the signal strength are
displayed on the lower right corner of the
COMAND display. An emergency call is initiated
automatically in the event emergency
tensioning devices (ETDs) or air bags are
deployed. An emergency call can also be
initiated manually by pressing the
I
button. Refer to your vehicle Operator’s
Manual for additional information.
Once the emergency call is in progress, the
indicator lamp in the I button will begin
to flash. The message
Connecting Call
appears on the display and all audio
resources are muted.
When the connection is established, the
message
Call Connected appears on
the display. A voice connection between
the Response Center and the vehicle
occupants is establis hed soon after the
emergency call has been initiated.
i
To use Tele Aid*, the Tele Aid service
must be subscribed to and properly
activated. If you have any questions
regarding activation, please call
the Response Center at 1-800-756-
9018 (in the USA) or 1-888-923-8367
(in Canada).
The Tele Aid system is operational
provided the Tele Aid service was sub-
scribed to and properly activated.
Additionally, the vehicle’s battery must
be charged, properly connected, not
damaged and cellular service and GPS
coverage must be available.
GeneralEmergency call
230_Service_US_B.fm Seite 189 Mittwoch, 8. Dezember 2004 4:40 16

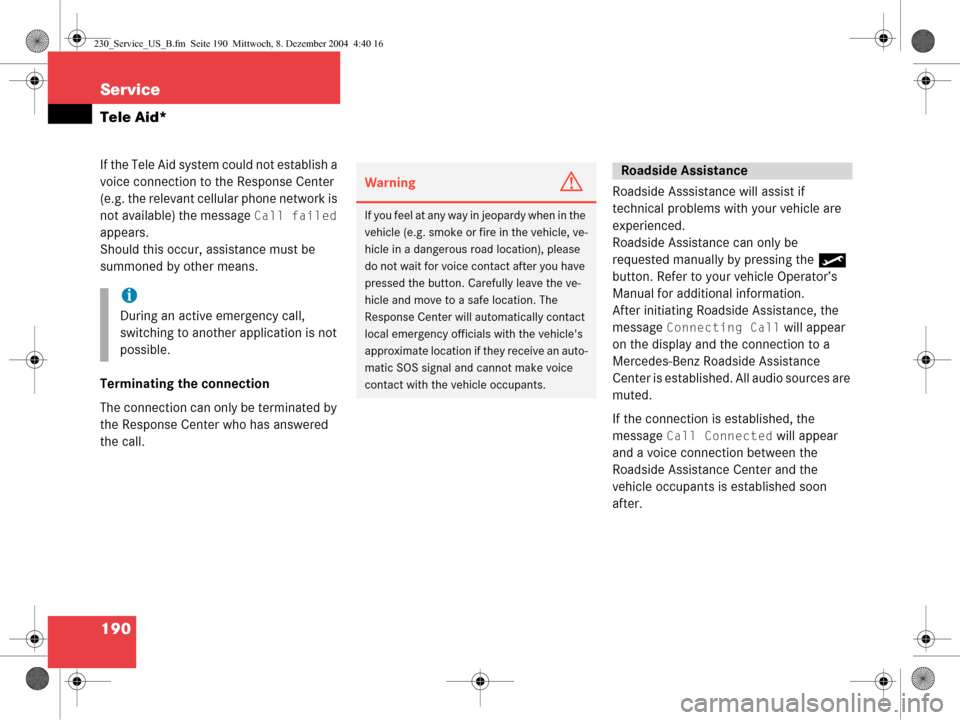

190 Service
Tele Aid*
If the Tele Aid system could not establish a
voice connection to the Response Center
(e.g. the relevant cellular phone network is
not available) the message
Call failed
appears.
Should this occur, assistance must be
summoned by other means.
Terminating the connection
The connection can only be terminated by
the Response Center who has answered
the call. Roadside Asssistance will assist if
technical problems with your vehicle are
experienced.
Roadside Assistance can only be
requested manually by pressing the
•
button. Refer to your vehicle Operator’s
Manual for additional information.
After initiating Roadside Assistance, the
message
Connecting Call will appear
on the display and the connection to a
Mercedes-Benz Roadside Assistance
Center is established. All audio sources are
muted.
If the connection is established, the
message
Call Connected will appear
and a voice connection between the
Roadside Assistance Center and the
vehicle occupants is established soon
after.
i
During an active emergency call,
switching to another application is not
possible.
WarningG
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the button. Ca refully leave the ve-
hicle and move to a safe location. The
Response Center will automatically contact
local emergency officials with the vehicle's
approximate location if they receive an auto-
matic SOS signal and cannot make voice
contact with the vehicle occupants.
Roadside Assistance
230_Service_US_B.fm Seite 190 Mittwoch, 8. Dezember 2004 4:40 16

191
Service
Tele Aid*
If the Tele Aid system could not establish a
voice connection to a Mercedes-Benz
Roadside Center (e.g. the relevant cellular
phone network is not available). The
message
Call failed appears.
Terminating the connection
Roadside Assistance calls can be
terminated using the
ì button on the
multifunctional steering wheel or the K
key on COMAND. The call can also be
terminated by the Roadside Assistance
Center.
The COMAND reverts to the system last
active before a Tele Aid call was initiated. Pressing the
¡ button, a call to the
Mercedes-Benz Customer Assistance
Center will be initiated. Information
regarding the operation of your vehicle, the
nearest authorized Mercedes-Benz Center
or Mercedes-Benz USA products and
services is available to you.
Refer to your vehicle Operator’s Manual for
additional information.
After initiating an Information call, the
message
Connecting Call will appear
on display. The system is then establishing
a connection to the Mercedes-Benz
Customer Assistance Center. All audio
sources are muted.
If the connection is established, the
message
Call Connected will appear
and a voice connection between the
Roadside Assistance Center and the
vehicle occupants is established soon
after.
i
During an active Roadside Assistance
call, switching to another application
(e.g. Navigation*) is possible.
Information call
230_Service_US_B.fm Seite 191 Mittwoch, 8. Dezember 2004 4:40 16

192 Service
Tele Aid*
If the Tele Aid system could not establish a
voice connection to the Mercedes-Benz
Customer Assistance Center (e.g. the
relevant cellular phone network is not
available). The message
Call failed
appears . Terminating the connection
Information calls can
be terminated using
the ì button on the multifunctional
steering wheel or the K key on
COMAND. The call can also be terminated
by the Customer Assistance Center.
The COMAND reverts to the system last
active before a Tele Aid call was initiated. For the Tele Aid services Remote Door
Unlock and Stolen Vehicle Recovery
please refer to your vehicle Operator’s
Manual for information.
i
During an active Information call,
switching to another application (e.g.
Navigation*) is possible.
Remote Door Unlock and Stolen
Vehicle Recovery
230_Service_US_B.fm Seite 192 Mittwoch, 8. Dezember 2004 4:40 16

193
Service
Entering data

Entering data
Sometimes you need to enter data such as
names or phone numbers.
E.g.:
New phone book entry
New address book entry
The following input types are possible:
Via selection menu
Via 12-button keypad (page 195) The selection menu is displayed
automatically when you press the
corresponding button in a menu in which
this kind of data in
put is possible. The
following display may appear if you create
a new entry in the phone book. You can enter upper-case and lower-case
letters including special characters and
numbers.
The following shift fields can be used to
change the type of the characters:
= Upper case
= Lower case
= Special characters
Shifting Keys
Press h, H , g , G or F to
select the shift field .
Press E.
Input via selection menu
ABC
abc
. . .
abc
230_Service_US_B.fm Seite 193 Mittwoch, 8. Dezember 2004 4:40 16

194 Service
Entering data
Press h, H , g , G or F to
select the shift field .
Press E. Entering charactersPress
h, H , g , G or F to
select the character to be entered.
Press E.
The character is entered. Deleting a character
Press the Delete soft key.
The character to the left of the cursor is
deleted.
You can also move the cursor.
Moving the cursor
Press the Keypad soft key.
The selection menu disappears.
Press H or h .
The cursor moves to the right or left in
the line.
Press the Keypad soft key again.
You are back in the keypad mode and
the selection menu is displayed.
. . .
i
To enter a blank space, use .
230_Service_US_B.fm Seite 194 Mittwoch, 8. Dezember 2004 4:40 16

195
Service
Entering data
Inserting a character
Move the cursor to the desired
position.
Enter the character as described at
“Entering characters” (
page 194).
Closing the selection menu
Press the Back soft key.
or
Press the Keypad soft key.
or
Use h, H , g , G or F to select
the ( field.
Press E.
In all cases, the system enters the data. You can enter upper-case and lower-case
letters including special characters and
numbers.
Entering characters
Press
* or1 - 0 to enter
characters.
Press a key once or several times in
quick succession. After you pressed the key the first time,
the character is displayed at the
bottom of the screen.
You can see which characters you can
enter with that key.
Each continuing depression of the key
displays the next character.If required, press key
#.
This key shifts from lower to upper
case.
Wait until the displayed character
disappears.
The character is entered.
Input via 12-button keypad
i
E.g.: Key 5
Press 1 x = J
Press 2 x = K
Press 3 x = L
Press 4 x = 5
230_Service_US_B.fm Seite 195 Mittwoch, 8. Dezember 2004 4:40 16

196 Service
Entering data
Deleting a character
Press the Delete soft key.
The character to the le ft of the cursor is
deleted.
You can also move the cursor.
Moving the cursor
Press H or h .
The cursor moves to the right or left. Inserting a character
Move the cursor to the desired
position.
Enter the character as described at
“Entering characters” (
page 194).
i
To enter a blank space, use the
on the
0 key.
230_Service_US_B.fm Seite 196 Mittwoch, 8. Dezember 2004 4:40 16

197
System settings
System settings
Voice control system* Reset function
230_System_US_B.fm Seite 197 Mi ttwoch, 8. Dezember 2004 4:41 16

198 System settings
System settings

System settings
Press C.
In the Service main menu, press the
System soft key.
System settings menu
In the System settings menu you can:
set date and time
switch verification and notification
tones on and off (
page 201)
adjust display settings (page 201)
activate and deactivate the Voice
control system* help window
(
page 203)
start Voice control system*
individualization (
page 203)
reset system settings (page 204) Setting date
Activating the System settings
menu Setting the date/time
i
Exact settings of date, time and current
time zone allow you:
correct navigation for
routes with time-dependent traffic
guidance
correct calculation of the expected
time of arrival
i
If time/date information is transmitted
by the GPS, you cannot set the date.
A satellite symbol is displayed on the
status bar if the system uses GPS data.
230_System_US_B.fm Seite 198 Mi
ttwoch, 8. Dezember 2004 4:41 16
