MERCEDES-BENZ SL-Class 2005 R230 Comand Manual

59
Audio
MP3-CD operation
Skip Track
Activate the MP3-CD main menu
(
page 57).
Forward
Press D .
The next track from the track list is
played.
Backward
Press d.
If the track has been playing for more
than approx. 10 seconds, the track is
replayed from the start. If the playing
time is shorter, the previous track is
played. MP3-CD track scan
The tracks of the current folder can be
scanned one after the other for 8 seconds
each. Subfolders ar
e not considered.
The function will switch off automatically
when the starting is reached.
You can also manually stop the scan
search.
Starting the Scan SearchActivate the MP3-CD main menu
(
page 57).
Press the Scan soft key. Ending the scan function
Scan search is running.
Press the Scan soft key.
or
Press E.
The last scanned trac k is played back.
i
When you start the scan search, the
playback mode
Normal Sequence
(page 60) is automatically activated.
230_Audio_US_B.fm Seite 59 Mittwoch, 8. Dezember 2004 4:28 16

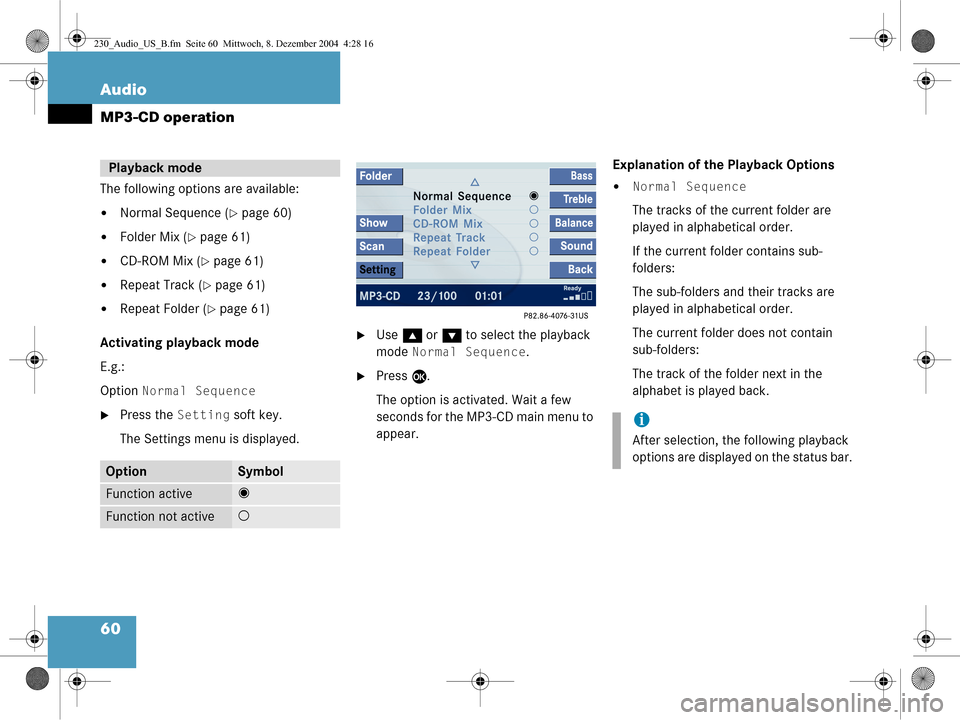

60 Audio
MP3-CD operation
The following options are available:
Normal Sequence (page 60)
Folder Mix (page 61)
CD-ROM Mix (page 61)
Repeat Track (page 61)
Repeat Folder (page 61)
Activating playback mode
E.g.:
Option
Normal Sequence
Press the Setting soft key.
The Settings menu is displayed.
Use g or G to select the playback
mode
Normal Sequence.
Press E.
The option is activated. Wait a few
seconds for the MP3-CD main menu to
appear. Explanation of the Playback Options
Normal Sequence
The tracks of the current folder are
played in alphabetical order.
If the current folder contains sub-
folders:
The sub-folders and their tracks are
played in alphabetical order.
The current folder does not contain
sub-folders:
The track of the folder next in the
alphabet is played back.
Playback mode
OptionSymbol
Function active_

Function not active-
i
After selection, the following playback
options are displayed on the status bar.
230_Audio_US_B.fm Seite 60 Mittwoch, 8. Dezember 2004 4:28 16

61
Audio
MP3-CD operation
Folder Mix
The tracks of the current folder and its
sub-folders are played in alphabetical
order.
CD-ROM Mix
All tracks of the MP3-CD are played in
random order.
Repeat Track
The system repeats the current track
until you switch the function off.
Repeat Folder
The system repeats the tracks of the
current folder until you switch the
function off.
Folder
Use the
Folder option to navigate
through the structur e of an MP3-CD.
Opening the folder menu
Activate the MP3-CD main menu
(
page 57).
Press the Folder soft key.
The names of the folders on the current
MP3-CD are displayed. 1
Current track/number of tracks on the
current MP3-CD
2 Elapsed playback time of the current
track
Use g or G to select a folder.
Press E.
The list of the tracks in the folder is
displayed. 5 tracks are displayed.
MP3 options
i
Only those folders or sub-folders are
displayed which contain the MP3
tracks.
230_Audio_US_B.fm Seite 61 Mittwoch, 8. Dezember 2004 4:28 16

62 Audio
MP3-CD operation
Use g or G to navigate through the
track list.
Press the Play soft key.
or
Press E to play the selected track.
Soft key :
Brings you one level up in the folder
structure. Displaying title information
Activate the MP3-CD menu main
(
page 57).
Press the Show soft key.
The information on the current track
stored on the MP3-CD is displayed.
230_Audio_US_B.fm Seite 62 Mittwoch, 8. Dezember 2004 4:28 16

63
Audio
DVD operation

DVD operation
Automatic screen off
Upon loading a DVD, the following mes-
sage will appear:
To prevent the driver from being
distracted, the picture is faded
out.
Treat DVDs with care to prevent
malfunctions during playback.
Do not scratch, touch or soil your
DVDs.
Do not attach labels to or write on your
DVDs.
General information on DVD operation
WarningG
In order to avoid distraction which could
lead to an accident, the driver should insert
DVDs with the vehicle at a standstill and
operate the audio system only if permitted
by road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m)
every second.
WarningG
The CD/DVD drive is a Class 1 laser pro-
ducts. There is a danger of invisible laser ra-
diation when you open or damage the cover.
Do not remove the cover. The CD/DVD drive
does not contain any parts which can be ser-
viced by the user. For safety reasons, have
any necessary service work performed by
qualified personnel.
i
Your CD/DVD drive has been designed
to play CDs/DVDs which correspond to
the IEC 60908 standard.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected and
will damage the drive.
!
The COMAND system is capable of
playing DVDs. However, in order to
avoid driver distraction, the video func-
tion is disabled and no images will be
shown on the COMAND screen.
230_Audio_US_B.fm Seite 63 Mittwoch, 8. Dezember 2004 4:28 16

64 Audio
DVD operation
From time to time, clean your DVDs
with a commercially available cleaning
cloth. Never wipe circularly, but in a
straight line from inside to outside.
After use, put your DVDs into the DVD
box.
Protect your DVDs from high
temperatures and direct sunlight.
Load a video DVD into the COMAND
(
page 65).
or
If a DVD is already loaded, open the Au-
dio menu (
page 34) and press the
DVD soft key.
If the video DVD meets the playback re-
quirements, playback will begin. If avai-
lable, the DVD menu (
page 70) saved
on the DVD will appear.
DVD playback requirements
i
Vendors may offer DVDs which do not
comply with the standards.
Sound, picture and other playback
problems may occur when you play
such DVDs.
The COMAND can playback video
DVDs meeting the following
requirements:
Regional code is set (factory
setting)
NTSC or PAL TV standard
The appropriate information is usually
given either on the DVD or the DVD
box. The factory setting of the
COMAND is regional code 1. The
setting can be changed at an
authorized Mercedes-Benz Center. This
will allow you to playback video DVDs
with other regional codes, as long as
they comply with the NTSC or PAL TV
standard.
i
The COMAND system is capable of
playing DVDs. However, in order to
avoid driver distraction, the video
function is disabled and no images will
be shown on the COMAND screen.
Switching to DVD operation
230_Audio_US_B.fm Seite 64 Mittwoch, 8. Dezember 2004 4:28 16

65
Audio
DVD operation
Insert a DVD into the slot (page 14).
The DVD should be inserted with the
label side up.
The COMAND pulls the DVD into the
drive. The display changes. After that the message
Loading
Medium Please Wait
will appear.
Loading a DVD
WarningG
In order to avoid distraction which could
lead to an accident, the driver should insert
DVDs with the vehicle at a standstill and
operate the audio system only if permitted
by road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m)
every second.
i
A DVD already loaded must be ejected
before inserting a new DVD. Inserting a
second DVD with another DVD still loa-
ded will cause damage to the DVD
drive which is not covered by the
Mercedes-Benz Limited Warranty.
i
Your CD/DVD drive has been designed
to play CDs/DVDs which correspond
to the IEC 60908 standard.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected
and will damage the drive.
i
A DVD already loaded must be ejected
before inserting a new DVD. Inserting a
second DVD with another DVD still
loaded will cause damage to the DVD
drive which is not covered by the
Mercedes-Benz Limited Warranty.
230_Audio_US_B.fm Seite 65 Mittwoch, 8. Dezember 2004 4:28 16

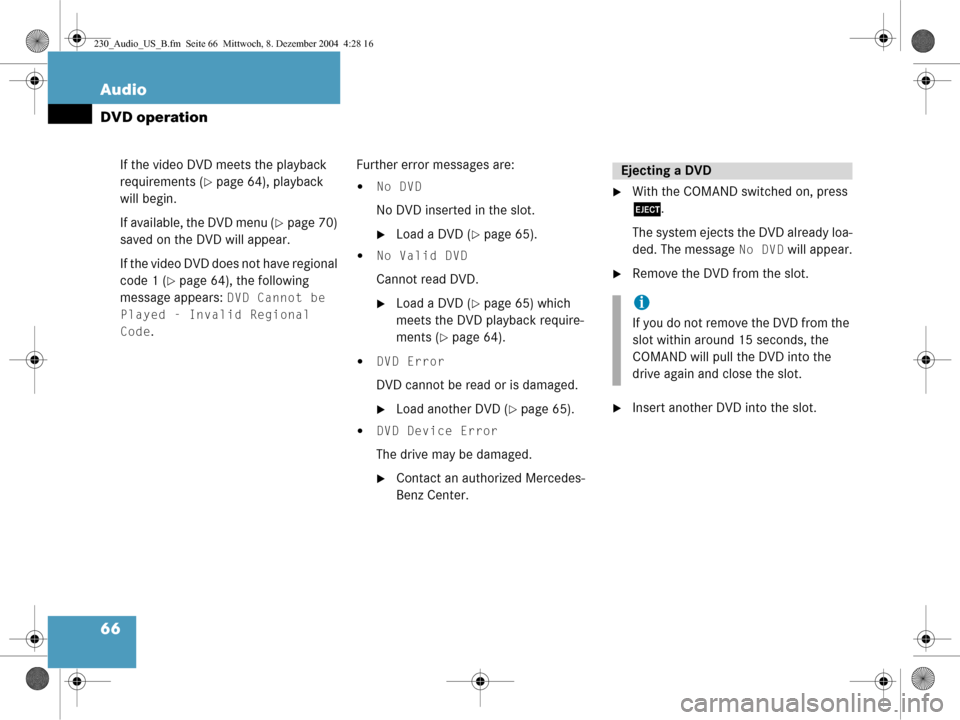

66 Audio
DVD operation
If the video DVD meets the playback
requirements (
page 64), playback
will begin.
If available, the DVD menu (
page 70)
saved on the DVD will appear.
If the video DVD does not have regional
code 1 (
page 64), the following
message appears:
DVD Cannot be
Played - Invalid Regional
Code
. Further error messages are:
No DVD
No DVD inserted in the slot.
Load a DVD (page 65).
No Valid DVD
Cannot read DVD.
Load a DVD (page 65) which
meets the DVD playback require-
ments (
page 64).
DVD Error
DVD cannot be read or is damaged.
Load another DVD (page 65).
DVD Device Error
The drive may be damaged.
Contact an author ized Mercedes-
Benz Center.
With the COMAND switched on, press
l .
The system ejects the DVD already loa-
ded. The message
No DVD will appear.
Remove the DVD from the slot.
Insert another DVD into the slot.
Ejecting a DVD
i
If you do not remove the DVD from the
slot within around 15 seconds, the
COMAND will pull the DVD into the
drive again and close the slot.
230_Audio_US_B.fm Seite 66 Mittwoch, 8. Dezember 2004 4:28 16

67
Audio
DVD operation
When you start DVD playback, the soft key
displays and the status bar are initially
blanked out.
Displaying the soft keys
In the DVD mode, press any soft key.
The soft keys and the status bar are
displayed.
DVD playback with soft key display and
status bar
The DVD information is displayed at the
center of the status bar.
E.g.:
Ttl. 5 = Track/movie no. 5 is being
played
Sce. 1 = Scene/chapter 1 is being
played
0:00:47 = DVD playing time elapsed
(47 seconds)
The soft keys and the status bar are auto-
matically blanked out again. You can also
blank out the display manually.
To remove the soft key display
Press the Full Scr. soft key.
Soft key display and status bar
230_Audio_US_B.fm Seite 67 Mittwoch, 8. Dezember 2004 4:28 16

68 Audio
DVD operation
Pause or Play soft key:
Switches the Pause function on or off
(
page 68).
Stop soft key:
Stops the DVD playback (
page 69).
Full Scr. soft key:
The soft key display disappears
(
page 69).
Menu soft key:
Displays the DVD menu saved on the
DVD, if available (
page 70).
Setting soft key:
Displays the DVD settings menu
(
page 71).
Sound soft key:
Brings you to the sound menu, where
you can set:
Balance (page 29)
Bass and Treble (page 30)
Sound functions* (page 31)
Bright., Contr. and Color soft
key
s:
Allow you to adjust brightness, cont-
rast and color (
page 74). Pause function
Display the soft keys (page 67).
Press the
Pause soft key.
DVD playback is paused. The picture
stands still. The
Pause soft key
changes to
Play.
To resume playback, press the Play
soft key.
Playback of the DVD will resume.
Soft key functions
i
Depending on the DVD, not all func-
tions are available at any time.
230_Audio_US_B.fm Seite 68 Mittwoch, 8. Dezember 2004 4:28 16
