139
Navigation
Route guidance

Route guidance
Route guidance can be started if the
destination input is complete and Start
Route Guidance is displayed at the bottom
of the main area.
Press E.
Route calculation and route guidance
begins. Route calculation can take some time,
depending on the distance to the
destination.
During route calculation,
CALC RTE and an
arrow pointing towards the destination are
displayed.
Route guidance begins when route
calculation is complete.
The system will calculate a new route
during active route guidance if the driver
does not follow the route guidance.
NEW RTE is displayed during recalculation.
The arrow is not filled out. After route calculation, the system assists
route guidance using pictorial displays
(page 140) and voice instructions.
Repeating current voice instructions
If you have not understood a navigation
announcement, you can at any time have a
current announcement repeated.
Press j.
The current navigation announcement
is repeated.
Starting route guidance Route calculation
Recalculating an existing route
Voice instructions
WarningG
Voice instructions are in tended to direct you
while driving without diverting your attenti-
on from the road and driving.
Always use this feature instead of consulting
the map display for directions. Consulting
the map displays for directions may cause
you to divert your attention from driving and
increase the risk of an accident.
230_Navigati_US_B.fm Seite 139 Mittwoch, 8. Dezember 2004 4:37 16

140 Navigation
Route guidance
Muting current voice instructions
Press J.
The current announcement is stopped.
You will hear the next navigation
announcement normally.
Switching voice instructions On/Off
Switching off
During a navigation announcement
press J for 2 seconds.
You will hear a confirmation beep if the
beep tones option was activated in the
system settings (
page 201).
The message
Voice Announcements
Muted
will appear briefly. Further route
guidance takes place using only the
symbols in the display. If a new route
guidance cycle is started, the
announcements are automatically
switched on again.
Switching on again
Press j. The navigation displays are only visible
while route guidance is active.
To switch to the navigation display from
another display, e.g.
from CD operation:
Press b or c .
Two examples are shown below:
Display example 1: The road you are currently driving on is
shown on the status bar, in this case
I-90.
The indication
120 mi is the distance to
the next driving maneuver.
If the GPS position display (
page 154) is
active, the GPS data are shown instead of
the street name.
Navigation displays
i
Using the multifunction steering wheel
buttons, the display unit can be
changed between km or miles (see
your vehicle’s Operator’s Manual).
When the display unit is set to
miles, the COMAND will indicate
distances in miles (mi) or feet (ft).
When the display unit is set to km,
the COMAND will indicate
distances in kilometers (km) or
meters (m).
230_Navigati_US_B.fm Seite 140 Mittwoch, 8. Dezember 2004 4:37 16

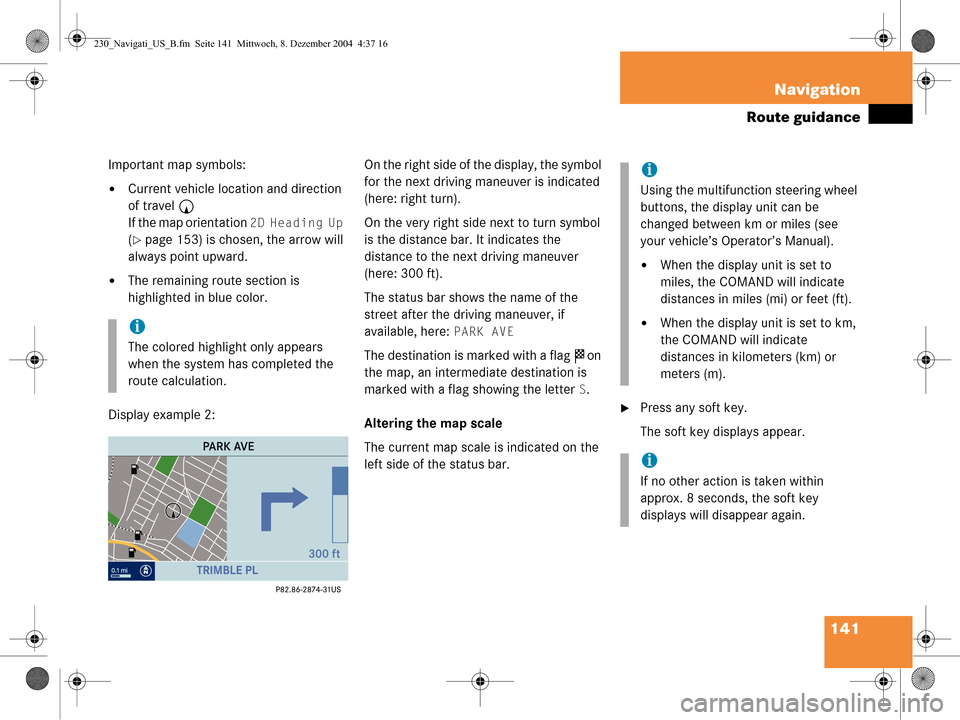

141
Navigation
Route guidance
Important map symbols:
Current vehicle location and direction
of travel
y
If the map orientation
2D Heading Up
(page 153) is chosen, the arrow will
always point upward.
The remaining route section is
highlighted in blue color.
Display example 2: On the right side of the display, the symbol
for the next driving maneuver is indicated
(here: right turn).
On the very right side next to turn symbol
is the distance bar. It indicates the
distance to the next driving maneuver
(here: 300 ft).
The status bar shows the name of the
street after the driving maneuver, if
available, here:
PARK AVE
The destination is marked with a flag
$ on
the map, an intermediate destination is
marked with a flag showing the letter
S.
Altering the map scale
The current map scale is indicated on the
left side of the status bar.
Press any soft key.
The soft key displays appear.
i
The colored highlight only appears
when the system has completed the
route calculation.
i
Using the multifunction steering wheel
buttons, the display unit can be
changed between km or miles (see
your vehicle’s Operator’s Manual).
When the display unit is set to
miles, the COMAND will indicate
distances in miles (mi) or feet (ft).
When the display unit is set to km,
the COMAND will indicate
distances in kilometers (km) or
meters (m).
i
If no other action is taken within
approx. 8 seconds, the soft key
displays will disappear again.
230_Navigati_US_B.fm Seite 141 Mittwoch, 8. Dezember 2004 4:37 16

142 Navigation
Route guidance
Press the + or ) soft key.
The map section is zoomed in or
zoomed out. A bar indicating the map
scale appears on the status bar.
Selecting map orientation
A symbol is shown on the bottom left side
of the status bar.
2D North Up Y :
Map is displayed facing north
or
2D Heading Up < :
Dynamic map alignment, map is
displayed facing driving direction
pointing up You can select the map orientation
(
page 153).
Changing the map display
While route guidance is active, you can
switch between split view and full view.
Split view:
The map is shown on the left side and
information on the next maneuver on
the right.
or
Full view:
Full view of the map
Press c.
The display changes with every push of
the button. When you reach the destination, you will
see the destination fl
ag. Route guidance
ends.
i
If GPS display (page 154) is active,
information on your current position is
shown on the status bar.
Arriving at destination
230_Navigati_US_B.fm Seite 142 Mittwoch, 8. Dezember 2004 4:37 16

143
Navigation
Route guidance
In navigation mode, press
b.
The inquiry menu
Cancel Current
Route Guidance?
will appear.
Press E and confirm with Yes.
Route guidance is cancelled. The
Navigation main menu appears after a
brief delay. Continuing route guidance
Press
h to select No.
Press E.
Cancelling route guidance
i
You can continue route guidance from
the Navigation main menu
(
page 118).
230_Navigati_US_B.fm Seite 143 Mittwoch, 8. Dezember 2004 4:37 16

144 Navigation
During route guidance

During route guidance
During route guidance you can use the soft
keys to activate additional menus and
displays and make settings.
The soft key displays will automatically
disappear after a few seconds.
During route guidance, press any soft
key.
The soft key displays will appear. Available soft keys
Info soft key:
Brings you to the Info menu.
St-over soft key:
Brings you to the stopover destination
function (
page 149).
Detour soft key:
Brings you to the Traffic Jam function
(
page 147).
Memory soft key:
Brings you to the save current location
function (
page 151).
Display soft key:
Brings you to the Display menu
(
page 151).
Soft key +:
Enlarge visible map section.
Soft key ):
Reduce visible map section.
Coord. soft key:
Brings you to the destination
coordinates input (
page 137).
Display the soft keys.
Press the Info soft key.
The Info menu will appear.
1 Your destination with estimated time of
arrival and the remaining distance
2 A stopover destination, if entered
(
page 149)
Displaying the soft keys
Info menu
230_Navigati_US_B.fm Seite 144 Mittwoch, 8. Dezember 2004 4:37 16

145
Navigation
During route guidance
Available soft keys
Route soft key:
Brings you to the route display on the
map.
Mode soft key:
Brings you to the route mode selection
menu (
page 120).
Setting soft key:
Brings you to the audio settings for the
navigation announcements
(
page 121). Displaying the route on the map
In the Info menu (page 144), press
the
Route soft key.
The map will appear. The route ahead
is blue-colored.
The destination is marked with a flag $
on the map, a stopover destination is
marked with a flag showing the letter
S.
Displaying the route list
In the Info menu (page 144), press
the
Route soft key.
The route appears on the map.
Press the List soft key.
The list of the remaining roads/route
sections appears.
The road currently travelled on is at the
top of the list.
Press G or g to scroll through the
list.
Use the
Page V and Page v soft keys
to display the next or previous page.
i
If a stopover destination has been
entered:
The estimated time of arrival and the
remaining distance to the destination
are displayed.
When the stopover destination is
reached, the system calculates the
route to the main destination and
indicates estimated time of arrival and
remaining distance.
i
Depending on the distance to the
destination, it may take some time
before the route display appears. i
Depending on the distance to the
destination, it may take a few moments
before the route list is completed.
The list will only be complete when the
route is completely calculated. This is
indicated by the word
Destination in
front of the last list entry.
230_Navigati_US_B.fm Seite 145 Mittwoch, 8. Dezember 2004 4:37 16

146 Navigation
During route guidance
With the via function you can influence
how the route is calculated.
Example:
You wish to travel from Chicago to New
York. You can use the via function to define
whether the route will lead via Cleveland or
Pittsburgh.
In the Info menu (page 144), press
the
Route soft key.
The route is shown on the map.
Press the Via soft key. If the via function is not yet active, you may
now select a via route.
If the via function is already active, the
message
Via Already Active will
appear. You can delete (
page 147) or
change (
page 147) the via route.
Selecting a via route
You can select one via route at a time.
Press G or g to select a list entry.
Press E.
The system calculates the new route.
Via function (soft key via)
i
The Via soft key has no function if the
route cannot offer any via routes.
i
The selection list always refers to the
currently active route.
Example:
You have entered a main and a
stopover destination. First, the system
will calculate your route to the stopover
destination, so that route is the active
route.
The selection list only shows possible
via routes to the stopover destination.
230_Navigati_US_B.fm Seite 146 Mittwoch, 8. Dezember 2004 4:37 16

147
Navigation
During route guidance
Deleting the active via route
Press
g to select option Delete
Active Via
.
Press E.
The system deletes the via route and
recalculates the route to the
destination. Changing the active via route
Press
g to select option Change
Active Via
.
Press E.
The list for selecting another via route
appears.
Use G or g to select the desired via
route.
Press E.
The system recalculates the route. The detour function blocks a route section
ahead. If possible, the system will
calculate a detour. You can adjust the
length of the route section to be blocked.
Switching on
Activate the soft key display (page 144).
Press the Detour soft key.i
If you enter a new destination, the sys-
tem will automatically delete any active
via route.
Selecting a detour
i
If the system does not allow you to
block a route section, the message
No
Detour Possible
is displayed.
Traffic jams are identified by the driver,
not by the COMAND. The detour
function may also be possible if the
vehicle is traveling on a road that does
not appear on the DVD.
i
If you have already placed a block on a
route section,
Detour appears written
in black. A menu will appear instead of
the map (
page 148).
230_Navigati_US_B.fm Seite 147 Mittwoch, 8. Dezember 2004 4:37 16

148 Navigation
During route guidance
You can now enter the length of the route
section to be blocked.
Press the More soft key until the
desired length is set.
Press the Less soft key to reduce the
length of the traffic jam.
Press E.
The system calculates a new route
around the blocked route section. Switching off
Activate the soft key display by
pressing any soft key (
page 144).
Press the Detour soft key.
Press
g to select Delete Detour.
Press E.
The blocked route section is deleted.
The system calculates the new route. Changing the blocked route section
Activate the soft key display
(
page 144).
Press the Detour soft key.
Use
G to select item Reset Detour.
Press E.
You can now change the length of the
route section to be blocked.
Press the More soft key until the
desired length is set.
Press the Less soft key to reduce the
length of the blocked route section.
Press E.
The system calculates a new route
around the blocked route section.
i
The route directly in front of the current
position can be blocked in the range of
0 to 6.2 miles.
230_Navigati_US_B.fm Seite 148 Mittwoch, 8. Dezember 2004 4:37 16
