MERCEDES-BENZ SL-Class 2008 R230 Comand Manual

91
Satellite radio
Important notes
Press
B to switch to satellite radio
operation.
One of the two following screens will
appear:
the Satellite radio main menu dis-
playing the
Weather channel or
the Service information display
Satellite radio main menu
The Satellite radio main menu displays the
Weather channel. You cannot select any
other station.
Press the SIRIUS soft key to display the
Service information display.
Service information display
1 Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2 The Electronical Serial Number (ESN)
of your satellite receiver
Contact satellite radio service provider
at the telephone number displayed in
the screen.
Subscribing to satellite radio
i
If the Satellite radio function has not yet
been subscribed to or not subscribed
again, you have to contact the satellite
radio service provider.

92 Satellite radio
Satellite radio operation
Satellite radio operation
After the connection is made:
Follow the instructions given by the
operator.
The activation process may take up to
10 minutes. If it is successful, you will
see the display with the message
Acquiring Signal... (page 92)
followed by the Satellite radio main
menu (
page 92). See “Subscribing to satellite radio” for im-
portant subscription information
(
page 91).
Press
B to switch to satellite radio
operation.
When switching to Satellite radio ope-
ration, the system may have to acquire
the signal. The signal may also be inter-
rupted from time to time during opera-
tion for a variety of reasons
(
page 90) and may have to be re-
acquired. If so, you will see the above
message on the display. After the COMAND acquires the
signal, the Satellite radio main menu will
appear. The station last tuned to will begin
to play.
Satellite radio main menu
1
Program category
2 Station name
3 Memory preset selected and channel
number
i
Credit card information may be re-
quired for your application.
If a satellite receiver is not installed or
not properly installed:
The message
No Satellite Radio
will appear.
Switching on

93
Satellite radio
Satellite radio operation
Muting
Press
J while listening to the satel-
lite radio.
The symbol R will appear in the symbol
bar.
Press J again to resume listening to
the current station.
The symbol R will have disappeared. Satellite radio stations are split up into ca-
tegories. You can select between various
c a t e g o r i e s s u c h a s N e w s , S p o r t s N e w s a n d
Country Music, if available. The category
list is sorted alphabetically.
Selecting a program category
Use
H or h while the Satellite radio
main menu (
page 92) is being
displayed.
The previous or next program category
(alphabetical order) will appear in the
display. The station last tuned in the
new category will begin to play. You can use the following functions:
Automatic tuning
Automatic station scan (page 94)
Station selection via direct channel
entry (
page 94)
Station selection from the preset menu
(
page 96)
Automatic tuning
Use G or g while the Satellite radio
main menu is being displayed.
or
Press d or D .
The satellite radio will tune in to the nu-
merically previous or next receivable
station in the selected category.
i
You can display 2 in full:
Station information (page 96)
i
Muting will also be canceled if you
switch to an audio source, e.g. normal
radio, or if you alter the volume.
Changing the program categorySelecting a station

94 Satellite radio
Satellite radio operation
Automatic station scan
The stations in the selected category can
be scanned in numerical order for 8 se-
conds each.
In the Satellite radio main menu, press
the
Scan soft key.
The scan function will begin.
Scan will
appear in black lettering. Ending scan function and playing a
station
Press the Scan soft key again.
The station selected will appear with
the station name.
Scan will appear in
white lettering again.
Station selection vi a direct channel
entry
Press *.
Input line will appear.
Enter the number of the channel you
wish to select, e.g. 55.
The channel you have selected will be-
gin to play. The corresponding station
name will appear, if station is available.
i
If the selected channel is not subscri-
bed, the system displays
Channel Not
subscribed
.
If no content is being broadcast on the
selected channel, the system displays
the message
Invalid Channel.

95
Satellite radio
Satellite radio operation
You can use the following functions:
Saving stations manually
Selecting a station from the Satellite
preset memory (
page 96)
Selecting a station by entering the
channel number (
page 94)
Saving station manually
In the Satellite radio main menu
Press one of the number keys, e.g.
2,
longer than 2 seconds.
You will hear a confirmation beep if the
beep tones option was activated in the
system settings (
page 217).
The satellite radio saves the current
station at the memory preset selected.
The memory preset selected will ap-
pear in the status line, e.g.
SAT2. On the memory list
In the Satellite radio main menu, press
the
Presets soft key.
The SAT preset memory will appear.
Use G or g to select a memory pre-
set.
Press E longer than 2 seconds.
You will hear a confirmation beep if the
beep tones option was activated in the
system settings (
page 217).
The satellite radio saves the current
station at the memory preset selected.
You will see the Satellite radio main menu
automatically after 8 seconds
if you press s.
Memory functions
i
There are 10 presets available.
i
An existing entry is overwritten in the
memory list when a new input is given.

96 Satellite radio
Satellite radio operation
Selecting a station on the memory list
In the Satellite radio main menu, press
the
Presets soft key.
The SAT preset memory will appear.
Use g or G to highlight a memory
preset.
Press E.
The Satellite radio main menu will then
appear automatically after 8 seconds,
indicating the memory preset number
in the status line.
In the Satellite radio main menu, press
the
Info soft key.
The information display will appear.
You will see (if available)
the full station name
additional program information
Press the Back soft key to switch back
to the Satellite radio main menu.Displaying information

97
Satellite radio
Satellite radio operation
You can call the provider service center for
questions or releases, whenever you need.
Press the SIRIUS soft key.
The Service information display will ap-
pear.
1 Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2 The Electronical Serial Number (ESN)
of your SAT tuner
Press the Back soft key to switch back
to the Satellite radio main menu.
Refer to chapter “At a glance” on how to
adjust sound settings.
You can set
the sound Bass/Treble individually
the sound-center (Balance)
select predefined sound optimization
Displaying service information
Sound settings

98

99
Telephone*
Important notes
Telephone operation

100 Telephone*
Important notes

Important notes
In chapter “Telephone”, you will find de-
tailed information regarding the telepho-
ne*, including emergency call.
1 Observe all legal requirements

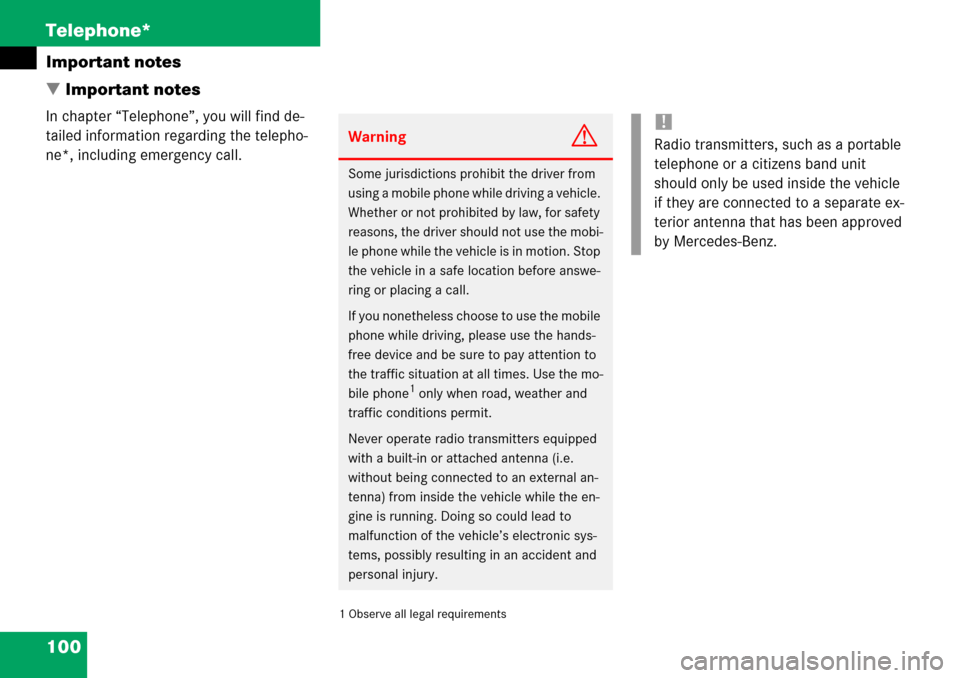

WarningG
Some jurisdictions prohibit the driver from
using a mobile phone while driving a vehicle.
Whether or not prohibited by law, for safety
reasons, the driver should not use the mobi-
le phone while the vehicle is in motion. Stop
the vehicle in a safe location before answe-
ring or placing a call.
If you nonetheless choose to use the mobile
phone while driving, please use the hands-
free device and be sure to pay attention to
the traffic situation at all times. Use the mo-
bile phone
1 only when road, weather and
traffic conditions permit.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e.
without being connected to an external an-
tenna) from inside the vehicle while the en-
gine is running. Doing so could lead to
malfunction of the vehicle’s electronic sys-
tems, possibly resultin g in an accident and
personal injury.
!
Radio transmitters, such as a portable
telephone or a citizens band unit
should only be used inside the vehicle
if they are connected to a separate ex-
terior antenna that has been approved
by Mercedes-Benz.
