120 Telephone*
Telephone operation
Saving the entry
In the Input menu, press the OK soft
key.
If you have not assigned a name, the
system will save the entry in the
Other
category, otherwise under the name
you have assigned.
Cell Phone
The message Transmitting Data
to Telephone is displayed.
If transmission is succesful, the
message
Data Has Been Saved will
appear and the phone book is
displayed again.
Otherwise the message
Error
Occured While Saving Data
will
appear.
Press E to confirm.
The phone book is displayed again.
Address Book
If transmission is succesful, the
message
Data Has Been Saved will
appear and the phone book is
displayed again.
Otherwise the message
Error
Occured While Saving Data
will
appear.
Press E to confirm.
The phone book is displayed again. Deleting a phone book entry
Select a phone book entry at the
COMAND (
page 116).
Press the Delete soft key.
The delete dialogue will appear.
Press E to confirm with Yes.
The message is deleted.
If you do not wish to delete the message
Press h to highlight No and then
press E.
or
Press the Back soft key.
i
If you select an address book entry, the
Delete soft key is greyed out. The
selected entry must be deleted from
within the address book (
page 202).

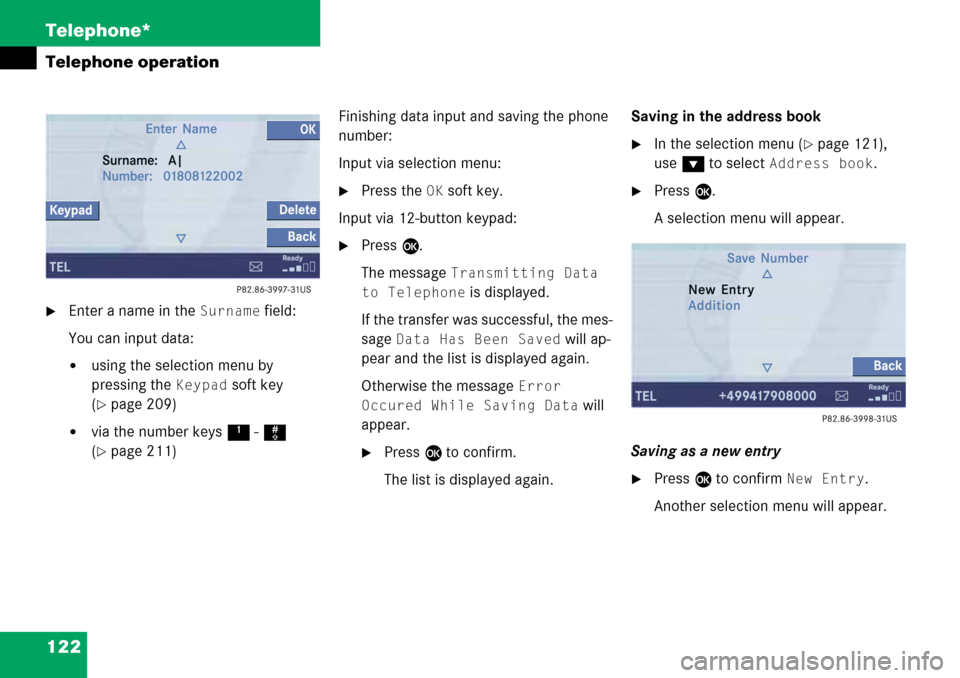

122 Telephone*
Telephone operation
Enter a name in the Surname field:
You can input data:
using the selection menu by
pressing the
Keypad soft key
(
page 209)
via the number keys 1 - #
(
page 211) Finishing data input and saving the phone
number:
Input via selection menu:
Press the OK soft key.
Input via 12-button keypad:
Press E.
The message
Transmitting Data
to Telephone
is displayed.
If the transfer was successful, the mes-
sage
Data Has Been Saved will ap-
pear and the list is displayed again.
Otherwise the message
Error
Occured While Saving Data
will
appear.
Press E to confirm.
The list is displayed again. Saving in the address book
In the selection menu (page 121),
use G to select
Address book.
Press E.
A selection menu will appear.
Saving as a new entry
Press E to confirm New Entry.
Another selection menu will appear.

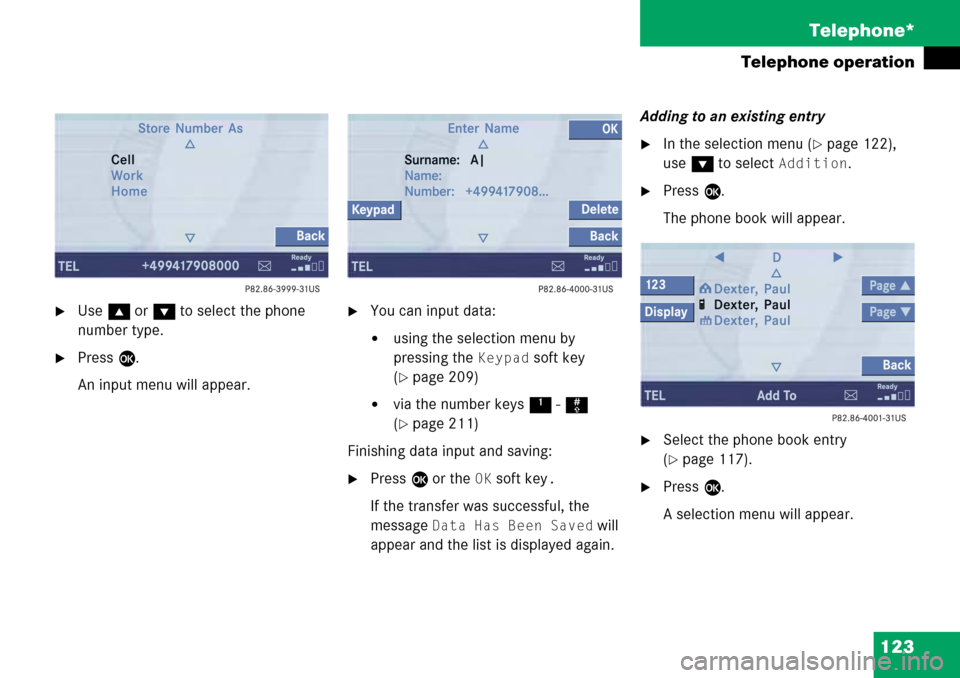

123
Telephone*
Telephone operation
Use
g or G to select the phone
number type.
Press E.
An input menu will appear.
You can input data:
using the selection menu by
pressing the
Keypad soft key
(
page 209)
via the number keys 1 - #
(
page 211)
Finishing data input and saving:
Press E or the OK soft key.
If the transfer was successful, the
message Data Has Been Saved will
appear and the list is displayed again. Adding to an existing entry
In the selection menu (page 122),
use G to select
Addition.
Press E.
The phone book will appear.
Select the phone book entry
(
page 117).
Press E.
A selection menu will appear.

124 Telephone*
Telephone operation
Use g or G to select the phone
number type.
Press E.
Phone number type available:
The message
Data Has Been Saved
will appear. After around three se-
conds, the list from where you started
the saving process will appear. Phone number type occupied:
The message
Do You Want to Over-
write Entry?
will appear.
Press E if you wish to overwrite the
entry.
The message
Data Has Been Saved
will appear. After around three se-
conds, the list from where you started
the saving process will appear.
If you do not wish to overwrite the entry
Press h to highlight No if you do not
wish to overwrite the entry.
Press E.
The list from where you started the sto-
rage will appear.
i
If transmission is not succesful the
message
Error Occured While
Saving Data
will appear.
Press E to confirm.
The phone book is displayed again.

126 Navigation
Important notes

Important notes
WarningG
For safety reasons, you should only enter a
destination when the vehicle is stationary.
When the vehicle is in motion, a passenger
should enter the destination. Study manual
and select route before driving.
Do not watch display screen or operate but-
tons while the vehicle is in motion - let voice
instructions guide you. Stop at a safe locati-
on before using buttons or making correc-
tions.
Traffic regulations always have priority over
any route recomm endations given.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is co-
vering a distance of 44 feet (approximately
14 m) every second.
The route calculated by COMAND is a re-
commendation on how to best reach your
selected destination.
During route guidance, you will not receive
any information on
Traffic lights
Stop and yield signs
Parking or stopping zones
One-way streets
Narrow bridges
Similar traffic regulation data
You should therefore always strictly observe
traffic regulations while driving. Drive care-
fully and always obey tr affic laws and road
signs even if they contradict COMAND in-
structions.
WarningG
The Navigation DVD module contains a
Class 1 laser product. There is a danger of
invisible laser radiation if the cover is ope-
ned or damaged.
Do not remove the cover. The Navigation
DVD module does not contain any parts ser-
viceable by the user. For safety reasons,
have any necessary service work performed
only by qualif ied personnel.

128 Navigation
Important notes
Loading
Insert the DVD into the DVD slot 2
with the label side up.
The navigation computer pulls the DVD
in.
If your vehicle has been transported (e.g.
by a car, train or ferry) the system may
make navigation announcements which do
not correspond to the vehicle’s position.
The system needs to redetermine its
position. Determining the location after the
vehicle has been transported
The system will need some time to
determine its location after the car has
been transported. The time required for
the system to do so varies from case to
case.
Switch the COMAND on.
Activate the Navigation main menu
(
page 130).
The navigation DVD needs to be in the
navigation computer (
page 127).
Drive and press c.
The display will change to the map
display. Drive until the position or the road
indicated correspond to the real
circumstances. The system is now
correctly adjusted.
Route guidance after the vehicle has
been transported

130 Navigation
Navigation main menu

Navigation main menu
Press b.
The Navigation main menu will appear.
Use G or g to select a menu item.
Press E.
or
Press one of the soft keys. Available
soft keys (
page 131).
The selected menu or the function of
the selected soft key appears. Selectable Menu Items
Continue Route Guidance:
Resumes interrupted or aborted route
guidance.
Activating the Navigation main
menu
i
If a navigation submenu is displayed,
you need to press the button twice.
i
If route guidance is active, a message
appears instead asking you whether
you wish to resume route guidance
(
page 159).
If route guidance has been interrupted
for more than 2 hours, the entry
Continue Route Guidance will be
on top of the list.
i
This menu item appears if you:
have aborted route guidance
(
page 159) and less than 30
minutes have elapsed since the
guidance process was aborted
have interrupted your journey and
continue it after more than 2 hours

133
Navigation
Navigation main menu
You can set the following for the navigation
announcements:
Bass and treble control (page 133)
Balance (page 133)
Volume (page 134)
In the Navigation main menu
(
page 130), press the Setting soft
key.
The Settings menu will appear.
The announcement
Navigation Is
Not Active
is made. Adjusting bass and treble
In the Settings menu, press the Bass
or
Treble soft key.
Press H or h .
You adjust bass or treble.
Press E or the Back soft key.
or
Wait until the display changes.
The new setting is saved. The
Navigation main menu appears. Adjusting balance
In the Settings menu, press the
Balance soft key.
Cross-hairs are displayed. The vertical
line indicates the fader setting. The
horizontal line indicates the balance
setting.
Press H or h .
Move the cross-hairs horizontally and
adjust the balance.
Audio settings for the navigation
announcements
i
Balance defines the sound center left/
right.

134 Navigation
Navigation main menu
Press E or the Back soft key.
or
Wait until the display changes.
The new setting is saved. The
Navigation main menu will appear.
Adjusting the volume
The automatic navigation announcements
override the currently active audio source.
You can adjust the volume difference. The
setting will reduce the volume of the
currently active audio source for the
duration of the announcement.
In the Navigation main menu, press the
Setting soft key.
The Settings menu will appear.
In the Settings menu, press the
Nav.Vol. soft key.
Options for the reduction of audio
volume are displayed.
Use G or g to select an option.
Press E.
Wait until the Settings menu is
displayed again or press the
Back soft
key.
The new setting is saved. The
Navigation main menu will appear.
Press c.
The full view of the map appears. You
will see the vehicle’s current position.
Press any soft key.
The soft key displays will appear.
Saving current position
i
If a map submenu is displayed, you
need to press the button twice.

136 Navigation
Destination input

Destination input
Activating the Navigation main menu
(
page 130).
Press g or G to select the menu
item
Destination Entry.
Press E.
Either of the following appears:
the Select Region list, if no
destination has been entered
previously
the Destination Entry menu
(
page 137)
Select Region list
Selecting the region
Press g or G to select a region.
Press E.
If not more than 12 destinations are
available for the selected region, you
can now select the destination
(
page 139).
If more than 12 destinations are
available, the main Destination Entry
menu appears.
If you have selected another region, the
destination last input is deleted. The
destination in the region which comes
first in the alphabet is displayed.
Activating the Destination Entry
menu
i
You can also select a region by
pressing the
Region soft key in the
Destination Entry menu.
