MERCEDES-BENZ SL-Class 2013 R131 Owner's Manual

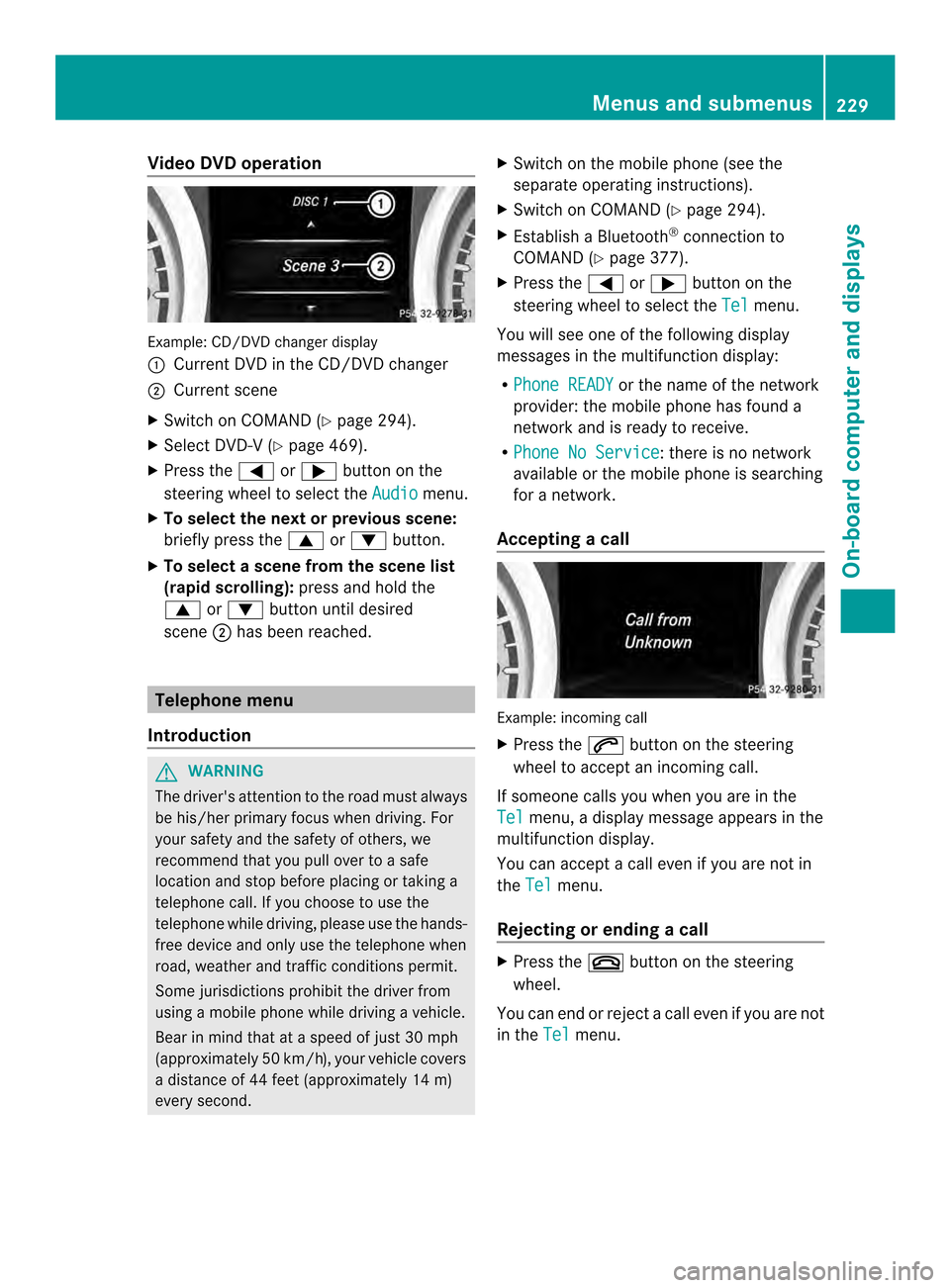

Video DVD operation
Example
:CD/DVD change rdisplay
0002 Current DVD in the CD/DVD changer
0003 Current scene
X Switch on COMAND (Y page 294).
X Select DVD-V (Y page 469).
X Press the 0004or0008 button on the
steering wheel to select the Audio menu.
X To select the next or previous scene:
briefly press the 0006or0007 button.
X To select ascene from the scene list
(rapid scrolling): press and hold the
0006 or0007 buttonuntil desired
scene 0003has been reached. Telephone menu
Introduction G
WARNING
The driver's attentio nto the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop before placing or taking a
telephone call. If you choose to use the
telephone while driving, please use the hands-
free device and only use the telephone when
road, weather and traffic conditions permit.
Some jurisdictions prohibit the driver from
using a mobile phone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h) , your vehicle covers
a distance of 44 feet (approximately 14 m)
every second. X
Switch on the mobile phone (see the
separate operating instructions).
X Switch on COMAND (Y page 294).
X Establish a Bluetooth ®
connection to
COMAND (Y page 377).
X Press the 0004or0008 button on the
steering wheel to select the Tel menu.
You will see one of the following display
messages in the multifunction display:
R Phone READY or the name of the network
provider :the mobile phone has found a
network and is ready to receive.
R Phone No Service : there is no network
available or the mobile phone is searching
for a network.
Accepting acall Example: incoming call
X
Press the 0017button on the steering
wheel to accep tanincoming call.
If someone calls you when you are in the
Tel menu, a display message appears in the
multifunctio ndisplay.
You can accept a call even if you are not in
the Tel menu.
Rejecting or ending acall X
Press the 003Cbutton on the steering
wheel.
You can end or reject a call even if you are not
in the Tel menu. Menus and submenus
229On-board computer and displays Z

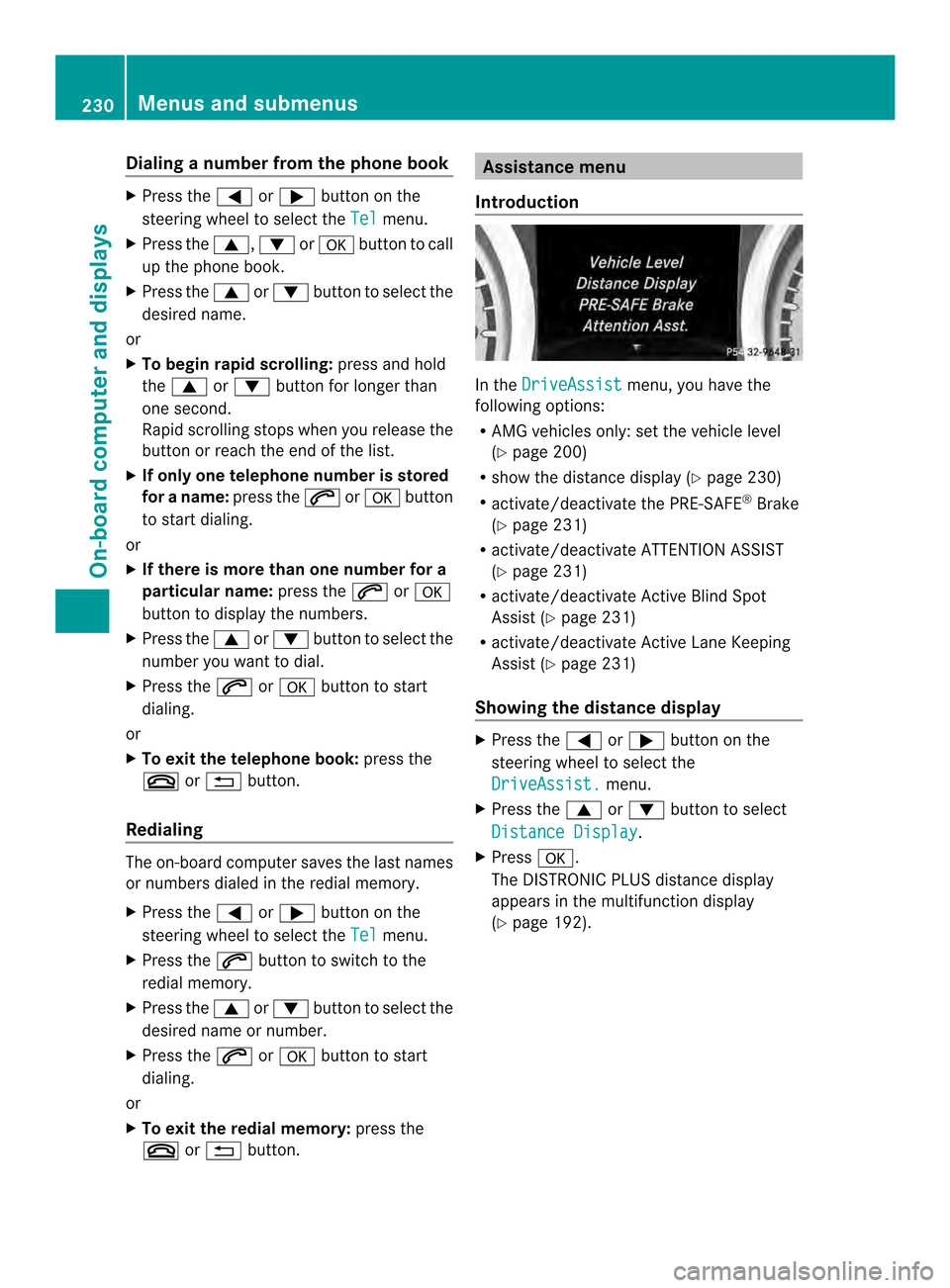

Dialing a number from the phone book
X
Press the 0004or0008 button on the
steering wheel to selec tthe Tel menu.
X Press the 0006,0007or000F button to call
up the phone book.
X Press the 0006or0007 button to select the
desired name.
or
X To begin rapid scrolling: press and hold
the 0006 or0007 button for longer than
one second.
Rapid scrolling stops when you release the
button or reach the end of the list.
X If only one telephone number is stored
for a name: press the0017or000F button
to start dialing.
or
X If there is more than one number for a
particular name: press the0017or000F
button to display the numbers.
X Press the 0006or0007 button to select the
number you want to dial.
X Press the 0017or000F button to start
dialing.
or
X To exit the telephone book: press the
003C or001F button.
Redialing The on-board computer saves the last names
or numbers dialed in the redial memory.
X Press the 0004or0008 button on the
steering wheel to select the Tel menu.
X Press the 0017button to switch to the
redial memory.
X Press the 0006or0007 button to select the
desired name or number.
X Press the 0017or000F button to start
dialing.
or
X To exit the redial memory: press the
003C or001F button. Assistance menu
Introduction In the
DriveAssist menu, you have the
following options:
R AMG vehicles only: set the vehicle level
(Y page 200)
R show the distance display (Y page 230)
R activate/deactivate the PRE-SAFE ®
Brake
(Y page 231)
R activate/deactivate ATTENTION ASSIST
(Y page 231)
R activate/deactivate Active Blind Spot
Assist (Y page 231)
R activate/deactivate Active Lane Keeping
Assist (Y page 231)
Showing the distance display X
Press the 0004or0008 button on the
steering wheel to select the
DriveAssist. menu.
X Press the 0006or0007 button to select
Distance Display .
X Press 000F.
The DISTRONIC PLUS distance display
appears in the multifunction display
(Y page 192). 230
Menus and submenusOn-board computer and displays

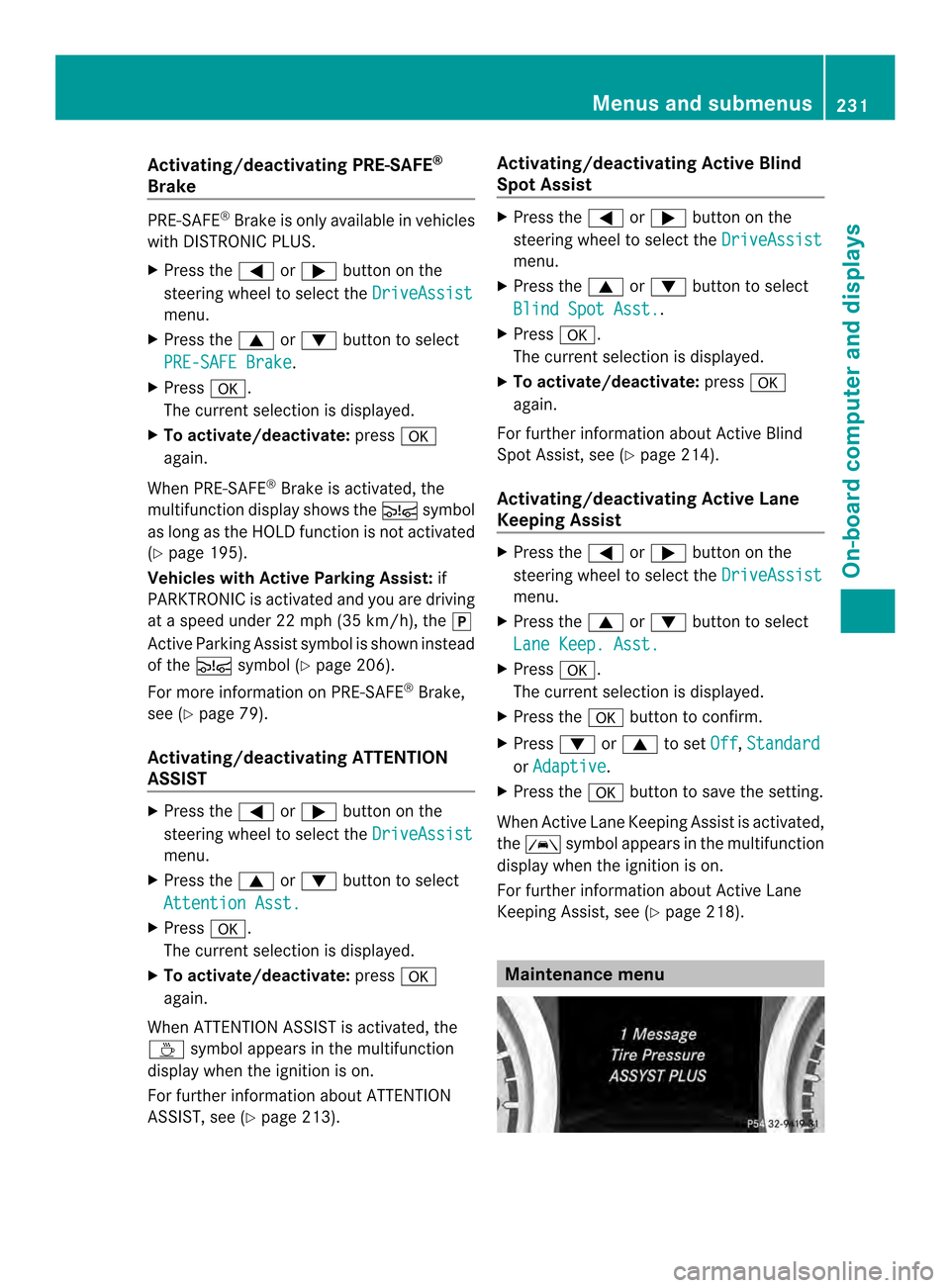

Activating/deactivating PRE-SAFE
®
Brake PRE-SAFE
®
Brake is only available in vehicles
with DISTRONIC PLUS.
X Press the 0004or0008 button on the
steering wheel to select the DriveAssistmenu.
X Press the 0006or0007 buttonto select
PRE-SAFE Brake .
X Press 000F.
The current selection is displayed.
X To activate/deactivate: press000F
again.
When PRE-SAFE ®
Brake is activated, the
multifunction display shows the 0001symbol
as long as the HOLD function is not activated
(Y page 195).
Vehicles with Active Parking Assist: if
PARKTRONIC is activated and you are driving
at a speed under 22 mph (35 km/h), the 0014
Active Parking Assist symbol is shown instead
of the 0001symbol (Y page 206).
For more information on PRE-SAFE ®
Brake,
see (Y page 79).
Activating/deactivating ATTENTION
ASSIST X
Press the 0004or0008 button on the
steering wheel to select the DriveAssistmenu.
X Press the 0006or0007 button to select
Attention Asst. X
Press 000F.
The current selection is displayed.
X To activate/deactivate: press000F
again.
When ATTENTION ASSIST is activated, the
0003 symbol appears in the multifunction
display when the ignition is on.
For further information about ATTENTION
ASSIST, see (Y page 213). Activating/deactivating Active Blind
Spot Assist X
Press the 0004or0008 button on the
steering wheel to select the DriveAssist menu.
X Press the 0006or0007 button to select
Blind Spot Asst. .
X Press 000F.
The current selection is displayed.
X To activate/deactivate: press000F
again.
For further information about Active Blind
Spot Assist, see (Y page 214).
Activating/deactivating Active Lane
Keeping Assist X
Press the 0004or0008 button on the
steering wheel to select the DriveAssist menu.
X Press the 0006or0007 button to select
Lane Keep. Asst. X
Press 000F.
The current selection is displayed.
X Press the 000Fbutton to confirm.
X Press 0007or0006 to set Off ,
Standard or
Adaptive .
X Press the 000Fbutton to save the setting.
When Active Lane Keeping Assist is activated,
the 0001 symbol appears in the multifunction
display when the ignition is on.
For further information about Active Lane
Keeping Assist, see (Y page 218). Maintenance menu Menus and submenus
231On-board computer and displays Z

In the
Serv menu, you have the following
options:
R call up display messages (Y page 240)
R restart the tire pressure loss warning
system (Y page 551)
R check the tire pressure electronically
(Y page 552)
R call up the service due date Settings menu
Introduction In the
Sett. menu, you have the following
options:
R change the instrument cluster settings
(Y page 232)
R change the lights ettings (Ypage 233)
R change the vehicle settings (Y page 235)
R change the convenience settings
(Y page 235)
R restore the factory settings (Y page 232)
Restoring the factory settings X
Press the 0004or0008 button on the
steering wheel to select the Sett. menu.
X Press the 0007or0006 button to select the
Factory Setting submenu.
X Press the 000Fbutton to confirm.
The Reset All Settings? message
appears.
X Press the 0007or0006 button to select
No or
Yes .
X Press the 000Fbutton to confirm the
selection.
If you have selected Yes , the multifunction
display shows a confirmation message. For safety reasons, the
Daytime Running Lights function in the
Lights submenu is
only reset if the vehicle is stationary.
Instrument cluster Selecting the unit of measurement for
distance
The
Display Unit Speed-/Odometer: function allows you to choose whether
certain displays appear in kilometers or miles
in the multifunction display.
You can determine whether the multifunction
display shows some messages in miles or
kilometers.
X Press the 0004or0008 button on the
steering wheel to select the Settings menu.
X Press the 0007or0006 button to select the
Inst. Cluster submenu.
X Press the 000Fbutton to confirm.
X Press the 0007or0006 button to select the
Display Unit Speed-/Odometer: function.
You will see the selected setting:
km or
miles .
X Press the 000Fbutton to save the setting.
The selected unit of measuremen tfor
distance applies to:
R the digital speedometer in the Trip menu
R odometer and the trip odometer
R trip computer
R current consumption and the range
R the navigation instructions in the Navi menu
R cruise control
R DISTRONIC PLUS
R ASSYST PLUS service interval display 232
Menus and submenusOn-board computer and displays

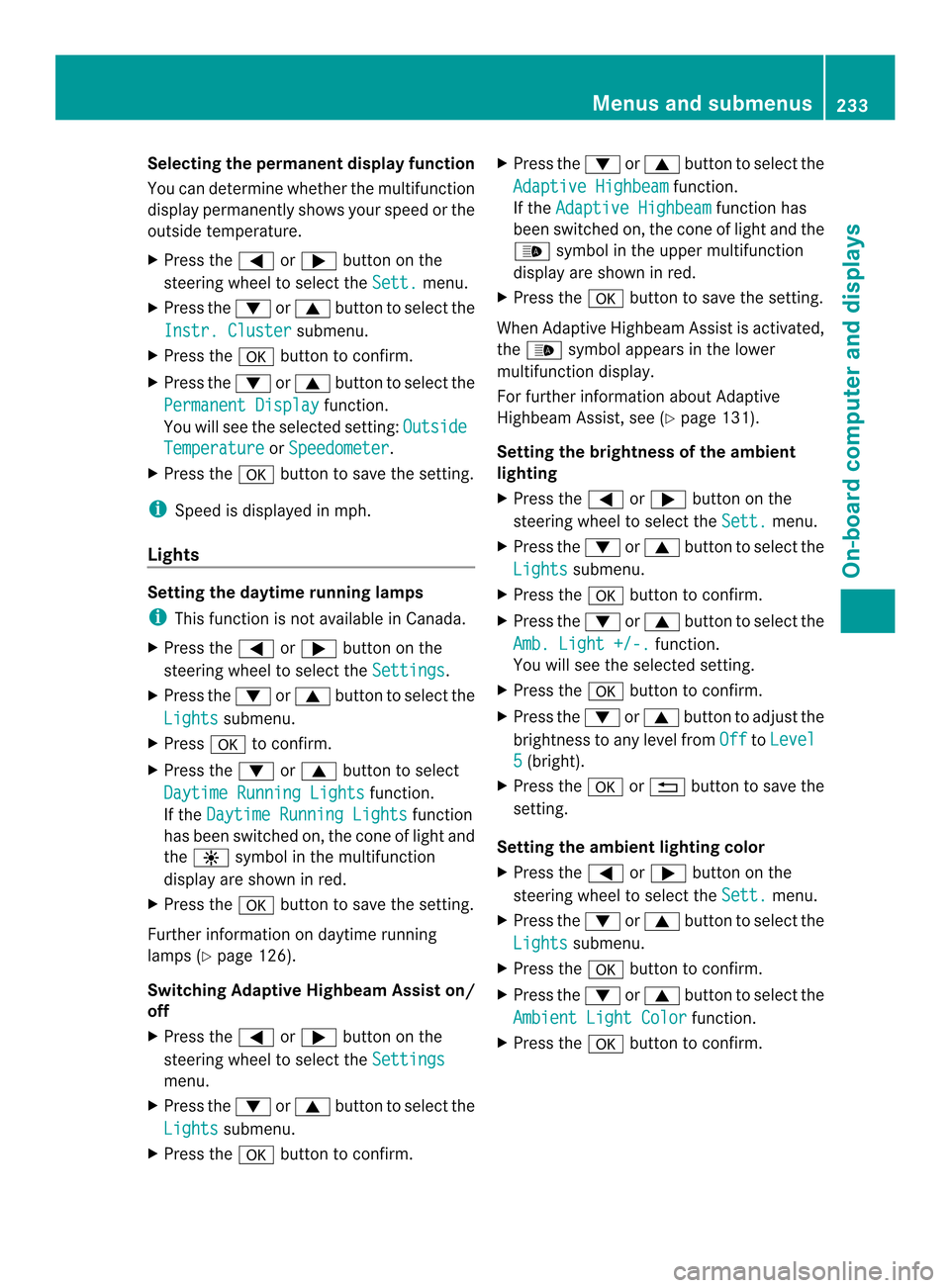

Selecting the permanent display function
You can determine whether the multifunction
display permanently shows your speed or the
outside temperature.
X Press the 0004or0008 button on the
steering wheel to select the Sett. menu.
X Press the 0007or0006 button to select the
Instr. Cluster submenu.
X Press the 000Fbutton to confirm.
X Press the 0007or0006 button to select the
Permanent Display function.
You will see the selected setting: OutsideTemperature or
Speedometer .
X Press the 000Fbutton to save the setting.
i Speed is displayed in mph.
Lights Setting the daytime running lamps
i
This function is not available in Canada.
X Press the 0004or0008 button on the
steering wheel to select the Settings .
X Press the 0007or0006 button to select the
Lights submenu.
X Press 000Fto confirm.
X Press the 0007or0006 button to select
Daytime Running Lights function.
If the Daytime Running Lights function
has been switched on, the cone of light and
the 0003 symbol in the multifunction
display are shown in red.
X Press the 000Fbutton to save the setting.
Further information on daytime running
lamps (Y page 126).
Switching Adaptive Highbeam Assist on/
off
X Press the 0004or0008 button on the
steering wheel to select the Settingsmenu.
X Press the 0007or0006 button to select the
Lights submenu.
X Press the 000Fbutton to confirm. X
Press the 0007or0006 button to select the
Adaptive Highbeam function.
If the Adaptive Highbeam function has
been switched on, the cone of light and the
0002 symbol in the upper multifunction
display are shown in red.
X Press the 000Fbutton to save the setting.
When Adaptive Highbeam Assist is activated,
the 0002 symbol appears in the lower
multifunction display.
For further information about Adaptive
Highbeam Assist, see (Y page 131).
Setting the brightness of the ambient
lighting
X Press the 0004or0008 button on the
steering wheel to select the Sett. menu.
X Press the 0007or0006 button to select the
Lights submenu.
X Press the 000Fbutton to confirm.
X Press the 0007or0006 button to select the
Amb. Light +/-. function.
You will see the selected setting.
X Press the 000Fbutton to confirm.
X Press the 0007or0006 button to adjust the
brightness to any level from Off to
Level 5 (bright).
X Press the 000For001F button to save the
setting.
Setting the ambient lighting color
X Press the 0004or0008 button on the
steering wheel to select the Sett. menu.
X Press the 0007or0006 button to select the
Lights submenu.
X Press the 000Fbutton to confirm.
X Press the 0007or0006 button to select the
Ambient Light Color function.
X Press the 000Fbutton to confirm. Menus and submenus
233On-board computer and displays Z

X
Press the 0007or0006 button to set the
color to SOLAR ,
SOLAR Orange or
SOLAR Red .
X Press the 000For001F button to save the
setting.
Activating/deactivating surround
lighting and exterior lighting delayed
switch-off
X Press the 0004or0008 button on the
steering wheel to select the Settingsmenu.
X Press the 0007or0006 button to select the
Lights submenu.
X Press 000Fto confirm.
X Press the 0007or0006 button to select the
Surround Lighting function.
When the Surround Lighting function is
activated, the light cone and the area
around the vehicle are displayed in red in
the multifunction display.
X Press the 000Fbutton to save the setting.
Deactivating delayed switch-off of the
exterior lighting temporarily:
X Before leaving the vehicle, turn the
SmartKey to position 0in the ignition lock.
X Turn the SmartKey to position 2in the
ignition lock.
The exterior lighting delayed switch-off is
deactivated.
Delayed switch-off of the exterior lighting is
reactivated the next time you start the
engine.
If you have activated the SurroundLighting function and the light switch is set
to 0006, the following functions are activated
when it is dark:
R surround lighting: the exterior lighting
remains lit for 40 seconds after unlocking
with the key. If you start the engine, the
surround lighting is switched off and automatic headlamp mode is activated
(Y
page 126).
R exterior lighting delayed switch-off: the
exterior lighting remains lit for
60 seconds after the engine is switched off.
If you close all the doors and the trunkl id,
the exterior lighting goes off after
15 seconds.
i Depending on your vehicle's equipment,
when the surround lighting and delayed
switch-off exterior lighting are on, the
following light up:
R Parking lamps
R Low-beam headlamps
R Daytime running lamps
R Side marker lamps
R Surround lighting in the exterior mirrors
Activating/deactivating the interior
lighting delayed switch-off
If you activate the Interior Lighting Delay function, the interior lighting remains
on for 20seconds after you remove the
SmartKey from the ignition lock.
X Press the 0004or0008 button on the
steering wheel to selec tthe Settings menu.
X Press the 0007or0006 button to select the
Lights submenu.
X Press the 000Fbutton to confirm.
X Press 0007or0006 to select the
Interior Lighting Delay function.
When the Interior Lighting Delay function is activated, the vehicle interior is
displayed in red in the multifunction
display.
X Press the 000Fbutton to save the setting. 234
Menus and submenusOn-board computer and displays

Vehicle
Activating/deactivating the automatic
doo rlocking mechanism
X Press the 0004or0008 button on the
steering wheel to selec tthe Settings menu.
X Press the 0007or0006 button to select the
Vehicle submenu.
X Press the 000Fbutton to confirm.
X Press 0007or0006 to select the
Automatic Door Lock function.
When the Automatic Door Lock function
is activated, the vehicle doors are displayed
in red in the multifunction display.
X Press the 000Fbutton to save the setting.
If you activate the Automatic Door Lock function, the vehicle is centrally locked above
a speed of around 9 mph (15 km/h).
For further information on the automatic
locking feature, see (Y page 92).
Activating/deactivating the acoustic
locking verification signal
If you switch on the Acoustic Lock function,
an acoustic signal sounds when you lock the
vehicle.
X Press the 0004or0008 button on the
steering wheel to select the Settingsmenu.
X Press the 0007or0006 button to select the
Vehicle submenu.
X Press the 000Fbutton to confirm.
X Press the 0007or0006 button to select the
Acoustic Lock function.
If the Acoustic Lock function is activated,
the 000D symbol in the multifunction
display lights up red.
X Press the 000Fbutton to save the setting. Activating/deactivating the radar sensor
system
X
Press the 0004or0008 button on the
steering wheel to select the Settings menu.
X Press the 0007or0006 button to select the
Vehicle submenu.
X Press 000Fto confirm.
X Press the 0006or0007 button to select
Radar Sensor (See Oper. Manual): .
You will see the selected setting Enabled or
Disabled .
X Press the 000Fbutton to save the setting.
The following systems are switched off when
the radar sensor system is deactivated:
R DISTRONIC PLUS (Y page 186)
R BAS PLUS (Y page 74)
R PRE-SAFE ®
Brake (Y page 79)
R Active Blind Spot Assist (Y page 214)
Convenience Activating/deactivating the EASY-
ENTRY/EXIT feature
G
WARNING
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, move
steering wheel adjustment lever or press one
of the memory position buttons.
Do not leave children unattended in the
vehicle, or with access to an unlocked vehicle.
Children could open the driver's door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
X Press the 0004or0008 button on the
steering wheel to select the Sett. menu.
X Press the 0007or0006 button to select the
Convenience submenu.
X Press the 000Fbutton to confirm. Menus and submenus
235On-board computer and displays Z

X
Press 0007or0006 to select the Easy Entry/Exit function.
If the Easy Entry/Exit function is
activated, the vehicle steering wheel is
displayed in red in the multifunction
display.
X Press the 000Fbutton to save the setting.
Further information on the EASY-ENTRY/EXIT
feature (Y page 121).
Switching the belt adjustment on/off
X Press the 0004or0008 button on the
steering wheel to select the Sett. menu.
X Press the 0007or0006 button to select the
Convenience submenu.
X Press the 000Fbutton to confirm.
X Press the 0007or0006 button to select the
Belt Adjustment function.
When the Belt Adjustment function is
activated, the vehicle seat belt is displayed
in red in the multifunction display.
X Press the 000Fbutton to save the setting.
For further information on belt adjustment,
see (Y page 68).
Switching the fold-in mirrors when
locking feature on/off
When you activate the Auto. MirrorFolding function, the exterior mirrors are
folded in when the vehicle is locked. If you
unlock the vehicle and then open a door, the
exterior mirrors fold out again.
X Press the 0004or0008 button on the
steering wheel to select the Sett. menu.
X Press the 0007or0006 button to select the
Convenience submenu.
X Press the 000Fbutton to confirm.
X Press 0007or0006 to select the Auto. Mirror Folding function.
If the Auto. Mirror Folding function is
activated, the vehicle's exterior mirror is
displayed in red in the multifunction
display.
X Press the 000Fbutton to save the setting. 0002
To fold the exterior mirrors in or out
If you have switched on the function and you
fold the exterior mirrors in using button 0002on
the door, they will not fold out automatically
(Y page 122).
You can then only fold out the exterior mirrors
using button 0002. AMG menu in AMG vehicles
AMG displays 0002
Digital speedometer
0003 Gear indicator
0027 Upshift indicator
0026 Engine oil temperature
0024 Coolant temperature
0025 ECO start/stop function status indicator
(Ypage 159)
X Press 0004or0008 on the steering wheel
to select the AMG menu.
Upshift indicator UP 0027
indicates that the
engine has reached the overrevving range
when in the manual gearshift program.
Upshift indicator UP 0027
fades out other
messages until you have shifted up. 236
Menus and submenusOn-board computer and displays

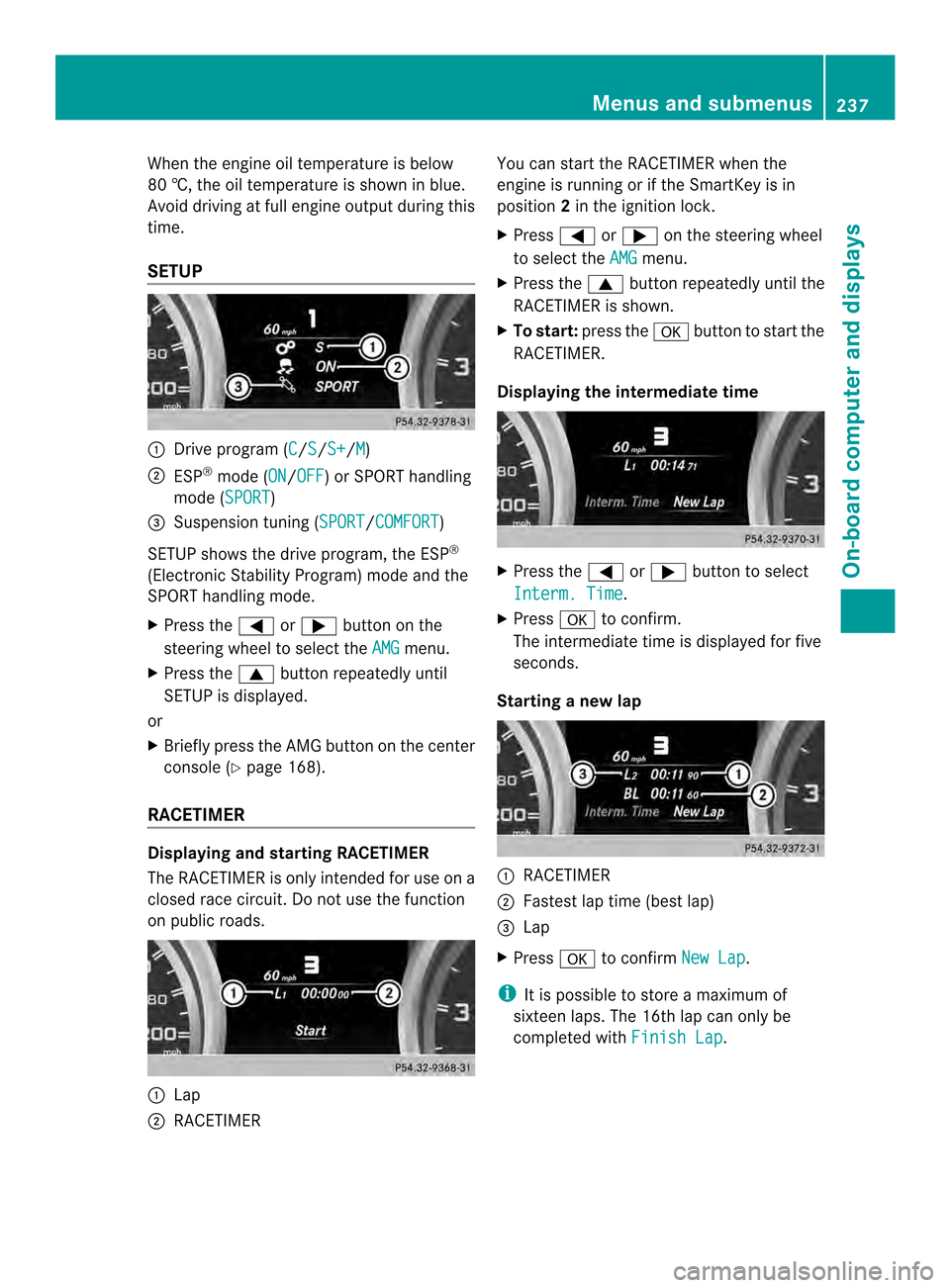

When the engine oil temperature is below
80 †, the oil temperature is shown in blue.
Avoid driving at full engine output during this
time.
SETUP 0002
Drive program (C /S /S+ /M )
0003 ESP ®
mode (ON /OFF ) or SPORT handling
mode (SPORT )
0027 Suspension tuning (SPORT /COMFORT )
SETUP shows the drive program, the ESP ®
(Electronic Stability Program) mode and the
SPORT handling mode.
X Press the 0004or0008 button on the
steering wheel to select the AMG menu.
X Press the 0006button repeatedly until
SETUP is displayed.
or
X Briefly press the AMG button on the center
console (Y page 168).
RACETIMER Displaying and starting RACETIMER
The RACETIMER is only intended for use on a
closed race circuit. Do not use the function
on public roads. 0002
Lap
0003 RACETIMER You can start the RACETIMER when the
engine is running or if the SmartKey is in
position
2in the ignition lock.
X Press 0004or0008 on the steering wheel
to select the AMG menu.
X Press the 0006button repeatedly until the
RACETIMER is shown.
X To start: press the 000Fbutton to start the
RACETIMER.
Displaying the intermediate time X
Press the 0004or0008 button to select
Interm. Time .
X Press 000Fto confirm.
The intermediate time is displayed for five
seconds.
Starting a new lap 0002
RACETIMER
0003 Fastest lap time (best lap)
0027 Lap
X Press 000Fto confirm New Lap .
i It is possible to store a maximum of
sixteen laps. The 16th lap can only be
completed with Finish Lap .Menus and submenus
237On-board computer and displays Z

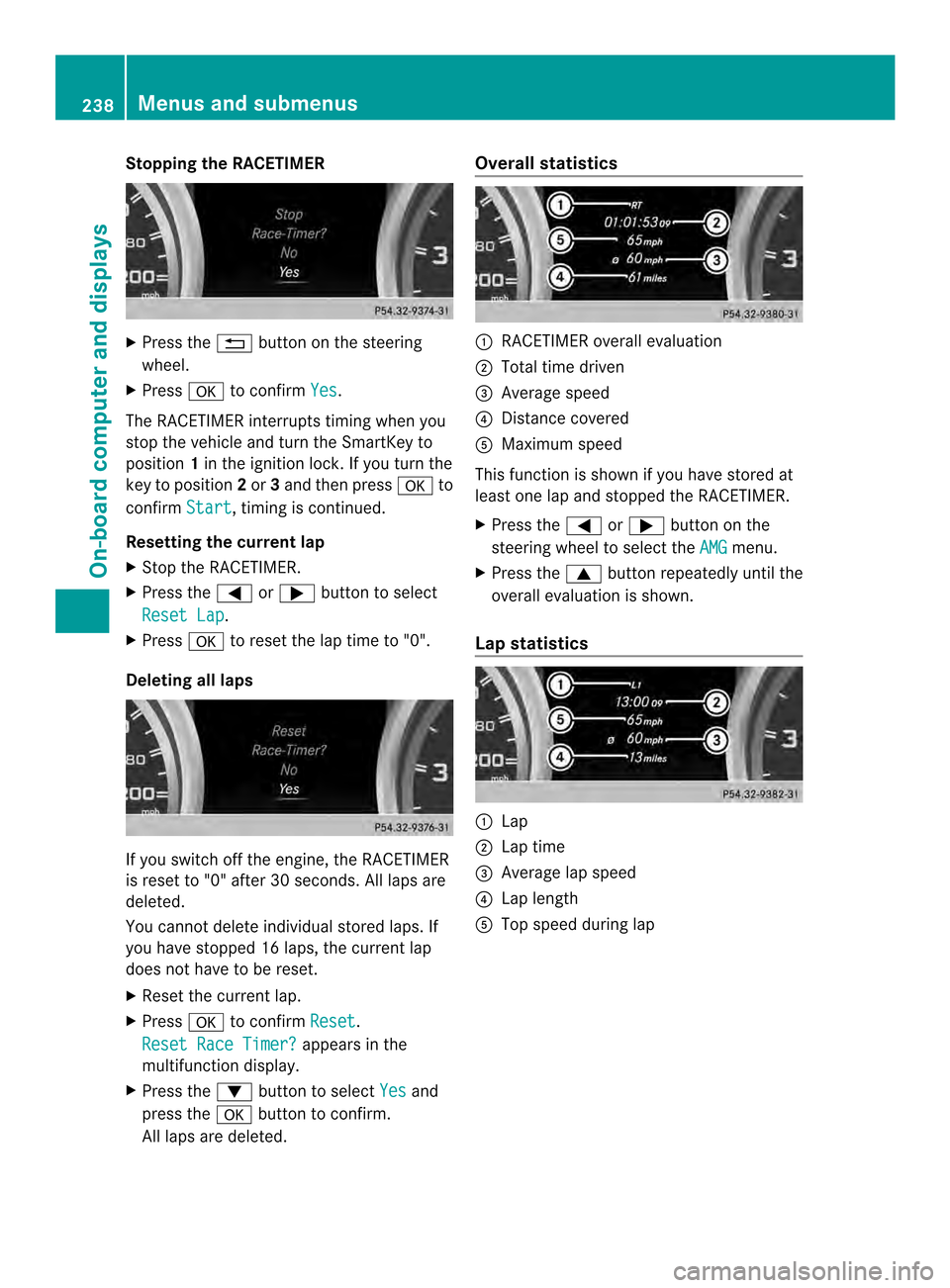

Stopping the RACETIMER
X
Press the 001Fbutton on the steering
wheel.
X Press 000Fto confirm Yes .
The RACETIMER interrupts timing when you
stop the vehicle and turn the SmartKey to
position 1in the ignition lock. If you turn the
key to position 2or 3and then press 000Fto
confirm Start , timing is continued.
Resetting the current lap
X Stop the RACETIMER.
X Press the 0004or0008 button to select
Reset Lap .
X Press 000Fto reset the lap time to "0".
Deleting all laps If you switch off the engine, the RACETIMER
is reset to "0" after 30 seconds. All laps are
deleted.
You cannot delete individual stored laps. If
you have stopped 16 laps, the current lap
does not have to be reset.
X Reset the current lap.
X Press 000Fto confirm Reset .
Reset Race Timer? appears in the
multifunction display.
X Press the 0007button to select Yes and
press the 000Fbutton to confirm.
All laps are deleted. Overall statistics
0002
RACETIMER overall evaluation
0003 Total time driven
0027 Average speed
0026 Distance covered
0024 Maximum speed
This function is shown if you have stored at
least one lap and stopped the RACETIMER.
X Press the 0004or0008 button on the
steering wheel to select the AMG menu.
X Press the 0006button repeatedly until the
overall evaluation is shown.
Lap statistics 0002
Lap
0003 Lap time
0027 Average lap speed
0026 Lap length
0024 Top speed during lap 238
Menus and submenusOn-board computer and displays
