Page 41 of 614
Cockpit................................................. 40
Instrument cluster ..............................41
Multifunction steering wheel .............43
Center console .................................... 44
Overhead control panel ......................47
Door control panel .............................. 48
39
At a glance
Page 42 of 614
Cockpit
FunctionPage
:Steering wheel paddle
shifters
164
;Combination switch125
=Adjusts the steering wheel
electrically
114
?Horn
AInstrument cluster41
BPARKTRONIC warning dis-
play
199
COverhead control panel47
DClimate control systems136
FunctionPage
EIgnition lock151
Start/Stop button152
FCruise control lever180
GActivates Night View Assist
Plus
212
HElectric parking brake172
ILight switch122
JDiagnostics connection34
KOpens the hood536
40Cockpit
At a glance
Page 43 of 614

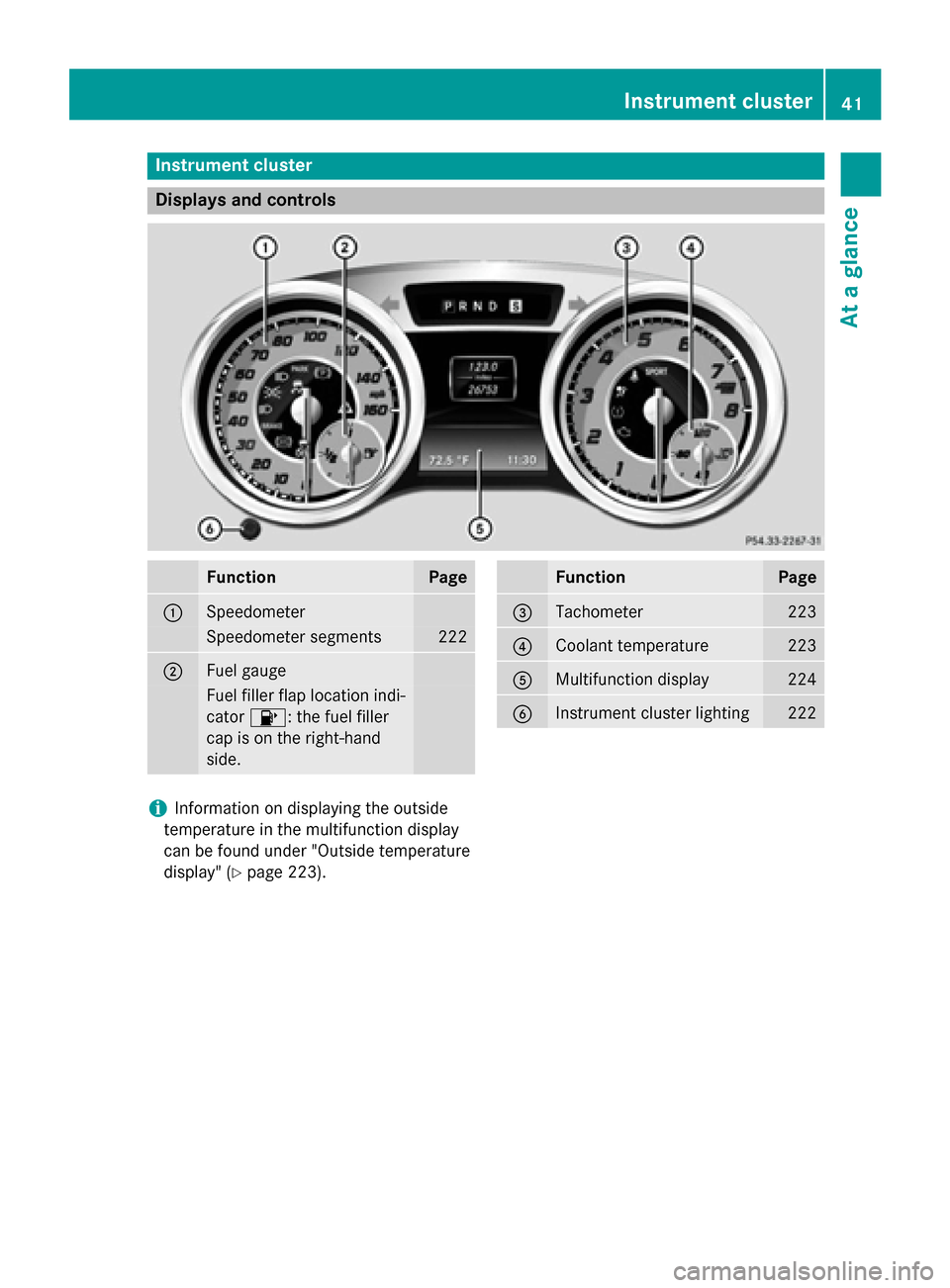

Instrument cluster
Displays and controls
FunctionPage
:Speedometer
Speedometer segments222
;Fuel gauge
Fuel filler flap location ind i-
cator 8: the fuel filler
cap ison the right-hand
side .
FunctionPage
=Tachometer223
?Coolant temperature223
AMultifunction display224
BInstrument cluster lighting222
iInformation on displaying the outside
temperature inthe multifunction display
can befound under "Outside temperature
disp lay" (
Ypage 223).
Instrument cluster41
At a glance
Page 44 of 614
Warning and indicator lamps
FunctionPage
:LLow-beam head-
lamps
123
;T Parking lamps124
=÷ESP®274
?KHigh-beam head-
lamps
125
AElectric parking brake (red)277
F (USA only)
!(Canada only)
B!Electric parking brake
(yellow)
277
C· Distance warning280
D#! Turn signals125
EhTire pressure monitor281
FunctionPage
F6 Restraint system50
GüSeat belt271
HMSPORT handling
mode (Mercedes-AMG
vehicles)
275
I? Coolant278
J;Check Engine278
K8 Reserve fuel278
LåESP®OFF274
M!ABS272
NBrakes272
$(USA only)
J(Canada only)
42Instrument cluster
At a glance
Page 45 of 614

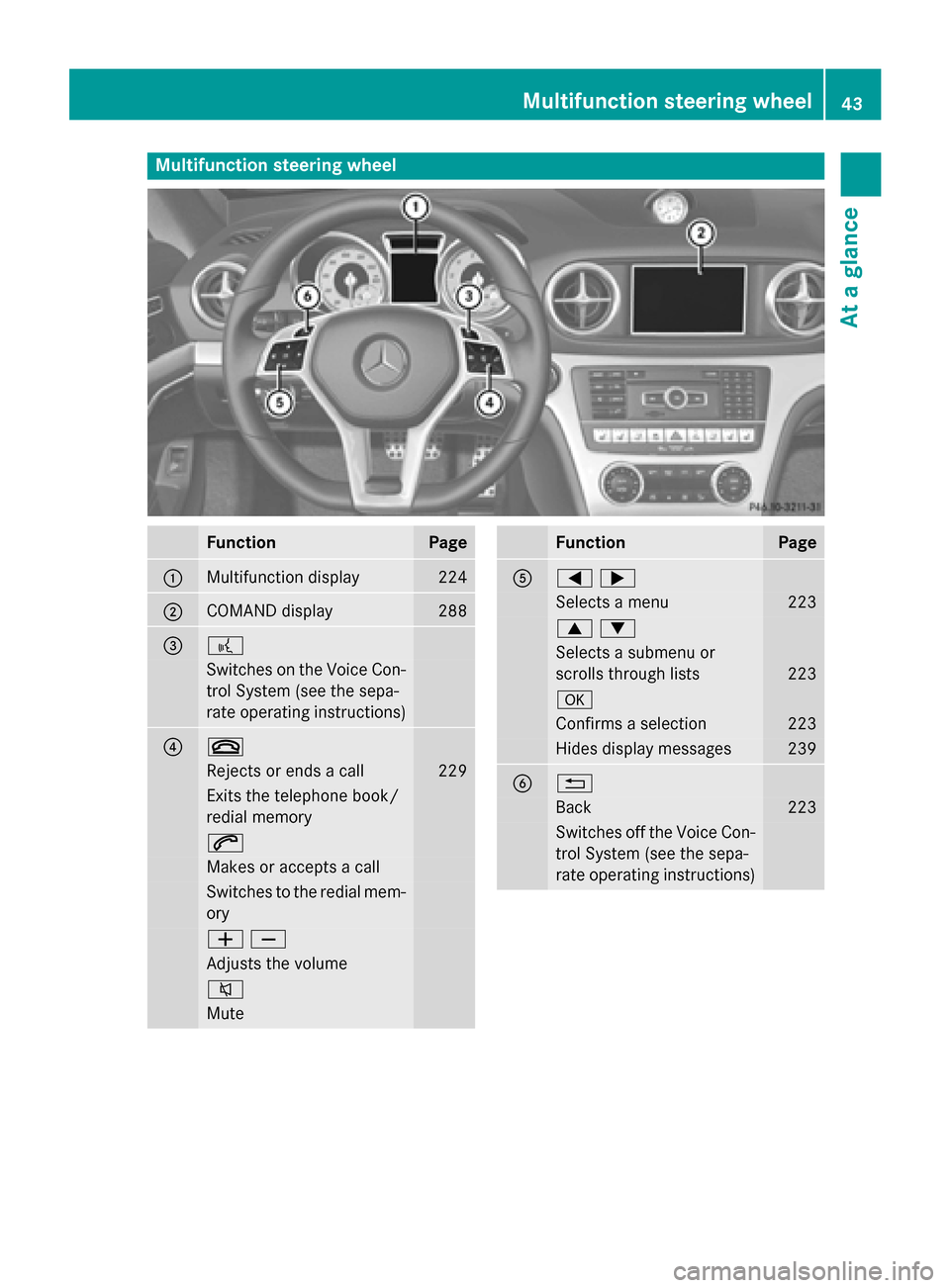

Multifunction steering wheel
FunctionPage
:Multifunction display224
;COMAND display288
=?
Switches on the Voice Con-
trol System (see the sepa-
rate operating instructions)
?~
Rejects or ends a call229
Exits the telephone book/
redial memory
6
Makes or accepts a call
Switches to the redial mem-
ory
WX
Adjusts the volume
8
Mute
FunctionPage
A=;
Selects a menu223
9:
Selects a submenu or
scrolls through lists
223
a
Confirms a selection223
Hides display messages239
B%
Back223
Switches off the Voice Con-
trol System (see the sepa-
rate operating instructions)
Multifunction steering wheel43
At a glance
Page 46 of 614
Center console
Center console, upper section
FunctionPage
:COMAND293
;cSeat heating112
=sSeat ventilation113
?ÒAIRSCARF114
AcPARKTRONIC199
B£Hazard warning
lamps
126
FunctionPage
C4 PASSENGER AIR BAG
ON/OFF indicator lamp
51
Då ESP®(except
Mercedes-AMG vehicles)
74
è ECO start/stop but-
ton (Mercedes-AMG vehi-
cles)
155
44Center console
At a glance
Page 47 of 614
Center console, lower section (except Mercedes-AMG vehicles)
FunctionPage
:Stowage compartment515
Cup holder518
Ashtray520
;COMAND controller294
=Seat adjustment316
?Favorites button311
ARoof switch101
BOpens/closes the side win-
dows
98
CExtends/retracts the wind
screen
104
DStowage compartment with
Media Interface
515
Cigarette lighter520
Socket521
ESelects park position159
FèStart/Stop button155
FunctionPage
GShows the driving condi-
tions menu in the COMAND
display (vehicles with
Active Body Control)
196
HÉAdjusts the vehicle
level (vehicles with Active
Body Control)
194
IAdjusts the suspension set-
tings
193
Sets the suspension tuning
(vehicles with Active Body
Control)
195
JÚ Selects the drive pro-
gram/program selector
button
163
KTransmission positions162
LSelector lever159
Center console45
At a glance
Page 48 of 614

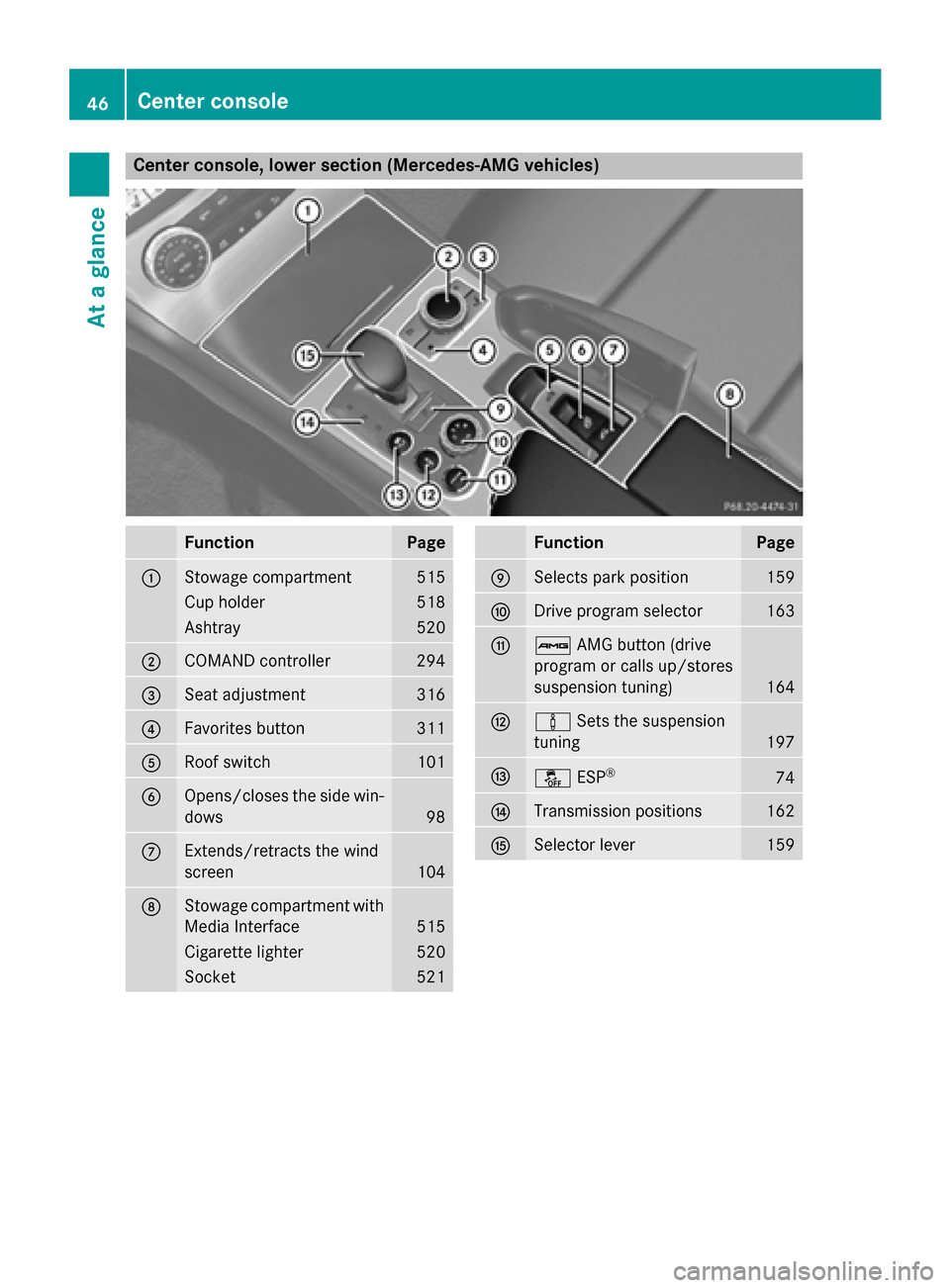

Center console, lower section (Mercedes-AMG vehicles)
FunctionPage
:Stowage compartment515
Cup holder518
Ashtray520
;COMAND controller294
=Seat adjustment316
?Favorites button311
ARoof switch101
BOpens/closes the side win-
dows
98
CExtends/retracts the wind
screen
104
DStowage compartment with
Media Interface
515
Cigarette lighter520
Socket521
FunctionPage
ESelects park position159
FDrive program selector163
GßAMG button (drive
program or calls up/stores
suspension tuning)
164
Hà Sets the suspension
tuning
197
Iå ESP®74
JTransmission positions162
KSelector lever159
46Center console
At a glance
Page 49 of 614

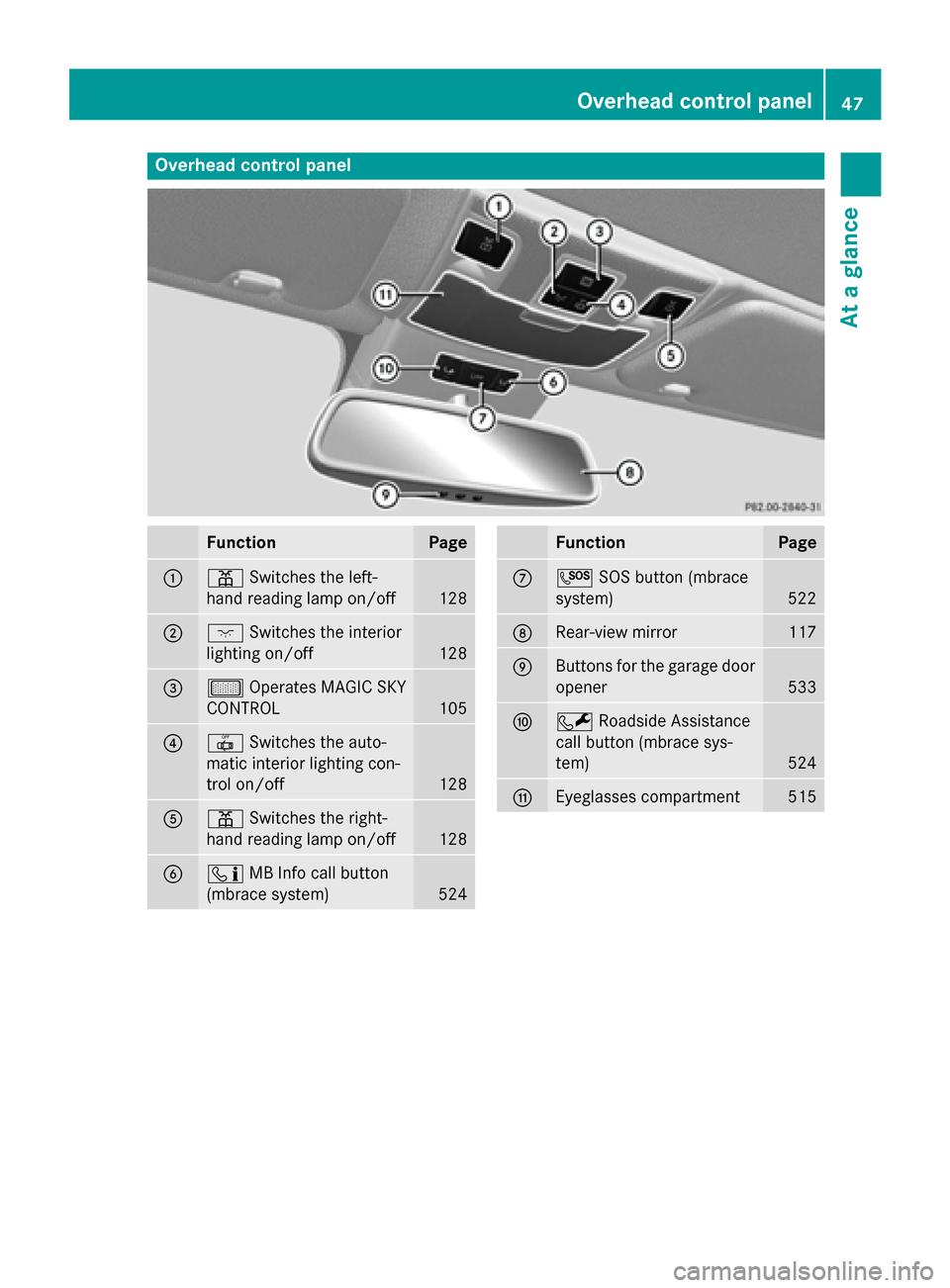

Overhead control panel
FunctionPage
:pSwitches the left-
hand reading lamp on/off
128
;c Switches the interior
lighting on/off
128
=µ Operates MAGIC SKY
CONTROL
105
?| Switches the auto-
matic interior lighting con-
trol on/off
128
Ap Switches the right-
hand reading lamp on/off
128
Bï MB Info call button
(mbrace system)
524
FunctionPage
CG SOS button (mbrace
system)
522
DRear-view mirror117
EButtons for the garage door
opener
533
FF Roadside Assistance
call button (mbrace sys-
tem)
524
GEyeglasses compartment515
Overhead control panel47
At a glance
Page 50 of 614

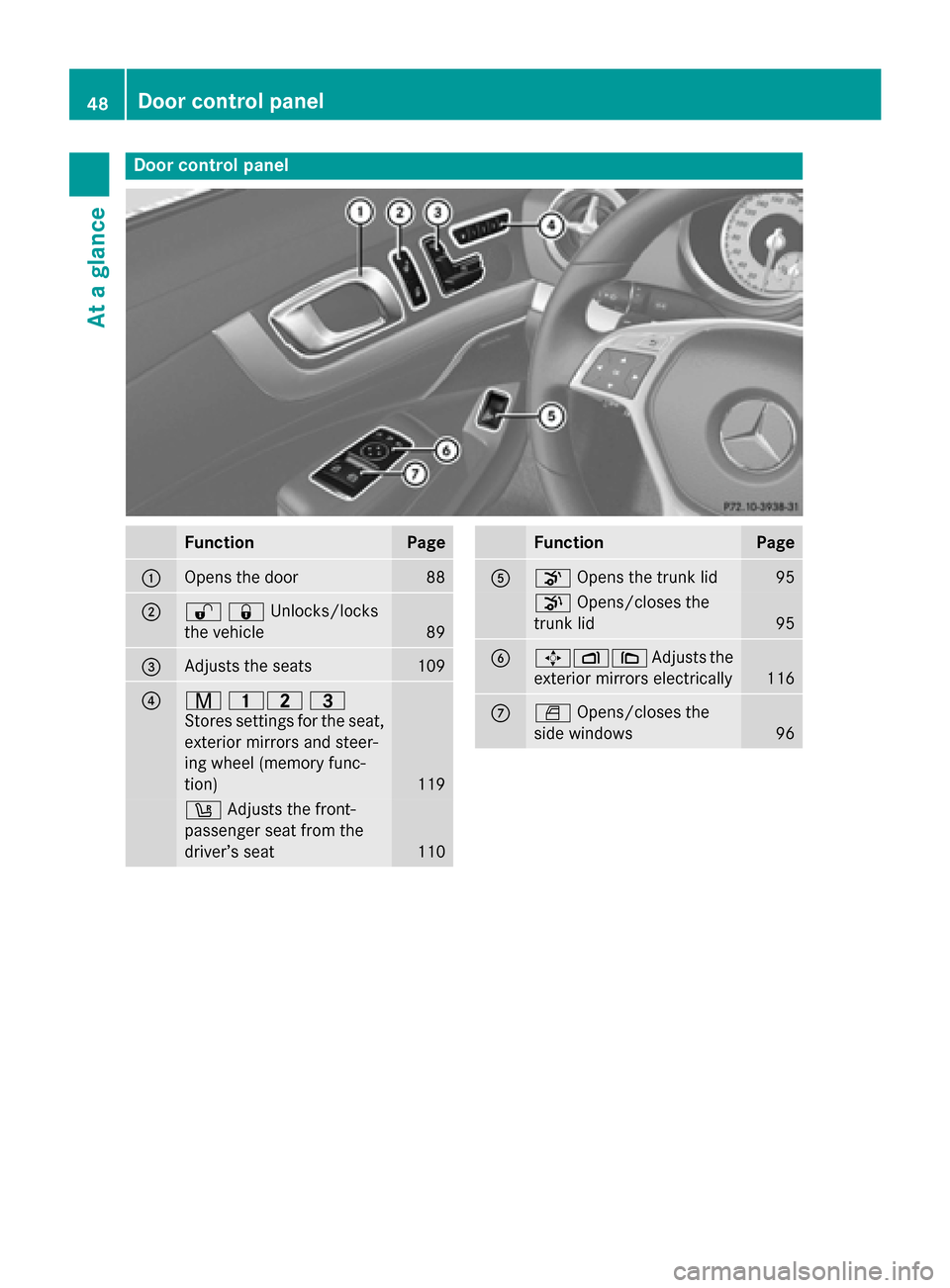

Door controlpanel
FunctionPage
:Opens th edoo r88
;%&Unlocks/locks
the vehicle
89
=Adjusts the seats109
?r 45 =
Stores settings for the seat,
exterior mirrors and steer-
ing wheel (memory func-
tion)
119
w Adjusts the front-
passenger seat from the
driver’s seat
110
FunctionPage
Ao Opens the trunk lid95
pOpens/closes the
trunk lid
95
B7Z\ Adjusts the
exterior mirrors electrically
116
CW Opens/closes the
side windows
96
48Door control panel
At a glance
