MERCEDES-BENZ SL500 2003 R230 Owner's Manual

241 Operation

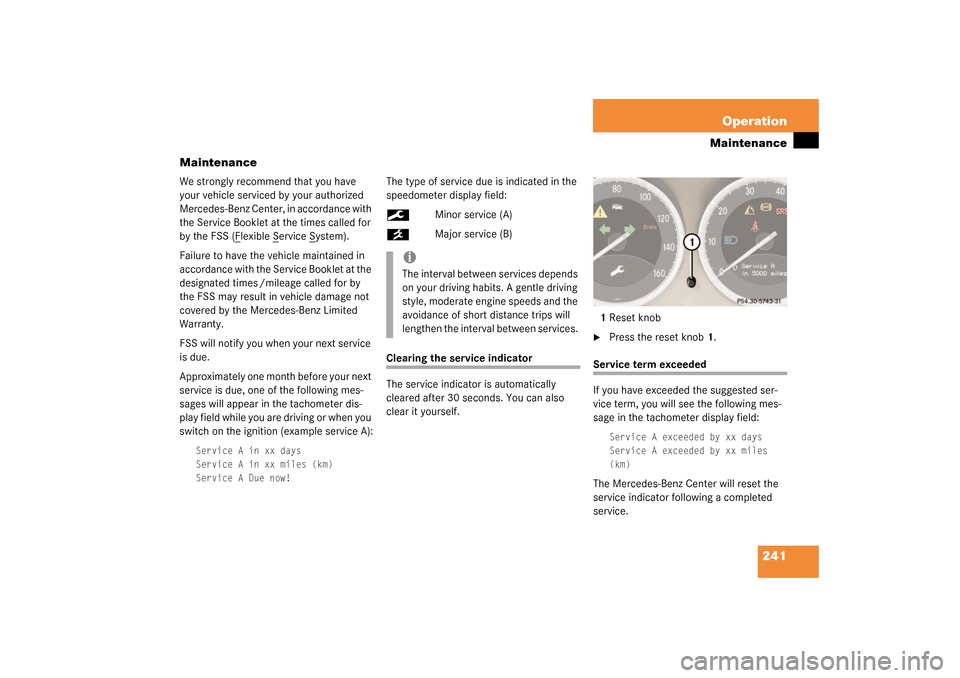

Maintenance
Maintenance
We strongly recommend that you have
your vehicle serviced by your authorized
Mercedes-Benz Center, in accordance with
the Service Booklet at the times called for
by the FSS (F
lexible S
ervice S
ystem).
Failure to have the vehicle maintained in
accordance with the Service Booklet at the
designated times /mileage called for by
the FSS may result in vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.
FSS will notify you when your next service
is due.
Approximately one month before your next
service is due, one of the following mes-
sages will appear in the tachometer dis-
play field while you are driving or when you
switch on the ignition (example service A):
Service A in xx days
Service A in xx miles (km)
Service A Due now!
The type of service due is indicated in the
speedometer display field:9
Minor service (A)
´
Major service (B)
Clearing the service indicator
The service indicator is automatically
cleared after 30 seconds. You can also
clear it yourself.1Reset knob

Press the reset knob1.
Service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the tachometer display field:
Service A exceeded by xx days
Service A exceeded by xx miles
(km)
The Mercedes-Benz Center will reset the
service indicator following a completed
service.
iThe interval between services depends
on your driving habits. A gentle driving
style, moderate engine speeds and the
avoidance of short distance trips will
lengthen the interval between services.

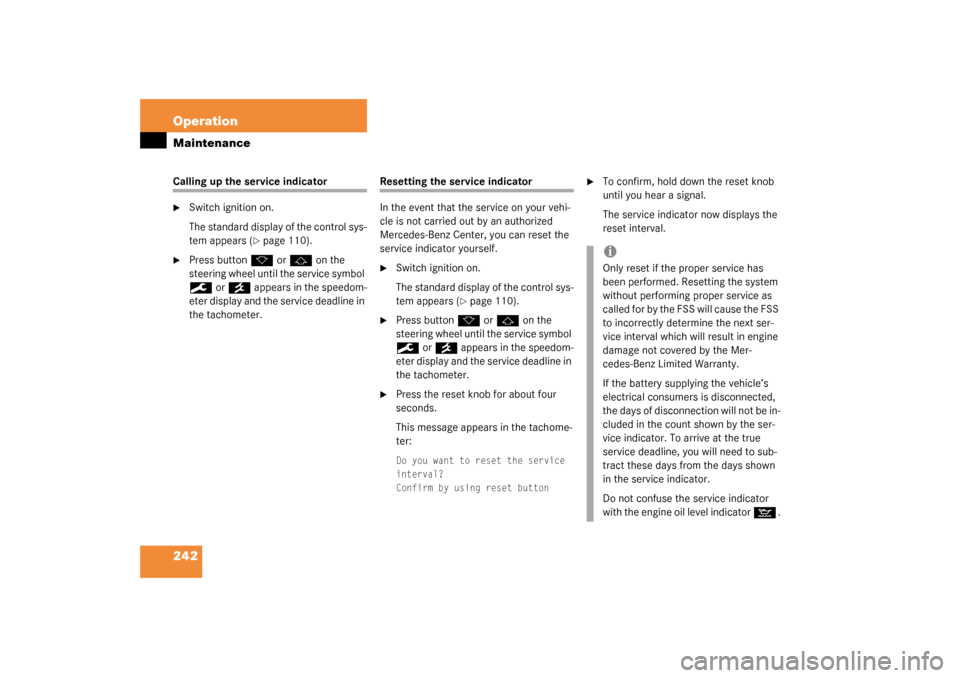

242 OperationMaintenanceCalling up the service indicator
Switch ignition on.
The standard display of the control sys-
tem appears (
page 110).

Press button
k
or
j
on the
steering wheel until the service symbol
9
or
´
appears in the speedom-
eter display and the service deadline in
the tachometer.
Resetting the service indicator
In the event that the service on your vehi-
cle is not carried out by an authorized
Mercedes-Benz Center, you can reset the
service indicator yourself.
Switch ignition on.
The standard display of the control sys-
tem appears (
page 110).

Press button
k
or
j
on the
steering wheel until the service symbol
9
or
´
appears in the speedom-
eter display and the service deadline in
the tachometer.

Press the reset knob for about four
seconds.
This message appears in the tachome-
ter:Do you want to reset the service
interval?
Confirm by using reset button

To confirm, hold down the reset knob
until you hear a signal.
The service indicator now displays the
reset interval.iOnly reset if the proper service has
been performed. Resetting the system
without performing proper service as
called for by the FSS will cause the FSS
to incorrectly determine the next ser-
vice interval which will result in engine
damage not covered by the Mer-
cedes-Benz Limited Warranty.
If the battery supplying the vehicle’s
electrical consumers is disconnected,
the days of disconnection will not be in-
cluded in the count shown by the ser-
vice indicator. To arrive at the true
service deadline, you will need to sub-
tract these days from the days shown
in the service indicator.
Do not confuse the service indicator
with the engine oil level indicator
:
.

243 Operation

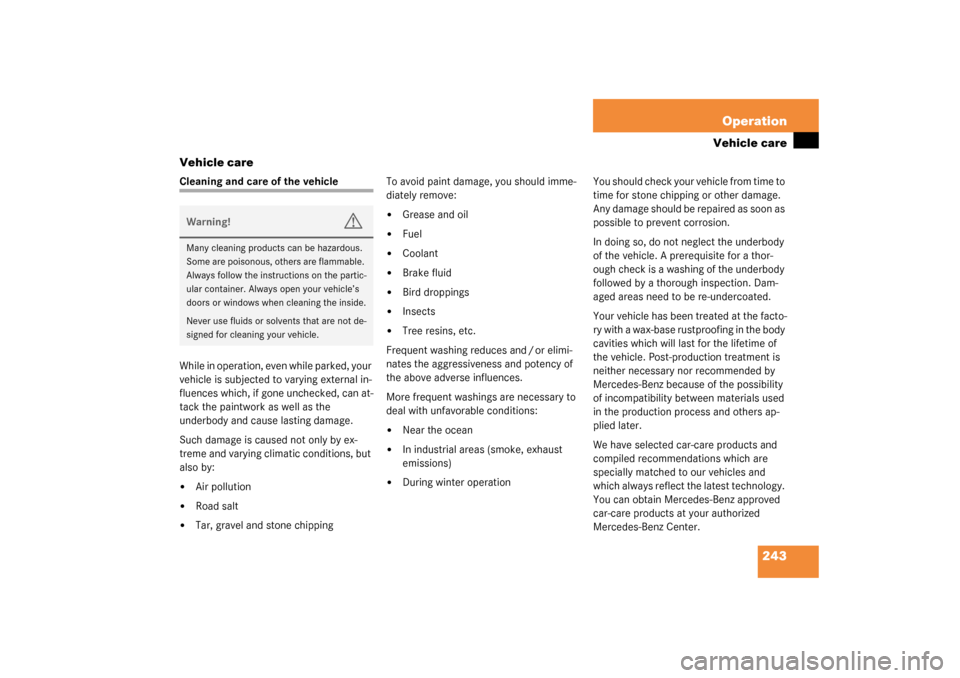

Vehicle care
Vehicle care
Cleaning and care of the vehicle
While in operation, even while parked, your
vehicle is subjected to varying external in-
fluences which, if gone unchecked, can at-
tack the paintwork as well as the
underbody and cause lasting damage.
Such damage is caused not only by ex-
treme and varying climatic conditions, but
also by:

Air pollution


Road salt


Tar, gravel and stone chippingTo avoid paint damage, you should imme-
diately remove:


Grease and oil


Fuel


Coolant


Brake fluid


Bird droppings


Insects


Tree resins, etc.
Frequent washing reduces and / or elimi-
nates the aggressiveness and potency of
the above adverse influences.
More frequent washings are necessary to
deal with unfavorable conditions:


Near the ocean


In industrial areas (smoke, exhaust
emissions)


During winter operationYou should check your vehicle from time to
time for stone chipping or other damage.
A n y d a m a g e s h o u l d b e r e p a i r e d a s s o o n a s
possible to prevent corrosion.
In doing so, do not neglect the underbody
of the vehicle. A prerequisite for a thor-
ough check is a washing of the underbody
followed by a thorough inspection. Dam-
aged areas need to be re-undercoated.
Your vehicle has been treated at the facto-
ry with a wax-base rustproofing in the body
cavities which will last for the lifetime of
the vehicle. Post-production treatment is
neither necessary nor recommended by
Mercedes-Benz because of the possibility
of incompatibility between materials used
in the production process and others ap-
plied later.
We have selected car-care products and
compiled recommendations which are
specially matched to our vehicles and
which always reflect the latest technology.
You can obtain Mercedes-Benz approved
car-care products at your authorized
Mercedes-Benz Center.
Warning!
G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the partic-
ular container. Always open your vehicle’s
doors or windows when cleaning the inside.
Never use fluids or solvents that are not de-
signed for cleaning your vehicle.

244 OperationVehicle careScratches, corrosive deposits, corrosion or
damage due to negligent or incorrect care
cannot always be removed or repaired with
the car-care products recommended here.
In such cases it is best to seek aid at your
authorized Mercedes-Benz Center.
The following topics deal with the cleaning
and care of your vehicle and give important
“how-to” information as well as references
to Mercedes-Benz approved car-care prod-
ucts.
Additional information can be found in the
“Vehicle Care Guide” booklet.
Power washer
When using a power washer for cleaning
the vehicle, always observe manufactur-
er’s operating instructions.
Tar stains
Quickly remove tar stains before they dry
and become more difficult to remove. A tar
remover is recommended.Paintwork, painted body components
Mercedes-Benz approved Paint Care
should be applied when water drops on the
paint surface do not “bead up”, normally
every 3 to 5 months, depending on climate
and washing detergent used.
Mercedes-Benz approved Paint Cleaner
should be applied if the paint surface
shows signs of dirt embedding (i.e. loss of
gloss).
Do not apply any of these products or wax
if your vehicle is parked in the sun or if the
hood is still hot.
Use the appropriate MB-Touch-Up Stick
for quick and provisional repairs of minor
paint damage (i.e. chips from stones, vehi-
cle doors, etc.).
iVehicles with KEYLESS-GO*:
If a door handle is hit by a strong jet of
water, and a KEYLESS-GO* card is in
close proximity, i.e. within approx. 3 ft.
(approx. 1 m), the vehicle could be in-
advertently locked or unlocked.!Never use a round nozzle to power
wash tires. The intense jet of water can
result in damage to the tire.
Always replace a damaged tire.
Always keep the jet of water moving
across the surface. Do not aim directly
at electrical parts, electrical connec-
tors, seals, or other rubber parts.

245 Operation
Vehicle care

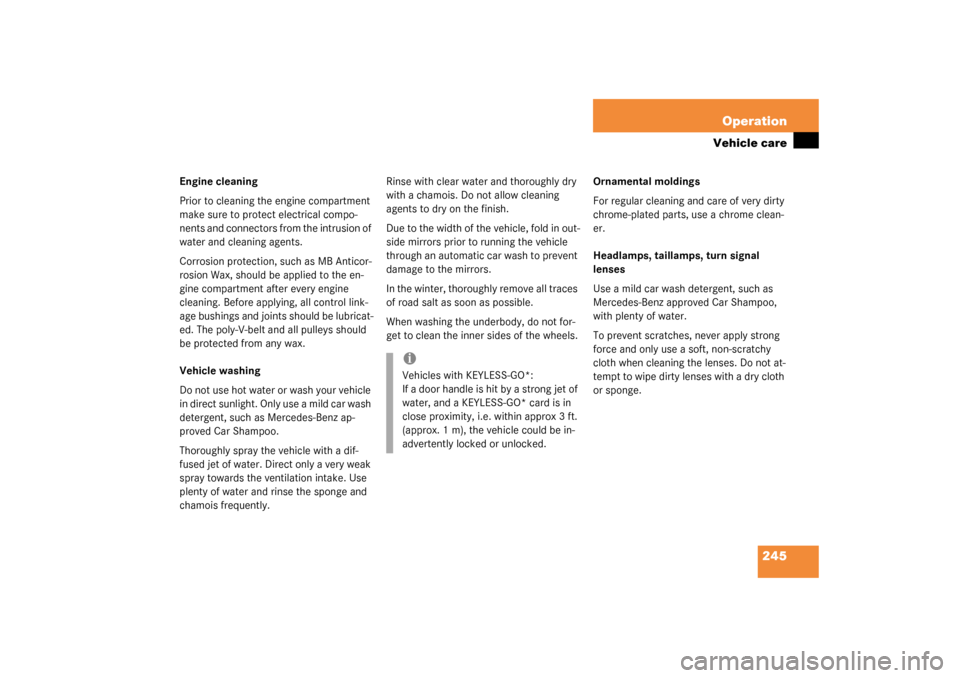

Engine cleaning
Prior to cleaning the engine compartment
make sure to protect electrical compo-
nents and connectors from the intrusion of
water and cleaning agents.
Corrosion protection, such as MB Anticor-
rosion Wax, should be applied to the en-
gine compartment after every engine
cleaning. Before applying, all control link-
age bushings and joints should be lubricat-
ed. The poly-V-belt and all pulleys should
be protected from any wax.
Vehicle washing
Do not use hot water or wash your vehicle
in direct sunlight. Only use a mild car wash
detergent, such as Mercedes-Benz ap-
proved Car Shampoo.
Thoroughly spray the vehicle with a dif-
fused jet of water. Direct only a very weak
spray towards the ventilation intake. Use
plenty of water and rinse the sponge and
chamois frequently.Rinse with clear water and thoroughly dry
with a chamois. Do not allow cleaning
agents to dry on the finish.
Due to the width of the vehicle, fold in out-
side mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the underbody, do not for-
get to clean the inner sides of the wheels.Ornamental moldings
For regular cleaning and care of very dirty
chrome-plated parts, use a chrome clean-
er.
Headlamps, taillamps, turn signal
lenses
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo,
with plenty of water.
To prevent scratches, never apply strong
force and only use a soft, non-scratchy
cloth when cleaning the lenses. Do not at-
tempt to wipe dirty lenses with a dry cloth
or sponge.
iVehicles with KEYLESS-GO*:
If a door handle is hit by a strong jet of
water, and a KEYLESS-GO* card is in
close proximity, i.e. within approx 3 ft.
(approx. 1 m), the vehicle could be in-
advertently locked or unlocked.

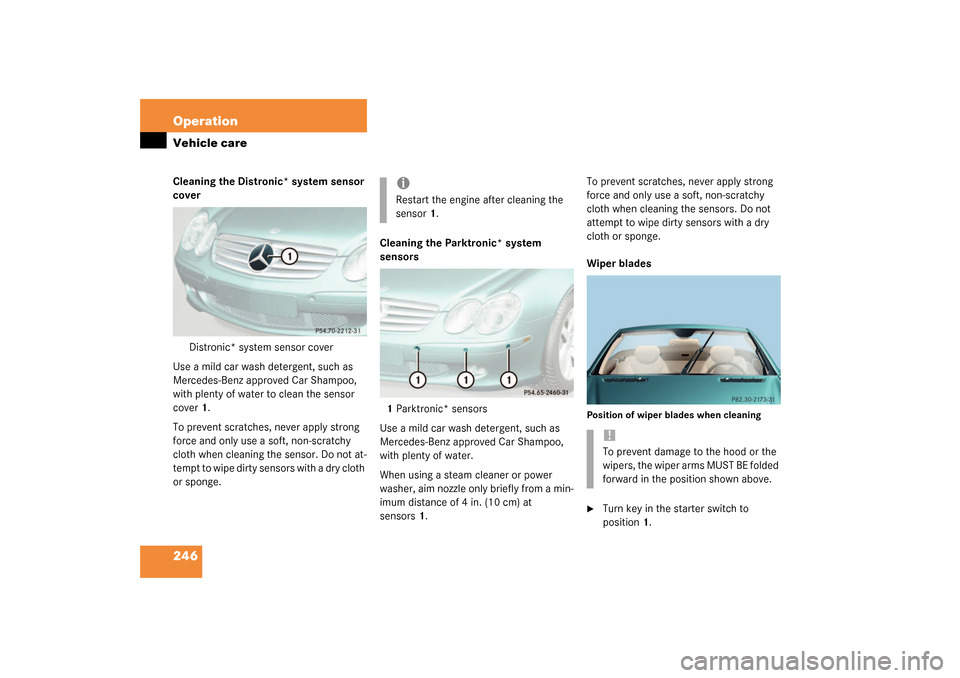

246 OperationVehicle careCleaning the Distronic* system sensor
cover
Distronic* system sensor cover
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo,
with plenty of water to clean the sensor
cover1.
To prevent scratches, never apply strong
force and only use a soft, non-scratchy
cloth when cleaning the sensor. Do not at-
tempt to wipe dirty sensors with a dry cloth
or sponge.Cleaning the Parktronic* system
sensors
1Parktronic* sensors
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo,
with plenty of water.
When using a steam cleaner or power
washer, aim nozzle only briefly from a min-
imum distance of 4 in. (10 cm) at
sensors1.To prevent scratches, never apply strong
force and only use a soft, non-scratchy
cloth when cleaning the sensors. Do not
attempt to wipe dirty sensors with a dry
cloth or sponge.
Wiper blades
Position of wiper blades when cleaning
Turn key in the starter switch to
position1.
iRestart the engine after cleaning the
sensor1.
!To prevent damage to the hood or the
wipers, the wiper arms MUST BE folded
forward in the position shown above.

247 Operation
Vehicle care

Turn combination switch to position1
(page 44).

Once the wiper arms are in the position
shown above, turn key in starter switch
to position0.

Turn combination switch to position0
(page 44).

Clean the wiper blade inserts with a
clean cloth and detergent solution.Window cleaning
Use a window cleaning solution on all glass
surfaces. An automotive glass cleaner is
recommended.Light alloy wheels
Mercedes-Benz approved Wheel Care
should be used for regular cleaning of the
light alloy wheels.
If possible, clean wheels once a week with
Mercedes-Benz approved Wheel Care, us-
ing a soft bristle brush and a strong spray
of water.
Follow instructions on container.
Instrument cluster
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution. Wipe with a cloth moist-
ened in lukewarm solution. Do not use
scouring agents.iFor safety reasons, remove key from
starter switch before cleaning the wip-
er blades. Otherwise, the wiper motor
can suddenly turn on and cause injury.!Fold the windshield wiper arms back
onto the windshield before turning the
key in the starter switch.
iFor safety reasons, switch off wipers
and remove key from starter switch be-
fore cleaning the windshield, otherwise
the wiper motor can suddenly turn on
and cause injury.
iOnly use acid-free cleaning materials.
The acid could lead to corrosion.

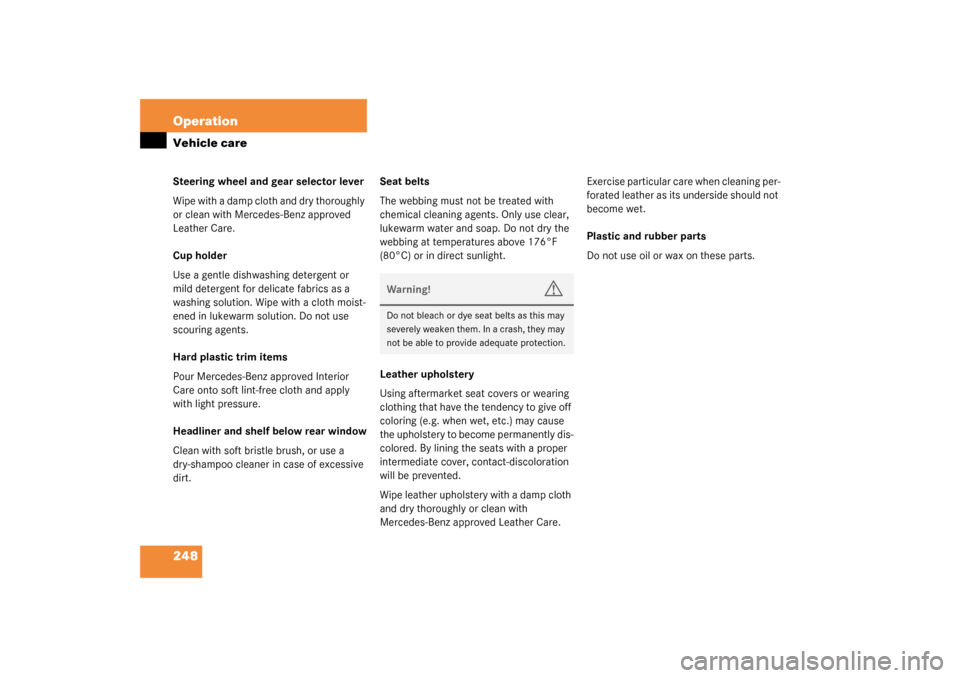

248 OperationVehicle careSteering wheel and gear selector lever
Wipe with a damp cloth and dry thoroughly
or clean with Mercedes-Benz approved
Leather Care.
Cup holder
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution. Wipe with a cloth moist-
ened in lukewarm solution. Do not use
scouring agents.
Hard plastic trim items
Pour Mercedes-Benz approved Interior
Care onto soft lint-free cloth and apply
with light pressure.
Headliner and shelf below rear window
Clean with soft bristle brush, or use a
dry-shampoo cleaner in case of excessive
dirt.Seat belts
The webbing must not be treated with
chemical cleaning agents. Only use clear,
lukewarm water and soap. Do not dry the
webbing at temperatures above 176°F
(80°C) or in direct sunlight.
Leather upholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.
Wipe leather upholstery with a damp cloth
and dry thoroughly or clean with
Mercedes-Benz approved Leather Care. Ex e r c i s e p a r t i cu l a r c a r e w h e n cl e a n i n g p e r -
forated leather as its underside should not
become wet.
Plastic and rubber parts
Do not use oil or wax on these parts.
Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.

249 Practical hints
What to do if …
Where will I find ...?
Locking/unlocking in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Batteries
Jump starting
Towing the vehicle
Fuses

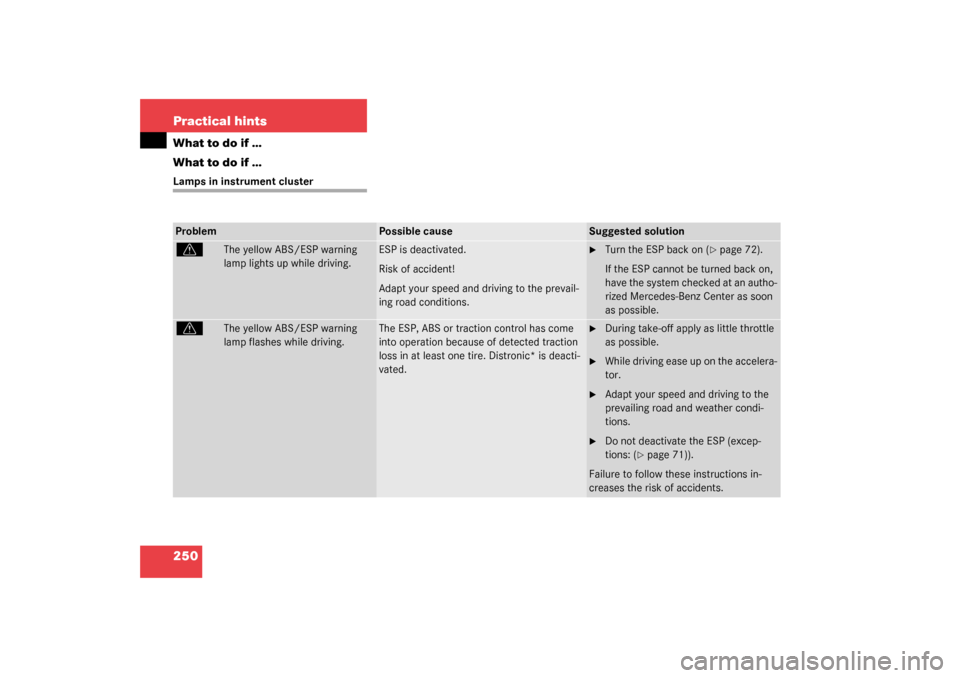

250 Practical hintsWhat to do if …
What to do if …Lamps in instrument clusterProblem
Possible cause
Suggested solution
v
The yellow ABS/ESP warning
lamp lights up while driving.
ESP is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road conditions.

Turn the ESP back on (
page 72).
If the ESP cannot be turned back on,
have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
v
The yellow ABS/ESP warning
lamp flashes while driving.
The ESP, ABS or traction control has come
into operation because of detected traction
loss in at least one tire. Distronic* is deacti-
vated.

During take-off apply as little throttle
as possible.

While driving ease up on the accelera-
tor.

Adapt your speed and driving to the
prevailing road and weather condi-
tions.

Do not deactivate the ESP (excep-
tions: (
page 71)).
Failure to follow these instructions in-
creases the risk of accidents.
