Roll bar MERCEDES-BENZ SL500 2003 R230 Owner's Manual

Contents
Introduction.......................................... 7
Product information ................................ 7
Operator’s Manual .................................. 8
Service and warranty information ..... 8
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles ............. 9
Maintenance .................................. 10
Roadside Assistance ...................... 10
Change of address or ownership.... 10
Operating your vehicle outside the USA
or Canada ...................................... 11
Where to find it .................................... 12
Symbols ............................................... 13
Operating safety .................................. 14
Proper use of the vehicle ............... 14
Problems with your vehicle .................. 15
Reporting safety defects...................... 16
Reporting safety defects ................ 16At a glance......................................... 17
Cockpit ................................................ 18
Instrument cluster ............................... 20
Multifunction steering wheel ............... 22Center console ..................................... 23
Upper part ...................................... 23
Lower part ...................................... 24
Overhead control panel ........................ 25
Door control panel................................ 26
Getting started................................... 27
Unlocking ............................................. 28
Unlocking with the SmartKey.......... 28
Unlocking with KEYLESS-GO* ......... 30
Adjusting .............................................. 32
Seats............................................... 32
Steering wheel ................................ 34
Mirrors ............................................ 35
Driving .................................................. 37
Fastening the seat belts.................. 37
Starting the engine ......................... 39
Switching on headlamps ................. 43
Turn signals and high beam ............ 43
Windshield wipers ........................... 44
Problems while driving .................... 45
Parking and locking .............................. 47
Parking brake.................................. 47
Switching off headlamps................. 48
Turning off engine with the key ....... 48Turning off engine with
KEYLESS-GO* ................................ 49
Emergency engine shut-down ......... 50
Safety and Security........................... 51
Occupant safety ................................... 52
Airbags ........................................... 53
Seat belts ....................................... 58
Roll bar ........................................... 61
Children in the vehicle .................... 62
Panic alarm .......................................... 67
Activating........................................ 67
Deactivating.................................... 67
Driving safety systems ......................... 68
ABS ................................................. 68
BAS ................................................. 69
ESP ................................................. 70
SBC brake system .......................... 72
Anti-theft systems ................................ 75
Immobilizer ..................................... 75
Anti-theft alarm system .................. 75
Tow-away alarm .............................. 77

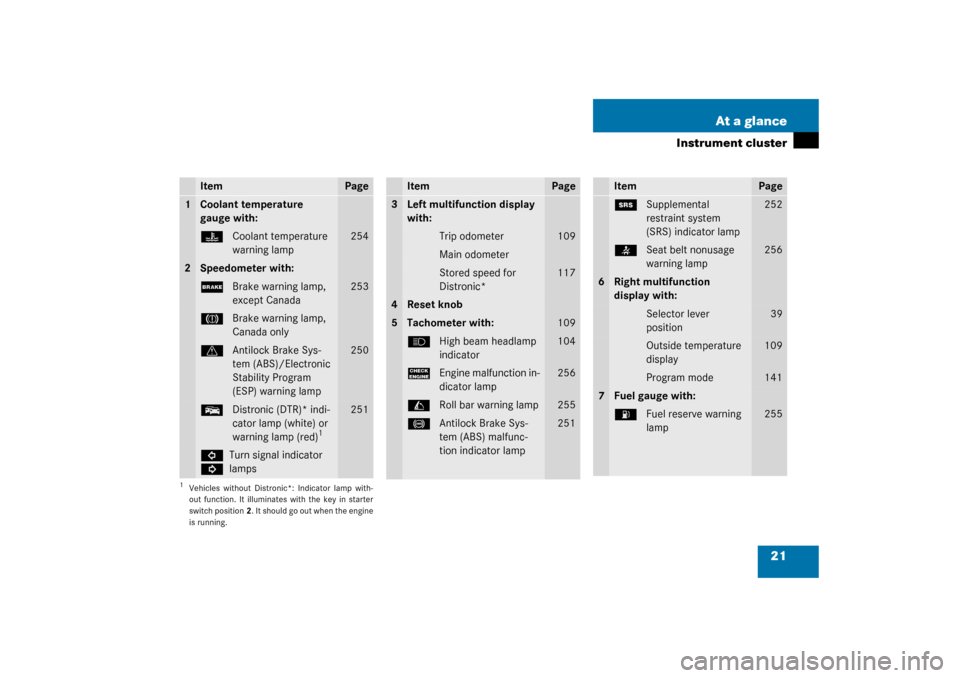

21 At a glance
Instrument cluster
Item
Page
1
Coolant temperature
gauge with:D
Coolant temperature
warning lamp
254
2
Speedometer with:;
Brake warning lamp,
except Canada
253
3
Brake warning lamp,
Canada only
v
Antilock Brake Sys-
tem (ABS)/Electronic
Stability Program
(ESP) warning lamp
250
E
Distronic (DTR)* indi-
cator lamp (white) or
warning lamp (red)
1
1Vehicles without Distronic*: Indicator lamp with-
out function. It illuminates with the key in starter
switch position2. It should go out when the engine
is running.
251
L
K
Turn signal indicator
lamps
Item
Page
3
Left multifunction display
with:
Trip odometer
109
Main odometerStored speed for
Distronic*
117
4
Reset knob
5
Tachometer with:
109
A
High beam headlamp
indicator
104
?
Engine malfunction in-
dicator lamp
256
C
Roll bar warning lamp
255
-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
251
Item
Page
1
Supplemental
restraint system
(SRS) indicator lamp
252
<
Seat belt nonusage
warning lamp
256
6
Right multifunction
display with:
Selector lever
position
39
Outside temperature
display
109
Program mode
141
7
Fuel gauge with:A
Fuel reserve warning
lamp
255

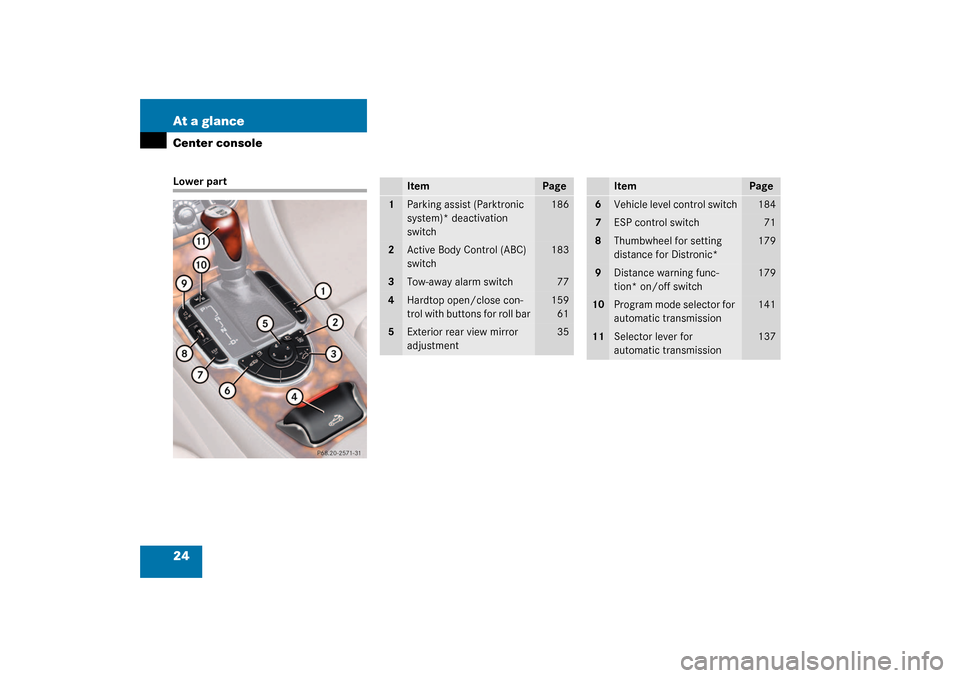

24 At a glanceCenter consoleLower part
Item
Page
1
Parking assist (Parktronic
system)* deactivation
switch
186
2
Active Body Control (ABC)
switch
183
3
Tow-away alarm switch
77
4
Hardtop open/close con-
trol with buttons for roll bar
159
61
5
Exterior rear view mirror
adjustment
35
Item
Page
6
Vehicle level control switch
184
7
ESP control switch
71
8
Thumbwheel for setting
distance for Distronic*
179
9
Distance warning func-
tion* on/off switch
179
10
Program mode selector for
automatic transmission
141
11
Selector lever for
automatic transmission
137

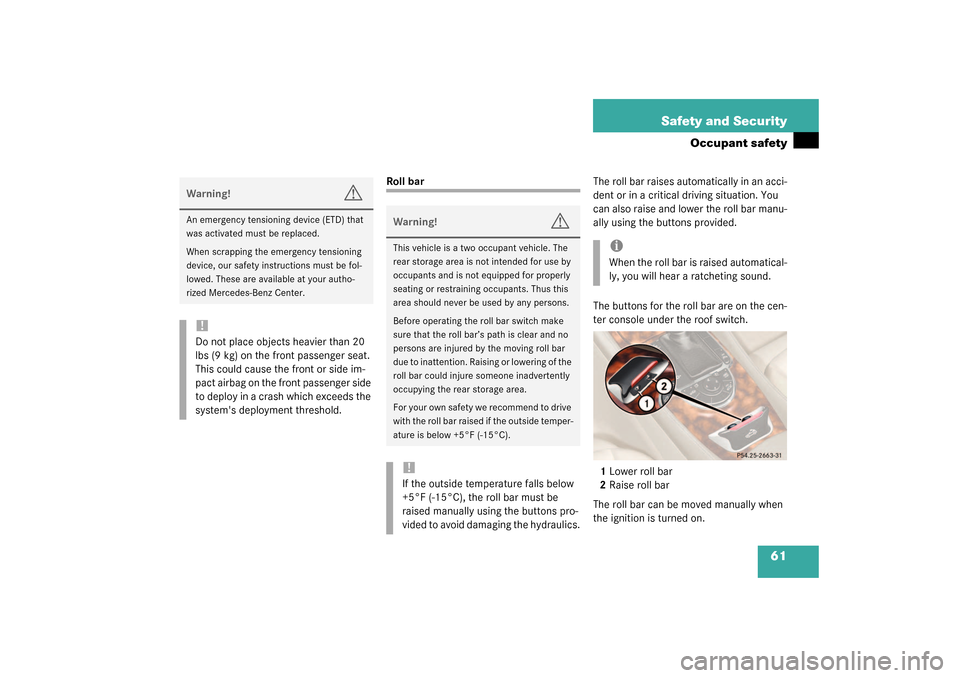

61 Safety and Security
Occupant safety
Roll barThe roll bar raises automatically in an acci-
dent or in a critical driving situation. You
can also raise and lower the roll bar manu-
ally using the buttons provided.
The buttons for the roll bar are on the cen-
ter console under the roof switch.
1Lower roll bar
2Raise roll bar
The roll bar can be moved manually when
the ignition is turned on.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When scrapping the emergency tensioning
device, our safety instructions must be fol-
lowed. These are available at your autho-
rized Mercedes-Benz Center.!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.
Warning!
G
This vehicle is a two occupant vehicle. The
rear storage area is not intended for use by
occupants and is not equipped for properly
seating or restraining occupants. Thus this
area should never be used by any persons.
Before operating the roll bar switch make
sure that the roll bar’s path is clear and no
persons are injured by the moving roll bar
due to inattention. Raising or lowering of the
roll bar could injure someone inadvertently
occupying the rear storage area.
For your own safety we recommend to drive
with the roll bar raised if the outside temper-
ature is below +5°F (-15°C).!If the outside temperature falls below
+5°F (-15°C), the roll bar must be
raised manually using the buttons pro-
vided to avoid damaging the hydraulics.
iWhen the roll bar is raised automatical-
ly, you will hear a ratcheting sound.

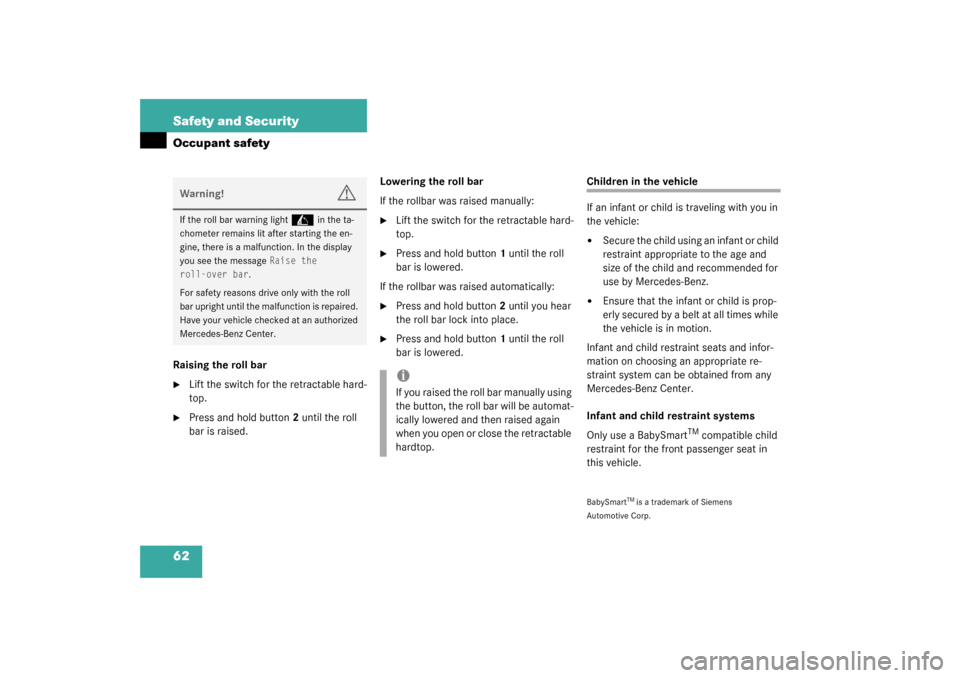

62 Safety and SecurityOccupant safetyRaising the roll bar
Lift the switch for the retractable hard-
top.

Press and hold button2 until the roll
bar is raised.Lowering the roll bar
If the rollbar was raised manually:

Lift the switch for the retractable hard-
top.

Press and hold button1 until the roll
bar is lowered.
If the rollbar was raised automatically:

Press and hold button2 until you hear
the roll bar lock into place.

Press and hold button1 until the roll
bar is lowered.
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child and recommended for
use by Mercedes-Benz.


Ensure that the infant or child is prop-
erly secured by a belt at all times while
the vehicle is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
Mercedes-Benz Center.
Infant and child restraint systems
Only use a BabySmart
TM compatible child
restraint for the front passenger seat in
this vehicle.
BabySmart
TM is a trademark of Siemens
Automotive Corp.
Warning!
G
If the roll bar warning light

in the ta-
chometer remains lit after starting the en-
gine, there is a malfunction. In the display
you see the message
Raise the
roll-over bar
.
For safety reasons drive only with the roll
bar upright until the malfunction is repaired.
Have your vehicle checked at an authorized
Mercedes-Benz Center.
iIf you raised the roll bar manually using
the button, the roll bar will be automat-
ically lowered and then raised again
when you open or close the retractable
hardtop.

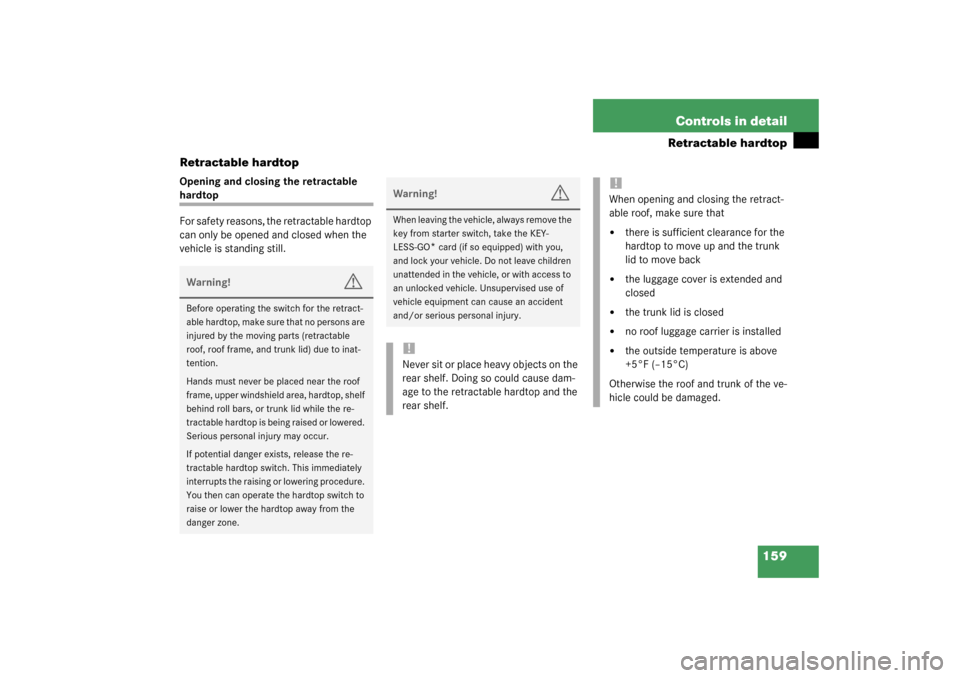

159 Controls in detail
Retractable hardtop
Retractable hardtop
Opening and closing the retractable hardtop
For safety reasons, the retractable hardtop
can only be opened and closed when the
vehicle is standing still.Warning!
G
Before operating the switch for the retract-
able hardtop, make sure that no persons are
injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
tractable hardtop switch. This immediately
interrupts the raising or lowering procedure.
You then can operate the hardtop switch to
raise or lower the hardtop away from the
danger zone.
Warning!
G
When leaving the vehicle, always remove the
key from starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you,
and lock your vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment can cause an accident
and/or serious personal injury.
!Never sit or place heavy objects on the
rear shelf. Doing so could cause dam-
age to the retractable hardtop and the
rear shelf.
!When opening and closing the retract-
able roof, make sure that

there is sufficient clearance for the
hardtop to move up and the trunk
lid to move back


the luggage cover is extended and
closed


the trunk lid is closed


no roof luggage carrier is installed


the outside temperature is above
+5°F (–15°C)
Otherwise the roof and trunk of the ve-
hicle could be damaged.

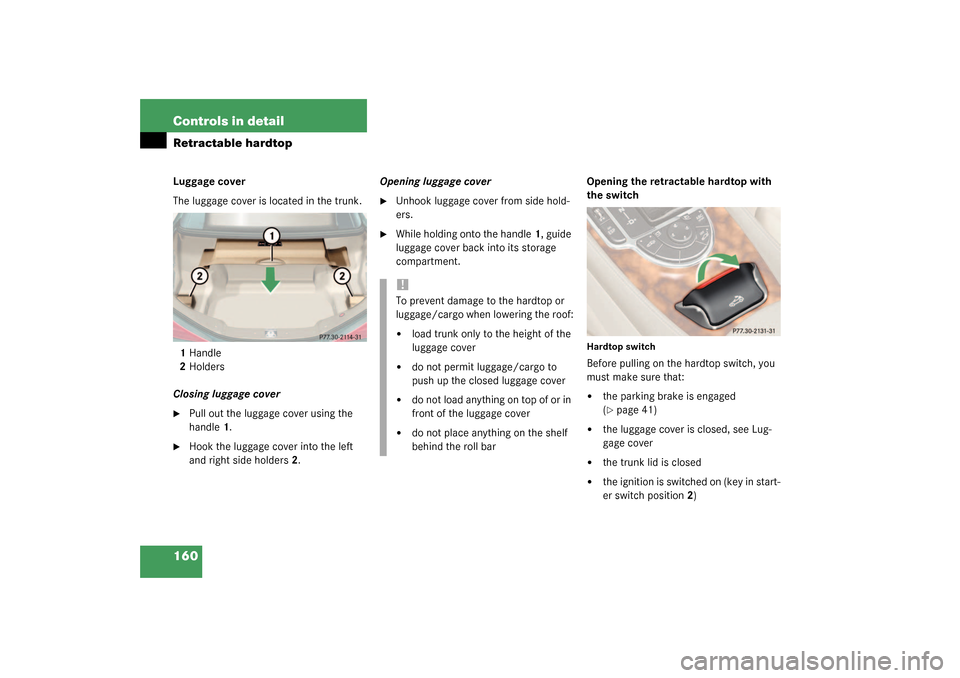

160 Controls in detailRetractable hardtopLuggage cover
The luggage cover is located in the trunk.
1Handle
2Holders
Closing luggage cover
Pull out the luggage cover using the
handle1.

Hook the luggage cover into the left
and right side holders2.Opening luggage cover

Unhook luggage cover from side hold-
ers.

While holding onto the handle1, guide
luggage cover back into its storage
compartment. Opening the retractable hardtop with
the switch
Hardtop switchBefore pulling on the hardtop switch, you
must make sure that:

the parking brake is engaged
(page 41)


the luggage cover is closed, see Lug-
gage cover


the trunk lid is closed


the ignition is switched on (key in start-
er switch position2)
!To prevent damage to the hardtop or
luggage/cargo when lowering the roof:

load trunk only to the height of the
luggage cover


do not permit luggage/cargo to
push up the closed luggage cover


do not load anything on top of or in
front of the luggage cover


do not place anything on the shelf
behind the roll bar

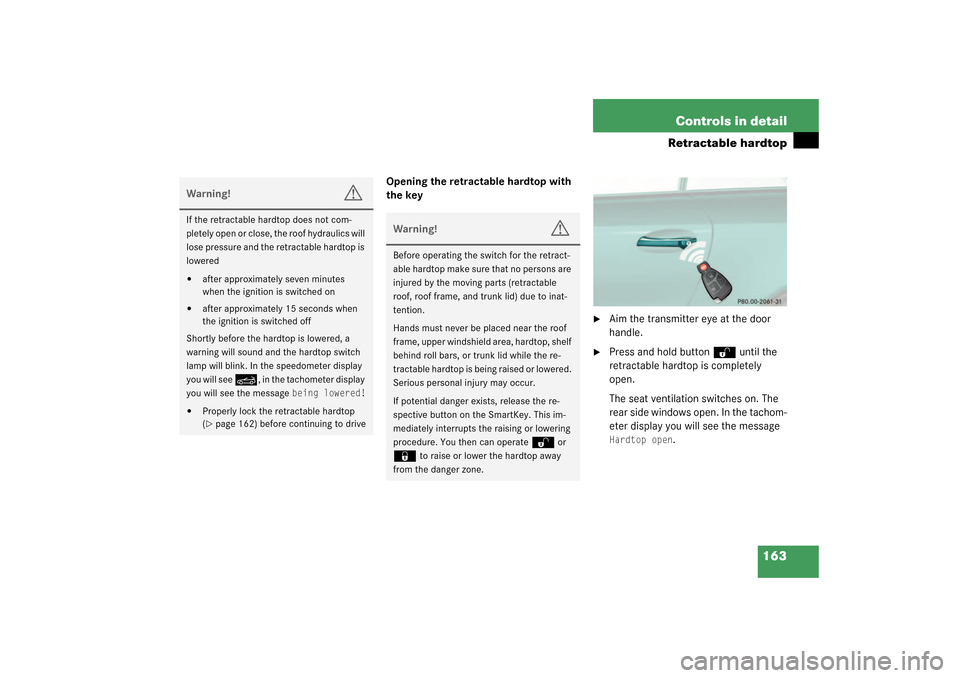

163 Controls in detail
Retractable hardtop
Opening the retractable hardtop with
the key

Aim the transmitter eye at the door
handle.

Press and hold button
Œ
until the
retractable hardtop is completely
open.
The seat ventilation switches on. The
rear side windows open. In the tachom-
eter display you will see the message
Hardtop open
.
Warning!
G
If the retractable hardtop does not com-
pletely open or close, the roof hydraulics will
lose pressure and the retractable hardtop is
lowered

after approximately seven minutes
when the ignition is switched on


after approximately 15 seconds when
the ignition is switched off
Shortly before the hardtop is lowered, a
warning will sound and the hardtop switch
lamp will blink. In the speedometer display
you will see
K
, in the tachometer display
you will see the message
being lowered!


Properly lock the retractable hardtop
(page 162) before continuing to drive
Warning!
G
Before operating the switch for the retract-
able hardtop make sure that no persons are
injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
spective button on the SmartKey. This im-
mediately interrupts the raising or lowering
procedure. You then can operate
Œ
or
‹
to raise or lower the hardtop away
from the danger zone.

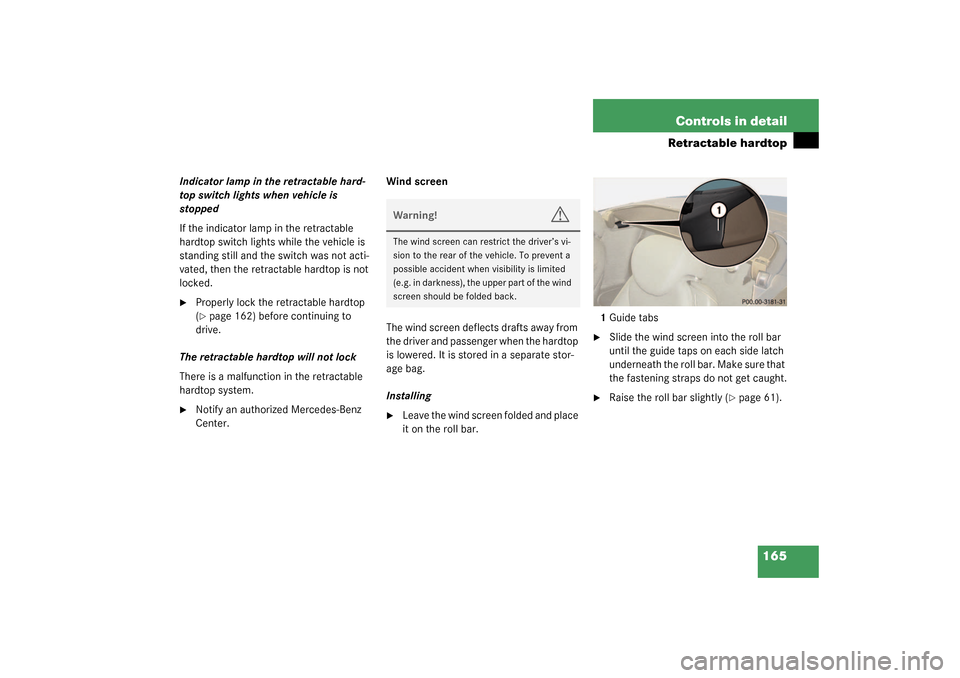

165 Controls in detail
Retractable hardtop
Indicator lamp in the retractable hard-
top switch lights when vehicle is
stopped
If the indicator lamp in the retractable
hardtop switch lights while the vehicle is
standing still and the switch was not acti-
vated, then the retractable hardtop is not
locked.
Properly lock the retractable hardtop
(page 162) before continuing to
drive.
The retractable hardtop will not lock
There is a malfunction in the retractable
hardtop system.

Notify an authorized Mercedes-Benz
Center.Wind screen
The wind screen deflects drafts away from
the driver and passenger when the hardtop
is lowered. It is stored in a separate stor-
age bag.
Installing

Leave the wind screen folded and place
it on the roll bar.1Guide tabs

Slide the wind screen into the roll bar
until the guide taps on each side latch
underneath the roll bar. Make sure that
the fastening straps do not get caught.

Raise the roll bar slightly (
page 61).
Warning!
G
The wind screen can restrict the driver’s vi-
sion to the rear of the vehicle. To prevent a
possible accident when visibility is limited
(e.g. in darkness), the upper part of the wind
screen should be folded back.

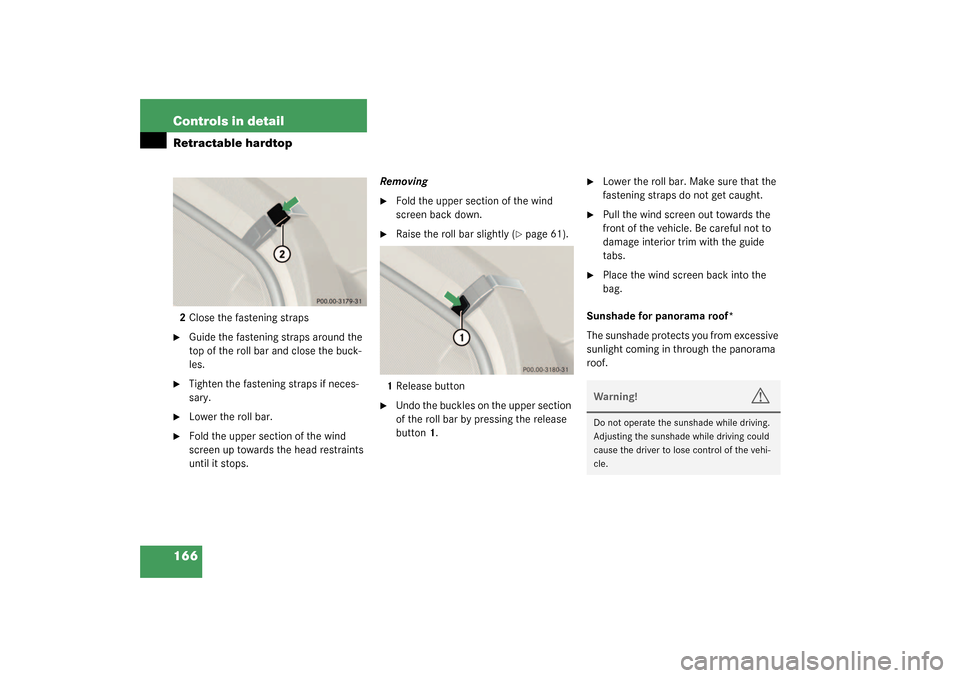

166 Controls in detailRetractable hardtop2Close the fastening straps
Guide the fastening straps around the
top of the roll bar and close the buck-
les.

Tighten the fastening straps if neces-
sary.

Lower the roll bar.

Fold the upper section of the wind
screen up towards the head restraints
until it stops.Removing

Fold the upper section of the wind
screen back down.

Raise the roll bar slightly (
page 61).
1Release button

Undo the buckles on the upper section
of the roll bar by pressing the release
button1.

Lower the roll bar. Make sure that the
fastening straps do not get caught.

Pull the wind screen out towards the
front of the vehicle. Be careful not to
damage interior trim with the guide
tabs.

Place the wind screen back into the
bag.
Sunshade for panorama roof*
The sunshade protects you from excessive
sunlight coming in through the panorama
roof.Warning!
G
Do not operate the sunshade while driving.
Adjusting the sunshade while driving could
cause the driver to lose control of the vehi-
cle.
